Altronix T3HWK75F16, T2HWK7F8 Installation Guide

Access & Power Integration

T2HWK7F8

8 Door Kit with Fused Outputs

Fully assembled kit includes:

- Trove2 enclosure with THW2 Altronix/Honeywell backplane

- One (1) eFlow104NB - Power Supply/Charger

- One (1) ACM8 - Fused Access Power Controller

- One (1) VR6 - Voltage Regulator

- One (1) PDS8 - Dual Input Fused Power Distribution Module

T3HWK75F16

16 Door Kit with Fused Outputs

Fully assembled kit includes:

- Trove3 enclosure with THW3 Altronix/Honeywell backplane and THWD2 Honeywell door backplane

- One (1) eFlow104NB - Power Supply/Charger

- One (1) eFlow102NB - Power Supply/Charger

- Two (2) ACM8 - Fused Access Power Controllers

- One (1) PD8UL - Fused Power Distribution Module

- One (1) RSB2* - Rocker Switch Bracket with Two (2) Rocker Switches (Not evaluated by UL)

All components of these Trove kits are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.

Installation Guide

All registered trademarks are property of their respective owners. More than just power.™

Rev. THWK_042419

Installing Company: _____________________ Service Rep. Name: __________________________________________

Address: ________________________________________________________ Phone #: _________________________

Overview:

Tamper Switch

(provided)

To Access Control Panel or
UL Listed Reporting Device

Edge of

Enclosure

Enclosure

Altronix Trove Honeywell kits are pre-assembled and consist of Trove enclosures/backplanes with factory installed Altronix power
supply/chargers and sub-assemblies. Both kits accommodate a variety of Honeywell modules for up to eight (T2HWK7F8) or sixteen
(T3HWK75F16) doors in a single enclosure.

Configuration Chart:

Nominal DC

Output Voltage

[DC] [Aux]

Output

Range

(VDC)

20.17-

26.4

Output

Range
(VDC)

20.28-

26.4

Fail-Safe/Fail-Secure

or Dry Form “C”

Outputs

Additional Fused

Outputs

ACM8 Board

Input Fuse Rating

8 8

10A/

250V

ACM8 Board

Output Fuse Rating

PDS8 Board

Input Fuse Rating

2.5A/

10A/

250V

32V

PDS8 Board

Output Fuse Rating

PD8UL Board

Output Fuse Rating

3A/

32V

–

Altronix
Model
Number

T2HWK7F8

Power Supply Board

Input Fuse Rating

6.3A/250V

Maximum Supply

Current for Main and

Power Supply board

and ACM8 Access Power

Power Supply Board

Battery Fuse Rating

15A/

32V

Controllers’ outputs

120VAC 60Hz

Input Current (A)

4.5 24VDC @ 9.7A

Aux. Outputs on

T3HWK75F16

eFlow104NB

6.3A/ 250V

eFlow102NB

5A/ 250V

15A/

32V

7.5

24VDC @ 9.4A

12VDC @ 10A

20.17-

26.4

9.7-

13.2

20.28-

26.4

10.03-

13.2

16 8

10A/

250V

2.5A/
250V

– –

3.5A/
250V

Installation Instructions:

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having
jurisdiction. Product is intended for indoor use only.

1. Remove backplane from enclosure. Do not discard hardware.

If your application requires a raised backplane, re-mount it using metal spacers and screws (provided).

2. Mark and predrill holes in the wall to line up with the top two/three keyholes in the enclosure. Install two/three upper fasteners and
screws in the wall with the screw heads protruding. Place the enclosure’s upper keyholes over the two/three upper screws;
level and secure. Mark the position of the lower three holes. Remove the enclosure. Drill the lower holes and install the three
fasteners. Place the enclosure’s upper keyholes over the two/three upper screws. Install the three lower screws and make sure to
tighten all screws.

3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in

Fig. 1

desired location, opposite hinge. Slide the tamper switch bracket onto the edge of the
enclosure approximately 2” from the right side (Fig. 1, pg. 2).
Connect tamper switch wiring to the Access Control Panel input or the appropriate
UL Listed reporting device. To activate alarm signal open the door of the enclosure.

4. Mount Honeywell modules to backplane(s), refer to pages 3, 4, 5.

5. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow104NB,
eFlow102NB and corresponding Sub-Assembly Installation Guides for
ACM8, PDS8, VR6 and PD8UL for further installation instructions.

Hardware:

Nylon Spacer | 5/16” Pan Head Screw | Lock Nut

- 2 - Trove Honeywell Kits

T2HWK7F8: Installation Instructions for Honeywell Access Controllers

Screw

1 2 3 4

ON

1 2 3 4

ON

1. Fasten spacers (provided) into pem configuration (A) or (B) of backplane (Fig. 2, pg. 3).

2. Mount boards to spacers utilizing 5/16” pan head screws (provided) (Fig. 2a, pg. 3).

3. Mount backplane to enclosure with hardware.

Honeywell ProWatch/WinPak Access Controller Position Chart for the Following Models:

Honeywell Board Pem Mounting

3200 Series or WIN-PAK Series A

PW6K1ICE or PW6K1R1E B

Fig. 2

– DC +– BAT +

Altronix

eFlow104NB

A

L G N

B

FACP

TRIGGER

5 6 7 8

Altronix PDS8

<

<

<

1 off 2

1 off 2

1 off 2

Out3

Out4

Out5

>

>

>

INPUT

ON

Altronix

ACM8

DM1 +

<

<

<

1 off 2

1 off 2

1 off 2

Out6

Out7

Out8

>

>

>

Common (--- )

DM2 +

IN GND IN GND IN GND IN GNDIN GND IN GND IN GND IN GND

1 2 3 4

F1 F2 F3 F4 F5 F6 F7 F8

NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM

OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8

DM1 +

OFF

IN1 Fuse

IN1

10

IN2

+ INP1

IN2 Fuse

--

10

+ INP2

<

<

1 off 2

1 off 2

33333333

Out1

--

Out2

>

>

P

OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8

Common (--- )

N

DM2 +

1 2 3 4 5 6 7 8

Common Power Outputs (NEG)

Altronix VR6 mounted under PDS8

B

TRG

+INP- T + RET-

ON

1 2 3 4

FACP INTERFACE

1 2 3 4

NO C NC

MAIN

10A 250V

- + - +
Power Control

A

A

A

Fig. 2a

Pem

Spacer

Pan Head

Trove Honeywell Kits - 3 -

Access Controller

Honeywell

Backplane

T3HWK75F16: Installation Instructions for Honeywell Access Controllers

Screw

1 2 3 4

ON

1 2 3 4

ON

1 2 3 4

ON

1 2 3 4

ON

1. Fasten spacers (provided) into pem configuration (A) or (B) of backplane (Fig. 3, pg. 4).

2. Mount boards to spacers utilizing 5/16” pan head screws (provided) (Fig. 3a, pg. 4).

3. Mount backplane to enclosure with hardware.

Honeywell ProWatch/WinPak Access Controller Position Chart for the Following Models:

Honeywell Board Pem Mounting

3200 Series or WIN-PAK Series A

PRO22MX8 B

Fig. 3

Rocker Switch

A

A

Altronix

eFlow104NB

L G N

Altronix

L G N

1 2 3 4

1 2 3 4

eFlow102NB

IN GND IN GND IN GND IN GNDIN GND IN GND IN GND IN GND

5 6 7 8

IN GND IN GND IN GND IN GNDIN GND IN GND IN GND IN GND

5 6 7 8

RSB2 Bracket

F1 F2 F3 F4 F5 F6 F7 F8

NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM

OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8

F1 F2 F3 F4 F5 F6 F7 F8

NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM

OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8

– DC +– BAT +

--- DC +

--- BAT +

B B

FACP

TRIGGER

TRG

INPUT

TRIGGER
INPUT

ON

1 2 3 4

Altronix

ACM8

FACP

ON

1 2 3 4

Altronix

ACM8

+INP- T + RET-

ON

FACP INTERFACE

1 2 3 4

NO C NC

MAIN

10A 250V

- + - +
Power Control

TRG

+INP- T + RET-

ON

FACP INTERFACE

1 2 3 4

NO C NC

MAIN

10A 250V

- + - +
Power Control

A

A

A

A

LED

INPUT

D1

R1

P N

FUSED POWER OUTPUTS

COMMON POWER OUTPUTS

1 2 3 4 5 6 7 8

N

P

Altronix PD8UL

Fig. 3a

Pem

Spacer

Pan Head

- 4 - Trove Honeywell Kits

Access Controller

Honeywell

Backplane

A

A

A

A

A

A

B

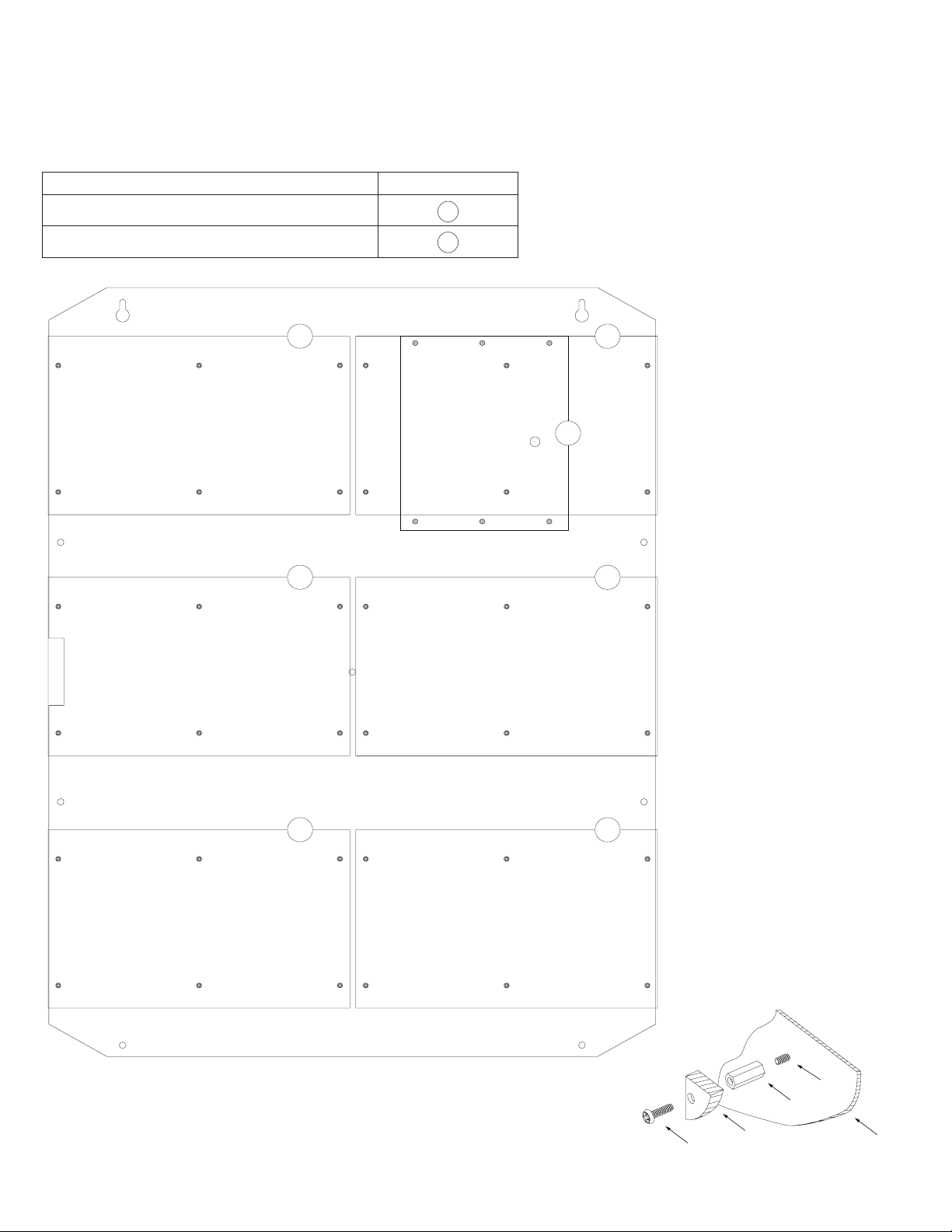

T3HWK75F16: THWD2 (Door Backplane) Configuration of Honeywell ProWatch/WinPak Boards:

Screw

Honeywell ProWatch/WinPak Access Controllers:

1. Fasten spacers (provided) into pem configuration (A) or (B) of backplane (Fig. 4, pg. 5).

2. Mount boards to spacers utilizing 5/16” pan head screws (provided) (Fig. 4a, pg. 5).

3. Mount backplane to enclosure with hardware.

Honeywell ProWatch/WinPak Access Controller Position Chart for the Following Models:

Honeywell Board Pem Mounting

3200 Series or WIN-PAK Series A

PRO22MX8 B

Fig. 4

Trove Honeywell Kits - 5 -

Pan Head

Spacer

Honeywell
Access Controller

Fig. 4a

Pem

Backplane

eFlow Power Supply/Chargers can be Controlled and Monitored while

Reporting Power/Diagnostics from Anywhere over the Network...

LINQ2 - Network Communication Module

LINQ2 provides remote IP access to real-time data from eFlow power supply/chargers to help keep
systems up and running at optimal levels. It facilitates fast and easy installation and set-up, mini­mizes system downtime, and eliminates unnecessary service calls, which helps reduce Total Cost
of Ownership (TCO) - as well as creating a new source of Recurring Monthly Revenue (RMR).

LINQ2

Features:

- UL Listed in the U.S. and Canada.

- Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN.

- Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change,
output state change and unit temperature.

- Access control and user managment: Restrict read/write, Restrict users to specific resources

- Two (2) integral network controlled Form “C” Relays.

- Three (3) programmable input triggers: Control relays and power supplies via external hardware sources.

- Email and Windows Dashboard notifications

- Event log tracks history.

- Secure Socket Layer (SSL).

- Programmable via USB or web browser - includes operating software and 6 ft. USB cable.

LINQ2 Mounts Inside any Trove Enclosure

LINQ2 Module

Network Connection:

Installation, Programming
and Monitoring

Altronix eFlow

Power Supply

- 6 - Trove Honeywell Kits

6.25” (158.8mm)

1.25” (31.8mm)

T2HWK7F8 (Trove2) Enclosure Dimensions (H x W x D approximate):

27.25” x 21.75” x 6.5” (692.2mm x 552.5mm x 165.1mm)

21.50” (546.1mm)

2.00” (50.8mm) 2.00” (50.8mm)

1.25”

(31.8mm)

1.5”

(38.1mm)

5.25” (133.35mm)

0.5625” (14.3mm)

3.5”(88.9mm) 3.5”(88.9mm)

(45mm)

2.415” (61.3mm)

19.80” (502.9mm)

1.77”

5.25” (133.35mm)

0.685” (17.4mm)

Knockouts

1.125” (28.3mm)

0.885” (22.5mm)

6.25” (158.8mm)

2.00” (50.8mm)

6.75” (171.5mm)8.25” (209.5mm)

1.00” (25.4mm)

2.00” (50.8mm)

27” (685.8mm)

0.85” (21.6mm)

5.25” (133.4mm) 5.25” (133.4mm)7.00” (177.8mm)

8.00” (203.2mm)

2.00” (50.8mm)

1.25” (31.8mm)

1.25” (31.8mm)

2.00” (50.8mm)

Trove Honeywell Kits - 7 -

T3HWK75F16 (Trove3) Enclosure Dimensions (H x W x D approximate):

(50.8mm)

1.25” (31.8mm)

2.00” (50.8mm) 7.12” (222.3mm)

9.5” (241.3mm) 9.5” (241.3mm)

36.12” x 30.125” x 7.06” (917.5mm x 768.1mm x 179.3mm)

2.00” (50.8mm)10.75” (273.1mm)10.75” (273.1mm) 10.62” (269.8mm)

1.25” (31.8mm)

1.25” (31.8mm)

1.07”

(27.2mm)

G

G

1.10” (27.9mm)

33.63” (854.2mm)

30.12” (768.1mm)

14.01” (355.9mm)

1.78” (45.2mm)

14.01” (355.9mm)

1.55” (39.4mm)

2” (50.8mm)

10.75” (273.1mm)10.75” (273.1mm) 10.62” (269.8mm)

36.12” (917.5mm)

7.06” (179.3mm)

1.25” (31.8mm)

2”

8.75” (222.3mm)

8.62” (219mm)

8.75” (222.3mm)
