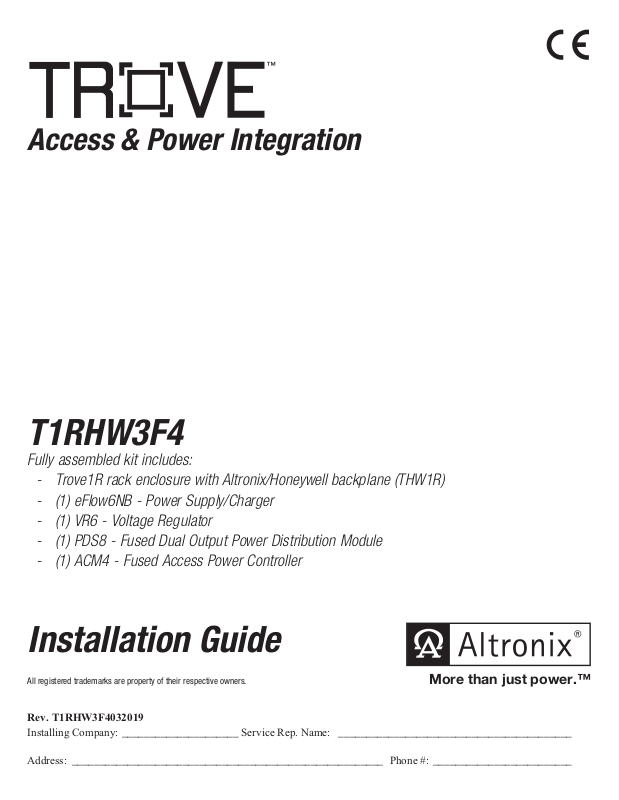

Altronix T1RHW3F4 Installation Guide

Access & Power Integration

T1RHW3F4

Fully assembled kit includes:

- Trove1R rack enclosure with Altronix/Honeywell backplane (THW1R)

- (1) eFlow6NB - Power Supply/Charger

- (1) VR6 - Voltage Regulator

- (1) PDS8 - Fused Dual Output Power Distribution Module

- (1) ACM4 - Fused Access Power Controller

Installation Guide

All registered trademarks are property of their respective owners. More than just power.™

Rev. T1RHW3F4032019

Installing Company: _____________________ Service Rep. Name: __________________________________________

Address: ________________________________________________________ Phone #: _________________________

Overview:

Altronix T1RHW3F4 rack kit is pre-assembled and consists of Trove1HW1R enclosure/backplane with factory installed Altronix power
supply/charger and sub-assemblies. This kit also accommodates various combinations of Honeywell boards for up to four (4) doors in a
single enclosure.

Configuration Chart:

Altronix
Model
Number

T1RHW3F4

120VAC 60Hz P/S

Input Current (A)

Power Supply Board

Input Fuse Rating

3.5

5A/

250V

Nominal DC

Output Voltage

[DC] [Aux]

Power Supply Board

Battery Fuse Rating

24VDC

Output

Range (V)

10A/

32V

20.28-

26.4

24VDC

Output

20.28-

26.4

Maximum Supply

Current for Main and

Aux. Outputs on

Power Supply board,

PDS8 Power Distribution

Module and ACM4

Access Power Controller’s

Range (V)

outputs (A)

24VDC @ 5.6A 2.5

Current Per

ACM4 Output (A)

ACM4 Board

10A/

250V

Input Fuse Rating

ACM4 Board

Output Fuse Rating

Fail-Safe/Fail-Secure

3A/

32V

4

or Dry Form “C”

Outputs

PDS8 Board

Input Fuse Rating

10A/

32VV

3A/

32V

PDS8 Board

Output Fuse Rating

Hardware and Accessories:

Spacer | 5/16” Pan Head Screw | Lock Nut

Specifications:

Agency Listings:

• CE European Conformity.

Mechanical:

• Black enclosure with ample knockouts for convenient access.

• Includes: tamper switch, cam lock and mounting hardware.

• Modular 2U standard EIA 19” drawer with
extendable slides up to 48”.

• Dimensions (H x W x D): 3.25” x 19.0” x 26.5”
(82.6mm x 482.6mm x 673.1mm).

Included Accessories:

• One (1) tamper switch (Altronix Model TS112 or equivalent).

• Cam lock.

Available Accessories (not included):

• RE2: Rack Mount Battery Enclosure
accommodates up to four (4) 12VDC/7AH batteries.

• WM5, WM25, WM100: Magnetic Cable Tie Mounts
(5, 25, 100 counts).

- 2 - T1RHW3F4

Assembling and Attaching Z Bracket Wire Management Accessory (included):

Altronix Trove Rack enclosures include Z Bracket, a convenient and reliable wire management accessory.

1. Carefully unpack Z Bracket. Do not discard hardware (included) (Fig. 1, pg. 3).

2. Attach arms to each other using bolts and lock nuts (Fig. 1a, pg. 3).

3. Attach the hinge brackets to the ends of arms using bolts and nuts positioning them as shown on Fig. 1b, pg. 3.

4. Make sure that all nuts are tightened.

Hardware (included):

Ten (10) bolts and eight (8) lock nuts

Fig. 1a

5. Attach the hinge bracket on the longer side of Z Bracket to the adjustable rail using bolts and lock nuts (included) (Fig. 2, 2a, pg. 3).

6. Attach the hinge bracket on the shorter side of Z Bracket to the rear of the rack enclosure using bolts (included).

Fig. 2

Fig. 1

Two (2)

Fig. 1b

Fig. 2a

T1RHW3F4 - 3 -

Installation Instructions for T1RHW3F4:

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having
jurisdiction. Product is intended for indoor use only.

1. Remove backplane from enclosure prior to installing into rack cabinet (do not discard hardware).

2. In order to mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) turn the enclosure upside down.
Punch out the knockout in designated location, on the back of the unit, from outside of the drawer (Fig. 3, pg. 3).
Insert the tamper switch into the knockout from outside of the drawer with the button facing outwards and spaded connectors inside
the drawer. Connect tamper switch wiring to the Access Control Panel input or the appropriate UL Listed reporting device.
To activate alarm signal open the rack drawer.

3. Slide the Trove rack enclosure into an open 2U location in the rack cabinet.

4. Utilizing proper fasteners attach front ears to the rack rails.

5. Attach the rear of the adjustable slides to the rear rails of the rack cabinet with the proper fasteners.

6. Make sure that all internal cofigurations (wiring, voltage selection, switch settings, etc.) are complete before mounting backplane back
into enclosure.

7. After all components are mounted on the backplane, attach it to the enclosure using included hardware.

8. Mount Honeywell modules to THW1R backplane, refer to page 5.

9. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow6NB and corresponding sub-assembly Installation Guides for
the following models: ACM4(CB), PDS8(CB), VR6 for further instructions.

Fig. 3

Back of the drawer,

viewed from outside.

Tamper Switch mounting location

- 4 - T1RHW3F4

T1RHW3F4: Configuration of Honeywell Boards:

1. Fasten spacers onto metal pems configuration (A) of backplane depending on the access controller (Fig. 4, pg. 5).

2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 4a, pg. 5).

3. Mount backplane to enclosure with hardware.

Access Controller Position Chart for the Following Models:

Honeywell Board Pem Mounting

PRO32E1PS, PRO32IC, PRO32R2, PRO32IN, PRO32OUT, PW6K2E2PS, PW6K1IC,
PW6K1IN, PW6K1OUT, PW6K1R2.

Fig. 4

To IEC

connector

L G N

eFlow6NB

NC C NO

AC FAIL

NC C NO

BAT FAIL

A

AC

DCAC1

1 min

enable

2 hr.

disable

TRIGGER EOL

SUPERVISED

NO GND

RESET

+ AUX ---

--- BAT + --- DC +

PWR1+

+ INP1 - + INP2 -

PDS8(CB)/VR6

PWR1+

A

Fig. 4a

Pan Head Screw

Power Supply or
Sub-Assembly

Spacer

OFF - 24V
ON - 12V

ON

Pem

Backplane

A

P

OUT1

COM(-)

PWR1+

OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8

N

1 2 3 4 5 6 7 8

Common Power Outputs (NEG)

VR6 in mounted under PDS8(CB)

TRIGGER

IN GND

IN GND

1

INPUT

IN GND3IN GND

4

2

ACM4

NC C NO COM

OUTPUT 1

NC C NO COM

OUTPUT 2

NC C NO COM

OUTPUT 3

NC C NO COM

OUTPUT 4

MAIN

P

N

COM(-)

PWR2+

RoHS

TRG

INTERFACE

+ INP --- T + RET ---

FACP

NO C NC

Control

--- +

Power

--- +

ACM4

ACCESS POWER

CONTROLLER

T1RHW3F4 - 5 -

Notes:

- 6 - T1RHW3F4

Notes:

T1RHW3F4 - 7 -

Trove1R Enclosure Dimensions (H x W x D):

3.25” x 19.0” x 26.5” (82.6mm x 482.6mm x 673.1mm). Shown with Z Bracket attached.

26.5”

673.1mm

2.4”

61mm

4.57”

116.1mm

1” (25.4mm)

11.175” (283.8mm)

0.55” (14mm)

R 1.27” (32.3mm)

0.1”

2.5mm

3.62”

92mm

1.5”

38.1mm

19” (482.6mm)

3.25”

82.3mm

Altronix is not responsible for any typographical errors.

140 58th Street, Brooklyn, New York 11220 USA | phone: [phone] | fax: [phone]
web site: www.altronix.com | e-mail: [e-mail] | Made in U.S.A.
IIT1RHW3F4 H21T
