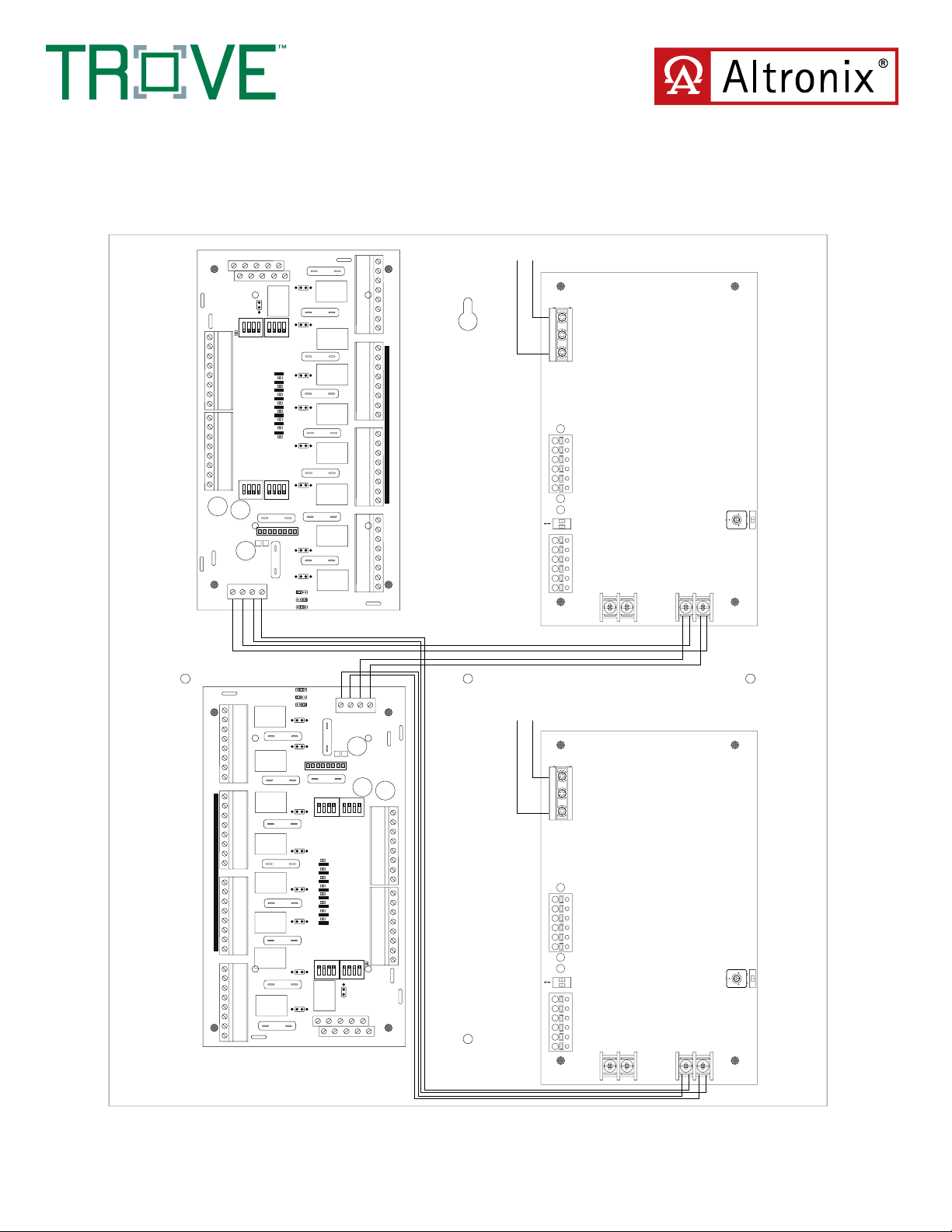

T1RAL33F16
Trove / Altronix Kit
Access & Power Integration Solution
Description
Altronix T1RAL33F16 Trove™ Rack kit is pre-assembled and consists
of Trove1AL1R enclosure/backplane with the following factory installed
Altronix components:
- Two (2) eFlow6NB - power supply/chargers;
- Two (2) ACMS8 - Fused Dual Output Access Power Controllers.
Key Features
T1RAL33F16
- Output Power:
- Sixteen (16) individully selectable 12VDC or 24VDC fused
lock power outputs rated at 12A total max.
- Fire Alarm Disconnect is individually selectable by output.
- Power status LEDs on front panel.
- Simplified board layout and wire management.
- Convenient knockout configuration:
- Six (6) 1.25” diameter knockouts located on the back
of enclosure.
*Altronix Power Supply/Chargers and Sub-Assemblies only
- 6’ IEC320 3-wire power cord.
- 2U drawer on extendable rails.
- Black powder coated steel enclosure.
- Included Z Bracket facilitates ease of wiring.
- Includes cam lock, tamper switch and mounting hardware.
- CE European Conformity.
- Lifetime Warranty* / Made in the U.S.A.
Optional Accessories
- RE2:
Rack Mount Battery Enclosure accommodates up to four (4) 12VDC/7AH batteries.
- WM5, WM25, WM100:
Magnetic Cable Tie Mounts (5, 25, 100 counts).
Rev. T1RAL33F16 -06282020
T1RAL33F16
Trove / Altronix Kit
Access & Power Integration Solution
Specifications
Power Supply/Chargers (two (2) eFlow6NB):
Input
Voltage 120VAC, 60Hz, 7A max.
Input Fuses 5A / 250V.
Outputs
Voltage Factory set:
one (1) eFlow6NB at 12VDC and one (1) at 24VDC.
Current 6A continuous.
Maximum Supply Current for Main and Aux. Outputs on
eFlow6NB Power Supply boards and ACMS8 Access Power Controllers’
outputs is 5.3A @ 12VDC and 5.6A @ 24VDC.
Auxiliary Class 2 power-limited @ 1A (unswitched).
Other Overvoltage protection.
Filtered and regulated.
Battery Backup
Type Sealed lead acid or gel type.
Fuse Rating 10A @ 32VDC.
Failover Upon AC loss, instantaneous.
Fire Alarm Disconnect
Supervised Latching or non-latching.
EOL 10K Resistor.
Supervision
AC Failure Form “C” contacts.
Battery Form “C” contacts.
Low DC Power Shutdown
Shuts down DC output terminals if battery voltage drops below
71-73% for 12V units and 70-75% for 24V units (depending on the
power supply). Prevents deep battery discharge.
Indicators (LED)
Input 120VAC is present.
DC Output Powered.
Battery Discharged or not connected.
Access Power Controllers (two (2) ACMS8):
Input
Voltage 24VDC from one eFlow6NB and
12VDC from another.
Input Fuses 15A / 32V.
Outputs
Voltage 12 or 24VDC individually selectable.
Eight (8) selectable 12VDC or 24VDC independently controlled
outputs or eight (8) indepently controlled Form “C” relay outputs:
a) Fail-Safe and/or Fail-Secure power outputs.
b) Form “C” Relays. 28VAC or VDC @ 2.5A Rated.
c) Auxiliary power outputs (unswitched).
d) Any combination of the above.
Any of the eight (8) fuse protected power outputs are selectable
to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Output Fuses 3A / 32VDC.
Indicators (LED)
Red LEDs Outputs are triggered (relays energized).
Blue LED FACP disconnect is triggered.
Individual voltage LEDs:
Green: 12VDC
Red/Green: 24VDC
T1RAL33F16 Kit:
Agency Listings
CE European Conformity.
Physical and Environmental:
Dimensions (H x W x D):
Modular 2U standard EIA 19” rack mount chassis.
3.25” x 19.0” x 26.5” (82.6mm x 482.6mm x 673.1mm).
Weights:
Product 22 lbs. (9.98 kg).
Shipping 27 lbs. (12.25 kg).
Temperature
Operating 0ºC to 49ºC (32ºF to 120ºF).
Storage -20ºC to 70ºC (-4ºF to 158ºF).
Relative Humidity 85% +/-5%.
BTU/Hr.: 156 BTU/Hr.
T1RAL33F16
Trove / Altronix Kit
Access & Power Integration Solution
PWR1+
+INP2--+INP1-- +INP3-- +INP4-- +INP5-- +INP6-- +INP7-- +INP8--
PWR1+
C GND GND -F -R
EOL JMP
ONON
1234567
123
4
567
ON
Power 1
ACMS8
ACMS8CB
NC RST EOL +F +R
FACP
<-- >
PWR1
8
DIS
FACP
<-- >
EN
OUT8
OUT7
OUT6
OUT5
<-- >
PWR1
OUT4
OUT3
OUT2
OUT1
<-- >
PWR1
NC
<-- >
INP Logic
8
NO
PWR1
ON
15
15
Power 2
<-- >
PWR1
PWR1
PWR2
OFF
FACP
PWR2+
PWR2+
FACP
+PWR1-- +PWR2--
ACMS8
COM--
NO C NC COM NO C NC COM
Output 1Output 2
PWR2
3
COM--
To IEC connector
3
3
PWR2
3
3
PWR2
3
PWR2
3
<-- >
PWR2
3
3
PWR2
OFF
PWR2
PWR1
ACMS8
ACMS8CB
PWR1
<-- >
Power 2
15
Output 7 Output 8
NO C NC COM NO C NC COM
L G N
eFlow6NB
24VDC
Output 5 Output 6
NO C NC COM NO C NC COM
NC C NO
AC FAIL
NC C NO
Output 3Output 4
RISK OF FIRE REPLACE FUSES WITH SAME TYPE AND RATING
NO C NC COM NO C NC COM
Output 1Output 2
NO C NC COM NO C NC COM
COM--
+PWR1-- +PWR2--
BAT FAIL
2 hr.
disable
TRIGGER EOL
SUPERVISED
NO GND
RESET
+ AUX ---
AC
DCAC1
1 min
enable
--- BAT + --- DC +
OFF - 24V
ON - 12V
ON
To IEC connector
PWR2+
PWR1+
L G N
NC C NO
AC FAIL
NC C NO
BAT FAIL
AC
DCAC1
1 min
enable
2 hr.
disable
TRIGGER EOL
SUPERVISED
NO GND
RESET
+ AUX ---
eFlow6NB
12VDC
--- BAT + --- DC +
OFF - 24V
ON - 12V
ON
PWR2
3
3
3
3
PWR1
NO
<-- >
INP Logic
<-- >
NC
PWR2
<-- >
PWR2
<-- >
EN
<-- >
FACP
DIS
PWR2
<-- >
FACP
15
Power 1
ON
ON
4
567
8
PWR1
OUT1
OUT2
OUT3
OUT4
PWR1
OUT5
OUT6
OUT7
OUT8
8
ONON
PWR1
EOL JMP
NC RST EOL +F +R
C GND GND -F -R
123
+INP2--+INP1-- +INP3-- +INP4-- +INP5-- +INP6-- +INP7-- +INP8--
1234567
FACP
PWR2+
PWR1+
FACP
3
NO C NC COM NO C NC COM
RISK OF FIRE REPLACE FUSES WITH SAME TYPE AND RATING
Output 3 Output 4
3
NO C NC COM NO C NC COM
Output 5 Output 6
NO C NC COM NO C NC COM
Output 7 Output 8
3
COM--
ACMS8
T1RAL33F16
Trove / Altronix Kit
Access & Power Integration Solution
26.5”
673.1mm
2.4”
61mm
4.57”
116.1mm
1” (25.4mm)
11.175” (283.8mm)
0.55” (14mm)
R 1.27” (32.3mm)
0.1”
2.5mm
3.62”
92mm
1.5”
38.1mm
3.25”
82.3mm
19” (482.6mm)
