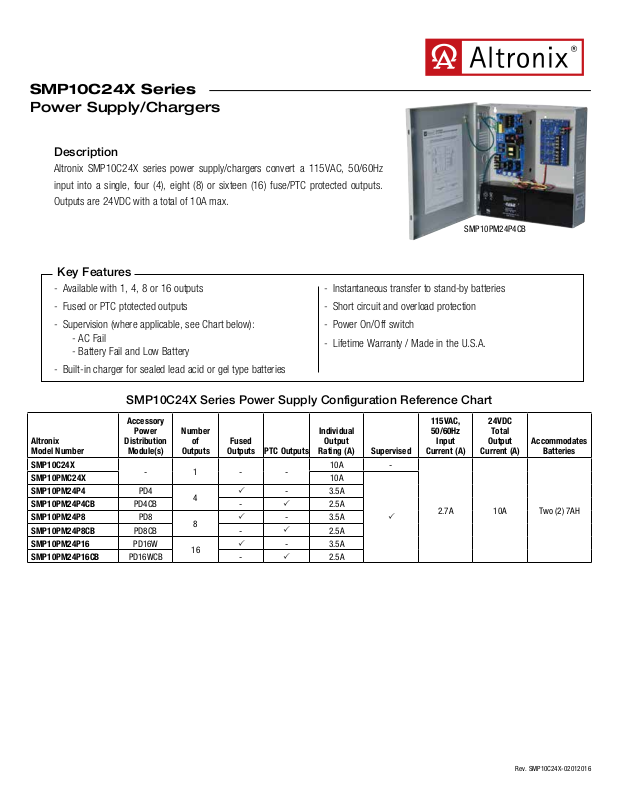

SMP10C24X Series

Power Supply/Chargers

Description

Altronix SMP10C24X series power supply/chargers convert a 115VAC, 50/60Hz

input into a single, four (4), eight (8) or sixteen (16) fuse/PTC protected outputs.

Outputs are 24VDC with a total of 10A max.

Key Features

- Available with 1, 4, 8 or 16 outputs

- Instantaneous transfer to stand-by batteries

SMP10PM24P4CB

- Fused or PTC ptotected outputs

- Supervision (where applicable, see Chart below):

- AC Fail

- Battery Fail and Low Battery

- Built-in charger for sealed lead acid or gel type batteries

SMP10C24X Series Power Supply Configuration Reference Chart

Accessory

Altronix
Model Number

SMP10C24X
SMP10PMC24X
SMP10PM24P4
SMP10PM24P4CB
SMP10PM24P8
SMP10PM24P8CB
SMP10PM24P16
SMP10PM24P16CB

Power

Distribution

Module(s)

- 1 - -

PD4

PD4CB -

PD8

PD8CB -

PD16W

PD16WCB -

Number

of

Outputs

4

8

16

Fused

Outputs PTC Outputs

- Short circuit and overload protection

- Power On/Off switch

- Lifetime Warranty / Made in the U.S.A.

Individual

Output

Rating (A) Supervised

10A ­10A

P

P

P

- 3.5A

P

- 3.5A

P

- 3.5A

P

2.5A

2.5A

2.5A

P

115VAC,
50/60Hz

Input

Current (A)

2.7A 10A Two (2) 7AH

24VDC

Total

Output

Current (A)

Accommodates

Batteries

Rev. SMP10C24X-02012016

SMP1024CX Series

Power Supply/Chargers

Specifications

Input

Voltage 115VAC, 50/60Hz

Outputs

Voltage 24VDC
Current 10A @ 24VDC continuous max
Protection Fused 3.5A / PTC 2.5A
Other Overvoltage protection

Filtered and regulated

Back-up Battery (not included)

Capacity 7AH / 12VDC (2 within enclosure)
40 AH / 65 AH (requires separate enclosure)

Type Sealed lead acid or gel type
Charging current 0.7A
Failover Upon AC loss, instantaneous

Supervision (where applicable)

AC Failure Form “C” contacts
Battery Low/Fail Form “C” contacts

Indicators (LED)

Input 115VAC is present
DC Output Powered

Physical and Environmental

Dimensions (H x W x D)

13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.55mm)

Product Weight / Shipping (approx.)

Model Product Weight Shipping Weight

SMP10(PM)C24X 8.3 lbs. (3.76 kg) 9.3 lbs. (4.22 kg)
SMP10PM24P4(CB) 8.5 lbs. (3.85 kg) 9.5 lbs (4.31 kg)
SMP10PM24P8(CB) 8.6 lbs. (3.90 kg) 9.6 lbs (4.35 kg)
SMP10PM24P16(CB) 8.8 lbs. (3.99 kg) 9.8 lbs. (4.44 kg)

Temperature
Operating 0 to 49º C (32 to 120º F)
Storage -20 to 70º C (-4 to 158º F)
Relative Humidity 85% +/-5%
BTU/Hr:

122.84 BTU/Hr.
