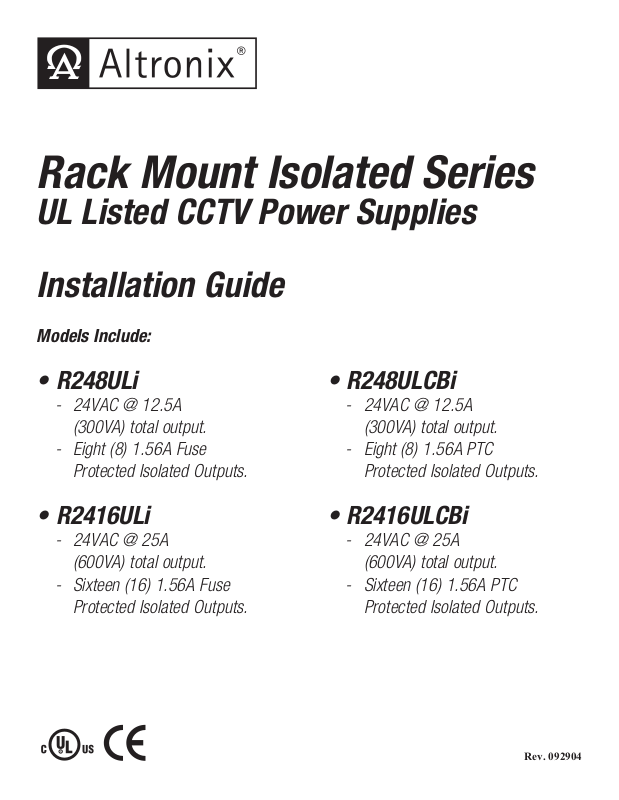

Altronix R248ULCBI, R2416ULCBI, R2416ULI Installation Guide

Rack Mount Isolated Series
UL Listed CCTV Power Supplies
Installation Guide
Models Include:
• R248ULi • R248ULCBi
- 24VAC @ 12.5A - 24VAC @ 12.5A (300VA) total output. (300VA) total output.
• R2416ULi • R2416ULCBi
- 24VAC @ 25A - 24VAC @ 25A (600VA) total output. (600VA) total output.
- Sixteen (16) 1.56A Fuse - Sixteen (16) 1.56A PTC Protected Isolated Outputs. Protected Isolated Outputs.
Rev. 092904
Overview:
These Altronix Rack Mount CCTV Power Supplies provide 24VAC distributed via mutltiple fuse or PTC protected isolated outputs for powering CCTV cameras, heaters, and other video accessories.
UL Listed Isolated Rack Mount Configuration Reference Chart:
Altronix Model Number
R248ULi
R248ULCBi
R2416ULi*
R2416ULCBi*
*Outputs 1-8 provide 12.5A (300VA) max. Outputs 9-16 provide 12.5A (300VA) max.
Output Voltage (VAC)
24VAC
24VAC
24VAC
24VAC
Total Output Current
(Power)
12.5A
(300VA)
12.5A
(300VA)
25A
(600VA)
25A
(600VA)
Number of Outputs
PTC Protected Outputs
(Class 2 power-limited for
Dry locations, Class 3 for
Wet locations).
8 ---
8
16 ---
16
P
P
Fuse Protecte Class 1
Outputs
Output Current
(max per output)
P
--- 1.56A ---
P
--- 1.56A ---
1.56A 3.5A
1.56A 3.5A
Fuse Ratings
Primary In-line Fuse
Ratings
5A/
250V
5A/
250V
5A/
250V
5A/
250V
115VAC 50/60Hz Input
Current
2.7A
2.7A
5.4A
5.4A
Agency Listings
Specifications:
Agency Listings:
• UL Listed for Commercial CCTV Equipment (UL 2044).
• CUL Listed - CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment.
• CE European Conformity.
Input:
• 115VAC, 50/60Hz.
Output:
• Individual electronically isolated outputs.
• 24VAC supply current.
• Surge suppression.
Features:
• Individual power LED indicators.
• Illuminated master power disconnect circuit breaker with manual reset.
• 3-wire grounded line cord.
• Removable terminal blocks with locking screw flange.
• Spare fuses provided.
Mechanical:
• 2U rack mount chassis for use in a standard EIA 19” rack.
• Enclosure Dimensions (H x W x D approx.):
3.26” x 19.125” x 8.5” (83mm x 486mm x 216mm).
Installation Instructions:
1. Mount unit in the desired rack location (Space unit at least 3” from any video monitors).
2. Set power switch on the back of the unit to the OFF position (Fig. 1c, pg. 3).
3. Plug power cord into a grounded 115VAC 50/60 Hz receptacle (Fig. 1b, pg. 3).
4. Set power switch on the back of the unit to the ON (RESET) position and measure output voltage before connecting devices (Fig. 1c, pg. 3). This helps avoiding potential damage. All terminals with common suffix (P) “1P, 2P...” are the same phasing.
5. Set power switch on the back of the unit to the OFF position (Fig. 1c, pg. 3).
6. Connect devices to the removable terminal blocks marked [1P & 1N through 16P & 16N] (Fig. 1a, pg. 3). When wiring is completed on thge terminal blocks they can be locked down by tightening screw flanges.
7. Upon completion of the wiring, set power switch on the back of the unit to the ON (RESET) position (Fig. 1c, pg. 3).
8. Green power LEDs on faceplate will illuminate when AC power is present. When an output is in a trouble condition (blown fuse or tripped PTC), the corresponding LED will not be illuminated (Fig. 1, pg. 3). a. Blown fuse (R248ULi & R2416ULi) - Set power switch the on back of the unit to the OFF position (Fig. 1c, pg. 3). Remove front faceplate to access fuses. Replace with fuses rated @ 3.5A/250VA (Altronix model # Fuse1). b. Tripped PTC (R248ULCBi & R2416ULCBi) - To reset PTC, set power switch on the back of the unit to the OFF position. After approximately 30 secs. set power switch to the ON (RESET) position (Fig. 1c, pg. 3).
- 2 - R248/2416ULi series
9. Power switch with built-in circuit breaker: OFF position - Switch not illuminated. Outputs not powered. RESET (ON) position - Switch illuminated. Outputs powered. Circuit breaker tripped - Switch not illuminated. Power LEDs on faceplate are not illuminated. Outputs not powered. To reset circuit breaker set power switch to the ON (RESET) position (Fig. 1c, pg. 3).
CAUTION: Equipment to be installed/serviced by authorized personnel only. Shut brunch circuit power berfore servicing/installing equipment. WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture. This installation should be made by qualified service personnel and should conform to all local codes and in accordance with the National Electrical Code.
Fuse ratings:
3.5A 250V
5A 250V
Fig. 1
Replace output fuses with the same type and rating 3.5A/250V.
Replace primary in-line fuse with the same type and rating 5A/250V.
The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the user to the presence of an insulated DANGEROUS VOLTAGE within the product’s enclosure that may be of sufficient magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
CAUTION: To reduce the risk of electric shock do not open enclosure. There are no user serviceable parts inside. Refer servicing to qualified service personnel.
Fig. 1a
Removable Terminal
Block
Fig. 1b Fig. 1c
Strain Relief
Line Cord
5A
250V
Illuminated
Power Disconnect
Circuit Breaker with
manual reset
XFMR*
Fig. 1d
(Green Wire Earth GND)
AC Power
LED's
XFMR*
AC Power
LED's
AC Power
LED's
ALTRONIX CORP.
BROOKLYN, NY 11220
MADE IN USA
PTC1
Used
on PTC
Models
R248/2416ULi series - 3 -
AC Power
LED's
3.26"
82.8mm
8.5"
215.9mm
Rack Mechanical Drawing and Dimensions (H x W x D):
3.26” x 19.125” x 8.5” (83mm x 486mm x 216mm)
17.625"
447.8mm
19.125"
0.75"
19.05mm
Altronix is not responsible for any typographical errors.
Altronix Corp. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com. Lifetime Warranty, Made in U.S.A.
- 4 - R248/2416ULi series
IIR248/2416 UL Listed Isolated Rack Mount Series D11P
485.8mm
