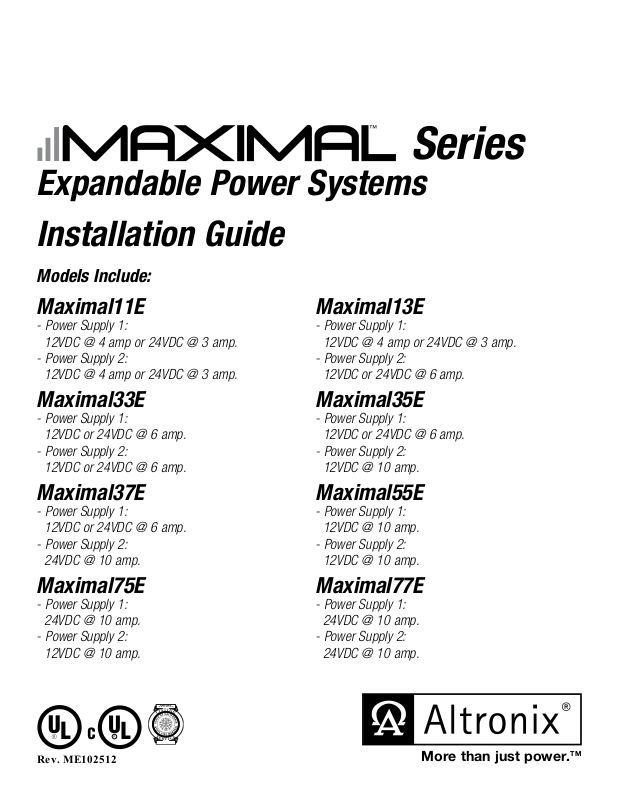

Altronix MAXIMAL75E, MAXIMAL55E, MAXIMAL37E, MAXIMAL33E, MAXIMAL13E Installation Manual
...Page 1
Series
Expandable Power Systems
Installation Guide
Models Include:
Maximal11E
- Power Supply 1:
12VDC @ 4 amp or 24VDC @ 3 amp.
- Power Supply 2:
12VDC @ 4 amp or 24VDC @ 3 amp.
Maximal33E
- Power Supply 1:
12VDC or 24VDC @ 6 amp.
- Power Supply 2:
12VDC or 24VDC @ 6 amp.
Maximal37E
- Power Supply 1:
12VDC or 24VDC @ 6 amp.
- Power Supply 2:
24VDC @ 10 amp.
Maximal75E
- Power Supply 1:
24VDC @ 10 amp.
- Power Supply 2:
12VDC @ 10 amp.
Maximal13E
- Power Supply 1:
12VDC @ 4 amp or 24VDC @ 3 amp.
- Power Supply 2:
12VDC or 24VDC @ 6 amp.
Maximal35E
- Power Supply 1:
12VDC or 24VDC @ 6 amp.
- Power Supply 2:
12VDC @ 10 amp.
Maximal55E
- Power Supply 1:
12VDC @ 10 amp.
- Power Supply 2:
12VDC @ 10 amp.
Maximal77E
- Power Supply 1:
24VDC @ 10 amp.
- Power Supply 2:
24VDC @ 10 amp.
Rev. ME102512
Altronix Corp.
140 58th St. Brooklyn, NY
More than just power.
TM
Page 2
Table of Contents:
MaximalE Overview ........................................................................................................ 3
MaximalE Series Configuration Chart ............................................................................ 3
MaximalE Features ....................................................................................................... 3-4
MaximalE Installation Instructions ................................................................................. 4
Maintenance ..................................................................................................................... 4
Power Supply Board Terminal Identification ................................................................. 5
Power Supply Board Stand-by Battery Specifications .................................................... 5
Power Supply Board LED Diagnostics ........................................................................... 6
Power Supply Board Output Voltage Settings ................................................................ 6

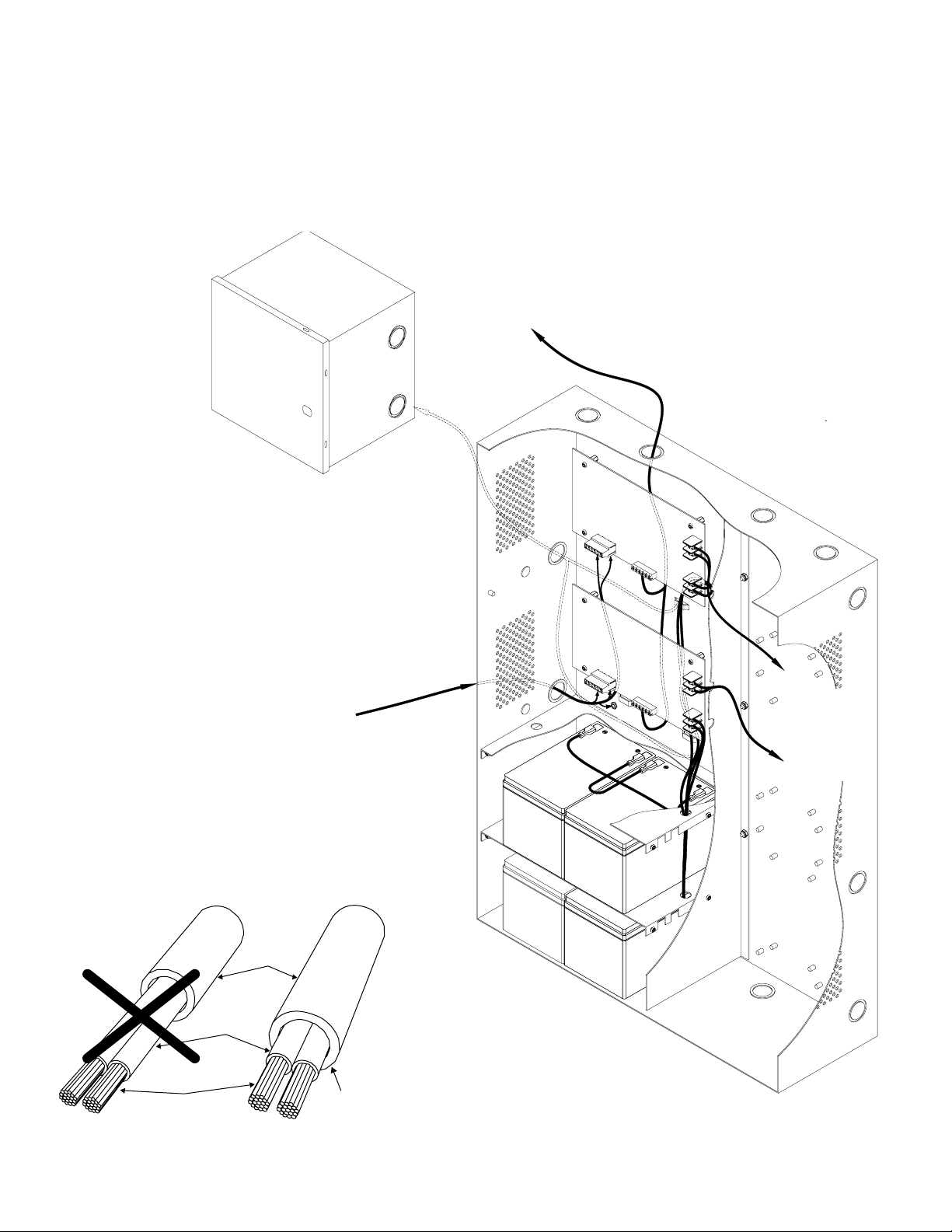

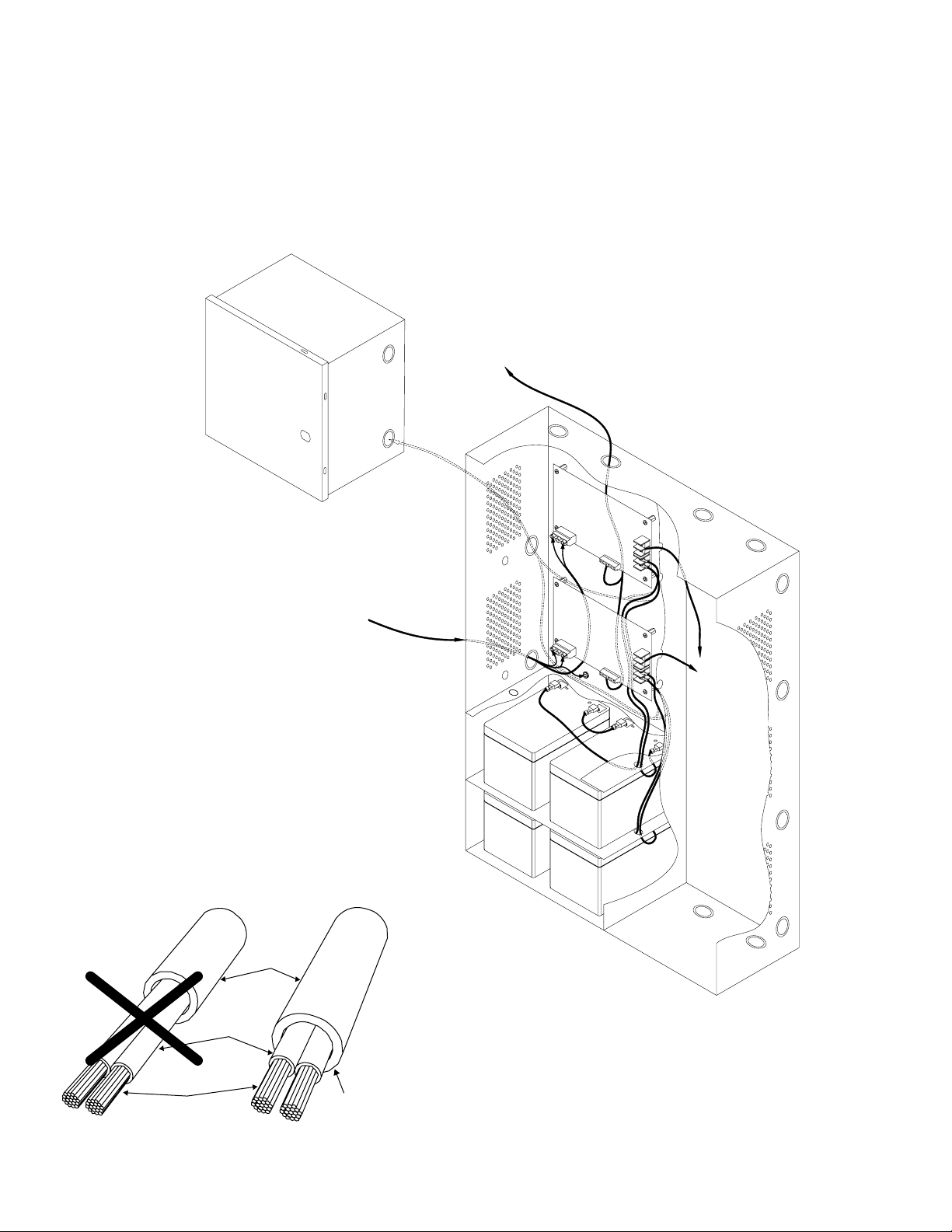

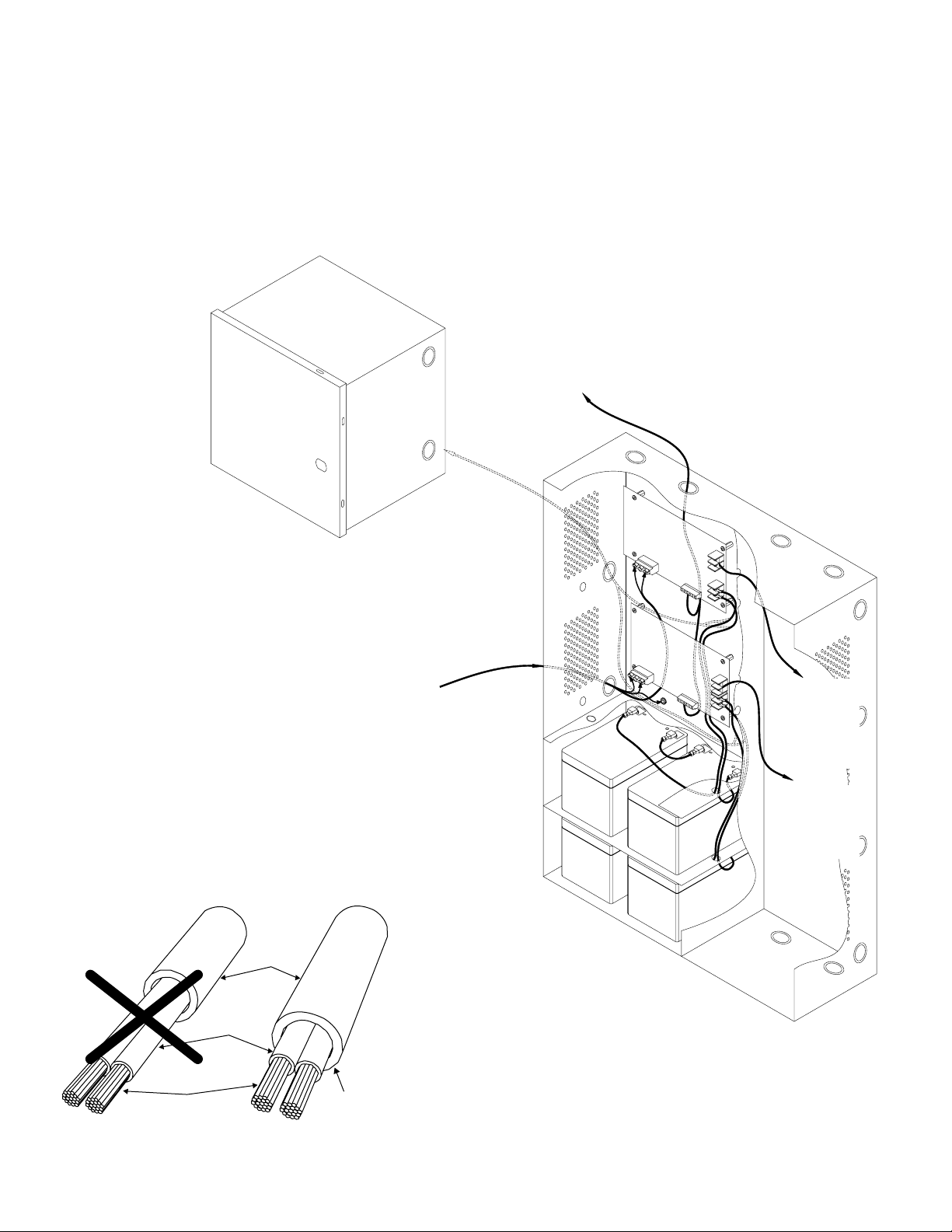

MaximalE Battery Hook-up Installation Instructions ..................................................... 7
NEC Power-Limited Wiring Requirements for Maximal11E.......................................... 8
NEC Power-Limited Wiring Requirements for Maximal13E.......................................... 9
NEC Power-Limited Wiring Requirements
for Maximal33E, Maximal35E and Maximal55E .......................................................... 10
NEC Power-Limited Wiring Requirements for Maximal37E and Maximal75E ........... 11
NEC Power-Limited Wiring Requirements for Maximal77E........................................ 12

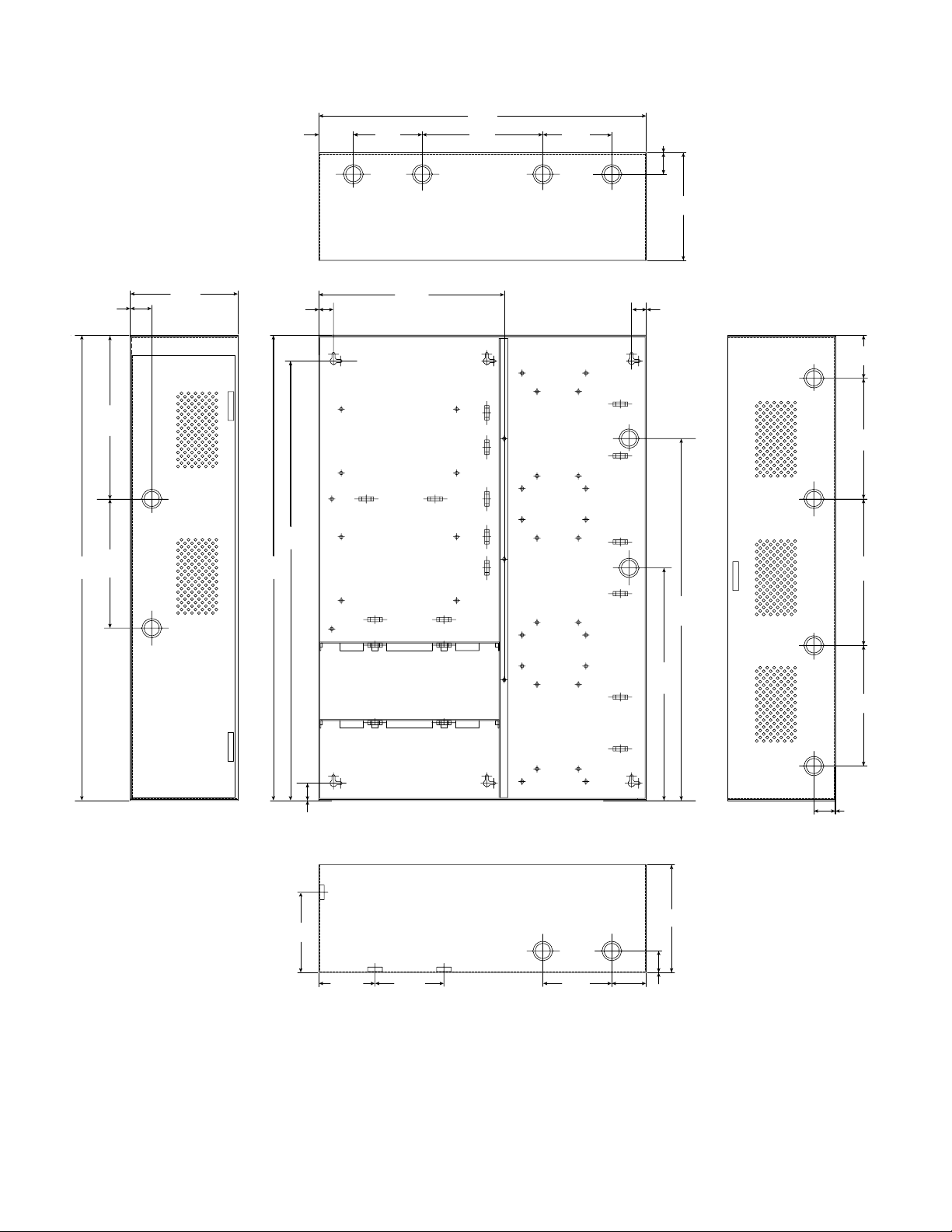

Enclosure Dimensions .................................................................................................... 13
- 2 - Maximal Expandable Power Systems
Page 3
MaximalE Overview:
Maximal Expandable Power System provide system designers and installers with maximum power choices and the highest
levels of versatility. They provide 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power
supply/chargers. Includes AC fail, low battery and battery presence monitoring. Custom enclosure facilitates up to four (4)
12VDC/12AH batteries. All interconnecting equipment must be UL Listed.
MaximalE Series Configuration Chart:
Altronix
Model
Number
Output Voltage Options
Power Supply 1 Power Supply 2
Non Power-
Limited Outputs
AL400ULXB2 AL400ULXB2
Maximal11E
12VDC @ 4A 12VDC @ 4A
12VDC @ 4A 24VDC @ 3A
--- 2 7.0A 5A/250V 15A/32V
24VDC @ 3A 24VDC @ 3A
AL400ULXB2 AL600ULXB
12VDC @ 4A 12VDC @ 6A
Maximal13E
12VDC @ 4A 24VDC @ 6A
1 1 7.0A 5A/250V
24VDC @ 3A 12VDC @ 6A
24VDC @ 3A 24VDC @ 6A
AL600ULXB AL600ULXB
Maximal33E
12VDC @ 6A 12VDC @ 6A
12VDC @ 6A 24VDC @ 6A
2 --- 7.0A 5A/250V ---
24VDC @ 6A 24VDC @ 6A
AL600ULXB AL1012ULXB
Maximal35E
12VDC @ 6A 12VDC @ 10A
2 --- 6.1A 5A/250V
24VDC @ 6A 12VDC @ 10A
AL600ULXB AL1024ULXB2
Maximal37E
12VDC @ 6A 24VDC @ 10A
2 --- 7.9A
24VDC @ 6A 24VDC @ 10A
Maximal55E
AL1012ULXB AL1012ULXB
12VDC @ 10A 12VDC @ 10A
2 --- 5.2A 5A/250V 15A/32V
AL1012ULXB AL1024ULXB2
Maximal75E
Maximal77E
12VDC @ 10A 24VDC @ 10A
AL1024ULXB2 AL1024ULXB2
24VDC @ 10A 24VDC @ 10A
2 --- 7.0A
2
MaximalE Features:
• Filtered and electronically regulated outputs
(built-in power supply).
• Built-in charger for sealed lead acid or gel type batteries.
• AL400ULXB2, AL600ULXB and AL1012ULXB
(Power Supply Board) maximum charge current 0.7 amp.
AL1024ULXB2 (Power Supply Board) maximum charge
current 3.6 amp.
Class 2 Rated
Power-Limited
115VAC 60 Hz
Input (current)
Power Supply
Board Input
Fuse Rating
Power Supply
Board Output
Fuse Rating
Agency Listings
and File
Numbers
Altronix Corp.
140 58th St. Brooklyn, NY
California State
Fire
Marshal Approved
15A/32V
(AL400ULXB2)
UL File # BP6714
UL 294
UL Listed for
15A/32V
(AL1012ULXB)
Access Control
System Units.
5A/250V
(AL600ULXB
and
AL1024ULXB2)
5A/250V
(AL1012ULXB
and
AL1024ULXB2)
--- 8.8A 5A/250V 15A/32V
15A/32V
(AL1024ULXB2)
15A/32V
(AL1012ULXB
and
AL1024ULXB2)
General Signaling
Equipment
Evaluated to
CSA Standard
C22.2
No.205-M1983
• Automatic switch over to stand-by battery when AC fails.
• Zero voltage drop when unit switches over to
battery backup (AC failure condition).
• Low battery and battery presence supervision
(form “C” contact).
Maximal Expandable Power Systems - 3 -
Page 4
MaximalE Features (cont’d):
• Short circuit and thermal overload protection
with auto reset.
• AC input and DC output LED indicators.
• AC fail supervision (form “C” contact).
• Enclosure accommodates up to four (4)
12VDC/12AH batteries.
• Enclosure dimensions:
27” x 19” x 6.25” (685.8mm x 482.6mm x 158.75mm).
MaximalE Installation Instructions:
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and
authorities having jurisdiction. Product is intended for indoor use only.
Power Supply Board Terminal Identification (pg. 5)
Power Supply Stand-by Battery Specifications (pg. 5)
Power Supply Board LED Diagnostics (pg. 6)
Power Supply Board Output Voltage Settings (pg. 6)
1. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top three keyholes in the
enclosure. Install three upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure’s
upper keyholes over the three upper screws, level and secure. Mark the position of the lower three holes. Remove the
enclosure. Drill the lower holes and install the three fasteners. Place the enclosure’s upper keyholes over the three
upper screws. Install the three lower screws and make sure to tighten all screws (Enclosure Dimensions, pg. 13).
2. The power supply is pre-wired to the ground (chassis). Connect main incoming ground to the provided green
grounding conductor lead. Connect unswitched AC power (115VAC 60Hz) to the terminals marked [L, N] on both
power supply boards. Use 14 AWG or larger for all power connections. (Fig. 2, pg. 7).
Keep power-limited wiring separate from non power-limited wiring. Minimum 0.25” spacing must be provided.
CAUTION: Do not touch exposed metal parts. Shut branch circuit power before installing or servicing equipment.
There are no user serviceable parts inside. Refer installation and servicing to qualified service personnel.
3. Select desired DC output voltage by setting SW1 to the appropriate position, (Maximal11E, Maximal13E,
Maximal33E, Maximal35E and Maximal37E) (Fig. 1, pg. 6). Maximal55E power supplies are factory set at 12VDC.
Maximal77E power supplies are factory set at 24VDC. Maximal75E power supplies are factory set at 12VDC and
24VDC (Power Supply Board Stand-by Battery Specifications, pg. 5).
4. Measure the output voltage of the unit before connecting any devices to ensure proper operation.
Improper or high voltage will damage these devices.
5. Connect devices to be powered to the terminals marked [+ DC –] (Fig. 2, pg. 7).
6. For Access Control applications batteries are optional. When batteries are not used, a loss of AC will result in the
loss of output voltage. When the use of stand-by batteries is desired, they must be lead acid or gel type.
Connect battery to the terminals marked [+ BAT -- ] (Figs. 2-7, pgs. 7-12).
Use two (2) 12VDC batteries connected in series for 24VDC operation (battery leads included).
7. Battery and AC Supervision outputs: It is required to connect supervisory trouble reporting devices to outputs marked
[AC Fail, BAT FAIL] supervisory relay outputs marked [NC, C, NO] to appropriate visual notification devices.
Use 22 AWG to 18 AWG for AC Fail & Low/No Battery reporting (Fig. 2a, pgs. 7).
8. Mount UL Listed tamper switch (Not Included) (Sentrol model 3012 or equivalent) at the top of the enclosure.
Slide the tamper switch bracket onto the edge of the enclosure approximately 2” from the right side (Fig. 2b, pg. 7).
Connect tamper switch wiring to the Access Control Panel input or the appropriate UL Listed reporting device.
To activate alarm signal open the door of the enclosure.
9. Please ensure that the cover is secured with the provided key lock.
Maintenance:
Unit should be tested at least once a year for the proper operation as follows:
Output Voltage Test: Under normal load conditions the DC output voltage should be checked for proper voltage level
(Power Supply Stand-by Battery Specifications, pg. 5).
Battery Test: Under normal load conditions check that the battery is fully charged, check specified voltage at the battery
terminals and at the board terminals marked [+ BAT -- ] to ensure that there is no break in the battery connection wires.
Note: AL400ULXB2, AL600ULXB and AL1012ULXB (Power Supply Board) maximum charge current is 0.7 amp.
AL1024ULXB2 (Power Supply Board) maximum charge current is 3.6 amp.
Expected battery life is 5 years, however it is recommended to change batteries within 4 years or less if necessary.
- 4 - Maximal Expandable Power Systems
Page 5
Power Supply Board Terminal Identification:
Terminal
Legend
L, G, N Connect 115VAC 60Hz to these terminals: L to hot, N to neutral.
+ DC – Refer to Maximal Series Configuration Chart, pg. 3.
AC FAIL
NC, C, NO
BAT FAIL
NC, C, NO
+ BAT -
Function/Description
Indicates loss of AC power. To meet with UL requirements it is mandatory to connect visual notification
devices, connecting audible notification devices is optional. Relay normally energized when AC power is
present. Contact rating 1 amp @ 28VDC. AC or brownout fail is reported within 1 minute of event.
Indicates low battery condition, e.g. connect to alarm panel. Relay normally energized when DC
power is present. Contact rating 1 amp @ 28VDC. A removed battery is reported within 5 minutes.
Battery reconnection is reported within 1 minute.
Low battery threshold:
12VDC output threshold set @ approximately 10.5VDC.
24VDC output threshold set @ approximately 21VDC.
Stand-by battery connections. AL400ULXB2, AL600ULXB and AL1012ULXB (Power Supply Board)
maximum charge current is 0.7 amp. AL1024ULXB2 (Power Supply Board) maximum charge current
is 3.6 amp.
Power Supply Board Stand-by Battery Specifications
Altronix
Model
Power Supply Board Battery
20 min. of
Backup
12VDC/40AH* N/A 4 amp 1 amp 300mA
Maximal11E
Maximal13E
(Refer to Fig. 1a, 1b on pg. 6 for
Switch [SW1] location and position)
AL400ULXB2
24VDC/12AH N/A 200mA N/A N/A
24VDC/40AH* N/A 3 amp 1 amp 300mA
Maximal13E
Maximal33E
Maximal35E
Maximal37E
Maximal35E
Maximal55E
Maximal75E
Maximal37E
Maximal75E
Maximal77E
AL600ULXB
(Refer to Fig. 1a, 1b on pg. 6 for
Switch [SW1] location and position)
AL1012ULXB
(Factory set at 12VDC)
AL1024ULXB2
(Factory set at 24VDC)
12VDC/40AH* N/A 6 amp 1 amp 300mA
24VDC/12AH N/A 200mA N/A N/A
24VDC/40AH* N/A 6 amp 1 amp 300mA
12VDC/12AH 10 amp
24VDC/12AH 8 amp 1.5 amp 200mA 100mA
24VDC/65AH* N/A 8 amp 1.5 amp 500mA
* Note: Additional battery enclosure required (Figs. 3-5, pgs, 8-10).
4 hr. of
Backup
Battery capacity
for emergency
stand-by at least
20 mins.
24 hr. of
60 hr. of
Backup
N/A N/A
Backup
Maximal Expandable Power Systems - 5 -
Page 6
Power Supply Board LED Diagnostics:
ON
OFF - 24V
ON - 12V
LED
Red (DC) Green (AC)
ON
ON
OFF
OFF
ON
OFF
ON
OFF
Red (Bat) Battery Status
ON Normal operating condition.
OFF Battery fail/low battery.
Power Supply Status
Normal operating condition.
Loss of AC. Stand-by battery supplying power.
No DC output. Short circuit or thermal overload condition.
No DC output. Loss of AC. Discharged battery.

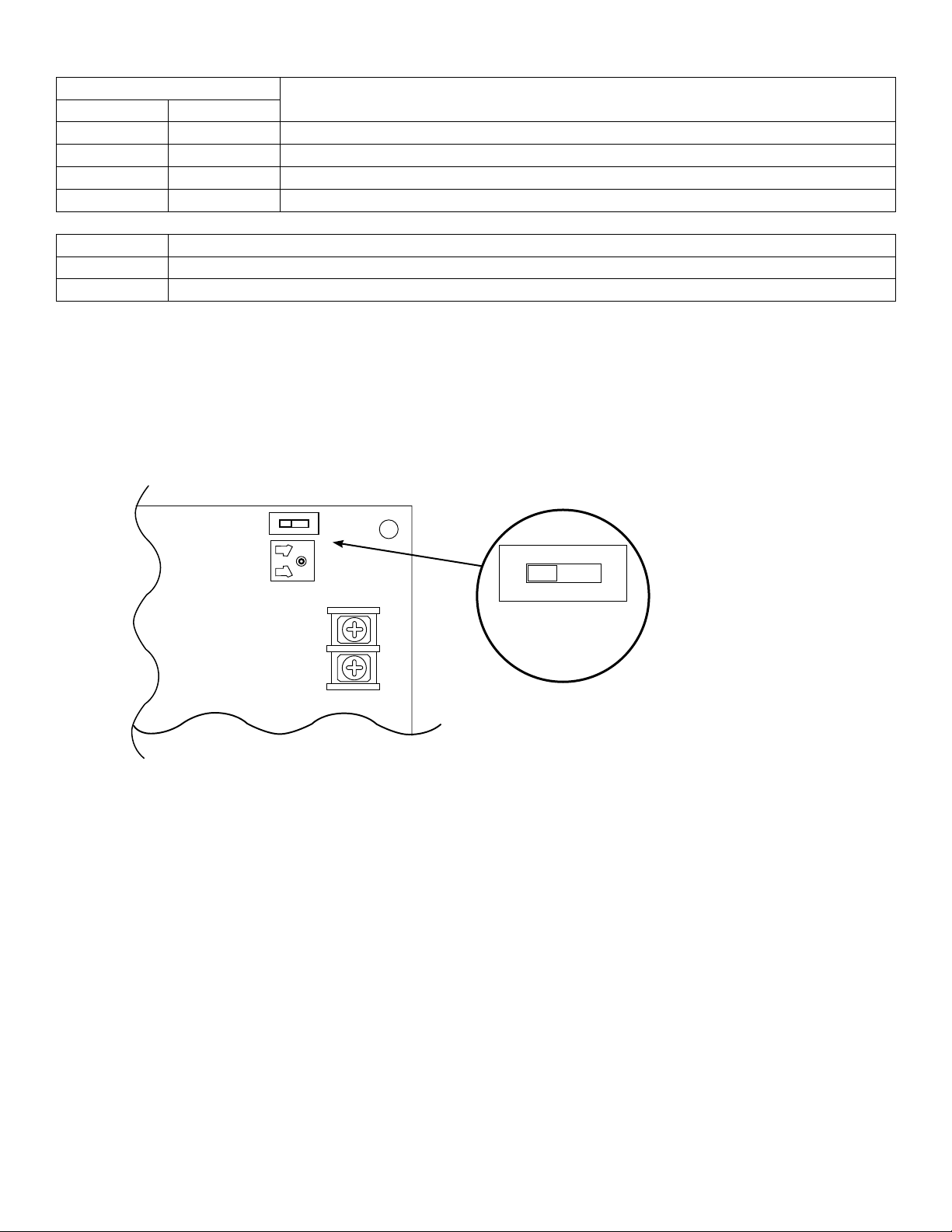

Power Supply Board Output Voltage Settings:
Fig. 1Fig. 1
Fig. 1a
AL400ULXB2 / AL600ULXB Power Supply Board
OFF - 24V
ON - 12V
Fig. 1b
ON
SW1
+ DC ---
- 6 - Maximal Expandable Power Systems
Page 7

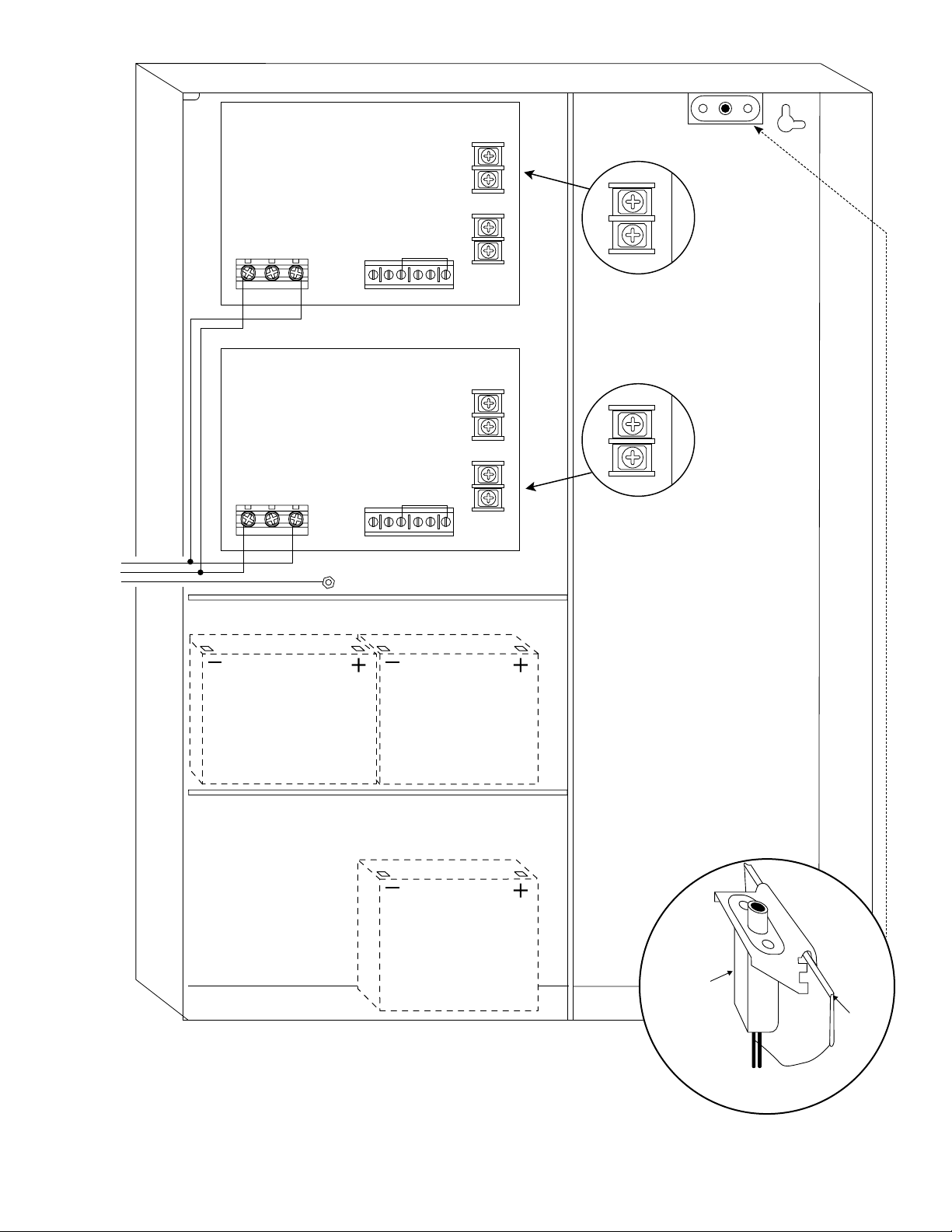

Fig. 2
Edge of
Enclosure
to Access Control Panel
or U.L. Listed
Reporting Device
Enclosure
Sentrol
model # 3012
Tamper Switch
or equivalent
(Not Included)
Tamper Switch
Fig. 2a
115VAC
Input
60 Hz.
Line
Line
L G N
L G N
Power Supply Board
BAT FAIL
Neutral
NO C NC NO C NC
Power Supply Board
BAT FAIL
Neutral
NO C NC NO C NC
Earth
Ground
+ DC ---
+ BAT ---
AC FAIL
Power Supply Board [DC]
--- DC +
Terminal Layout for:
AL1012ULXB
+ DC ---
--- BAT +
+ BAT ---
Power Supply Board [BAT]
AC FAIL
Terminal Layout for:
AL1024ULXB2
12VDC Rechargeable
Battery**
(Optional)
12VDC Rechargeable
Battery**
(Optional)
*12VDC operation: For 12VDC operation
only a single battery is needed.
Connect red battery lead
to terminal marked
[+ BAT] and to the
Fig. 2b
[positive (+)] terminal
of the battery. Connect
black battery lead to
terminal marked [BAT -]
and to the [negative (-)]
12VDC Rechargeable
Battery**
(Optional)
terminal of the battery.
**24VDC operation: Connect two (2) 12VDC batteries in series
Maximal Expandable Power Systems - 7 -
Page 8
NEC Power-Limited Wiring Requirements for Maximal11E:
Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring
must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring
and non power-limited circuit wiring must enter and exit the cabinet through different conduits. One such example of this
is shown below. Your specific application may require different conduit knockouts to be used. Any conduit knockouts may
be used. For power- limited applications use of conduit is optional.
All field wiring connections must be made employing suitable gauge CM or FPL jacketed wire (or equivalent substitute).
Note: Refer to wire handling drawing below for the proper way to install the CM or FPL jacketed wire (Fig. 3a).
Fig. 3
Supervisory
Connections
(power-limited)
Optional Battery
Enclosure
(non power-limited)
Fig. 3a
Incorrect Wire
Handling
Wire
Insulation
115VAC Input
60Hz
(non power-limited)
Correct Wire
Handling
External
Jacketed
Shield
DC Output
Wiring
(powerlimited)
Battery
Connections
(non power-limited)
Solid Copper
Conductors
- 8 - Maximal Expandable Power Systems
Pull back
external jacketed
shield approx. 1/2”.
Page 9
NEC Power-Limited Wiring Requirements for Maximal13E:
Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring
must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring
and non power-limited circuit wiring must enter and exit the cabinet through different conduits. One such example of this
is shown below. Your specific application may require different conduit knockouts to be used. Any conduit knockouts may
be used. For power- limited applications use of conduit is optional.
All field wiring connections must be made employing suitable gauge CM or FPL jacketed wire (or equivalent substitute).
Note: Refer to wire handling drawing below for the proper way to install the CM or FPL jacketed wire (Fig. 4a).
Fig. 4
Supervisory
Connections
(power-limited)
Optional Battery
Enclosure
(non power-limited)
Fig. 4a
Incorrect Wire
Handling
Insulation
Solid Copper
Conductors
Wire
External
Jacketed
Shield
115VAC Input
60Hz
(non power-limited)
Correct Wire
Handling
Pull back
external jacketed
shield approx. 1/2”.
DC Output
Wiring
(non
power-
limited)
DC Output
Wiring
(powerlimited)
Battery
Connections
(non power-limited)
Maximal Expandable Power Systems - 9 -
Page 10
NEC Power-Limited Wiring Requirements for Maximal33E, Maximal35E and
Maximal55E:
Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring
must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring
and non power-limited circuit wiring must enter and exit the cabinet through different conduits. One such example of this
is shown below. Your specific application may require different conduit knockouts to be used. Any conduit knockouts may
be used. For power- limited applications use of conduit is optional.
All field wiring connections must be made employing suitable gauge CM or FPL jacketed wire (or equivalent substitute).
Note: Refer to wire handling drawing below for the proper way to install the CM or FPL jacketed wire (Fig. 5a).
Fig. 5
Supervisory
Connections
Optional Battery
Enclosure
(non power-limited)
(power-limited)
Fig. 5a
Incorrect Wire
Handling
Wire
Insulation
115VAC Input
60Hz
(non power-limited)
Correct Wire
Handling
External
Jacketed
Shield
DC Output
Wiring
(non
power-
limited)
Battery
Connections
(non power-limited)
Solid Copper
Conductors
- 10 - Maximal Expandable Power Systems
Pull back
external jacketed
shield approx. 1/2”.
Page 11
NEC Power-Limited Wiring Requirements for Maximal37E and Maximal75E:
Power-limited and non power- limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring
must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring
and non power-limited circuit wiring must enter and exit the cabinet through different conduits. One such example of this
is shown below. Your specific application may require different conduit knockouts to be used. Any conduit knockouts may
be used. For power-limited applications use of conduit is optional.
All field wiring connections must be made employing suitable gauge CM or FPL jacketed wire (or equivalent substitute).
Note: Refer to wire handling drawing below for the proper way to install the CM or FPL jacketed wire (Fig. 6a).
Fig. 6
Optional Battery
Enclosure
(non power-limited)
115VAC Input
60Hz
(non power-limited)
Supervisory
Connections
(power-limited)
DC Output
Wiring
(non
power-
limited)
Fig. 6a
Incorrect Wire
Handling
External
Jacketed
Shield
Correct Wire
Handling
Battery
Wire
Insulation
Solid Copper
Conductors
Maximal Expandable Power Systems - 11 -
Pull back
external jacketed
shield approx. 1/2”.
Connections
(non power-limited)
Page 12
NEC Power-Limited Wiring Requirements for Maximal77E:
Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring
must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring
and non power-limited circuit wiring must enter and exit the cabinet through different conduits. One such example of this
is shown below. Your specific application may require different conduit knockouts to be used. Any conduit knockouts may
be used. For power-limited applications, use of conduit is optional.
All field wiring connections must be made employing suitable gauge CM or FPL jacketed wire (or equivalent substitute).
Note: Refer to wire handling drawing below for the proper way to install the CM or FPL jacketed wire (Fig. 7a).
Supervisory
Fig. 7
Optional Battery
Enclosure
(non power-limited)
Connections
(power-limited)
Fig. 7a
Incorrect Wire
Handling
Insulation
Solid Copper
Conductors
115VAC Input
60Hz
(non power-limited)
Correct Wire
External
Jacketed
Shield
Wire
Pull back
external jacketed
shield approx. 1/2”.
DC Output
Wiring
(non
power-
limited)
Handling
Battery
Connections
(non power-limited)
- 12 - Maximal Expandable Power Systems
Page 13
Enclosure Dimensions (H x W x D approximate):
(
50.8mm
)
27” x 19” x 6.25” (685.8mm x 482.6mm x 158.75mm)
19”
2”
(50.8mm)4”(101.6mm)
(482.6mm)
7”
(177.8mm)
4”
(101.6mm)
(31.75mm)
1.25”
(158.75mm)
6.25”
(31.75mm)
27”
(685.8mm)
1.25”
9.5”
(241.3mm)
7.5”
(109.5mm)
6.25”
(158.75mm)
(21.6mm)
(647.7mm)
27”
(685.8mm)
0.85”
25.5”
10.76”
(273.3mm)
0.85”
(21.6mm)
(533.4mm)
13.5”
(342.9mm)
2.5”
(63.5mm)
7”
(177.8mm)
8.5”
(215.9mm)
21”
7”
(177.8mm)
1.25”
1.0”
(25.4mm)
4.65”
(118.1mm)
3.26”
(82.8mm)
4”
(101.6mm)
4”
(101.6mm)
2”
6.25”
(158.75mm)
1.25”
(31.75mm)
(31.75mm)
Maximal Expandable Power Systems - 13 -
Page 14
Notes:
- 14 - Maximal Expandable Power Systems
Page 15
Notes:
Maximal Expandable Power Systems - 15 -
Page 16
Notes:
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A.
- 16 - Maximal Expandable Power Systems
IIMaximalE Series A26O
MEMBER
Loading...
