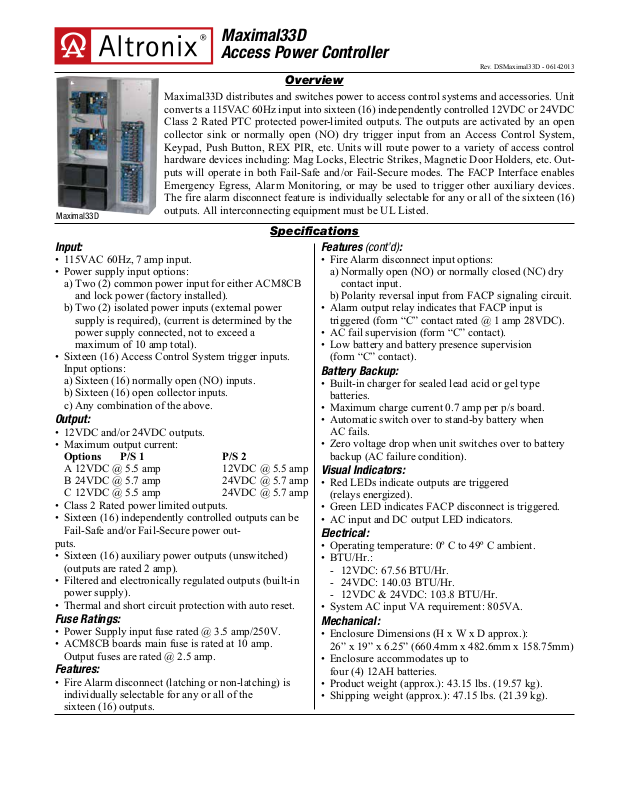

Maximal33D
Access Power Controller
Overview
Maximal33D distributes and switches power to access control systems and accessories. Unit
converts a 115VAC 60Hz input into sixteen (16) independently controlled 12VDC or 24VDC
Class 2 Rated PTC protected power-limited outputs. The outputs are activated by an open
collector sink or normally open (NO) dry trigger input from an Access Control System,
Keypad, Push Button, REX PIR, etc. Units will route power to a variety of access control
hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables
Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices.
The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16)
Maximal33D
Input:
• 115VAC 60Hz, 7 amp input.
• Power supply input options:
a) Two (2) common power input for either ACM8CB
and lock power (factory installed).
b) Two (2) isolated power inputs (external power
supply is required), (current is determined by the
power supply connected, not to exceed a
maximum of 10 amp total).
• Sixteen (16) Access Control System trigger inputs.
Input options:
a) Sixteen (16) normally open (NO) inputs.
b) Sixteen (16) open collector inputs.
c) Any combination of the above.
Output:
• 12VDC and/or 24VDC outputs.
• Maximum output current:
Options P/S 1 P/S 2
A 12VDC @ 5.5 amp 12VDC @ 5.5 amp
B 24VDC @ 5.7 amp 24VDC @ 5.7 amp
C 12VDC @ 5.5 amp 24VDC @ 5.7 amp
• Class 2 Rated power limited outputs.
• Sixteen (16) independently controlled outputs can be
Fail-Safe and/or Fail-Secure power outputs.
• Sixteen (16) auxiliary power outputs (unswitched)
(outputs are rated 2 amp).
• Filtered and electronically regulated outputs (built-in
power supply).
• Thermal and short circuit protection with auto reset.
Fuse Ratings:
• Power Supply input fuse rated @ 3.5 amp/250V.
• ACM8CB boards main fuse is rated at 10 amp.
Output fuses are rated @ 2.5 amp.
Features:
• Fire Alarm disconnect (latching or non-latching) is
individually selectable for any or all of the
sixteen (16) outputs.
outputs. All interconnecting equipment must be UL Listed.
Specifications
Rev. DSMaximal33D - 06142013
Features (cont’d):
• Fire Alarm disconnect input options:
a) Normally open (NO) or normally closed (NC) dry
contact input.
b) Polarity reversal input from FACP signaling circuit.
• Alarm output relay indicates that FACP input is
triggered (form “C” contact rated @ 1 amp 28VDC).
• AC fail supervision (form “C” contact).
• Low battery and battery presence supervision
(form “C” contact).
Battery Backup:
• Built-in charger for sealed lead acid or gel type
batteries.
• Maximum charge current 0.7 amp per p/s board.
• Automatic switch over to stand-by battery when
AC fails.
• Zero voltage drop when unit switches over to battery
backup (AC failure condition).
Visual Indicators:
• Red LEDs indicate outputs are triggered
(relays energized).
• Green LED indicates FACP disconnect is triggered.
• AC input and DC output LED indicators.
Electrical:
• Operating temperature: 0º C to 49º C ambient.
• BTU/Hr.:
- 12VDC: 67.56 BTU/Hr.
- 24VDC: 140.03 BTU/Hr.
- 12VDC & 24VDC: 103.8 BTU/Hr.
• System AC input VA requirement: 805VA.
Mechanical:
• Enclosure Dimensions (H x W x D approx.):
26” x 19” x 6.25” (660.4mm x 482.6mm x 158.75mm)
• Enclosure accommodates up to
four (4) 12AH batteries.
• Product weight (approx.): 43.15 lbs. (19.57 kg).
• Shipping weight (approx.): 47.15 lbs. (21.39 kg).
Agency Approvals
Altronix Corp.
(
)
UL Listed for Access Control System Units
(UL 294).
Enclosure Dimensions (H x W x D approximate):
26” x 19” x 6.25” (660.4mm x 482.6mm x 158.75mm)
2”
(50.8mm)
4”
(101.6mm)
19”
(482.6mm)
7”
(177.8mm)
TOP
140 58th St. Brooklyn, NY
CSFM
California State Fire Marshal Approved.
4”
(101.6mm)
2”
(50.8mm)
6.25”
(158.75mm)
26”
(660.4mm)
8.5”
(215.9mm)
7.5”
(190.5mm)
10”
(254mm)
19”
1.25”
(31.75mm)
0.85”
(21.59mm)
(38.1mm)
26”
(660.4mm)
1.5”
8.9”
(226.06mm)
(482.6mm)
8.4”
(213.36mm)
0.85”
(21.59mm)
1.5”
(38.1mm)
(127mm)
(190.5mm)
5”
7.5”
LEFT RIGHT
1”
(25.4mm)
0.85”
(21.59mm)
8.9”
(226.06mm)
8.4”
(213.36mm)
1”
(25.4mm)
0.85”
(21.59mm)
1.25”
(31.75mm)
1.25”
(31.75mm)
1.25”
(31.75mm)
1.5”
(38.1mm)
7”
(177.8mm)
8.5”
(215.9mm)
(660.4mm)
7”
(177.8mm)
2”
(50.8mm)
26”
BOTTOM
19”
482.6mm
AltronixCorp.-14058thStreet,Brooklyn,NY11220•718-567-8181•888-258-7669•altronix.com
4”
(101.6mm)
2”
(50.8mm)
6.25”
(158.75mm)
