Altronix MAXFIT7FA8PS Specsheet

MaxFit7F8APS

™

Access Power Controller

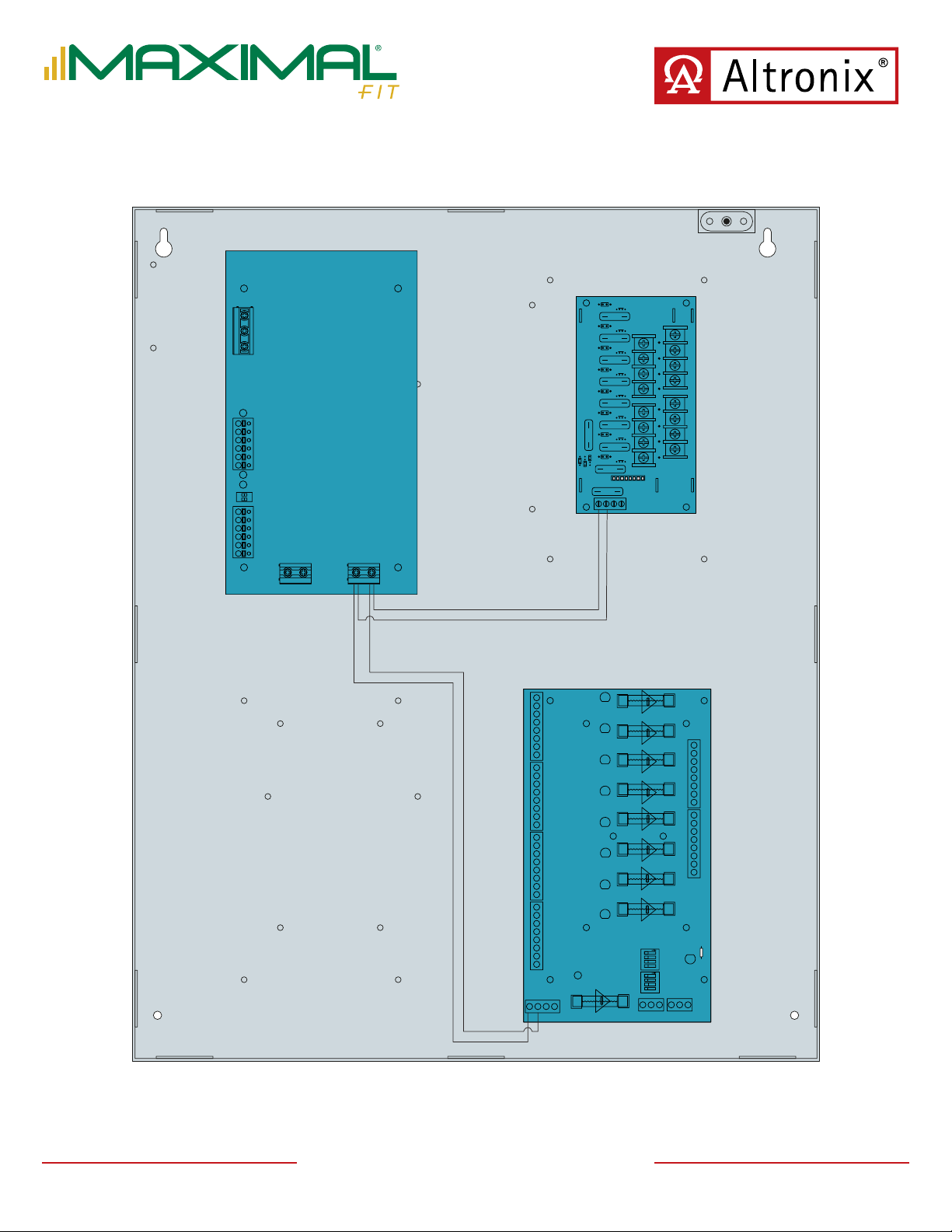

Description

Altronix MaxFit7F8APS Access Power Controller distributes and switches power to

access control systems and accessories. It converts a 120VAC, 60Hz input into eight

(8) distributed 12VDC or 24VDC fuse protected outputs and eight (8) independently

controlled 24VDC fuse protected relay outputs. Fail-Safe/Fail-Secure power outputs

may be converted to dry form “C” contacts. Relays are activated by an open collector

sink or normally open (NO) dry trigger input from an Access Control System, Keypad,

Push Button, REX PIR, etc. Unit will route power to a variety of access control hard-

ware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The

FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trig-

ger other auxiliary devices. The fire alarm disconnect feature is individually selectable

for any or all of the eight (8) relay outputs.

Key Features

Rev. MaxFit7F8APS - 05272020

MaxFit7F8APS

- 24VDC @ 10A power supply/charger.

- Supervision

- AC Fail

- Low Battery and Battery Presence

- Low power shutdown.

- Convenient knockout configuration:

- Twelve (12) double knockouts (1” and 0.75”).

- 16 AWG powder-coated steel enclosure simplifies board layout
and wire management.

- Enclosure accommodates up to four (4) 12VDC/12AH batteries.

- Outputs:

- Eight (8) distributed 12VDC or 24VDC fuse protected outputs

- Eight (8) independently controlled 24VDC fuse protected
relay outputs.

Accessories

Network Supervision

Altronix model LINQ2 Network Communication Module provides remote supervision,

control and monitoring over LAN/WAN

- Remotely reports accurate power diagnostics

- Controls power and resets devices

- Reports system diagnostics via Email

Lifetime Warranty / Made in the U.S.A.

phone: [phone] | fax: [phone] | email: [e-mail] | www.altronix.com

Altronix Corporation | 140 58th St | Brooklyn, NY 11220 USA

MaxFit7F8APS

Access Power Controller

Specifications

Power Supply (eFlow104NB):

Input

Voltage 120VAC, 60Hz, 4.5A max.
Input Fuse 6.3A/250V.

Outputs

Voltage 24VDC @ 10A.
Auxiliary 1A (unswitched).
Protection Overvoltage protection.

Filtered and regulated.

Battery Backup

Type Sealed lead acid or gel type.
Fuse Rating 10A @ 32VDC.
Failover Upon AC loss, instantaneous.

Fire Alarm Disconnect

Supervised Latching or non-latching.
EOL 10K Resistor.

Supervision

AC Failure Form “C” contacts.
Battery Form “C” contacts.
Low DC Power Shutdown

Shuts down DC output terminals if battery voltage drops below
70-75% for 24V units (depending on the power supply).
Prevents deep battery discharge.

Indicators (LED)

AC Input 120VAC is present.
DC Output Powered.
Battery Discharged or not connected.

Voltage Regulator (VR6):

Input/Output

Voltage Range 24VDC @ 10A = Output: 12VDC @ 6A.

Output

12VDC regulated output.
Output rating 6A max.
Surge suppression.

Indicators (LED)

Input Indicates input voltage is present.
Output Indicates normal operating condition.

Access Power Controller (ACM8):

Input

Voltage 24VDC from eFlow104NB.
Main Fuse 10A / 32V.

Outputs

Voltage 24VDC.
Eight (8) independently controlled fused outputs:

a) Fail-Safe and/or Fail-Secure power outputs.
Form “C” Relays rated 28VAC or VDC @ 2.5A.

b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output Fuses 3.5A / 32VDC.

Indicators (LED)

Red LEDs Outputs are triggered (relays energized).
Green LED FACP disconnect is triggered.

Dual Input Power Distribution Module (PDS8):

Input

Voltage 12VDC from VR6 and 24VDC from eFlow104NB.
Input Fuse 10A/32V.

Outputs

Voltage 12VDC and/or 24VDC.
Any of the eight (8) power outputs are selectable
to follow power Input 1 or Input 2.

Individual outputs may be set to OFF position for servicing.
Outputs Ratings

Fuses 3A/32V.
Indicators (LED)
DC Output Eight (8) individual output LEDs.

Green: 12VDC
Red: 24VDC.

Lifetime Warranty / Made in the U.S.A.

Altronix Corporation | 140 58th St | Brooklyn, NY 11220 USA

phone: [phone] | fax: [phone] | email: [e-mail] | www.altronix.com

MaxFit7F8APS:

Physical and Environmental

Dimensions (H x W x D)

20.5” x 16.5” x 6.25” (520.7 mm x 419.1 mm x 158.8 mm).

Weight (approx.)
Product 27.3 lb. (12.4 kg).
Shipping 33.6 lb. (15.2 kg).
Temperature
Operating 0ºC to 50ºC (32ºF to 122ºF).
Storage -20ºC to 70ºC (-4ºF to 158ºF).
Relative Humidity 85% +/-5%.
BTU/Hr (approx.): 145 BTU/Hr.
