Altronix MAXFIT7F16APS Specsheet

MaxFit7F16APS

™

Access Power Controller

Description

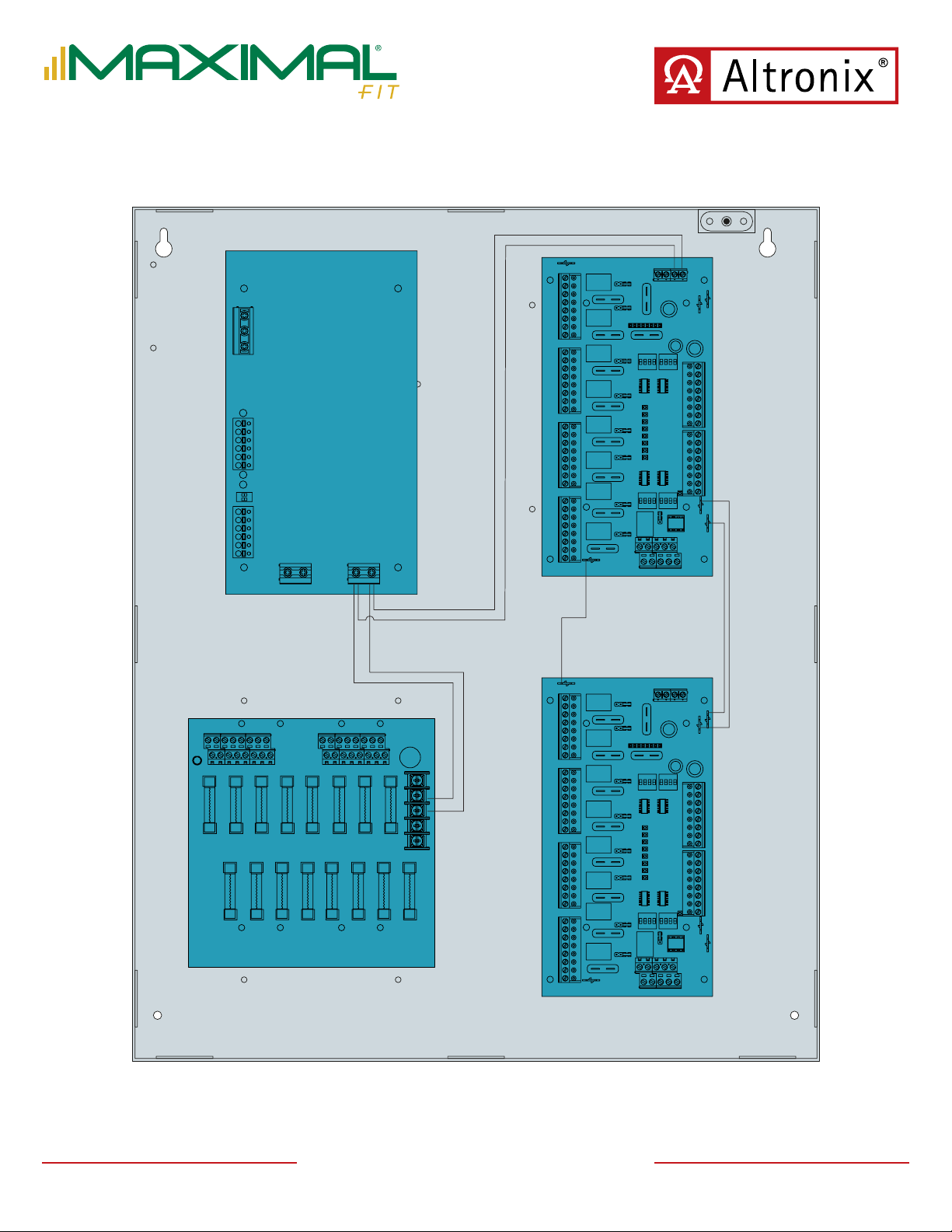

Altronix MaxFit7F16APS Access Power Controller distributes and switches power to

access control systems and accessories. It converts a 120VAC, 60Hz input into six-

teen (16) distributed 24VDC fuse protected outputs and sixteen (16) independently

controlled 12VDC or 24VDC fuse protected relay outputs. Fail-Safe/Fail-Secure power

outputs may be converted to dry form “C” contacts. Relays are activated by an open

collector sink or normally open (NO) dry trigger input from an Access Control System,

Keypad, Push Button, REX PIR, etc. Unit will route power to a variety of access control

hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc.

The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to

trigger other auxiliary devices. The fire alarm disconnect feature is individually select-

able for any or all of the sixteen (16) relay outputs.

Key Features

Rev. MaxFit7F16APS - 05182020

MaxFit7F16APS

- 24VDC @ 10A power supply/charger.

- Supervision

- AC Fail

- Low Battery and Battery Presence

- Low power shutdown.

- Convenient knockout configuration:

- Twelve (12) double knockouts (1” and 0.75”).

- 16 AWG powder-coated steel enclosure simplifies board layout
and wire management.

- Enclosure accommodates up to four (4) 12VDC/12AH batteries.

- Outputs:

- Sixteen (16) distributed 24VDC fused protected outputs.

- Sixteen (16) independently controlled 12VDC or 24VDC
fuse protected relay outputs.

Accessories

Network Supervision

Altronix model LINQ2 Network Communication Module provides remote supervision,

control and monitoring over LAN/WAN

- Remotely reports accurate power diagnostics

- Controls power and resets devices

- Reports system diagnostics via Email

Lifetime Warranty / Made in the U.S.A.

phone: [phone] | fax: [phone] | email: [e-mail] | www.altronix.com

Altronix Corporation | 140 58th St | Brooklyn, NY 11220 USA

MaxFit7F16APS

Access Power Controller

Specifications

Power Supply (eFlow104NB):

Input

Voltage 120VAC, 60Hz, 4.5A max.
Input Fuse 6.3A/250V.

Outputs

Voltage 24VDC @ 10A.
Auxiliary 1A (unswitched).
Protection Overvoltage protection.

Filtered and regulated.

Battery Backup

Type Sealed lead acid or gel type.
Fuse Rating 10A/32VDC.
Failover Upon AC loss, instantaneous.

Fire Alarm Disconnect

Supervised Latching or non-latching.
EOL 10K Resistor.

Supervision

AC Failure Form “C” contacts.
Battery Form “C” contacts.
Low DC Power Shutdown

Shuts down DC output terminals if battery voltage drops below
70-75% for 24V units (depending on the power supply).
Prevents deep battery discharge.

Indicators (LED)

AC Input 120VAC is present.
DC Output Powered.
Battery Discharged or not connected.

Power Distribution Module (PD16W):

Input

Voltage 24VDC from eFlow104NB.

Outputs

Voltage 24VDC.
Sixteen (16) fuse protected outputs.

3.5A per output max.
Output Fuses 3.5A/250V.

Indicators (LED)

Green LED DC Output.

Voltage Regulator (VR6):

Input/Output

Voltage Range 24VDC @ 10A = Output: 12VDC @ 6A.

Output

12VDC regulated output.
Output rating 6A max.
Surge suppression.

Indicators (LED)

Input Indicates input voltage is present.
Output Indicates normal operating condition.

Dual Input Access Power Controllers (Two (2) ACMS8):

Input

Two (2) independent low voltage inputs.
Input Fuse 15A/32V.
Trigger Inputs:

Eight (8) individually controlled trigger inputs:
a) Normally open (NO) inputs.
b) Normally closed (NC) inputs.
c) Open collector sink inputs.
d) Wet Input (5VDC - 24VDC) with 10K resistor.
e) Any combination of the above.

Outputs

Fuse protected outputs rated @ 2.5A per output,
non power-limited. Total output 20A max.

Eight (8) selectable 12VDC - 24VDC independently controlled
outputs or eight (8) indepently controlled Form “C” relay outputs:

a) Fail-Safe and/or Fail-Secure power outputs.
b) Form “C” Relays. 28VAC or VDC @ 2.5A Rated.
c) Auxiliary power outputs (unswitched).
d) Any combination of the above.
Any of the eight (8) fuse protected power outputs are selectable

to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.

Output Fuses: 3A/32V each.
Total output current is determined by the power supply,

not to exceed a maximum of 10A for each input.

Fire Alarm Disconnect

Supervised Latching or non-latching, individually
selectable for any or all of the eight (8) outputs.

EOL 10K Resistor.

Indicators (LED)

Red LEDs Outputs are triggered (relays energized).
Blue LED FACP disconnect is triggered.
Individual voltage LEDs

Green: 12VDC
Red: 24VDC.

MaxFit7F16APS:

Physical and Environmental

Dimensions (H x W x D)

20.5” x 16.5” x 6.25” (520.7 mm x 419.1 mm x 158.8 mm).

Weight (approx.)
Product 28.1 lb. (12.75 kg).
Shipping 34.1 lb. (15.5 kg).
Temperature
Operating 0ºC to 50ºC (32ºF to 122ºF).
Storage -20ºC to 70ºC (-4ºF to 158ºF).
Relative Humidity 85% +/-5%.
BTU/Hr (approx.): 145 BTU/Hr.
