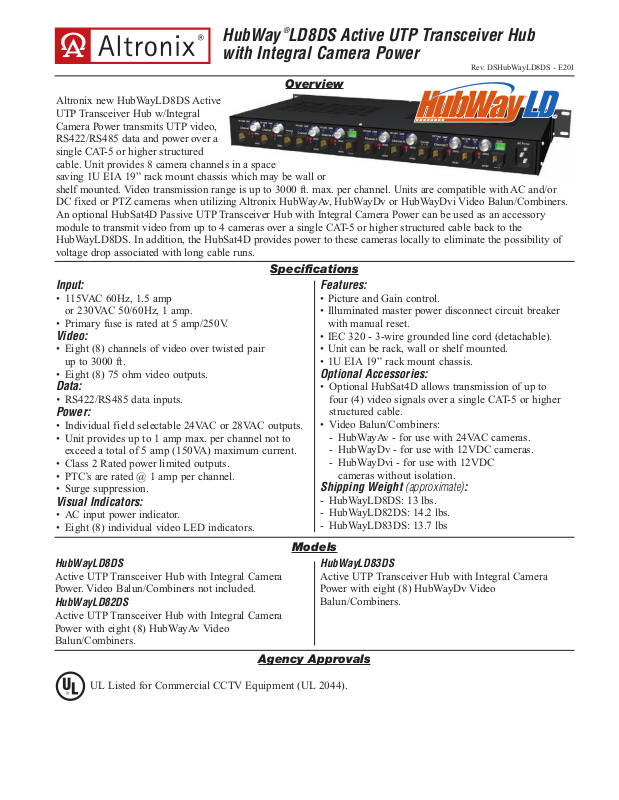

HubWay®LD8DS Active UTP Transceiver Hub
with Integral Camera Power

Rev. DSHubWayLD8DS - E20I

Overview

Altronix new HubWayLD8DS Active
UTP Transceiver Hub w/Integral
Camera Power transmits UTP video,
RS422/RS485 data and power over a
single CAT-5 or higher structured
cable. Unit provides 8 camera channels in a space
saving 1U EIA 19” rack mount chassis which may be wall or
shelf mounted. Video transmission range is up to 3000 ft. max. per channel. Units are compatible with AC and/or
DC fixed or PTZ cameras when utilizing Altronix HubWayAv, HubWayDv or HubWayDvi Video Balun/Combiners.
An optional HubSat4D Passive UTP Transceiver Hub with Integral Camera Power can be used as an accessory
module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable back to the
HubWayLD8DS. In addition, the HubSat4D provides power to these cameras locally to eliminate the possibility of
voltage drop associated with long cable runs.

Specifications

Input:

• 115VAC 60Hz, 1.5 amp
or 230VAC 50/60Hz, 1 amp.

• Primary fuse is rated at 5 amp/250V.

Video:

• Eight (8) channels of video over twisted pair
up to 3000 ft.

• Eight (8) 75 ohm video outputs.

Data:

• RS422/RS485 data inputs.

Power:

• Individual field selectable 24VAC or 28VAC outputs.

• Unit provides up to 1 amp max. per channel not to
exceed a total of 5 amp (150VA) maximum current.

• Class 2 Rated power limited outputs.

• PTC’s are rated @ 1 amp per channel.

• Surge suppression.

Visual Indicators:

• AC input power indicator.

• Eight (8) individual video LED indicators.

Features:

• Picture and Gain control.

• Illuminated master power disconnect circuit breaker
with manual reset.

• IEC 320 - 3-wire grounded line cord (detachable).

• Unit can be rack, wall or shelf mounted.

• 1U EIA 19” rack mount chassis.

Optional Accessories:

• Optional HubSat4D allows transmission of up to

four (4) video signals over a single CAT-5 or higher
structured cable.

• Video Balun/Combiners:

- HubWayAv - for use with 24VAC cameras.

- HubWayDv - for use with 12VDC cameras.

- HubWayDvi - for use with 12VDC
cameras without isolation.

Shipping Weight (approximate):

- HubWayLD8DS: 13 lbs.

- HubWayLD82DS: 14.2 lbs.

- HubWayLD83DS: 13.7 lbs

HubWayLD8DS

Activ

e UTP Transceiver Hub with Integral Camera

Power. Video Balun/Combiners not included.

HubWayLD82DS

Active UTP Transceiv
Power with eight (8) HubWayAv Video
Balun/Combiners.

UL Listed for Commercial CCTV Equipment (UL 2044).

er Hub with Integral Camera

Models

HubWayLD83DS

Activ

e UTP Transceiver Hub with Integral Camera
Power with eight (8) HubWayDv Video
Balun/Combiners.

Agency Approvals

1.625"

8.5"

.75"

19.125"

17.625"

DATADATA

DATA DATA

Channel 5

24VAC

5

28VAC

Channel 4

24VAC

4

28VAC

Channel 3

24VAC

3

28VAC

Channel 2

24VAC

2

28VAC

Channel 1

24VAC

1

28VAC

Channel 6

24VAC

6

28VAC

Channels

5 - 8

Channels

1 - 4

Channel 7

24VAC

7

28VAC

Channel 8

24VAC

8

28VAC

P

ICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN

Vidoe Balun/Combiners

HubWayAv

• Compatib
HubWay

le with HubWay®,

®

LD and HubSat®UTP
Transceiver Hubs for use with
24VAC cameras.

HubWayDv

• Compatib
HubWay

le with HubWay®,

®

LD and HubSat®UTP
Transceiver Hubs for use with
12VDC cameras.

HubWay LD8S Rack Chassis Dimensions

®

HubWayDvi

• Compatib
HubWay
Transceiver Hubs for use with
12VDC cameras without isolation.

1.625”H x 19.125”W x 8.5”D

REAR

le with HubWay®,

®

LD and HubSat®UTP

TOP & BOTTOM

FRONT

Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com
