Altronix HubWay Av2 Installation Instructions

Data

Power

Video

1

1 - White/Orange [VIDEO +]
2 - Orange [VIDEO -]
3 - White/Green [DA TA +]
4 - Blue [AC 1]
5 - White/Blue [AC 2]
6 - Green [DA TA -]
7 - White/Brown [AC 2]
8 - Brown [AC 1]

2345678

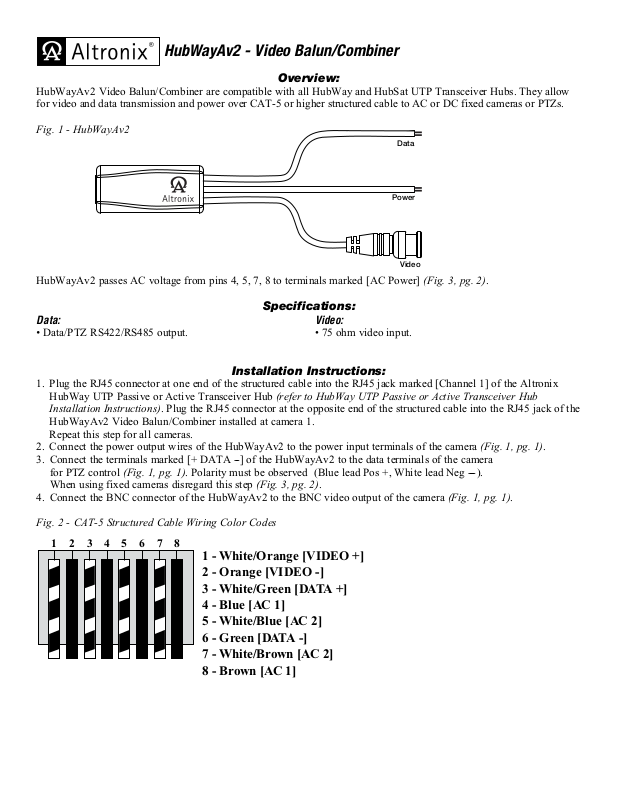

HubWayAv2 - Video Balun/Combiner

Overview:

HubWayAv2 Video Balun/Combiner are compatible with all HubWay and HubSat UTP Transceiver Hubs. They allow
for video and data transmission and power over CAT-5 or higher structured cable to AC or DC fixed cameras or PTZs.

Fig. 1 - HubWayAv2

HubWayAv2 passes AC voltage from pins 4, 5, 7, 8 to terminals marked [AC Power] (Fig. 3, pg. 2).

Specifica tions:

Data:

•Data/PTZ RS422/RS485 output.

Video:

•75ohmvideoinput.

Installation Instructions:

1. Plug the RJ45 connector at one end of the structured cable into the RJ45 jack marked [Channel 1] of the Altronix
HubWay UTP Passive or Active Transceiver Hub (refer to HubWay UTP Passive or Active Transceiver Hub
Installation Instructions). Plug the RJ45 connector at the opposite end of the structured cable into the RJ45 jack of the
HubWayAv2 Video Balun/Combiner installed at camera 1.
Repeat this step for all cameras.

2. Connect the power output wires of the HubWayAv2 to the power input terminals of the camera (Fig. 1, pg. 1).

3. Connect the terminals marked [+ DATA -- ] of the HubWayAv2 to the data terminals of the camera
for PTZ control (Fig. 1, pg. 1). Polarity must be observed (Blue lead Pos +, White lead Neg --- ).
When using fixed cameras disregard this step (Fig. 3, pg. 2).

4. Connect the BNC connector of the HubWayAv2 to the BNC video output of the camera (Fig. 1, pg. 1).

Fig. 2 - CAT-5 Structured Cable Wiring Color Codes

Fig. 3

HubWay UTP
Passive or Active
Transceiver Hub

Video/
Data/
Power

HubWayAv2
Video Balun

Combiner

Structured Cable

CHANNEL

PTZ
Camera

Typical Application Drawing:

Altronix is not responsible for any typographical errors.

140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: [phone]
web site: www.altronix.com, e-mail: [e-mail], Lifetime Warranty, Made in U.S.A.
IIHubWayAv2 - Rev. 041312 H16L
