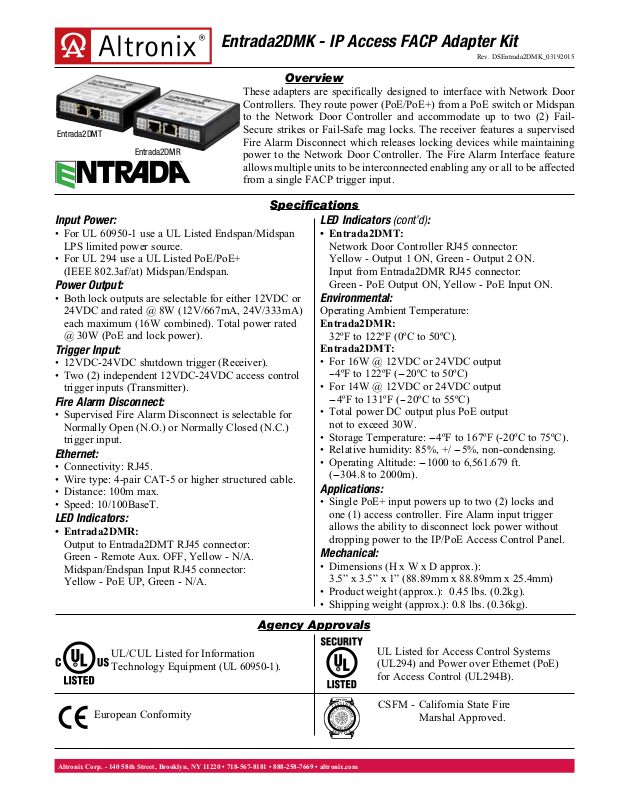

Altronix ENTRADA2DMK Specsheet

Entrada2DMK - IP Access FACP Adapter Kit

Rev. DSEntrada2DMK_03192015

Overview

These adapters are specifically designed to interface with Network Door
Controllers. They route power (PoE/PoE+) from a PoE switch or Midspan
to the Network Door Controller and accommodate up to two (2) Fail-

Entrada2DMT

Entrada2DMR

Input Power:

• For UL 60950-1 use a UL Listed Endspan/Midspan
LPS limited power source.

• For UL 294 use a UL Listed PoE/PoE+
(IEEE 802.3af/at) Midspan/Endspan.

Power Output:

• Both lock outputs are selectable for either 12VDC or
24VDC and rated @ 8W (12V/667mA, 24V/333mA)
each maximum (16W combined). Total power rated
@ 30W (PoE and lock power).

Trigger Input:

• 12VDC-24VDC shutdown trigger (Receiver).

• Two (2) independent 12VDC-24VDC access control
trigger inputs (Transmitter).

Fire Alarm Disconnect:

• Supervised Fire Alarm Disconnect is selectable for
Normally Open (N.O.) or Normally Closed (N.C.)
trigger input.

Ethernet:

• Connectivity: RJ45.

• Wire type: 4-pair CAT-5 or higher structured cable.

• Distance: 100m max.

• Speed: 10/100BaseT.

LED Indicators:

• Entrada2DMR:

Output to Entrada2DMT RJ45 connector:
Green - Remote Aux. OFF, Yellow - N/A.
Midspan/Endspan Input RJ45 connector:
Yellow - PoE UP, Green - N/A.

Secure strikes or Fail-Safe mag locks. The receiver features a supervised
Fire Alarm Disconnect which releases locking devices while maintaining
power to the Network Door Controller. The Fire Alarm Interface feature
allows multiple units to be interconnected enabling any or all to be affected
from a single FACP trigger input.

Specifications

LED Indicators (cont’d):

• Entrada2DMT:

Network Door Controller RJ45 connector:
Yellow - Output 1 ON, Green - Output 2 ON.
Input from Entrada2DMR RJ45 connector:
Green - PoE Output ON, Yellow - PoE Input ON.

Environmental:

Operating Ambient Temperature:

Entrada2DMR:

32ºF to 122ºF (0ºC to 50ºC).

Entrada2DMT:

• For 16W @ 12VDC or 24VDC output

-- 4ºF to 122ºF (--- 20ºC to 50ºC)

• For 14W @ 12VDC or 24VDC output

--- 4ºF to 131ºF (--- 20ºC to 55ºC)

• Total power DC output plus PoE output
not to exceed 30W.

• Storage Temperature: --- 4ºF to 167ºF (-20ºC to 75ºC).

• Relative humidity: 85%, +/ --- 5%, non-condensing.

• Operating Altitude: --- 1000 to 6,561.679 ft.
(--- 304.8 to 2000m).

Applications:

• Single PoE+ input powers up to two (2) locks and
one (1) access controller. Fire Alarm input trigger
allows the ability to disconnect lock power without
dropping power to the IP/PoE Access Control Panel.

Mechanical:

• Dimensions (H x W x D approx.):

3.5” x 3.5” x 1” (88.89mm x 88.89mm x 25.4mm)

• Product weight (approx.): 0.45 lbs. (0.2kg).

• Shipping weight (approx.): 0.8 lbs. (0.36kg).

Agency Approvals

UL/CUL Listed for Information
Technology Equipment (UL 60950-1).

Altronix Corp.

140 58th St. Brooklyn, NY

European Conformity

Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com

UL Listed for Access Control Systems
(UL294) and Power over Ethernet (PoE)
for Access Control (UL294B).

CSFM - California State Fire
Marshal Approved.
