Altronix eFlow4NX8D Installation Instructions
Power Supply/Chargers
Installation Guide
Models Include:
eFlow4N/eFlow4NX
- 4 amp @ 12VDC or 24VDC
eFlow4N8/eFlow4NX8 eFlow4N8D/eFlow4NX8D
- 4 amp @ 12VDC or 24VDC - 4 amp @ 12VDC or 24VDC
- Eight (8) Fused Outputs - Eight (8) PTC Outputs
Altronix Corp.
140 58th St. Brooklyn, NY
Rev. 4NRP052213 More than just power.™
Installing Company: _____________________ Service Rep. Name: __________________________________________
Address: ________________________________________________________ Phone #: _________________________
Overview:
The eFlow4N power supply/chargers convert a 120VAC / 60Hz input to a 12VDC or 24VDC nominal output
(see Power Supply Configuration Reference Chart and Specifications).
eFlow4N Series Power Supply Configuration Reference Chart:
Nominal DC Outputs
[DC] [AUX]
Altronix
Model Number
eFlow4N
eFlow4NX – – –
eFlow4N8
eFlow4NX8 2.5A – –
eFlow4N8D
eFlow4NX8D – 2A –
12VDC Output
Range (volts)
24VDC Output
Range (volts)
10.1-
20.28-
13.2
10.1-
13.2
9.78-
13.2
26.4
20.28-
26.4
20.0-
26.4
12VDC Output
Range (volts)
24VDC Output
10.05-
13.2
10.05-
13.2
10.05-
13.2
20.2-
26.4
20.2-
26.4
20.2-
26.4
These units are classified as Power-Limited stand alone power supplies with stand-by battery and they are suitable to power: sensors,
electro-mechanical devices (e.g. electric door strikes) defined in the National Electrical Code/NFPA70/NFPA72 and the Canadian Electrical Code, Part 1.
Maximum Supply
Current for Main and
Range (volts)
Aux. Outputs(amp)
4A
4A
4A
Power-Limited Output
Input Rating:
120VAC, 60Hz
Input Fuse Rating
3.5A 5A/250V 5A/32V 730 N/A 1
3
3.5A 5A/250V 5A/32V 730 PD8UL 8
3
3.5A 5A/250V 5A/32V 730 PD8ULCB 8
3
Battery Fuse Rating
Ripple Voltage (mV)
Under low battery condition
Power Distribution
Modiule
Number of Outputs
2.5A –
Fused Outputs Ratings
PTC Outputs Ratings
Accommodates up to
7AH Batteries
– –
– 2A
3
3
3
3
3
3
Accommodates up to
12AH Batteries
–
–
–
UL Listings for US Installations:
UL 294 - UL Listed for Access Control System Units.
UL 603 - UL Listed for Power Supplies for Use with Burglar-Alarms Systems.
UL 1481 - UL Listed for Power Supplies for Fire Protective Signaling Systems.
UL Listings for Canadian Installations:
ULC-S318-96 - Power Supplies for Burglar Alarm Systems. Also suitable for Access Control.
Altronix Corp.
140 58th St. Brooklyn, NY
California State Fire Marshal
(eFlow4N and eFlow4NX only)
CE Approved
Stand-by Specifications:
Fire Applications
24 hr. Stand-by/
5 min. Alarm
Battery
Burg. Applications
4 hr. Stand-by/
15 min. Alarm
7AH 0.4 amp/4 amp N/A 15 Mins./4 amp
12AH 1 amp/4 amp 0.3 amp/4 amp 35 Mins./4 amp
40AH (for eFlow4NX refer to Fig. 7, pg. 10) 4 amp/4 amp 1.2 amp/4 amp Over 4 Hours/4 amp
65AH (for eFlow4NX refer to Fig. 7, pg. 10) 4 amp/4 amp 1.5 amp/4 amp Over 4 Hours/4 amp
Access Control
Applications
Stand-by
- 2 - eFlow4N Series
Specifications:
Input:
• 120VAC,60Hz.
Output:
• Foroutputvoltageandsupplycurrent,
refer to eFlow4N series Power Supply Configuration
Reference Chart, pg. 2.
• AuxiliaryPower-Limitedoutput
rated @ 1 amp (unswitched).
• OverVoltageProtection.
Battery Backup:
• Built-inchargerforsealedleadacidorgeltypebatteries.
• Maximumchargecurrent1.54amp.
• Automaticswitchovertostand-bybatterywhenACfails.
Transfer to stand-by battery power is instantaneous with
no interruption.
Fire Alarm Disconnect:
• SupervisedFireAlarmdisconnect(latchingor
non-latching) 10K EOL resistor. Operates on a normally
open (NO) or normally closed (NC) trigger.
Supervision:
• ACfailsupervision(form“C”contacts).
Supervision (cont’d):
• Batteryfail&presencesupervision(form“C”contacts).
• Lowpowershutdown.ShutsdownDCoutputterminals
if battery voltage drops below 71-73% for 12V units
and 70-75% for 24V units (depending on the power
supply). Prevents deep battery discharge.
Fuse Ratings:
• RefertoeFlow4NSeriesPowerSupplyConfiguration
Reference Chart, pg. 2.
Visual Indicators:
• GreenACPowerLEDindicates120VACpresent.
• ACinputandDCoutputLEDindicators.
Additional Features:
• Shortcircuitandoverloadprotection.
• Unitiscompletewithpowersupply,enclosure,
battery leads and cam lock.

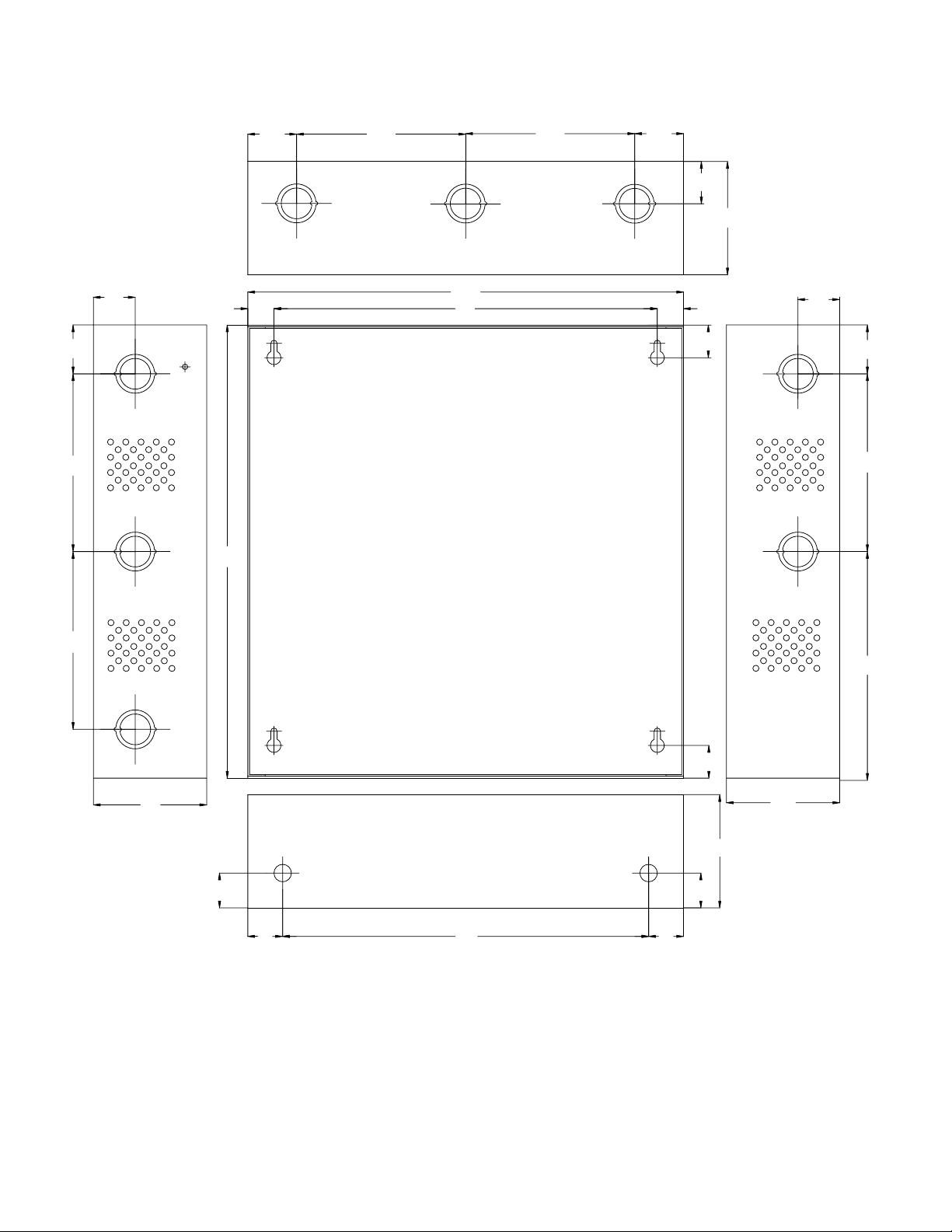

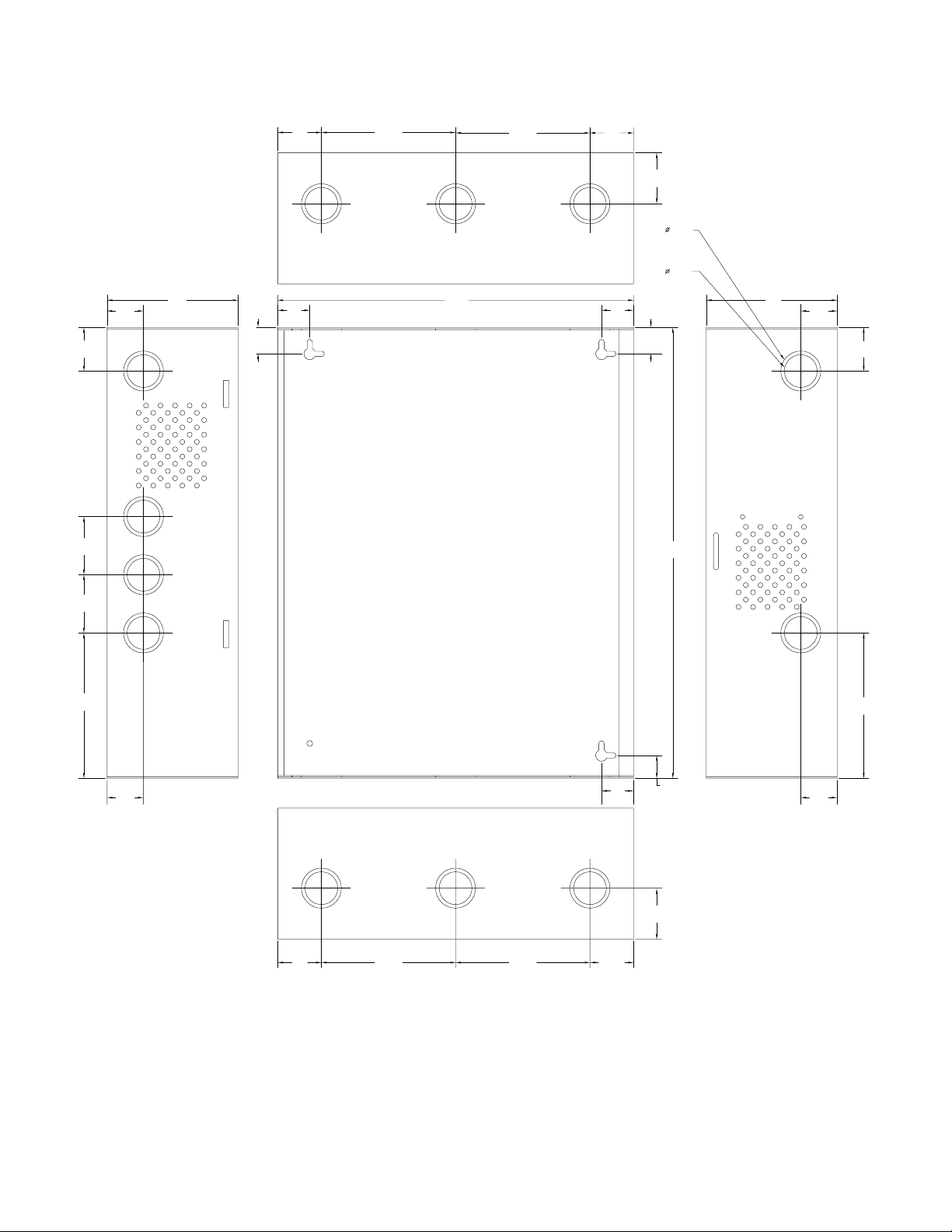

Enclosure Dimensions (approximate H x W x D):
eFlow4N, eFlow4N8, eFlow4N8D:
13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.55mm)
eFlow4NX, eFlow4NX8, eFlow4NX8D:
15.5” x 12” x 4.5” (393.7mm x 304.8mm x 114.3mm)
Installation Instructions:
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, The Canadian Electrical Code, Part 1 and with all local codes and authorities having jurisdiction. The product must be located indoors within
the protected premises.
1. Mount unit in desired location. Mark and predrill holes in the wall to line up with the top two keyholes in the
enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure’s
upper keyholes over the two upper screws, level and secure. Mark the position of the lower two holes. Remove the
enclosure. Drill the lower holes and install the two fasteners. Place the enclosure’s upper keyholes over the two
upper screws. Install the two lower screws and make sure to tighten all screws (Enclosure Dimensions, pgs. 11-12).
Secure enclosure to earth ground.
2. Set desired DC output voltage by setting SW1 to the appropriate position on the power supply board (Fig. 1i, pg. 5).
3. Connect unswitched AC power (120VAC 60Hz) to terminals marked [L, N] (Fig. 1a, pg. 5). Use 14 AWG or
larger for all power connections. Secure green wire lead to earth ground. Keep power-limited wiring separate from
non power-limited wiring (120VAC 60Hz Input, Battery Wires). Minimum 0.25” spacing must be provided.
For Fire Alarm applications the outputs are “Special Applications” only, see list (refer to Appendix A, pg. 12).
4. Measure output voltage before connecting devices. This helps avoid potential damage.
5. Connect devices to be powered:
a. For eFlow4N/eFlow4NX connect devices to terminals marked [- DC +] (Fig. 1h, pg. 3).
b. For other Power Distribution Models connect devices to be powered to terminal pairs 1 to 8 marked
[1P & 1N] through [8P & 8N] (Fig. 3a & 3b, pg. 6) carefully observing correct polarity.
For auxiliary device connection this output will not be affected by Low Power Disconnect or Fire Alarm Interface.
Connect device to terminals marked [+ AUX -- ] (Fig. 1f, pg. 5).
6. For Access Control applications batteries are optional. When batteries are not used, a loss of AC will result in the loss
of output voltage. When the use of stand-by batteries is desired, they must be lead acid or gel type.
Connect battery to terminals marked [-- BAT + ] (Fig. 1g, pg. 5). Use two (2) 12VDC batteries connected in series for
24VDC operation (battery leads included). Use batteries - Casil CL1270 (12V/7AH), CL12120 (12V/12AH),
CL12400 (12V/40AH), CL12650 (12V/65AH) batteries or UL recognized BAZR2 batteries of an appropriate rating.
7. Connect appropriate signaling notification devices to AC FAIL & BAT FAIL (Fig. 1b, pg. 5) supervisory
relay outputs.
8. To delay AC reporting for 2 hrs. set dip switch [AC Delay] to OFF position (Fig. 1c, pg. 5).
To delay AC reporting for 1 min. set dip switch [AC Delay] to ON position (Fig. 1c, pg. 5).
Note: Must be set to ON position for Burglar Alarm Applications.
9. To enable Low Output Power Shutdown set dip switch [Shutdown] to ON position (Fig. 1c, pg. 5).
To disable Low Output Power Shutdown set dip switch Shutdown] to OFF position (Fig. 1c, pg. 5).
eFlow4N Series - 3 -
10. Trigger terminals are end of a line resistor supervised (10k ohms). Opening or shorting trigger terminals will cause
[DC] output to shutdown (Fig. 1d, pg. 5).
11. Place a jumper for non-latching FACP. A momentary short on these terminals resets FACP latching
[Trigger EOL Shutdown] (Fig. 1e, pg. 5).

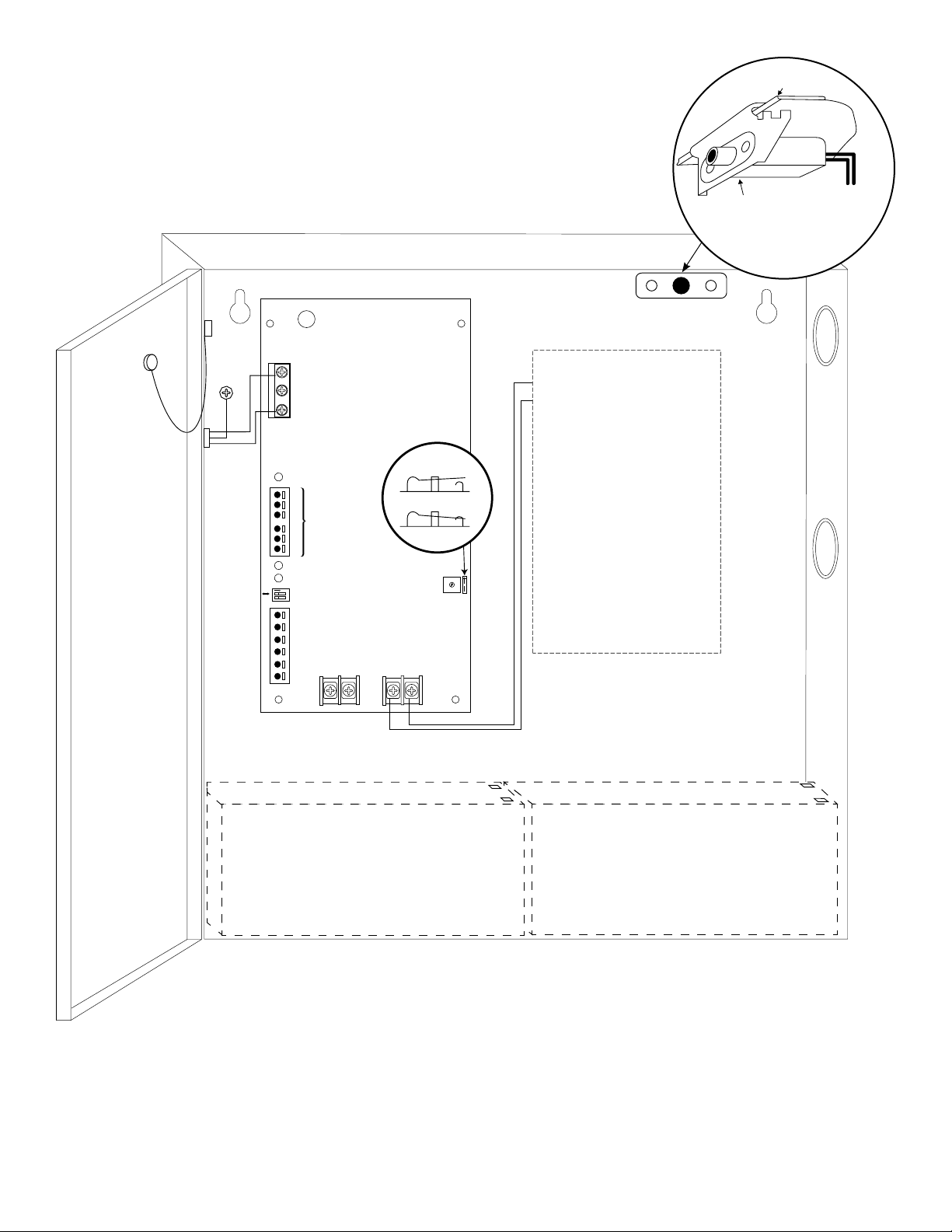

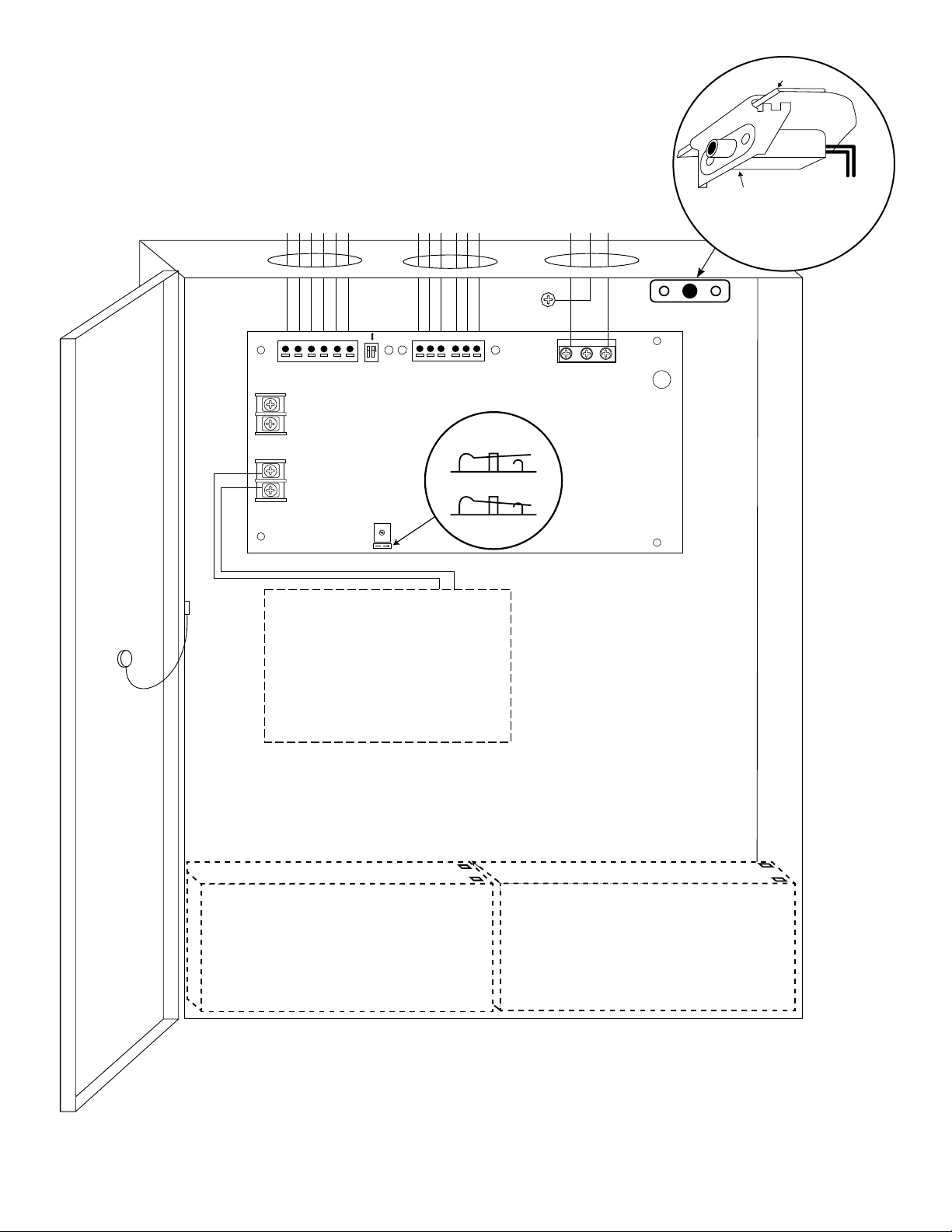

12. For Access Control Applications: mount UL Listed tamper switch (Sentrol model 3012 or equivalent) at the top of the
enclosure. Slide tamper switch bracket onto the edge or the enclosure approx. 2” from the right side
(Fig. 4, pg. 7 or Fig. 6, pg. 9). Connect tamper switch wiring to the Access Control Panel input or the
appropriate UL Listed reporting device.

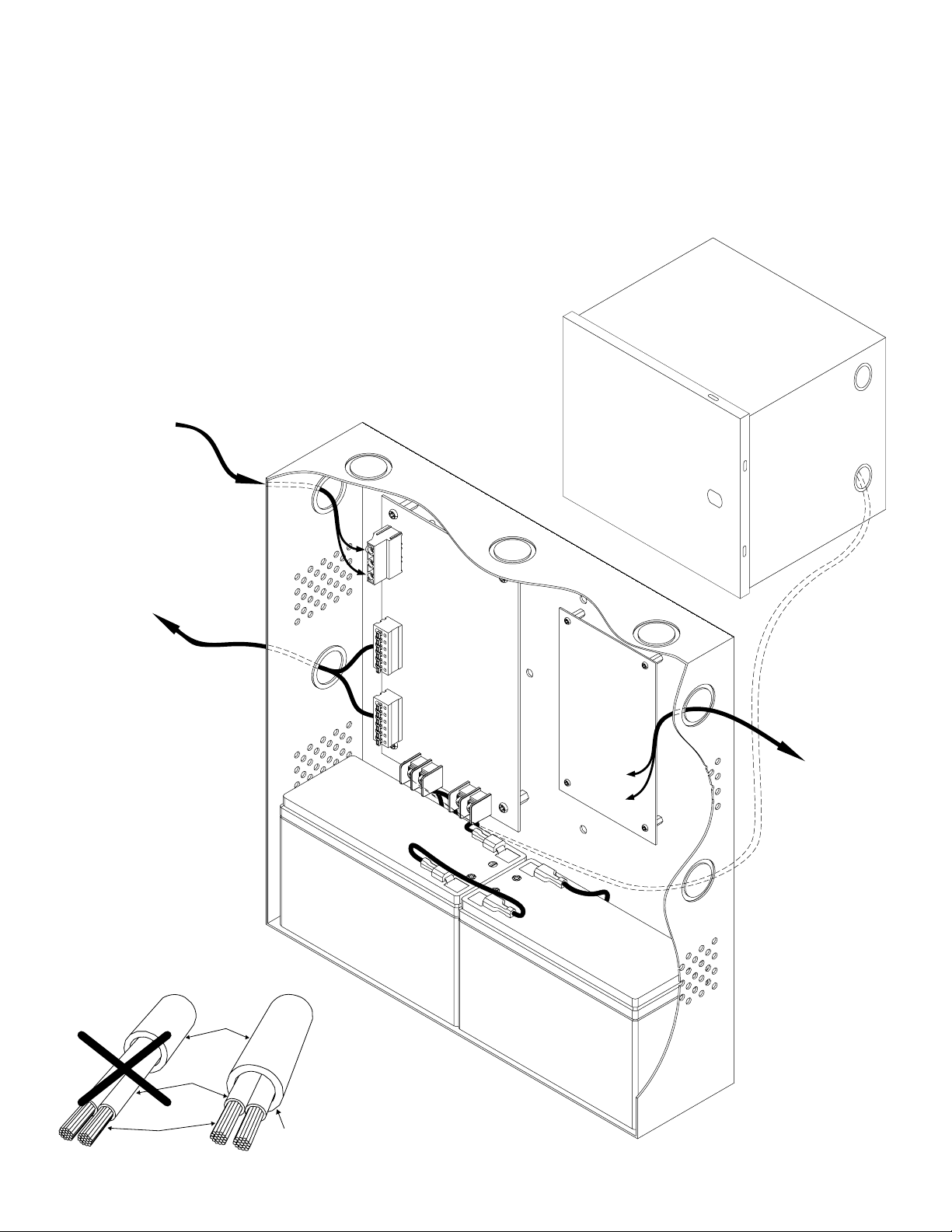

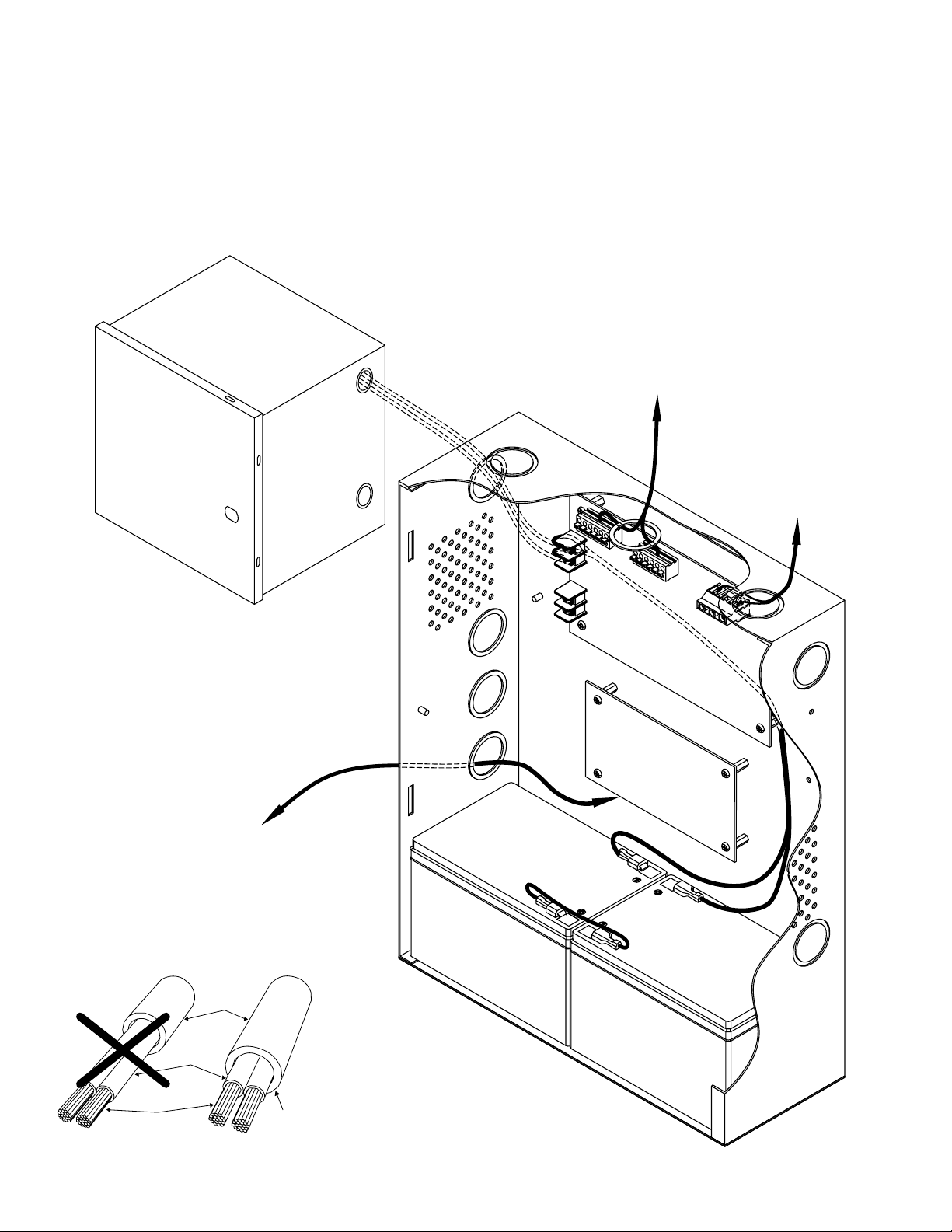

Wiring:
Use 18 AWG or larger for all low voltage power connections.
Note: Take care to keep power-limited circuits separate from non power-limited wiring (120VAC, Battery).
Maintenance:
Unit should be tested at least once a year for the proper operation as follows:
Output Voltage Test: Under normal load conditions, the DC output voltage should be checked for proper voltage level
eFlow4N: 12VDC or 24VDC nominal rated @ 4 amp max.
Battery Test: Under normal load conditions check that the battery is fully charged, check specified voltage
(12VDC @ 13.2 or 24VDC @ 26.4) both at battery terminal and at the board terminals marked [-- BAT + ] to insure
there is no break in the battery connection wires.
Note: Maximum charging current under discharges is 1.54 amp.
Note: Expected battery life is 5 years, however it is recommended changing batteries in 4 years or less if needed.
LED Diagnostics:
Power Supply/Charger
Red (DC) Green (AC/AC1) Power Supply Status
ON ON Normal operating condition.
ON OFF Loss of AC, Stand-by battery supplying power.
OFF ON No DC output.
OFF OFF Loss of AC. Discharged or no stand-by battery. No DC output.
Power Distribution Module
Green (AC) Power Distribution Module Status
ON Normal operating condition.
OFF No Power Output.
Terminal Identification:
Power Supply/Charger
Terminal
Legend
L, N Connect 120VAC 60Hz to these terminals: L to hot, N to neutral (non power-limited) (Fig. 1a, pg.5).
– DC + 12VDC or 24VDC nominal @ 4 amp continuous output (power-limited output) (Fig. 1h, pg. 5).
Trigger EOL
Supervised
NO, GND
RESET
+ AUX – Auxiliary Power-Limited output rated @ 1 amp (unswitched) (power-limited output) (Fig. 1f, pg. 5).
AC Fail
NC, C, NO
Bat Fail
NC, C, NO
– BAT + Stand-by battery connections. Maximum charge current 1.54 amp (non power-limited) (Fig. 1g, pg. 5).
Function/Description
Fire Alarm Interface trigger input from a short or FACP. Trigger inputs can be normally open,
normally closed from an FACP output circuit (power-limited input) (Fig. 1d, pg. 5).
FACP interface latching or non-latching (power-limited) (Fig. 1e, pg. 5).
Indicates loss of AC power, e.g. connect to audible device or alarm panel. Relay normally energized
when AC power is present. Contact rating 1 amp @ 30VDC (power-limited) (Fig. 1b, pg. 5).
Indicates low battery condition, e.g. connect to alarm panel. Relay normally energized when DC power
is present. Contact rating 1 amp @ 30VDC. A removed battery is reported within 5 minutes.
Battery reconnection is reported within 1 minute (power-limited) (Fig. 1b, pg. 5).
- 4 - eFlow4N Series

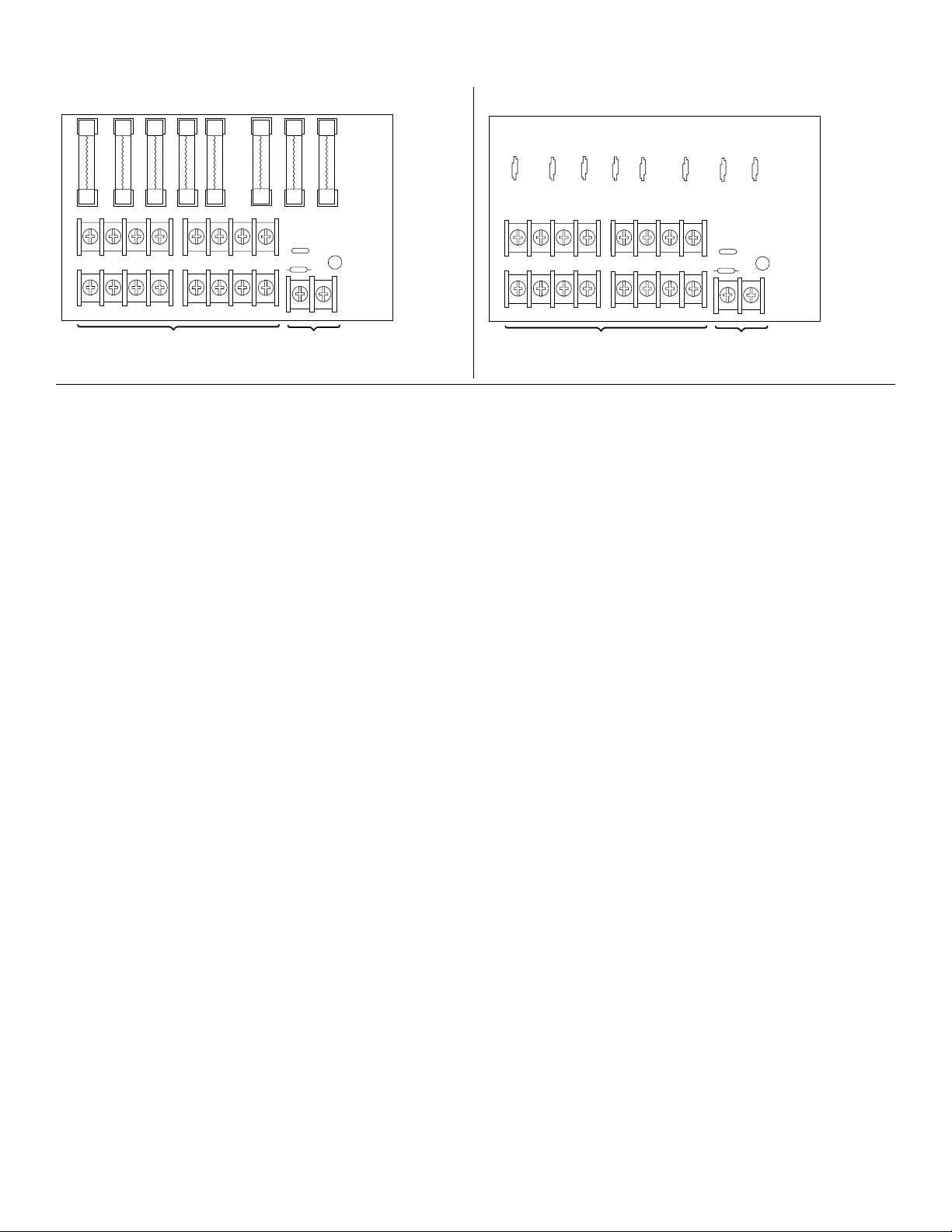

Power Distribution Module
g
Terminal Identification:
Terminal Legend
PD8UL/PD8ULCB
Function/Description
1P to 8P Positive DC power outputs.
1N to 8N Negative DC power outputs.
Fig. 1 - eFlow4N Board configuration
CLOSED --- 12V
OPEN --- 24V
1i
1h
--- DC +
1
--- BAT +
AC
AC DELAY SHUTDOWN
O
N
DC
1 min.
2 hr.
1c
enable
disable
TRIGGER EOL
SUPERVISED
NO GND
RESET
1e 1f1d
+ AUX –
5A 250V
AC1
LG N
NC C NO NC C NO
1a 1b
BAT FAILAC FAIL
Trouble/Time Limited Warning of Stand-by Batteries:
For compliance with ULC S318-96, the Time Limited Warning circuit must be connected for local or remote annunciation
with an Amber or Red LED to indicate DC Trouble (low battery, loss of battery or when 95% of the stand-by battery has
been depleted). Connect the circuit to the Batt Fail relay contacts to an appropriate input of a UL Listed Burglar Alarm
or Access Control Panel. The following figure shows the circuitry needed for local annunciation.
Fig. 2 - Battery trouble indication -
For Canadian use, a red indicating lamp must be visible from the exterior of this enclosure.
Wire one leg of a UL Listed, power-limited power source to the indicating
lamp. Wire the second leg of the power source to the indicating lamp in
series with the battery fail relay contact terminals marked
BAT FAILAC FAIL
[BAT FAIL - C, NO] (Fig. 2, pg. 5).
POWER
SOURCE
NC C NO NC C NO
RED INDICATING
LAMP
eFlow4N Series - 5 -
