Altronix EBRIDGE200WPMH, EBRIDGE200WPM User Manual

Download

Rev. 081214

Installation Guide

PLUS

eBridge200WPM - Outdoor Managed Two Port Transceiver

I.T.E. 43KC

Overview:

These long range PoE Ethernet transceiver/media converters transmit data and power over Coax or CAT5 cable over distances that are 3 to 5 times greater than standard Ethernet. Upgrading existing Coax analog camera infrastructure to IP cameras is greatly simplified as well. Two PoE cameras/devices can be attached and supports PoE, PoE+ or a single Hi-PoE (60W) device. The eBridge200WPM/WPMH offers built-in IP management which allows for remote camera reset, monitoring and reporting via various IP protocols. No need to install remote AC mains power since these devices are simply powered from the low voltage PoE midspan/endspan equipment, such as Altronix NetWay midspans or eBridge100SPR. Note: Ethernet maximum distance (see Maximum Length of Coax Type vs. Camera Power/PoE Class, pg. 4).

Features:

Input:

• UL Listed LPS PoE Power Supply. See input options table below.

Power Output:

• 2 ports PoE/PoE+ (30W) per port or 1 port Hi-PoE (60W).

• Total output power: 60W.

Ethernet:

• Link Distance: 500m max. (with Pace or eBridge100 series PoE receivers to eBridge200WPM) or 100m (with standard midspan or endspan to eBridge200WPM).

• Connectivity: RJ45, auto-crossover.

• Wire type: 4-pair Cat-5 or better structured cable.

• Device Distance: 100m max. (eBridge200WPM to camera/device).

• Speed: 100BaseT, full duplex, auto negotiation.

Coax:

• Link Distance: 300m max.

• Connectivity: BNC, RG-59/U or similar.

• Speed: 100BaseT, full duplex, auto negotiation.

LED Indicators:

• Speed and Activity of Output ports.

• PoE ON the Spare Pair of CAT5 PoE ON the Data Pair of CAT5.

Environmental:

• Operating Temperature: 60W over CAT5 -40ºF to 167ºF (-40ºC to +75ºC). 60W over Coax -40ºF to 149ºF (-40ºC to +65ºC). 45W over Coax -40ºF to 167ºF (-40ºC to +75ºC).

• Storage Temperature: -- 40ºF to 167ºF (--- 40ºC to +75ºC).

• Humidity: 20 to 85%, non-condensing.

Applications:

• Long range outdoor CAT5 or Coax PoE/PoE+/Hi-PoE.

• Retrofit digital IP cameras in an analog CCTV installation (up to two (2) IP cameras expansion per analog camera).

• Works with Megapixel, HD720, HD1080 and VGA (SD) cameras (see note, pg. 2).

• Upgrade deployed CCTV Coax to a digital network in Retail, Hospitality, Arenas, Casinos, Airports, Schools, Hospitals, Transportation, etc.

Mechanical:

• NEMA 4X, IP66 Rated enclosure for outdoor use.

• Dimensions (H x W x D approx.):

9.5” x 7.32” x 4.92” (241.3mm x 185.9mm x 125mm).

Models:

eBridge200WPM: Outdoor Managed Two Port Transceiver. eBridge200WPMH: Outdoor Managed Two Port Transceiver, enclosure with three (3) 5/8” wiring inlets, includes NEMA rated glands.

Input Power Options and Switch Setting:

Receiver

Midspan or Endspan 30W 2 pair 30W CAT or 60W COAX 100m

Pace1PRM, 4PRM, 8PRM or 16PRM 30W

Pace1PRD* 60W Provided over 4 pair on CAT5e 60W CAT 500m eBridge100SPR** 60W ------- 30W CAT or 60W COAX 300m eBridge100RM, 400PCRM,

800PCRM or 1600RM NetWay1D 60W Provided over 4 pair on CAT5e 60W CAT 100m

*When used with NetWay1D. **Use with UL Listed Class 2 or limited power source (such as NetWay1D).

eBridge200WPM/WPMH - 1 -

Input

Power

30W ------- 30W CAT or 60W COAX 300m

CAT5 Wiring Conf iguration Switch Setting

Provided over 2 pair/

2 pair on CAT5e

30W CAT or 60W COAX 500m

Link

Distance

Installation Instructions:

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction. Wiring should be UL Listed and/or Recognized wire suitable for the application.

1. Remove circuit board from enclosure prior to drilling eBridge200WPM (do not discard hardware). Note: Take care to assure that hardware will not interfere with components of the circuit board.

2. eBridge200WPM: Mark and drill desired inlets on the enclosure to facilitate wiring (Fig. 3, pg. 2). Maximum UL Listed NEMA type 4X rated fittings to be used is 1/2”, follow manufacturers specifications for the appropriate size opening. Note: Inlets for conduit fittings should only be made on the bottom of the enclosure. UL Listed NEMA type 4X rated conduit connector/hubs shall be used for the appropriate size inlets. eBridge200WPMH are pre-drilled with three (3) inlet holes for wiring. Skip step 3 if you have one of the aforementioned models.

3. Clean out the inside of enclosure before remounting circuit board.

4. Mounting NEMA4/4X rated enclosure: Wall mount: Mount unit in desired location. Mark and drill holes to line up with the top and bottom holes of the enclosure flange. Secure enclosure with appropriate fasteners (e. g. screws and anchors; bolts and locking nuts, etc.) which are compatible with mounting surface and of sufficient length/construction to ensure a secure mount (Figs. 15a and 15b, pg. 9). Pole Mount: refer to detailed instructions on page 10. Note: All inlets for conduit fittings should be on the bottom of the enclosure.

5. Mount circuit board in enclosure with hardware.

6. To facilitate wire entry utilize weather tight NEMA rated connectors (supplied), bushings, and cable.

7. Connect Coax from eBridge1SPR/100SPR (60W), eBridge100RM, eBridge400PCRM, eBridge800PCRM or eBridge1600PCRM (60W) receiver to connector marked [COAX INPUT] (Fig. 5, pg. 3). Connect Cat5 from Pace1PRD (60W), Pace1PRM, Pace4PRM, Pace8PRM Pace16PRM (30W)

60W CAT

receiver, NetWay1D or Midspan or Endspan (30W) connector marked [CAT INPUT] (Fig. 5, pg. 4)

8. Select input power SW3 on switch marked [60W CAT, 30W CAT or 60W COAX] (refer to

Input Power Options and Switch Settings on pg. 1, Fig. 1, pg. 2).

9. Connect structured cable from one (1) 60W camera/device to RJ45 jack marked [Port 1] or connect two (2) individual structured cables from two (2) 30W cameras/devices to RJ45 jacks marked [Port 1], [Port 2] (Fig. 5, pg. 3).

30W CAT

60W COAX

Fig. 1

SW3

Note: The eBridge is designed to accommodate Megapixel, HD720, HD1080 and VGA (SD) cameras. It is important to note that some high resolution and high frame rate cameras may demand faster headend processing ability, such as a PC graphics card to present a quality image. If the headend processing equipment is insufficient in speed, the image may show pixelation and latency. It is advisable to pretest system if unsure. Alternatively, frame rate and resolution may be reduced to accommodate system equipment.

Fig. 2

Reset Factory Settings:

1. Power the unit down by removing coax or Cat5e wire from input.

2. Depress and hold down Reset button (Fig. 2) while reconnecting coax or Cat5e wire to input.

3. The Heartbeat LED to the left of the Reset button (Fig. 2) will flash twice indicating unit is reset to factory default.

Fig. 3 - Bottom of enclosure

1.125”

28.575mm

1.125”

28.575mm

1.25”

31.75mm

0.875”

22.22mm

Suggested area

for Inlets

2.4375”

61.91mm

4.25”

107.95mm

LED1

SW1

- 2 - eBridge200WPM/WPMH

Technical Specifications:

Option 1

Parameter Description

Connections BNC for Coax link. RJ45 for ethernet link. Input power

requirements

Indicators

UL Listed LPS PoE Power Supply. See input options table pg. 1.

Speed and Activity of Output ports. PoE ON the Spare Pair of CAT5. PoE ON the Data Pair of CAT5.

Operating Ambient Temperature: UL60950-1 60W over CAT5 -40ºF to 167ºF (-40ºC to +75ºC).

Environmental Conditions

60W over Coax -40ºF to 149ºF (-40ºC to +65ºC). 45W over Coax -40ºF to 167ºF (-40ºC to +75ºC). Relative humidity: 20 to 85%, non-condensing. Storage Temperature: -- 40º to 167ºF (--- 40º to +75ºC). Operating Altitude: --- 1000 to 6,561.679 ft. (--- 304.8 to 2000m).

Regulatory Compliance

Weights (approx.)

--------

Product: 3.7 lbs. (1.68 kg), Shipping: 5 lbs. (2.27 kg)

60W Coax Applications:

Fig. 4

Option 1 Option 2

CAT-5e - 100mCAT-5e - 100m

Fig. 5

eBridge100SPR

eBridge100SPR - Receiver

Input: 51-56VDC Class 2 or LPS power supply Blue LED Coax link status (SLOC) RJ45 LEDs Yellow - Speed, Green - Activity Green LED Power and PoE

I.T.E. 43KC

10/100

Base-T

eBridge100RM

RJ45 LEDs Yellow - Speed Green - Activity Yellow LED Power and PoE

I.T.E. 43KC

RJ45 OUT

Coax

Provides 56VDC

Z1409

Coax

EoC Receiver passes PoE/PoE+

Z1409

SLOC

Link LED

PoE LED

www.altronix.com

30W Camera/Device

60W Camera/Device

PORT 1 PORT 2

SPEED

ACTIVITY

NetWay1D

Aux.

INOUT

+ ---

PoE ON

DC Power

Input

Power LED

--- +

SPR PoE

SPEED

ACTIVITY

DATA

SPR

PoE

DATA

PoE

SPEED

ACTIVITY

COAX INPUT

CAT INPUT

Coax - 300m

CAT-5e - 100m

60W CAT

SW3

30W CAT

60W COAX

30W Camera/Device

60W CAT

SW3

30W CAT

60W COAX

30W Coax Applications:

Option 2

30W Camera/Device

PORT 1 PORT 2

SPEED

ACTIVITY

SPR PoE

Midspan

or Endspan

PoE

LED

Input

SPEED

ACTIVITY

DATA

SPR

PoE

DATA

PoE

SPEED

ACTIVITY

COAX INPUT

CAT INPUT

Coax - 300m

CAT-5e - 100mCAT-5e - 100m

CAT-5e - 100m

60W CAT

SW3

30W CAT

60W COAX

15W Camera/Device

60W CAT

SW3

30W CAT

60W COAX

eBridge200WPM/WPMH - 3 -

Fig. 6

15W Coax Applications:

Option 1

CAT-5e - 100m

eBridge100RM

RJ45 LEDs Ye llow - Speed Green - Activity Yellow LED Power and PoE

I.T.E. 43KC

RJ45 OUT

Coax

EoC Receiver passes PoE/PoE+

Z1409

PoE LED

www.altronix.com

15W Camera/Device

Midspan

or Endspan

PoE

LED

Input

SPEED

ACTIVITY

SPR

DATA

PoE

PORT 1 PORT 2

SPEED

ACTIVITY

SPR PoE

Coax - 300m

60W Cat5e Application:

Fig. 7 - Data/Power Transmission from Headend up to 500m over Cat5e

Option 1 Option 2

Cat5e - 100m Cat5e - 100m

60W Camera/Device

PORT 1 PORT 2

Pace1PRD

Pace1PRD - Receiver

RJ45 LEDs Yellow - Activity Green - Speed Green LED Power and PoE

I.T.E. 43KC

UTP Link

IP-UTP Receiver Passes PoE/PoE+

Z1409

Output RJ45 Link

NetWay1D

Aux.

INOUT

+ ---

PoE ON

www.altronix.com

Input

PoE

Input

LED

SPEED

ACTIVITY

SPR PoE

Cat5e - 500m

SPEED

ACTIVITY

DATA

SPR

PoE

60W CAT

DATA PoE

SPEED

ACTIVITY

30W CAT

60W COAX

SW3

60W CAT

COAX INPUT

SW3

CAT INPUT

30W CAT

60W COAX

PoE+ Camera/Device

Cat5e - 100m

60W CAT

DATA PoE

SPEED

ACTIVITY

30W CAT

60W COAX

SW3

COAX INPUT

CAT INPUT

PoE+ Camera/Device

60W CAT

SW3

30W CAT

60W COAX

60W Cat5e Application:

Fig. 8 - Data/Power Transmission from Headend up to 100m over Cat5e

Option 1 Option 2

Cat5e - 100m Cat5e - 100m

PoE+ Camera/Device

60W Camera/Device

PORT 1 PORT 2

NetWay1D

SPEED

ACTIVITY

Aux.

INOUT

+ ---

PoE ON

SPR PoE

SPEED

ACTIVITY

DATA

SPR

PoE

DATA

PoE

SPEED

ACTIVITY

COAX INPUT

CAT INPUT

Cat5e - 100m

- 4 - eBridge200WPM/WPMH

Cat5e - 100m

60W CAT

SW3

30W CAT

60W COAX

PoE+ Camera/Device

60W CAT

SW3

30W CAT

60W COAX

Fig. 9 - Data/Power Transmission from Headend up to 500m over Cat5e

Pace1PRM

Midspan

or Endspan

Z1409

Fig. 10 - Data/Power Transmission from Headend up to 100m over Cat5e

Option 1

30W Camera/Device

Cat5e - 500m

Option 1

30W Cat5e Application:

PORT 1 PORT 2

SPEED

ACTIVITY

SPR PoE

SPEED

ACTIVITY

DATA

SPR

PoE

30W Cat5e Application:

Option 2

CAT-5e - 100mCAT-5e - 100m

15W Camera/Device

CAT-5e - 100m

60W CAT

DATA PoE

SPEED

ACTIVITY

COAX INPUT

CAT INPUT

30W CAT

60W COAX

SW3

15W Camera/Device

60W CAT

SW3

30W CAT

60W COAX

Option 2

30W Camera/Device

PORT 1 PORT 2

SPEED

ACTIVITY

SPR

DATA

PoE

Midspan

or Endspan

Cat5e - 100m

15W Cat5e Application:

Fig. 11 - Data/Power Transmission from Headend up to 500m over Cat5e

Option 1

CAT-5e - 100m

Pace1PRM

15W Camera/Device

Midspan

or Endspan

Z1409

Cat5e - 500m

ACTIVITY

SPEED

SPR

DATA

PoE

PORT 1 PORT 2

SPEED

ACTIVITY

SPR PoE

ACTIVITY

DATA PoE

SPEED

CAT-5e - 100mCAT-5e - 100m

15W Camera/Device

CAT-5e - 100m

60W CAT

SPR

DATA

PoE

SPEED

ACTIVITY

COAX INPUT

CAT INPUT

60W CAT

COAX INPUT

30W CAT

60W COAX

SPEED

CAT INPUT

ACTIVITY

SW3

30W CAT

60W COAX

SW3

15W Camera/Device

60W CAT

30W CAT

60W COAX

60W CAT

SW3

30W CAT

60W COAX

SW3

eBridge200WPM/WPMH - 5 -

15W Cat5e Application:

Fig. 12 - Data/Power Transmission from Headend up to 100m over Cat5e

Option 1

CAT-5e - 100m

15W Camera/Device

Midspan

or Endspan

Cat5e - 100m

Cable Type, Total Device Power, Data and Power Distance:

Cable Type

Total Power

Consumption

RG59u/23awg 15W 300m 264m RG59u/23awg 30W 300m 132m RG59u/23awg 60W 300m 66m RG59u/22awg 15W 300m 334m RG59u/22awg 30W 300m 167m RG59u/22awg 60W 300m 83m RG59u/20awg 15W 300m 532m RG59u/20awg 30W 300m 266m RG59u/20awg 60W 300m 133m RG59u/18awg 15W 300m 846m RG59u/18awg 30W 300m 423m RG59u/18awg 60W 300m 211m Cat-5e 15W 500m 846m Cat-5e 30W 500m 423m Cat-5e 60W 500m 211m

Max. Data

Distance

Max. Power

Distance

ACTIVITY

SPEED

SPR

DATA

PoE

PORT 1 PORT 2

SPEED

ACTIVITY

SPR

DATA

PoE

SPEED

ACTIVITY

CAT INPUT

COAX INPUT

60W CAT

30W CAT

60W COAX

SW3

60W CAT

30W CAT

60W COAX

SW3

Note: Calculations based off of 56VDC starting voltage from power source and accounts for a 10VDC voltage drop. IEEE standards voltage range requirement for powered devices are: PoE (15W) - 37VDC to 57VDC PoE+ (30W) - 44VDC to 57VDC

eBridge200WPM/WPMH User Interface and Programming:

Note: A constant PC connection is not required for proper operation and is used as a local programming/monitoring tool only. Step 1. Set Local Area Connection of your laptop to DHCP mode.

For Windows XP: a. Open Network Connections by clicking Start button, then clicking Settings, then clicking Network Connections. b. Right click the Local Area Connection. Click Properties. Administrator permission required. If you are prompted for an administrator password or confirmation, type the password or provide confirmation. c. Double click Internet Protocol (TCP/IP) menu item. d. Choose the Obtain an IP address automatically option. e. Click OK. Close all windows.

For Windows Vista: a. Open Network Connections by clicking the Start button Picture of the Start button, clicking Control Panel, clicking Network and Internet, clicking Network and Sharing Center, and then clicking Manage Network connections. b. Right click the Local Area Connection icon, and then click Properties. Administrator permission required. If you are prompted for an administrator password or confirmation, type the password or provide confirmation.

- 6 - eBridge200WPM/WPMH

c. Click the Networking tab. Under this connection uses the following items, click either Internet Protocol Version 4 (TCP/IPv4) or Internet Protocol Version 6 (TCP/IPv6), and then click Properties.

d. To specify IPv4 IP address settings, click Obtain an IP address automatically, and then click OK. e. To specify IPv6 IP address settings, click Obtain an IPv6 address automatically, and then click OK.

For Windows 7: a. Open Network Connections by clicking the Start button Picture of the Start button, clicking Control Panel, clicking Network and Internet, clicking Network and Sharing Center, and then clicking Change Adapter Settings. b. Right click the Local Area Connection icon, and then click Properties. Administrator permission required. If you are prompted for an administrator password or confirmation, type the password or provide confirmation. c. Click the Networking tab. Under this connection uses the following items, click either Internet Protocol Version 4 (TCP/IPv4) or Internet Protocol Version 6 (TCP/IPv6), and then click Properties. d. To specify IPv4 IP address settings, click Obtain an IP address automatically, and then click OK. e. To specify IPv6 IP address settings, click Obtain an IPv6 address automatically, and then click OK.

Step 2. Connect a laptop or PC to the Ethernet port of the receiver, Midspan or Endspan powering your eBridge200WPM/WPMH. The eBridge200WPM/WPMH unit should be powered up at this moment.

Step 3. Open a browser window (it is necessary to update your browser software to the latest version so that the pages display and function correctly).

Step 4. Enter the eBridge200WPM/WPMH IP address (the default IP address is 192.168.168.168), or enter the eBridge200WPM/WPMH host name if in DHCP mode (default host name is “eBridge200WPM/WPMH1”) into the address bar. Status page will be displayed.

Configuring eBridge200WPM/WPMH for network connection:

Since every Network Configuration is different, please check with your Network Administrator to see if your eBridge200WPM/WPMH should use static IP addresses, or DHCP assigned IP addresses and/an Inbound Port assignment prior to setting up network connection.

1. Click Network Settings link. You will be prompted for an administrative user name and password, type and submit the password. Note: Default User Name: admin Password: admin

2. Network Setup page will be displayed. You may now configure your eBridge200WPM/WPMH for network connection.

Fig. 13 - NETWORK SETTING MENU - This menu is for configuring the eBridge200WPM/WPMH units for a network connection.

eBridge200WPM/WPMH - 7 -

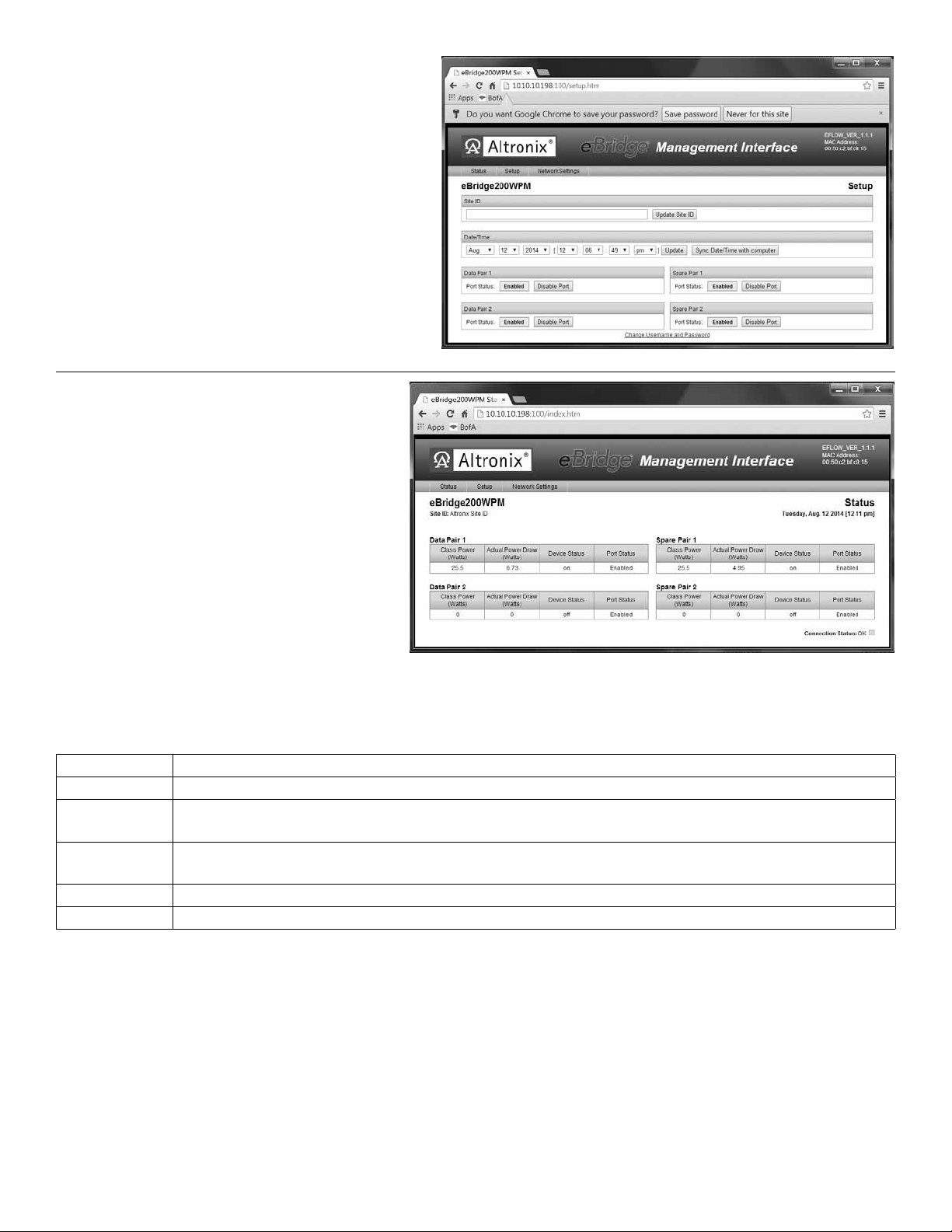

Fig. 14 - SETUP MENU - Setup Site ID, Date and TIme Disable/Enable Ports

Fig. 15 - STATUS MENU - Real time unit status

Network Type:

Static IP DHCP

Subnet Mask

Inbound Port Host Name

User can set a fixed IP for network connection. DHCP server in LAN will automatically assign IP configuration for the network connection. This field shows the eBridge200WPM/WPMH current IP Address. A static IP address must be set

manually. If DHCP this value will be assigned automatically. This field shows the subnet mask for your network so the eBridge200WPM/WPMH will be recognized

within the network. If DHCP is selected, this value will be assigned automatically. Port number for HTTP/WEB communication. Name of the eBridge200WPM/WPMH device on the LAN

Additional Information:

1. If using DHCP, all settings will be detected automatically. While DHCP is a useful tool for determining the network settings, if you set up your eBridge200WPM/WPMH in this manner its IP address may change at different times for different reasons, particularly after a power failure. If the IP address of the eBridge200WPM/WPMH changes, you may have difficulties accessing your eBridge200WPM/ WPMH locally and/or remotely. It is strongly recommended that you connect via host name when unit is configured as DHCP. Please do not set the DHCP address issued to the eBridge200WPM/WPMH by the router as its static IP address unless you take specific steps that program your router to prevent such address conflicts.

2. If using a Static IP (recommended), you will need to input the information manually. In order for DDNS to work, you must enter valid data, compatible with your network, for all of the network setting fields: IP address, Subnet Mask, Inbound Port and Host Name.

- 8 - eBridge200WPM/WPMH

3. If you are connecting through a router, make sure that you have ‘opened up’ all the required network ports in the port forwarding section of your router’s setup options. That is, you have directed the router to send any incoming traffic using those IP ports to the LAN IP address of the eBridge200WPM/WPMH. Useful information about router port forwarding can be found at www.portforward.com. Different routers may use different terms for port forwarding function. For instance, D-Link calls it virtual server, Netopia calls it pinholes.

The default port for eBridge200WPM/WPMH is: 80

Note: Port 80 is the default port used for web browsing. Because of this, in order to prevent the average user from hosting a web server, most ISPs BLOCK traffic using port 80 from reaching the average site. If you only plan to monitor your eBridge200WPM/WPMH on a LAN, you can use port 80, and don’t have to concern yourself with routers. However, if you desire remote access to your eBridge200WPM/WPMH, you MUST select functional ports and set up the port forwarding in your router. Other ports, such as 8080 and 8000, are sometimes blocked by ISPs as well. What port(s) should be used? There are 65,535 valid IP ports to choose from.

These are broken down into three groups:

• Well Known Ports 0 through 1023.

• Registered Ports 1024 through 49151.

• Dynamic and/or Private Ports 49152 through 65535.

So, rather than encounter a port conflict by choosing a port commonly used for another purpose (like port 25 for SMTP mail or port 448 for secure sockets), choose an ‘unusual’ port number. For example, add 50,000 to your house number: 50,123 is less likely to lead to a port conflict. For a list of the known and registered ports see http://www.iana.org/assignments/port-numbers.

Wall Mount Installation:

1- Place unit at the desired location and secure with mounting screws (not included) (Fig. 16a and Fig. 16b, pg. 9).

Fig. 16a Fig. 16b

eBridge200WPM/WPMH - 9 -

Pole Installation Using Optional Pole Mount Kit PMK1 (not included):

This installation should be made by qualified service personnel. This product contains no serviceable parts. PMK1 is intended for use with Altronix outdoor rated power supplies or accessories housed in WP1, WP2, WP3 and WP4 enclosures. Brackets are designed for use with the Wormgear Quick Release Straps (two included).

1. Thread one (1) wormgear quick release strap through the slots on the back of a mounting bracket (Fig. 17, pg. 10).

2. Once the desired height of the top Pole Mount bracket is achieved, tighten the straps down by sliding open end of the strap through the locking mechanism on the strap, then tighten the screw with flat head screwdriver or 5/16” hex socket driver (Fig. 18 pg. 10).

Fig. 17

Fig. 18

3. Attach the bottom bracket to the enclosure by inserting bolts through the flange of the enclosure and into the bracket, tightening bolts with a 7/16” hex socket (Fig. 20, pg. 10).

4. Thread the second wormgear quick release strap through the slots on the back of the bottom mounting bracket (Fig. 17, pg. 10).

5. Mount enclosure onto the top bracket by inserting bolts through flange of the enclosure and into the bracket, tightening bolts with a 7/16” hex socket (Fig. 19, pg. 10).

6. Tighten the straps of the bottom bracket down by sliding the open end of the strap through the locking mechanism on the strap, then tighten screw with flat head screwdriver or 5/16” hex socket driver (Fig. 21/21a, pg. 10).

7. Clip excess straps.

Fig. 19

Fig. 20

Fig. 21 - 2” to 8”(50.8mm to 203.2mm) Fig. 21a - 5” (127mm) square pole diameter round pole

- 10 - eBridge200WPM/WPMH

Mechanical Drawing and Dimensions (H x W x D approx.):

9.5” x 7.32” x 4.92” (241.3mm x 185.9mm x 125mm)

304 Stainless Steel

Piano Hinge

4.0” 101.6mm

236.7mm

9.32”

0.312” (7.9mm) TYP

0.375” (9.5mm) Padlock Eye

4 Places

125mm

4.92”

Padlock Latch Attached

316 Stainless Steel

185.9mm

7.32”

35.1mm

1.38”

89.9mm

3.54”

110.5mm

4.35”

38mm

1.5”

38mm

1.5”

38mm

1.5”

10-32 X 0.25” (6.4mm)

4 Places

3 Places eBridge200WPMH

0.65” (16.5mm) Holes -

222.2mm

8.75”

241.3mm

9.5”

159.3mm

6.27”

203.2mm

8.0”

222.2mm

8.75”

6.75” 171.5mm

6.0” 152.4mm

4.25” 108mm

eBridge200WPM/WPMH - 11 -

Notes:

Altronix is not responsible for any typographical errors.

140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIeBridge200WP/WPH/WPM/WPMH F19O

- 12 - eBridge200WPM/WPMH

MEMBER

Altronix EBRIDGE200WPMH, EBRIDGE200WPM User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
