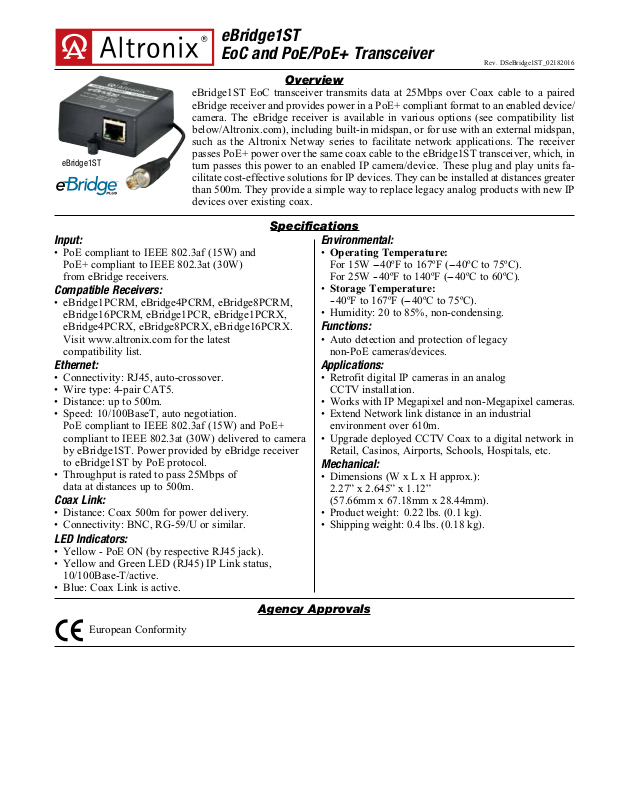

Altronix EBRIDGE1ST Specsheet
eBridge1ST
EoC and PoE/PoE+ Transceiver
Rev. DSeBridge1ST_02182016
Overview
eBridge1ST EoC transceiver transmits data at 25Mbps over Coax cable to a paired
eBridge receiver and provides power in a PoE+ compliant format to an enabled device/
camera. The eBridge receiver is available in various options (see compatibility list
below/Altronix.com), including built-in midspan, or for use with an external midspan,
such as the Altronix Netway series to facilitate network applications. The receiver
eBridge1ST
Input:
• PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W)
from eBridge receivers.
Compatible Receivers:
• eBridge1PCRM, eBridge4PCRM, eBridge8PCRM,
eBridge16PCRM, eBridge1PCR, eBridge1PCRX,
eBridge4PCRX, eBridge8PCRX, eBridge16PCRX.
Visit www.altronix.com for the latest
compatibility list.
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5.
• Distance: up to 500m.
• Speed: 10/100BaseT, auto negotiation.
PoE compliant to IEEE 802.3af (15W) and PoE+
compliant to IEEE 802.3at (30W) delivered to camera
by eBridge1ST. Power provided by eBridge receiver
to eBridge1ST by PoE protocol.
• Throughput is rated to pass 25Mbps of
data at distances up to 500m.
Coax Link:
• Distance: Coax 500m for power delivery.
• Connectivity: BNC, RG-59/U or similar.
LED Indicators:
• Yellow - PoE ON (by respective RJ45 jack).
• Yellow and Green LED (RJ45) IP Link status,
10/100Base-T/active.
• Blue: Coax Link is active.
passes PoE+ power over the same coax cable to the eBridge1ST transceiver, which, in
turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost-effective solutions for IP devices. They can be installed at distances greater
than 500m. They provide a simple way to replace legacy analog products with new IP
devices over existing coax.
Specifications
Environmental:
• Operating Temperature:
For 15W --- 40ºF to 167ºF (--- 40ºC to 75ºC).
For 25W -- 40ºF to 140ºF (--- 40ºC to 60ºC).
• Storage Temperature:
-- 40ºF to 167ºF (--- 40ºC to 75ºC).
• Humidity: 20 to 85%, non-condensing.
Functions:
• Auto detection and protection of legacy
non-PoE cameras/devices.
Applications:
• Retrofit digital IP cameras in an analog
CCTV installation.
• Works with IP Megapixel and non-Megapixel cameras.
• Extend Network link distance in an industrial
environment over 610m.
• Upgrade deployed CCTV Coax to a digital network in
Retail, Casinos, Airports, Schools, Hospitals, etc.
Mechanical:
• Dimensions (W x L x H approx.):
2.27” x 2.645” x 1.12”
(57.66mm x 67.18mm x 28.44mm).
• Product weight: 0.22 lbs. (0.1 kg).
• Shipping weight: 0.4 lbs. (0.18 kg).
European Conformity
Agency Approvals
eBridge Plus Receiver / eBridge Plus Transceiver Compatibility:
Ethernet and Power over Coax Solutions.
eBridge Plus Receiver eBridge Plus Transceiver
eBridge1PCR, eBridge1PCRX or eBridge1PCRM
eBridge4PCRX or eBridge4PCRM
Single Transceiver
Up to four (4)
Transceivers
eBridge8PCRX or eBridge8PCRM
eBridge16PCRX or eBridge16PCRM
Up to eight (8)
Transceivers
eBridge1ST
Up to sixteen (16)
Transceivers
Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com
