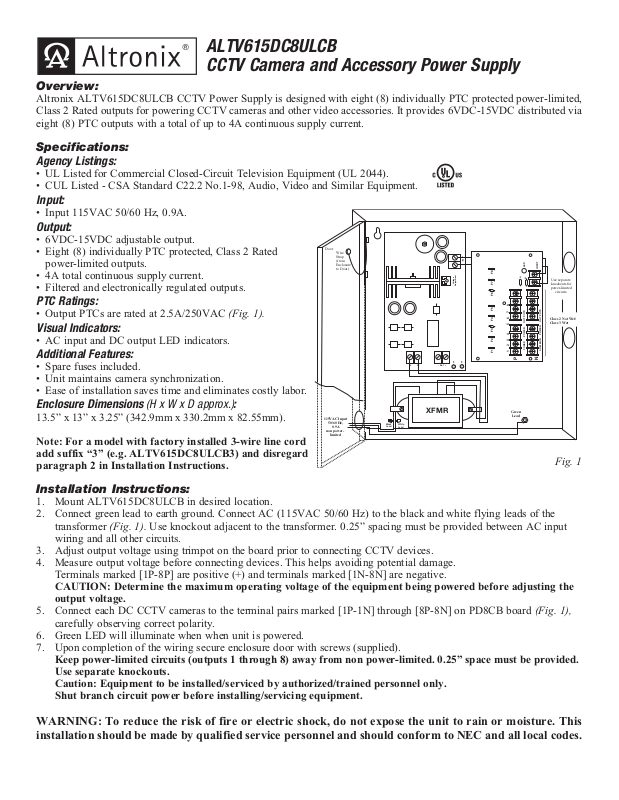

Altronix ALTV615DC8ULCB Installation Guide

ALTV615DC8ULCB
CCTV Camera and Accessory Power Supply

Overview:

Altronix ALTV615DC8ULCB CCTV Power Supply is designed with eight (8) individually PTC protected power-limited,
Class 2 Rated outputs for powering CCTV cameras and other video accessories. It provides 6VDC-15VDC distributed via
eight (8) PTC outputs with a total of up to 4A continuous supply current.

Specifications:

Agency Listings:

• UL Listed for Commercial Closed-Circuit Television Equipment (UL 2044).

• CUL Listed - CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment.

Input:

• Input 115VAC 50/60 Hz, 0.9A.

Output:

• 6VDC-15VDC adjustable output.

• Eight (8) individually PTC protected, Class 2 Rated
power-limited outputs.

• 4A total continuous supply current.

• Filtered and electronically regulated outputs.

PTC Ratings:

• Output PTCs are rated at 2.5A/250VAC (Fig. 1).

Visual Indicators:

• AC input and DC output LED indicators.

Additional Features:

• Spare fuses included.

• Unit maintains camera synchronization.

• Ease of installation saves time and eliminates costly labor.

Enclosure Dimensions (H x W x D approx.):

13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.55mm).

Note: For a model with factory installed 3-wire line cord
add suffix “3” (e.g. ALTV615DC8ULCB3) and disregard
paragraph 2 in Installation Instructions.

Door

Wire
Strap
(from
Enclosure
to Door)

115VAC Input

50/60 Hz,

0.9A

non power-

limited

+ DC -

LED

INPUT

D1

R1

Voltage

Adjustment

1 2 3 4 5 6 7 8

F1 F2 F3 F4 F5 F6 F7 F8

Green

Lead

P

DC

AC

- BAT +

AC AC

XFMR

Black

White

Lead

Lead

Use separate
knockouts for
power-limited

circuits.

Class 2 Not Wet/
Class 3 Wet

FUSED POWER OUTPUTS

COMMON POWER OUTPUTS

N

Fig. 1

Installation Instructions:

1. Mount ALTV615DC8ULCB in desired location.

2. Connect green lead to earth ground. Connect AC (115VAC 50/60 Hz) to the black and white flying leads of the
transformer (Fig. 1). Use knockout adjacent to the transformer. 0.25” spacing must be provided between AC input
wiring and all other circuits.

3. Adjust output voltage using trimpot on the board prior to connecting CCTV devices.

4. Measure output voltage before connecting devices. This helps avoiding potential damage.
Terminals marked [1P-8P] are positive (+) and terminals marked [1N-8N] are negative.
CAUTION: Determine the maximum operating voltage of the equipment being powered before adjusting the

output voltage.

5. Connect each DC CCTV cameras to the terminal pairs marked [1P-1N] through [8P-8N] on PD8CB board (Fig. 1),
carefully observing correct polarity.

6. Green LED will illuminate when when unit is powered.

7. Upon completion of the wiring secure enclosure door with screws (supplied).

Keep power-limited circuits (outputs 1 through 8) away from non power-limited. 0.25” space must be provided.
Use separate knockouts.
Caution: Equipment to be installed/serviced by authorized/trained personnel only.
Shut branch circuit power before installing/servicing equipment.

WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture. This
installation should be made by qualified service personnel and should conform to NEC and all local codes.

Terminal Identification:

(

)

(

)

(

)

AL400ULB - Power Supply Board

Terminal Legend Function/Description

AC/AC Low voltage AC input (24VAC 100VA). Altronix part #T24130
+ DC - 6VDC-15VDC @ 4A total continuous output.

PD8ULCB - Distribution Module

1P - 8P Positive DC output, Class 2, power-limited.
1N - 8N Negative DC output, Class 2, power-limited.

Enclosure Dimensions (H x W x D approximate):

13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.55mm)

1.40”

(36mm)

1.20”

(31mm)

(36mm)

0.75”

(19mm)

1.40”

4.85”

(123mm)

12.5”

(318mm)

11.0”

(279mm)

4.85”

(123mm)

1.40”

(36mm)

(19mm)

0.75”

1.20”

(31mm)

0.9375”
(24mm)

3.25”

(83mm)

1.20”

(31mm)

1.40”

(36mm)

5.10”

(130mm)

5.10”

(130mm)

3.25”

(83mm)

13.0”

(330mm)

1.0”

(25mm)

1.0”

25mm

10.5”

267mm

1.0”

25mm

0.9375”
(24mm)

1.0”

(25mm)

3.25”

(83mm)

3.25”

(83mm)

5.10”

(130mm)

6.5625”

(167mm)

Altronix is not responsible for any typographical errors.
