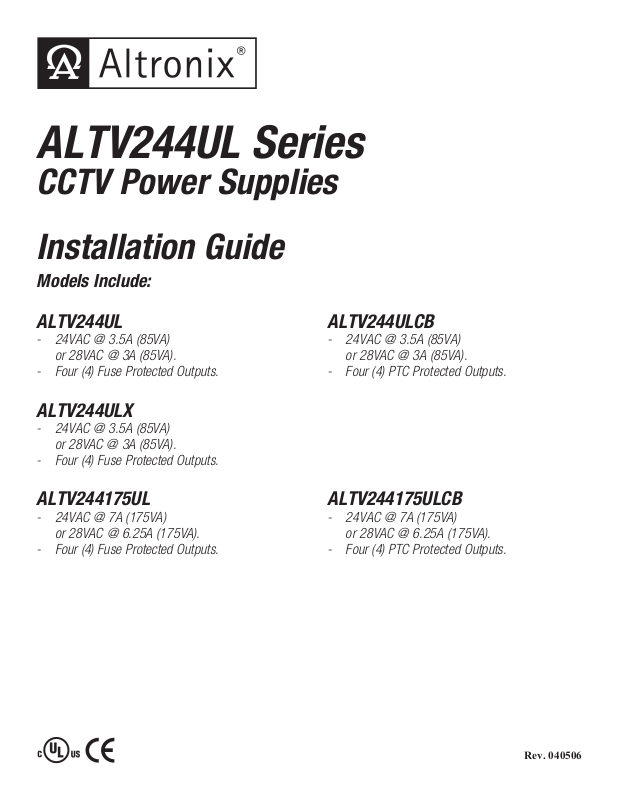

ALTV244UL Series
CCTV Power Supplies
Installation Guide
Models Include:
ALTV244UL ALTV244ULCB
- 24VAC @ 3.5A (85VA) - 24VAC @ 3.5A (85VA)
or 28VAC @ 3A (85VA). or 28VAC @ 3A (85VA).
- Four (4) Fuse Protected Outputs. - Four (4) PTC Protected Outputs.
ALTV244ULX
- 24VAC @ 3.5A (85VA)
or 28VAC @ 3A (85VA).
- Four (4) Fuse Protected Outputs.
ALTV244175UL ALTV244175ULCB
- 24VAC @ 7A (175VA) - 24VAC @ 7A (175VA)
or 28VAC @ 6.25A (175VA). or 28VAC @ 6.25A (175VA).
- Four (4) Fuse Protected Outputs. - Four (4) PTC Protected Outputs.
Rev. 040506
Page 2
Overview:
The following Altronix CCTV Power Supplies provide 24VAC or 28VAC distributed via four (4) fuse or PTC protected
outputs for powering CCTV Cameras, heaters and other video accessories.
Four (4) Output ALTV244UL Reference Chart:
Altronix
Model Number
ALTV244UL
Output Voltage
24VAC 3.5A
28VAC 3A
Total Output Current
(Power)
Number of Outputs
PTC Protected Outputs
(Class 2 power-limited
4 ---
for Dry locations -
Class 3 for Wet locations)
Fuse Protected
Class 1 Outputs
Individual Output Current
(max per output, not to
exceed total output current)
3.5A 3.5A
P
Fuse Ratings
Main Fuse Ratings
5A/
250V
Primary In-line Fuse
Ratings
115VAC 60Hz
Input Current
3.5A/
250V
0.9A
Agency
Listings
ALTV244ULX
ALTV244ULCB
ALTV244175UL
ALTV244175ULCB
24VAC 3.5A
28VAC 3A
24VAC 3.5A
28VAC 3A
24VAC 7A
28VAC 6.25A
24VAC 7A
28VAC 6.25A
4 ---
4
4 ---
4
P
P
Specifications:
Agency Listings:
• UL Listed for Commercial CCTV Equipment (UL 2044).
CUL Listed - CSA Standard C22.2 No.1-98,
Audio, Video and Similar Equipment.
• CE European Conformity.
Input:
• 115VAC, 50/60Hz.
Output:
• Four (4) fuse or PTC protected outputs.
• 24VAC or 28VAC output.
• Outputs are rated @ 3.5A (fused) or 2.5A (PTC).
• Surge suppression.
Features:
• Power ON/OFF switch (ALTV244UL, ALTV244ULX
or ALTV244ULCB).
3.5A 3.5A
P
--- 2.5A ---
3.5A 3.5A
P
--- 2.5A ---
5A/
250V
5A/
250V
10A/
250V
10A/
250V
3.5A/
250V
3.5A/
250V
0.9A
0.9A
--- 1.76A
--- 1.76A
Features (cont’d):
• Illuminated power disconnect circuit breaker
with manual reset (ALTV244175UL,
ALTV244175ULCB).
• Unit maintains camera synchronization.
• Ease of installation saves time & eliminates costly labor.
• Spare fuses included (on fuse protected models).
Enclosure Dimensions (H x W x D):
• ALTV244UL, ALTV244ULCB
8.5” x 7.5” x 3.5” (215.9mm x 190.5mm x 88.9mm).
• ALTV244175UL, ALTV24175ULCB
12” x 7.5” x 4.5” (304.8mm x 190.5mm x 114.3mm).
• ALTV244ULX
13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.55mm).
Installation Instructions:
1. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two keyholes in the
enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure’s
upper keyholes over the two upper screws, level and secure. Mark the position of the lower two holes. Remove the
enclosure. Drill the lower holes and install the three fasteners. Place the enclosure’s upper keyholes over the two
upper screws. Install the two lower screws and make sure to tighten all screws (Enclosure Dimensions, pgs. 7, 8).
Secure enclosure to earth ground.
- 2 - ALTV244UL Series
Page 3
2. Set power switch on power distribution board marked [PD] to OFF position for models ALTV244UL,
ALTV244ULX or ALTV244ULCB (Figs. 1-3, pgs. 4, 5).
3. All units are factory set for 24VAC operation.
For 28VAC operation adjust unit prior to applying power as follows:
Remove wires marked [24V] and [28V] from terminals marked [P] and [S]. Connect wire marked [28V] to terminal
marked [P] and connect wire marked [24V] to terminal marked [S].
Note: ALTV244ULCB set for 28VAC operation is not Class 2 Rated, not power-limited.
4. Connect AC power to the black and white flying leads of the transformer (Figs. 1-5, pgs. 4-6).
Secure green lead to earth ground. Use 18 AWG or larger gauge for all power connections.
Keep power-limited (PTC protected outputs only) wiring separate from non power-limited wiring.
Minimum 0.25” spacing must be provided. Use separate knockouts.
5. Set power switch on power distribution board marked [PD] to ON position for models ALTV244UL, ALTV244ULX
or ALTV244ULCB (Figs. 1-3, pgs. 4, 5).
6. Measure output voltage before connecting devices. This helps avoiding potential damage.
Terminals marked [1P - 4P] are of the same polarity.
CAUTION: Determine the maximum operating voltage of the equipment being powered before adjusting
the output voltage.
7. Set power switch on power distribution board marked [PD] to OFF position for models ALTV244UL,
ALTV244ULX or ALTV244ULCB (Figs. 1-3, pgs. 4, 5).
8. Connect devices to the terminals marked [1P - 1N] through [4P - 4N] on PD4 or PD4CB board (Figs. 1-5, pgs. 4-6),
carefully observing polarity.
9. Set power switch on power distribution board marked [PD] to ON position for models ALTV244UL, ALTV244ULX
or ALTV244ULCB (Figs. 1-3, pgs. 4, 5).
10. Green LED will illuminate when power is present.
11. Upon completion of the wiring, secure enclosure door with screws (supplied). Installation of a cam lock is optional.
Caution: Equipment to be installed/serviced by authorized/trained personnel only.
Shut branch circuit power before installing/servicing equipment.
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture. This installation should be made by qualified service personnel and should conform to all local codes and in accordance with
the National Electrical Code. Use 75˚ C or higher rated UL insulated wiring for connecting the unit to the mains.
Replace fuses with the same type and rating (refer to Four (4) Output ALTV244UL Reference Chart, pg. 2).
Terminal Identification:
PD4 - Power Distribution Module
1P - 4P AC output
1N - 4N AC output
The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the user to the
presence of an insulated DANGEROUS VOLTAGE within the product’s enclosure that may be of
sufficient magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
CAUTION: To reduce the risk of electric shock do not open enclosure. There are
no user serviceable parts inside. Refer servicing to qualified service personnel.
ALTV244UL Series - 3 -
Page 4
Fig. 1
ALTV244UL
Fig. 2
ALTV244ULCB
24VAC or 28VAC
output 1 (Follow
same procedure
using terminals
2P & N through
4P & N outputs
2 through 4)
Primary
In-line
Fuse
3.5A 250V
1P 1N 2P 2N 3P 3N 4P 4N
Class 1 Outputs
non-power
limited
Back Panel
of Enclosure
3.5A 250V
XFMR
3.5A 250V
LED
NP S
White
Lead
MAIN FUSE
SW1
ON OFF
INPUT
non-power
limited
Black
Lead
Black
Lead
115VAC
Input
60 Hz.
Green
Lead
(Ground)
F1 F2 F3 F4
MAIN FUSE
24VAC or 28VAC
output 1
(Follow same
procedure using
terminals 2P & N
through 4P & N
outputs 2 through 4)
Primary
In-line
Fuse
1P 1N 2P 2N 3P 3N 4P 4N
24VAC configuration Class 2 Not Wet/Class 3 We t
28VAC configuration Class 1
non-power
limited
LED
NP S
SW1
ON OFF
INPUT
non-power
limited
Black
Lead
Black
Lead
115VAC
Input
60 Hz.
XFMR
Back Panel
of Enclosure
- 4 - ALTV244UL Series
White
Lead
Green
Lead
(Ground)
Page 5
Fig. 3
ALTV244ULX
24VAC or 28VAC fused ( Follow same
procedure using terminals 2P & N thru 4P & N
outputs 2 thru 4).
1P 1N 2P 2N 3P 3N 4P 4N
Door
Class 1 outputs
Green
Lead
(ground)
115VAC
60Hz Input,
0.9 amp
Black
Lead
White
Lead
NP S
INPUT
LED
SW1
ON OFF
Primary In-line
Fuse
XFMR
3.5A 250V
3.5A 250V
3.5A 250V
MAIN FUSE
non-power limited
AC Input and protected outputs must leave cabinet through separate knockouts.
.25" spacing must be provided between AC Input and low voltage wiring.
For supply connection use wire rate for at least 90˚C.
ALTV244UL Series - 5 -
Page 6
Fig. 4
ALTV244175UL
24VAC or 28VAC
output 1 (Follow
same procedure
using terminals
2P & N through
4P & N outputs
2 through 4)
Fig. 4a
Class 1 Outputs
Fig. 5
ALTV244175ULCB
24VAC or 28VAC
output 1
(Follow same
procedure using
terminals 2P & N
through 4P & N
outputs 2 through 4)
XFMR
24VAC configuration Class 2 Not Wet/Class 3 Wet
non-power
limited
NPS
MAIN FUSE
INPUT
Black
Lead
White
Lead
115VAC Input
60 Hz.
Green
Lead
(Ground)
Illuminated Power Disconnect
Circuit Breaker with manual reset
Fig. 5a
XFMR
non-power
limited
Black
Lead
115VAC Input
White
Lead
Green
Lead
(Ground)
60 Hz.
Illuminated Power Disconnect
Circuit Breaker with manual reset
- 6 - ALTV244UL Series
Page 7
7.25”
Enclosure Dimensions (H x W x D) for:
• ALTV244UL
• ALTV244ULCB
8.5” x 7.5” x 3.5” (215.9mm x 190.5mm x 88.9mm)
(184.15mm)
3.625”
(184.15mm)
1.25”
(31.75mm)
(88.9mm)
3.5”
0.6”
(15.24mm)
1.125”
(28.575mm)
(25.4mm)
0.6”
(15.24mm)
1”
(50.8mm)
(50.8mm)
8.125”
(206.375mm)
1.25”
(31.75mm)
2”
2”
Enclosure Dimensions (H x W x D) for:
• ALTV244175UL
• ALTV244175ULCB
12” x 7.5” x 4.5” (304.8mm x 190.5mm x 114.3mm)
1”
(25.4mm)
6.05”
(153.67mm)
6.05”
(153.67mm)
5.25”
(133.35mm)
7.5”
(190.5mm)
1”
(25.4mm)
(15.24mm)
1.125”
(28.575mm)
1”
(25.4mm)
0.6”
(15.24mm)
1”
(25.4mm)
0.6”
3.5”
(88.9mm)
4.5”
(114.3mm)
1.25”
(31.75mm)
12”
(304.8mm)
1.5”
(12.7mm)
3.5”
(88.9mm)
2.5”
(63.5mm)
3.5”
(88.9mm)
1”
(25.4mm)
1.25”
(31.75mm)
4.5”
(114.3mm)
0.5”
(12.7mm)
1.11”
(28.19mm)
1”
(25.4mm)
0.88”
(22.35mm)
7.5”
(190.5mm)
5.75”
(146.05mm)
0.88”
(22.35mm)
0.5”
(12.7mm)
1.11”
(28.19mm)
(114.3mm)
1”
(25.4mm)
1.25”
(31.75mm)
1.5”
(12.7mm)
3.5”
(88.9mm)
12”
(304.8mm)
5.88”
(149.35mm)
1.13”
(28.7mm)
4.5”
(114.3mm)
4.5”
ALTV244UL Series - 7 -
Page 8
Enclosure Dimensions (H x W x D) for:
(
)
(
)
(
)
• ALTV244ULX
13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.55mm)
1.40”
(36mm)
1.20”
(31mm)
(36mm)
0.75”
(19mm)
1.40”
4.85”
(123mm)
12.5”
(318mm)
11.0”
(279mm)
4.85”
(123mm)
1.40”
(36mm)
0.75”
(19mm)
1.20”
(31mm)
0.9375”
(24mm)
3.25”
(83mm)
1.20”
(31mm)
1.40”
(36mm)
5.10”
(130mm)
5.10”
(130mm)
3.25”
(83mm)
13.0”
(330mm)
1.0”
(25mm)
0.9375”
(24mm)
1.0”
(25mm)
3.25”
(83mm)
3.25”
(83mm)
5.10”
(130mm)
6.5625”
(167mm)
1.0”
25mm
10.5”
267mm
1.0”
25mm
