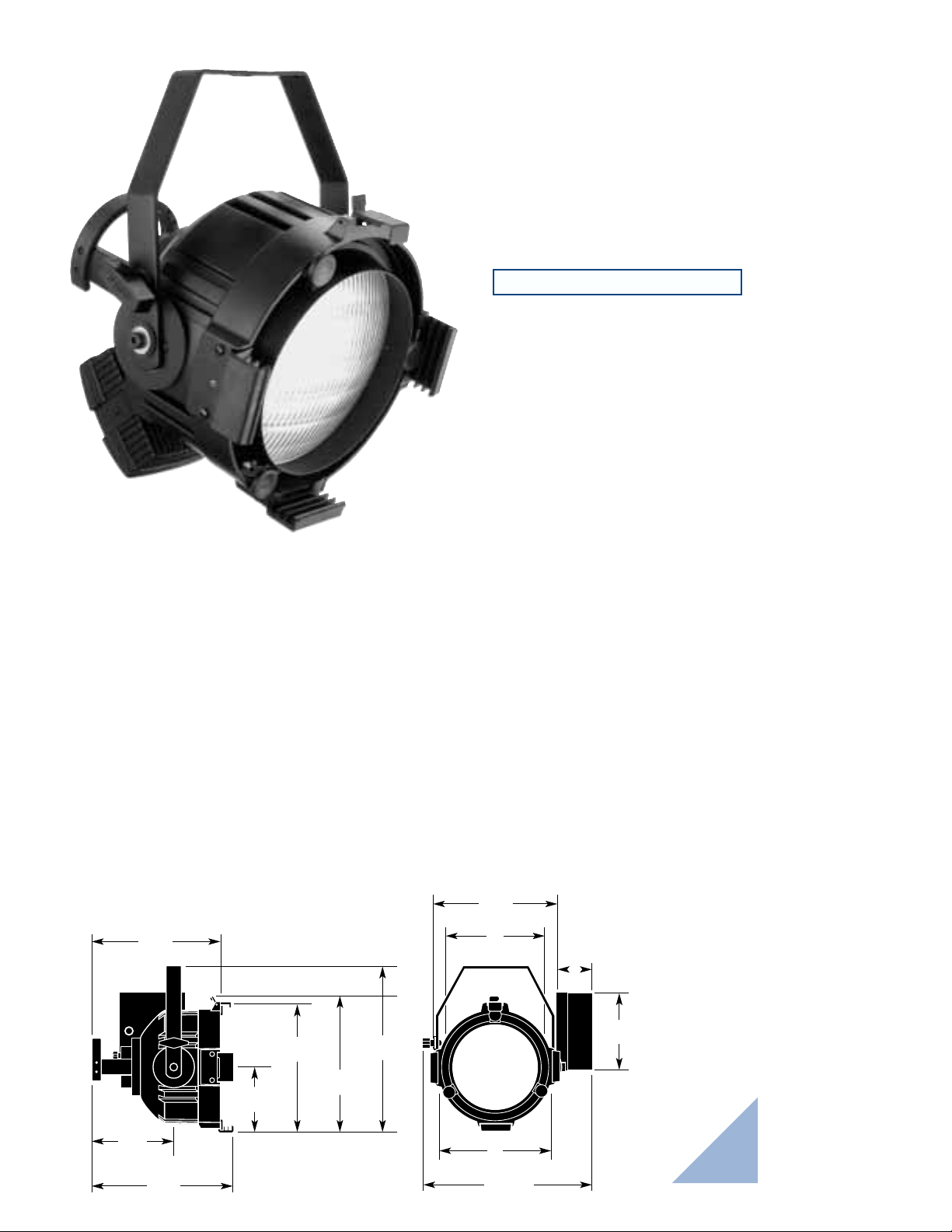

Page 1

6¹⁄₂″

(17 cm)

11¹⁄₂″

(29 cm)

10¹⁄₈″

(26 cm)

5¹⁄₄″

(13 cm)

11¹⁄₈″

(28 cm)

13⁵⁄₈″

(35 cm)

10³⁄₈″

(26 cm)

13″

(33 cm)

9″

(23 cm)

8″

(20 cm)

10³⁄₈″

(26 cm)

2¹⁄₈″

(20 cm)

6″

(15.2 cm)

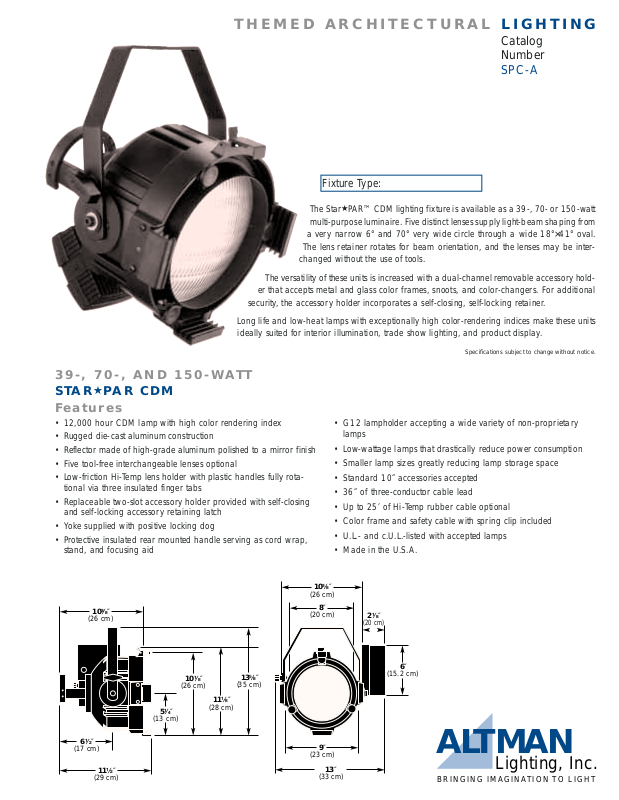

THEMED ARCHITECTURAL LIGHTING

Catalog Number

SPC-A

The Star★PAR™ CDM lighting fixture is available as a 39-, 70- or 150-watt multi-purpose luminaire. Five distinct lenses supply light-beam shaping from

a very narrow 6° and 70° very wide circle through a wide 18°×41° oval.

The lens retainer rotates for beam orientation, and the lenses may be inter-

changed without the use of tools.

The versatility of these units is increased with a dual-channel removable accessory hold-

er that accepts metal and glass color frames, snoots, and color-changers. For additional

security, the accessory holder incorporates a self-closing, self-locking retainer.

Long life and low-heat lamps with exceptionally high color-rendering indices make these units ideally suited for interior illumination, trade show lighting, and product display.

Specifications subject to change without notice.

39-, 70-, AND 150-WATT

STAR

★

PAR CDM

Features

• 12,000 hour CDM lamp with high color rendering index

• Rugged die-cast aluminum construction

• Reflector made of high-grade aluminum polished to a mirror finish

•Five tool-free interchangeable lenses optional

•Low-friction Hi-Temp lens holder with plastic handles fully rotational via three insulated finger tabs

• Replaceable two-slot accessory holder provided with self-closing and self-locking accessory retaining latch

•Yoke supplied with positive locking dog

•Protective insulated rear mounted handle serving as cord wrap, stand, and focusing aid

• G12 lampholder accepting a wide variety of non-proprietary lamps

• Low-wattage lamps that drastically reduce power consumption

• Smaller lamp sizes greatly reducing lamp storage space

•Standard 10″ accessories accepted

•36″ of three-conductor cable lead

• Up to 25′ of Hi-Temp rubber cable optional

• Color frame and safety cable with spring clip included

•U.L.- and c.U.L.-listed with accepted lamps

• Made in the U.S.A.

Fixture Type:

Lighting, Inc.

ALTMAN

BRINGING IMAGINATION TO LIGHT

Page 2

39-, 70-, AND 150-WATT STAR★PAR CDM

Specifications

Housing: Die-cast aluminum construction. Materials: Corrosion-resistant materials and hardware. Yoke: Steel flat stock with clearance hole for ¹⁄₂″ bolt.

Tilt angle is secured with eccentric disc and heat-resistant handle.

Reflector: High-grade aluminum, chemically polished and coated, parabolic design.

Lenses: Five dif ferent beam-shaping lenses available (see performance charts).

Lens Holder: Fully rotational, provided with three insulated finger tabs. Lenses interchangeable tool-free. 360° beam rotation.

Lamp/Socket: 39-, 70- or 150-watt UV-blocked G12 ceramic metal halide lamp; 5-kV-pulse rated socket.

Ratings: 120 volt operation, 50/60 Hz: 0.38 amps with 39-watt lamp and ballast; 0.58 amps with 70-watt lamp and ballast; 1.25 amps with 150-watt lamp and ballast. 240V AC and 277VAC operation also available.

Cable: 4′ of insulated three-conductor cable. Focusing Fixture: Rear-mounted protective insulat-

ed handle for aiming. Accessories: Removable front-end accessory holder

equipped with two slots accepting standard 10″ acces- sories. Accessory holder retaining latch self-closing and self-locking for safety.

Finish: Black epoxy Sandtex, electrostatic application. Weight: Approx. 12 lbs. (5.4 Kg).

Altman Lighting, Inc. is a wholly owned subsidiary of Altman Stage Lighting Company, Inc.

102003

ACCESSORIES

SUPPLIED WITH

LUMINAIRE

SC-36-BK Safety Cable with Spring Clip 8-CF Color Frame, 10″×10″ 97-0150 Set of Four Lenses (VNSP, NSP,

MFL, WFL)

Catalog Number

SPC-A

Lighting, Inc.

ALTMAN

BRINGING IMAGINATION TO LIGHT

8-BD-4 Four-Leaf Barn Door 8-SN Snoot 510 Malleable Iron Pipe Clamp 510-BLK Black Malleable Iron Pipe Clamp 18-0110 Very Narrow Spot Lens 18-0111 Narrow Spot Spread Lens 18-0112 Medium Flood Spread Lens 18-0113 Wide Flood Spread Lens 18-0114 Very Wide Flood Spread Lens

90-35CDMT6/

39-Watt CDM Lamp 3000° K /

830

12,000 Hr.

90-70CDMT6/

70-Watt CDM Lamp 3000° K /

830

12,000 Hr.

90-70CDMT6/

70-Watt CDM Lamp 4000° K /

942

12,000 Hr.

90-150CDMT6/

150-Watt CDM Lamp 3000° K /

830

12,000 Hr.

90-150CDMT6/

150-Watt CDM Lamp 4000° K /

942

6,000 Hr.

90-150CDMSA/

150-Watt CDM Lamp 4200° K /

942

5,000 Hr. Short Arc

ADDITIONAL ACCESSORIES

ORDERING INFORMATION

model color voltage

Part Number: SPC

––

()Black

(W)hite (S)ilver

110 240

(X)Custom

LAMP INFORMATION

watts

burn

positionefficiencylamp type

color

temp (°K)

39 any>87 l/WCDM 35/T6/830 3000

rated

life (hrs)

12,000

rated

lumens

3,400 81 70 any>92 l/WCDM 70/T6/830 3000 12,000 6,600 82 70 any>92 l/WCDM 70/T6/942 4000 12,000 6,600 92

150 any>93 l/WCDM 150/T6/830 3000 12,000 14,000 85 150 any>85 l/WCDM 150/T6/942 4000 6,000 12,700 95 150 any>86 l/WCDM SA150/T6/942 4200 5,000 12,900 96

color rendering

index

PHOTOMETRIC DATA FOR ODC WITH 150-WATT CDM LAMP

distance

10′ 20′ 30′ 40′ 50′ 60′

center

beam fc

ht.

(′)w.(′)

center

beam fc

ht.

(′)w.(′)

center

beam fc

ht.

(′)w.(′)

center

beam fc

ht.

(′)w.(′)

center

beam fc

ht.

(′)w.(′)

center

beam fc

ht.

(′)w.(′)

lens

Very Narrow Spot (VNSP) Narrow Spot (NSP) Medium Flood (MFL) Wide Flood (WFL) Very Wide Flood (VWFL)

3,595 2,568

958 304 102

3 4 8 6

6 11 11 11

899 6 6 399 9 9 225 12 12 144 15

100 18 18

642 7 7 285 10 10 161 13 13 103 17

71 20 20

240 9 12 106 13 18 60 18 24 38 22

27 26 36

76 15 23 34 21 34 19 30 45 12 38

84668

26 21 21 12 32 32 7 43 43 4 54

36464

candle-

power (cd)

beam angle

field

angle

effi-

ciency

359,500

6°× 6° 17°×17°

73%

256,800

7°× 7° 19°×19°

66%

95,800

10°×21° 25°×33°

77%

30,400

18°×41° 42°×59°

59%

10,146

56°×56° 79°×79°

71%

Conversion Factors: 39-watt lamp, fc×0.24; 70-watt lamp fc×0.48. Lux = fc×0.0929.

ht.

lens

––

wattage

39 70

150

277

* Equipped with VNSP, NSP, MFL, and WFL lenses.
