RT300-125 HDMI RETRACTABLE CABLE User’s Guide
1
Welcome!
Thank you for purchasing the MINI-ME™ RT300-125 HDMI®
Retractable Cable. We know you will find it easy to install, easy
to use and easy to maintain.
Our goal is to provide our customers with unique Signal
Management Solutions® for Audio Visual applications.
1. Precautions and Safety Warnings
Please read this manual carefully before using MINI-ME RT300125 HDMI Cable Retractor. Keep this manual handy for future
reference. These safety instructions are to ensure the long life of
your cable retractor and to prevent fire and shock hazards.
1.1 General
The RT300-125 does not contain any user serviceable
parts inside.
Do not disassemble the unit. RT300-125 contains high
tension spring that can uncoil rapidly causing cutting
hazard.
Only qualified Altinex service personnel is allowed to
perform cable retractor repairs. Removal of the warranty
sticker will void the warranty.
2. Installation Procedures
Step 1 Mount the RT300-125 onto the AC200-125 or AC221-125
mounting bracket and secure it with the four 4x40 screws
provided.
Step 2 Slide mounting bracket onto the CNK200 or CNK221 exterior
hooks and secure the thumbscrews with the wing nuts provided
by the accessories.
Step 3 Feed retractable cable through the bottom of the CNK and the
faceplate.
Step 4 Connect the fixed cable to a display or a switcher
Step 5 Refer to CNK200 or CNK221 user guide for installation
instructions.
3. Limited Warranty/Return Policies
Please visit Altinex website at www.altinex.com for details on warranty and
return policies. If you have any questions, please call us at 1-800-ALTINEX or
714-990-2300.
1.2 Installation
Use the RT300-125 HDMI cable retractor in a dry area
away from dust and moisture.
Do not place the RT300-125 HDMI cable retractor in direct
sunlight, near heaters or heat-radiating appliances, or near
any liquid. Exposure to direct sunlight, heat and moisture
will damage internal precision components.
Handle the RT300-125 HDMI cable retractor with care.
Dropping, straining, or shaking can damage internal
components.
Do not place heavy objects on top of the RT300-125 HDMI
cable retractor.
Follow installation instructions RT300-125 for optimum
performance.
1.3 Cleaning
Clean surfaces with a dry or slightly damp cloth. Do not use
detergents or solvents.
400-0591-001
Page 2
RT300-125 User’s Guide
2
Features/Description
Inputs
Video/Audio
HDMI format
Outputs
Video/Audio
HDMI format
Compatibility
Tabletop enclosures
CNK200 & CNK221
Stand-alone mounting
Mounting holes with
4x40 threads are
provided
Additional Accessories
Mounting Hardware
AC200-125 for
CNK200
AC221-125 for
CNK221
Mechanical
Dimensions
Height
4.8 in (122 mm)
Width
4.8 in (122 mm)
Depth
1.4 in (37 mm)
Other
Normal Pull force
0.3lb (+/- 0.1)
End of the cable pull
force
Max 10lb (+2lb)
(Damage may occur if
customer forces retract past
the end of cable)
Weight
0.78 lbs. (0.353 kg)
Color
Black
Material
Plastic
T Operating
10 C - 35 C
T Maximum
50 C
Humidity
90 non-condensing
MTBF (tested)
10,000 retractions
Electrical
RT300-125 HDMI
Retractable Cable
Cable Gauge
36AWG
Voltage Rating for Cable
30V
Power
5v,5ma
Amplifier
Built-in 1080p
4. Technical Specification
Specifications are subject to change. Please visit www.altinex.com for up-to-date specification
Table 3 RT300-125 Electrical Specifications
Table 1 RT300-125 General Specifications
Table 2 RT300-125 Mechanical Specifications
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
400-0591-001
Page 3
RT300-125 User’s Guide
3
5. The MINI-ME RT300-125 HDMI Retractable Cable features
Convenient, easy to install cable retraction system for
CNK200, CNK221 interconnect box and stand alone
Simple operation for AV connectivity
HDMI compliant retractable cable
CNK200 supports four MINI-ME RT300-125 units
CNK221 supports two MINI-ME RT300-125 units
Tested to 10,000 retracts
Active amplifier for trouble free HDMI signal
The RT300-125 offers a solution for managing HDMI cables. The cable assembly was designed to deliver high definition
video and audio to a switcher or a display. The HDMI cable contains built-in amplifier to maintain HDMI signal integrity.
The RT300-125 has 4.0 ft of retractable cable and 4 ft of the fixed length cable. The cable and the retractor has been
tested to over 10,000 extensions/retractions. The AC200-125 and AC221-125 mounting hardware securely mounts the
cable retractors to CNK200 and CNK221 table top units.
AC200-125 mounting bracket for the CNK200
AC221-125 mounting bracket for the CNK221
400-0591-001
Page 4
RT300-125 User’s Guide
4
6. Application Diagram
Diagram 1: Typical RT300-125 Installation and use
Diagram 2: Retractor Side Dimensions
Diagram 3: Front Dimensions
400-0591-001
Page 5
RT300-125 User’s Guide
5

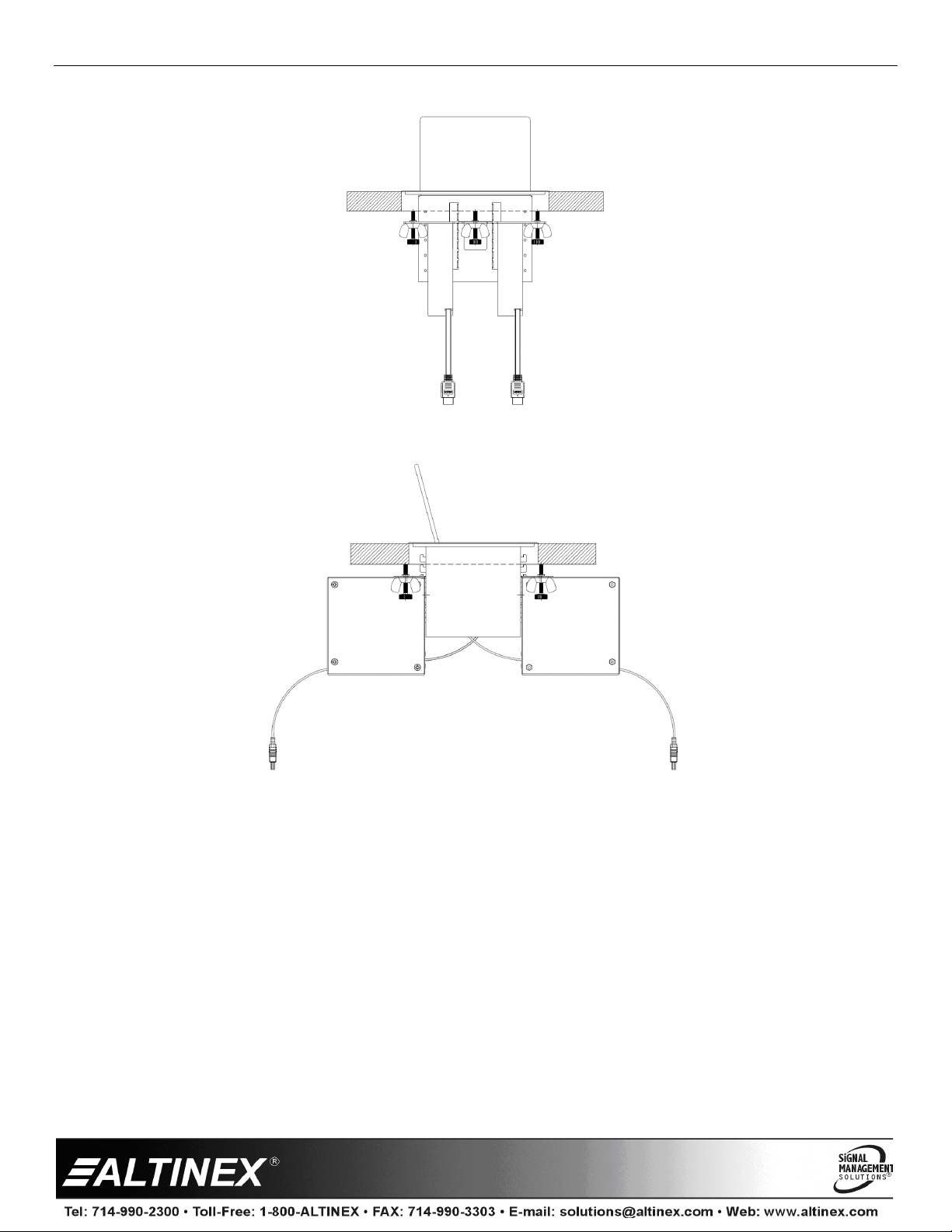

Diagram 4: Mounted on a CNK200 Front View
Diagram 5: Mounted on a CNK200 Side View
400-0591-001
Page 6
RT300-125 User’s Guide
6
Diagram 6: Mounted on a CNK221 Front View
Diagram 7: Mounted on a CNK221 Side view
7. Operation
7.1 Accessing the RT300-125 HDMI Retractable
Cable
After proper installation, no further configuration is
needed. To connect, simply open the CNK bezel and
8. Troubleshooting Guide
The RT300-125 HDMI Retractable Cable supplied was
carefully tested and no problems were detected.
However, we would like to offer the following
suggestions:
pull on the cable. Connect to desired source. When
finished, disconnect the source and automatically the
cable will retract back into the bezel.
Please make sure that the highest quality cables are
used in addition to the retractable cable.
Make sure that no cable or power cord is damaged or
pinched. If there has been damage, do not use the
CNK200 or the retractable cable. Please call the Altinex
Customer Service Department at (714) 990-2300 to
have the unit repaired.
400-0591-001
