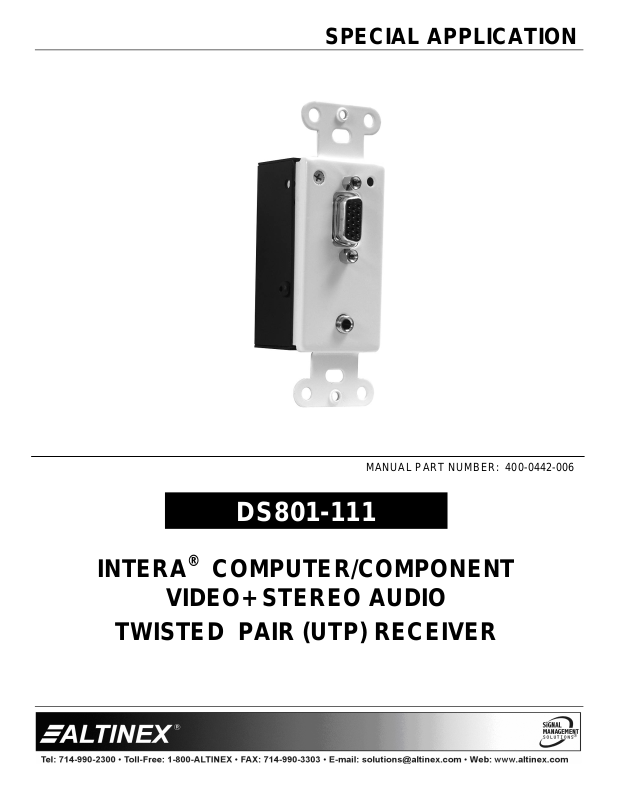

DS801-111
Intera Twisted Pair (UTP) to Video + Stereo Audio Receiver
The DS801-111 provides a means of receiving computer video and audio signals over Twisted Pair-type (CAT-5/6) cable when used together with a compatible ALTINEX Twisted Pair (UTP) video transmitter, such as the DS801-110 or DA1930CT.
The DS801-111 is compact and easy to use. The DS801-111 is able to receive either computer video or component video along with stereo audio transmitted over the UTP cable from the DS801-110 or an equivalent transmitter.
The DS801-111 provides both video and stereo audio outputs. The DS801-111 offers a female 15-pin HD output for RGBHV/YPbPr signals with native Plug & Play compatibility and a 3.5 mm jack is used for the stereo audio output.
The unit also offers video equalization hardware for long transmission lengths. There is also a Signal Detect feature that shows when an input signal is present.
The latest generation of Twisted Pair devices uses an innovative, patented technology* developed by ALTINEX. The new signal processing technology allows transmitting and receiving fully equalized computer video signals, stereo, and audio signals over long distances.

TECHNICAL SPECIFICATIONS 3

Specifications are subject to change. See www.altinex.com for up-to-date information.
FEATURES/ DESCRIPTION
GENERAL Inputs
Video+ Stereo Audio RJ-45 female (1) Power 2-pin terminal block (1)
Output
Video 15-pin HD female (1) Stereo Audio 3.5 mm female (1)
Compatibility
Signal Types Video Signal
Resolutions
VGA: 640x480@60Hz
Recommended Max. Cable Lengths
Note: Measurements made using ALTINEX low-skew cable, CB3150PV.
Accessories Included
XGA: 1024x768@60Hz
SXGA: 1280x1024@60Hz
UXGA: 1600x1200@60Hz
DS801-111
ALTINEX Standard for
Twisted Pair
VGA through UXGA
480p through 1080i
900 ft (274 m)
700 ft (213 m)
650 ft (198 m)
600 ft (183 m)
400-0442-006
Power Adapter (with 50 ft (15 m) cable)
Table 1. DS801-111 General
3
+9 VDC, 500 mA
SPECIAL APPLICATION
Video/Sync/Audio Signals
MECHANICAL DS801-111
Housing 0.036” Aluminum Front Panel 0.035” Steel Length 4.10 in (104 mm) Width 1.38 in (35 mm) Height 1.20 in (30 mm) Weight 0.25 lb (0.11 kg) T° Operating 10°C-50°C T° Maximum 75°C Humidity 90% non-condensing MTBF (calc.) 38,000 hrs
Table 2. DS801-111 Mechanical
ELECTRICAL DS801-111 Input
Video+ Stereo Audio
Output
Video Analog Signal 1.0 Vp-p max. Video Sync Level TTL Audio Level 0 dB +/- 0.5 dB at 1 KHz
Power Consumption
External Adapter: 9 VDC 410 mA (3.7 W) max.
ALTINEX Standard
Table 3. DS801-111 Electrical
400-0442-006
4

PRODUCT DESCRIPTION 4

VIDEO
EQUALIZATION
VIDEO OUTPUT
AUDIO OUTPUT
SPECIAL APPLICATION
POWER/SIGNAL PRESENT LED
400-0442-006
4TP INPUT
POWER
5

APPLICATION DIAGRAMS 5

DIAGRAM 1: TYPICAL SETUPS

SPECIAL APPLICATION
DS801-110
DS801-111
400-0442-006
DA1930CT
DS801-111
6

DIAGRAM 2: INTERNAL VIEW

SPECIAL APPLICATION
DS801-111
2-PIN TERM. BLOCK
POWER
9 V, 500 mA
PAIR 4
4TP
RJ-45
PAIR 2
PAIR 3
PS
AUDIO
SEPARATOR
SIGNAL
DETECT
SYNC
SEPARATOR
LP
LP
POWER
LEFT
RIGHT
V
H R/Pr
B/Pb
UNBAL.
AUDIO
STEREO
3.5mm
COMPUTER/
COMPONENT
VIDEO
15-PIN HD
400-0442-006
PAIR 1
G/Y
H/W
EQ
7
SPECIAL APPLICATION

INSTALLING YOUR DS801-111 6

Step 1. Determine the best location for the
DS801-111. Where possible, locate the
TP Transmitter as close to the video source as possible and the DS801-111 as close to the receiving component as feasible.
Step 2. Apply power to the 2-pin terminal block on
the rear of the DS801-111. The Power/Signal Present LED should be on and red.
Step 3. Connect the receiving display to the
output of the DS801-111 using a high-quality video cable.
Step 4. Connect the audio amplifier or speakers
to the audio jack on the DS801-111.
Step 5. Run a UTP-type (CAT-5/CAT-5e) cable
from the 4TP INPUT on the DS801-111 Receiver to the 4TP OUTPUT on the TP Transmitter.
NOTE: Ensure good signal transmission
by routing the cable to avoid any sharp angles, creases, or bends.
Step 6. Connect the TP Transmitter per its
installation instructions. In the case of the DS801-111, when the TP signal from the DS801-110 is applied, the Power/Signal Present LED will turn from red to green indicating a signal is present.
Step 7. The units are now operational.

OPERATION 7

The DS801-111 requires only one adjustment to be made for optimal performance. The adjustment is video equalization for long cable lengths.

7.1 VIDEO EQUALIZATION

Video equalization is provided to fine-tune the displayed image on the remote display. Typically, for short cable runs the equalization will be set to near minimum.
Start by setting the equalization to minimum on both units. Adjust the equalization on the receiver first. This adjustment should at least allow the receiving display to receive an image. Then use the equalization on both units to fine-tune the image for optimal quality.

TROUBLESHOOTING GUIDE 8

We have carefully tested and have found no problems in the supplied DS801-111. However, we would like to offer suggestions for the following:

8.1 NO DISPLAY Cause 1: The source has a problem.

Solution: Check the source and make sure
there is a signal present and all source connections are correct. If the source is working and there is still no display, see Cause 2.
Cause 2: The path has a problem.
Solution: Connect the transmitter directly to
the receiver using a short UTP patch cable. If the image is good, there is a problem with the cable. Otherwise, see Cause 3.
400-0442-006
Cause 3: Cable connections are incorrect.
Solution: Make sure that cables are properly
connected. Also, make sure that the continuity and wiring are good. If there is still no display present, see Cause 4.
8
SPECIAL APPLICATION
Cause 4: Video equalization required.
Solution: Adjust the VIDEO EQUALIZATION
on the DS801-111. Some monitors are very sensitive to
signal quality and this may prevent the monitor from displaying an image until the equalization is adjusted. See the operation section for adjustment details.
Cause 5: The display has a problem.
Solution: Make sure the display is powered
and is turned on. If there is still no display, please call ALTINEX at (714) 990-2300.

8.2 NO SOUND Cause 1: The source has a problem.

Solution: Check the source and make sure
that there is a signal present and all source connections are correct. If the source is working and there is still no sound, see Cause 2.

ALTINEX POLICIES 9

9.1 LIMITED WARRANTY/RETURN POLICIES

Please see the ALTINEX website at
www.altinex.com for details on warranty and
return policies.

9.2 CONTACT INFORMATION

ALTINEX, Inc. 592 Apollo Street Brea, CA 92821 USA
TEL: 714 990-2300 TOLL FREE: 1-800-ALTINEX WEB: www.altinex.com E-MAIL: solutions@altinex.com
Cause 2: The volume is too low.
Solution: Increase the gain at the source. If
there is still no sound present, see Cause 3.
Cause 3: Cable connections are incorrect.
Solution: Make sure that cables are properly
connected. Also, make sure that the continuity and wiring are good. If there is still no sound, see Cause 4.
Cause 4: The receiving device has a
problem.
Solution: Make sure the receiving device is
powered and is turned on. If there is still no sound, please call ALTINEX at (714) 990-2300.
400-0442-006
9
