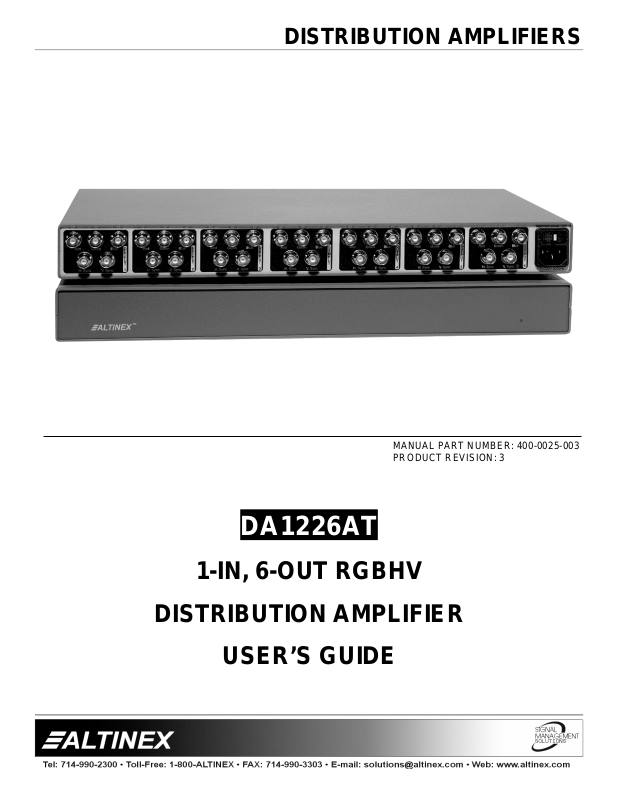

Altinex DA1226AT User Manual

DISTRIBUTION AMPLIFIERS

MANUAL PART NUMBER: 400-0025-003
PRODUCT REVISION: 3

DA1226AT

1-IN, 6-OUT RGBHV

DISTRIBUTION AMPLIFIER

USER’S GUIDE

DISTRIBUTION AMPLIFIERS

INTRODUCTION

Thank you for purchasing the DA1226AT
Distribution Amplifier. We are sure you will find it a
reliable and useful product.

Superior performance for the right price backed by
solid technical and customer support is what we
have to offer.

The product you are holding in your hands is
designed using state-of-the-art technology and is
superior to anything available on the market. You
will find this and our other products reliable, long
lasting, and simple to operate.

We are committed to providing our customers with
solutions to the most demanding audio-visual
installations at very competitive pricing.

We appreciate your selection of our products and
are confident that you will join the ranks of our
many satisfied customers throughout the world.

This manual covers:

DA1226AT - 1-in, 6-out RGBHV Distribution

Amplifier

TABLE OF CONTENTS

Page

PRECAUTIONS / SAFETY WARNINGS...............2

GENERAL..........................................................2

RACK MOUNT SAFETY GUIDELINES..............2

INSTALLATION..................................................2

CLEANING.........................................................2

FCC / CE NOTICE .............................................2

ABOUT YOUR DISTRIBUTION AMPLIFIER.........3

TECHNICAL SPECIFICATION..............................3

DESCRIPTION OF DA1226AT..............................4

APPLICATION DIAGRAM.....................................5

INSTALLATION.....................................................5

OPERATION.........................................................6

ACCESSORIES.....................................................6

FREQUENTLY ASKED QUESTIONS....................7

TROUBLESHOOTING GUIDE..............................7

ALTINEX POLICY .................................................8

LIMITED WARRANTY........................................8

RETURN POLICY..............................................8

CONTACT INFORMATION................................8

1

DISTRIBUTION AMPLIFIERS

PRECAUTIONS / SAFETY WARNINGS 1

Please read this manual carefully before using your
DA1226AT Distribution Amplifier. Keep this manual
handy for future reference. These safety
instructions are to ensure the long life of your
DA1226AT and to prevent fire and shock hazard.
Please read them carefully and heed all warnings.

1.1 GENERAL

• Unauthorized personnel shall not open the
unit since there are high-voltage
components inside.

• Qualified Altinex service personnel, or their
authorized representatives must perform all
service.

1.2. SAFETY GUIDELINES FOR THE RACK­MOUNTING OF THE DA1226AT

• Maximum operating ambient temperature is
35 (degrees C).

• Never restrict the airflow through the
devices’ fan or vents.

• When installing equipment into a rack,
distribute the units evenly. Otherwise,
hazardous conditions may be created by an
uneven weight distribution.

• Connect the unit to a properly rated supply
circuit.

• Reliable Earthing (Grounding) of Rack­Mounted Equipment should be maintained.

1.3 INSTALLATION

• For best results, place the DA1226AT
Distribution Amplifier on a flat, level surface
in a dry area away from dust and moisture.

• To prevent fire or shock, do not expose this
unit to rain or moisture. Do not place the
DA1226AT Distribution Amplifier in direct
sunlight, near heaters or heat radiating
appliances, or near any liquid. Exposure to
direct sunlight, smoke, or steam can harm
internal components.

• Handle the DA1226AT Distribution Amplifier
carefully. Dropping or jarring can damage
internal components.

• Do not place heavy objects on top of the
DA1226AT. If the DA1226AT is to be
mounted to a table or wall, use only Altinex
made mounting accessories (Rack Mount
Ears DA1292FC) and cables for optimum
setup.

• To turn off the main power, be sure to
remove the cord from power outlet. The
power outlet socket should be installed as
near to the equipment as possible, and
should be easily accessible.

• Do not pull power cord or any cable that is
attached to the DA1226AT Distribution
Amplifier.

• If the DA1226AT Distribution Amplifier is not
used for an extended period of time,
disconnect the power cord from the power
outlet.

1.4 CLEANING

• Unplug the DA1226AT power cord before
cleaning. Clean surfaces with a dry cloth.
Never use strong detergents or solvents,
such as alcohol or thinner. Do not use a wet
cloth or water to clean the unit.

1.5 FCC / CE NOTICE

• This device complies with Part 15 of the FCC
rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.

• This equipment has been tested and found
to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Operation of this
equipment in a residential area is likely to

2

DISTRIBUTION AMPLIFIERS

cause harmful interference in which case the
user will be required to correct the
interference at his own expense.

• Any changes or modifications to this unit not
expressly approved by Altinex Inc. could void
the user’s authority to operate the
equipment.

ABOUT YOUR DISTRIBUTION AMPLIFIER 2

The DA1226AT is a 1-in 6-out RGBHV distribution
amplifier designed to allow the connection of a
single computer video or interface source to as
many as six monitors or projectors capable of
handling the source resolution.

The DA1226AT offers excellent bandwidth
performance (minimum 350 MHz) and a typical
bandwidth of nearly 450 MHz, allowing it to remain
virtually transparent to high resolution signals.

Though primarily designed to pass an RGBHV
signal format, the DA1226AT can also pass RGBS,
RGsB, Component Video (Y, R-Y, B-Y), S-Video
(Y/C), and Composite Video by using the
appropriate channels. The DA1226AT outputs the
same sync level as it receives on its input.

The DA1226AT offers a low-profile design, which
helps to prevent tilting due to cable drag when
used in desktop applications. The DA1226AT uses
an internal 90-140/200-240V switchable power
supply. It may be rack-mounted using optional
hardware.

TECHNICAL SPECIFICATIONS 3

FEATURES/DESCRIPTION DA1226AT
GENERAL
No. of Inputs

Input Connectors Set of 5 BNC Female

No. of Outputs

Output Connectors Set of 5 BNC Female

Compatibility

RGBHV, RGBS, RGsB

Component, S-Video

and Composite Video

Table 1. DA1226AT General

One

Six

High resolution

and RsGsBs,

MECHANICAL DA1226AT

Material 0.1” Al
Finish Gray
Front/Back panels Lexan
Height (inches) 1.75in (44mm) (1U)
Width (inches) 17.0in (432mm) (1 rack

wide)
Depth (inches) 4.50in (114mm)
Weight (pounds) 5.0lbs (2.27kg)
Ship Weight (pounds) 7.0lbs (3.18kg)
T° Operating 10°C-35°C
T° Maximum 50°C
Humidity

MTBF (calculations) 40,000 hrs

90% non-condensing

Table 2. DA1226AT Mechanical

ELECTRICAL DA1226AT
Input Video Signal

Analog Signal 1.5V p-p max
Impedance 75 Ohms

Input Sync Signal

Horizontal, Vertical, & C­Sync
Sync on Green -0.3V
Impedance 10 k Ohms

Output Video Signals

Analog Signal Gain of 1.05 (+/-5%)
Fall/Rise Time (ns) 1.0
Impedance 75 Ohms

Output Sync Signal

Composite Sync, (Horizontal,
Vertical)
Sync on Green -0.3V
Impedance 22 Ohms

Frequency Compatibility

Horizontal 15-200 kHz
Vertical 47-180 Hz
Typical Video Bandwidth 450 MHz @ -3dB
Minimum Video Bandwidth 350 MHz @ -3dB

Cable Equalization
Coupling
Cross-talk
Power

Internal Power Supply 90-140/200-240 V

Power Consumption

TTL(+/-)

TTL(+/-)

3dB @ 120 MHz

DC

-40dB @10 MHz

switchable

10 watts max

Table 3. DA1226AT Electrical

3

DESCRIPTION DIAGRAM 4

DISTRIBUTION AMPLIFIERS

4

APPLICATION DIAGRAM 5

DISTRIBUTION AMPLIFIERS

INSTALLATION 6

Step 1. Please attach the Interface on the rack

or table using the optional hardware.

Step 2. The DA1226AT may be used with either

110V or 220V and offers a universal IEC
connector for ease of use throughout
the world. Before plugging in the power
cord to the unit, please verify that the
voltage rating of 110V/220V on the
FUSE CLIP located at the rear of the
unit is the same as the voltage rating on
the power outlet. To change setting,
unplug the power cord from the
DA1226AT and squeeze the clips on
either side of the fuse box. Then turn
the FUSE DIP 180 degrees,
repositioning it in the clip so that the
voltage is visible through the window.
Please reinsert the fuse box, and push it
in until the side clips of the fuse box
click and lock securely into place.

Step 3. Then connect the appropriate power

cord for your country into the power
input socket of the DA1226AT gently,
but firmly. The power indicator light on
the front panel of the DA1226AT should
turn on.

Step 4. Connect the video output of the source

of the (computer or other high-resolution
source) to input of the DA1226AT using
a high quality of coaxial-type cables. If
the source offers a VGA-type 15 pin HD
connector, use a HD 15 to 5-BNC made
for the MS8102CA or the MS8112CA.
NOTE: You may have to use an
interface with your source to provide the
appropriate signal format type for
DA1226AT or to use a local monitor if
needed.

Step 5. Connect the output channels of the

amplifier to the display devices
(monitors and/or projectors.) using a
good quality of coaxial cables.

Step 6. Confirm picture quality on all displays. If

you are not receiving a signal, make
sure that the display is compatible with
the resolution of the computer graphics
card. If the picture quality is less than
perfect, check to make sure that all of
your connections are solid and that you
are using a high quality cable.

CONGRATULATIONS! YOU ARE DONE.
If you experience any problems, please call

1-800-258-4623 or 1-714-990-2300 for

international calls.

5

DISTRIBUTION AMPLIFIERS

OPERATION 7

The DA1226AT will operate successfully as long as
cables are attached correctly and other technical
specifications are followed. There are no other
adjustments necessary to operate the unit.

ACCESSORIES 8

Model No. Description

RACK MOUNT HARDWARE

DA1292FC

DA1293FC HIGH RESOLUTION 5-CHANNEL

CB4203MR
CB4206MR
CB4212MR
CB4225MR
CB4250MR
CHB4275MR
CB42100MR
CB42150MR
DA1226AT SUPER HIGH RESOLUTION 5-

CB4406MR
CB4412MR
CB4425MR
CB4450MR
CB4475MR
CB44100MR
CB44150MR

CB500PL­5BM00035BM
CB500PL­5BM00065BM
CB500PL­5BM00125BM
CB500PL­5BM00255BM
CB500PL­5BM00505BM
CB500PL­5BM00755BM
CB500PL-

19”-1U Rack Mount Ears for rack
wide units

COAX CABLE (for input of output)
3 feet, 5-BNC M to 5-BNC M
6 feet, 5-BNC M to 5-BNC M
12 feet, 5-BNC M to 5-BNC M
25 feet, 5-BNC M to 5-BNC M
50 feet, 5-BNC M to 5-BNC M
75 feet, 5-BNC M to 5-BNC M
100 feet, 5-BNC M to 5-BNC M
150 feet, 5-BNC M to 5-BNC M

CHANNEL COAX CABLE (for input
or output)
6 feet, 5-BNC M to 5-BNC M

12 feet, 5-BNC M to 5-BNC M
25 feet, 5-BNC M to 5-BNC M
50 feet, 5-BNC M to 5-BNC M
75 feet, 5-BNC M to 5-BNC M
100 feet, 5-BNC M to 5-BNC M
150 feet, 5-BNC M to 5-BNC M

HIGH RESOLUTION PLENUM­FLEX 5-CHANNEL COAX CABLE

3 feet, 5BNC M to 5-BNC M
6 feet, 5BNC M to 5-BNC M
12 feet, 5BNC M to 5-BNC M
25 feet, 5BNC M to 5-BNC M
50 feet, 5BNC M to 5-BNC M
75 feet, 5BNC M to 5-BNC M
100 feet, 5BNC M to 5-BNC M

5BM01005BM
CB500PL­5BM01505BM
CB500PL­5BM02005BM
CB500PL­5BM02505BM

CB5100PL –
5BM00035BM
CB5100PL­5BM00065BM
CB5100PL –
5BM00125BM
CB5100PL –
5BM00255BM
CB5100PL –
5BM00505BM
CB5100PL –
5BM00755BM
CB5100PL –
5BM01005BM
CB5100PL –
5BM01505BM
CB5100PL –
5BM02005BM
CB5100PL –
5BM02505BM

MS8102CA
MS8104CA
MS8105CA
MS8112CA
MS8114CA

PC5301US
PC5302UK
PC5303AU
PC5304GR

150 feet, 5BNC M to 5-BNC M
200 feet, 5BNC M to 5-BNC M
250 feet, 5BNC M to 5-BNC M

SUPER HIGH RESOLUTION
PLENUM-FLEX 5-CHANNEL
COAX CABLE

3 feet, 5-BNC M to 5-BNC M
6 feet, 5-BNC M to 5-BNC M
12 feet, 5-BNC M to 5-BNC M
25 feet, 5-BNC M to 5-BNC M
50 feet, 5-BNC M to 5-BNC M
75 feet, 5-BNC M to 5-BNC M
100 feet, 5-BNC M to 5-BNC M
150 feet, 5-BNC M to 5-BNC M
200 feet, 5-BNC M to 5-BNC M
250 feet, 5-BNC M to 5-BNC M

VGA TO RGB ADAPTER CABLES

15-pin HD M to 5 BNC M, 6ft
15-pin HD M to 5 BNC M, 15ft
15-pin HD M to 5 BNC M, 50ft
15-pin HD F to 5 BNC M, 6ft
15-pin HD F to 5 BNC M, 15ft

POWER CABLES

Power Cable for US
Power Cable for UK
Power Cable for Australia
Power Cable for Germany

6

DISTRIBUTION AMPLIFIERS

FREQUENTLY ASKED QUESTIONS 9

No: Question Answer
1 How many

feet of cable
can I use
with the
DA1226AT?

2 Does the

DA1226AT

offer
buffered
outputs?

3 What is

meant by
buffered
output?

4 Which type

of format
signal may I
pass through
the
DA1226AT?

5 Can I use

CAT-5
cables
instead of
coaxial
cables?

6 What is the

maximum
resolution of
input video
signal that

The outputs of the
DA1226AT allow signals to
be driven through 10 feet or
more of cable depending on
cable quality and the source
signal resolution.
The DA1226AT offers all six
as individually buffered
outputs.

Buffered output means that
the output signal is isolated
from the input signal. The
loaded output does not
affect the input, or any other
output on the device. A
buffered output may vary in
terms of the gain or peaking
adjustments made to the
video signal.
The DA1226AT can pass
RGBHV, RGBS, RGsB,
Component Video, S-Vide,
and Composite Video by
using appropriate channels.
Video sources may be
passed through red, green,
and blue channels as well as
the horizontal and vertical
sync channels.
You can’t use cat 5 cable
instead of coaxial cable,
because you will loose
quality of the receiving
signal. Since there is no
isolation of the signal in each
wire, the signals will interfere
with each other, so CAT-5 is
not recommended at all.
Resolution format describes
the number of pixels and
lines in a given video image,
as well as the rate at which
each frame is redrawn or

can pass
through
DA1226AT?

refreshed. Offering a
minimum video bandwidth of
350 MHz and typical
bandwidth close 450 MHz,
the DA1226AT allows very
high resolution video signals
(up to 1600x1200) to pass
without affecting image
quality.

TROUBLESHOOTING GUIDE 10

• Please make sure that the input amplitude of
the analog signal is less than 1.5V.

• Please make sure that sync levels at the
TTL level are between 1.4 Vp-p and 5 Vp-p.

• Please make sure that the highest quality of
cables is used. We recommend Altinex
made cables for best results.

• If a problem arises after continuous usage at
a higher voltage, higher temperature, higher
humidity, or at other extreme environmental
conditions, please correct the problem.
NOTE: The sync pulse voltage must be at
least 1.4 V for proper operation of the
distribution amplifier. If lover voltage is used,
contact Altinex for additional information.

• If there is no image on the display, make
sure that the source has a compatible
refresh rate and resolution with the display
by a direct connector of the source and
display.

• If the image quality is poor, then check the
input of the cable so that the source is
capable of driving signals to the DA1226AT
through the length of the cable.

• If you are using a HD-15 to 5-BNC cable to
connect a computer directly to the
DA1226AT and do not see the picture or
display use an interface to make the video
signal compatible to display.

7

DISTRIBUTION AMPLIFIERS

ALTINEX POLICY 11

11.1 LIMITED WARRANTY

Altinex warrants that its products and cables are
free from defects in materials under normal use
and service. This warranty is limited to repairing
at company’s factory any part or parts of the
product, which upon company’s examination
shall disclose to be, thus defective. Products
considered defective should be returned to
company with transportation charges pre-paid
within 2 years (90 days for cables) from date of
shipment to the purchaser. The warranty is
expressly instead of all other warranties
expressed or implied. Altinex neither assumes
nor authorizes any other person to assume for it
any other liability in connection with the sale of
the products. This warranty shall not apply to
any product that shall have been repaired or
altered outside of company’s factory in any way
so as, in its judgment, to affect its stability or
reliability, or that has been subject to misuse,
negligence or accident.

If your product is out of warranty and needs
service, contact the Altinex Sales Department
for an RMA (Return Material Authorization).
Products returned without an RMA number may
experience a delay in service. The service
charges will be quoted to you before the actual
repairs are done.

11.3 CONTACT INFORMATION
Sales Department

Phone: [phone]
Fax: [phone]

Accounting Department

Phone: [phone]
Fax: [phone]

11.2 RETURN POLICY

It is very important to Altinex that you receive
products that you have ordered and that this
product meets your expectations. In the unlikely
event that an Altinex product needs to be
returned, please follow the policies below:

Altinex will accept product returns for a period of
30 days from authorized Altinex dealers.
Products should be returned in an unopened
package.

If a product has been opened, the restocking
fees will apply. For the restocking fee amount,
please contact an Altinex Sales Representative.

If the product is in your possession for more
than 30 days, the restocking fees will apply.

Altinex will not accept any returns on cables or
custom products.

If your product is in warranty and needs service,
contact the Altinex Sales Department for an
RMA (Return Material Authorization). Products
returned without an RMA number may
experience a delay in service.

8
