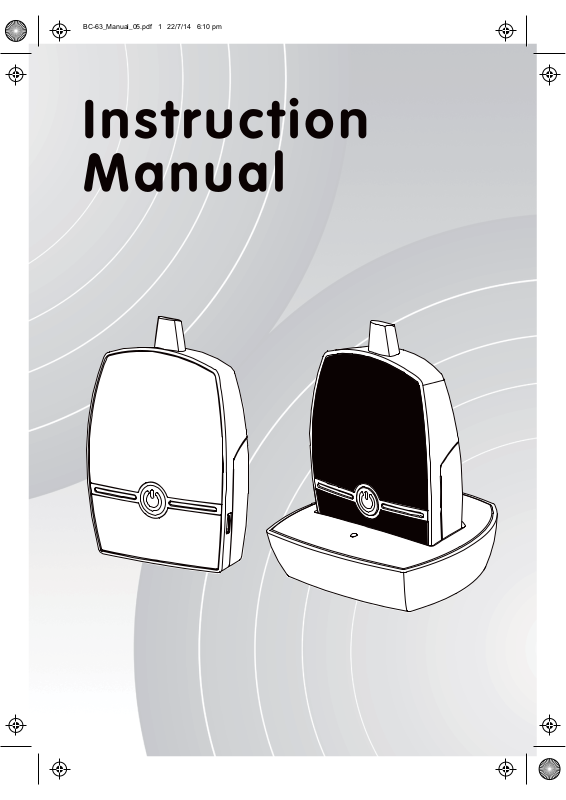

BC-63_Manual_05.pdf 1 22/7/14 6:10 pm

BC-63_Manual_05.pdf 2 22/7/14 6:10 pm

Thank you for purchasing our A014201 digital green baby monitor. Your unit
has been manufactured and checked under the strictest possible quality control to
ensure that each monitor leaves the factory in perfect condition. In the unlikely
event you find any defects or have any problem, please contact our dealer or
service center.

Please read this manual carefully to obtain maximum performance and
extended service life from the unit.

Features

- Full digital technique operating in the 902.000MHz---928.000MHz with zero
interference

- Automatic hop and search for free channel

- Operating range 800m in open space

- Low radiating power (only 10% of normal DECT or 50% of ECO DECT)

- Automatic power reduction system further reduce radiation level to 40% when

baby unit and parent unit are within close vicinity

- Talk back function on parent unit to soothe your baby

- Capable of using multiple baby units to monitor more babies

- Night light on baby unit with adjustable intensity level

- Baby’s room temperature indication on both baby and parent unit

- Battery status indicator and low battery alert on both baby and parent unit

- Digitally adjustable microphone sensitivity

- Audio and visual alert for out of range

- Audio and visual Hi/Lo temperature alert

- Digital volume control

- Vibration alert

- LED sound level meter

- Parent unit operate with Li rechargeable battery

- Sensor Touch Keys

WARNING

The A014201 should not be regarded as a medical device. Premature babies
or those considered to be at risk should be under the supervision of your doctor or
health personnel.

Direct supervision of your baby at a regular interval by a responsible adult is
strongly recommended in addition to using the A014201.

2

BC-63_Manual_05.pdf 3 22/7/14 6:10 pm

DIGITAL TECHNOLOGY AND APRS

This baby monitor employs full digital technology with zero interference.

The unit can automatically select free channel or hop to free channel during
communication to avoid interference from other electronic devices. In addition,
thanks to the Automatic Power Reduction System (APRS) which senses the signal
strength between the baby and parent unit and automatically reduces the emission
power from baby unit when the two units are in close vicinity. The level of radiation
to baby is greatly reduced.

POWER SUPPLY

(A) Baby Unit (BU)

1. Operation from batteries
Press down and slide open the battery door in direction as shown. Insert
three pieces AAA size (UM-4) alkaline batteries into the compartment.
Observe correct polarities indication.

N.B. For best performance, do not mix use old and new batteries or alkaline and
rechargeable batteries.

3

BC-63_Manual_05.pdf 4 22/7/14 6:10 pm

2. Operation using AC adapter
The unit can be operated on AC mains using the supplied 5V AC adapter.
Connect the output plug of adapter to USB port 16 , make sure the polari ­ty is correct. The power supply from the battery will be cut off once the
adapter’s output plug is inserted into USB port 16 .

16

(B) Parent Unit (PU)

1. Operation from battery pack
The Li polymer battery pack is already installed in the unit. To exchange
battery pack, remove belt clip and slide open the battery door in direction
as shown, take out the battery pack and disconnect from socket.

4

BC-63_Manual_05.pdf 5 22/7/14 6:10 pm

2. Charging up the Lithium rechargeable battery
Connect the output plug of supplied 5V AC adapter to USB port 37 of the
charger stand, make sure the polarity is correct. The unit can either be in
switch ON or OFF condition, place it into the charger stand. The charging
indicator 36 should light up white. Adjust the position of parent unit in
case the indicator 36 does not light up. During charging, the power on /
battery low icon 27 should be flashing red. Once the battery is fully
charged up, the power on / battery low icon 27 should stay steady
green. Either you can take it out or keep placing it in the charger stand will
cause no damage to battery. In the latter case, when the battery is being
consumed and voltage falls to a certain level, the charger stand will
automatically start charging up the battery again.

37

Note : Before using the parent unit for the first time, charge up the Li polymer
battery for at least three hours. It is recommended to switch off the unit during first
charging.
Even without the Li battery pack being installed, the unit can still oprate normally
once place in changer stand, while the power on icon 27 will always stay steady
green.

!

CAUTION : BESURE THE BATTERY IN PARENT UNIT IS RECHARGEABLE
TYPE BEFORE PLACING IN CHARGER STAND. OTHERWISE EXPLSION MY
RESULT .

5

BC-63_Manual_05.pdf 6 22/7/14 6:10 pm

PAIRING

This process is to match the parent unit with baby unit so that they can communicate with

each other while no other devices (even baby monitor of identical model) can interfere with
you or receiving your signal.

The baby and parent unit are already paired when they are shipped from factory. However,

we recommend to perform pairing process again in case interference is experienced or
when extra BU is added to work with the PU.

1. Press and hold the talk button 35 of PU.

2. Long press the power ON/OFF button 18 and wait until a starts flashing green.
Release both buttons 18 and 35 .

steady
flashing

3. Long press the ON/OFF button 1 for 3 sec to switch on the BU. Now touch and
hold icon for 5 sec and wait until a show steady green while the BU number
icon 15 1 or 2starts flashing green. Release the finger touching icon 15 . Perform
same to the other BU that can be purchased optionally.

4. Use the touch keys 2 3 to set the BU number to either 1 or 2. DO NOT set
both BU to same number or otherwise the system will not operate normally. Short
press the button 1 to confirm your setting, the BU number now show steady
while starts flashing.

6

BC-63_Manual_05.pdf 7 22/7/14 6:10 pm

5. Now short press again the power ON/OFF button 1 of one BU. If pairing is
successful,the on both PU and BU should change steady green while two beep
sound is heard in PU with the corresponding BU number icon 33 or 34 being shown
up.

6.Shortpress button 1 oftheremainingBU,twobeepsoundisheardinPUwith
the flashestwotimesandthecorrespondingBUnumbershowup.The
BU change from flashing to become steady green.

7.Longpress button 1 and 18 toswitchoffallBUandPUandthenswitchthem
on again, the baby monitor is now ready for operation.

8.IncaseBUandPUcannotcommunicatewitheachother,repeatpairingprocess
again.

N.B. IforiginallythereisonlyoneBUworkingwithPU,afterpurchasingthenew
extraBUatlaterstage,itisnecessarytoperformpairingprocessagainwithallthe
three units together.

onthis

7

BC-63_Manual_05.pdf 8 22/7/14 6:10 pm

CONTROLS LAYOUT

11

13

14

6

7

2

1 5 4

29

30

25

24

18

19

28

9

10

12

15

8

3

BABY UNIT (BU)

26

27

31

32

34

33

23

202122

PARENT UNIT (PU)

16

17

35

36

37

CHARGER STAND

1. Power ON/OFF button

2. Down touch key

3. Up touch key

4. Menu touch key

5. Night light touch key

6. Night light

7. Microphone

8. Temperature sensor

9. Room temperature indicator

10. Power on/battery low icon

11. Transmit icon

12. Microphone continuous on icon

13. Night light status icon

14. Speaker mute icon

15. BU number icon

16. USB power port

17. Speaker

18. Power ON/OFF button

19. Down touch key

20. Up touch key

21. Menu touch key

22. Vibrator touch key

23. Microphone

24. Speaker

25. Visual level meter

26. Room temperature indicator

27. Power on/battery low icon

28. Out of range/transmit icon

29. Vibration icon

30. Speaker mute icon

31. Temperature high limit icon

32. Temperature low limit icon

33. BU number 1 icon

34. BU number 2 icon

35. Talk button

36. Charging indicator

37. USB power port

8

BC-63_Manual_05.pdf 9 22/7/14 6:10 pm

OPERATION

Baby unit

1. Long press the power ON/OFF button 1 for 3 sec to switch on the unit. The power
on icon 10 as well as the assigned baby unit no. 15 should light up steady green
while the room temperature indicator 9 starts showing the baby’s room temperature.
To turn off, long press the button 1 again.

2. Place the unit about 1 m from the crib with the microphone 7 facing towards the
baby.

3. Short press the power ON/OFF button 1 to light up the touch key icons

( ). Touch and hold the menu icon 4 for over 2 sec to enteraa aa

programming mode, the microphone icon 12 will light up.

NO
VOX

BU is set to continuous
transmission mode

Adjust the microphone sensitivity by touching the up/down icon 2 and 3 such
that the unit will be set to transmit whenever the microphone 7 picks up a sound at
your desirable loudness level. The temperature indicator 9 will change during
adjustment. The higher the number, the more sensitive is the microphone 7 to
sound. There are total 5 levels of microphone sensitivity. When the maximum level is
reached, further touch of the up icon 3 will set the unit into continuous transmission
mode (i.e. the unit will transmit even without detecting a sound) and the icon 12

NO

VOX

as well as transmission icon 11 will light up steady green. Short press the powera
ON/OFF button 1 to confirm your selection and exit from menu. Short touch of
menu icon 4 will show the setting of microphone sensitivity under standby mode.

4. Once the unit is in transmit mode, the transmit icon 11 will light up green. The
unit will return to standby mode a few seconds after the microphone 7 stops picking
up any sound and the transmit icon 11 will go off. Except when the unit is set in
continuous transmission mode, the transmit icon 11 will stay steady on.

5. The night light 6 can be set permanently ON by short touch of night light icon 5 .
Each touch of icon 5 will increase the level of light intensity with maximum 5
levels. When the maximum level is reached, further touch of icon 5 will set the
night light 6 into voice activated (VOX) mode. Under VOX mode, the icon 9
will light up and night light 6 will be switched on once the microphone 7 detects a
sound and automatically fade off a few seconds after the sound stops.

6. This baby monitor is equipped with talk back function so that parent can speak to baby

9

BC-63_Manual_05.pdf 10 22/7/14 6:10 pm

to comfort his/her emotion. Touch the up/down icons 2 and 3 to adjust the
volume of speaker 17 , temperature indicator 9 will change during adjustment. The
higher the number, the bigger is the loudness. There are total 5 levels of loudness.
When the minimum level is reached, further touch of the down icon 2 will totally
mute the speaker 17 volume and the speaker mute icon will show up.

7. The condition of the battery is shown by the power on/low battery icon 10 . When
the battery level becomes running low, the power on/low battery icon 10 turns
red. Replace with new battery or use the supplied AC adapter.

8. The temperature sensor 8 inside the unit detects the ambient temperature and its
current reading is shown on the temperature indicator 9 and 26 of both BU and
PU. Short press the power ON/OFF button 1 to light up the temperature indicator
9 . After 20 sec, it will go off automatically. The normal operating range of sensor is

-9℃ to +50℃. Temperature outside this range will be shown as - - . In case there is
a sudden big temperature change (e.g. you bring out the unit from indoor to outdoor
during winter time), the sensor may need to take a few minutes before it can settle to
the new environment and show the correct reading.

9. The touch keys will only have function when the icons ( ) are lighted up.
These icons will go off automatically in case no key is being touched for 5 sec to
avoid mishandling during daily usage.

N.B. Once the icons are lighted up, BU will not enter transmit mode until the icons go off.

10. Each time the icon keys are touched, a beep tone will be heard. To eliminate this
beep tone, touch and hold the down icon 2 for 2 sec until a second beep tone is
heard. To resume the beep tone, touch and hold the up icon 3 for 2 sec until a
beep tone is heard. Whenever the unit is switched off and then on again, the beep
tone will resume automatically.

Parent unit

1. Long press the power ON/OFF button 18 for 3 sec to switch on the unit. The
power on icon 27 should light up steady green while the temperature indicator
26 will show the baby’s room temperature within 10 sec. To turn off, long press the
button 18 again.

2. Setting of out of range alarm function and temperature alarm
a. Short press the power ON/OFF button 18 to light up the touch key icons

( ). Touch and hold the menu icon 21 for over 2 sec to enter
programming mode, the out of range/transmit icon will show up while the
temperature indicator 26 will show or flashing.

10

BC-63_Manual_05.pdf 11 22/7/14 6:10 pm

Short touch icons 19 or 20 to make your selection, then short press
button 18 to confirm. means out of range alarm function is enabled while

means this function is disabled. When set to , the level of radiation from BU
is reduced, however, the PU will not provide an alarm when it falls outside the
communication range of BU. Besides, the BU room temperature will not be shown
on PU under standby mode.
In case the unit is paired with two BU, perform setting also for BU no. 2. It is
possible the settings can be different for the two BU.

Upper temperature Limit
is set at 28℃

b. Short touch icons 19 or 20 , set the upper temperature limit above which the

unit will provide an alarm. Each touch of the icon will cause the reading to advance
or retreat one step. Touch and hold the icon 19 or 20 will cause the reading to
scroll up or down rapidly. The allowed selectable temperature range is - 3 to +℃
50 . In case is selected, no upper temperature limit is set. Confirm your℃
setting by short press of button 18 .

No lower temperature
limit is set

11

BC-63_Manual_05.pdf 12 22/7/14 6:10 pm

c. Short touch icons 19 or 20 , set the lower temperature limit below which the unit

will provide an alarm. The allowed selectable temperature range is -9 to +44 ℃ ℃
or 2 lower than the selected upper limit. In case is selected, no lower℃
temperature limit is set. Confirm your setting by short press of button 18 and
exit from menu.

d. Please note the setting of upper and lower temperature limits are same for both

BU.

e. Under standby mode, short touch of menu icon 21 will show the setting of out

of range alarm function and temperature alarm.

3. Place this unit at a reasonable distance away from the baby unit to avoid feedback.
Too close a distance will create a screeching sound at the speaker 24.

4. Once it receives a signal from the BU, the visual level meter 25 will light up. The
number of segments being lighted up vary along with the sound. This feature is
useful in case the parents prefer to turn down the speaker volume to keep the
environment quiet. Depending the signal is coming from which BU, the
corresponding baby unit no. icon

1

33 or234 will be lighted up.

PU is receiving
signal from BU no. 1

PU is receiving
signal from BU no. 2

5. Short press the power ON/OFF button 18 to light up the touch key icons
( ). Short touch the up/down icons 19 or 20 to adjust the volume of
speaker 24, the segments of visual level meter 25 as well as the temperature
indicator 26 will change during adjustment. The more segments lighted up and
higher the number, the bigger is the loudness. There are total 5 levels of loudness.
When the minimum level is reached, further touch of the down icon 19 will totally
mute the speaker 24 volume and the speaker mute icon will show up.

6. This unit is equipped with a vibration alert. Short touch the vibration icon 22 and
the icon 29 will show up. Once the received baby’s voice is loud enough, the
vibrator starts to function. This feature is useful when the parent is working under
noisy environment (e.g. vacuum cleaning). To save battery power, it is
recommended not to use the vibration alert frequently. To switch off vibration, short
touch the vibration icon 22 again and the icon 29 goes off.

12

BC-63_Manual_05.pdf 13 22/7/14 6:10 pm

7. If the unit is paired to work with two BU, BU no.1 always has priority. This means
while the unit is listening to signal from BU no. 2, in case BU no. 1 starts
transmitting, the unit will immediately switch listening to BU no.1 until it stops to
transmit, then the unit will switch back listen to BU no. 2.

8. To avoid parent missing attendance to BU no.2, while the unit is listening to signal
from BU no.1, in case BU no.2 starts to transmit, the baby unit no. icon 34 will go
flashing to alert the parent. If parent prefers to listen to BU no. 2, he can short
press the power ON/OFF button 18 and the unit switches listening to BU no. 2.
The baby unit no. icon 34 will become lighted up steady while baby unit no.

icon 33 will go flashing (if baby 1 continues to cry). Further short press of

button 18 will switch back to listen to BU no. 1 again. Under such arrangement, the
parent is able to monitor both babies.

9. Under standby mode, if there are two BU, the unit will alternately scan each BU for
15 sec with the BU no. icons 33 and 34 alternately show up. When either one of
the BU starts to transmit, the unit will immediately listen to that BU until the signal
goes off (or switch listening to signal from BU with higher priority). Short press the
power ON/OFF button 18 to light up the temperature indicator 26 . After 20 sec,
it will go off automatically

10.When the out of range alert function is set to , once this unit is beyond the
communication range of BU for over 30 sec, an out of range alarm will be heard
together with segments of the visual level meter 25 and out of range/transmit

icon 29 flashing to alert the parents. (The alarm sound is independent of

whether the speaker is muted or not). Besides, the temperature indicator 26 will
show - - in case it is lighted up. This alarm will go off only when the PU falls back
within the communication range of BU. In case there are two BU, the out of range
alarm will be provided when the PU is showing the status of that BU which is
beyond the communication range.

BU no. 2 is out of range

N.B. This alarm will also be heard in case the BU is switched off, or its battery has
run down, or its power is cut off, or the pairing is not properly done between the
BU and PU.

13

BC-63_Manual_05.pdf 14 22/7/14 6:10 pm

11. Whenever the baby’s room temperature falls outside the range as preset by the
upper and lower temperature limits, an alarm will be heard. Depending on
whether the upper or lower limit is exceeded, the corresponding icon 31 or

32 will light up and the current temperature reading start flashing in PU.

Higher temperature limit
is exceeded for BU no. 2

12. It is possible for parent talking back to baby to soothe his emotion. Press and hold
the button 35, the out of range/transmit icon 28 will show up. Speak towards
the microphone 23. Release button 35 after finish speaking. It is worth noted that
the parent can talk back anytime they prefer, even when the BU is transmitting.
Please note the PU is talking back to the BU which number is shown on PU at the
time the button 35 is pressed.

N.B. Whenever the button 35 is pressed, all the lighted icons ( ) will go

off and no setting is allowed.

13. The condition of the Li battery pack is shown by the power on/low battery icon
27 . When battery level becomes running low, the icon 27 turns red and an
alarm will be heard, reminding the parents to charge up the battery using the
supplied charger stand.

14. All the alarms (out of range alarm, high/low temperature alarm, low battery alarm)
can be temporarily muted by short press of power ON/OFF button 18 .
However, the corresponding icons will still remain until the condition is rectified.

15.The touch keys will only have function when the icons ( ) are lighted up.
These icons will go off automatically in case no key is being touched for 5 sec to
avoid mishandling during daily usage

16. Each time the icon keys are touched, a beep tone will be heard. To eliminate this
beep tone, touch and hold the down icon 19 for 2 sec until a second beep
tone is heard. To resume the beep tone, touch and hold the up icon 20 for 2
sec until a beep tone is heard. Whenever the unit is switched off and then on
again, the beep tone will resume automatical.

14

BC-63_Manual_05.pdf 15 22/7/14 6:10 pm

PRECAUTIONS

-Use only the supplied AC adapters, use of other adapters may cause damage to the
A014201 baby monitor.

-When not using the monitor for a long period of time, remove all batteries from the PU,
BU to avoid damage due to battery leakage.

-Disconnect the AC adapter from the wall outlet when the monitor is not to be operated.

-The A014201 is best performed within a temperature range of -9 to +50 .℃ ℃

-Do not open the cabinet, no serviceable parts inside.

-The A014201 should not be exposed to dripping, splashing and that no objects filled
with liquids, such as vases shall be placed on it.

-Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent.

-Batteries (battery pack or batteries installed) shall not be exposed to excessive heat
such as sunshine, fire or the like.

-The MAINS plug or an appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable

-Only use the power supply unit list in the user manual.

STANDARD ACCESSORIES
a. Baby unit
b. Parent unit
c. Charger stand for PU
d. 3.7V Li polymer rechargeable battery pack (installed in PU)
e. 6V AC adapters x 2
f. User manual

a. b. c.

Manufacturer:BABYMOOV ALT PARTNERS
Product Name:Digital Baby Monitor
Model No:A014

202

d.

e.

15

f.

BC-63_Manual_05.pdf 16 22/7/14 6:10 pm

TROUBLE SHOOTING GUIDE

Problem Possible Causes Solution

BU has no - BU is switched off - Switch on BU
transmission - Mic sensitivity is too low - Adjust mic sensitivity higher

- BU Battery has run down or AC - Replace with new battery or
adapter improperly connected check connection

Always transmitting - Mic sensitivity is too high - Adjust mic sensitivity lower

- BU is set to continuous - Set the unit to become voice
transmission mode activated

Out-of-range alarm - Pairing is not successful - Perform pairing again
always on - BU battery has run down - Replace with new battery or use

AC adapter

- Distance between BU and - Move the BU and PU closer
PU exceeds the operating range together

No Out-of-range - Setting of Out-of-range function
alarm in PU is - Change Setting to

Temperature alarm - The upper and lower temperature - Set the upper and lower
always on limit is set too close to the temperature limit around 5˚C

current reading difference from current reading

Always showing low - Battery has run down - Recharge battery using charger
battery alert stand (PU). Replace with new

battery or use AC adapter (BU)

- Battery pack is damaged - Replace with new battery pack

Battery life is short - Night light is permanently - Switch off night light or set to

switched on VOX operate

- Vibration alert is switched on - Switch off vibration alert

Two BU having same - Pairing is done with both BU - Perform pairing again with BU
BU number shown on set with same BU number set with different BU number
PU

Many static noise - BU is located near other - Remove the electrical
and interference electrical appliances appliances or re-locate

the BU far away from source of
interference

Too short - Many steel structures - Re-locate BU or PU
communication between BU and PU
range - BU battery has run down - Replace with new battery or

use AC adapter

16

BC-63_Manual_05.pdf 16 22/7/14 6:10 pm

All European Countries except Austria, Georgia, Greece, Norway, Russian,

Federation, Spain, Sweden, The Netheriands, Ukaine.

17

18

FCC

Caution: The user is cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

IC:

This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause
undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :

(1) l’appareil ne doit pas produire de brouillage, et

(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d’en compromettre le fonctionnement.

19
