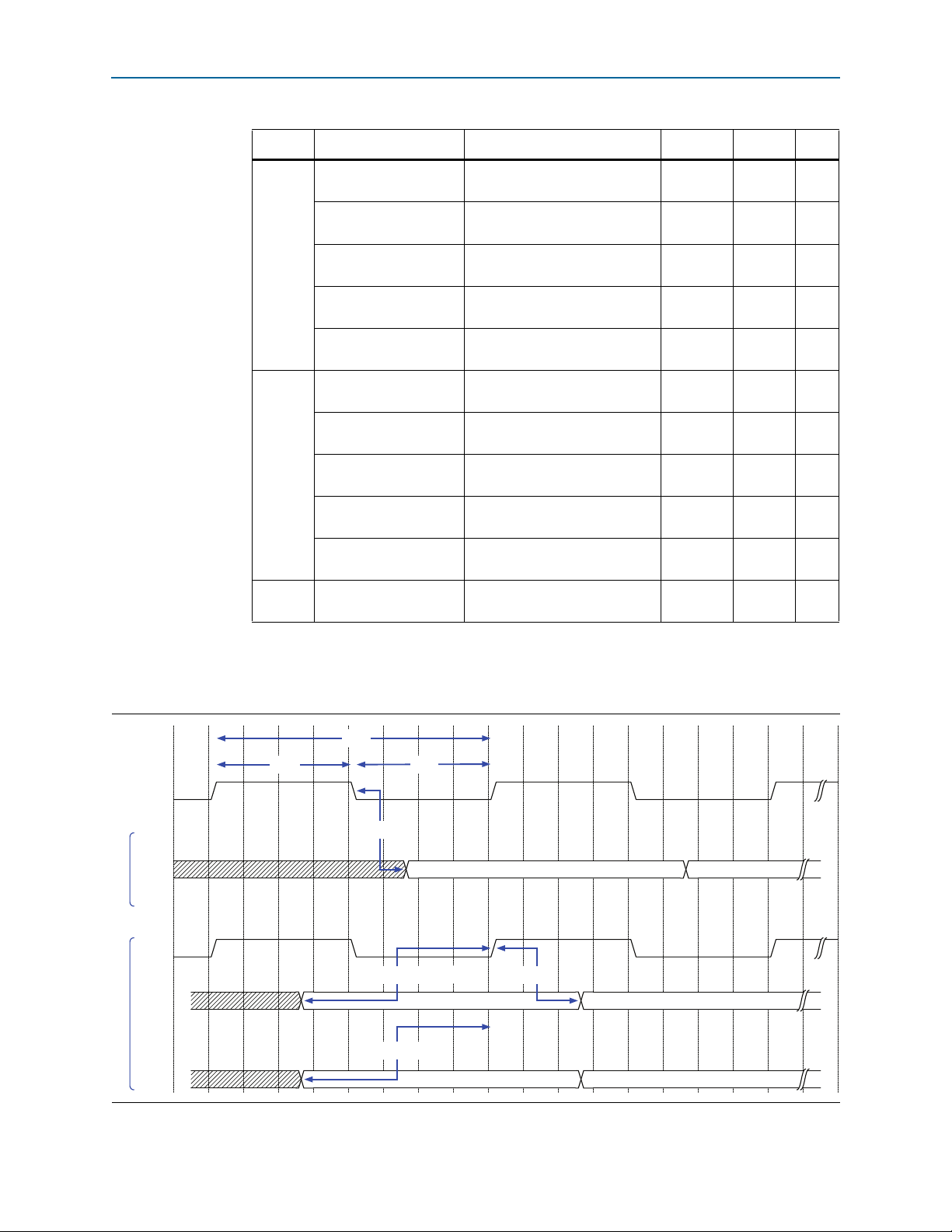

JTAG Timing Constraints and Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5
Changing the TCK Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7
Additional Information
Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Info–1
How to Contact Altera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Info–1
Typographic Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Info–2
Certification Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Info–3
Statement of China-RoHS Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Info–3
USB 2.0 Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Info–3
October 2014 Altera Corporation USB-Blaster II Download Cable
User Guide
iv Contents
USB-Blaster II Download Cable October 2014 Altera Corporation
User Guide
1. Setting Up the USB-Blaster II Download
The USB-Blaster™ II download cable interfaces a USB port on a host computer to an
®
Altera
from the PC to a standard 10-pin header connected to the FPGA. You can use the
download cable for the following:
■ Iteratively download configuration data to a system during prototyping
■ Program data into the system during production
■ Advanced Encryption Standard (AES) key and fuse programming
Supported Devices and Systems
You can use the USB-Blaster II download cable to download configuration data to the
following Altera devices:
■ Stratix
■ Cyclone
■ MAX
■ Arria
FPGA mounted on a printed circuit board. The download cable sends data
®
series FPGAs
®
series FPGAs
®
series CPLDs
®
series FPGAs
Cable
You can perform in-system programming of the following devices:
■ EPC4, EPC8, and EPC16 enhanced configuration devices
■ EPCS1, EPCS4, EPCS16, EPCS64, and EPCS/Q128, EPCQ256, and EPCQ512 serial
configuration devices
The download cable supports target systems using the following:
■ 5.0-V TTL, 3.3-V LVTTL/LVCMOS
■ Single-ended I/O standards from 1.5 V to 3.3 V
Power Source Requirements
■ 5.0 V from the USB cable
■ Between 1.5 V and 5.0 V from the target circuit board
Software Requirements and Support
■ Windows 7/8 (32-bit and 64-bit)
■ Windows XP (32-bit and 64-bit)
■ Windows Server 2008 R2 (64-bit)
■ Linux platforms such as Red Hat Enterprise 5
Use the Quartus
®
II software version 14.0 or later to configure your device.
October 2014 Altera Corporation USB-Blaster II Download Cable
User Guide
1–2 Chapter 1: Setting Up the USB-Blaster II Download Cable
10-pin Female Connector
(Connects to target printed
circuit board 10-pin male header.)
LED Color Description
Off Not connected or suspended
Blue Connected at 12MHz (USB full speed)
Teal Connected at 480MHz (USB high speed)
Green JTAG port open, idle
Green flickering JTAG port open, active
Magenta blinking Set by user to identify a cable
(1)
(1)
To identify a particular cable, use the following JTAG command:
jtagconfig --setparam <cable number> Identify <1 = on, 0 = off>
Installing the Download Cable for Configuration or Programming
1 Quartus II software version 13.1 supports most of the download cable’s capabilities. If
you use this version, install the latest patch for full compatibility.
The download cable also supports the following tools:
■ Quartus II Programmer (and stand-alone version)
■ Quartus II SignalTap
■ JTAG and debug tools supported by the JTAG Server. For example:
■ System Console
■ Nios II debugger
■ ARM DS-5 debugger
®
II Logic Analyzer (and stand-alone version)
Installing the Download Cable for Configuration or Programming
1. Disconnect the power cable from the circuit board.
2. Connect the download cable to the USB port on your computer and to the
USB-Blaster II port.
3. Connect the download cable to the 10-pin header on the device board.
4. Reconnect the power cable to reapply power to the circuit board.
Figure 1–1. The USB-Blaster II Download Cable
.
1 For plug and header dimensions, pin names, and operating conditions, see Chapter 2,
USB-Blaster II Download Cable Specifications.
USB-Blaster II Download Cable October 2014 Altera Corporation
User Guide
Chapter 1: Setting Up the USB-Blaster II Download Cable 1–3
Installing the USB-Blaster II Driver on Windows 7/8 Systems
Installing the USB-Blaster II Driver on Windows 7/8 Systems
You must have system administration (administrator) privileges to install the
USB-Blaster II download cable drivers.
The download cable drivers are included in the Quartus II software installation.
Before you begin the installation, verify that the USB-Blaster II driver is located in
your directory: \<Quartus II system directory>\drivers\usb-blaster-ii.
1. Connect the download cable to your computer’s USB port.
When plugged in for the first time, a message appears stating Device driver
software was not successfully installed.
2. From the Windows Device Manager, locate Other devices and right-click the top
USB-BlasterII.
You need to install drivers for each interface: one for the JTAG interface and one
for the System Console interface.
3. On the right-click menu, click Update Driver Software. The Update Driver
Software - USB BlasterII dialog appears.
4. Click Browse my computer for driver software to continue.
5. Click Browse… and browse to the location of the driver on your system:
\<Quartus II system directory>\drivers\usb-blaster-ii. Click OK.
6. Click Next to install the driver.
7. Click Install when asked if you want to install.
You should now have a JTAG cable showing in the Device Manager.
8. Now, install the driver for the other interface. Go back to step 2 and repeat the
process for the other USB-BlasterII device.
When you are finished, you will have added Altera USB-Blast II (JTAG interface)
under JTAG cables.
Installing the USB-Blaster II Driver on Linux Systems
For Linux, the USB-Blaster II download cable supports Red Hat Enterprise 5 and
above.
October 2014 Altera Corporation USB-Blaster II Download Cable
User Guide
1–4 Chapter 1: Setting Up the USB-Blaster II Download Cable
To access the download cable, the Quartus II software uses the built-in Red Hat USB
drivers, the USB file system (usbfs). By default, root is the only user allowed to use
usbfs. You must have system administration (root) privileges to configure the
USB-Blaster II download cable drivers.
1. Create a file named /etc/udev/rules.d/51-usbblaster.rules and add the following
lines to it. (The .rules file may already exist if you have installed an earlier
USB-Blaster version.)
# USB-Blaster II
BUS=="usb", SYSFS{idVendor}=="09fb", SYSFS{idProduct}=="6010", MODE="0666"
BUS=="usb", SYSFS{idVendor}=="09fb", SYSFS{idProduct}=="6810", MODE="0666"
c There should be only three lines in this file, one starting with a comment
and two starting with BUS. Do not add extra line breaks to the .rules file.
2. Complete your installation by setting up the programming hardware in the
Quartus II software. Go to the “Setting Up the USB-Blaster II Hardware with the
Quartus II Software” section on the following page.
Installing the USB-Blaster II Driver on Windows XP Systems
f For more information about USB-Blaster II driver installation, refer to the
Cable and Adapter Drivers web page
http://www.altera.com/download/drivers/dri-index.html.
Installing the USB-Blaster II Driver on Windows XP Systems
You must have system administration (administrator) privileges to install the
USB-Blaster II download cable driver.
The download cable drivers are included in the Quartus II software installation.
Before you begin the installation, verify that the USB-Blaster II driver is located in
your directory: \<Quartus II system directory>\drivers\usb-blaster-ii.
f Follow the installation procedure found at this web page:
http://www.altera.com/download/drivers/usb-blaster/dri-usb-blasterxp.html#note.
Setting Up the USB-Blaster II Hardware with the Quartus II Software
1. Start the Quartus II software.
2. From the Tools menu, click Programmer.
3. Click Hardware Setup.
4. Click the Hardware Settings tab.
5. From the Currently selected hardware list, select USB-Blaster II.
6. Click Close.
7. In the Mode list, choose an appropriate programming mode. Table 1–1 on
page 1–5 describes each mode.
USB-Blaster II Download Cable October 2014 Altera Corporation
User Guide
Chapter 1: Setting Up the USB-Blaster II Download Cable 1–5
Setting Up the USB-Blaster II Hardware with the Quartus II Software
Table 1–1. Programming Modes
Mode Mode Description
Joint Test Action
Group (JTAG)
Programs or configures all Altera devices supported by Quartus II
software via JTAG programming.
In-Socket
Not supported by the USB-Blaster II.
Programming
Passive Serial
Programming
Configures all Altera devices supported by Quartus II software excluding
enhanced configuration devices (EPC) and serial configuration devices
(EPCS/Q).
Active Serial
Programming
Programs a single EPCS1, EPCS4, EPCS16, EPCS64, EPCS/Q128,
EPCQ256, and EPCQ512 device.
f For detailed help on using the Quartus II Programmer, refer to the Quartus II
Handbook, http://www.altera.com/literature/hb/qts/quartusii_handbook.pdf.
October 2014 Altera Corporation USB-Blaster II Download Cable
User Guide
1–6 Chapter 1: Setting Up the USB-Blaster II Download Cable
Setting Up the USB-Blaster II Hardware with the Quartus II Software
USB-Blaster II Download Cable October 2014 Altera Corporation
User Guide

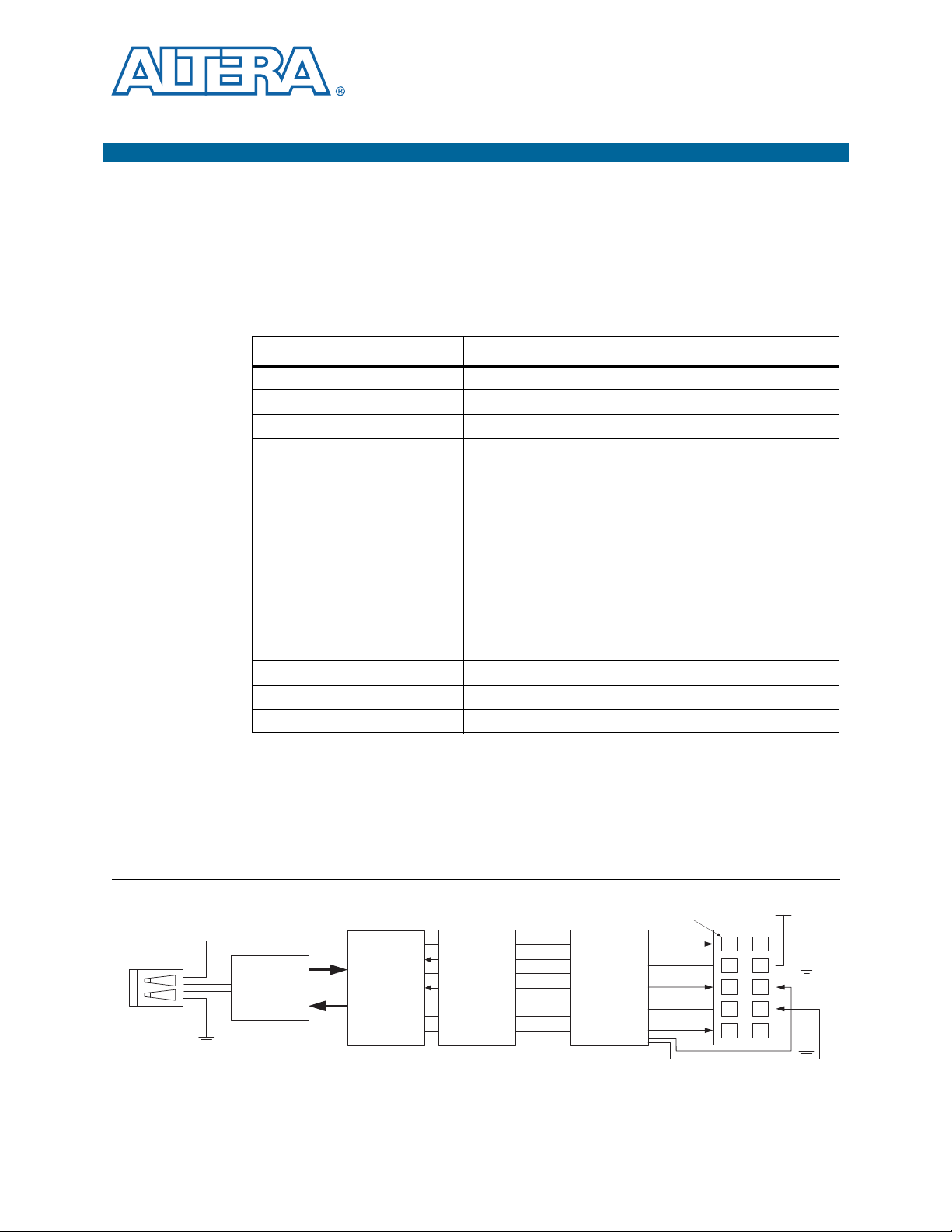

Voltage Requirements
USB Interface
Chip
EPM570M100C5
I/Os
I/Os
V
CC
USB
Receptacle
LVDS
Drivers/Receivers
LVDS
Cabling
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Voltage
Translator Circuitry
Pin 1
10-Pin
Female Plug
V
CC ( TRG T)
The USB-Blaster II VCC(TRGT) pin must be connected to a specific voltage for the
device being programmed. Connect pull-up resistors to the same power supply as the
USB-Blaster II: V
Table 2–1. USB-Blaster II VCC(TRGT) Pin Voltage Requirements
Device Family USB-Blaster II VCC Voltage Required
Arria GX As specified by V
Arria II GX As specified by V
Arria V As specified by V
Cyclone III As specified by V
Cyclone IV
Cyclone V As specified by V
EPC4, EPC8, EPC16 3.3 V
EPCS1, EPCS4, EPCS16, EPCS64,
EPCS128
EPCS/Q16, EPCS/Q64,
EPCS/Q128, EPCQ256, EPCQ512
MAX II, MAX V As specified by V
Stratix II, Stratix II GX As specified by V
Stratix III, Stratix IV As specified by V
Stratix V As specified by V
CC(TRGT).
2. USB-Blaster II Download Cable Specifications
CCSEL
Bank 3A
CCIO
Bank 3A
or V
CCPD
Bank 3A
of Bank 8C
CCPD or VCCIO
CCPD
CCA
As specified by V
CCIO.
Cyclone IV E devices.
CCPD
3.3 V
3.3 V
CCIO
CCSEL
CCPGM
CCPD
or V
Bank 9 for Cyclone IV GX and Bank 1 for
of Bank 1
Cable-to-Board Connection
A standard USB cable connects to the USB port on the device.
Figure 2–1. USB-Blaster II Download Cable Block Diagram
October 2014 Altera Corporation USB-Blaster II Download Cable
User Guide
2–2 Chapter 2: USB-Blaster II Download Cable Specifications
USB-Blaster II Plug Connection
USB-Blaster II Plug Connection
The 10-pin female plug connects to a 10-pin male header on the circuit board
containing the target device.
Figure 2–2. USB-Blaster II Dimension - Inches and Millimeters
0.81 (20.6) Typ.
1.63 (41.4) Typ.
Cable Length: 8.77 (222.8) Typ.
2.5 (63.5) Typ.
1.33 (33.8) Typ.
0.70 (17.8) Typ.
Figure 2–3. USB-Blaster II 10-Pin Female Plug Dimensions - Inches & Millimeters
0.37 (9.4)Typ.
0.24 (6.1)Typ.
0.04 (1.0)Typ.
USB-Blaster II Download Cable October 2014 Altera Corporation
User Guide
1098765432
.10 (2.5)Sq.
0.15 (3.8)Typ.
0.70 (17.8)Typ.
1
.025
(.63)Sq.
Chapter 2: USB-Blaster II Download Cable Specifications 2–3
10-Pin Female Plug Signal Names and Programming Modes
10-Pin Female Plug Signal Names and Programming Modes
Table 2–2. 10-Pin II Female Plug Signal Names and Programming Modes
Active Serial (AS) Mode Passive Serial (PS) Mode JTAG Mode
Pin
Signal Name Description Signal Name Description Signal Name Description
1 DCLK Clock signal DCLK Clock signal TCK Clock signal
2 GND Signal ground GND Signal ground GND Signal ground
3 CONF_DONE Configuration done CONF_DONE Configuration done TDO Data from device
4 VCC(TRGT) Target power supply VCC(TRGT) Target power
supply
5 nCONFIG Configuration
control
6 nCE Cyclone chip enable — No connect
7 DATAOUT Active serial data
out
8 nCS Serial configuration
device chip select
9 ASDI Active serial data in DATA0 Data to device TDI Data to device
10 GND Signal ground GND Signal ground GND Signal ground
Note to Table 2–2:
(1) Use pin 6 for a hard processor reset under JTAG mode.
nCONFIG Configuration
control
nSTATUS Configuration
status
— No connect — No connect
VCC(TRGT) Target power supply
TMS JTAG state machine
control
PROC_RST
(1)
Hard processor reset
— No connect
Circuit Board Header Connection
The 10-pin male header, which connects to the download cable's 10-pin female plug,
has two rows of five pins. The pins are connected to the device’s programming or
configuration pins.
c If the header connection on the circuit board is a male receptacle, it must have a key
notch. Without a key notch, the 10-pin female plug will not connect. The following
figure shows a typical 10-pin male header with a key notch.
Figure 2–4. 10-Pin Male Header Dimensions - Inches and Millimeters
Top View
A key notch is required.
0.100 (2.540)
Side View
0.100
0.025 (0.635) Sq.
0.235 (5.969)
October 2014 Altera Corporation USB-Blaster II Download Cable
User Guide
2–4 Chapter 2: USB-Blaster II Download Cable Specifications
Operating Conditions
1 Although a 10-pin surface mount header can be used for the download cable, Altera
recommends using a through-hole connector. Through-hole connectors hold up better
under the repeated insertion and removal.
Operating Conditions
The following tables summarize the maximum ratings, recommended operating
conditions, and DC operating conditions for the USB-Blaster II cable.
Table 2–3. USB-Blaster II Cable Absolute Maximum Ratings
Symbol Parameter Conditions Min Max Unit
V
CC(TRGT)
V
CC(USB)
I
I(USB)
I
Target supply voltage With respect to
ground
USB supply voltage With respect to
ground
I
I
o
Target side input current Pin 7 –100.0 100.0 mA
USB supply current
VBUS
Target side output current Pins: 1, 5, 6, 8, 9 –50.0 50.0 mA
–0.5 6.5 V
–0.5 6.0 V
— 200.0 mA
Table 2–4. USB-Blaster II Cable Recommended Operating Conditions
Symbol Parameter Conditions Min Max Unit
V
CC(TRGT)
Target supply voltage,
— 4.75 5.25 V
5.0-V operation
Target supply voltage,
—3.03.6V
3.3-V operation
Target supply voltage,
— 2.375 2.625 V
2.5-V operation
Target supply voltage,
— 1.71 1.89 V
1.8-V operation
Target supply voltage,
— 1.43 1.57 V
1.5-V operation
Table 2–5. USB-Blaster II Cable DC Operating Conditions (Part 1 of 2)
Symbol Parameter Conditions Min Max Unit
V
High-level input voltage V
IH
V
Low-level input voltage V
IL
V
V
>= 2.0 V 0.7 x
CC(TRGT)
V
< 2.0 V 0.65 x
CC(TRGT)
V
>= 2.0 V — 0.3 x
CC(TRGT)
< 2.0 V — 0.2 x
CC(TRGT)
CC(TRGT)
CC(TRGT)
—V
—V
V
CC(TRGT)
V
CC(TRGT)
V
V
USB-Blaster II Download Cable October 2014 Altera Corporation
User Guide
Chapter 2: USB-Blaster II Download Cable Specifications 2–5
TCK
TDO
TCK
TMS
TDI
tJCP
JTAG OutputJTAG Inputs
tJCH tJCL
tJPCO
tJPSU_TMS
tJPSU_TDI
tJPH
JTAG Timing Constraints and Waveforms
Table 2–5. USB-Blaster II Cable DC Operating Conditions (Part 2 of 2)
Symbol Parameter Conditions Min Max Unit
V
5.0-V high-level output
OH
V
CC(TRGT)
= 4.5 V, IOH= -32 mA 3.8 — V
voltage
3.3-V high-level output
V
CC(TRGT)
= 3.0 V, IOH= -24 mA 2.4 — V
voltage
2.5-V high-level output
V
CC(TRGT)
= 2.3 V, IOH= -12 mA 1.9 — V
voltage
1.8-V high-level output
V
CC(TRGT)
= 1.65 V, IOH=-8mA 1.2 — V
voltage
1.5-V high-level output
V
CC(TRGT)
= 1.4 V, IOH=-6mA 1.0 — V
voltage
V
5.0-V low-level output
OL
V
CC(TRGT)
= 4.5 V, IOL= 32 mA — 0.55 V
voltage
3.3-V low-level output
V
CC(TRGT)
= 3.0 V, IOL= 24 mA — 0.55 V
voltage
2.5-V low-level output
V
CC(TRGT)
= 2.3 V, IOL=12mA — 0.3 V
voltage
1.8-V low-level output
V
CC(TRGT)
= 1.65 V, IOL=8mA — 0.45 V
voltage
1.5-V low-level output
V
CC(TRGT)
= 1.4 V, IOL=6mA — 0.3 V
voltage
I
CC(TRGT)
Operating current (No
V
CC(TRGT)
= 5.5 V — 316 uA
Load)
JTAG Timing Constraints and Waveforms
Figure 2–5. Timing Waveform for JTAG Signals (From Target Device Perspective)
October 2014 Altera Corporation USB-Blaster II Download Cable
User Guide
2–6 Chapter 2: USB-Blaster II Download Cable Specifications
JTAG Timing Constraints and Waveforms
To use the USB-Blaster II at the maximum capability (24 MHz), meet the timing
constraints (Tab le 2– 6) for the target device.
The timing constraints require that you consider device specifications as well as trace
propagation delays. If you do not follow the recommended constraints, you might
encounter timing issues at 24 MHz. If the target design cannot meet these constraints,
reduce the possibility of timing issues by slowing the
TCK
frequency. See “Changing
the TCK Frequency” on page 2–7 for instructions on running the USB-Blaster II at a
slower speed.
Table 2–6. JTAG Timing Constraints for the Target Device
Symbol Parameter Min Max Unit
TCK
tJCP
tJCH
tJCL
tJPCO JTAG port clock to JTAG Header output —
tJPSU_TDI JTAG port setup time (
tJPSU_TMS JTAG port setup time (
tJPH JTAG port hold time — 17.25 ns
clock period 41.67 — ns
TCK
clock high time 20.83 — ns
TCK
clock low time 20.83 — ns
5.46 (2.5 V)
2.66 (1.5 V)
TDI
) — 24.42 ns
TMS
) — 26.43 ns
ns
1 The simulated timing is based on a slow timing model, which is a worst-case scenario
environment.
f For device-specific JTAG timing information, refer to the related device data sheet
available from the http://www.altera.com/literature/lit-index.html web page.
USB-Blaster II Download Cable October 2014 Altera Corporation
User Guide
Chapter 2: USB-Blaster II Download Cable Specifications 2–7
Changing the TCK Frequency
Changing the TCK Frequency
The USB-Blaster II download cable has a default
signal integrity and timing prevents operating at 24 MHz, change the
TCK
frequency of 24 MHz. Where
TCK
frequency of
the USB-Blaster II:
1. Open the command line interface with the Quartus II bin directory in your path
(for example, C:\altera\14.0\quartus\bin64).
2. Type the following command to change the
TCK
frequency:
jtagconfig --setparam <cable number> JtagClock <frequency><unit prefix>
Where:
■
<cable number>
■
<frequency>
is the USB-Blaster II cable to be modified.
is the desired
TCK
frequency. Use one the following supported
rates:
■ 24 MHz
■ 16 MHz
■ 6MHz
■ 24/n MHz (between 10 kHz and 6 MHz, where n represents an integer
value number)
■
<unit prefix>
is the unit prefix for the frequency (e.g., M for MHz).
Example for setting
TCK
maximum frequency to 6 MHz:
jtagconfig --setparam 1 JtagClock 6M
October 2014 Altera Corporation USB-Blaster II Download Cable
User Guide
2–8 Chapter 2: USB-Blaster II Download Cable Specifications
Changing the TCK Frequency
USB-Blaster II Download Cable October 2014 Altera Corporation
User Guide
Document Revision History
Date Version Changes
Added that the USB-II download cable supports Advanced Encryption Standard (AES) key
September 2014 1.2
June 2014 1.1
January 2014 1.0 Initial release.
and fuse programming.
Added magenta LED color to Figure 1-1 supporting multiple cable use.
Clarified a cross reference pointing to device-specific JTAG timing information.
Added LED color table to Figure 1-1.
Added “JTAG Timing Constraints and Waveforms” section.
Added “Changing the TCK Frequency” section.
How to Contact Altera
Additional Information
To locate the most up-to-date information about Altera products, refer to the
following table.
Contact
Technical support Website www.altera.com/support
Technical training
Product literature Website www.altera.com/literature
Nontechnical support (general) Email nacomp@altera.com
Note to Table:
(1) You can also contact your local Altera sales office or sales representative.
(1)
(software licensing) Email authorization@altera.com
Contact Method Address
Website www.altera.com/training
Email custrain@altera.com
October 2014 Altera Corporation USB-Blaster II Download Cable
User Guide
Info–2 Additional Information
Typographic Conventions
Typographic Conventions
Visual Cue Meaning
Bold Type with Initial Capital
Letters
bold type
Italic Type with Initial Capital Letters Indicate document titles. For example, Stratix IV Design Guidelines.
italic type
Initial Capital Letters
“Subheading Title”
Courier type
r An angled arrow instructs you to press the Enter key.
1., 2., 3., and
a., b., c., and so on
■ ■ ■ Bullets indicate a list of items when the sequence of the items is not important.
1 The hand points to information that requires special attention.
h The question mark directs you to a software help system with related information.
f The feet direct you to another document or website with related information.
m The multimedia icon directs you to a related multimedia presentation.
c
w
Indicate command names, dialog box titles, dialog box options, and other GUI
labels. For example, Save As dialog box. For GUI elements, capitalization matches
the GUI.
Indicates directory names, project names, disk drive names, file names, file name
extensions, software utility names, and GUI labels. For example, \qdesigns
directory, D: drive, and chiptrip.gdf file.
Indicates variables. For example, n + 1.
Variable names are enclosed in angle brackets (< >). For example, <file name> and
<project name>.pof file.
Indicate keyboard keys and menu names. For example, the Delete key and the
Options menu.
Quotation marks indicate references to sections in a document and titles of
Quartus II Help topics. For example, “Typographic Conventions.”
Indicates signal, port, register, bit, block, and primitive names. For example,
tdi
, and
input
. The suffix n denotes an active-low signal. For example,
data1
resetn
.
Indicates command line commands and anything that must be typed exactly as it
appears. For example,
c:\qdesigns\tutorial\chiptrip.gdf
.
Also indicates sections of an actual file, such as a Report File, references to parts of
files (for example, the AHDL keyword
TRI
example,
).
SUBDESIGN
), and logic function names (for
Numbered steps indicate a list of items when the sequence of the items is important,
such as the steps listed in a procedure.
A caution calls attention to a condition or possible situation that can damage or
destroy the product or your work.
A warning calls attention to a condition or possible situation that can cause you
injury.
The envelope links to the Email Subscription Management Center page of the Altera
website, where you can sign up to receive update notifications for Altera documents.
The feedback icon allows you to submit feedback to Altera about the document.
Methods for collecting feedback vary as appropriate for each document.
,
USB-Blaster II Download Cable October 2014 Altera Corporation
User Guide
Additional Information Info–3
Certification Statements
Certification Statements
Statement of China-RoHS Compliance
Tab le In fo –1 lists hazardous substances included with the USB-Blaster download
cable.
Table Info–1. Table of Hazardous Substances’ Name and Concentration
Part Name
Electronic
Components
Populated
Circuit Board
Manufacturing
Process
Packing 0 0 0 0 0 0
Note to Table Info–1:
(1) 0 indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is below
the relevant threshold of the SJ/T11363-2006 standard.
USB 2.0 Certification
This product is USB 2.0 certified.
(1)
Hexavalent
Lead
Cadmium
(Pb)
0 0 0 0 0 0
00 0 0 0 0
00 0 0 0 0
(Cd)
Chromium
(Cr6+)
Mercury
(Hg)
Polybrominated
biphenyls (PBB)
Polybrominated
diphenyl Ethers
(PBDE)
October 2014 Altera Corporation USB-Blaster II Download Cable
User Guide
Info–4 Additional Information
Certification Statements
USB-Blaster II Download Cable October 2014 Altera Corporation
User Guide
Loading...
