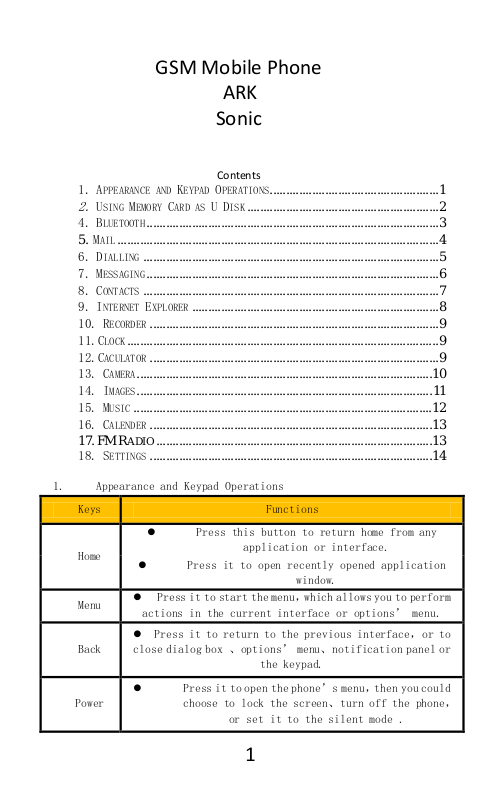

ALTECZA ARKSONIC user manual

1

GSM Mobile Phone

Keys

Functions

Home

 Press this button to return home from any

application or interface.

 Press it to open recently opened application

window.

Menu

 Press it to start the menu，which allows you to perform

actions in the current interface or options’ menu.

Back

 Press it to return to the previous interface ，or to
close dialog box 、options’ menu、notification panel or

the keypad.

Power

 Press it to open the phone’s menu ，then you could

choose to lock the screen、turn off the phone，

or set it to the silent mode .

ARK

Sonic

1. APPEARANCE AND KEYPAD OPERATIONS .................................................... 1

2.

USING MEMORY CARD AS U DISK ........................................................... 2

4. BLUETOOTH .......................................................................................... 3

5. MAIL ................................................................................................... 4

6. DIALLING ........................................................................................... 5

7. MESSAGING .......................................................................................... 6

8. CONTACTS ........................................................................................... 7

9. INTERNET EXPLORER ............................................................................ 8

10. RECORDER ......................................................................................... 9

11.CLOCK ................................................................................................ 9

12.CACULATOR ......................................................................................... 9

13. CAMERA ........................................................................................... 10

14. IMAGES ........................................................................................... 11

15. MUSIC ............................................................................................ 12

16. CALENDER ....................................................................................... 13

17. FM RADIO ..................................................................................... 13

18. SETTINGS ....................................................................................... 14

1. Appearance and Keypad Operations

Contents

2

UP

 Press it to increase the volume

 Press it to turn the phone to vibration mode from

the silent mode.

Down

 Press it to decrease the volume.

Proximity

Sensor

 Cover it, and then the phone’s backlight

will turn off.

Front

Camera

 Entering the camera interface, switched to

the front camera can photo yourself.

LED Light

 Display mobile phone status and prompt unread

messages

2.

Using Memory Card as U Disk

If you want to send music, pictures or other files to the phone’s memory card from the

computer，you should set memory card as u disk first.

Set memory card as u disk

1) Connect the phone to the computer with USB cable. The notification icon

will appear in the status box.

2) Open the notification panel.

3) In the notification panel, touch USB is connected ，then touch“Open the

 Notices：If you connect your phone to the computer then choose open the USB device,

the phone can’t read the memory card. You temporarily can not use some applications, such as

camera.

 Uninstall the U Disk from computer

The same as the method of connecting it，see the following picture:

3. Wifi

Wi-Fi provides as far as 300feet (100M) range of wireless network access. If you use cell phone to
connect wifi, you should connect to the wireless access point or 「hot spots」.

 Notices：The availability and coverage of Wi-Fi signal depend on the

number, infrastructure and other objects penetrated by the signal.

Open Wi-fi and to connect to the wireless network

1) Press home>menu，then touch settings>wifi and internet

2) Select the wi-fi box，to open Wi-Fi. Phone will automatically scan for available wireless networks.

3) Touch Wi-Fi settings. Then a list of Wi-Fi network will show the founded network name and
security settings. (open network or WEP、WPA/WPA2 with password).If you enable the notification in

Wi-Fi settings, The status box will show this icon ( ) when open available wireless network
founded.

4) Touch one of the Wi-Fi choices to connect the network. When you
choose open network, phone will connect to it automatically. If you choose
WEP、WPA/WPA2 with password, you should type the password first, then
touch to connect it.

 Notices：when the phone is connected to the wireless network,

The status box will show this Wi-Fi icon（ ）, and the approximate

signal strengthen (the number of lit bars).If touch the connected

USB Storage Device”.

3

network，will display the name of Wi—Fi network, status, speed, signal,

strength, security, information and IP address.
If you want to delete the wireless settings, please touch “not reserve”
as in the right picture. If you want to connect to this network, you
should re-enter these settings.

 Notices：

Unless you choose not to reserve the network, otherwise, there is no need to re-enter
the corresponding password when next time connecting to the previously encrypted wireless
network. Wi-Fi will search automatically, that is, phone needn’t to perform additional steps to connect
Wi-Fi networks.

 Notices：

Unless you choose not to reserve the network with password, otherwise, there is no need to re-enter
the corresponding password when next time connecting to the previously encrypted wireless
network. Wi-Fi will search automatically, that is, phone needn’t to perform additional steps to connect
Wi-Fi networks.

 Connect to other Wi-Fi networks

1) In the interface of wireless and network, touch Wi-Fi settings. The founded Wi-Fi networks will
show on the Wi-Fi network list.

2) Touch other Wi-Fi networks, and then you can connect to this network.

 Notices：in addition, you can surf the internet via GPRS. We default

that the GPRS in SIM1 is opened after started, users can select manually ,the
specific location is “settings>wireless and internet>data connection”， touch
“SIM1、SIN2、no data connection”， when the dot turns green, it’s already
opened.

4. Bluetooth

Turn on Bluetooth or set the phone can be detected

2) Touch wireless and internet, then choose Bluetooth box to open the Bluetooth function.

After started, the status box will show this icon ( ). Touch “scan for devices”the it starts to scan for all
devices within range.

3) Touch Bluetooth settings, all the devices founded will d isplay in the
list under the icon.

Bluetooth devices will be able to find the phone.）
important：the maximum detecting time of the phone is 2 minutes.

 Pairing and connection of Bluetooth headset

1) Press home>menu, then touch settings.

2)Touch wireless and internet>Bluetooth settings, then select Bluetooth box,
then your phone will scan for the Bluetooth devices within range ,and show
the founded devices in the list under the icon.

a. If the list can’t find your equip ment, touch scanning equipment to
re-scan it.
b. Make sure that the devices wanted are under the detected mode.

3) Touch headset in the equipment list to finish the connection.

1) Press home>menu, the touch settings.

（select the box “can be detected”, set it to be detected, the other

 Tips：

4

 Notices：generally Bluetooth devices need password to be paired, often

use「0000」as the default password.4)The pairing and connecting status will
show under the headset in the Bluetooth devices list. When the headset

connected to your phone, the status box will show this icon （ ）means
connected. Then you can use the headset to make or receive callings..

 Cut the connection to the Bluetooth

1) Press home>menu>settings>wireless and internet>Bluetooth settings.

2) In th e list of Bluetooth equipment, touch or tap and hold th e
connected hand-free headset.

3) Press and select “cancel the pairing”.

 Bluetooth proximity sensor

After pairing the two device,you can test out the signal is strong or weak by
the Bluetooth proximity sensor device

5. Mail

5.1 Gmail

 Create an electronic mail account

Select mail> settings. You can activate or edit existing e-mail accounts as
well as create a new e-mail account.
a. Select mail, Google account setting interface appears. Then touch‘next
step’> create account>enter name，last name and e-mail account.
b. Google ser vers determine whether the name can be used, if so, new
interface appears prompting enter password, then judge the password’ security,
users who doesn’t meet the requirements need to re-enter the password.
c. Successfully register a new Gmail account, a messenger created
automatically for testing.

 Loading mail account

a. Open Gmail skip introduction screen>loading interface appears >select load

b. Enter name, password then load

E-mail account initialization ,prompting “login successful” All Google
accounts will be synchronized.

 Creating and sending ,mails

When creating mails, select mail > creating mails. Enter the
address(recipient)、theme and contents. Press MENU you could ‘append’、‘Add
Cc/Bcc’, select send or d iscarded.

 Receive mails

There is tone for new mails, in the status box will show this bu tton

， Press Menu >‘refresh’， refresh and update the number of the unread

mails in a proper way.

 Delete mails

When loading a mail account，if you want to delete it，you need to
restore factory settings . When loading a second one，you could press the menu
button to delete it.
Notices：many functions depend o n Gmail Account，for example：Electronic
Market、Google Talk、Sync Contact and Calendar.

5.2 Email

5

 Load Email

Enter the correct address and password >settings correct port and POP
server, check the server settings automatically.

Set the correct SMTP server, check the mails server’s sending and receiving

settings, then enter the specified account name and displayed name on the
outing e-mail.> Finish.

 Create and send mails

When creating mails, select mails > create mails. Enter the address(recipient)、
theme and contents. Press MENU you could ‘append’、‘Add Cc/Bcc’, select
send or discarded or save as draft.

6. Dialling

When the icon of internet server appears in the screen, you could dial or
receive callings. The signal bar on the top right corner show the strength of
network signal (the maximum with 4 signal bars) .

 Start dialing

Open application’s main menu>dial. You could choo se SIM1 or
SIM2 to do the dialing.

 Dialing

At the interface of “dialer”， enter the phone number，and then click the
dialing key , after that,you should choose one SIM card or internet call. If
needed to call the extension,you could click the “dial pad” in the bottom of
the screen to open the interface or press menu key to select “delay 2
seconds”，and then enter the number of the extension.

 Telephone calls in the call log

Every telephone number called and received in“SIM1、SIM2”will reserved in
phone’s menu of call log. On the top left of every call record will show “SIM1
or SIM2”
All numbers in the call log can be dialed by clicking the button ”dial” on the
right side of the screen.

When number list appearing，click it to catch details；press it for long you

could dial via “SIM1 or SIM 2”， meanwhile you can edit, delete, save the
number or do other operations.

 Receive callings

When calling comes（top left will show from which SIM card）press“Answer”
and slide towards right until the middle button, then you can receive callings.

 Proximity sensor

According to the distance between phone and human body，it will adjust
automatically the switch of the backlight.
During the call, close the phone to the ear, the backlight will turn off
automatically，which could save batteries and prevent inadvertently
touching.

 Refuse to answer the phone

a. When standby, calling comes，press “refuse”button and slide
towards left side until the middle button, then you could refuse the calling.
b. When using,calling comes,click on the “refuse”button to refuse the
calling.
