GSM Mobile Phone
ARK
NEOS

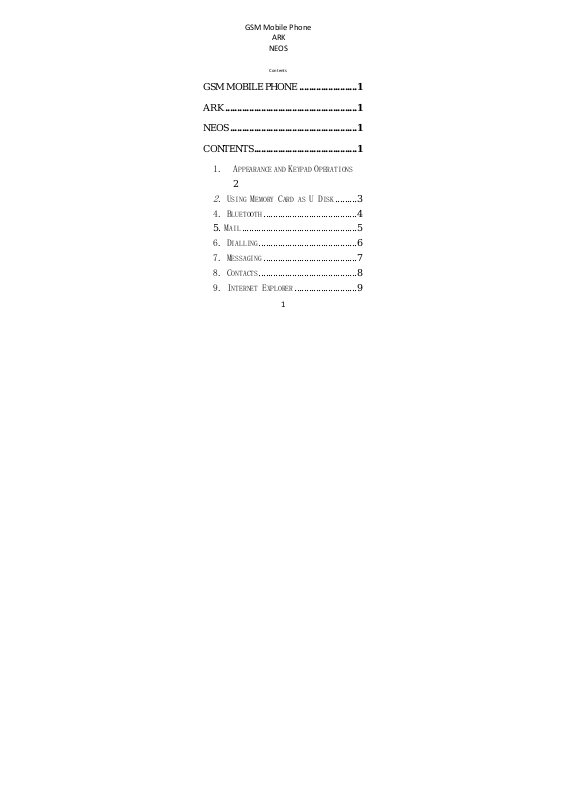

Contents
GSM MOBILE PHONE ........................ 1
ARK ....................................................... 1
NEOS ..................................................... 1
CONTENTS ........................................... 1
1. APPEARANCE AND KEYPAD OPERATIONS
2
2.
USING MEMORY CARD AS U DISK ......... 3
4. BLUETOOTH ....................................... 4
5. MAIL ................................................ 5
6. DIALLING ......................................... 6
7. MESSAGING ....................................... 7
8. CONTACTS ......................................... 8
9. INTERNET EXPLORER .......................... 9
1
10. RECORDER ..................................... 10
11.CLOCK ........................................... 10
12.CACULATOR ..................................... 10
13. CAMERA ........................................ 10
14. IMAGES ........................................ 12
15. MUSIC ......................................... 12
16. CALENDER ..................................... 13
17. FM RADIO .................................. 14
18. SETTINGS ..................................... 14
1. Appearance and Keypad Operations
Keys Functions
Press this button to return home from any
Home
Press it to open recently opened application
Press it to start the menu，which allows you to perform
Menu
actions in the current interface or options’ menu.
Press it to return to the previous interface，or to
Back
close dialog box 、options’ menu、notification panel or
Press it to open the phone’s menu，then you could
Power
UP
Press it to turn the phone to vibration mode from
Down Press it to decrease the volume.
Proximity Cover it, and then the phone’s backlight
application or interface.
window.
the keypad.
choose to lock the screen、turn off the phone，
or set it to the silent mode .
Press it to increase the volume
the silent mode.
2
Sensor will turn off.
Front
Camera
LED Light
2.
Using Memory Card as U Disk
• Notices：If you connect your phone to the computer then choose open the USB device,
the phone can’t read the memory card. You temporarily can not use some applications, such as
camera.
• Uninstall the U Disk from computer
The same as the method of connecting it，see the following picture:
3. Wifi
Wi-Fi provides as far as 300feet (100M) range of wireless network access. If you use cell phone to
connect wifi, you should connect to the wireless access point or 「hot spots」.
• Notices：The availability and coverage of Wi-Fi signal depend on the
number, infrastructure and other objects penetrated by the signal.
1) Press home>menu，then touch settings>wifi and internet
2) Select the wi-fi box，to open Wi-Fi. Phone will automatically scan for available wireless networks.
3) Touch Wi-Fi settings. Then a list of Wi-Fi network will show the founded network name and
security settings. (open network or WEP、WPA/WPA2 with password).If you enable the notification in
Wi-Fi settings, The status box will show this icon (
founded.
4) Touch one of the Wi-Fi choices to connect the network. When you
choose open network, phone will connect to it automatically. If you choose
WEP、WPA/WPA2 with password, you should type the password first, then
touch to connect it.
• Notices：when the phone is connected to the wireless network,
signal strengthen (the number of lit bars).If touch the connected
network，will display the name of Wi—F i network, status, speed, signal,
strength, security, information and IP address.
If you want to delete the wireless settings, please touch “not reserve”
as in the right picture. If you want to connect to this net work, you
should re-enter these settings.
Entering the camera interface, switched to
the front camera can photo yourself.
Display mobile phone status and prompt unread
If you want to send music, pictures or other files to the phone’s memory card from the
computer，you should set memo ry card as u disk first.
Set memory card as u disk
1) Connect the phone to the computer with USB cable. The notification icon
will appear in the status box.
2) Open the notification panel.
3) In the notification panel, touch USB is connected ，then touch“Open the
USB Storage Device”.
Open Wi-fi and to connect to the wireless network
The status box will show this Wi-Fi icon（
messages
) when open available wireless network
）, and the approximate
3
• Notices：
Unless you choose not to reserve the network, otherwise, there is no need to re-enter
the corresponding password when next time connecting to the previously encrypted wireless
network. Wi-Fi will search automatically, that is, phone needn’t to perform additional steps to connect
Wi-Fi networks.
• Notices：
Unless you choose not to reserve the network with password, otherwise, there is no need to re-enter
the corresponding password when next time connecting to the previously encrypted wireless
network. Wi-Fi will search automatically, that is, phone needn’t to perform additional steps to connect
Wi-Fi networks.
• Connect to other Wi-Fi networks
1) In the interface of wireless and network, touch Wi-Fi settings. The founded Wi-Fi networks will
show on the Wi-Fi network list.
2) Touch other Wi-Fi networks, and then you can connect to this network.
• Notices：in addition, you can surf the internet via GPRS. We default
that the GPRS in SIM1 is opened after started, users can select manually ,the
specific location is “settings>wireless and internet>data connection”，touch
“SIM1、SIN2、no data connection”，when the dot turns green, it’s already
opened.
4. Bluetooth
Turn on Bluetooth or set the phone can be detected
2) Touch wireless and internet, then choose Bluetooth box to open the Bluetooth function.
After started, the status box will show this icon (
devices within range.
3) Touch Bluetooth settings, all the devices founded will display in the
list under the icon.
Bluetooth devices will be able to find the phone.）
important：the maximum detecting time of the phone is 2 minutes.
• Pairing and connection of Bluetooth headset
1) Press home>menu, then touch settings.
2)Touch wireless and internet>Bluetooth settings, then select Bluetooth box,
then your phone will scan for the Bluetooth devices within range ,and show
the founded devices in the list under the icon.
a. If the list can’t find your equipment, touch scanning equipment to
re-scan it.
b. Make sure that the devices wanted are under the detected mode.
3) Touch headset in the equipment list to finish the connection.
• Notices：generally Bluetooth devices need password to be paired, often
use「0000」as the default password.4)The pairing and connecting status will
show under the headset in the Bluetooth devices list. When the headset
connected to your phone, the status box will show this icon（
connected. Then you can use the headset to make or receive callings..
1) Press home>menu, the touch settings.
). Touch “scan for devices”the it starts to scan for all
（select the box “can be detected”, set it to be detected, the other
• Tips：
）means
4
• Cut the connection to the Bluetooth
1) Press home>menu>settings>wireless and internet>Bluetooth settings.
2) In the list of Bluetooth equipment, touch or tap and hold the
connected hand-free headset.
3) Press and select “cancel the pairing”.
• Bluetooth proximity sensor
After pairing the two device,you can test out the signal is strong or weak by
the Bluetooth proximity sensor device
5. Mail
5.1 Gmail
• Create an electronic mail account
Select mail> settings. You can activate or edit existing e-mail accounts as
well as create a new e-mail account.
a. Select mail, Google account setting interface appears. Then touch‘next
step’> create account>enter name，last name and e-mail account.
b. Google servers determine whether the name can be used, if so, new
interface appears prompting enter password, then judge the password’ security,
users who doesn’t meet the requirements need to re-enter t he password.
c. Successfully register a new Gmail account, a mess enger created
automatically for testing.
• Loading mail account
a. Open Gmail skip introduction screen>loading interface appears >select load
b. Enter name, password then load
E-mail account initialization ,prompting “login successful” All Google
accounts will be synchronized.
• Creating and sending ,mails
When creating mails, select mail > creating mails. Enter the
address(recipient)、theme and contents. Press MENU you could ‘append’、‘Add
Cc/Bcc’, select send or discarded.
• Receive mails
There is tone for new mails, in the status box will show this button
， Press Menu >‘refresh’，refresh and update the number of the unread
mails in a proper way.
• Delete mails
When loading a mail account，if you want to delete it，you need to
restore factory settings . When loading a second one，you could press the menu
button to delete it.
Notices：many functions depend on Gmail Account，for exa mple：Electronic
Market、Google Talk、Sync Contact and Calendar.
5.2 Email
• Load Email
Enter the correct address and password >settings correct port and POP
server, check the server settings automatically.
Set the correct SMTP server, check the mails server ’s sending and receiving
settings, then enter the specified account name and displayed name on the
outing e-mail.> Finish.
5
• Create and send mails
When creating mails, select mails > create mails. Enter the address(recipient)、
theme and contents. Press MENU you could ‘append’、‘Add Cc/Bcc’, select
send or discarded or save as draft.
6. Dialling
When the icon of internet server appears in the screen, you could d ial or
receive callings. The signal bar on the top right corner show the strength of
network signal (the maximum with 4 signal bars) .
• Start dialing
Open application’s main menu>dial. You could choose SIM1 or
SIM2 to do the dialing.
• Dialing
At the interface of “dialer”，enter the phone number，and then click the
dialing key , after that,you should choose one SIM card or internet call. If
needed to call the extension,you could click the “dial pad” in the bottom of
the screen to open the interface or press menu key to select “delay 2
seconds”，and then enter the number of the extension.
• Telephone calls in the call log
Every telephone number called and received in“SIM1、SIM2”will reserved in
phone’s menu of call log. On the top left of every call record will show“SIM1
or SIM2”
All numbers in the call log can be dialed by clicking the button ”dial” on the
right side of the screen.
When number list appearing，click it to catch detai ls；press it for long you
could dial via “SIM1 or SIM 2”，meanwhile you can edit, delete, save the
number or do other operations.
• Receive callings
When calling comes（top left will sh ow from which SIM card）press“Answer”
and slide towards right until the middle button, then you can receive callings.
• Proximity sensor
According to the distance between phone and human body，it will adjust
automatically the switch of the backlight.
During the call, close the phone to the ear, the backlight wil l turn off
automatically，which could s ave batteries and prevent inadvertently
touching.
• Refuse to answer the phone
a. When standby, calling comes，press “refuse”button and slide
towards left side until the middle button, then you could refuse the calling.
b. When using ,calling comes,click on the “refuse”button to refuse the
calling.
• Two-way call/multiparty call(conference call)
• Notices：this function needs that SIM card open multiparty call features.
1) Already exist a call in the phone
6
2) Click“Add calls”，dial another call（or receive another call，phone
default open ”call waiting”（settings–dialing settings–other dialing settings），
after both connected，could view the status of calling.
3）select“combine call”– you can combine two calls into one way.
4）after multiparty call connected ，you could separate the calls or hang up
one of them via“the small arrow of conference call”.
• Telephone recording
During the call，more>start record，you could record the dialog of the call.
1）settings>set other functions of the call in the dialing settings，for example：
Call Transfer– after all the settings finished and turned on，you could transfer
the call to a certain number.
2）In settings>dialing settings >other dialing settings，open “call
waiting”.After turned on，you can receive another call when already exist
one，The answering and rejecting functions are just like the ordinary phone.
7. Messaging
• Important：the message title of this phone is the phone number，
will be reserved in s similar for of dialog，instead of the usual folder structure.
Messages with blue background are those received, and messages with white
background are those sent.
• Send SMS to certain phone number
1) Press home>messa ging，touch“new messages”.
a． Click “recipient ”box to start input method，you can also click
“enter”box to start input method，in that way you can enter characters.
b． Click the button of “send from SiM1 or SIM2”to start sending.
to MMS when following operations were done. You can send MMS via
clicking “send” after editing.
1) In the interface of “edit”，Click the button of “Menu”：
2) Click “append”，you can spend the following attachments，then it will
be turned to MMS automatically.
by the comma in English.
• Notices：For now this phone can mass messages to almost 20
numbers，the correct number depends on the characters，you can only enter
312 characters in the box of“recipient”.
When a message is sent or sent again，a little yellow letter will appear. The
2) In the interface of “edit”：
• Send MMS to certain phone number
When creating message，it was defaulted as SMS，it will be turned
• Send messages to multiple numbers
Enter multiple numbers in the box of entering，each number is divided
7
number 1 or 2 on the letter refers to SIM1 or SIM2.
When message sending failed，a red triangle with exclamation will
appear.
when editing information other functions of Menu button
8. Contacts
• Open the menu of applications>contacts
Default display phone contacts and SIM card contacts, sort contacts by first
letter of alphabet.
Click the Search icon to enter the contact search interface
Click the "+" to c reate new contact
1）contacts>Menu>new contact>
Select Save contacts to phone or SIM card ,then into the interface of editing
contacts
You can edit the contacts’ picture, name, phone number, e-mail, postal address,
then touch “finish”.
2) contacts>Menu>searcher
a. Enter numbers or letters,if match with contacts ,they will be displayed in the
search results.
b. If there is no search to match the contacts, the interface will be 'no
matching contacts’.
3) contact>Menu>delete contacts
a. You can select all, click the delete button to delete all contacts, including
the contacts of phone and SIM card
b. You can select one or more individual contact, click Delete, delete all the
selected contacts.
4) contacts>Menu>groups
a. default group include:VIP,Schoolmate,friends,Family,Co-worker.
b. Select Add Groups, edit the new group name, and go to the contact search
interface, you can add the group contact.
5) contacts>menu>speed dial
a. Voicemail
b. No.2-9numbers,click”Tap to add speed dail”,select a contact as a speed
dail.After successfully setting the dialer interface, long press the number keys,
you can dial the contact number.
6) contacts>more
a. click import/export,In the local phone, SIM card and SD card three copies of
each other to achieve contact information.You can select "Copy Source" and then
select Next, s elect the contacts to copy, so sh at complete the copy of contac ts.
b. Dispay options,can select the whole or parts contacts in “Only contacts
with phones ”,”Phone Contacts ”or”SIMs Contacts”
c. Accounts,can choose the”Backgroup data”and”Auto-sync”.
d. Share Visible contacts,all of the contacts can be imported into the SD
card,or sharing via Bluetooth ,Text messageor Gmail.
• Add common contacts to the collection interface.
1） Touch contact tab.
8
2） Touch the contact that you want to add to the collection（contacts reserved on
the SIM card can not be added）.
3）In the detailed information of contacts, touch this icon
contact.
4） Press for long the contact in the pop-up menu to add it to the collection.
• The interface of contac ts>press Menu button>select s earch
a Enter the first letter of t he names in the list(Chinese or letter) to find the
matched contact.
b Enter the first number in the searching box to find contacts
named under numbers.
c Enter the exactly matched numbers with contacts in the searching box, then
press the “search” button.
d If there is no matching contact, then the interface will app ear “no contact
founded”
9. Internet Explorer
Internet explorer
1)In the interface of internet explorer，touch address filed and
enter the URL.
2)Use keypad to enter URL. The appropriate web sites will appear on the
screen. You can touch it directly go to the page or continue to enter URL.
• Homepage
Select “homepage”，you could load in the set homepage. If you do
not set it, you will use the vendor’s pre-set sites.
• Functions of menu
After browsing through multiple pages, will return to the previous page the
current page.
After browsing through multiple pages, will move to a web page after the
current page.
You can view all open windows to the current.
a. Click the “Bookmarks”to make the current URL as a bookmark saved.
b. Click the bookmark under the bookmarks list,will open the URL.
a. Add bookmarks,save the current URL as bookmark.
b. Find on page,search what you need in current page.
c. Select text,in the text, click and drag to select a piece of text.
d. Page info,display page address and other information of the current
browsing.
e. Share page,select the Bluetooth or SMS to share the current page.
f. Downloads,show all the content downloaded.
g. History, Show your browsing history, and view the most visited pages of
information.
h. Setting,containts a variety of browser setting s.
1) Menu>Backward
2) Menu>Farward
3) Menu>Windows
4) Menu>Bookmarks
5) Menu>More
9
besides the
10. Recorder
Recorder can record voice, and send it quickly via Bluetooth or MMS as well as
make it as ring tone.
• Notices：recorder can only save the audio files as AMR format.
1) Click the recorder application.
2) Keep the phone’s microphone near the voice source.
3) Click recorder to record voices ,and click to stop or playback.
All recordings save in my recording folder in the default music program.
11.Clock
Open the menu of application, click
1) Brightness control：touch it to setthe brightness of the interface.
2) Alarm：touch alarm to enter the interface
3) PPT：touch it to shuffle the pictures
4) Home: go back to the interface of Idle
• Alarm
After functions set，phone will arrives in the setting time to alert you by
ringing or vibrating to achieve it’s function. Press Menu to add alarm，you can
also add it from the adding interface. You could set the alarm according to
your needs. In the interface of alarm will show three closed alarms（two
alarm clocks are Monday to Friday 8:30,9:00）.
Edit
You can edit the current alarm，you could edit time、ringing tones、vibration、
repeat form and tabs.
ress for long the time you could：stop the alarm、change alarm settings、
cancel alarm. In the interface of alarm settings, you could perform the
operations of changing time、repeat 、ring tones、vibration、tabs, e tc.
12.Caculator
calculator
this function can turn your phone into calculator， it can do some simple
calculations.
·Touch the number keys to make it appear in the blank box.
In the interface of calculator, press MENU button or hold down the screen to
the left, then the senior panel appears.
13. Camera
13.1 camera
Install memory card before using the camera or video camera. All your
photos or videos taken by the phone are stored in memory card.
Press home, touch menu, select camera. Choose the video mode if you want
to make videos. The screen will automatically switch to landscape mode.
senior panel
• Prior preparation
• Open camera
• Take pictures
1）Aim your object with the screen.
10
2）Touch the “shutter” button on the screen.
3）After taking，photos will save to the camera’s galley folder with the
name of taking time.
4）You can view the photos by touching the preview box button.
5）Camera settings
You can touch the button of “set” in the interface of camera to do the settings
Under camera viewfinder mode, press Menu，you can switch to video or photos’
gallery.
On the top right of camera viewfinder mode, display the preview of the previous
picture. Touch preview box, the photo display on full screen and you can enlarge it
to view details.
Camera settings: butto n 1：Focus mode, exposure, framing mode, picture size,
picture quality, color effect.
button 2：Camera mode, high-speed continuous shooting, ISO sensitivity,
self-timer, focus mode, face recognition, metering mode, to avoid flicker,
sharpness, hue, saturation, brightness, contrast.
button 3：Storage location.
button 4：White balance.
button 5：Flash mode.
button 6：Zoom.
Touch “set” button, you can do settings in the camera.
13.2 Video camera
• Prior preparation
Install memory card before using the camera or video camera. All your
photos or videos taken by the phone are stored in memory card.
• Open camera
Press home, touch menu, select camera. Choose video camera mode. The
screen will automatically switch to landscape mode.
• Take pictures
1）Aim your object with the screen.
2）Touch the “shutter” button on the screen.
3）After taking，photos will save to the camera’s galley folder with the name of
taking time.
4）You can view the videos by touching the preview box button.
5) Video camera settings
You can touch the button of “set” in the interface of camera to do the settings
Under camera viewfinder mode, press Menu，you can switch to video or photos’
gallery.
On the top right of camera viewfinder mode, display the preview of the
previous video. Touch preview box, the video will display on full screen and you
can touch the play button to view it.
Video camera settings button 1：Focus mode, anti-focus,exposure, framing
mode, video quality, video length, color effects.
button 2：Voice recording, avoiding flicker, sharpness, hue, saturation,
brightness, contrast, camera.
button 3：White balance
11
button 4：Flash mode
button5：Zoom.
Touch “set” button, you can do settings in the camera.
14. Images
• Open images
Press home，touch label of applications，then touch photos’ galley.
In the interface of camera，Press menu to open it，then touch to operate.
• Use i mages
After taking pictures, you can view them and share them with your friends.
• View images
1) In the picture interface, touch photo album to view images.
2) Touch the thumbnail to view pictures on full screen.
You can choose to display small or large thumbnails. Hold down the screen
towards the left side to view the next ph oto or towards right to view the
previous one.
In the photo album or list, press and hold down the picture towards left to
view the next picture, or towards right to view the previous one.
• Crop images
In the photos’ gallery, press the photo you want to crop, choose
menu，‘more’and‘crop’，then the instruments of cropping will appear.
a. To adjust the trimmer size, press and hold the edge of cutting tool. After
the trimmer arrow appears, drag your finger from the center inward or
outward, then you can adjust the size.
b. To keep the ratio of the trimmer，please press any one of the four corners.。
c. To move the trimmer to other areas of the picture, hold down the center of
cutting device, then drag your finger to certain position.
• Send images via mails
1) In the images gall ery, press the wanted photo, choose menu , then touch share. Touch
Gmail when tips appear. Picture will be automatically attached to e-mail. Edit the mail, then touch
send.
• Send images via messages
1) In the images gall ery, press the wanted photo, choose menu , then touch share. Touch
Gmail when tips appear. Picture will be automatically attached to message. Edit the mail, and then
touch send.
• Use vi deos
After video taken, you can view it or share it with your friends.
Watch m ovies
1) In the interface of photos’ gallery, touch videos album. You can watch
movies after touching the wanted video.
2) Touch the screen, then the play control keys appear.
15. Music
The phone can play digital audio files in memory card.The following
formats are available :AMR、M4A、MIDI、MP3、WAV、OGG.
• Open Music
Press home, touch the label of applications, touch music. Then the interface of Music Media
appears.
12
• Music Media
Your music files are classified according to the following four categories：Artists, albums, songs and play
lists. Touch one of these categories; you can view the list inside.
Continue the operations, until your wanted music appears. Such as，if you choose
Artists a list of artists sorted by the numbers in English will appear. Choose any on
to open the list，then all the albums and songs will appear. Select one album, then
the songs in it will be played.
• Tips: You can play all of the songs in the interface of music media,
in random sequence . Press Menu, and then touch the Party Shuffle. Then will
start playing the first song randomly selected . To close the Party Shuffle, press
Menu, then touch to turn off the Party Shuffle.
• View lyrics
When the corresponding tracks have lyrics file, the player displays the lyrics
sources. Click the up arrow, you can play music, view lyrics at the same time.
• Create a play list
1) Touch any category of music media on the screen.
2) In the list, you can press and slide up and down the screen to browse the
artist, album or song that you want to add to the play list.
3) Press the artist, album or song, and then touch the options menu in the play
list.
4) In the interface of adding to the play list window, touch the new play list.
5) Enter the new name of the play list, and then touch to save.
• Manage the play list
Enter the interface of music media then touch the play list.
1) To play songs of the play list, touch the name of play list.
2) To delete a play list, press and hold the Play list, and then touch Remove.
3) To refresh the list of songs or remove songs, hold down the play list, and then
touch the options menu in the editor.
4) To delete the list of songs, hold down the songs, and then touch play list to
delete it.
5) To rename a play list, press and hold the play list, then touch Options menu
renamed. Enter the new play list name, and then touch “save".
6) If you want to set the song to the ring tones, and then touch the song as a ring
tone. The song will be set as the default ring tone.
7)if you want to use the song as notice ringtone,you can press menu and touch
the song as ringtone.and then touch the Notice ringtone.The song will be set as
the notice ringtone.
8)if you want to cut the song to the ringtone,you can press the menu and select
the song as ringtone,and then touch the cut ringtone.As shown,you can choose
the start time and the end time,at last touch the ‘save’,it will be saved to
ringtone.It can be set to the default tingtone,can be assigned to the contact as the
ringtone of the contacts.
16. Calender
Enter the calender application
Load Goggles accounts, enter the application, In the interface of month or
week will use gray to highlight the day. Display default the date on the
13
current month.
In the interface，press menu，4 display modes will appear：
view forward,click the final time to view backwards )
week.
day.
accoring month.
set the all-day option to Yes. If the activity is at a certain time period, select
the start time and end time.
The details of activities box
Cancel activities：In the time frame, press for long to delete the activity.
17. FM Radio
FM Radio
Through this program, you may listen to FM radio on t he device, FM radio
use the wired headset as an antenna to receive signals, before opening this
program ,you can install the original equipment-headphones, when
listening, you can switch it m anually to s peakers or the m ode with wired
headphones.
Touch this label
Click the Back button, the radio pro gram move to th e back ground, and
you can still continue to listen to programs and other applications run at
the same time. Press menu and click to exit radio.
Press the menu button in the FM interface,click the “search&save” ,and then
view the channel list,press long one channel ,click “Ad d to Favorite”to
rename the channel.
18. Settings
Your service provider may default some device settings, so you may not be
able to change these settings.
disabled, the flight mode displays on status bar.
1) Schedule Intrface shows a certain schedule(click on the initial time and
2) day Interface displays a day's schedule (last clicked date),Slide around to turn page accoring day.
3) wee k Interface displays a week's sch edule (last clicked date),Slide around to turn page accoring
4) today Interface displays a day's schedul e, In the interface of month or week use gray to highlight the
5) m ont h nterface displays a month's schedule (last clicked date) Slide around to turn page
• New activities
1) Press menu, more < touch new activities.
2) E nter the name of activity in the act ivities’ box.
Notices：Such as special occasions such as birthday or a day with events,
3)Enter the event location, description, guests, repeat, remind time.
Notices：All-day events appear in the calendar heading.It will not show
the period of calendar.
• Open FM radio
4) Click finish to return to calendar.
to open the application of FM radio.
• Collect the channel you are favorite
• Press the menu,you will see below
• SIM card manage
1) Touch it to choose or to disable the SIM card, the card is grey when
2) The default SIM card ,you can choose Voice call,Video
14
call,Messaging,Data connection.
• W ireless and internet
1) Flight mode Touch to open or close.
2) Wi-Fi and Wi-Fi settings Touch Wi-Fi
Wi-Fi ,it can search for available networks automatically，networks without
password can be used directly, others need to enter the password first.
Notice：Open Wi-Fi then the flight mode，Wi-Fi will close automatically；Open
flight mode then connect Wi-Fi，it can be used normally.
WPS connection,wireless AP and mobile phone are needed to support AOSS,you
can directy connect without entering a key.
3) Bluetooth and Bluetooth setting.
4) Tethering&portable hotspot Share your digital data via USB
5) Virtual Private Networks(VPN) Settings.
6) Mobile network enter “mobile network settings”which include： a Data
roaming b Access pint name c Network operators.
7) GPRS data priority mode
• Calling setting s
a. Voice mail,in the voice settings,you can enter the voice mail number.
b. Call forward,You can set Always forward,Forward when busy,Forward when
unanswer,Forward when unreachable.
b. Enable back camera,available to switch cameras if turn off.
c. Peer video bigger than local video,trun on to make peer video bigger than
local video
d. Local video disply ,to make outgoing video call or incoming video call.
e. Other settings,include call forward,call barring,additional settings.
a. Applications allow application moving or select install ocation
1) Voice Call
c. Call barring
d. Additingal settings,Call ID and Call waiting
2) Video Call
a. Picture for replacing local video,set a picture to
display when camera off use.
3) Internet Call
Can add accouts
4) Other settings
a. Fixed Dialing Numbers
b. Call cost
c. Cell broadcast
d. Minute reminder
e. Phone settings
• Extra settings
f. TTY settings
b. Display animated、rotatin
c. Input input behavior,button
d. Interface adjust interface、cross border
15
to open . Open
19 . FCC Warning:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue.
Device types NEOS (FCC ID: 2AB6FARKNEOS) has also been tested against this
SAR limit. The highest reported SAR values for head, body-worn accessory are
0.69W/kg, 0.58 W/kg respectively. The Max simultaneous SAR is 0.86W/kg. This
device was tested for typical body-worn operations with the back of the handset
kept 10mm from the body. To maintain compliance with FCC RF exposure
requirements, use accessories that maintain a 10mm separation distance between
the user's body and the back of the handset. The use of belt clips, holsters and
similar accessories should not contain metallic components in its assembly. The
use of accessories that do not satisfy these requirements may not comply with
FCC RF exposure requirements, and should be avoided.
this transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The antenna(s) u sed for
16
Loading...
