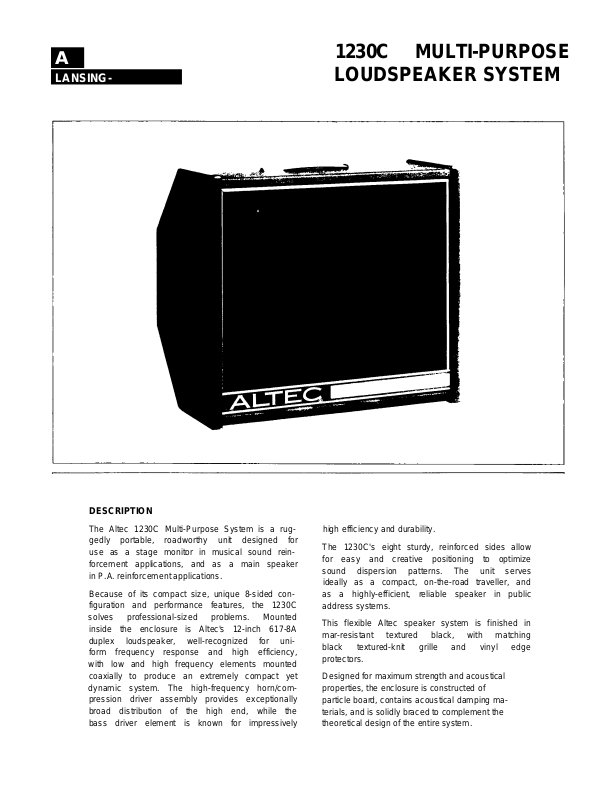

A
1230C MULTI-PURPOSE
LANSING-
LOUDSPEAKER SYSTEM
DESCRIPTION
The Altec 1230C Multi-Purpose System is a rug
gedly portable, roadworthy unit designed for
use as a stage monitor in musical sound rein
forcement applications, and as a main speaker
in P.A. reinforcement applications.
Because of its compact size, unique 8-sided con
figuration and performance features, the 1230C
solves professional-sized problems. Mounted
inside the enclosure is Altec's 12-inch 617-8A
duplex loudspeaker, well-recognized for uni
form frequency response and high efficiency,
with low and high frequency elements mounted
coaxially to produce an extremely compact yet
dynamic system. The high-frequency horn/compression driver assembly provides exceptionally
broad distribution of the high end, while the
bass driver element is known for impressively
high efficiency and durability.
The 1230C's eight sturdy, reinforced sides allow
for easy and creative positioning to optimize
sound dispersion patterns. The unit serves
ideally as a compact, on-the-road traveller, and
as a highly-efficient, reliable speaker in public
address systems.
This flexible Altec speaker system is finished in
mar-resistant textured black, with matching
black textured-knit grille and vinyl edge
protectors.
Designed for maximum strength and acoustical
properties, the enclosure is constructed of
particle board, contains acoustical damping ma
terials, and is solidly braced to complement the
theoretical design of the entire system.
SPECIFICATIONS
Type:
Components:
Power Rating:
Frequency Response:
Impedance:
Pressure Sensitivity:
Equivalent EIA Rating:
Multi-purpose,
coaxially-mounted
loudspeaker
system
617-8A Duplex
Loudspeaker with
Dividing Network
Long-Term Broad-Band
Maximum Power:
Up to 60 watts of
band-limited pink
noise (50 to 15,000 Hz)
80 Hz to 15,000 Hz
8 ohms
98 dB SPL measured at
4' on axis with 1 watt
input of pink noise
band-limited from
250 Hz to 5,000 Hz
116 dB SPL measured at
4' on axis with 60 watts
input of pink noise
band-limited from
250 Hz to 5,000 Hz
51 dB SPL measured at
30' on axis with 1 mW
input
Distribution Pattern: Crossover Network:
Input Connections:
Enclosure:
Finish:
Dimensions:
Shipping Weight:
Actual Weight:
Accessories (included): 50', 2-conductor cable
90° (conical)
Dual full-section
1500 Hz crossover,
12 dB/octave slope
Two standard
phone jacks, parallel
wired
Heavily braced, rigid
enclosure of
particle board
Mar-resistant textured
black with edge
protectors and carrying
handle
19.5" (49.5 cm) H x
22" (55.9 cm) Wx14"
(35.5 cm) D
60.5 lb (27.5 kg)
52 lb (23.6 kg)
with standard ’A"
phone plug on
each end
617-8A Duplex Coaxial Loudspeaker System
Voice Coil Diameter
Voice Coil Material:
Magnetic Assembly Weight:
Magnet Material:
Flux Density:
Dimensions:
Weight:
ARCHITECT AND ENGINEER SPECIFICATIONS
The loudspeaker system shall include a 617-8A
Duplex Coaxial Loudspeaker with dividing network/dual full-section 1500 Hz crossover,
12 dB/octave slope.
The system shall meet the following structural
and performance criteria. The enclosure shall be
constructed of heavily braced ^4" plywood,
with edge protectors, shall be acoustically
damped with sound-absorbent material, and
shall allow for position at 90° and 45° angles,
referenced to a floor-plane mounting surface.
3" IV2"
Copper wire Copper-clad aluminum wire
4.8 lb 8.5 oz
Ceramic Ceramic
12,000 gauss 11,400 gauss
I2V4" (31.1 cm) Diameter, (19.7 cm) Depth
25.5 lb (11.6 kg)
LF HF
Finish shall be of mar-resistant textured black.
Power capacity, up to 60 watts of continuous
pink noise band-limited from 50 Hz to 15,000
Hz. Frequency response, 80 Hz to 15,000 Hz.
Pressure sensitivity, 98 dB SPL at 4' when meas
ured on axis with 1 watt input of pink noise
band-limited from 250 Hz to 5,000 Hz. Imped
ance, 8 ohms. Distribution pattern, 90° conical.
Maximum dimensions, 19.5" H x 22" W x 14" D.
Weight, 70 pounds.
The loudspeaker system shall be the ALTEC
Model 1230C.
LITHO IN U.S.A. 1281-2.5M
ALZTEIC
LAISISirsIG
1515 SOUTH MANCHESTER AVENUE, ANAHEIM, CALIFORNIA 92803
ALTEC CORPORATION
AL-1202-2
