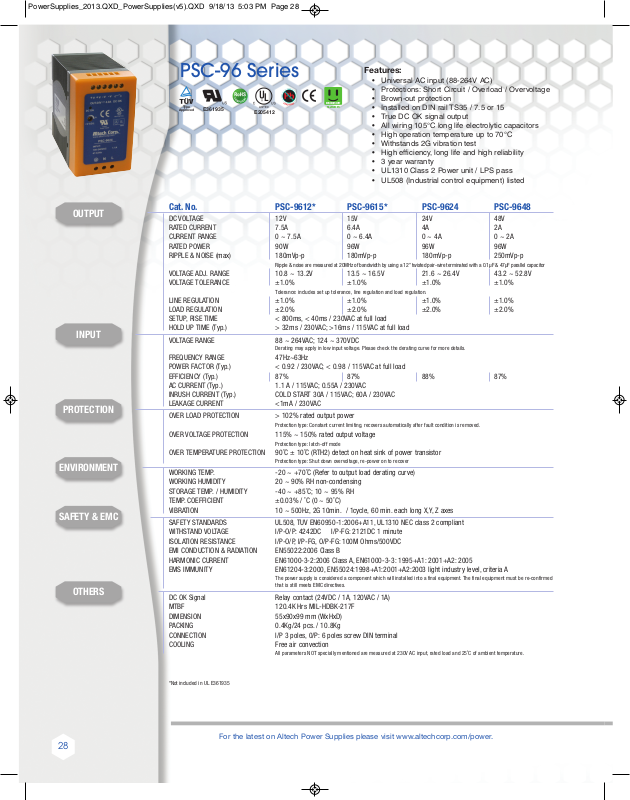

Altech PSC-96 Series Catalog Page

OUTPUT

PROTECTION

ENVIRONMENT

SAFETY & EMC

OTHERS

INPUT

PSC-96 Series

Type

Approved

ENERGY

SAVER

Features:

• Universal AC input (88-264V AC)

• Protections: Short Circuit / Overload / Overvoltage

• Brown-out protection

E361935

205412

E

• Installed on DIN rail TS35 / 7.5 or 15

• True DC OK signal output

• All wiring 105°C long life electrolytic capacitors

• High operation temperature up to 70°C

• Withstands 2G vibration test

• High efficiency, long life and high reliability

• 3 year warranty

• UL1310 Class 2 Power unit / LPS pass

• UL508 (Industrial control equipment) listed

Cat. No. PSC-9612* PSC-9615* PSC-9624 PSC-9648

DC VOLTAGE 12V 15V 24V 48V
RATED CURRENT 7.5A 6.4A 4A 2A
CURRENT RANGE 0 ~ 7.5A 0 ~ 6.4A 0 ~ 4A 0 ~ 2A
RATED POWER 90W 96W 96W 96W
RIPPLE & NOISE (max) 180mVp-p 180mVp-p 180mVp-p 250mVp-p

VOLTAGE ADJ. RANGE 10.8 ~ 13.2V 13.5 ~ 16.5V 21.6 ~ 26.4V 43.2 ~ 52.8V
VOLTAGE TOLERANCE ±1.0% ±1.0% ±1.0% ±1.0%

LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0%
LOAD REGULATION ±2.0% ±2.0% ±2.0% ±2.0%
SETUP, RISE TIME < 800ms, < 40ms / 230VAC at full load
HOLD UP TIME (Typ.) > 32ms / 230VAC; >16ms / 115VAC at full load

VOLTAGE RANGE 88 ~ 264VAC; 124 ~ 370VDC

FREQUENCY RANGE 47Hz~63Hz
POWER FACTOR (Typ.) < 0.92 / 230VAC; < 0.98 / 115VAC at full load
EFFICIENCY (Typ.) 87% 87% 88% 87%
AC CURRENT (Typ.) 1.1 A / 115VAC; 0.55A / 230VAC

INRUSH CURRENT (Typ.) COLD START 30A / 115VAC; 60A / 230VAC
LEAKAGE CURRENT <1mA / 230VAC

OVER LOAD PROTECTION > 102% rated output power

OVER VOLTAGE PROTECTION 115% ~ 150% rated output voltage

OVER TEMPERATURE PROTECTION 90˚C ± 10˚C (RTH2) detect on heat sink of power transistor

WORKING TEMP. -20 ~ +70˚C (Refer to output load derating curve)
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP. / HUMIDITY -40 ~ +85˚C; 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03% / ˚C (0 ~ 50˚C)
VIBRATION 10 ~ 500Hz, 2G 10min. / 1cycle, 60 min. each long X,Y, Z axes

SAFETY STANDARDS UL508, TUV EN60950-1:2006+A11, UL1310 NEC class 2 compliant
WITHSTAND VOLTAGE I/P-O/P: 4242DC I/P-FG: 2121DC 1 minute
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
EMI CONDUCTION & RADIATION EN55022:2006 Class B
HARMONIC CURRENT EN61000-3-2:2006 Class A, EN61000-3-3: 1995+A1: 2001+A2: 2005
EMS IMMUNITY EN61204-3:2000, EN55024:1998+A1:2001+A2:2003 light industry level, criteria A

DC OK Signal Relay contact (24VDC / 1A, 120VAC / 1A)
MTBF 120.4K Hrs MIL-HDBK-217F
DIMENSION 55x90x99 mm (WxHxD)
PACKING 0.4Kg/24 pcs. / 10.8Kg
CONNECTION l/P 3 poles, 0/P: 6 poles screw DIN terminal
COOLING Free air convection

Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1µF & 47µF parallel capacitor

Tolerance: includes set up tolerance, line regulation and load regulation.

Derating may apply in low input voltage. Please check the derating curve for more details.

Protection type: Constant current limiting, recovers automatically after fault condition is removed.

Protection type: latch-off mode

Protection type: Shut down overvoltage, re-power on to recover

The power supply is considered a component which will installed into a final equipment. The final equipment must be re-confirmed
that is still meets EMC directives.

All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25˚C of ambient temperature.

28

*Not included in UL E361935

For the latest on Altech Power Supplies please visit www.altechcorp.com/power.

85

Ta=25°C

100 110 120 264VAC

40

50

60

70

80

Loa

d

( %)

Load V .S I/P V oltage

Input Voltage(VAC) 60Hz

90

100

-20

Ambient Temperature (°C)

0 10 20 30 40 50 60 70

20

40

60

80

100

Loa d (% )

Load V .S Temp.

M

echanical Specification

Pin No.

P

in No.

1

1

,2

2

3,4

3

Assi gnment

A

ssignment

F

G

AC/L

A

C/N

D

C OUTPUT +V

DC OUTPUT -V

5,6

D

C OK RELAY CONTACT

T

erminal Pin. No Assign. (TB1)

T

erminal Pin. No Assign. (TB2)

90

55 99

II //PP

E

E MMII FF IILLTT EE RR

&

&

RR EE CC TT IIFF II EE RR SS

PP OOWW EE RR

S

S WWIITT CC HH IINNGG

D

DEE TT EE CC TT IIOO NN

CC IIRR CC UU IITT

O

O..VV .. PP ..

OO ..LL ..PP ..

DDCC OO KK

++VV

-

-VV

PP WWMM &&PP FF CC CC OO NNTT RR OOLL

R

R EE CC TT IIFF IIEE RR SS

&&

F

F IILLTT EE RR

PP FF CC

CC IIRR CC UU IITT

OO ..TT ..PP ..

OO ..VV .. PP ..

O

O..LL ..PP ..

O

O..CC .. PP ..

DDCC OO KK

Contact Close

Contact Ratings (max.)

Contact Open

When the output voltage reaches the adjusted output voltage

When the output voltage drop below 90% rated output voltage

30V / 1A resistive load

Block Diagram

DC OK Relay Contact

Derating Curve

Unit : mm / inch

PSC-96 Series

Type

Approved

ENERGY

SAVER

E361935

205412

E

Altech Corp.®• 35 Royal Road • Flemington, NJ 08822-6000 • Phone [phone] • FAX [phone]
