Altech Low Profile Single Phase Power Supply Data Sheet

Low Profile Single Phase Power Supply (Class II)
The Low Profile Single Phase Power Supplies are 15W to 100W single output Class II DIN rail switching power supplies. They are designed for the fast growing demand of the DIN rail application with limited enclosure height. With Class II of protection level, low profile series provide users a safer operating environment since the whole plastic case is free from hazardous leakage current. Featuring up to 89% of high efficiency, this series can be cooled by only free air convection that significantly increase the reliability and lifetime of the power supply. Complying with the safety of the UL508 and EMC requirements of EN50178 which is mainly for power distribution aspects, the low profile switching power supplies are suitable to be installed in a power distribution box or a control cabinet and the major application fields are building automation and household appliance control.
• Input voltage range: 85 - 264V AC; 120-370V DC
• AC inrush current: Cold start: 15A at 115V AC, 30A at 230V DC (PS-30xx)
• DC adjustment range: ±10% rated output voltage
• Overload protection: 105% - 160% constant current limiting, auto-recovery
• Over-voltage protection: 115% - 135% rated output voltage
• Setup, rise, hold up time: 100ms, 30ms, 100ms at full load and 230V AC (PS-30xx)
• Withstand voltage: I/P-O/P:3KV AC, I/P-FG:1.5KV AC
• Working temperature: -20 to +50°C (-4° to +122°F) at 100% and +60°C (+140°F) at 80% load
• Safety standards: UL60950-1, UL508
• EMC standards: EN55022 class B EN61000-4-2,3,4,5,6,8,11 ENV50204 EN61204-3
• Military Standard: MIL-HDBK-217K
PS Series - Low Profile
Features:
• Universal AC input/Full range
• Protections: Short circuit / Overload / Overvoltage
• Cooling by free air convection
• DIN rail mountable
• Isolation class II
• LED indicator for power on
• 100% full load burn-in test
• 3 year warranty
Output connector for easy wiring
35mm DIN Rail Mounting
Robust plastic housing
DC on LED signal
Adjustable DC output voltage
Easy to understand layout panel
UL508 Listed
Universal Input
Compact Series - narrow for maximized panel space
15-100W Low Profile POWER SUPPLIES

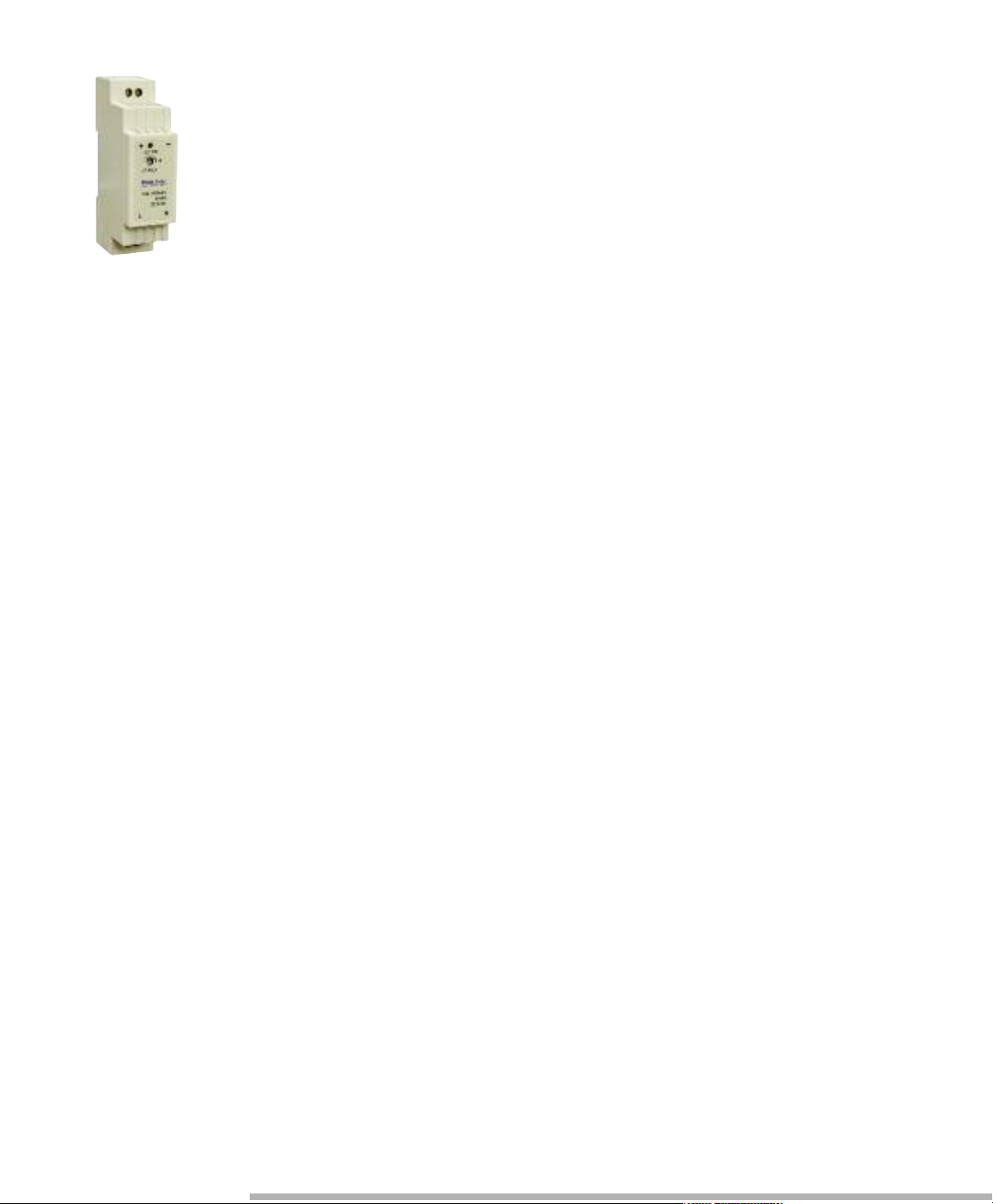

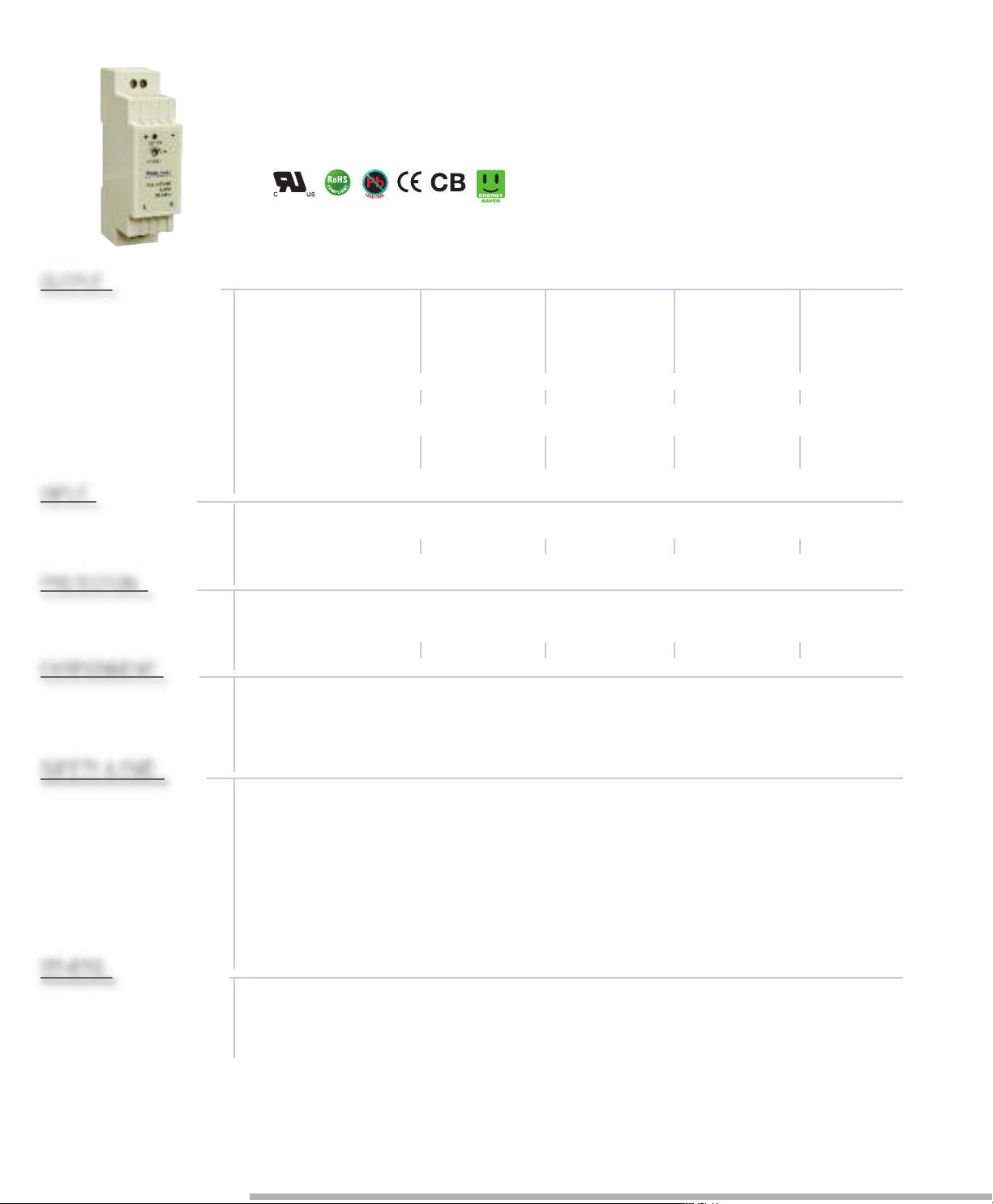

15W Single Output Class II DIN Rail Power Supply
Cat. No. Output Tol. Ripple & Efficiency NOTES
V DC A % Noise
PS-1505 5V DC 2.4A ±2% 80 mVp-p 77% PS-1512 12V DC 1.25A ±1% 120 mVp-p 84% PS-1515 15V DC 1A ±1% 120 mVp-p 83.5% PS-1524 24V DC 0.63A ±1% 150 mVp-p 85%
30W Single Output Class II DIN Rail Power Supply
Cat. No. Output Tol. Ripple & Efficiency NOTES
V DC A % Noise
PS-3005 5V DC 3A ±2% 80 mVp-p 74% PS-3012 12V DC 2A ±1% 120 mVp-p 81% PS-3015 15V DC 2A ±1% 120 mVp-p 82% PS-3024 24V DC 1.5A ±1% 150 mVp-p 83%
45W Single Output Class II DIN Rail Power Supply
Cat. No. Output Tol. Ripple & Efficiency NOTES
V DC A % Noise
PS-4505 5V DC 5A ±2% 100 mVp-p 72% PS-4512 12V DC 3.5A ±1% 200 mVp-p 77% PS-4515 15V DC 2.8A ±1% 240 mVp-p 77% PS-4524 24V DC 2A ±1% 480 mVp-p 80%
60W Single Output Class II DIN Rail Power Supply
Cat. No. Output Tol. Ripple & Efficiency NOTES
V DC A % Noise
PS-6005 5V DC 6.5A ±2% 80 mVp-p 76% PS-6012 12V DC 4.5A ±1% 120 mVp-p 82% PS-6015 15V DC 4.0A ±1% 120 mVp-p 83% PS-6024 24V DC 2.5A ±1% 150 mVp-p 84%

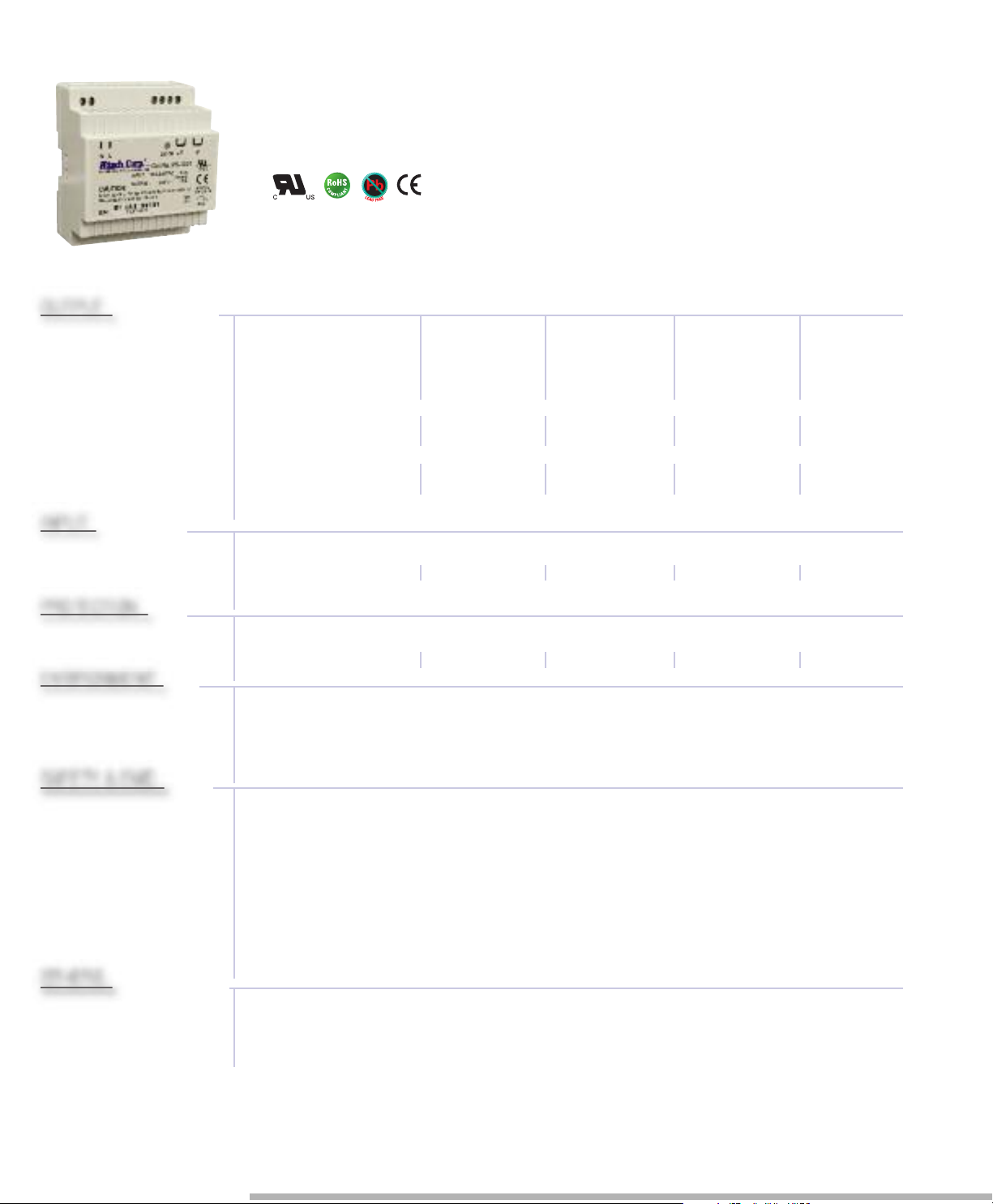

100W Single Output Class II DIN Rail Power Supply
Cat. No. Output Tol. Ripple & Efficiency NOTES
V DC A % Noise
PS-10012 12V DC 7.5A ±2% 120 mVp-p 87% PS-10015 15V DC 6.5A ±1% 120 mVp-p 87% PS-10024 24V DC 4.2A ±1% 150 mVp-p 89%
Terminal Pin. No Assignment
P
in No.
2
15,6
3
,4
7 8
A
ssignment Pin No. Assignment
+
V
AC/L AC/N
-V LED +
V ADJ.
Terminal Pin. No Assignment
P
in No.
2
1
3 4
A
ssignment Pin No. Assignment
A
C/L
AC/N
-
V
+V
2
16,7
3
4,5
8 9FG
DC OUTPUT-V
AC/L A
C/N
DC OUTPUT+V L
ED
+V ADJ.
Terminal Pin. No Assignment
Pin Assignment Pin Assignment
Terminal Pin. No Assignment
Pin No.
2
15,6
3,4
7 8
Assignment Pin No. Assignment
+V
AC/L AC/N
-V LED +V ADJ.
5
6
7
8
93
5
6
2
5
9
3
6
7
7
8
93
5
6
7
8
9
3
Terminal Pin. No Assignment
Pin No.
2
15,6
3,4
7 8
Assignment Pin No. Assignment
+V
AC/L AC/N
-V LED +V ADJ.
5
6
1
0
0
9
3
SPECIFICATIONS
PS-15 Series
PS-30 Series
Universal Input: 85-264V AC, 120-370V DC full range;
0.88A @ 115V AC; 0.48A @ 230V AC Connection: Input - 2 poles, Output – 2 poles, single screw terminal Size (WxHxD): 25x93x56mm (0.98x3.66x2.20 inches) Packaging: 1/box; 0.22lbs / 0.1Kg
Universal Input: 85-264V AC, 120-370V DC full range;
0.88A @ 115V AC; 0.48A @ 230V AC Connection: Input - 2 poles, Output – 2 poles, double screw terminal Size (WxHxD): 78x93x56mm (3.07x3.66x2.20 inches) Packaging: 1/box; 0.60lbs / 0.27Kg
PS-45 Series
PS-60 Series
PS-100 Series
Universal Input: 85-264V AC, 120-370V DC full range;
1.5A @ 115V AC, 0.75A @ 230V AC Connection: Input - 3 poles, Output – 2 poles, double screw terminal Size (WxHxD): 78x93x67mm (3.07x3.66x2.64 inches) Packaging: 1/box; 0.68lbs / 0.31Kg
Universal Input: 88-264V AC, 124-370V DC full range;
1.2A @ 115V AC, 0.8A @ 230V AC Connection: Input - 2 poles, Output – 2 poles, double screw terminal Size (WxHxD): 78x93x56mm (3.07x3.66x2.20 inches) Packaging: 1/box; 0.66lbs / 0.30Kg
Universal Input: 88-264V AC, 124-370V DC full range;
3A @ 115V AC, 1.6A @ 230V AC Connection: Input - 2 poles, Output – 2 poles, double screw terminal Size (WxHxD): 100x93x56mm (3.94x3.66x2.20 inches) Packaging: 1/box; 0.77lbs / 0.35Kg
Note: All dimensions are in millimeters, to convert to inches multiply by 0.03937.
OUTPUT
INPUT
PROTECTION
ENVIRONMENT
SAFETY & EMC
OTHERS

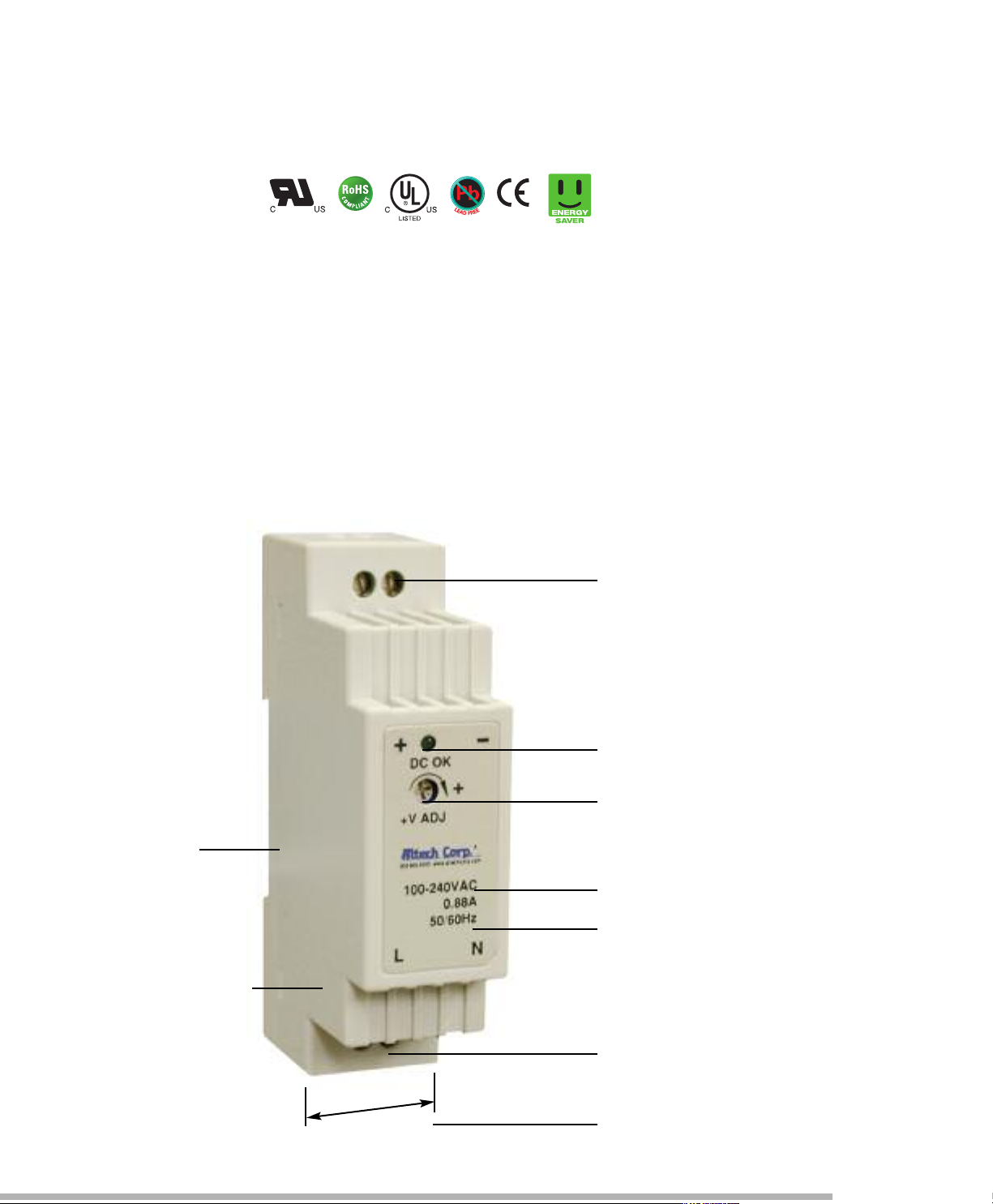

PS-15 Series
Specifications
Features:
• Universal AC input / full range
• Protections: Short Circuit / Overload / Over Voltage
• Cooling by free air convection
• DIN rail mountable
• Isolation class II
• LED indicator for power on
• No load power consumption <0.5W
• 100% full load burn-in test
• 3 year warranty
Cat. No. PS-1505 PS-1512 PS-1515 PS-1524
DC VOLTAGE 5V 12V 15V 24V RATED CURRENT 2.4A 1.25A 1A 0.63A CURRENT RANGE 0 ~ 2.4A 0 ~ 1.25A 0 ~ 1A 0 ~ 0.63A RATED POWER 12W 15W 15W 15.2W RIPPLE & NOISE (max) 80mVp-p 120mVp-p 120mVp-p 150mVp-p
R
VOLTAGE ADJ. RANGE 4.75 ~ 5.5V 10.8 ~ 13.2V 13.5 ~ 16.5V 21.6 ~ 26.4V VOLTAGE TOLERANCE ±2.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0% LOAD REGULATION ±1.0% ±1.0% ±1.0% ±1.0% SETUP, RISE TIME 1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load HOLD UP TIME (Typ.) 70ms / 230VAC 16ms / 115VAC at full load
VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 77% 84% 83.50% 85% AC CURRENT (max.) 0.88A / 115VAC 0.48A / 230VAC INRUSH CURRENT (Typ.) COLD START 35A / 115VAC 65A / 230VAC
OVERLOAD 105 ~ 160% rated output power
OVERVOLTAGE 5.75 ~ 6.75V 13.8 ~ 16.2V 17.25 ~ 20.25V 27.6 ~ 32.4V
WORKING TEMP. -20 ~ +60˚C (Refer to output load derating curve) WORKING HUMIDITY 20 ~ 90% RH non-condensing STORAGE TEMP., HUMIDITY -40 ~ +85˚C, 10 ~ 95% RH TEMP. COEFFICIENT ±0.03% ˚C (0 ~ 50˚C) VIBRATION Component: 10 ~ 500Hz, 2G 10min. / 1cycle, 60 min. each long X,Y, Z axes MOUNTING Compliance to IEC60068-2-6
SAFETY STANDARDS UL60950-1
WITHSTAND VOLTAGE I/P-O/P: 3KVAC ISOLATION RESISTANCE I/P-O/P: 100M Ohms/500VDC (25˚C; 70% RH) EMI CONDUCTION & RADIATION Compliance to EN55011
HARMONIC CURRENT Compliance to EN61000-3-2,-3 EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; EN55024; ENV50204; EN61000-6-2; EN61204-3;
MTBF 1172.3K hrs min. MIL-HDBK-217K (25˚C) DIMENSION 25x93x56mm (WxHxD) PACKING 0.1Kg; 140pcs / 15Kg / 0.92CUFT
ipple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1µF & 47µF parallel capacitor
Tolerance: includes set up tolerance, line regulation and load regulation.
Protection type: Constant current limiting recovers automatically after fault condition is removed (Hiccup mode) Constant current operation region is within 60 ~ 100% rated output voltage.
Protection type: Shut down overvoltage, clamping by zener diode
EN60950-1 compliant Design refer to EN50178
EN55022 (CISPR22); EN61204-3 Class B
heavy industry level; criteria A
The power supply is considered a component which will installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25˚C of ambient temperature

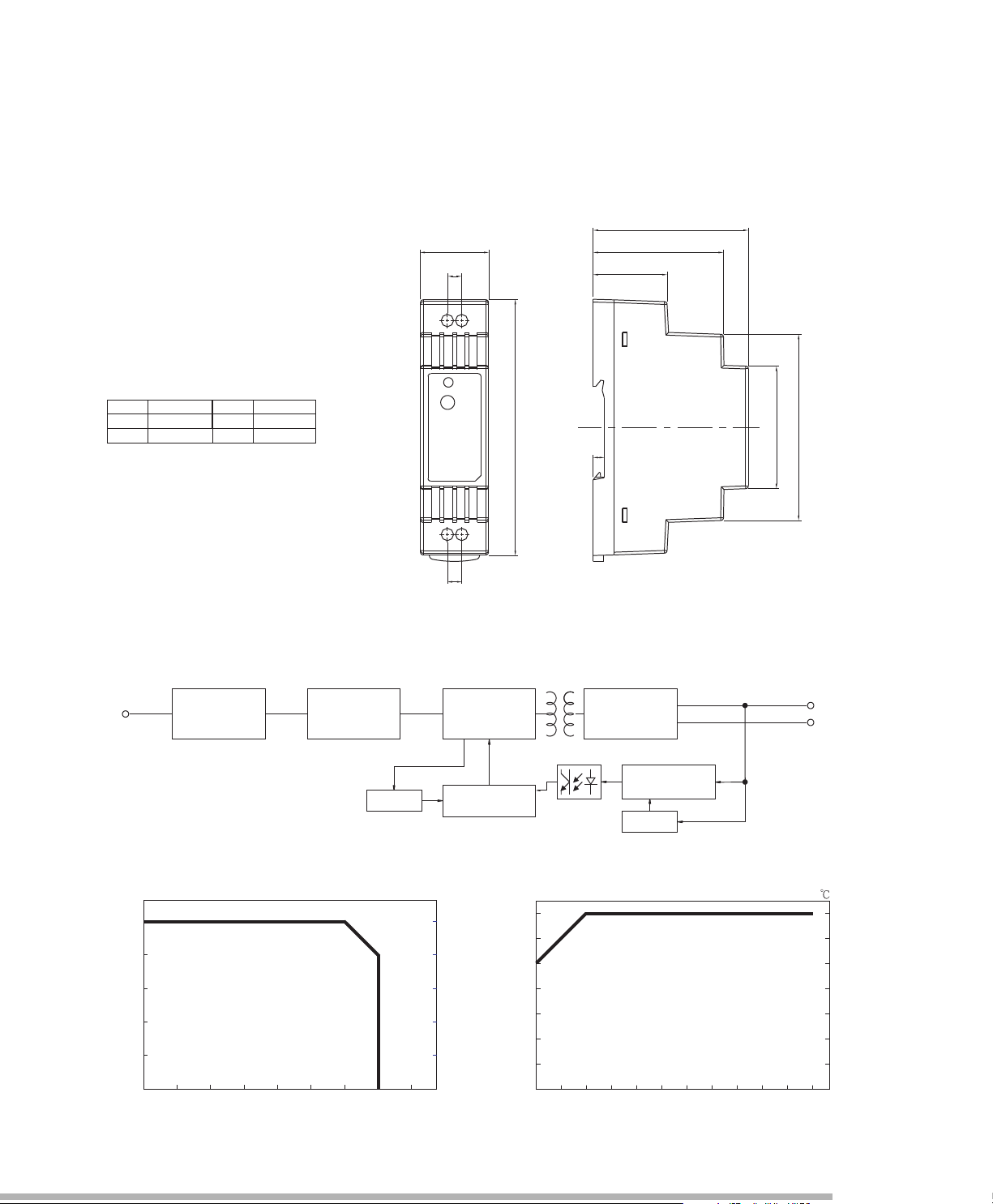

Block Diagram

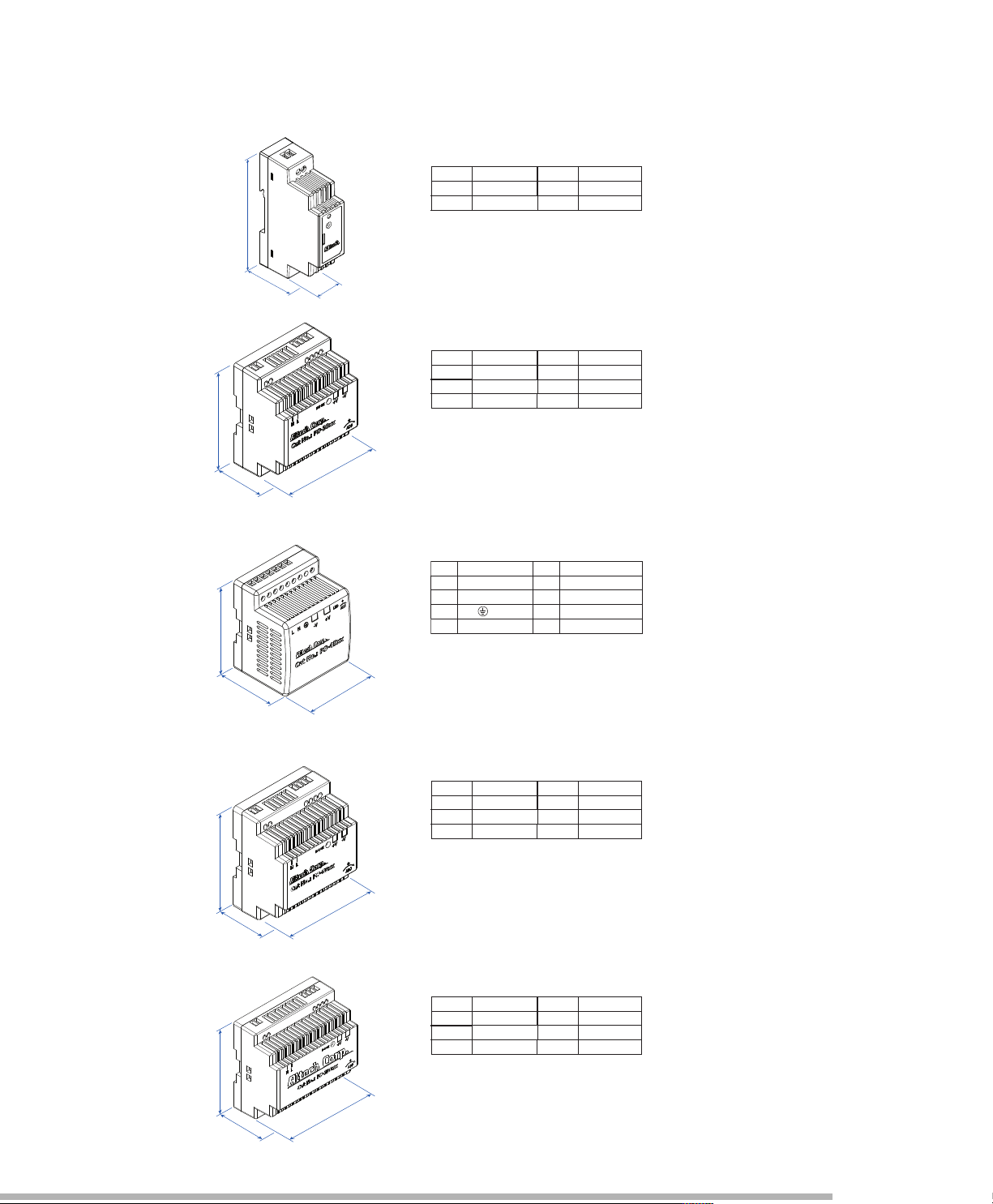

Mechanical Specification
-20 0 10 20 3 0 40 5 0 60 70 (V E R T I C A L )
20
40
60
80
100
AMBIENT TEMPERATURE (°C) INPUT VOLTAGE (VAC) 60Hz
LOAD
(%)
LOAD
(%)
CIRCUIT
DETE CTION
O.L.P.
EMI
FILTER
RECTIFIERS
&
FILTER
POWER
SWITCHING
FILTER
&
RECTIFIERS
+V
-V
I/P
CONTROL
O.V.P.
Output Derating VS Input Voltage
85 10095120115 160140 200180 240220 264
Ta=25
90
100
80
70
60
50
40
N
L
44.2
67.2
5
93
-V
+V
2
5
LED
Vadj
.
5
4
Derating Curve
26.
7
4
7
5
6
Terminal Pin. No Assignment
Pin No.
2
13
4
Assignment Pin No. Assignment AC/L AC/N
-V +V
Note: All dimensions are in millimeters, to convert to inches multiply by 0.03937.
OUTPUT
INPUT
PROTECTION
ENVIRONMENT
SAFETY & EMC
OTHERS
PS-30 Series
Specifications
Features:
• Universal AC input/ full range
• Protections: Short Circuit / Overload / Over Voltage
• Cooling by free air convection
• DIN rail mountable
• Isolation class II
• LED indicator for power on
• 100% full load burn-in test
• 3 year warranty
Cat. No. PS-3005 PS-3012 PS-3015 PS-3024
DC VOLTAGE 5V 12V 15V 24V RATED CURRENT 3A 2A 2A 1.5A CURRENT RANGE 0 ~ 3A 0 ~ 2A 0 ~ 2A 0 ~ 1.5A RATED POWER 15W 24W 30W 36W RIPPLE & NOISE (max) 80mVp-p 120mVp-p 120mVp-p 150mVp-p
Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1µF & 47µF parallel capacitor
VOLTAGE ADJ. RANGE 4.75 ~ 5.5V 10.8 ~ 13.2V 13.5 ~ 16.5V 21.6 ~ 26.4V VOLTAGE TOLERANCE ±2.0% ±1.0% ±1.0% ±1.0%
Tolerance: includes set up tolerance, line regulation and load regulation.
LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0% LOAD REGULATION ±1.0% ±1.0% ±1.0% ±1.0% SETUP, RISE TIME 100ms, 30ms / 230VAC 100ms, 30ms / 115VAC at full load HOLD UP TIME (Typ.) 100ms / 230VAC 21ms / 115VAC at full load
VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 74% 81% 82% 83% AC CURRENT (Typ.) 0.88A / 115VAC 0.48A / 230VAC INRUSH CURRENT (Typ.) COLD START 15A / 115VAC; 30A / 230VAC
OVERLOAD 105 ~ 160% rated output power
OVERVOLTAGE 5.75 ~ 6.75V 13.8 ~ 16.2V 17.25 ~ 20.25V 27.6 ~ 32.4V
WORKING TEMP. -20 ~ +60˚C (Refer to output load derating curve) WORKING HUMIDITY 20 ~ 90% RH non-condensing STORAGE TEMP., HUMIDITY -40 ~ +85˚C, 10 ~ 95% RH TEMP. COEFFICIENT ±0.03% / ˚C (0 ~ 50˚C) VIBRATION Component: 10 ~ 500Hz, 2G 10min. / 1cycle, 60 min. each long X,Y, Z axes MOUNTING Compliance to IEC60068-2-6
SAFETY STANDARDS UL60950-1
WITHSTAND VOLTAGE I/P-O/P: 3KVAC ISOLATION RESISTANCE I/P-O/P: 100M Ohms / 500VDC EMI CONDUCTION & RADIATION Compliance to EN55011
HARMONIC CURRENT Compliance to EN61000-3-2,-3 EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; EN55024; ENV50204; EN61000-6-2; EN61204-3;
MTBF 441.5K hrs min. MIL-HDBK-217K (25˚C) DIMENSION 78x93x56mm (WxHxD) PACKING 0.27Kg; 48pcs / 14Kg / 1.02CUFT
rotection type: Constant current limiting recovers automatically after fault condition is removed
P
Protection type: Shut down overvoltage, clamping by zener diode
EN60950-1 compliant Design refer to EN50178
EN55022 (CISPR22) Class B
heavy industry level; criteria A
The power supply is considered a component which will installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25˚C of ambient temperature
-20 0 1 0 20 30 4 0 50 60 70 (V E R T I C A L )
20
40
60
80
100
93
6
5555
5
3
4
2
3
7.75
1
78
12.2
7
8
45
68
27.4
3
4
7
56
CIRCUIT
DETE CTION
O.L.P.
EMI
FILTER
RECTIFIERS
&
FILTER
POWER
SWITCH-
FILTER
&
RECTIFIERS
+V
-V
I/P
ING
CONTROL
O.V.P.
85 10095120115 160140 200180 240220 264
Ta=25
90
100
80
70
60
50
40
AMBIENT TEMPERATURE (°C) INPUT VOLTAGE (VAC) 60Hz
LOAD
(%)
LOAD
(%)
Terminal Pin. No Assignment
Pin No.
2
15,6
3,4
7 8
Assignment Pin No. Assignment
+V
AC/L AC/N
-V LED +V ADJ.
Block Diagram
Mechanical Specification
Output Derating VS Input VoltageDerating Curve
Note: All dimensions are in millimeters, to convert to inches multiply by 0.03937.
OUTPUT
INPUT
PROTECTION
ENVIRONMENT
SAFETY & EMC
OTHERS
PS-45 Series
Specifications
Features:
• Universal AC input / full range
• Protections: Short Circuit / Overload / Over Voltage/ Overtemperature
• Cooling by free air convection
• DIN rail mountable
• UL508 approved
• LED indicator for power on
• Fix switching frequency at 100kHz
• 100% full load burn-in test
• 3 year warranty
Cat. No. PS-4505 PS-4512 PS-4515 PS-4524
DC VOLTAGE 5V 12V 15V 24V RATED CURRENT 5A 3.5A 2.8A 2A CURRENT RANGE 0 ~ 5A 0 ~ 3.5A 0 ~ 2.8A 0 ~ 2A RATED POWER 25W 42W 42W 48W RIPPLE & NOISE (max) 100mVp-p 200mVp-p 240mVp-p 480mVp-p
Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1µF & 47µF parallel capacitor
VOLTAGE ADJ. RANGE 4.75 ~ 5.5V 10.8 ~ 13.2V 13.5 ~ 16.5V 21.6 ~ 26.4V VOLTAGE TOLERANCE ±2.0% ±1.0% ±1.0% ±1.0%
Tolerance: includes set up tolerance, line regulation and load regulation.
LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0% LOAD REGULATION ±1.0% ±1.0% ±1.0% ±1.0% SETUP, RISE TIME 800ms, 60ms / 230VAC at full load HOLD UP TIME (Typ.) 60ms / 230VAC at full load
VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 72% 77% 77% 80% AC CURRENT (max.) 1.5A / 115VAC 0.75A / 230VAC INRUSH CURRENT (Typ.) COLD START 28A / 115VAC; 56A / 230VAC LEAKAGE CURRENT 1mA / 240VAC
OVERLOAD 105 ~ 160% rated output power
Protection type: Constant current limiting recovers automatically after fault condition is removed
OVERVOLTAGE 5.75 ~ 6.75V 13.8 ~ 16.2V 17.25 ~ 20.25V 27.6 ~ 32.4V
Protection type: Shut down overvoltage, clamping by zener diode
OVERTEMPERATURE Tj 135˚C typically (U1) detect on heat sink of power transistor
Protection type: Shut down overvoltage, re-power on to recover
WORKING TEMPERATURE -10 ~ +50˚C (Refer to output load derating curve) WORKING HUMIDITY 20 ~ 90% RH non-condensing STORAGE TEMP., HUMIDITY -20 ~ +85˚C, 10 ~ 95% RH TEMP. COEFFICIENT ±0.03% / ˚C (0 ~ 50˚C) VIBRATION Component: 10 ~ 500Hz, 2G 10min. / 1cycle, 60 min. each long X,Y, Z axes MOUNTING Compliance to IEC60068-2-6
SAFETY STANDARDS UL508
EN60950-1 compliant WITHSTAND VOLTAGE I/P-O/P: 3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC (25°C; 70% RH) EMI CONDUCTION & RADIATION Compliance to EN55011; EN55022 (CISPR22) Class B HARMONIC CURRENT Compliance to EN61000-3-2,-3 EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204; EN55024; EN61000-6-2;
heavy industry level; criteria A
The power supply is considered a component which will installed into a final equipment.
The final equipment must be re-confirmed that it still meets EMC directives.
MTBF 364.6K hrs min. MIL-HDBK-217K (25˚C) DIMENSION 93x78x67mm (LxWxH) PACKING 0.31Kg; 48pcs / 16.1Kg / 1.3CUFT
All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25˚C of ambient temperature
77
93
8
.5
78
7
.
5
67
29
PWM
CIRCUIT
DETEC TION
EMI
FILTER
RECTIFIERS
&
FILTER
POWER
SWITCH-
FILTER
&
RECTIFIERS
+V
-V
ING
CONTROL
I/P
FG
-10 0 10 20 30 40 5 0 6 0 ( V E R T IC A L )
20
40
60
80
100
Ta=25
20080
8
70
12
16
20
24
140100 120 180160
28
32
260240220
50
100
150
200
250
300
350
AMBIENT TEMPERATURE (°C) INPUT VOLTAGE (VAC) 60Hz
LOAD
(%)
LOAD
(%)
O
UTPU
T RIPP
LE (m
Vp-p)
1
7
4
2
3
5
6
8
9
2
1 6,7
3
4,5
8 9FG
DC OUTPUT-V
AC/L AC/N
DC OUTPUT+V LED +V ADJ.
T
erminal Pin. No Assignment
P
in Assignment Pin Assignment
Block Diagram
Mechanical Specification
Static Characteristic (24V)Derating Curve
Note: All dimensions are in millimeters, to convert to inches multiply by 0.03937.
OUTPUT
INPUT
PROTECTION
ENVIRONMENT
SAFETY & EMC
OTHERS

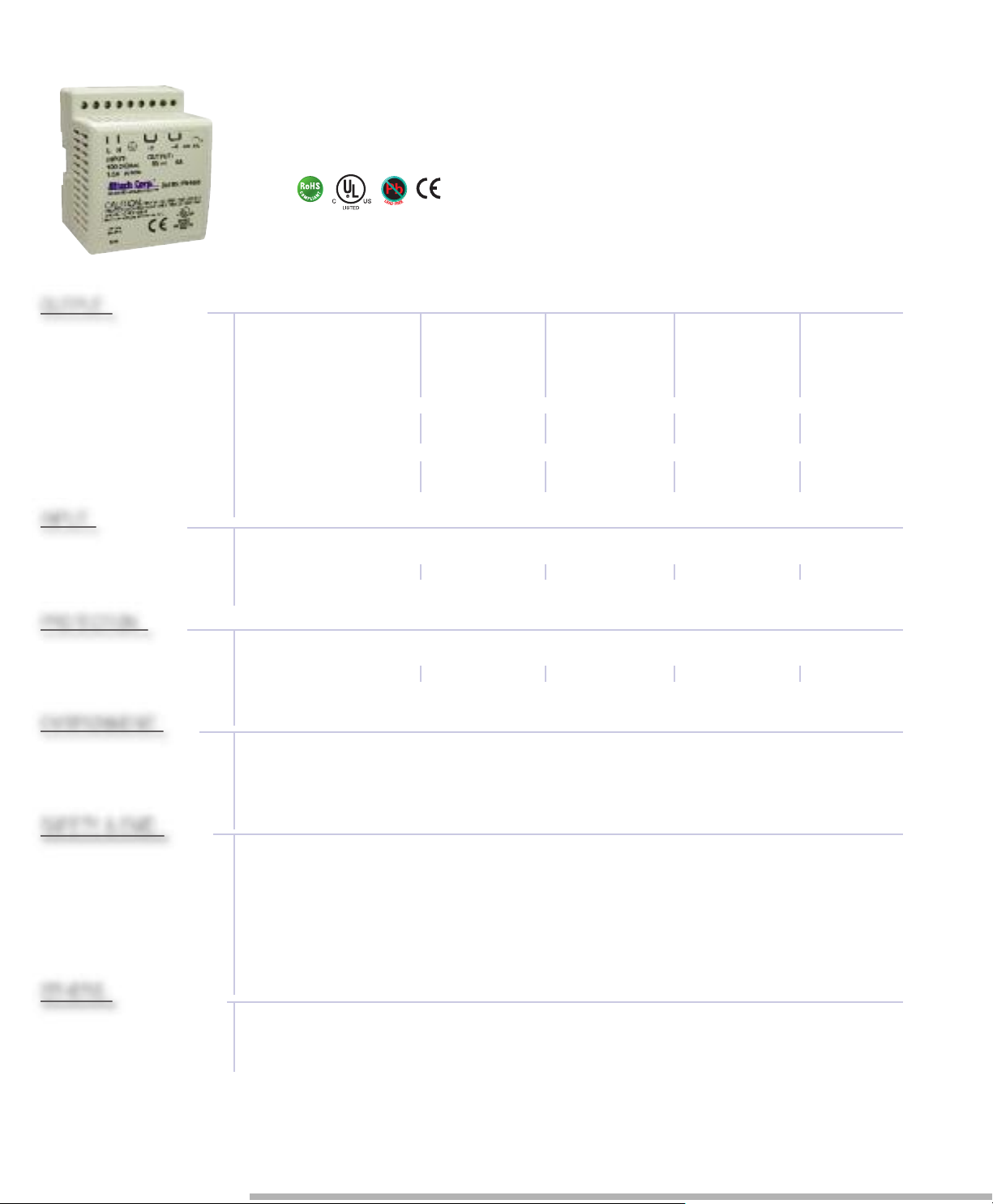

PS-60 Series
Specifications
Features:
• Universal AC input / full range
• Protections: Short Circuit / Overload / Over Voltage
• Cooling by free air convection
• DIN rail mountable
• Isolation class II
• LED indicator for power on
• 100% full load burn-in test
• 3 year warranty
Cat. No. PS-6005 PS-6012 PS-6015 PS-6024
DC VOLTAGE 5V 12V 15V 24V RATED CURRENT 6.5A 4.5A 4A 2.5A CURRENT RANGE 0 ~ 6.5A 0 ~ 4.5A 0 ~ 4A 0 ~ 2.5A RATED POWER 32.5W 54W 60W 60W RIPPLE & NOISE (max) 80mVp-p 120mVp-p 120mVp-p 150mVp-p
R
VOLTAGE ADJ. RANGE 4.75 ~ 5.5V 11.1 ~ 13.2V 13.5 ~ 16.5V 21.6 ~ 26.4V VOLTAGE TOLERANCE ±2.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0% LOAD REGULATION ±1.0% ±1.0% ±1.0% ±1.0% SETUP, RISE TIME 100ms, 30ms / 230VAC 200ms, 30ms / 115VAC at full load HOLD UP TIME (Typ.) 100ms / 230VAC 23ms / 115VAC at full load
VOLTAGE RANGE 85 ~ 264VAC 124 ~ 370VDC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 76% 82% 83% 84% AC CURRENT (max.) 1.2A / 115VAC 0.8A / 230VAC INRUSH CURRENT (Typ.) COLD START 18A / 115VAC; 36A / 230VAC
OVERLOAD 105 ~ 160% rated output power
OVERVOLTAGE 5.75 ~ 6.75V 13.8 ~ 16.2V 17.25 ~ 20.25V 27.6 ~ 32.4V
WORKING TEMP. -20 ~ +60˚C (Refer to output load derating curve) WORKING HUMIDITY 20 ~ 90% RH non-condensing STORAGE TEMP., HUMIDITY -40 ~ +85˚C, 10 ~ 95% RH TEMP. COEFFICIENT ±0.03% / ˚C (0 ~ 50˚C) VIBRATION 10 ~ 500Hz, 2G 10min. / 1cycle, 60 min. each long X,Y, Z axes MOUNTING Compliance to IEC60068-2-6
SAFETY STANDARDS UL60950-1
WITHSTAND VOLTAGE I/P-O/P: 3KVAC ISOLATION RESISTANCE I/P-O/P: 100M Ohms/500VDC (25°C; 70% RH) EMI CONDUCTION & RADIATION Compliance to EN55011
HARMONIC CURRENT Compliance to EN61000-3-2,-3 EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204; EN55024; EN61000-6-2; EN61204-3;
MTBF 216.2K hrs min. MIL-HDBK-217K (25˚C) DIMENSION 78x93x56mm (WxHxD) PACKING 0.3Kg; 48pcs / 15.4Kg / 1.02CUFT
ipple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1µF & 47µF parallel capacitor
olerance: includes set up tolerance, line regulation and load regulation.
T
Protection type: Constant current limiting recovers automatically after fault condition is removed
Protection type: Shut down overvoltage, re-power on to recover
EN60950-1 compliant
Design refer to EN50178
EN55022 (CISPR22) Class B
heavy industry level; criteria A
The power supply is considered a component which will installed into a final equipment. The final equipment must be re-confirmed
that it still meets EMC directives.
All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25˚C of ambient temperature
-20 0 10 2 0 3 0 40 50 60 70 ( V E R T I C A L )
20
40
60
80
100
PWM
CIRCUIT
DETEC TION
O.L.P.
EMI
FILTER
RECTIFIERS
&
FILTER
POWER
SWITCH-
FILTER
&
RECTIFIERS
+V
-V
I/P
ING
CONTROL
O.V.P.
3
45
68
93
27.4
47
56
6
5
555
534
2
3
7.75
1
78
12.2
7
8
AMBIENT TEMPERATURE (°C)
LOAD
(%)
INPUT VOLTAGE (VAC) 60Hz
LOAD
(%)
Output Derating VS Input Voltage
85 10095120115 160140 200180 240220 264
Ta=25
90
100
80
70
60
50
40
Block Diagram
Mechanical Specification
Derating Curve
Terminal Pin. No Assignment
Pin No.
2
15,6
3,4
7 8
Assignment Pin No. Assignment
+V
AC/L AC/N
-V LED +V ADJ.
Note: All dimensions are in millimeters, to convert to inches multiply by 0.03937.
OUTPUT
INPUT
PROTECTION
ENVIRONMENT
SAFETY & EMC
OTHERS

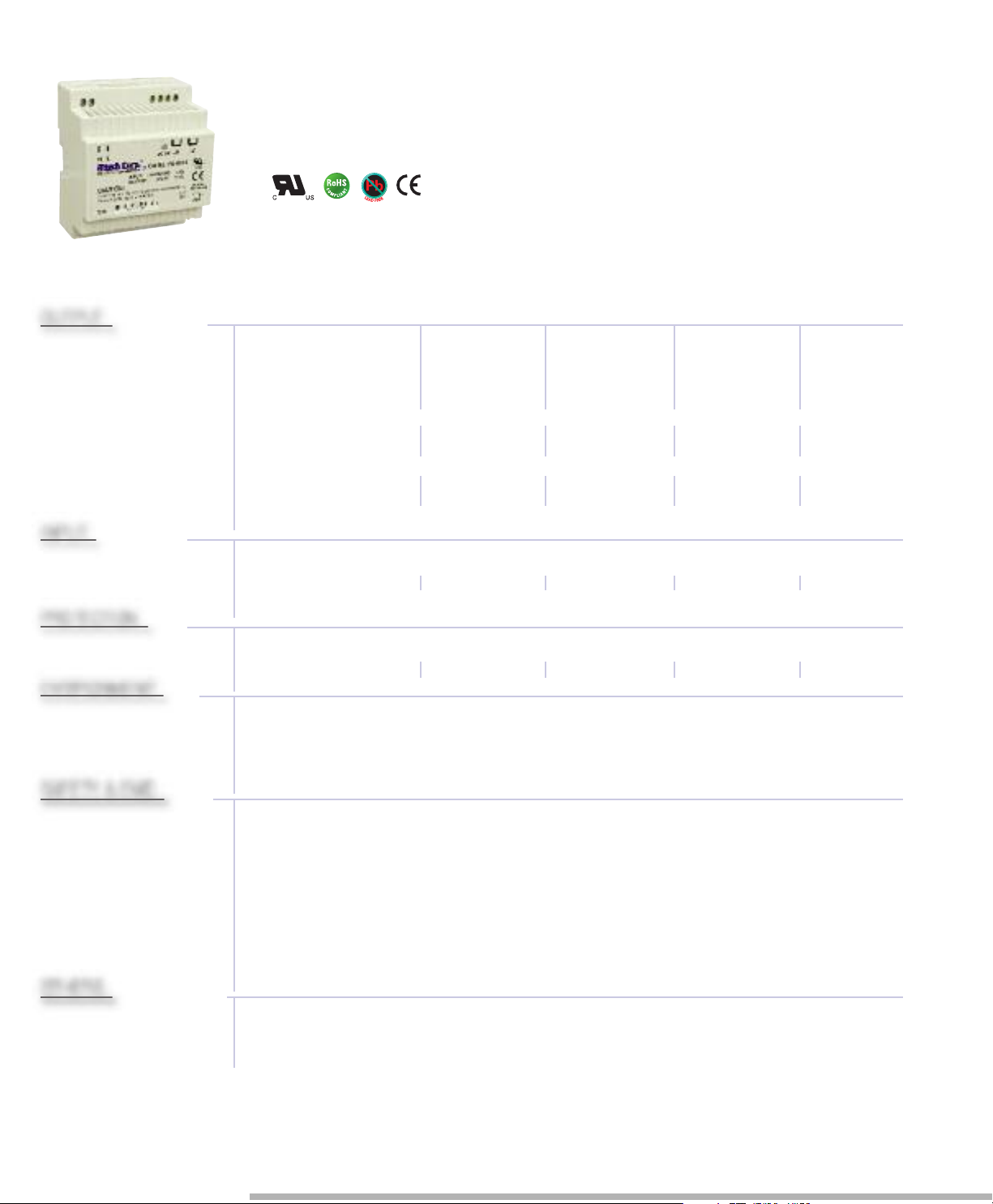

PS-100 Series
Specifications
Features:
• Universal AC input / full range
• Protections: Short Circuit / Overload / Over Voltage / Overtemperature
• Cooling by free air convection
• DIN rail mountable
• Isolation class II
• LED indicator for power on
• No load power consumption <1W
• 100% full load burn-in test
• 3 year warranty
Cat. No. PS-10012 PS-10015 PS-10024
DC VOLTAGE 12V 15V 24V RATED CURRENT 7.5A 6.5A 4.2A CURRENT RANGE 0 ~ 7.5A 0 ~ 6.5A 0 ~ 4.2A RATED POWER 90W 97.5W 100.8W RIPPLE & NOISE (max) 120mVp-p 120mVp-p 150mVp-p
Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1µF & 47µF parallel capacitor.
VOLTAGE ADJ. RANGE 12 ~ 15V 15 ~ 18V 24 ~ 29V VOLTAGE TOLERANCE ±2.0% ±1.0% ±1.0%
Tolerance: includes set up tolerance, line regulation and load regulation.
LINE REGULATION ±1.0% ±1.0% ±1.0% LOAD REGULATION ±1.0% ±1.0% ±1.0% SETUP, RISE TIME 2700ms, 80ms / 230VAC 2700ms, 80ms / 115VAC at full load HOLD UP TIME (Typ.) 50ms / 230VAC 18ms / 115VAC at full load
VOLTAGE RANGE 88 ~ 264VAC 124 ~ 370VDC [ Connect AC/L(+), AC/N(-) ] FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 87% 87% 89% AC CURRENT (max.) 3A / 115VAC 1.6A / 230VAC INRUSH CURRENT (Typ.) COLD START 30A / 115VAC; 45A / 230VAC
OVERLOAD 105 ~ 135% rated output power
OVERVOLTAGE 16 ~ 20V 19 ~ 23V 30 ~ 35V
OVERTEMPERATURE 90˚C ± 15˚C (RTH2) detect on heat sink of power transistor
WORKING TEMP. -20 ~ +60˚C (Refer to output load derating curve) WORKING HUMIDITY 20 ~ 90% RH non-condensing STORAGE TEMP., HUMIDITY -40 ~ +85˚C, 10 ~ 95% RH TEMP. COEFFICIENT ±0.03% / ˚C (0 ~ 50˚C) VIBRATION 10 ~ 500Hz, 2G 10min. / 1cycle, 60 min. each long X,Y, Z axes MOUNTING Compliance to IEC60068-2-6
SAFETY STANDARDS UL60950-1
WITHSTAND VOLTAGE I/P-O/P: 3KVAC ISOLATION RESISTANCE I/P-O/P: 100M Ohms/500VDC (25°C; 70% RH) EMI CONDUCTION & RADIATION Compliance to EN61204-3; EN55022 (CISPR22) Class B HARMONIC CURRENT Compliance to EN61000-3-2,-3
EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204; EN55024; EN61000-6-2; EN61204-3;
MTBF 486K hrs min. MIL-HDBK-217K (25˚C) DIMENSION 100x93x56mm (WxHxD) PACKING 0.35Kg; 36pcs / 13.6Kg / 0.89CUFT NOTE All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25˚C of ambient temperature.
Protection type: Constant current limiting recovers automatically after fault condition is removed Under short circuit or overload 150% conditions, output voltage may shut down for 5 sec. and then go into constant current protection mode
Protection type: Shut down overvoltage, re-power on to recover
Protection type: Shut down overvoltage, re-power on to recover
EN60950-1 compliant Design refer to EN50178
Harmonic current test @ 90% load
heavy industry level; criteria A
The power supply is considered a component which will installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
-20 0 1 0 20 30 40 4 5 50 60 70 (VE RTICAL )
20
40
60
80
100
PW M
CIR CU IT
DET EC TION
O.L .P.
EM I
FILTE R
REC TIFI ER S
&
FILTE R
POWE R
SWITC HI NG
FILTE R
&
REC TIFIE RS
+V
-V
I/ P
CON TR OL
O. V.P.
88 10095120110 160140 200180 240220 264
Ta=25
90
100
80
70
60
50
40
45
68
93
8
3
27.
4
47
56
5555
2
456
3
6
4.7
5
1
100
7.
5
7
Block Diagram
M
echanical Specification
AMBIENT TEMPERATURE (°C)
LOAD
(%)
Derating Curve
INPUT VOLTAGE (VAC) 60Hz
LOAD
(%)
Output Derating VS Input Voltage
Terminal Pin. No Assignment
Pin No.
2
1
5,6
3,4
7 8
Assignment Pin No. Assignment
+V
A
C/L
AC/N
-
V LED +V ADJ.
Note: All dimensions are in millimeters, to convert to inches multiply by 0.03937.
Loading...
