Alta Wireless AC Current Meters Specification

Download

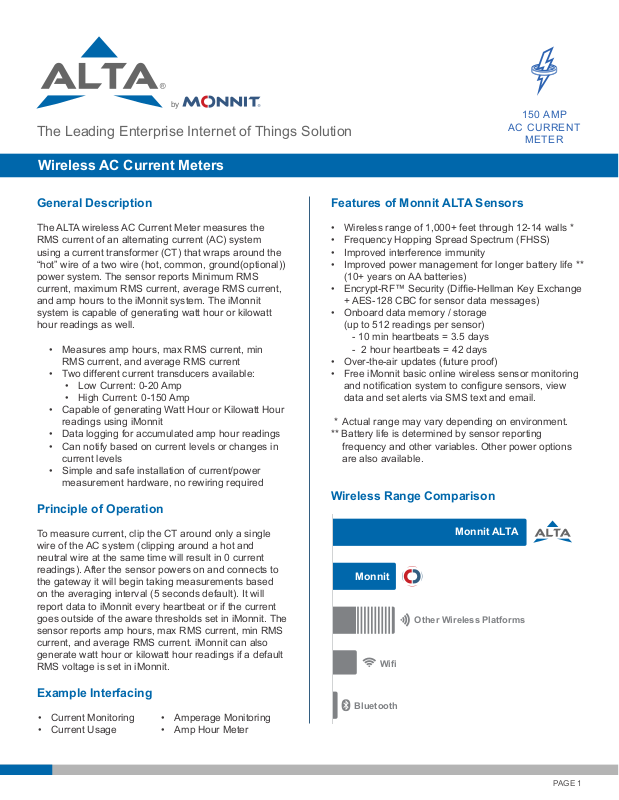

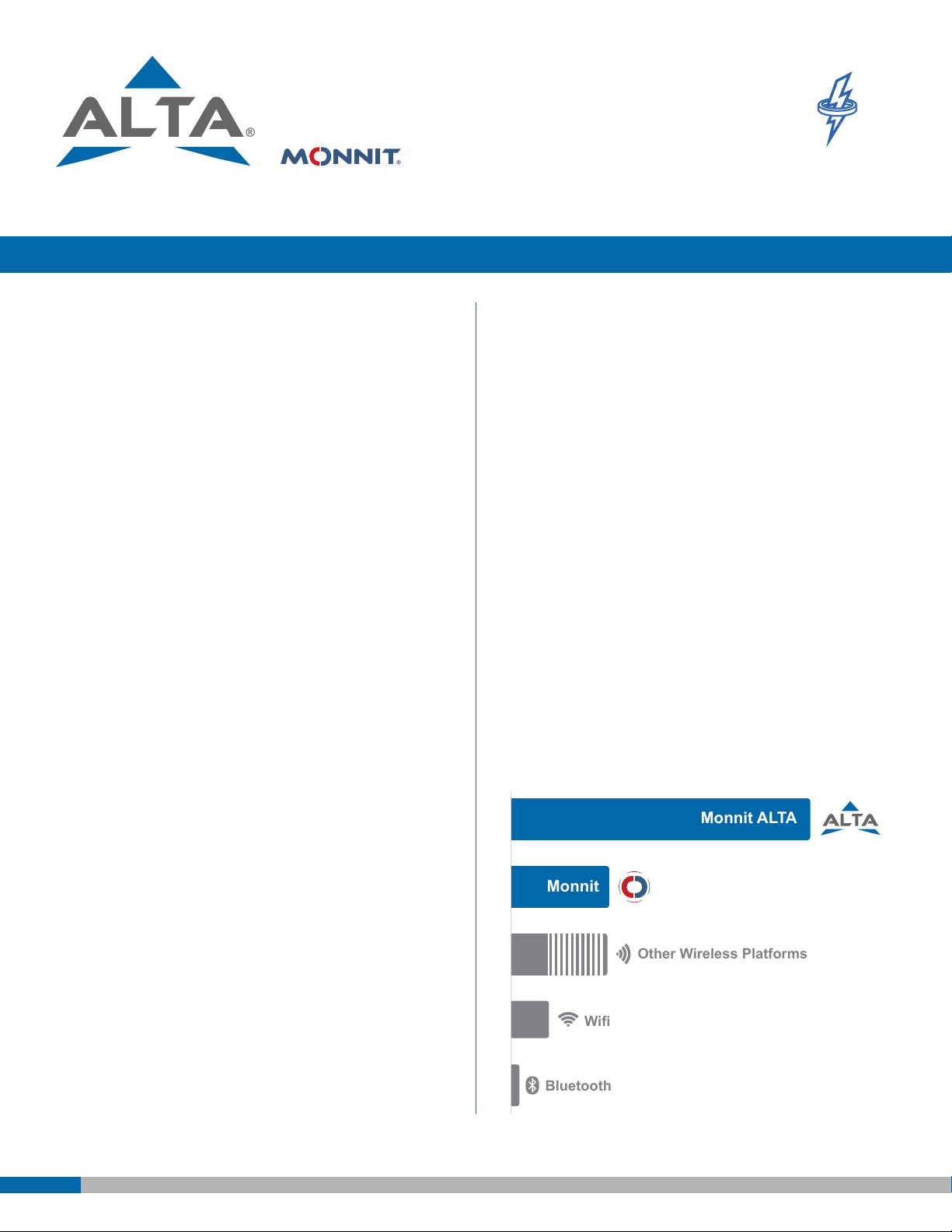

Page 1

Monnit ALTA

Monnit

Other Wireless Platforms

Wifi

Bluetooth

Wireless Range Comparison

METER

The Leading Enterprise Internet of Things Solution

Wireless AC Current Meters

150 AMP

AC CURRENT

General Description

The ALTA wireless AC Current Meter measures the RMS current of an alternating current (AC) system using a current transformer (CT) that wraps around the “hot” wire of a two wire (hot, common, ground(optional)) power system. The sensor reports Minimum RMS current, maximum RMS current, average RMS current, and amp hours to the iMonnit system. The iMonnit system is capable of generating watt hour or kilowatt hour readings as well.

• Measures amp hours, max RMS current, min RMS current, and average RMS current

• Two different current transducers available:

• Low Current: 0-20 Amp

• High Current: 0-150 Amp

• Capable of generating Watt Hour or Kilowatt Hour readings using iMonnit

• Data logging for accumulated amp hour readings

• Can notify based on current levels or changes in current levels

• Simple and safe installation of current/power measurement hardware, no rewiring required

Principle of Operation

Features of Monnit ALTA Sensors

• Wireless range of 1,000+ feet through 12-14 walls *

• Frequency Hopping Spread Spectrum (FHSS)

• Improved interference immunity

• Improved power management for longer battery life ** (10+ years on AA batteries)

• Encrypt-RF™ Security (Dife-Hellman Key Exchange + AES-128 CBC for sensor data messages)

• Onboard data memory / storage (up to 512 readings per sensor)

- 10 min heartbeats = 3.5 days

- 2 hour heartbeats = 42 days

• Over-the-air updates (future proof)

• Free iMonnit basic online wireless sensor monitoring

and notication system to congure sensors, view

data and set alerts via SMS text and email.

* Actual range may vary depending on environment. ** Battery life is determined by sensor reporting frequency and other variables. Other power options are also available.

Wireless Range Comparison

To measure current, clip the CT around only a single wire of the AC system (clipping around a hot and neutral wire at the same time will result in 0 current readings). After the sensor powers on and connects to the gateway it will begin taking measurements based on the averaging interval (5 seconds default). It will report data to iMonnit every heartbeat or if the current goes outside of the aware thresholds set in iMonnit. The sensor reports amp hours, max RMS current, min RMS current, and average RMS current. iMonnit can also generate watt hour or kilowatt hour readings if a default RMS voltage is set in iMonnit.

Example Interfacing

• Current Monitoring

• Current Usage

• Amperage Monitoring

• Amp Hour Meter

PAGE 1

Page 2

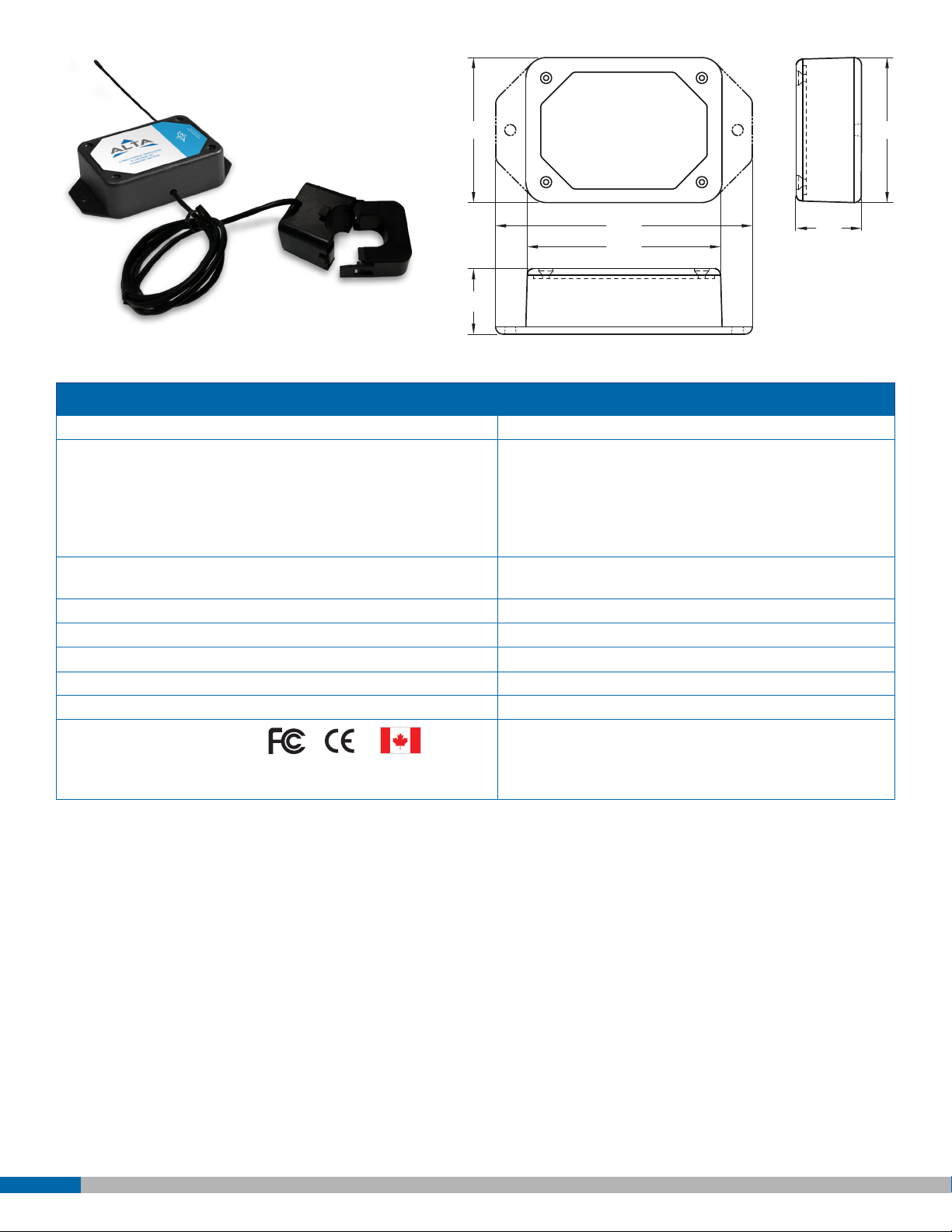

2.470

4.375

3.295

1. 111

ALTA Commercial AA Wireless AC Current Meter - Technical Specications

Supply Voltage 2.0 - 3.8 VDC (3.0 - 3.8 VDC Using Power Supply) *

Current Consumption 0.2 µA (Sleep Mode)

0.7 µA (RTC Sleep) 570 µA (MCU Idle)

2.5 mA (MCU Active)

5.5 mA (Radio RX Mode)

22.6 mA (Radio TX Mode)

Operating Temperature Range (Board Circuitry and Batteries) -18°C to 55°C (0°F to 130°F) using alkaline

-40°C to 85°C (-40°F to 185°F) using lithium **

Optimal Battery Temperature Range (AA) +10°C to +50°C (+50°F to +122°F)

Integrated Memory Up to 512 sensor messages

Wireless Range 1,000+ ft. non-line-of-sight

Security Encrypt-RF™ (256-bit key exchange and AES-128 CTR)

Weight 3.7 Ounces

Certications 900 MHz product; FCC ID: ZTL- G2SC1 and IC: 9794A-

Industry Canada

G2SC1. 868 and 433 MHz product tested and found to comply with: EN 300 220-2 V3.1.1 (2017-02), EN 300 220-2 V3.1.1 (2017-02) and EN 60950.

Hardware cannot withstand negative voltage. Please take care when connecting a power device.

At temperatures above 100°C, it is possible for the board circuitry to lose programmed memory.

Power Options

The standard version of this sensor is powered by two replaceable 1.5 V AA sized batteries (included with purchase).

This sensor is also available with a line power option. The line powered version of this sensor has a barrel power connector allowing it to be powered by a standard 3.0 - 3.6 V power supply. The line powered version also uses two standard 1.5 V AA batteries as backup for un-interupted operation in the event of line power outage.

Power options must be selected at time of purchase, as the internal hardware of the sensor must be changed to support the selected power requirements.

PAGE 2

Page 3

Industrial

Wireless

Sensor

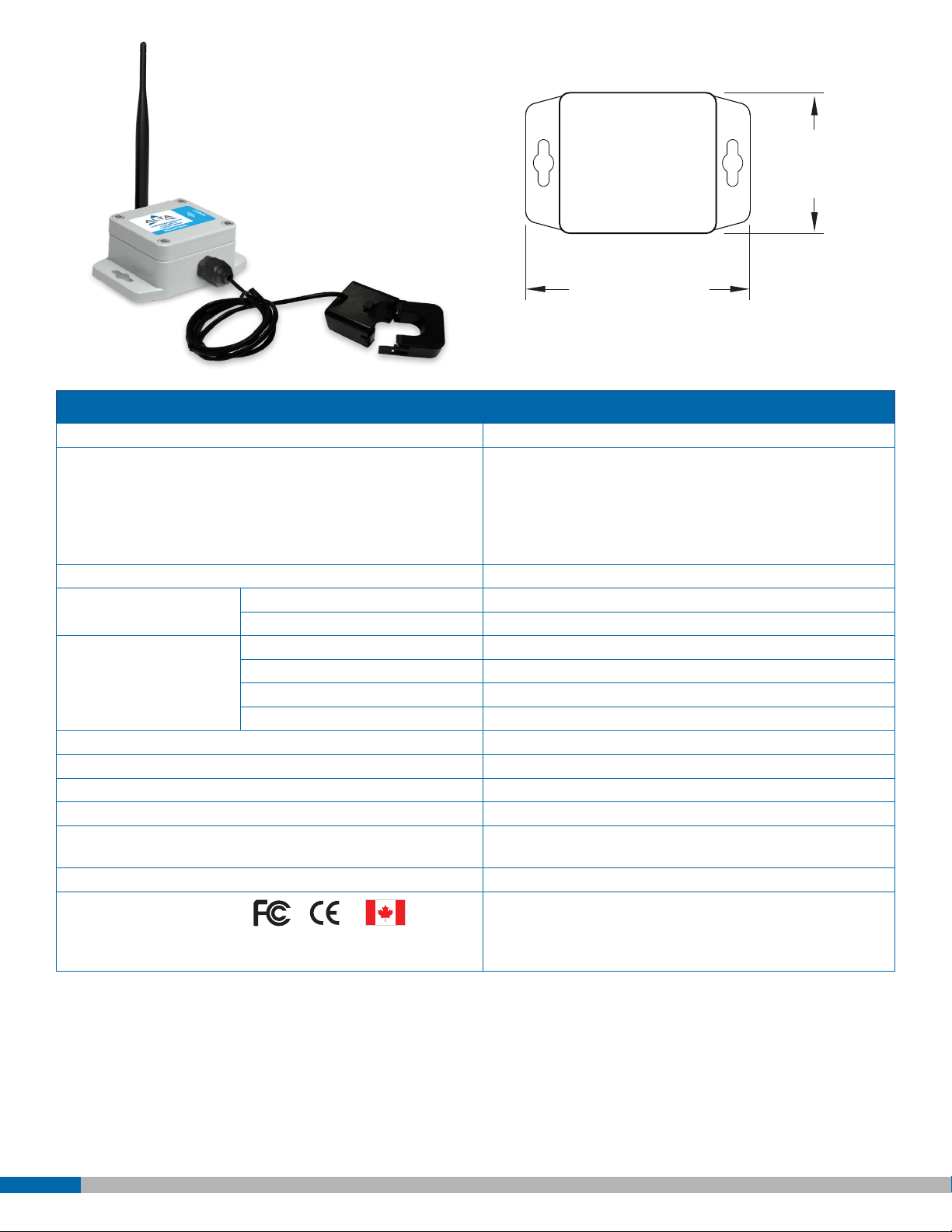

2.316 in

(58.84 mm)

Height:

3.701 in

(94.0 mm)

1.378 in (35.0 mm)

ALTA Industrial Wireless AC Current Meter - Technical Specications

Supply Voltage 2.0 - 3.8 VDC (3.0 - 3.8 VDC Using Power Supply) *

Current Consumption 0.2 µA (Sleep Mode)

0.7 µA (RTC Sleep) 570 µA (MCU Idle)

2.5 mA (MCU Active)

5.5 mA (Radio RX Mode)

22.6 mA (Radio TX Mode)

Operating Temperature Range (Board Circuitry and Battery) -40°C to +85°C (-40°F to +185°F) **

Included Battery Max Temperature Range: -40°C to +85°C (-40°F to +185°F)

Capacity: 1800 mAh

Optional Solar Feature Solar Panel: 5VDC / 30mA (53mm x 30mm)

Charging Temperature Range: 0°C to 45°C (32°F to 113°F)

Max Temperature Range: -20°C to 60°C (-4°F to 140°F)

Included Rechargeable Battery: 600 mAh / >2000 Charge Cycles (80% of initial capacity)

Integrated Memory Up to 512 sensor messages

Wireless Range 1,000+ ft. non-line-of-sight

Security Encrypt-RF™ (256-bit key exchange and AES-128 CTR)

Weight 4.7 Ounces

Enclosure Rating NEMA 1, 2, 4, 4x, 12 and 13 rated, sealed and

weather proof

UL Rating UL Listed to UL508-4x specications (File E194432)

Certications 900 MHz product; FCC ID: ZTL- G2SC1 and IC: 9794A-

Industry Canada

G2SC1. 868 and 433 MHz product tested and found to comply with: EN 300 220-2 V3.1.1 (2017-02), EN 300 220-2 V3.1.1 (2017-02) and EN 60950.

Hardware cannot withstand negative voltage. Please take care when connecting a power device.

At temperatures above 100°C, it is possible for the board circuitry to lose programmed memory.

While the wire leads and thermistor have a water tight seal, the electronics housing (RF portion) is not sealed for wet

***

environments or outdoor use. If needed, we recommend using Monnit industrial water temperature sensors.

PAGE 3

Page 4

0-20 Amp CT Specications

Absolute Max CT Current 50 Amps RMS (Arms)

Maximum Accurate CT Current 20 Arms

Frequency Range 50 – 100 Hz

Accuracy +/- 2% @ 2 to 20 Arms, +/- .07 Arms @ < 2 Arms *

Calibrated Accuracy with Appropriate Offset +/- 1% @ 2 to 20 Arms, +/- .035 Arms @ < 2 Arms *

Offset Limits -1.27 to + 1.27 Arms (default set to +.1 Arms) **

Measurement Resolution ~.01 Arms

Current Transducer Dimensions 40 mm x 25 mm x 26 mm (10 mm inner diameter)

0-150 Amp CT Specications

Absolute Max CT Current 200 Amps RMS (Arms)

Maximum Accurate CT Current 150 Arms

Frequency Range 50 – 100 Hz

Accuracy +/- 2% @ 2 to 150 Arms, +/- .4 Arms @ < 15 Arms *

Calibrated Accuracy with Appropriate Offset +/- 1% @ 2 to 150 Arms, +/- .2 Arms @ < 2 Arms *

Offset Limits -1.27 to + 1.27 Arms (default set to +.3 Arms) **

Measurement Resolution ~.1 Arms

Current Transducer Dimensions 67 mm x 49 mm x 42 mm (24 mm inner diameter)

* CTs are inherently less accurate at or below 10% of max range. For best calibration results calibrate at a current between 30%

and 90% of max accurate range.

** Offset is used to overcome a diode voltage drop inherent to the hardware. To accurately account for this drop a default offset is

used. To best identify the optimal value of this offset make a series of measurements at .2 to 2 Arms and nd the current (Arms)

difference between your measurement standard and the Monnit sensor.

Commercial Grade Sensors:

Monnit commercial grade sensors are designed for applications in ordinary environments (normal room temperature, humidity and atmospheric pressure). Do not use these sensors under the following conditions as these factors can deteriorate the product characteristics and cause failures and burn-out. (Corrosive gas or deoxidizing gas - chlorine gas,

hydrogen sulde gas, ammonia gas, sulfuric acid gas, nitric oxides gas, etc.). Volatile or ammable gas. Dusty conditions.

Under low or high pressure. Wet or excessively humid locations. Places with salt water, oils chemical liquids or organic solvents. Where there are excessively strong vibrations. Other places where similar hazardous conditions exist.)

Use these product within the specied temperature range. Higher temperature may cause deterioration of the

characteristics or the material quality.

Industrial Grade Sensors - Type 1, 2, 4, 4X, 12 and 13 NEMA Rated Enclosure:

Monnit’s Industrial sensors are enclosed in reliable, weatherproof NEMA rated enclosures. Our NEMA rated enclosures are constructed for both indoor or outdoor use and protect the sensor circuitry against the ingress of solid foreign objects like dust as well as the damaging effects of water (rain, sleet, snow, splashing water, and hose directed water).

• Safe from falling dirt

• Protects against wind blown dust

• Protects against rain, sleet, snow, splashing water, and hose directed water

• Increased level of corrosion resistance

• Will remain undamaged by ice formation on the enclosure

For more information about our products or to place an order, please contact our sales department at 801-561-5555.

Visit us on the web at www.monnit.com.

Monnit Corporation 3400 South West Temple Salt Lake City, UT 84115 801-561-5555 www.monnit.com
