Page 1
ø4.55
Rubber
dome
ø6.45
3.5
5
12.7
ø0.5
9
18
5
ø4
12.7
18
1
2
5
2-ø0.9 holes
12

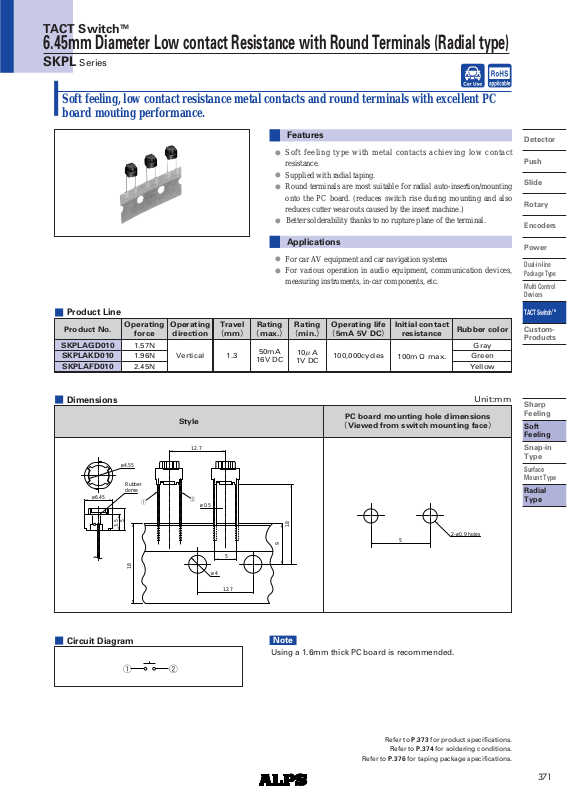

TACT Switch
TM
6.45mm Diameter Low contact Resistance with Round Terminals (Radial type)
SKPL Series
Soft feeling, low contact resistance metal contacts and round terminals with excellent PC
board mouting performance.
Product Line
Product No.
SKPLAGD010
SKPLAKD010
SKPLAFD010
Dimensions
Operating
force
1.57N
1.96N
2.45N
Operating
direction
Vertical
Style
Travel
（mm）
1.3
●
●
●
●
●
●
Rating
（max.）
50mA
16V DC
Features
Soft feeling type with metal contacts achieving low contact
resistance.
Supplied with radial taping.
Round terminals are most suitable for radial auto-insertion/mounting
onto the PC board. (reduces switch rise during mounting and also
reduces cutter wear outs caused by the insert machine.)
Better solderability thanks to no rupture plane of the terminal.
Applications
For car AV equipment and car navigation systems
For various operation in audio equipment, communication devices,
measuring instruments, in-car components, etc.
Rating
（min.）
10BA
1V DC
Operating life
（5mA 5V DC）
100,000cycles
PC board mounting hole dimensions
（Viewed from switch mounting face）
Initial contact
resistance
100mΩ max.
Rubber color
Gray
Green
Yellow
Unit:mm
Detector
Push
Slide
Rotary
Encoders
Power
Dual-in-line
Package Type
Multi Control
Devices
TM
TACT Switch
CustomProducts
Sharp
Feeling
Soft
Feeling
Snap-in
Type
Surface
Mount Type
Radial
Type
Circuit Diagram
Note
Using a 1.6mm thick PC board is recommended.
Refer to P.373 for product specifications.
Refer to P.374 for soldering conditions.
Refer to P.376 for taping package specifications.
371
Page 2
Product Specifications
TACT Switch
TM
Series
Sharp feeling type Soft feeling type
Items
ｰ20℃to＋70℃
Operating temperature range
Insulation resistance
Electrical
performance
Voltage proof
Vibration
SKHJ/HL/QJ/RR/QK
ｰ30℃ to ＋85℃ ｰ40℃ to ＋90℃
100MΩmin. 100V DC
SKEY/PD : 50MΩmin. 100V DC
250V AC for 1minute
SKRE/SC/RB/RM/RW/RR/EY/PD : 100V AC for 1minute
10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies,
in the 3 direction of X, Y and Z for 2hours respectively
Durability
Shall be in accordance with individual specifications.
ｰ30±2℃ for 96h
80±2℃ for 96h
60±2℃, 90 to 95%RH for 96h
Environmental
performance
Lifetime
Cold
Dry heat
Damp heat
Note
The automotive operating temperature range to be individually discussed upon request.
ｰ20℃to＋70℃
SKEG
Detector
Push
Slide
Rotary
Encoders
Power
Dual-in-line
Package Type
Multi Control
Devices
TM
TACT Switch
CustomProducts
Specifications of LED（SKHJ）
Color of
illumination
Red
Pure green
Amber
Orange
（High brightness）
Green
（High brightness）
Power
dissipation
P（mW）
40 80 15
Forward pulse
peak current
IFP（mA）
Forward
current
IFDC（mA）
Reverse
voltage
VR（V）
4
3
4
Forward
voltage
VF（V）
IF=10mA
2.7 max.
2.05TYP
2.7 max.
2.0 TYP
2.7 max.
2.05TYP
Reverse
current
IR（μA）
VR=4V
5 max.
10 max.
Peak
emission
wave length
λpeak（nm）
IF=10mA
700 TYP
555 TYP
590 TYP
630 TYP
565 TYP
Spectral
line half
width
Δλ（nm）
IF=10mA
100 TYP
20 TYP
30 TYP
40 TYP
30 TYP
Luminous
intensity
IV（mcd）
IF=10mA
0.4min.
1.0 TYP
0.8min.
2.0 TYP
0.4min.
1.0 TYP
1.5min.
4.0 TYP
2.0min.
5.0 TYP
Sharp
Feeling
Soft
Feeling
Snap-in
Type
Surface
Mount Type
Radial
Type
373
Page 3
TACT Switch
Soldering Conditions
Condition for Reflow
Available for Surface Mount Type.
1. Heating method: Double heating method with infrared heater.
Detector
Push
Slide
2. Temperature measurement: Thermocouple 0.1 to 0.2φ CA（K）or CC（T）at solder joints（copper foil surface）. A heat resistive tape
3. Temperature profile
TM
should be used to fix thermocouple.
Temperature (˚C )
260˚C max. 3 sec max.
Rotary
Encoders
Power
Dual-in-line
Package Type
Multi Control
Devices
TM
TACT Switch
CustomProducts
Sharp
Feeling
Soft
Feeling
Snap-in
Type
Surface
Mount Type
Radial
Type
（Except SKHJ, SKHL, SKQJ, SKQK, SKEG series）
180
230˚C
150
Time
120secmax.（pre-heating）
40s max.
3 to 4min.
Time inside soldering equipment
Note
1. The above temperature shall be measured on the mounting surface of a PC board. There are cases where the PC
board's temperature greatly differs from that of the switch, depending on the material, size, thickness of PC boards
and others. The above-stated conditions shall also apply to switch surface temperatures.
2. Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is
highly recommended.
Conditions for Auto-dip
Available for Snap-in Type and Radial Type
Items Condition
Flux built-up
Preheating temperature
Preheating time
Mounting surface
should not be exposed to flax
Ambient temperature of the soldered
surface of PC board.
100℃ max.
60s max.
Manual Soldering（Except SKRT series）
Items
Soldering temperature
Duration of soldering
Capacity of soldering iron
Condition
350℃max.
3s max.
60W max.
374
Soldering temperature
Duration of immersion
Number of soldering
260℃ max.
5s max.
2times max.
Notes
1. Consult with us for TACT SwitchTMwashing conditions.
2. Prevent flux penetration from the top side of the TACT Switch
TM
.
3. Switch terminals and a PC board should not be coated with flux prior to soldering.
4. The second soldering should be done after the switch returns to normal temperature.
5. Use the flux with a specific gravity of min 0.81.
（EC-19S-8 by TAMURA Corporation, or equivalents.）
Page 4
Specification of Radial Taping Package
Taping Packaging for Auto-insertion
The SKQK, SKQN, SKRC, SKRG, SKPD and SKPL series are delivered with taping packaging.
TACT Switch
TM
Box Size
Detector
Push
Slide
Rotary
C
B
Quantity Accommodated Per Box
A
Unit:mm
Series
SKQK
SKPD
SKQN
SKRGAL to AS
SKRGAA to AF
SKPL
SKRC
A B C
47 331 291
48
43
55
235
334
340
337 370
Series
SKQK
SKPD
SKRG
SKQN
SKRC
SKPL
Qty/reel（pcs.）
（Minimum
packing unit）
1,000
800
2,000
900
2,700
Encoders
Power
Dual-in-line
Package Type
Multi Control
Devices
TM
TACT Switch
CustomProducts
Sharp
Feeling
Soft
Feeling
Snap-in
Type
Surface
Mount Type
Radial
Type
377
