User's Manual
g
e
Product name : Immobilizer base station
Type : TWK1A0028
It communicates with IC used both as Transponder and Passive RKE
through LF ANT(Z axis) of I-key H/U, and operates as ANT to exchange
communication data depending on community signal with BCM.
The immobilizer antenna communicates with the transponder in the hand
unit when the hand unit is brought close, and receives the code of the key.
The immobilizer is used by bringing the hand unit close as shown in
HUND UNIT

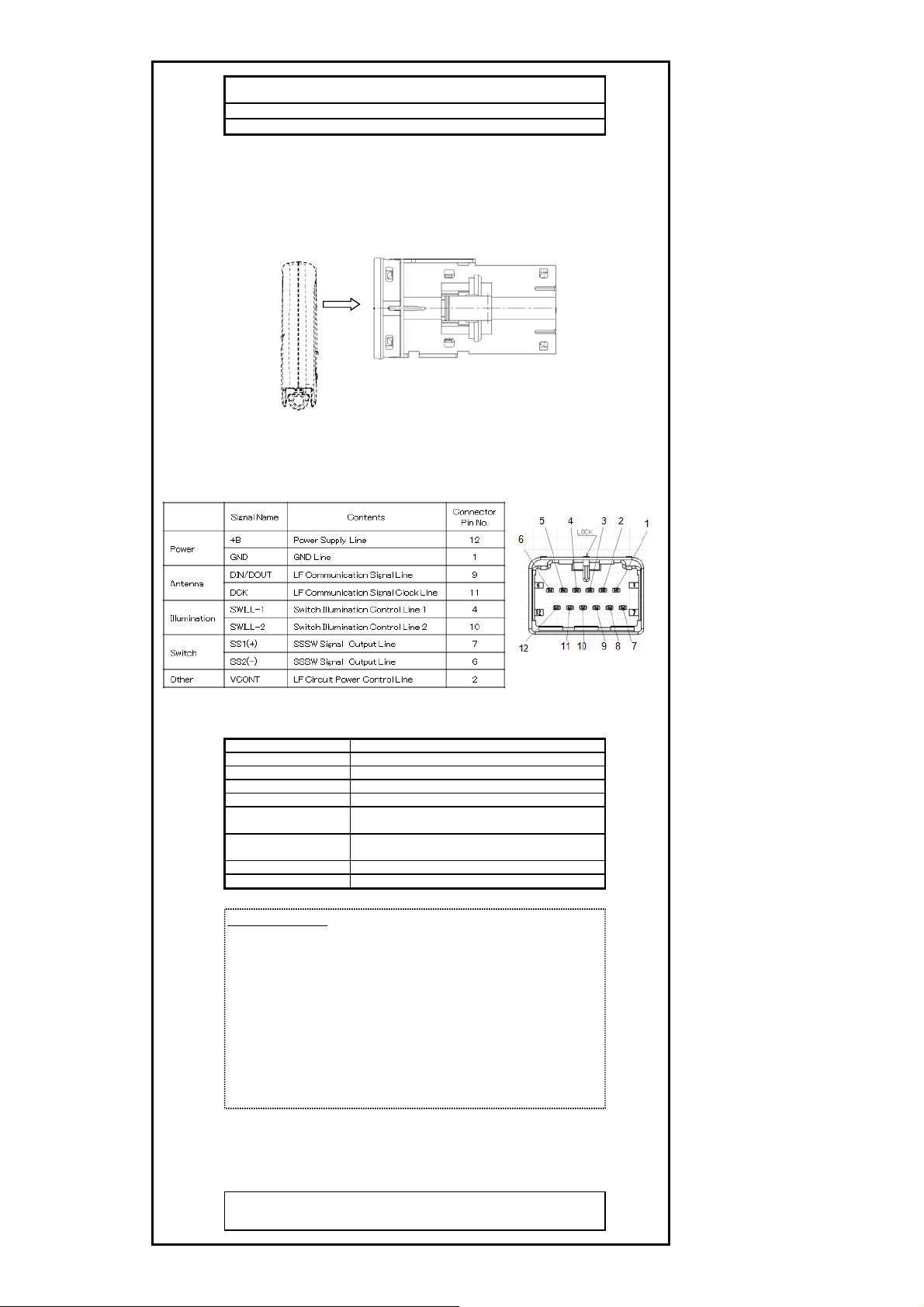

The connector is arranged as shown in the figure below
Immobilizer base station
CONNECTORPINLAYOUT
AC/DC Supply
Range of voltage
Consumption current Under 1.0mA（Standby current）
Size
Operating voltage DC6～16V(Inner:DC 5V)
Operating temperatur
range
Consumption curren
spec
Weight
Operation of frequency 125kHz
MAX 200mA
MAX 1.0mA(@12.5V 25℃) at standby
DC12V
DC6V～16V
W40.2xL70xH40.2（mm）
-40~＋85 degree C
12.5V 2
℃
at operation
0.054kg
■CAUTION■
Pay attention to the following.
(The operation range might be changed by the environment. )
・Do not contact and brin
key.
・It may not be operated when using the equipment of the same
frequency band in the vicinity.
Please DO NOT the following. Engine is not started by failure of
electronic parts. (Product can not receive the signal correctly)
・Give a shock.
・Get it wet. If it got wet, wipe and dry up.
・Disassembly and modification.
This device complies with Part 15 of FCC Rules and RSS-Gen of IC
Rules. Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of
FCC WARNING
Chan
es or modifications not expressly approved by the party responsibl
for compliance could void the user’s authority to operate the equipment
metals close to the engine SW and th
