Cautions for Safe Repair Work>
Do not look squarely into the laser light
Fuse Caution
coming from the pickup.
Do not allow wiring to be caught in the
Battery Caution
screw/chassis.
High Temperature Caution
Designated Parts Caution
Reverse Power Supply Connections or
Wiring Caution
Misconnections Caution
Soldering Caution
Wear Gloves
Warning
Caution
Warning
Caution
The following cautions will prevent accidents in the workplace and will ensure safe products.
*The symbols indicate caution is needed to prevent injuries and damage to property.
The symbols and their meanings follow.
*The following symbols indicate two levels of cautions.
When you see this symbol, you have to be very careful.
When you see this symbol, you have to follow the instructions there.
If you ignore this symbol and handle the product incorrectly or unsafely,
serious injury or death may result.
If you ignore this symbol and handle the product incorrectly or unsafely,
injury or only material damage may result.
You may loose you sight.
Always use a designated fuse.
Use of an incorrect fuse may result in a fire.
If wiring is caught in the screw/chassis, it may Confirm the correct polarity and seat of the
cause a short circuit, resulting in a fire.
Touching the heat sink may cause severe burns. Look up the part list and ensure that only
Reverse power supply connections or
misconnections may cause ignition problems and
smoke may result.
Hot solder from solder splash may cause severe Wear gloves to prevent electrical shocks or injury
burns.
Use the designated battery.
battery.
An incorrect battery or an improperly connected
or seated battery may result in a fire.
designated parts are used to prevent problems or
accidents.
Ensure that the wiring is correct when rewiring to
prevent problems with ignition/breakdown.
from the end face of the metal.
Page 3
Packing Method View
103
106
108
X4
107
X4
104
102101
105
Page 4
101 68-13530Z78 MANUAL,OWNER'S
$1 102 68-13530Z79 MANUAL,OWNER'S(I,G,S)
103 01E42129S01 CONN,ASSY 8P
104 15E42152S01 COVER,TERMINAL-L
105 15E42153S01 COVER,TERMINAL-R
106 03E36690S01 WRENCH,2.5X2.9
107 03E40419S01 SCR,M4X20(BLK)
108 03E39167S01 SCR,M3X12(P)(BLK)
Page 5
Mark Model Code
#1 MRX-M100(North American) Only,
$1 MRX-M100(European) Only,
%1 MRX-M100(General Foreign) Only,
Others:Common.
NOTE:The part that has not PART NUMBER will not be supplied.
#####
Page 6
Specifications
Power Output
T.H.D.
Residual Noise (Input Short)
(
2) 22KHz LPF + IHF
-AVol max : 600uV
Vol cent : 250uV
S/N Ratio (Input Short)
Frequency Response (Ref.Output 1W/4ohm, 100Hz)
10Hz :
-
1.0±2dB
Input Sensitivity
(1) SP-IN
VOL-MAX : 0.5V
±
3dB
(Ref.Output 600W/4ohm, 100Hz)
(
2) RCA
-INVOL-MAX : 0.2V
±
3dB
SUB-SONIC Filter
LPF Characteristic
BASS-EQ Characteristic (Ref.Output 1W/4ohm, 100Hz (VR Min = 0dB Setting))
Pre-Out Level
(Ref. RCA
-
INPUT 1Vrms,100Hz)
(2) Frequency Response
10Hz :
-
1.0±2dB
Remote Bass Control
Current Drain
NOTE : Due to Continuing product improvement, specifications and designs are subject to change without notice.
(1) 20Hz, 4ohm, 1.0% T.H.D. (14.4V) 600W
100Hz, 4ohm, 1.0% T.H.D. (14.4V) 600W
(2) 20Hz, 2ohm, 1.0% T.H.D. (14.4V) 1000W
100Hz, 2ohm, 1.0% T.H.D. (14.4V) 1000W
(3) 20Hz, 1ohm, 1.0% T.H.D. (14.4V) 500W
100Hz, 1ohm, 1.0% T.H.D. (14.4V) 500W
(1) 10W/4ohm at 20Hz / 100Hz (14.4V) 0.04%
600W/4ohm at 20Hz / 100Hz (14.4V) 0.50%
(2) 10W/2ohm at 20Hz / 100Hz (14.4V) 0.08%
1000W/2ohm at 20Hz / 100Hz (14.4V) 1.00%
(1) NON-FILTER + AUX-0025 4mV
Vol min : 200uV
(1) Ref.Output 1W/4ohm, CEA-2006-A 80dB
(2) Ref.Output 600W/4ohm 107dB
Output Offset Voltage at 4ohm (No Signal)
400Hz : -3.0±2dB
±
30mV
VOL-MIN : 10V±3dB
(1) 30Hz (VR Max Position) -3.0±2dB
(Ref.Output 1W/4ohm, 100Hz) (2) 15Hz (VR Cent Position) -3.0±2dB
(1) 400Hz (VR Max Position) -3.0±2dB
(Ref.Output 1W/4ohm, 100Hz) (2) 50Hz (VR Min Position) -3.0±2dB
VOL-MIN : 4.0V±3dB
(Ref.Output 1W/4ohm, 100Hz) (2) VOL MIN Position -20dB±2dB
Remote On Voltage
Input Impedance (Reference)
Fuse Requirement
Power Source
Dimensions (W x H x D)
Weight
(1) 50Hz (VR Max Position) 12dB±2dB
(1) Level 0dB±2dB
40KHz : -1.0±2dB
(1) VOL MAX Position 0dB±2dB
(1) No Signal 2A
(2) 1.0% T.H.D. at 2ohm, 100Hz 125A
(3) Remote Current Drain 0.33mA±0.2mA
(4) Back Up Current Drain 0.1mA
5.5V~7.5V
15.5kohm±20%
25A(Peak) x 4 (For Battery Line)
DC14.4V (11~16V)
341.2 x 58 x 229.2mm
3.8kg
Page 7
Block Diagram
Analog Block
Digital Amplifier Block
Remote Bass
Control
RCA Input
Channel 1
SP Input
RCA Input
Channel 2
Preout Output
Channel 1
Preout Output
Channel 2
Power Block
Remote Sense
LED
Remote +B
Power Supply
Input
Buffer
Input
Buffer
Preout
Input Input
Isolator
u-COM +5V
NJM78L05UA
12V REG
BAJ2CC0FP
PWM Control
NCV494BD
PWM wave 21.3kHz
Gain Vol
Subsonic
MOSFET
IRF3205 2para*2
MOSFET
IRF3205 2para*2
1st Capacitor
2200/25V 3para
1st Capacitor
2200/25V 3para
LPF LEVEL DLEVEL C LEVEL B
Trans
4:12:7
Bass EQ
2nd Capacitor
2700/63V 3para
Analog +15V
+15V
-15V
VSS
VCC
uCOM5V
NJM7815FA
Analog -15V
NJM7915FA
Trans
4:12:7
2nd Capacitor
2700/63V 3para
VSS+12V
KTC4370A
Current
Limiter
VSS+12V
Inverted
Buffer
Feedback
APC tech
APC tech
Feedback
FET
Thermal Detect
uCOM
TMP87C847U
B Detect
BD5243G
PWM wave 315kHz
PWM Control/
FET Driver
IRS20956S
CSD Control
CSD Control
PWM Control/
FET Driver
IRS20956S
uCOM Block
MCLK
7.7M
crystal
OSC
Current Detect
and Logic
MOSFET
IRFB5615 2para
MOSFET
IRFB5615 2para
D_AMP_STB
MOSFET
IRFB5615 2para
MOSFET
IRFB5615 2para
LC Filter
Speaker
Output
LC Filter
Output Coil
Thermal Detect
Trans
Thermal Detect
Internal Temp.
Thermal Detect
2nd Voltage
Detect
Reset
BD5240G
Page 8
Page 9

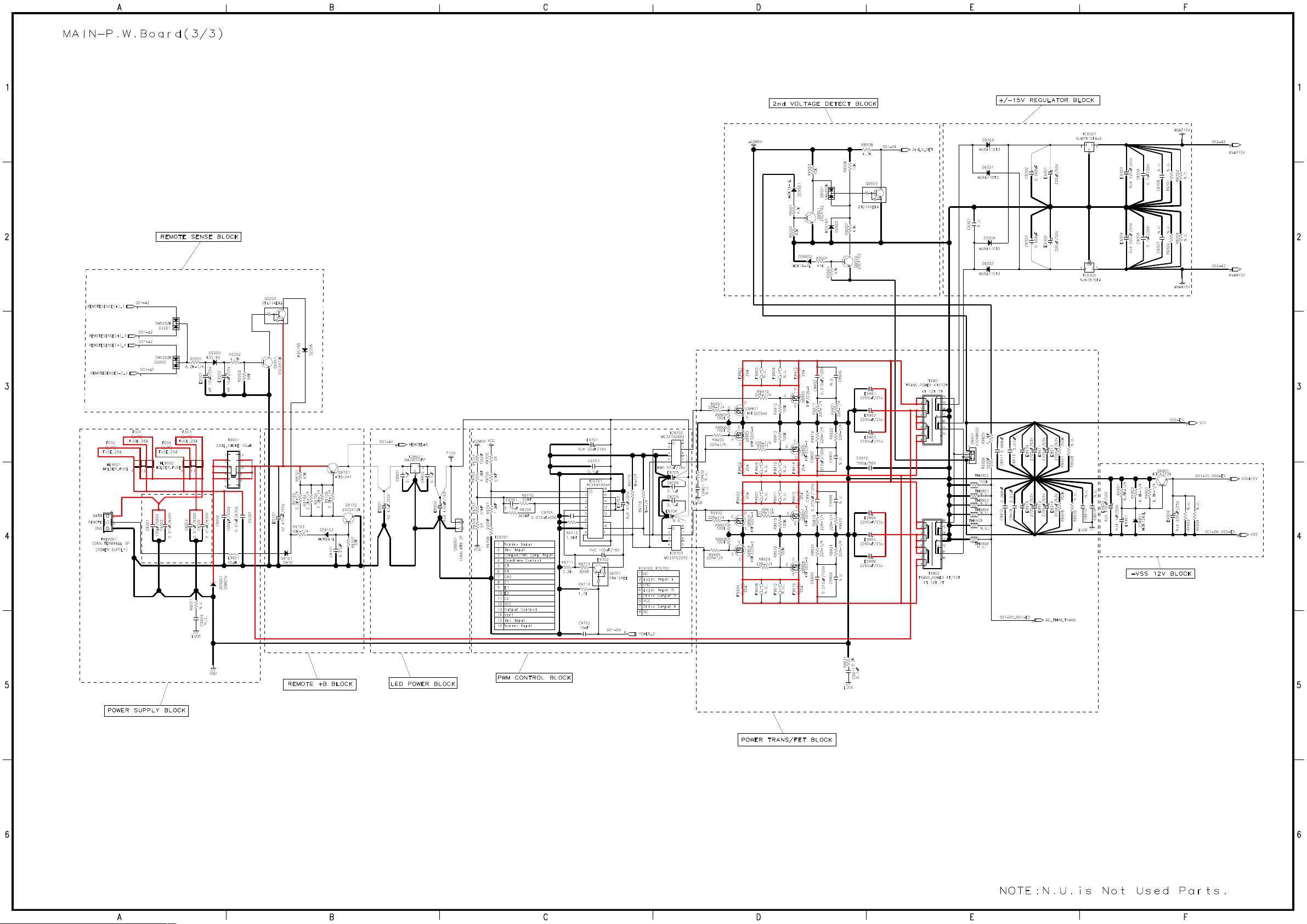

Page 10
Page 11
Page 12

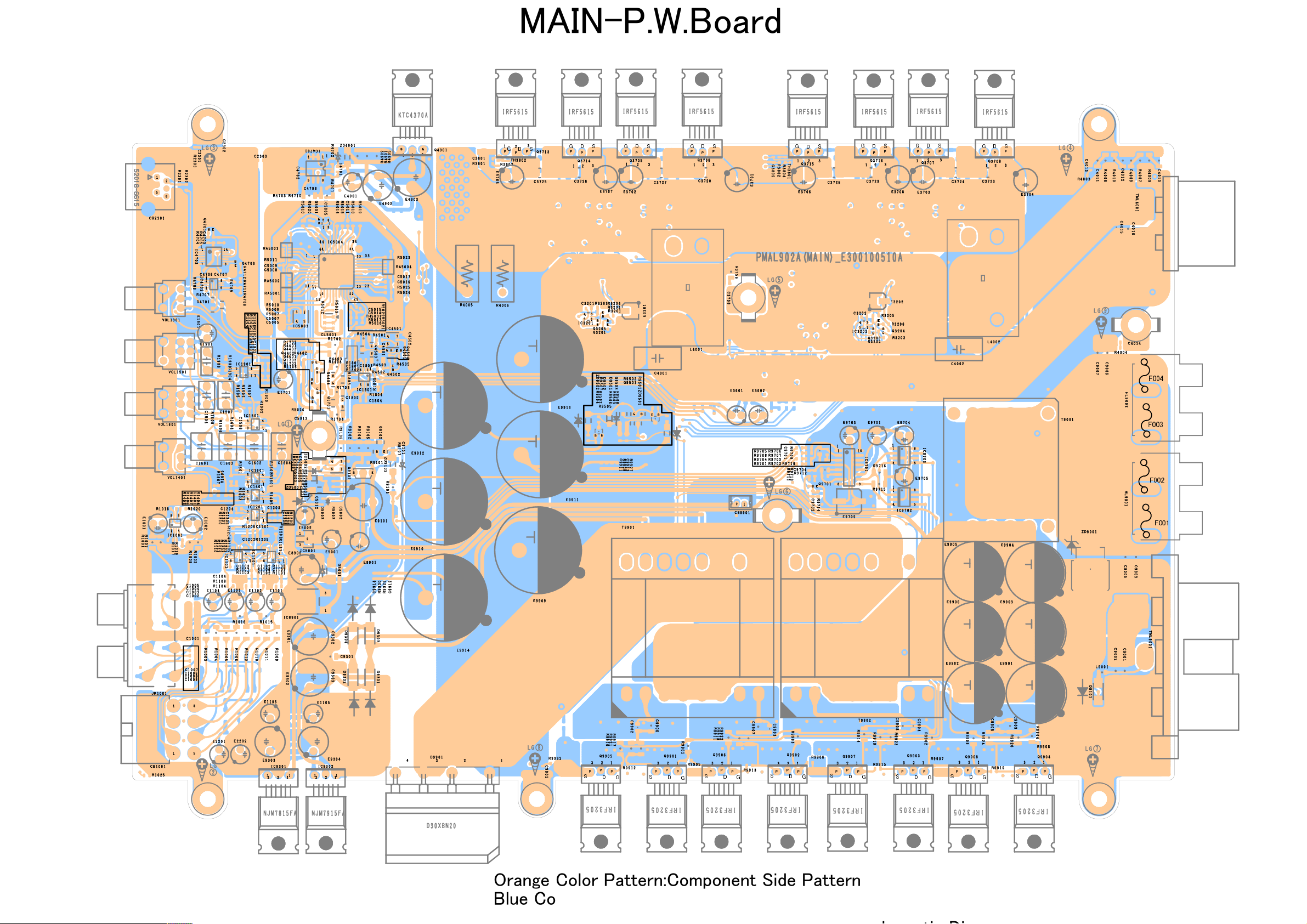

MAIN-P.W.Board
G
S
D
SGD
SGD
SGD
G
S
D
SGD
SGD
G
S
D
F004
F003
F002
F001
S
D
G
S
D
S
D
G
G
S
D
S
G
D S
G
D
S
D
G
G
S
D
G
Orange Color Pattern:Component Side Pattern
Blue Color Pattern:Foil Side Pattern
Page 13
MAIN-P.W.Board
Orange Color Pattern:Component Side Pattern
Blue Color Pattern:Foil Side Pattern
Page 14

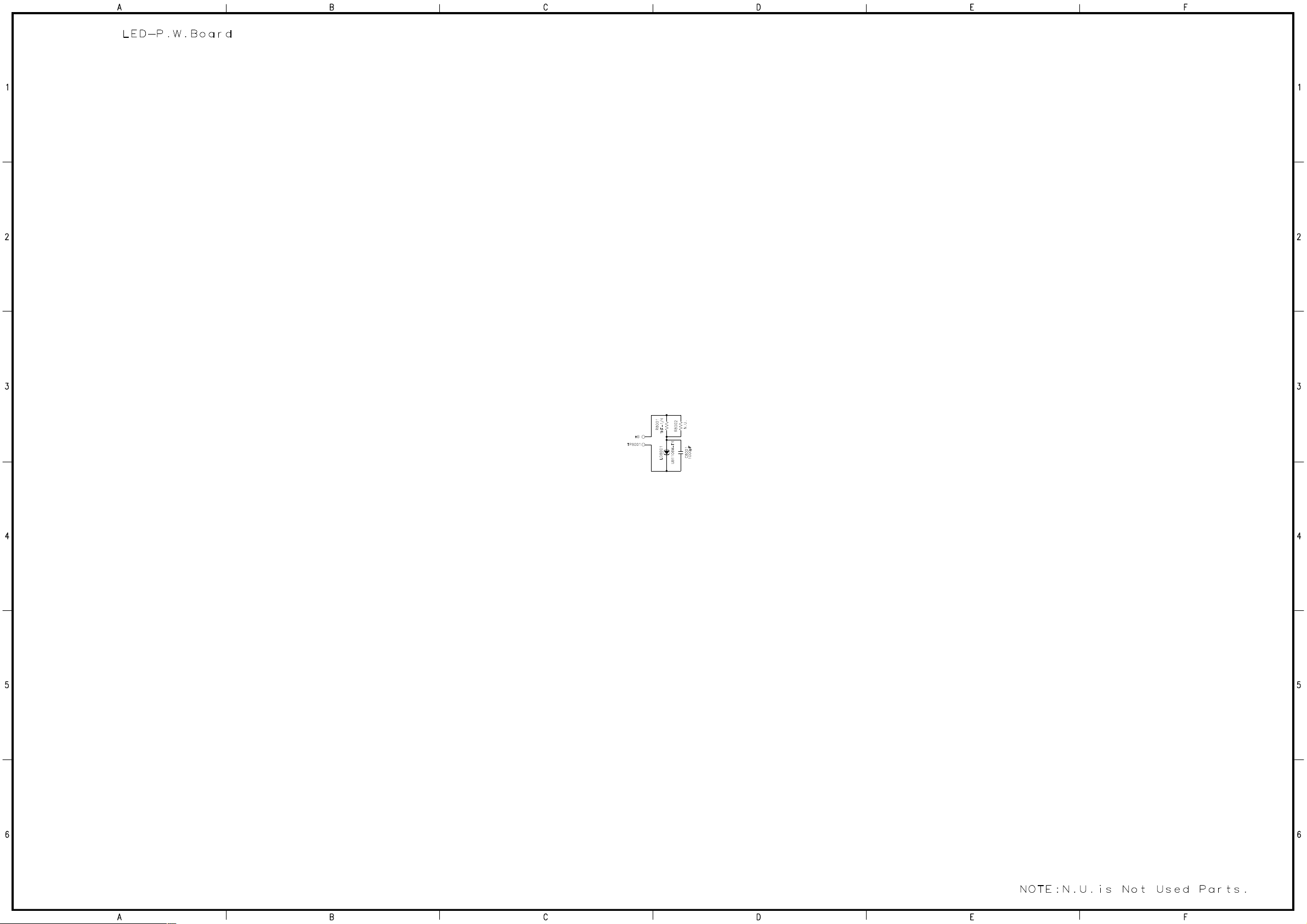

LED-P.W.Board

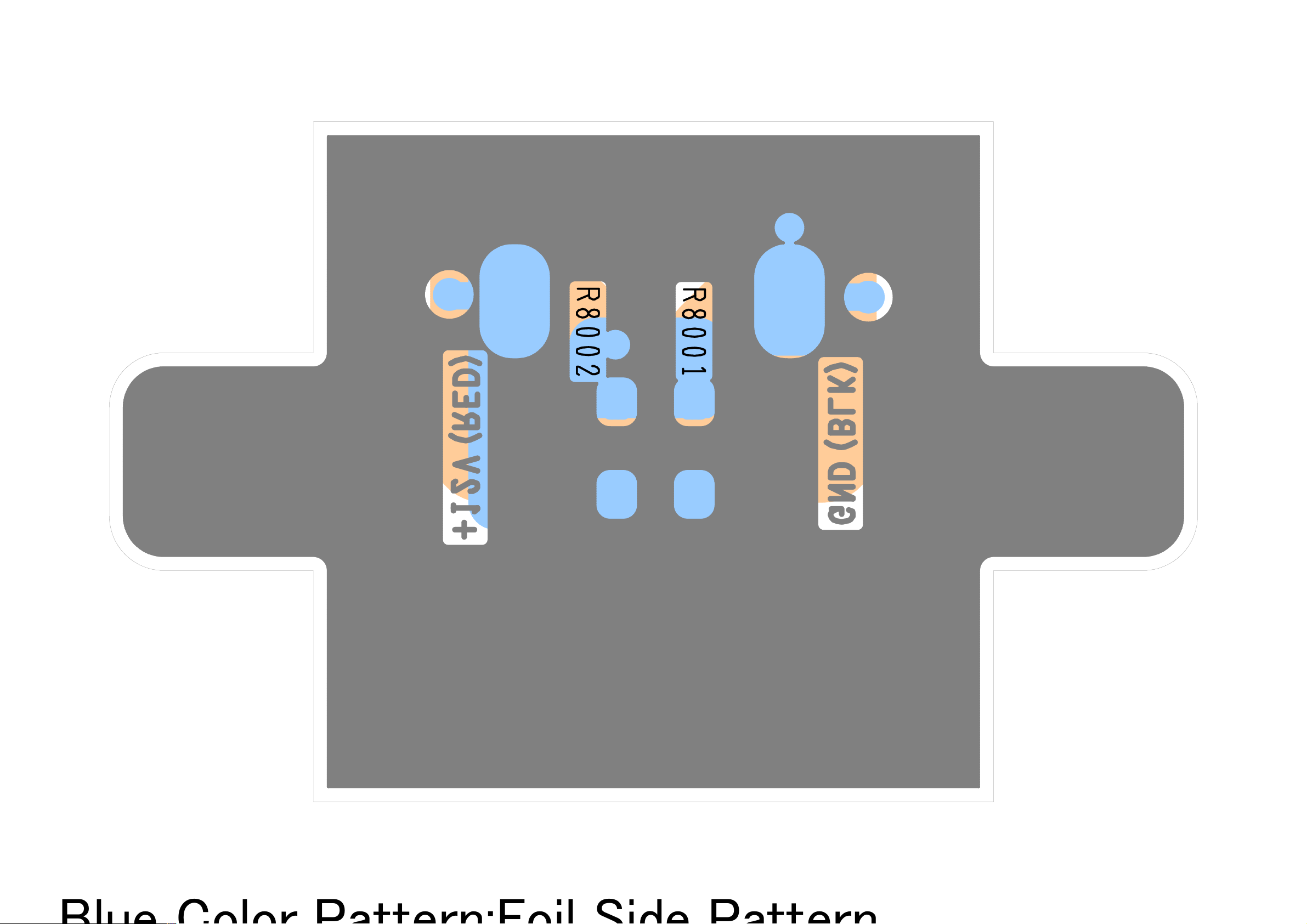

Orange Color Pattern:Component Side Pattern
Page 15
Orange Color Pattern:Component Side Pattern
LED-P.W.Board
Page 16
Terminal Voltage of IC/TR
1] IC [Unit : V]
IC1001 (BA4560) IC1101 (BA4560) IC1102 (BA4560) IC1201 (BA4560) IC1401 (BA4560)
1 0.05 1 0.07 1 0.07 1 0.05 1 0.04
2 0.05 2 0.07 2 0.07 2 0.06 2 0.05
3 0.05 3 0.07 3 2.10 3 0.06 3 0.05
4 -15.14 4 -15.14 4 -15.14 4 -15.14 4 -15.14
5 0.05 5 0.21 5 0.07 5 0.06 5 0.04
6 0.05 6 0.17 6 0.07 6 0.59 6 0.04
7 0.05 7 0.22 7 0.07 7 0.48 7 0.05
8 15.09 8 15.09 8 15.08 8 15.08 8 15.08
IC1501 (BA4560) IC1601 (BA4560) IC1801 (BA4560) IC1901 (BA4560) IC3201 (KIC7S00FU)
1 0.05 1 0.00 1 0.04 1 0.05 1 5.07
2 0.05 2 0.00 2 0.04 2 0.05 2 0.06
3 0.05 3 0.00 3 0.05 3 0.06 3 0.05
4 -15.14 4 -14.85 4 -15.14 4 -15.14 4 5.07
5 0.05 5 0.00 5 0.05 5 0.06 5 5.07
6 0.05 6 0.00 6 0.05 6 0.06
7 0.05 7 0.00 7 0.04 7 0.06
8 15.08 8 14.92 8 15.08 8 15.08
IC3202 (KIC7S00FU) IC3601 (NJM4580) IC3701 (IRS20956S)
1 5.07 1 0.01 1 10.22 9 -42.80
2 0.10 2 0.04 2 9.91 10 -36.60
3 0.05 3 0.04 3 0.00 11 -31.45
4 5.07 4 -14.85 4 0.03 12 -42.60
5 5.06 5 0.00 5 -41.00 13 -0.21
6 0.00 6 -37.60 14 0.00
7 0.00 7 -39.10 15 -14.61
8 14.92 8 -42.80 16 0.86
IC3702 (IRS20956S) IC4501 (BD5228G) IC4701 (BA2903) IC4702 (BA4560)
1 10.21 9 -42.80 1 1.77 1 -42.80 1 -3.77
2 9.91 10 -36.60 2 4.82 2 -42.80 2 0.00
3 0.00 11 -31.45 3 0.00 3 -42.80 3 0.00
4 0.03 12 -42.60 4 - 4 -42.80 4 -14.87
5 -41.00 13 -0.15 5 2.95 5 -42.60 5 3.79
6 -37.60 14 0.00 6 -42.70 6 3.81
7 -39.10 15 -14.64 7 -42.60 7 3.79
8 -42.80 16 0.92 8 -31.37 8 14.92
IC4703 (74VHC74)
1 0.00 8 5.02 1 0.05 1 5.07 1 5.02
2 0.00 9 0.00 2 11.31 2 7.55 2 4.53
3 0.00 10 5.02 3 5.07 3 0.05 3 0.05
4 0.00 11 0.00 4 0.00 4 0.00
5 5.03 12 5.03 5 3.71 5 2.34
6 5.03 13 5.03
7 0.00 14 5.03
IC5004 (TMP87C847UG)
1 4.98 12 5.06 23 0.11 34 0.08 1 0.00
2 4.98 13 0.05 24 0.16 35 5.02 2 4.94
3 4.98 14 5.06 25 0.57 36 5.06 3 0.05
4 4.98 15 1.79 26 0.63 37 5.07 4 0.05
5 5.07 16 2.21 27 0.48 38 5.01 5 5.07
6 5.07 17 0.05 28 0.08 39 5.00
7 5.05 18 5.07 29 5.02 40 5.07
8 5.05 19 3.81 30 5.02 41 4.94
IC5001
IC5002 (BD5243G) IC5003 (BD5240G)
IC5005
IC8901
Page 17
9 5.05 20 4.32 31 5.02 42 5.07 1 14.30
10 5.04 21 4.61 32 0.00 43 5.01 2 0.05
11 5.04 22 3.71 33 5.06 44 5.07 3 12.01
IC9301 (NJM7815) IC9701 (NCV494) IC9702 (MC33152) IC9703 (MC33152)
1 24.39 1 0.05 9 5.12 1 0.00 1 0.00
2 0.05 2 5.00 10 5.12 2 5.12 2 5.12
3 15.08 3 0.09 11 12.01 3 0.04 3 0.04
4 0.04 12 12.01 4 5.12 4 5.13
IC9302 (NJM7915) 5 1.62 13 5.03 5 5.67 5 5.67
1 0.05 6 3.46 14 5.03 6 12.01 6 12.00
2 -24.30 7 0.04 15 5.03 7 5.67 7 5.67
3 -15.16 8 12.01
[Measuring Conditions]
1. Power Supply Voltage : DC 14.4V
2. Measuring Meter : Digital Multi Voltmeter
3. Measuring Point Reference : Between GND
4. Measuring Condition : No Signal Input
16 0.04 8 0.00 8 0.00
Page 18
Terminal Voltage of IC/TR
2] FET & TR [Unit : V]
FET G D S FET G D S
Q3705 10.82 0.04 -0.22 Q9901 5.58 14.36 0.00
Q3706 -36.50 -0.21 -42.50 Q9902 5.58 14.36 0.00
Q3707 10.82 42.60 -0.21 Q9903 5.61 14.36 0.00
Q3708 -36.50 -0.22 -42.50 Q9904 5.59 14.36 0.00
Q3713 10.85 42.70 -0.21 Q9905 5.60 14.36 0.00
Q3714 -36.50 -0.21 -42.40 Q9906 5.58 14.36 0.00
Q3715 10.84 42.70 -0.22 Q9907 5.61 14.54 0.00
Q3716 -36.40 -0.19 -42.40 Q9908 5.61 14.54 0.00
TR E B C TR E B C
Q1701 0.05 -15.11 0.05 Q3717 0.00 0.00 4.94
Q1702 15.09 14.95 -15.12 Q3718 -37.40 -37.60 -31.47
Q1703 0.05 0.08 14.95 Q3719 0.00 0.00 4.96
Q2201 0.04 0.04 14.28 Q3720 -37.40 -37.60 -31.47
Q2202 14.31 14.29 0.00 Q4401 0.05 5.02 0.06
Q3201 5.07 5.07 0.05 Q4402 0.05 0.06 14.95
Q3202 5.07 5.07 0.05 Q4403 15.08 14.95 -15.12
Q3203 0.05 0.05 9.91 Q4404 0.05 -15.12 0.04
Q3204 0.05 0.05 9.91 Q4501 0.00 1.84 0.00
Q3205 5.07 9.91 0.05 Q4502 14.92 14.78 -14.58
Q3206 5.07 9.91 0.09 Q4503 0.00 -14.81 0.00
Q3603 -11.83 -11.21 -0.26 Q4504 0.00 0.05 14.95
Q3606 -14.53 -14.92 -40.70 Q4701 0.05 -42.30 0.04
Q3607 -14.53 -14.92 -40.70 Q4703 0.04 0.04 5.25
Q3701 0.00 0.00 -0.86 Q4901 -30.89 -30.33 0.04
Q3702 -37.90 -37.50 -42.80 Q5001 0.05 0.05 5.07
Q3703 0.00 0.00 -0.87 Q9101 14.46 13.70 14.43
Q3704 -37.90 -37.50 -42.80 Q9102 0.00 0.74 0.17
Q3709 9.99 10.61 0.02 Q9501 0.04 0.69 0.06
Q3710 -37.90 -37.60 -42.80 Q9502 -42.30 -41.70 -42.30
Q3711 10.01 10.60 0.10 Q9503 0.04 0.25 5.06
Q3712 -37.90 -37.60 -42.80 Q9701 5.03 4.94 0.04
TR 1 2 3 4 5
Q3601 0.00 0.00 0.00 0.01 0.00
TR 1 2 3 4 5 6
Q3602 10.38 0.04 10.37 0.04 0.28 0.28
Q3604 -14.61 10.38 -14.61 10.38 10.75 10.75
Q3605 -14.21 10.80 10.75 10.80 11.42 11.38
[Measuring Conditions]
1. Power Supply Voltage : DC 14.4V
2. Measuring Meter : Digital Multi Voltmeter
3. Measuring Point Reference : Between GND
4. Measuring Condition : No Signal Input
Page 19
Exploded View (Cabinet)
23
X3
24
X2
23
X3
22
23
23
24
21
X2
21
23
24
22
X2
23
20
E
H
24
X2
25
F
13
X4
TML9001
F002
HL9002
B
4
TML4001
F003
F004
C
HL9001
F001
10
X2
19
13
4
X4
19
12
19
19
8
12
17
6
E
X3
4
12
X2
G
19
9
4
7
14
X3
A
L
4
14
10
X2
4
JK1001
VOL1401
VOL1601
VOL1501
J
CB2301
12
VOL1901
H
CB1001
D
K
A
2
15
3
C
4
X4
4
B
4
X2
L
G
K
F
4
J
5
D
4
1
18
17
16
Page 20
MAIN-P.W.Board C1001 08E41031S01 CAP,CER. 0.01uF/50V
MAIN-P.W.Board C1006 08E42196S01 CAP,CER. 1000pF/50V
MAIN-P.W.Board C1007 08E42196S01 CAP,CER. 1000pF/50V
MAIN-P.W.Board C1008 08E42196S01 CAP,CER. 1000pF/50V
MAIN-P.W.Board C1009 08E42196S01 CAP,CER. 1000pF/50V
MAIN-P.W.Board C1010 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C1011 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C1101 08E42196S01 CAP,CER. 1000pF/50V
MAIN-P.W.Board C1102 08E42196S01 CAP,CER. 1000pF/50V
MAIN-P.W.Board C1103 08E42196S01 CAP,CER. 1000pF/50V
MAIN-P.W.Board C1104 08E42196S01 CAP,CER. 1000pF/50V
MAIN-P.W.Board C1105 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C1106 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C1107 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C1108 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C1201 08E39649S01 CAP,CER. 47pF/50V
MAIN-P.W.Board C1202 08E39649S01 CAP,CER. 47pF/50V
MAIN-P.W.Board C1203 08E39649S01 CAP,CER. 47pF/50V
MAIN-P.W.Board C1204 08E39649S01 CAP,CER. 47pF/50V
MAIN-P.W.Board C1205 08E39649S01 CAP,CER. 47pF/50V
MAIN-P.W.Board C1206 08E39649S01 CAP,CER. 47pF/50V
MAIN-P.W.Board C1207 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C1208 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C1401 08E40234S01 CAP,CER. 10pF/50V
MAIN-P.W.Board C1402 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C1403 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C1501 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C1502 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C1504 08E42191S01 CAP,FILM 0.1uF/63V
MAIN-P.W.Board C1507 08E42120S01 CAP,FILM 220nF/63V
MAIN-P.W.Board C1601 08E42192S01 CAP,FILM 0.68uF/63V
MAIN-P.W.Board C1602 08E42193S01 CAP,FILM 0.47uF/63V
MAIN-P.W.Board C1603 08E42193S01 CAP,FILM 0.47uF/63V
MAIN-P.W.Board C1604 08E42192S01 CAP,FILM 0.68uF/63V
MAIN-P.W.Board C1605 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C1606 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C1801 08E39649S01 CAP,CER. 47pF/50V
MAIN-P.W.Board C1802 08E39649S01 CAP,CER. 47pF/50V
MAIN-P.W.Board C1803 08E39649S01 CAP,CER. 47pF/50V
MAIN-P.W.Board C1804 08E39649S01 CAP,CER. 47pF/50V
MAIN-P.W.Board C1805 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C1806 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C1901 08E42142S01 CAP,FILM 22nF/63V
MAIN-P.W.Board C1902 08E40234S01 CAP,CER. 10pF/50V
MAIN-P.W.Board C1905 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C1906 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C2302 08E35412S01 CAP,CER. 1500pF/50V
MAIN-P.W.Board C2303 08E35412S01 CAP,CER. 1500pF/50V
MAIN-P.W.Board C3201 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C3202 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C3601 08E37118S01 CAP,CER. 220pF/50V
MAIN-P.W.Board
C3602 08E41392S01 CAP,CER.2200pF/50V
MAIN-P.W.Board C3603 08E41392S01 CAP,CER.2200pF/50V
MAIN-P.W.Board C3604 08E37118S01 CAP,CER. 220pF/50V
Page 21
MAIN-P.W.Board C3605 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C3606 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C3607 08E38596S01 CAP,CER. 470pF/50V
MAIN-P.W.Board C3608 08E38596S01 CAP,CER. 470pF/50V
MAIN-P.W.Board C3609 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C3610 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C3611 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C3612 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C3613 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C3614 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C3701 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C3702 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C3705 08E42187S01 CAP,CER. 1uF/16V
MAIN-P.W.Board C3706 08E42187S01 CAP,CER. 1uF/16V
MAIN-P.W.Board C3709 08E42190S01 CAP,CER. 22uF/16V
MAIN-P.W.Board C3710 08E42190S01 CAP,CER. 22uF/16V
MAIN-P.W.Board C3711 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C3712 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C3713 08E42187S01 CAP,CER. 1uF/16V
MAIN-P.W.Board C3714 08E42187S01 CAP,CER. 1uF/16V
MAIN-P.W.Board C3715 08E42188S01 CAP,CER. 1000pF/250V
MAIN-P.W.Board C3716 08E42188S01 CAP,CER. 1000pF/250V
MAIN-P.W.Board C3717 08E42188S01 CAP,CER. 1000pF/250V
MAIN-P.W.Board C3718 08E42188S01 CAP,CER. 1000pF/250V
MAIN-P.W.Board C3719 08E42188S01 CAP,CER. 1000pF/250V
MAIN-P.W.Board C3720 08E42141S01 CAP,CER. 2.2uF/50V
MAIN-P.W.Board C3721 08E42188S01 CAP,CER. 1000pF/250V
MAIN-P.W.Board C3722 08E42188S01 CAP,CER. 1000pF/250V
MAIN-P.W.Board C3723 08E42141S01 CAP,CER. 2.2uF/50V
MAIN-P.W.Board C3724 08E42141S01 CAP,CER. 2.2uF/50V
MAIN-P.W.Board C3725 08E42141S01 CAP,CER. 2.2uF/50V
MAIN-P.W.Board C3726 08E42141S01 CAP,CER. 2.2uF/50V
MAIN-P.W.Board C3727 08E42141S01 CAP,CER. 2.2uF/50V
MAIN-P.W.Board C3728 08E42141S01 CAP,CER. 2.2uF/50V
MAIN-P.W.Board C3729 08E42141S01 CAP,CER. 2.2uF/50V
MAIN-P.W.Board C3730 08E42188S01 CAP,CER. 1000pF/250V
MAIN-P.W.Board C3731 08E42188S01 CAP,CER. 1000pF/250V
MAIN-P.W.Board C3732 08E42188S01 CAP,CER. 1000pF/250V
MAIN-P.W.Board C3733 08E42188S01 CAP,CER. 1000pF/250V
MAIN-P.W.Board C3734 08E37123S01 CAP,CER. 0.33uF/16V
MAIN-P.W.Board C3735 08E37123S01 CAP,CER. 0.33uF/16V
MAIN-P.W.Board C3736 08E37123S01 CAP,CER. 0.33uF/16V
MAIN-P.W.Board C3737 08E37123S01 CAP,CER. 0.33uF/16V
MAIN-P.W.Board C3738 08E42196S01 CAP,CER. 1000pF/50V
MAIN-P.W.Board C3739 08E42188S01 CAP,CER. 1000pF/250V
MAIN-P.W.Board C3801 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board C3802 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board C4001 08E42145S01 CAP,FILM 1uF/100V
MAIN-P.W.Board C4002 08E42145S01 CAP,FILM 1uF/100V
MAIN-P.W.Board C4003 08E42195S01 CAP,CER. 220pF/100V
MAIN-P.W.Board C4004 08E42195S01 CAP,CER. 220pF/100V
MAIN-P.W.Board
C4005 08E42197S01 CAP,CER. 47pF/100V
MAIN-P.W.Board C4006 08E42197S01 CAP,CER. 47pF/100V
MAIN-P.W.Board C4007 08E42189S01 CAP,CER. 1000pF/100V
Page 22
MAIN-P.W.Board C4008 08E42189S01 CAP,CER. 1000pF/100V
MAIN-P.W.Board C4009 08E39662S01 CAP,CER. 0.01uF/100V
MAIN-P.W.Board C4010 08E39662S01 CAP,CER. 0.01uF/100V
MAIN-P.W.Board C4011 08E39662S01 CAP,CER. 0.01uF/100V
MAIN-P.W.Board C4012 08E39662S01 CAP,CER. 0.01uF/100V
MAIN-P.W.Board C4015 08E42189S01 CAP,CER. 1000pF/100V
MAIN-P.W.Board C4016 08E39662S01 CAP,CER. 0.01uF/100V
MAIN-P.W.Board C4501 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C4502 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C4701 08E37159S01 CAP,CER. 0.047uF/50V
MAIN-P.W.Board C4702 08E35412S01 CAP,CER. 1500pF/50V
MAIN-P.W.Board C4703 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board C4704 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C4705 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C4706 08E37159S01 CAP,CER. 0.047uF/50V
MAIN-P.W.Board C4707 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board C4708 08E34594S01 CAP,CER. 3300pF/50V
MAIN-P.W.Board C5001 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C5002 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board C5003 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C5004 08E37121S01 CAP,CER. 0.022uF/50V
MAIN-P.W.Board C5005 08E38538S01 CAP,CER. 6800pF/50V
MAIN-P.W.Board C5006 08E41031S01 CAP,CER. 0.01uF/50V
MAIN-P.W.Board C5007 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C5008 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board C5009 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board C5010 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board C5011 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board C5012 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C5014 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board C5015 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board C5016 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board C5017 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board C8901 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board C8902 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board C9001 08E39106S01 CAP,CER.100pF/500V
MAIN-P.W.Board C9002 08E41035S01 CAP,CER. 0.01uF/630V
MAIN-P.W.Board C9003 08E41035S01 CAP,CER. 0.01uF/630V
MAIN-P.W.Board C9005 08E41035S01 CAP,CER. 0.01uF/630V
MAIN-P.W.Board C9006 08E39103S01 CAP,CER.1000pF/500V
MAIN-P.W.Board C9007 08E41035S01 CAP,CER. 0.01uF/630V
MAIN-P.W.Board C9101 08E41031S01 CAP,CER. 0.01uF/50V
MAIN-P.W.Board C9302 08E40527S01 CAP,CER. 0.068uF/50V
MAIN-P.W.Board C9303 08E40527S01 CAP,CER. 0.068uF/50V
MAIN-P.W.Board C9304 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C9305 08E37122S01 CAP,CER. 0.1uF/25V
MAIN-P.W.Board C9701 08E42198S01 CAP,CER. 0.15uF/50V
MAIN-P.W.Board C9702 08E41031S01 CAP,CER. 0.01uF/50V
MAIN-P.W.Board C9703 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board C9704 08E42194S01 CAP,CER. 0.015uF/25V
MAIN-P.W.Board C9705 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board
C9706 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board C9902 08E42223S01 CAP,CER. 0.015uF/100V
MAIN-P.W.Board C9903 08E42223S01 CAP,CER. 0.015uF/100V
Page 23
MAIN-P.W.Board C9904 08E42223S01 CAP,CER. 0.015uF/100V
MAIN-P.W.Board C9905 08E42223S01 CAP,CER. 0.015uF/100V
MAIN-P.W.Board C9910 08E35412S01 CAP,CER. 1500pF/50V
MAIN-P.W.Board C9911 08E40527S01 CAP,CER. 0.068uF/50V
MAIN-P.W.Board C9912 08E40527S01 CAP,CER. 0.068uF/50V
MAIN-P.W.Board C9913 08E41031S01 CAP,CER. 0.01uF/50V
MAIN-P.W.Board C9914 08E41031S01 CAP,CER. 0.01uF/50V
MAIN-P.W.Board C9917 08E41032S01 CAP,CER. 0.1uF/50V
MAIN-P.W.Board CB1001 09E40252S01 CONN,HLA-4200-08 8P
MAIN-P.W.Board CB2301 09E40583S01 CONN,JACK 6P
MAIN-P.W.Board CB8901 09E41441S01 CONN,WTB 2P
MAIN-P.W.Board CL5001 91E39901S01 RESONATOR,7.7MHz
MAIN-P.W.Board D1101 48E36568S01 DIODE,DAN202K
MAIN-P.W.Board D1102 48E36568S01 DIODE,DAN202K
MAIN-P.W.Board D1103 48E36633S01 DIODE,DAP202K
MAIN-P.W.Board D1104 48E36633S01 DIODE,DAP202K
MAIN-P.W.Board D2201 48E36568S01 DIODE,DAN202K
MAIN-P.W.Board D2202 48E36568S01 DIODE,DAN202K
MAIN-P.W.Board D2205 48E40918S01 DIODE,KDS160
MAIN-P.W.Board D2206 48E40918S01 DIODE,KDS160
MAIN-P.W.Board D3601 48E34197S01 DIODE,DAN217
MAIN-P.W.Board D3701 48E40918S01 DIODE,KDS160
MAIN-P.W.Board D3702 48E40918S01 DIODE,KDS160
MAIN-P.W.Board D3703 48E40918S01 DIODE,KDS160
MAIN-P.W.Board D3704 48E40918S01 DIODE,KDS160
MAIN-P.W.Board D3705 48E40918S01 DIODE,KDS160
MAIN-P.W.Board D3706 48E40918S01 DIODE,KDS160
MAIN-P.W.Board D3707 48E40918S01 DIODE,KDS160
MAIN-P.W.Board D3708 48E40918S01 DIODE,KDS160
MAIN-P.W.Board D3709 48E40918S01 DIODE,KDS160
MAIN-P.W.Board D3710 48E40918S01 DIODE,KDS160
MAIN-P.W.Board D3711 48E40918S01 DIODE,KDS160
MAIN-P.W.Board D3712 48E40918S01 DIODE,KDS160
MAIN-P.W.Board D4701 48E34197S01 DIODE,DAN217
MAIN-P.W.Board D5001 48E39121S01 DIODE,GN1D
MAIN-P.W.Board D5002 48E40338S01 DIODE,KDR720E
MAIN-P.W.Board D5003 48E40918S01 DIODE,KDS160
MAIN-P.W.Board D9101 48E39121S01 DIODE,GN1D
MAIN-P.W.Board D9301 48E39388S01 DIODE,MURA110
MAIN-P.W.Board D9302 48E39388S01 DIODE,MURA110
MAIN-P.W.Board D9303 48E39388S01 DIODE,MURA110
MAIN-P.W.Board D9304 48E39388S01 DIODE,MURA110
MAIN-P.W.Board D9501 48E36568S01 DIODE,DAN202K
MAIN-P.W.Board D9502 48E40918S01 DIODE,KDS160
MAIN-P.W.Board D9901 48E41410S01 DIODE,D30XBN20
MAIN-P.W.Board E1001 23E38003S01 CAP,ELY. 10uF/25V
MAIN-P.W.Board E1002 23E38003S01 CAP,ELY. 10uF/25V
MAIN-P.W.Board E1101 23E38003S01 CAP,ELY. 10uF/25V
MAIN-P.W.Board E1102 23E38003S01 CAP,ELY. 10uF/25V
MAIN-P.W.Board E1103 23E38003S01 CAP,ELY. 10uF/25V
MAIN-P.W.Board E1104 23E38003S01 CAP,ELY. 10uF/25V
MAIN-P.W.Board
E1701 23E40237S01 CAP,ELY. 33uF/16V
MAIN-P.W.Board E1901 23E38001S01 CAP,ELY. 2.2uF/50V
MAIN-P.W.Board E2201 23E38003S01 CAP,ELY. 10uF/25V
Page 24
MAIN-P.W.Board E2202 23E38003S01 CAP,ELY. 10uF/25V
MAIN-P.W.Board E3201 23E41493S01 CAP,ELY. 1uF/50V
MAIN-P.W.Board E3202 23E41493S01 CAP,ELY. 1uF/50V
MAIN-P.W.Board E3601 23E40368S01 CAP,ELY.10uF/25V
MAIN-P.W.Board E3602 23E40368S01 CAP,ELY.10uF/25V
MAIN-P.W.Board E3701 23E42220S01 CAP,ELY.47uF/50V
MAIN-P.W.Board E3702 23E42220S01 CAP,ELY.47uF/50V
MAIN-P.W.Board E3703 23E42220S01 CAP,ELY.47uF/50V
MAIN-P.W.Board E3704 23E42220S01 CAP,ELY.47uF/50V
MAIN-P.W.Board E3705 23E42220S01 CAP,ELY.47uF/50V
MAIN-P.W.Board E3706 23E42220S01 CAP,ELY.47uF/50V
MAIN-P.W.Board E3707 23E42220S01 CAP,ELY.47uF/50V
MAIN-P.W.Board E3708 23E42220S01 CAP,ELY.47uF/50V
MAIN-P.W.Board E4901 23E39180S01 CAP,ELY. 1uF/50V
MAIN-P.W.Board E4902 23E42206S01 CAP,ELY.220uF/25V
MAIN-P.W.Board E4903 23E42203S01 CAP,ELY. 470uF/50V
MAIN-P.W.Board E5001 23E40237S01 CAP,ELY. 33uF/16V
MAIN-P.W.Board E5002 23E40237S01 CAP,ELY. 33uF/16V
MAIN-P.W.Board E8901 23E38008S01 CAP,ELY. 47uF/25V
MAIN-P.W.Board E8902 23E40764S01 CAP,ELY.220uF/16V
MAIN-P.W.Board E9101 23E38013S01 CAP,ELY. 470uF/25V
MAIN-P.W.Board E9301 23E42204S01 CAP,ELY. 330uF/50V
MAIN-P.W.Board E9302 23E42204S01 CAP,ELY. 330uF/50V
MAIN-P.W.Board E9303 23E42206S01 CAP,ELY.220uF/25V
MAIN-P.W.Board E9304 23E42206S01 CAP,ELY.220uF/25V
MAIN-P.W.Board E9701 23E41398S01 CAP,ELY.22uF/16V
MAIN-P.W.Board E9702 23E39871S01 CAP,ELY. 100uF/16V
MAIN-P.W.Board E9703 23E38008S01 CAP,ELY. 47uF/25V
MAIN-P.W.Board E9705 23E41398S01 CAP,ELY.22uF/16V
MAIN-P.W.Board E9901 23E40240S01 CAP,ELY. 2200uF/25V
MAIN-P.W.Board E9902 23E40240S01 CAP,ELY. 2200uF/25V
MAIN-P.W.Board E9903 23E40240S01 CAP,ELY. 2200uF/25V
MAIN-P.W.Board E9904 23E40240S01 CAP,ELY. 2200uF/25V
MAIN-P.W.Board E9905 23E40240S01 CAP,ELY. 2200uF/25V
MAIN-P.W.Board E9906 23E40240S01 CAP,ELY. 2200uF/25V
MAIN-P.W.Board E9909 23E41477S01 CAP,ELY.2700uF/63V
MAIN-P.W.Board E9910 23E41477S01 CAP,ELY.2700uF/63V
MAIN-P.W.Board E9911 23E41477S01 CAP,ELY.2700uF/63V
MAIN-P.W.Board E9912 23E41477S01 CAP,ELY.2700uF/63V
MAIN-P.W.Board E9913 23E41477S01 CAP,ELY.2700uF/63V
MAIN-P.W.Board E9914 23E41477S01 CAP,ELY.2700uF/63V
MAIN-P.W.Board F001 65E27881S01 FUSE,25A
MAIN-P.W.Board F002 65E27881S01 FUSE,25A
MAIN-P.W.Board F003 65E27881S01 FUSE,25A
MAIN-P.W.Board F004 65E27881S01 FUSE,25A
MAIN-P.W.Board F9901 65E41480S01 FUSE,20A
MAIN-P.W.Board F9902 65E41480S01 FUSE,20A
MAIN-P.W.Board F9903 65E41480S01 FUSE,20A
MAIN-P.W.Board F9904 65E41480S01 FUSE,20A
MAIN-P.W.Board F9913 65E41480S01 FUSE,20A
MAIN-P.W.Board F9914 65E41480S01 FUSE,20A
MAIN-P.W.Board
F9915 65E41480S01 FUSE,20A
MAIN-P.W.Board F9916 65E41480S01 FUSE,20A
MAIN-P.W.Board HL9001 09E42149S01 HOLDER,FUSE
Page 25
MAIN-P.W.Board HL9002 09E42149S01 HOLDER,FUSE
MAIN-P.W.Board IC1001 51E39598S01 IC,BA4560RFVM
MAIN-P.W.Board IC1101 51E39598S01 IC,BA4560RFVM
MAIN-P.W.Board IC1102 51E39598S01 IC,BA4560RFVM
MAIN-P.W.Board IC1201 51E40776S01 IC,BA4580RFVM
MAIN-P.W.Board IC1401 51E39598S01 IC,BA4560RFVM
MAIN-P.W.Board IC1501 51E39598S01 IC,BA4560RFVM
MAIN-P.W.Board IC1601 51E39598S01 IC,BA4560RFVM
MAIN-P.W.Board IC1801 51E39598S01 IC,BA4560RFVM
MAIN-P.W.Board IC1901 51E39598S01 IC,BA4560RFVM
MAIN-P.W.Board IC3201 51E38067S01 IC,KIC7S00FU
MAIN-P.W.Board IC3202 51E38067S01 IC,KIC7S00FU
MAIN-P.W.Board IC3601 51E38055S01 IC,NJM4580M
MAIN-P.W.Board IC3701 51E41426S01 IC,98-1036TR
MAIN-P.W.Board IC3702 51E41426S01 IC,98-1036TR
MAIN-P.W.Board IC4501 51E40775S01 IC,BD5228G
MAIN-P.W.Board IC4701 51E42208S01 IC,BA2903F
MAIN-P.W.Board IC4702 51E39598S01 IC,BA4560RFVM
MAIN-P.W.Board IC4703 51E40343S01 IC,74VHC74MTCX
MAIN-P.W.Board IC5001 51E36474S01 IC,NJM78L05UA
MAIN-P.W.Board IC5002 51E39139S01 IC,BD5243G
MAIN-P.W.Board IC5003 51E40344S01 IC,BD5240G
MAIN-P.W.Board IC5004 51-04615Z01 IC,TMP87C847UG -QT
MAIN-P.W.Board IC5005 51E40773S01 IC,KIC7SH04FU
MAIN-P.W.Board IC8901 51E41428S01 IC,BAJ2CC0FP
MAIN-P.W.Board IC9301 51E35123S01 IC,NJM7815FA
MAIN-P.W.Board IC9302 51E35124S01 IC,NJM7915FA
MAIN-P.W.Board IC9701 51E39585S01 IC,NCV494BDR2G
MAIN-P.W.Board IC9702 51E34504S01 IC,MC33152D
MAIN-P.W.Board IC9703 51E34504S01 IC,MC33152D
MAIN-P.W.Board JK1001 09E42147S01 CONN,RCA 4P
MAIN-P.W.Board L4001 24E42217S01 COIL,IND. 10uH
MAIN-P.W.Board L4002 24E42217S01 COIL,IND. 10uH
MAIN-P.W.Board L9001 24E39739S01 COIL,IND. 10uH
MAIN-P.W.Board Q1701 48E39389S01 TR,KTC2875
MAIN-P.W.Board Q1702 48E40770S01 TR,DTA144EE
MAIN-P.W.Board Q1703 48E37097S01 TR,DTC114EE
MAIN-P.W.Board Q2201 48E41051S01 TR,2SC2412K
MAIN-P.W.Board Q2202 48E38062S01 TR,DTA114EK
MAIN-P.W.Board Q3201 48E40770S01 TR,DTA144EE
MAIN-P.W.Board Q3202 48E40770S01 TR,DTA144EE
MAIN-P.W.Board Q3203 48E37097S01 TR,DTC114EE
MAIN-P.W.Board Q3204 48E37097S01 TR,DTC114EE
MAIN-P.W.Board Q3205 48E40770S01 TR,DTA144EE
MAIN-P.W.Board Q3206 48E40770S01 TR,DTA144EE
MAIN-P.W.Board Q3601 48E37157S01 TR,FMY1A
MAIN-P.W.Board Q3602 48E41425S01 TR,IMX2
MAIN-P.W.Board Q3603 48E42207S01 TR,BC846
MAIN-P.W.Board Q3604 48E41498S01 TR,IMT2A
MAIN-P.W.Board Q3605 48E41498S01 TR,IMT2A
MAIN-P.W.Board Q3606 48E42168S01 TR,BC856
MAIN-P.W.Board
Q3607 48E42168S01 TR,BC856
MAIN-P.W.Board Q3701 48E41419S01 TR,2SA2094
MAIN-P.W.Board Q3702 48E41419S01 TR,2SA2094
Page 26
MAIN-P.W.Board Q3703 48E41419S01 TR,2SA2094
MAIN-P.W.Board Q3704 48E41419S01 TR,2SA2094
MAIN-P.W.Board Q3705 48E41416S01 FET,IRFB5615
MAIN-P.W.Board Q3706 48E41416S01 FET,IRFB5615
MAIN-P.W.Board Q3707 48E41416S01 FET,IRFB5615
MAIN-P.W.Board Q3708 48E41416S01 FET,IRFB5615
MAIN-P.W.Board Q3709 48E41419S01 TR,2SA2094
MAIN-P.W.Board Q3710 48E41419S01 TR,2SA2094
MAIN-P.W.Board Q3711 48E41419S01 TR,2SA2094
MAIN-P.W.Board Q3712 48E41419S01 TR,2SA2094
MAIN-P.W.Board Q3713 48E41416S01 FET,IRFB5615
MAIN-P.W.Board Q3714 48E41416S01 FET,IRFB5615
MAIN-P.W.Board Q3715 48E41416S01 FET,IRFB5615
MAIN-P.W.Board Q3716 48E41416S01 FET,IRFB5615
MAIN-P.W.Board Q3717 48E41418S01 TR,2SC5866
MAIN-P.W.Board Q3718 48E41418S01 TR,2SC5866
MAIN-P.W.Board Q3719 48E41418S01 TR,2SC5866
MAIN-P.W.Board Q3720 48E41418S01 TR,2SC5866
MAIN-P.W.Board Q4401 48E37097S01 TR,DTC114EE
MAIN-P.W.Board Q4402 48E37097S01 TR,DTC114EE
MAIN-P.W.Board Q4403 48E40770S01 TR,DTA144EE
MAIN-P.W.Board Q4404 48E39389S01 TR,KTC2875
MAIN-P.W.Board Q4501 48E37097S01 TR,DTC114EE
MAIN-P.W.Board Q4502 48E40770S01 TR,DTA144EE
MAIN-P.W.Board Q4503 48E39389S01 TR,KTC2875
MAIN-P.W.Board Q4504 48E37097S01 TR,DTC114EE
MAIN-P.W.Board Q4701 48E40770S01 TR,DTA144EE
MAIN-P.W.Board Q4703 48E37188S01 TR,DTC144EE
MAIN-P.W.Board Q4901 48E42180S01 TR,KTC4370A
MAIN-P.W.Board Q5001 48E37097S01 TR,DTC114EE
MAIN-P.W.Board Q9101 48E39125S01 TR,KTB1241
MAIN-P.W.Board Q9102 48E41051S01 TR,2SC2412K
MAIN-P.W.Board Q9501 48E39883S01 TR,2SC4102
MAIN-P.W.Board Q9502 48E39883S01 TR,2SC4102
MAIN-P.W.Board Q9503 48E36573S01 TR,DTC144EK
MAIN-P.W.Board Q9701 48E40769S01 TR,DTA124EE
MAIN-P.W.Board Q9901 48E37986S01 FET,IRF3205PB
MAIN-P.W.Board Q9902 48E37986S01 FET,IRF3205PB
MAIN-P.W.Board Q9903 48E37986S01 FET,IRF3205PB
MAIN-P.W.Board Q9904 48E37986S01 FET,IRF3205PB
MAIN-P.W.Board Q9905 48E37986S01 FET,IRF3205PB
MAIN-P.W.Board Q9906 48E37986S01 FET,IRF3205PB
MAIN-P.W.Board Q9907 48E37986S01 FET,IRF3205PB
MAIN-P.W.Board Q9908 48E37986S01 FET,IRF3205PB
MAIN-P.W.Board R1001 06E35361S01 RES,CF. 330-1/4W
MAIN-P.W.Board R1002 06E35361S01 RES,CF. 330-1/4W
MAIN-P.W.Board R1003 06E36581S01 RES,CF. 30K-1/4W
MAIN-P.W.Board R1004 06E36581S01 RES,CF. 30K-1/4W
MAIN-P.W.Board R1005 06E36581S01 RES,CF. 30K-1/4W
MAIN-P.W.Board R1006 06E36581S01 RES,CF. 30K-1/4W
MAIN-P.W.Board R1007 06E32284S01 RES.CF 104-J-1/4-CP
MAIN-P.W.Board
R1008 06E32284S01 RES.CF 104-J-1/4-CP
MAIN-P.W.Board R1009 06E36581S01 RES,CF. 30K-1/4W
MAIN-P.W.Board R1010 06E36581S01 RES,CF. 30K-1/4W
Page 27
MAIN-P.W.Board R1011 06E36581S01 RES,CF. 30K-1/4W
MAIN-P.W.Board R1012 06E36581S01 RES,CF. 30K-1/4W
MAIN-P.W.Board R1013 06E40751S01 RES,CF. 330-1/4W
MAIN-P.W.Board R1014 06E40751S01 RES,CF. 330-1/4W
MAIN-P.W.Board R1015 06E31183S01 RES,CF. 22K-1/4W
MAIN-P.W.Board R1016 06E31183S01 RES,CF. 22K-1/4W
MAIN-P.W.Board R1017 06E40999S01 RES,CF. 1K-1/16W
MAIN-P.W.Board R1018 06E40999S01 RES,CF. 1K-1/16W
MAIN-P.W.Board R1019 06E40999S01 RES,CF. 1K-1/16W
MAIN-P.W.Board R1020 06E40999S01 RES,CF. 1K-1/16W
MAIN-P.W.Board R1021 06E27630S01 RES,CF. 36K-1/8W
MAIN-P.W.Board R1022 06E27630S01 RES,CF. 36K-1/8W
MAIN-P.W.Board R1023 06E27630S01 RES,CF. 36K-1/8W
MAIN-P.W.Board R1024 06E27630S01 RES,CF. 36K-1/8W
MAIN-P.W.Board R1025 06E41016S01 RES,CF. 0-1/16W
MAIN-P.W.Board R1101 06E37227S01 RES,CF. 1K-1/16W
MAIN-P.W.Board R1102 06E37227S01 RES,CF. 1K-1/16W
MAIN-P.W.Board R1103 06E37227S01 RES,CF. 1K-1/16W
MAIN-P.W.Board R1104 06E37227S01 RES,CF. 1K-1/16W
MAIN-P.W.Board R1105 06E37144S01 RES,CF. 220K-1/16W
MAIN-P.W.Board R1106 06E37144S01 RES,CF. 220K-1/16W
MAIN-P.W.Board R1107 06E37144S01 RES,CF. 220K-1/16W
MAIN-P.W.Board R1108 06E37144S01 RES,CF. 220K-1/16W
MAIN-P.W.Board R1109 06E40997S01 RES,CF. 470-1/16W
MAIN-P.W.Board R1110 06E40997S01 RES,CF. 470-1/16W
MAIN-P.W.Board R1111 06E40997S01 RES,CF. 470-1/16W
MAIN-P.W.Board R1112 06E40997S01 RES,CF. 470-1/16W
MAIN-P.W.Board R1201 06E37252S01 RES,CF. 22K-1/16W
MAIN-P.W.Board R1202 06E37252S01 RES,CF. 22K-1/16W
MAIN-P.W.Board R1203 06E37252S01 RES,CF. 22K-1/16W
MAIN-P.W.Board R1204 06E37252S01 RES,CF. 22K-1/16W
MAIN-P.W.Board R1205 06E37252S01 RES,CF. 22K-1/16W
MAIN-P.W.Board R1206 06E37252S01 RES,CF. 22K-1/16W
MAIN-P.W.Board R1207 06E37252S01 RES,CF. 22K-1/16W
MAIN-P.W.Board R1208 06E37252S01 RES,CF. 22K-1/16W
MAIN-P.W.Board R1209 06E37143S01 RES,CF. 24K-1/16W
MAIN-P.W.Board R1210 06E37143S01 RES,CF. 24K-1/16W
MAIN-P.W.Board R1401 06E37113S01 RES,CF. 47K-1/16W
MAIN-P.W.Board R1402 06E40327S01 RES,CF. 56K-1/16W
MAIN-P.W.Board R1403 06E40552S01 RES,CF. 1.6K-1/16
MAIN-P.W.Board R1404 06E41015S01 RES,CF. 1M-1/16W
MAIN-P.W.Board R1405 06E35290S01 RES,CF. 6.2K-1/16W
MAIN-P.W.Board R1406 06E35446S01 RES,CF. 1.1K-1/16W
MAIN-P.W.Board R1407 06E41016S01 RES,CF. 0-1/16W
MAIN-P.W.Board R1501 06E37170S01 RES,CF. 2.7K-1/16W
MAIN-P.W.Board R1502 06E37170S01 RES,CF. 2.7K-1/16W
MAIN-P.W.Board R1505 06E41015S01 RES,CF. 1M-1/16W
MAIN-P.W.Board R1507 06E41015S01 RES,CF. 1M-1/16W
MAIN-P.W.Board R1601 06E41015S01 RES,CF. 1M-1/16W
MAIN-P.W.Board R1602 06E40191S01 RES,CF. 11K-1/16
MAIN-P.W.Board R1604 06E39246S01 RES,CF. 13K-1/16W
MAIN-P.W.Board
R1605 06E40327S01 RES,CF. 56K-1/16W
MAIN-P.W.Board R1606 06E35244S01 RES,CF. 15K-1/16W
MAIN-P.W.Board R1609 06E41015S01 RES,CF. 1M-1/16W
Page 28
MAIN-P.W.Board R1701 06E41010S01 RES,CF. 56K-1/16W
MAIN-P.W.Board R1702 06E35236S01 RES,CF. 1.5K-1/4W
MAIN-P.W.Board R1703 06E35236S01 RES,CF. 1.5K-1/4W
MAIN-P.W.Board R1704 06E35367S01 RES,CF. 5.6K-1/4W
MAIN-P.W.Board R1705 06E41007S01 RES,CF. 22K-1/16W
MAIN-P.W.Board R1803 06E41006S01 RES,CF. 15K-1/16W
MAIN-P.W.Board R1804 06E41006S01 RES,CF. 15K-1/16W
MAIN-P.W.Board R1805 06E37161S01 RES,CF. 68K-1/16W
MAIN-P.W.Board R1901 06E37260S01 RES,CF. 150K-1/16W
MAIN-P.W.Board R1902 06E35261S01 RES,CF. 27K-1/16W
MAIN-P.W.Board R1903 06E42184S01 RES,CF. 5.1K-1/10W
MAIN-P.W.Board R1904 06E42184S01 RES,CF. 5.1K-1/10W
MAIN-P.W.Board R1905 06E40992S01 RES,CF. 100-1/16W
MAIN-P.W.Board R1906 06E41015S01 RES,CF. 1M-1/16W
MAIN-P.W.Board R1907 06E42184S01 RES,CF. 5.1K-1/10W
MAIN-P.W.Board R1908 06E35382S01 RES,CF. 1.5K-1/16W
MAIN-P.W.Board R1909 06E35261S01 RES,CF. 27K-1/16W
MAIN-P.W.Board R2201 06E29451S01 RES,CF. 8.2K-1/4W
MAIN-P.W.Board R2202 06E41003S01 RES,CF. 4.7K-1/16W
MAIN-P.W.Board R2203 06E41010S01 RES,CF. 56K-1/16W
MAIN-P.W.Board R2301 06E41015S01 RES,CF. 1M-1/16W
MAIN-P.W.Board R2302 06E41375S01 RES,CF. 150-1/16W
MAIN-P.W.Board R3201 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R3202 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R3203 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R3204 06E40992S01 RES,CF. 100-1/16W
MAIN-P.W.Board R3205 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R3206 06E40992S01 RES,CF. 100-1/16W
MAIN-P.W.Board R3601 06E41003S01 RES,CF. 4.7K-1/16W
MAIN-P.W.Board R3602 06E41003S01 RES,CF. 4.7K-1/16W
MAIN-P.W.Board R3603 06E37227S01 RES,CF. 1K-1/16W
MAIN-P.W.Board R3604 06E37227S01 RES,CF. 1K-1/16W
MAIN-P.W.Board R3605 06E37137S01 RES,CF. 5.6K-1/16W
MAIN-P.W.Board R3606 06E42182S01 RES,CF. 7.5K-1/10W
MAIN-P.W.Board R3607 06E37137S01 RES,CF. 5.6K-1/16W
MAIN-P.W.Board R3608 06E42182S01 RES,CF. 7.5K-1/10W
MAIN-P.W.Board R3609 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R3610 06E37227S01 RES,CF. 1K-1/16W
MAIN-P.W.Board R3611 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R3612 06E37227S01 RES,CF. 1K-1/16W
MAIN-P.W.Board R3613 06E42182S01 RES,CF. 7.5K-1/10W
MAIN-P.W.Board R3614 06E42182S01 RES,CF. 7.5K-1/10W
MAIN-P.W.Board R3615 06E37227S01 RES,CF. 1K-1/16W
MAIN-P.W.Board R3616 06E37227S01 RES,CF. 1K-1/16W
MAIN-P.W.Board R3617 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R3618 06E35373S01 RES,CF. 330-1/16W
MAIN-P.W.Board R3619 06E37257S01 RES,CF. 2.4K-1/16W
MAIN-P.W.Board R3620 06E37196S01 RES,CF. 3K-1/16W
MAIN-P.W.Board R3621 06E35373S01 RES,CF. 330-1/16W
MAIN-P.W.Board R3622 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R3623 06E35373S01 RES,CF. 330-1/16W
MAIN-P.W.Board
R3624 06E35373S01 RES,CF. 330-1/16W
MAIN-P.W.Board R3625 06E37257S01 RES,CF. 2.4K-1/16W
MAIN-P.W.Board R3626 06E37257S01 RES,CF. 2.4K-1/16W
Page 29
MAIN-P.W.Board R3627 06E40999S01 RES,CF. 1K-1/16W
MAIN-P.W.Board R3628 06E40999S01 RES,CF. 1K-1/16W
MAIN-P.W.Board R3629 06E35377S01 RES,CF. 680-1/16W
MAIN-P.W.Board R3630 06E41014S01 RES,CF 330K-1/16-CP
MAIN-P.W.Board R3631 06E41014S01 RES,CF 330K-1/16-CP
MAIN-P.W.Board R3701 06E37167S01 RES,CF. 2.2K-1/16W
MAIN-P.W.Board R3702 06E37167S01 RES,CF. 2.2K-1/16W
MAIN-P.W.Board R3703 06E37170S01 RES,CF. 2.7K-1/16W
MAIN-P.W.Board R3704 06E35291S01 RES,CF. 6.8K-1/16W
MAIN-P.W.Board R3705 06E37170S01 RES,CF. 2.7K-1/16W
MAIN-P.W.Board R3706 06E35291S01 RES,CF. 6.8K-1/16W
MAIN-P.W.Board R3708 06E37105S01 RES,CF. 3.3K-1/16W
MAIN-P.W.Board R3710 06E37105S01 RES,CF. 3.3K-1/16W
MAIN-P.W.Board R3711 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R3712 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R3713 06E35291S01 RES,CF. 6.8K-1/16W
MAIN-P.W.Board R3714 06E37170S01 RES,CF. 2.7K-1/16W
MAIN-P.W.Board R3715 06E35291S01 RES,CF. 6.8K-1/16W
MAIN-P.W.Board R3716 06E37170S01 RES,CF. 2.7K-1/16W
MAIN-P.W.Board R3717 06E31833S01 RES,CF 3R9-J-1/4-CP
MAIN-P.W.Board R3718 06E31833S01 RES,CF 3R9-J-1/4-CP
MAIN-P.W.Board R3719 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3720 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3721 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R3722 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R3723 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3724 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R3725 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R3726 06E31833S01 RES,CF 3R9-J-1/4-CP
MAIN-P.W.Board R3727 06E31833S01 RES,CF 3R9-J-1/4-CP
MAIN-P.W.Board R3728 06E42219S01 RES,CF. 20K-1/4W
MAIN-P.W.Board R3729 06E42219S01 RES,CF. 20K-1/4W
MAIN-P.W.Board R3730 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3731 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3732 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3733 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3734 06E22929S01 RES,CF. 3.3K-1/4W
MAIN-P.W.Board R3735 06E22929S01 RES,CF. 3.3K-1/4W
MAIN-P.W.Board R3736 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R3737 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R3738 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R3739 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R3740 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3741 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3742 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3743 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3744 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3745 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3746 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3747 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3748 06E41011S01 RES,CF. 100K-1/16W
MAIN-P.W.Board
R3749 06E41011S01 RES,CF. 100K-1/16W
MAIN-P.W.Board R3750 06E41011S01 RES,CF. 100K-1/16W
MAIN-P.W.Board R3751 06E41011S01 RES,CF. 100K-1/16W
Page 30
MAIN-P.W.Board R3752 06E41011S01 RES,CF. 100K-1/16W
MAIN-P.W.Board R3753 06E41011S01 RES,CF. 100K-1/16W
MAIN-P.W.Board R3754 06E41011S01 RES,CF. 100K-1/16W
MAIN-P.W.Board R3755 06E41011S01 RES,CF. 100K-1/16W
MAIN-P.W.Board R3756 06E42222S01 RES,CF. 1.1-1/4W
MAIN-P.W.Board R3757 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3758 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3759 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3760 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3761 06E38746S01 RES,CF. 27-1/4W
MAIN-P.W.Board R3801 06E37142S01 RES,CF. 12K-1/16W
MAIN-P.W.Board R3802 06E37142S01 RES,CF. 12K-1/16W
MAIN-P.W.Board R3803 06E35242S01 RES,CF. 4.3K-1/16W
MAIN-P.W.Board R3804 06E35242S01 RES,CF. 4.3K-1/16W
MAIN-P.W.Board R4001 06E36582S01 RES,CF. 47K-1/4W
MAIN-P.W.Board R4002 06E36582S01 RES,CF. 47K-1/4W
MAIN-P.W.Board R4005 06E36600S01 RES,CEMENT 0.01-5W
MAIN-P.W.Board R4006 06E36600S01 RES,CEMENT 0.01-5W
MAIN-P.W.Board R4007 06E42222S01 RES,CF. 1.1-1/4W
MAIN-P.W.Board R4008 06E42222S01 RES,CF. 1.1-1/4W
MAIN-P.W.Board R4009 06E42222S01 RES,CF. 1.1-1/4W
MAIN-P.W.Board R4010 06E42222S01 RES,CF. 1.1-1/4W
MAIN-P.W.Board R4401 06E41007S01 RES,CF. 22K-1/16W
MAIN-P.W.Board R4402 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R4403 06E35367S01 RES,CF. 5.6K-1/4W
MAIN-P.W.Board R4404 06E37279S01 RES,CF. 0-1/4W
MAIN-P.W.Board R4501 06E41007S01 RES,CF. 22K-1/16W
MAIN-P.W.Board R4502 06E41007S01 RES,CF. 22K-1/16W
MAIN-P.W.Board R4503 06E35367S01 RES,CF. 5.6K-1/4W
MAIN-P.W.Board R4504 06E36651S01 RES,CF. 3.9K-1/4W
MAIN-P.W.Board R4505 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R4701 06E40746S01 RES,CF. 75K-1/16W
MAIN-P.W.Board R4702 06E40551S01 RES,CF. 1.3K-1/16
MAIN-P.W.Board R4703 06E40976S01 RES,CF. 10K-1/4W
MAIN-P.W.Board R4704 06E41007S01 RES,CF. 22K-1/16W
MAIN-P.W.Board R4705 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R4706 06E41009S01 RES,CF. 47K-1/16W
MAIN-P.W.Board R4707 06E41009S01 RES,CF. 47K-1/16W
MAIN-P.W.Board R4708 06E37143S01 RES,CF. 24K-1/16W
MAIN-P.W.Board R4709 06E40327S01 RES,CF. 56K-1/16W
MAIN-P.W.Board R4710 06E40976S01 RES,CF. 10K-1/4W
MAIN-P.W.Board R4711 06E37228S01 RES,CF. 510-1/16W
MAIN-P.W.Board R4712 06E40191S01 RES,CF. 11K-1/16
MAIN-P.W.Board R4901 06E35527S01 RES,CF. 6.8K-1/4W
MAIN-P.W.Board R4902 06E35527S01 RES,CF. 6.8K-1/4W
MAIN-P.W.Board R4905 06E35527S01 RES,CF. 6.8K-1/4W
MAIN-P.W.Board R5001 06E37093S01 RES,CF. 5.6K-1/16W
MAIN-P.W.Board R5002 06E37224S01 RES,CF. 2K-1/16W
MAIN-P.W.Board R5003 06E37226S01 RES,CF. 1.2K-1/16W
MAIN-P.W.Board R5004 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R5005 06E37220S01 RES,CF. 3.9K-1/16W
MAIN-P.W.Board
R5006 06E37093S01 RES,CF. 5.6K-1/16W
MAIN-P.W.Board R5007 06E37110S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R5008 06E37226S01 RES,CF. 1.2K-1/16W
Page 31
MAIN-P.W.Board R5009 06E37226S01 RES,CF. 1.2K-1/16W
MAIN-P.W.Board R5010 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R5011 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R5013 06E41016S01 RES,CF. 0-1/16W
MAIN-P.W.Board R5014 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R5015 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R5016 06E35400S01 RES,CF. 5.1K-1/16W
MAIN-P.W.Board R5017 06E40735S01 RES,CF. 620-1/16W
MAIN-P.W.Board R5018 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R5019 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R5020 06E41003S01 RES,CF. 4.7K-1/16W
MAIN-P.W.Board R5021 06E37110S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R5022 06E37111S01 RES,CF. 27K-1/16W
MAIN-P.W.Board R5023 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R5024 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R5025 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R9101 06E41009S01 RES,CF. 47K-1/16W
MAIN-P.W.Board R9102 06E35365S01 RES,CF. 2.2K-1/4W
MAIN-P.W.Board R9103 06E36581S01 RES,CF. 30K-1/4W
MAIN-P.W.Board R9104 06E35365S01 RES,CF. 2.2K-1/4W
MAIN-P.W.Board R9105 06E35365S01 RES,CF. 2.2K-1/4W
MAIN-P.W.Board R9106 06E35365S01 RES,CF. 2.2K-1/4W
MAIN-P.W.Board R9107 06E36102S01 RES,CF. 30K-1/16W
MAIN-P.W.Board R9501 06E41009S01 RES,CF. 47K-1/16W
MAIN-P.W.Board R9502 06E41009S01 RES,CF. 47K-1/16W
MAIN-P.W.Board R9503 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R9504 06E41009S01 RES,CF. 47K-1/16W
MAIN-P.W.Board R9505 06E41009S01 RES,CF. 47K-1/16W
MAIN-P.W.Board R9506 06E41005S01 RES,CF. 10K-1/16W
MAIN-P.W.Board R9507 06E41009S01 RES,CF. 47K-1/16W
MAIN-P.W.Board R9508 06E41003S01 RES,CF. 4.7K-1/16W
MAIN-P.W.Board R9701 06E37229S01 RES,CF. 100-1/16W
MAIN-P.W.Board R9702 06E35242S01 RES,CF. 4.3K-1/16W
MAIN-P.W.Board R9703 06E34814S01 RES,CF. 51K-1/16W
MAIN-P.W.Board R9704 06E41016S01 RES,CF. 0-1/16W
MAIN-P.W.Board R9705 06E41016S01 RES,CF. 0-1/16W
MAIN-P.W.Board R9706 06E34814S01 RES,CF. 51K-1/16W
MAIN-P.W.Board R9707 06E37226S01 RES,CF. 1.2K-1/16W
MAIN-P.W.Board R9708 06E41376S01 RES,CF. 220-1/16W
MAIN-P.W.Board R9709 06E35407S01 RES,CF. 360K-1/16W
MAIN-P.W.Board R9710 06E37252S01 RES,CF. 22K-1/16W
MAIN-P.W.Board R9711 06E37167S01 RES,CF. 2.2K-1/16W
MAIN-P.W.Board R9712 06E37169S01 RES,CF. 1.8K-1/16W
MAIN-P.W.Board R9713 06E40998S01 RES,CF. 820-1/16W
MAIN-P.W.Board R9714 06E41003S01 RES,CF. 4.7K-1/16W
MAIN-P.W.Board R9715 06E40988S01 RES,CF. 1K-1/4W
MAIN-P.W.Board R9716 06E40988S01 RES,CF. 1K-1/4W
MAIN-P.W.Board R9901 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R9902 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R9903 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R9904 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board
R9905 06E41011S01 RES,CF. 100K-1/16W
MAIN-P.W.Board R9906 06E41011S01 RES,CF. 100K-1/16W
MAIN-P.W.Board R9907 06E41011S01 RES,CF. 100K-1/16W
Page 32
MAIN-P.W.Board R9908 06E41011S01 RES,CF. 100K-1/16W
MAIN-P.W.Board R9909 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R9910 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R9911 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R9912 06E41011S01 RES,CF. 100K-1/16W
MAIN-P.W.Board R9913 06E41011S01 RES,CF. 100K-1/16W
MAIN-P.W.Board R9914 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R9915 06E41011S01 RES,CF. 100K-1/16W
MAIN-P.W.Board R9916 06E41011S01 RES,CF. 100K-1/16W
MAIN-P.W.Board R9917 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R9918 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R9919 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R9920 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R9921 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R9922 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R9923 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R9924 06E22113S01 RES,CF. 22-1/4W
MAIN-P.W.Board R9925 06E35400S01 RES,CF. 5.1K-1/16W
MAIN-P.W.Board R9926 06E42183S01 RES,CF. 560-1/16W
MAIN-P.W.Board R9927 06E42221S01 RES,CF. 200K-1/16W
MAIN-P.W.Board R9928 06E42221S01 RES,CF. 200K-1/16W
MAIN-P.W.Board R9931 06E37167S01 RES,CF. 2.2K-1/16W
MAIN-P.W.Board RA5001 06E39855S01 RES,ARRAY. 10K-1/16W
MAIN-P.W.Board RA5002 06E39855S01 RES,ARRAY. 10K-1/16W
MAIN-P.W.Board RA5003 06E39855S01 RES,ARRAY. 10K-1/16W
MAIN-P.W.Board RA5004 06E39855S01 RES,ARRAY. 10K-1/16W
MAIN-P.W.Board T9001 25E41478S01 COIL,CHOKE 10uH
MAIN-P.W.Board T9901 25E42218S01 TRANS,POWER 4T/12T
MAIN-P.W.Board T9902 25E42218S01 TRANS,POWER 4T/12T
MAIN-P.W.Board TH3801 48E42173S01 THERMISTOR,100K
MAIN-P.W.Board TH3802 48E42173S01 THERMISTOR,100K
MAIN-P.W.Board TH5001 48E40530S01 THERMISTOR,100K
MAIN-P.W.Board TH9902 48E40530S01 THERMISTOR,100K
MAIN-P.W.Board TML4001 09E42199S01 CONN,TERMINAL 2P
MAIN-P.W.Board TML9001 09E42148S01 CONN,TERMINAL 3P
MAIN-P.W.Board VOL1401 18E41439S01 VOL,ROTARY 50KX1
MAIN-P.W.Board VOL1501 18E42200S01 VOL,ROTARY 20KX2
MAIN-P.W.Board VOL1601 18E42201S01 VOL,ROTARY 50KX2
MAIN-P.W.Board VOL1901 18E42212S01 VOL,ROTARY 5K
MAIN-P.W.Board ZD3601 48E42210S01 DIO,ZENER KDZ
MAIN-P.W.Board ZD3602 48E42210S01 DIO,ZENER KDZ
MAIN-P.W.Board ZD4001 48E41407S01 DIODE,ZENER VDZ15B
MAIN-P.W.Board ZD4002 48E41407S01 DIODE,ZENER VDZ15B
MAIN-P.W.Board ZD4901 48E39120S01 DIODE,ZENER HZK12A2L
MAIN-P.W.Board ZD5001 48E39118S01 DIODE,ZENER HZK15-2L
MAIN-P.W.Board ZD9001 48E41047S01 DIO,ZENER Z5W27V
MAIN-P.W.Board ZD9102 48E39101S01 DIODE,ZENER HZK6A1L
MAIN-P.W.Board ZD9501 48E39119S01 DIODE,ZENER HZK16-1L
MAIN-P.W.Board ZD9502 48E39119S01 DIODE,ZENER HZK16-1L
LED-P.W.Board C8001 08E42196S01 CAP,CER. 1000pF/50V
LED-P.W.Board LD8001 48E39343S01 LED,BLU UB1106W
LED-P.W.Board
R8001 06E38034S01 RES,CF. 1K-1/4W
Miscellaneous CH8901 01E41447S01 CONN,ASSY 2P
Page 33
1 33E42163S01 PLATE,NAME
2 34E42165S01 INDICATOR;HOLDER
3 34E42164S01 INDICATOR,LENS
4 03E38671S01 SCR,M3X6(B)
5 - - - - - - - - - HEAT,SINK MAIN(1000 W)
6 07E42215S01 BKT,SHIELD-A
7 07E42216S01 BKT,SHIELD-B
8 14E42213S01 INSULATOR,SILPAD-D
9 14E42214S01 INSULATOR,SILPAD-E
10 03E39165S01 SCR,M3X11(WP)(WHT)
12 - - - - - - - - - SUPPORT,PWB,3027002M01-D
13 03E38094S01 SCR,M3X15.5(WS)
14 03E40789S01 SCR,M3X9 (WS)(WHT)
15 - - - - - - - - - CHAS,FRONT(1000W)
16 - - - - - - - - - CHAS,REAR(1000W)
17 03E42130S01 SCR,M3X10(BLK)
18 - - - - - - - - - HEAT,SINK,COVER(1000W)
19 - - - - - - - - - HEAT,SINK BAR
20 03E38095S01 SCR,M3X6(P)
21 29E42161S01 LEG,MTG-A
22 29E42162S01 LEG,MTG-B
23 03E40131S01 SCR,M3X6(B)(CR3BK)
24 03E40129S01 SCR,M2.6X6(B)(BLK)
25 - - - - - - - - - CHAS,BOTTOM(1000W)
CB1001 09E40252S01 CONN,HLA-4200-08 8P
CB2301 09E40583S01 CONN,JACK 6P
F001 65E27881S01 FUSE,25A
F002 65E27881S01 FUSE,25A
F003 65E27881S01 FUSE,25A
F004 65E27881S01 FUSE,25A
HL9001 09E42149S01 HOLDER,FUSE
HL9002 09E42149S01 HOLDER,FUSE
JK1001 09E42147S01 CONN,RCA 4P
TML9001 09E42148S01 CONN,TERMINAL 3P
TML4001 09E42199S01 CONN,TERMINAL 2P
VOL1401 18E41439S01 VOL,ROTARY 50KX1
VOL1501 18E42200S01 VOL,ROTARY 20KX2
VOL1601 18E42201S01 VOL,ROTARY 50KX2
VOL1901 18E42212S01 VOL,ROTARY 5K
Loading...
