Alpine KIT-8VWTX, KIT-8VWTPQ, KIT-8VWTV, KIT-8VWT, KIT-8VWTXPQ Installation Manual [EN]
...Page 1
• Seat Alhambra (6N)
• Škoda Fabia II
• Škoda Octavia II
• Škoda Roomster
Compatible with these Alpine navigation devices
4
3
• VW Caddy
• VW Sharan
• VW Tiguan
• VW Touran
INE-W928R

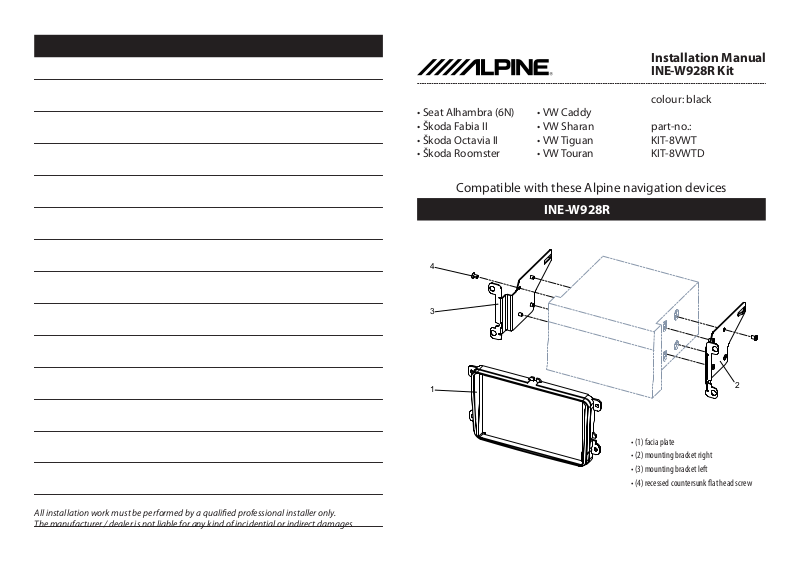

Installation Manual
INE-W928R Kit
colour: black
part-no.:
KIT-8VWT
KIT-8VWTD
All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
1
• (1) facia plate
• (2) mounting bracket right
• (3) mounting bracket left
• (4) recessed countersunk at head screw
2
Page 2
Škoda Fabia II / Octavia II / Roomster / VW Caddy / Touran
VW Tiguan
1. Unclip and remove OEM panel
(see arrows)
2. Remove 4 screws
Remove head unit
3. Attach mounting frames to
Alpine INE-W928R
5. Connect all requred
circuit points
Place Alpine INE-W928R
on dashboard
Place facia plate
Put dome of facia plate
exactly over the holes of
mounting frames
(see arrow above)
Install OEM panel to nish
installation
4. Connect all requred circuit points
Place Alpine INE-W928R
on dashboard
Page 3
VW Tiguan
Škoda Fabia II / Octavia II / Roomster / VW Caddy / Touran
1. Unclip and remove OEM panel
(see arrows)
Remove 4 screws of
OEM head unit
2. Remove 4 screws
Remove head unit
3. Cut away plastic to clear space
for Alpine INE-W928R
5. If necessary:
Cut away plastic to clear space
for Alpine INE-W928R
6. Place facia plate
Put dome of facia plate
exactly over the holes
of mounting frames
(see arrow above)
4. Attach mounting frames to
Alpine INE-W928R
Fix facia plate with 4 screws
7. Install OEM panel to nish
installation
Page 4
Seat Alhambra / VW Sharan Seat Alhambra / VW Sharan
1. Open top shelf
Remove 2 screws
2. Remove top shelf inlay
Remove 2 screws on top
4. Remove 4 screws
Remove OEM head unit
If necessary:
Cut away plastic to clear space
for Alpine INE-W928R
5. Attach mounting frames to
Alpine INE-W928R
6. Place facia plate
3. Remove OEM panel
7. Connect all requred circuit
points
Place Alpine INE-W928R
on dashboard
Fix facia plate with 4 screws
Install everything in reverse
order to nish installation
