<Cautions for Safe Repair Work>

The following cautions will prevent accidents in the workplace and will ensure safe products.
*The symbols indicate caution is needed to prevent injuries and damage to property.
The symbols and their meanings follow.

Warning

Caution

*The following symbols indicate two levels of cautions.

When you see this symbol, you have to be very careful.

When you see this symbol, you have to follow the instructions there.

If you ignore this symbol and handle the product incorrectly or unsafely,
serious injury or death may result.

If you ignore this symbol and handle the product incorrectly or unsafely,
injury or only material damage may result.

Warning

Do not look squarely into the laser light
coming from the pickup.

You may loose you sight.

Fuse Caution

lways use a designated fuse.

Use of an incorrect fuse may result in a fire.

Caution

Do not allow wiring to be caught in the
screw/chassis.

If wiring is caught in the screw/chassis, it may Confirm the correct polarity and seat of the
cause a short circuit, resulting in a fire.

High Temperature Caution

Touching the heat sink may cause severe burns. Look up the part list and ensure that only

Reverse Power Supply Connections or
Misconnections Caution

Reverse power supply connections o
misconnections may cause ignition problems and
smoke may result.

Soldering Caution

Hot solder from solder splash may cause severe Wear gloves to prevent electrical shocks or injury
burns.

Battery Caution

Use the designated battery.

battery.

n incorrect battery or an improperly connected

or seated battery may result in a fire.

Designated Parts Caution

designated parts are used to prevent problems o
accidents.

Wiring Caution

Ensure that the wiring is correct when rewiring to
prevent problems with ignition/breakdown.

Wear Gloves

from the end face of the metal.

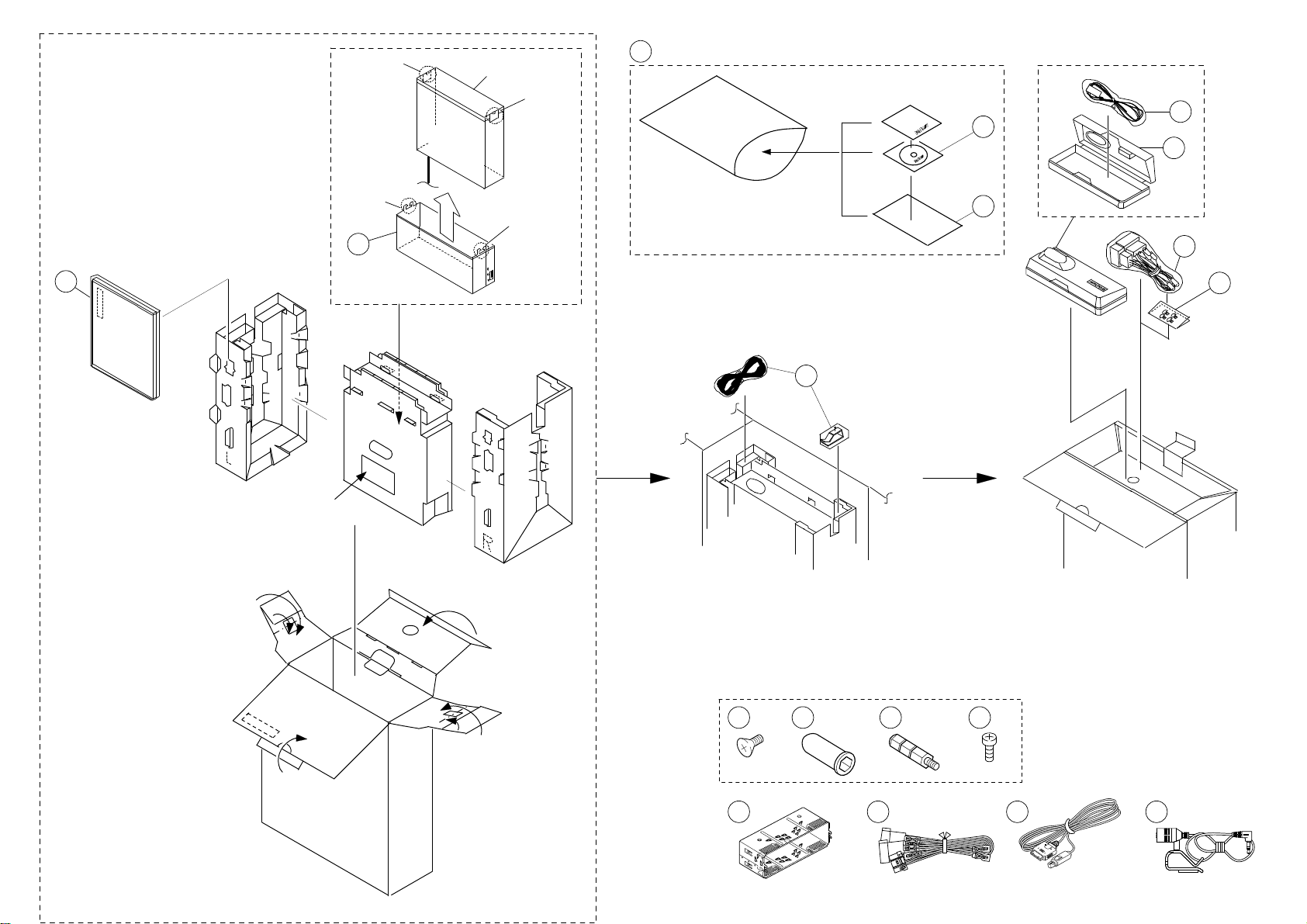

Packing Method View

102

Hook Lock

Hook Lock

103

102

Product

Hook Lock

B

O

T

T

O

M

S

i

d

e

Hook Lock

107

Card Note

Quick Guide

102-1

102-2

106

104

105

101

Top Side

103

101-4101-3101-2101-1

X4

X1

105

X1

X1

106

107

X1

X1

X1

X1

101-1 03S60820Y16 SCR,MCH 5X8 ZN A
101

-2 36A02449K01 CAP,RUBBER(A)

101

-3 03A60836Y01 SCR,CUS 5X7 ZN A

101

-4 03S60824Y01 SCR,WEV 1.7X4 ZN A

-1 68-10334Z22 O/M-CDROM BASIC

102
102

-2 68-14470Z67 C/N-QRG AOEU DDA
103
104
105
106
107

15D00529K02 CASE,INNER
15D01798K04 CARRYING,CASE
09-14545Z02 ASSY,HARNESS POW 03A
09-14216Z02 ASSY,ANID-0092-02A
50-14386Z03 ASSY,LYS-M9750-FUL

Extension Cable

*Always connect the Extension Cable when making checks of voltage and repair.

(1) 01V40948S01
(2) No Extension
(3) No Extension

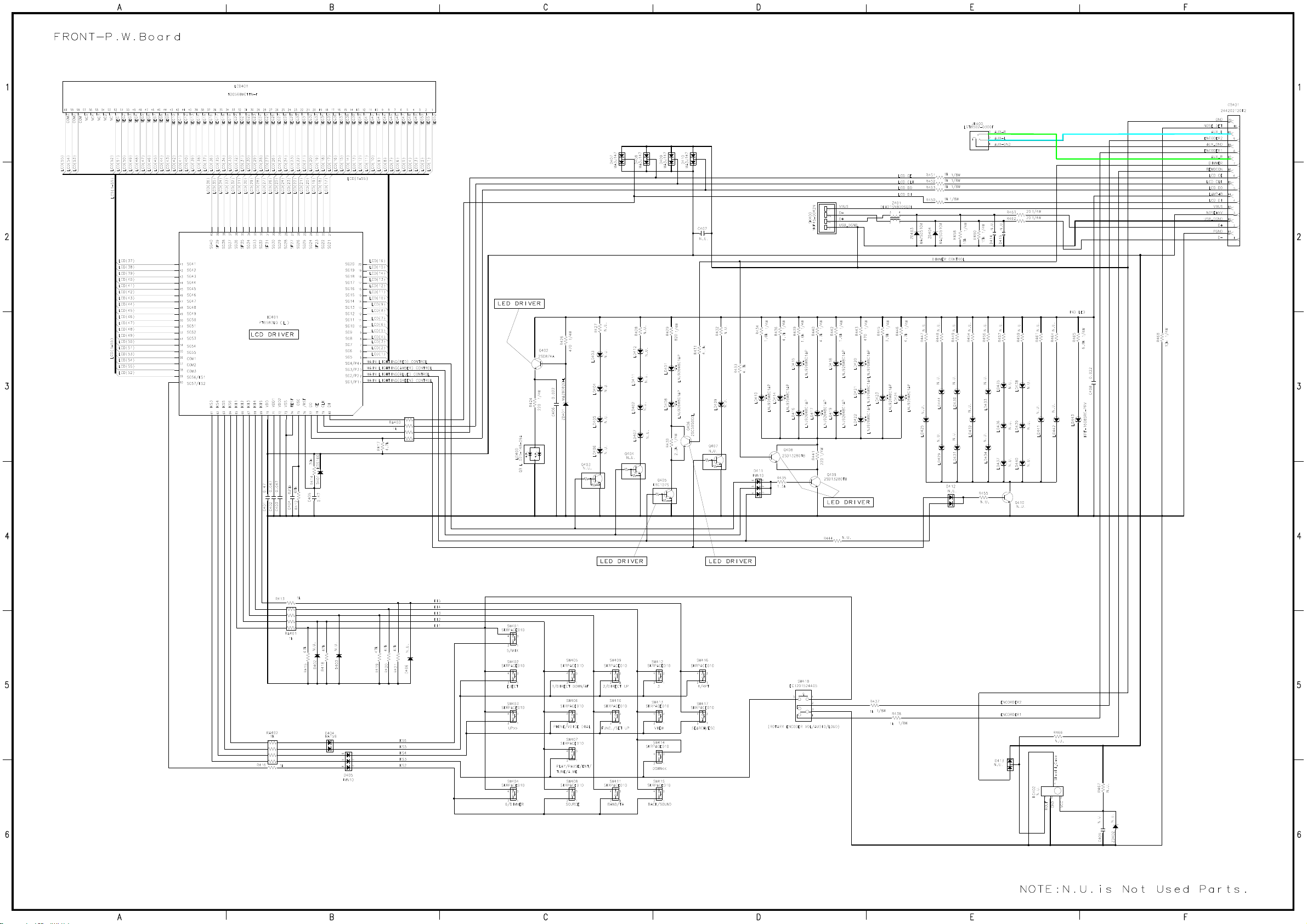

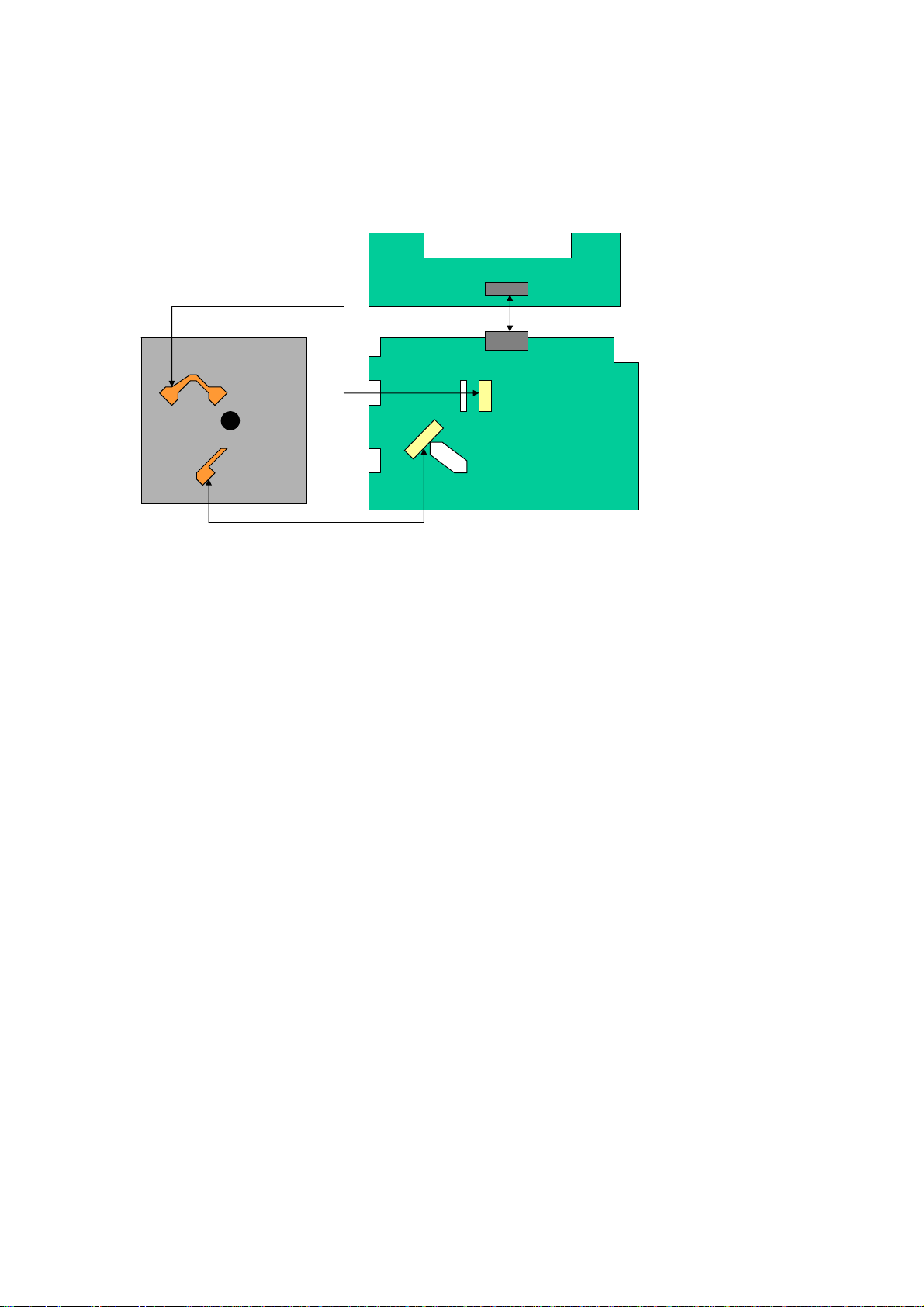

FRONT-P.W.Board

CB401

(2)

(1)

MECH

(3)

CB704

CH500

CB705

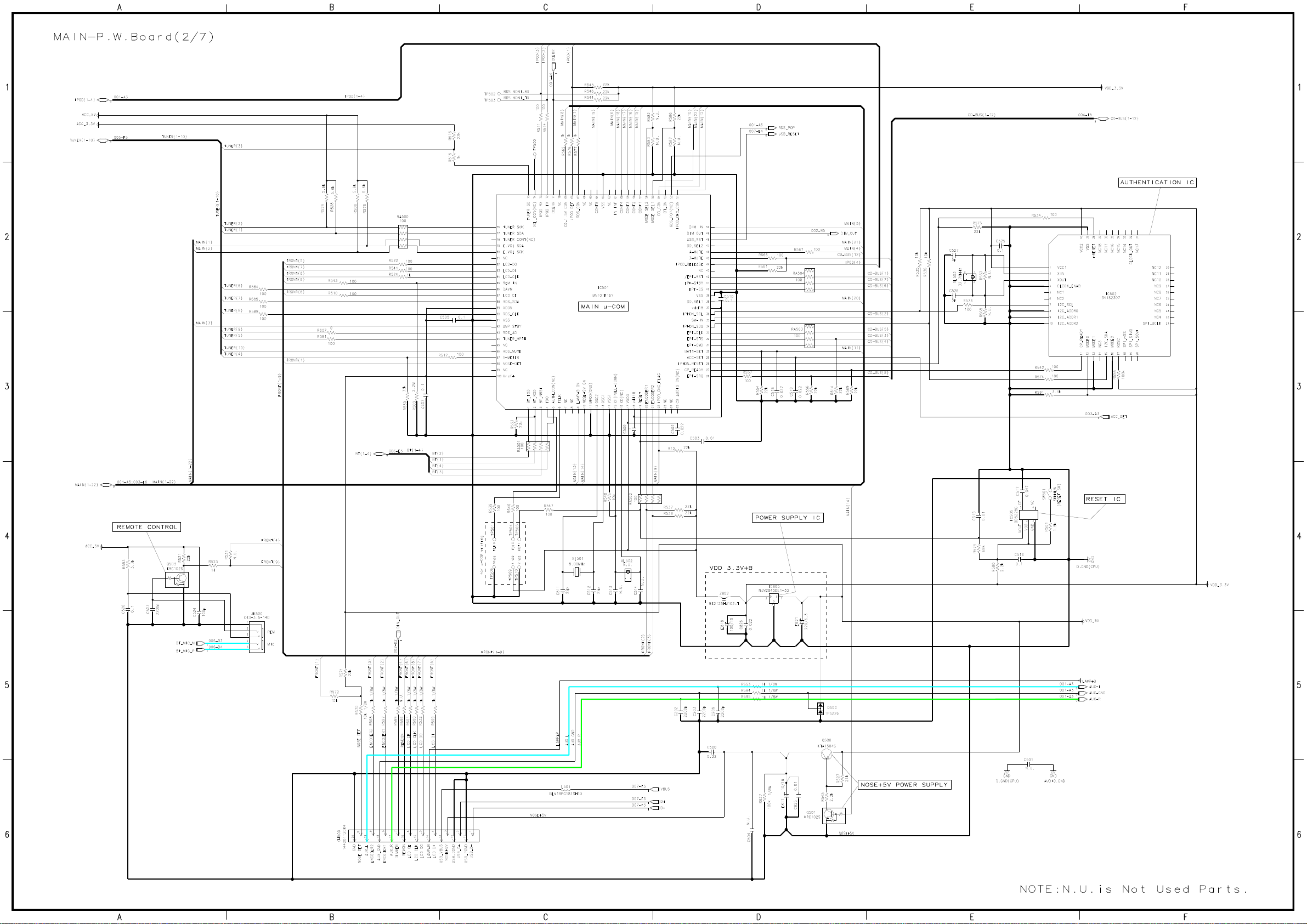

MAIN-P.W.Board

A. Note for ELEP COAT removal operation

p

1. Mask the surrounding area to prevent HEXANE from flowing into those area (PC Card slot, the Flash, connector terminals, etc.)
Masking tape
Manufacturer : 3M
Product Name : 243 Masking Tape (20 x 18)

2. Warm the PWB using the heat chamber (or a dryer). The ELEP COAT removal process can be started when the ELEP COAT of the parts to be exchanged becomes soft.
< Condition >
1 ) Temperature setting : 60 ºc
2 ) Heating Duration : 30 minutes

3. Carefully remove the ELEP COAT from all 4 sides using a brush.
Use a hard brush to remove the ELEP COAT from the terminal area.
Use a soft brush to remove the ELEP COAT from parts surrounding the exchange part.

Remove ELEP COAT using “Flux remover”

Note 1 ) Condensation may occur when using the Flux remover, so keep with in 3 seconds.
Note 2 ) When spraying the Flux remover, it has more effect if sprayed overall instead of in concentrated point.

FLUX REMOVER
Manufacture : HAKKO or equivalent
Product Name : 013A

B. Note for Application operation

1. Materials used.
Moisture proofing material : ELEPCOAT LSS-520 or equivalent
Diluting material : N-HEXANE or equivalent
Brush : For Coating : Type No. 5 or 10

No. 5 General application
No. 10 Detailed application

2. Coated state

3. Drying time
Room Temperature : About 5 minutes
Cold wind : Over 60 seconds

C. Moisture

Storage and caution :

1. Seal well when not in use.

2. Do not store in area were temperature may reach 40ºC and above for long periods of time.

3. No long term contact with the skin or exposure to fumes. (Ventilate well)

4. Do not mix with liquids or expose to flames.

5. Follow First-in / First-out rule. Use older products first.

Expiration : 6 months from production date

roofing material (ELEP COAT) storage and expiration

Moisture proofing material

The moisture proofing material must be coating
so that moisture should not enter from the space
in the terminal and the mold part.

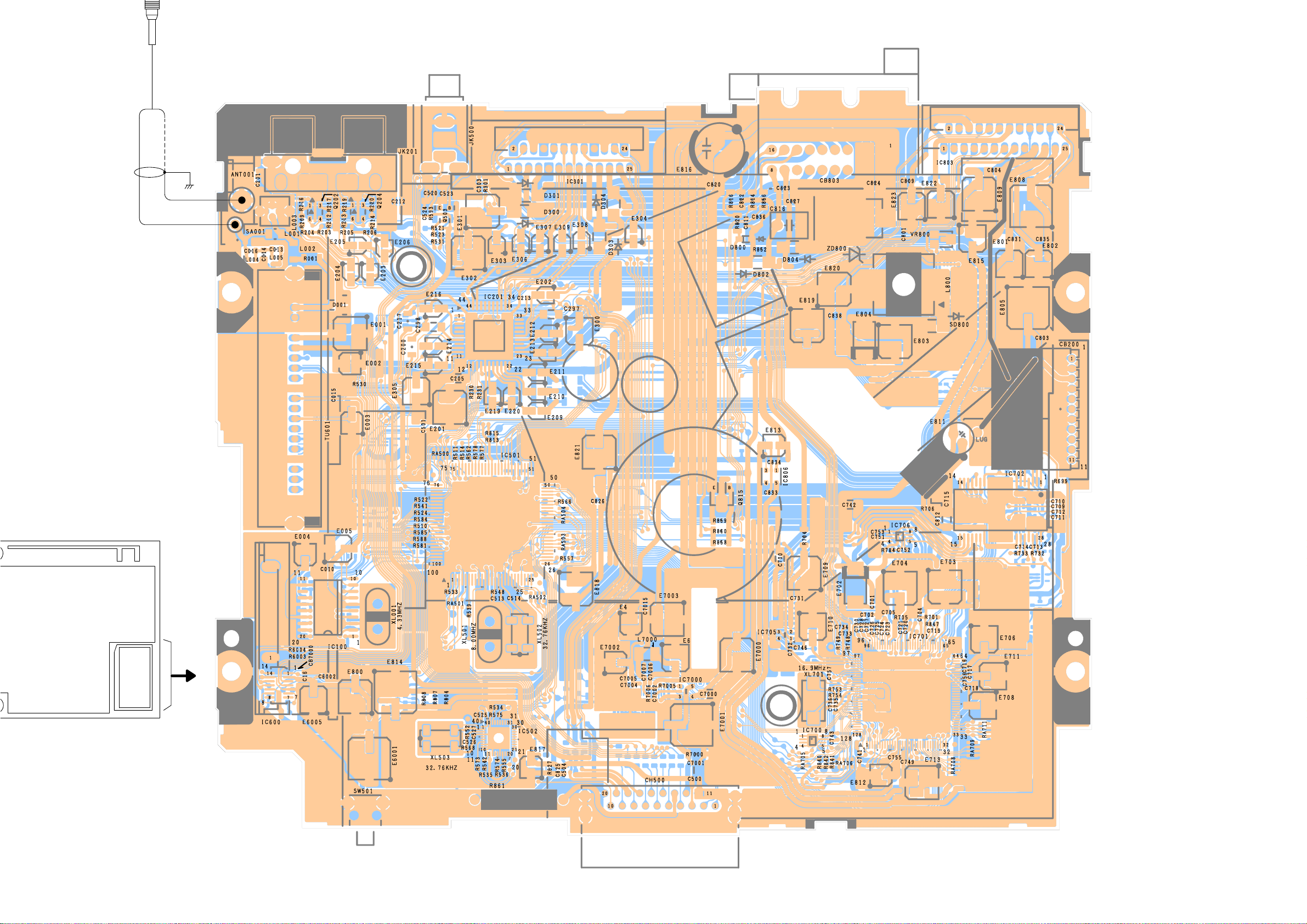

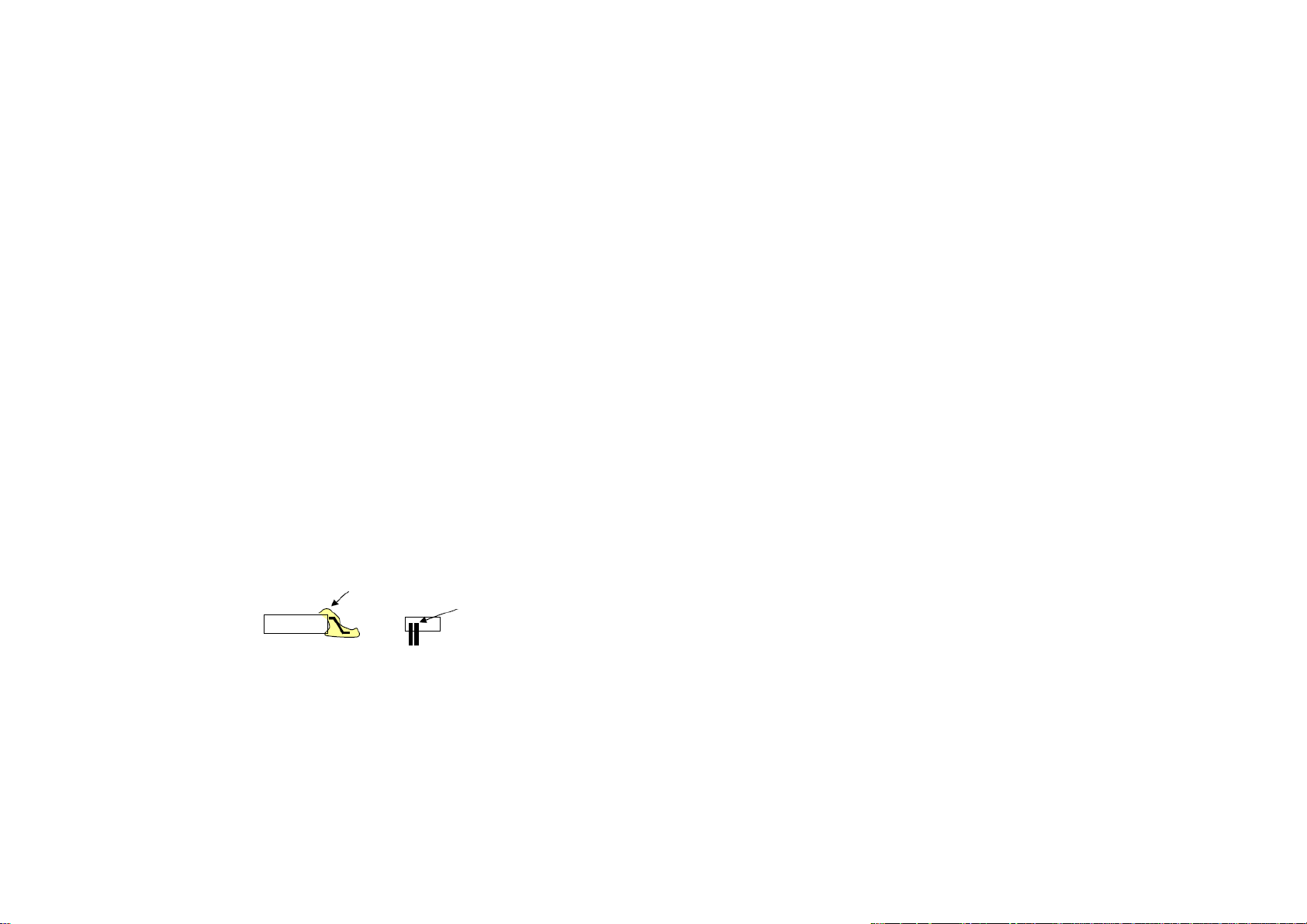

MAIN-P.W.Board / FRONT-P.W.Board
(Component Side)

Applying Note Instruction :

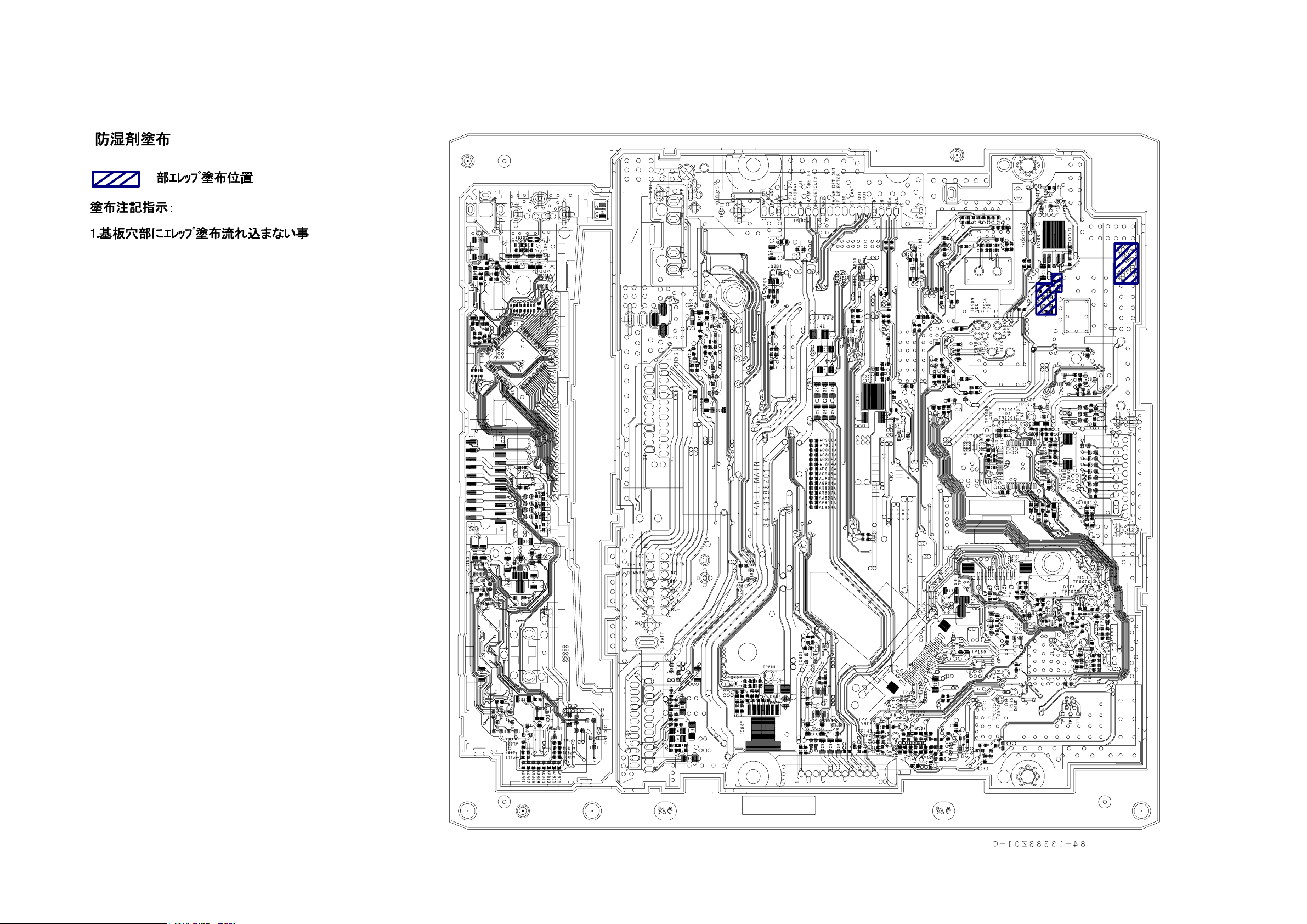

No ELEP flowing into the hole of PWB

is ELEP applying position

Moisture-proof applying

MAIN-P.W.Board / FRONT-P.W.Board

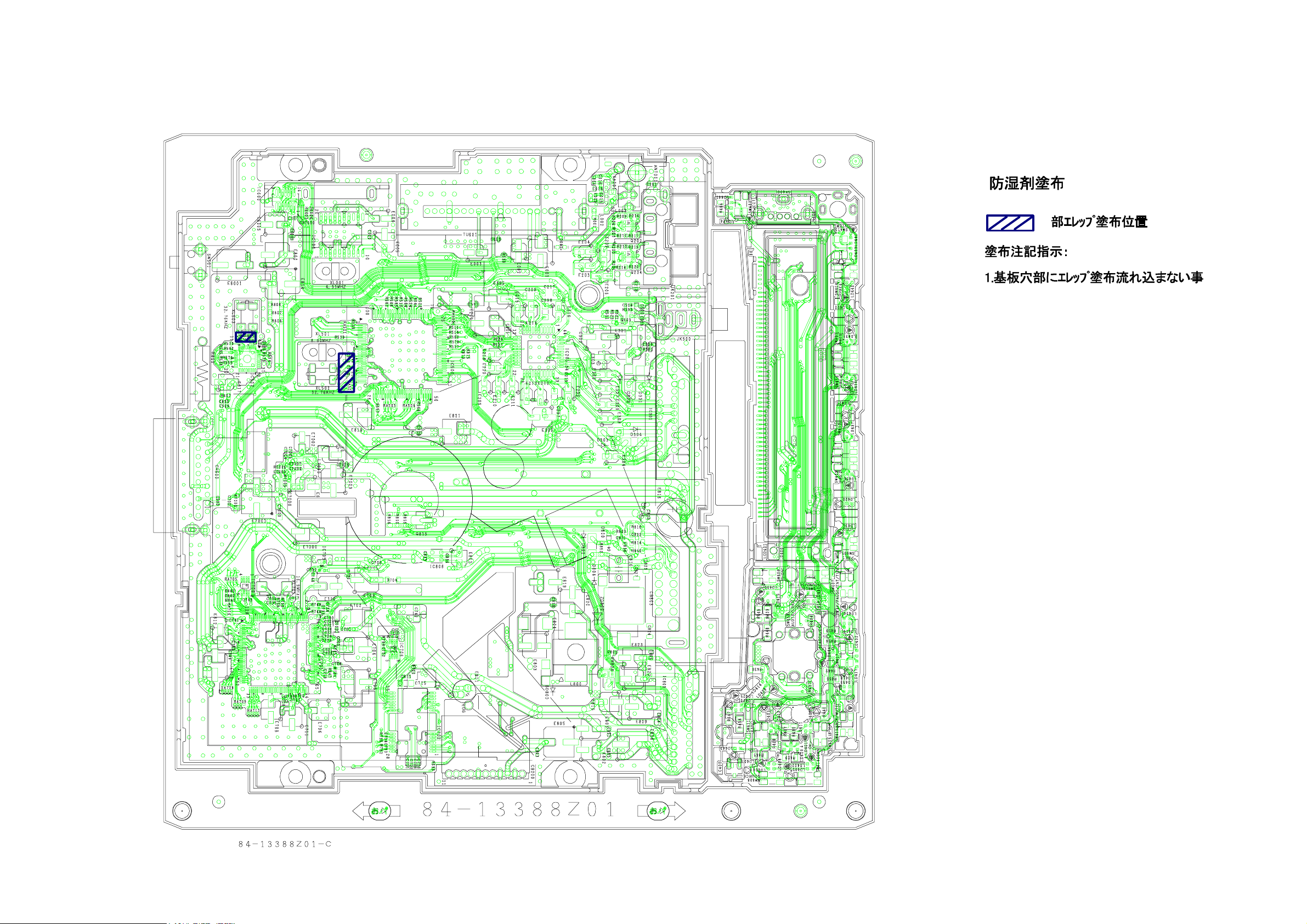

(Foil Side)

Applying Note Instruction :
No ELEP flowing into the hole of PWB

is ELEP applying position

Moisture-proof applying

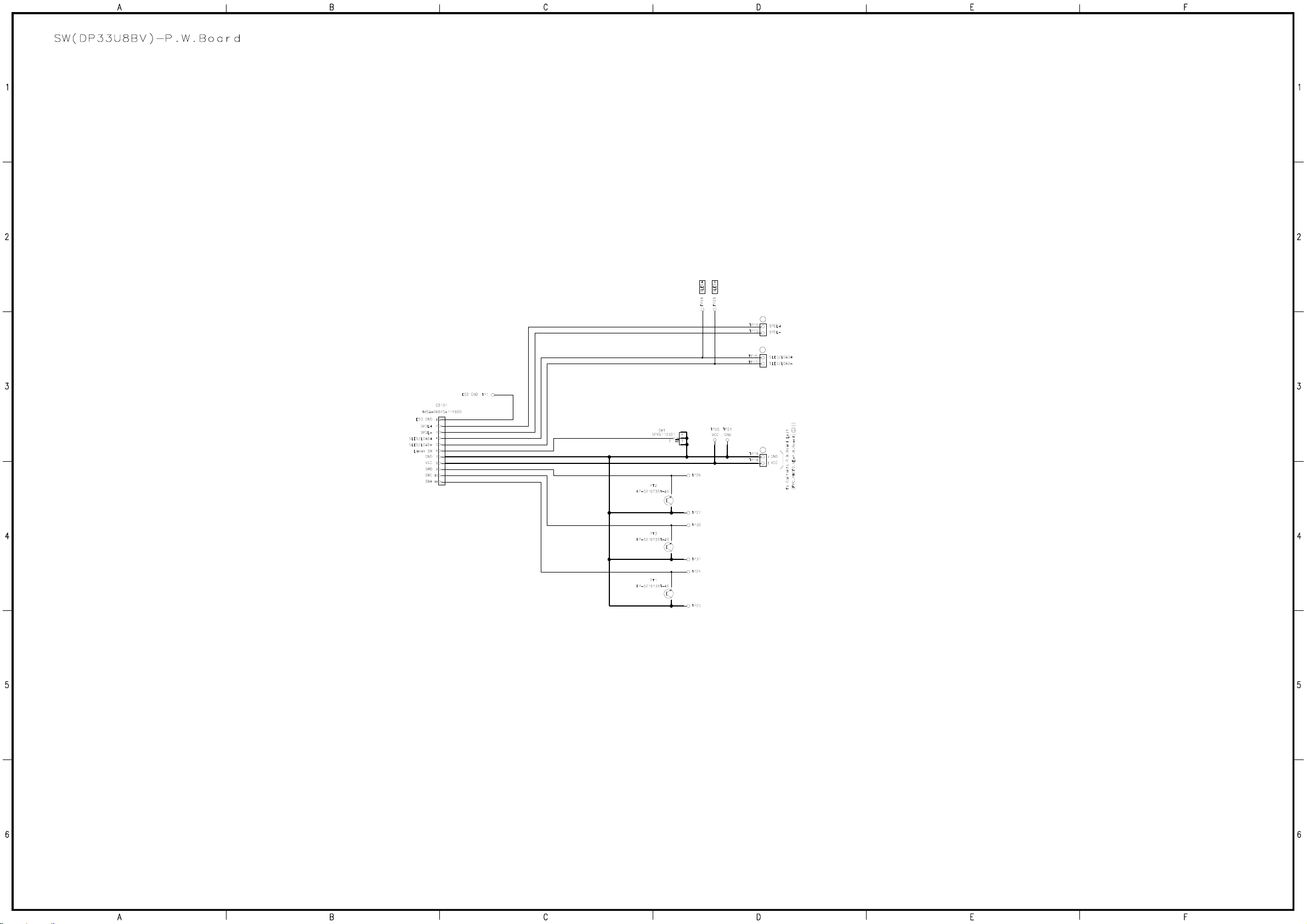

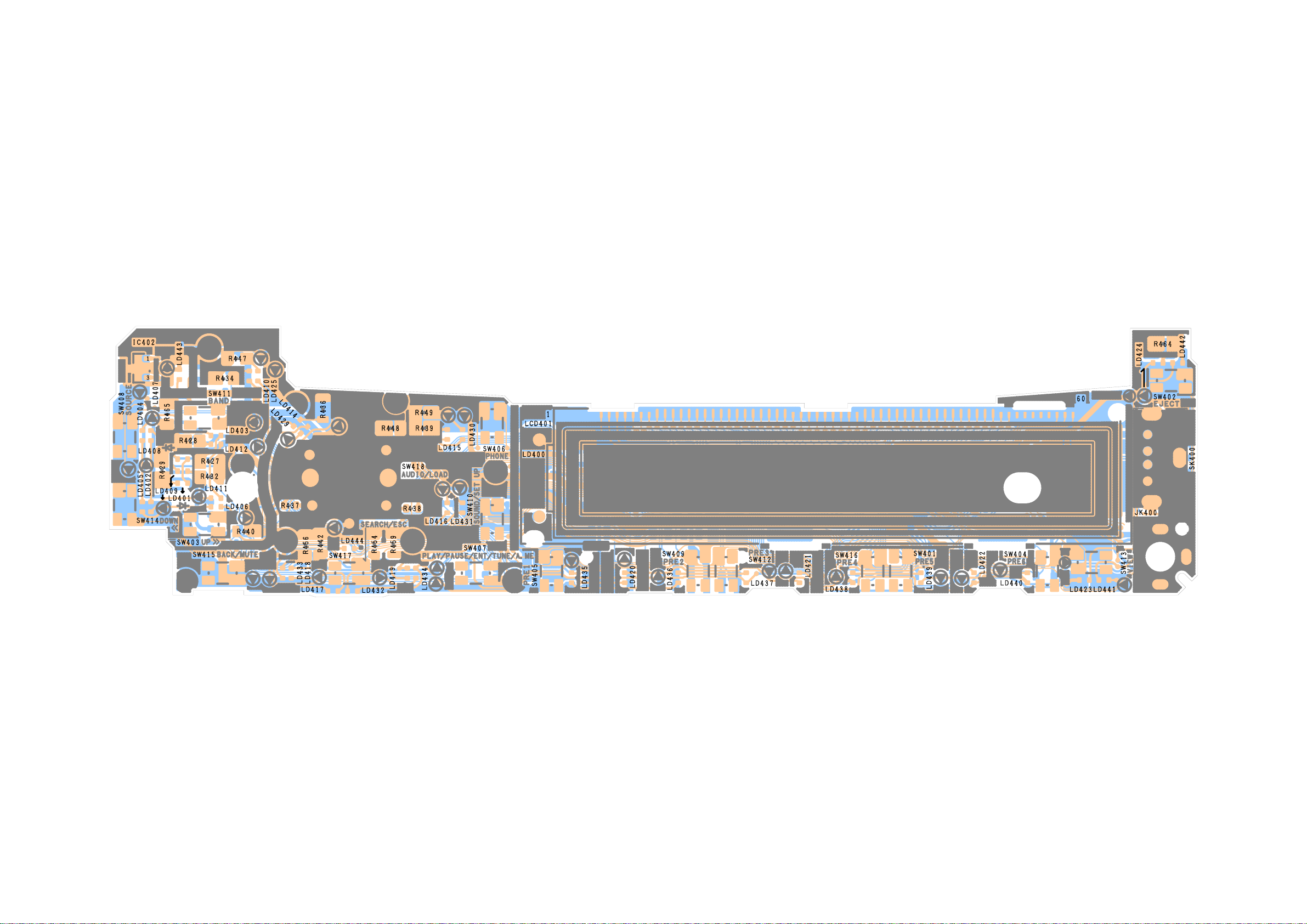

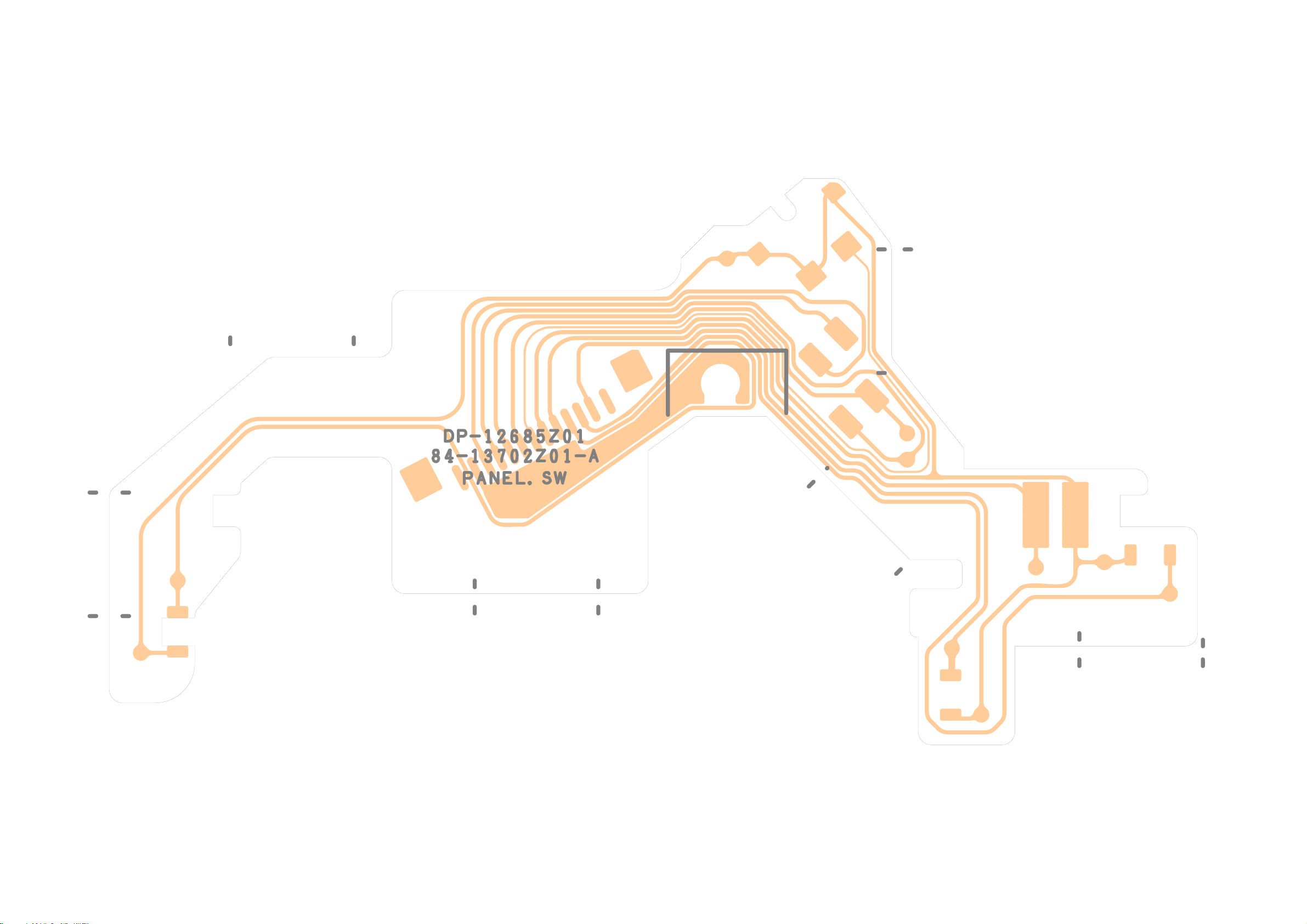

SW(DP33U8BV)-P.W.Board
(Component Side)

No ELEPcoat spreading.

No ELEPcoat spreading.

SW(DP33U8BV)-P.W.Board
(Foil Side)

Specifications

< FM RADIO >

Intermediate Frequency 10.7±0.1MHz

Frequency Range 87.5~108.0MHz

Usable Sensitivity (30dB S/N, Mono, at 98.1MHz) 20.2dBf

-3dB Limiting Sensitivity (at 98.1MHz) 20.2dBf

Residual Noise (Ref. 400Hz, at 98.1MHz) 25±10dB

S/N Ratio (at 98.1MHz) Stereo : 50dB

Image Rejection (at 106.1MHz) 40dB

IF Rejection (at 90.1MHz) 60dB

Distortion (Input 60dBμ, at 98.1MHz) 1.5%

Frequency Response (Ref. 400Hz, at 98.1MHz) 100Hz : 0±3dB

Stereo Separation (1kHz, at 98.1MHz) 20dB

PS Sensitivity (at 98.1MHz) 36.2dBf

< MW RADIO >

Intermediate Frequency 1st : 10.8MHz

Frequency Range 531~1,602kHz

Usable Sensitivity (20dB S/N, at 999kHz) 36dB

S/N Ratio (at 999kHz) 44dB

Image Rejection (2nd IF, at 1,404kHz) 40dB

IF Rejection (2nd IF, at 603kHz) 40dB

Distortion (at 999kHz) 1.5%

Frequency Response (Ref. 400Hz, at 999kHz) 100Hz : -4 +4/-3dB

Mono : 55dB

10kHz : -12±3dB

2nd : 450kHz

4kHz : -14±6dB

< LW RADIO >

Intermediate Frequency 1st : 10.8MHz

Frequency Range 153~281kHz

Usable Sensitivity (20dB S/N, at 216kHz) 43dB

S/N Ratio (at 216kHz) 40dB

Image Rejection (2nd IF, at 270kHz) 40dB

IF Rejection (2nd IF, at 162kHz) 50dB

Distortion (at 216kHz) 1.5%

Frequency Response (Ref. 400Hz, at 216kHz) 100Hz : -4 +4/-3dB

2nd : 450kHz

4kHz : -14±6dB

< CD SECTION >

System Optical (Compact Disc System)

Channel Balance (1kHz) CD : TCD-782 : 0±3dB

Distortion (1kHz) CD : TCD-782 : 0.1%

Frequency Response (Ref. 1kHz) CD : TCD-782 : 17Hz : 0±3dB

Frequency Response (Ref. 1kHz, 0dB) MP3 : SCD-7885 (FOLDER5-128kbps) : 17Hz : 0±3dB

MP3 : SCD-7885 (FOLDER5-128kbps) : 0±3dB

WMA : SCD-7885 (FOLDER10-128kbps) : 0±3dB

AAC : SCD-7885 (FOLDER2-128kbps) : 0±3dB

MP3 : SCD-7885 (FOLDER5-128kbps) : 0.3%

WMA : SCD-7885 (FOLDER10-128kbps) : 0.3%

AAC : SCD-7885 (FOLDER2-128kbps) : 0.3%

127Hz : 0±2dB

10.007kHz : 0±2dB

19.997kHz : -1±4dB

127Hz : 0±2dB

10.007kHz : 0±2dB

19.997kHz : -1±4dB

WMA : SCD-7885 (FOLDER10-128kbps) : 17Hz : 0±3dB

(

)

(

)

)

(

)

y

)

(

)

(

)

y

)

g

(

)

r

y

(

(

(

)

(

)

g

g

S/N Ratio CD : TCD-782 : 85dB

Separation

1kHz

De-Emphasis

Ref. 1kHz

127Hz : 0±2dB

10.007kHz : 0±2dB

19.997kHz : -1±4dB

AAC : SCD-7885 (FOLDER2-128kbps) : 17Hz : 0±3dB

127Hz : 0±2dB

10.007kHz : 0±2dB

MP3 : SCD-7885 (FOLDER5-128kbps) : 85dB

WMA : SCD-7885 (FOLDER10-128kbps) : 85dB

AAC : SCD-7885 (FOLDER2-128kbps) : 85dB

CD : TCD-782 : 55dB

MP3 : SCD-7885 (FOLDER5-128kbps) : 55dB

WMA : SCD-7885 (FOLDER10-128kbps) : 55dB

AAC : SCD-7885 (FOLDER2-128kbps) : 55dB

CD : TCD-782 : 4kHz : -20±3dB

16kHz : -20±3dB

< USB Audio (MEMORY) >

Channel Balance (1kHz

Distortion

Frequenc

1kHz

Response (Ref. 1kHz, 0dB

S/N Ratio 80dB

Separation

1kHz

0±3dB

0.3%

17Hz : 0±3dB

127Hz : 0±2dB

10.007kHz : 0±2dB

19.997kHz : -1±4dB

70dB

< CD Deck Mechanism >

Test Disc CD-DA : ALMEDIO* TCD-782

RF Waveform Amplitude 1.2±0.5Vp-p

Quantit

of Jitter (3T standard deviation

Measurement An

le Range Front and Rear : -20°~+55°

Laser Current Initial value ±5mA

CD-R : ALMEDIO* TCD-R082LMR

CD-RW : ALMEDIO* TCD-W082W / TCD-W082L / TCD-W082H

* Former maker name : A-BEX, New maker name : ALMEDIO

Less than 30nsec

Right and Left : ±20°

The initial value of laser current is indicated on the Flexible Cable.

< Pickup >

Wave Length 795nm

Laser Powe

CLASS I

< GENERAL >

Power Suppl

Power Output

Pre Output

Back Up Current

Dimensions

TCD-782 (1kHz, 0dB), T.H.D.10%) / Impedance 18W / ch / 4 ohm

TCD-782 (1kHz, 0dB), T.H.D.1%) / Impedance 6 +5/-2dBV / ch / 10k ohm

ACC-OFF After 1 minute

W x H x D

Wei

ht 1.5k

DC14.4V

5mA

Chassis : 178 x 50 x 163mm

Nose : 188 x 58 x 25mm

NOTE : Due to Continuing product improvement, specifications and designs are subject to change without notice.

< Special DISC Playability >

Judging standard : Confirm following track are done in play and there is no skip. (However, the interpolation noise is excluded.)

Item Use Disc Initial Performance

Standard disc ALMEDIO* TCD-782 at playing track #1 and track #23.

CD-DA

Eccentric disc Playability ALMEDIO* TCD-713R at playing track #1 and track #15.

Vertical deviation disc Playability ALMEDIO* TCD-731RA at playing track #15.

Scratch disc Trackability ALMEDIO* TCD-721 at playing track #6. (1.2mm)

Defects disc Black dot ALMEDIO* TCD-725B or 726 at playing track #10. (1.0mm)

Defects disc Fingerprint ALMEDIO* TCD-725B or 726 at playing track #15. (ø75μm)

Defects disc Inetrruption ALMEDIO* TCD-725B at playing track #6. (1.0mm)

Standard disc ALMEDIO* TCD-R082LMR at playing track #1 and track #23.

CD-R

Scratch disc Trackability ALMEDIO* TCD-R021W at playing track #6. (1.2mm)

Defects disc Black dot ALMEDIO* TCD-R025W at playing track #10. (1.0mm)

Defects disc Fingerprint ALMEDIO* TCD-R025W at playing track #15. (ø75μ m)

Eccentric disc Playability ALMEDIO* TCD-R012W at playing track #1 and track #16.

Vertical deviation disc Playability ALMEDIO* TCD-R032W at playing track #16.

CD-RW Standard disc ALMEDIO* TCD-W082W at playing track #1 and track #23.

Scratch disc Trackability ALMEDIO* TCD-W021W at playing track #10. (1.2mm)

Defects disc Black dot ALMEDIO* TCD-W025W at playing track #10. (1.0)

Defects disc Fingerprint ALMEDIO* TCD-W025W at playing track #15. (ø75μm)

Eccentric disc Playability ALMEDIO* TCD-W012W at playing track #1 and track #16.

Vertical deviation disc Playability ALMEDIO* TCD-W032W at playing track #16.

MP3 Scratch disc Trackability ALMEDIO* SCD-4989 at playing track #6. (1.2mm)

ALMEDIO* TCD-W082L

ALMEDIO* TCD-W082H

(* Former maker name : A-BEX, New maker name : ALMEDIO)

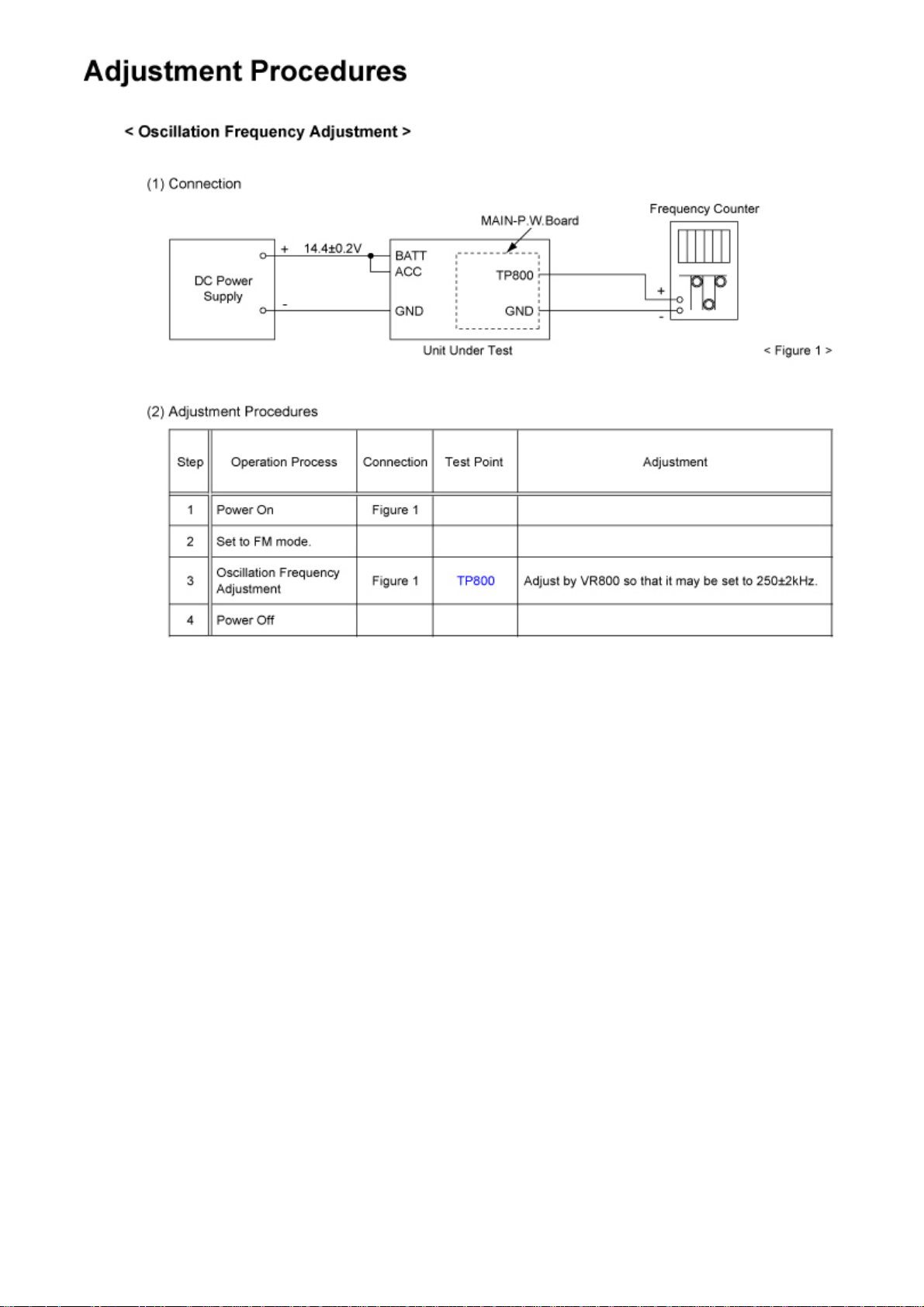

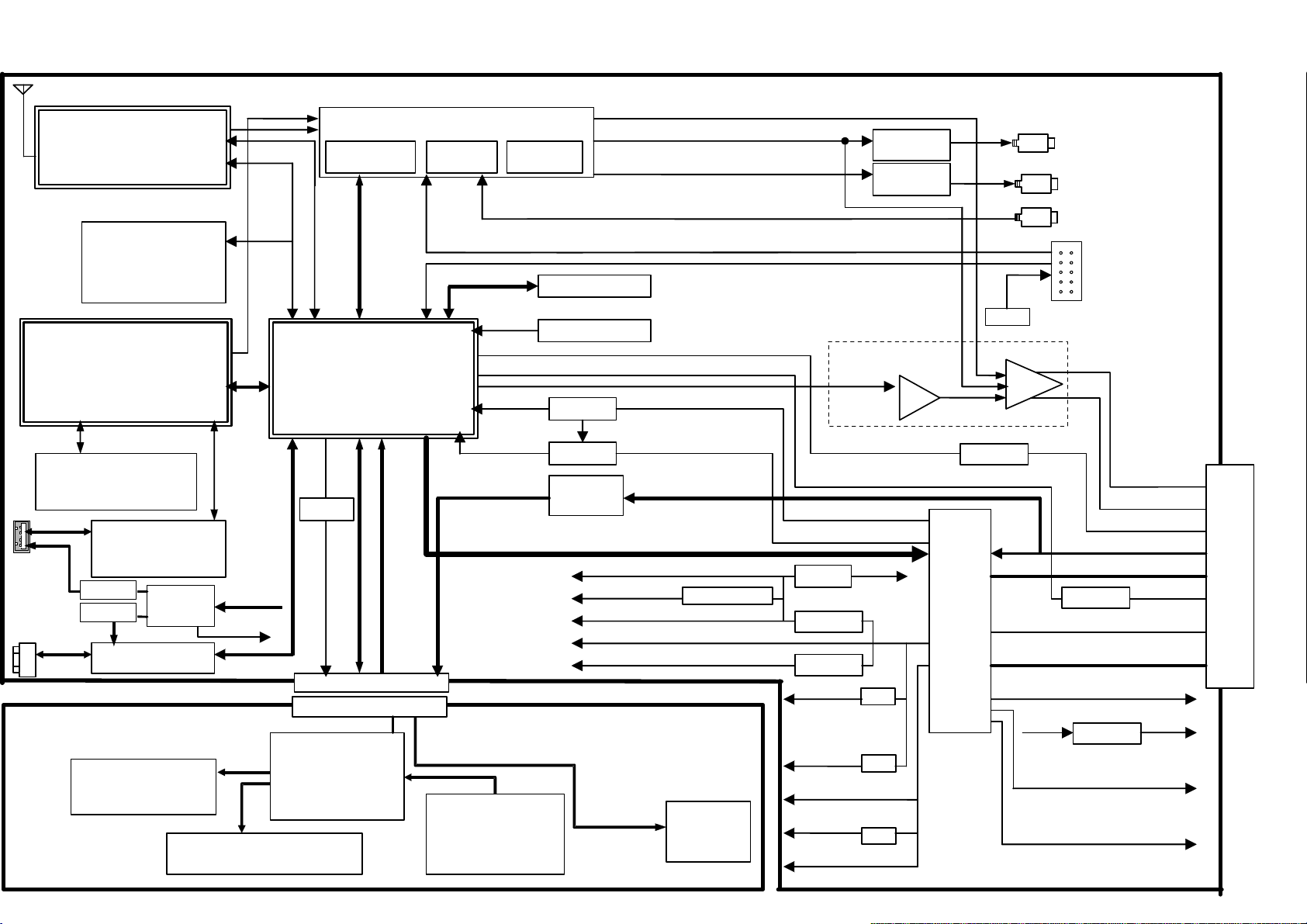

Block Diagram

Main ANT

TUNER UNIT

MX-E210

RDS Decoder

SAA6588T

Servo/RF-AMP/Decoder
CD-LSI
MN6627971AH
* For Shock Proof

CD Mechanism
(MP3/WMA/AAC)

USB IC
MN103SH7JUB

USB/iPod

Charge+5V

iPod Direct

HSD

HSD

Nose
Lighting Control

DC/DC
BD9781

iPod Direct I/F

LCD: 14seg X 10figures

BATT

USB5V

E-VOL TDA7717

Selector

I2C

Main/Mechanism uCOM
MN101E16Y

NOSE +B

NOSE +B

LCD Driver

PT6583

VOL

HPF

iPod AUTH IC

System Reset

BattDet.

AccDet.

LAMP +B

(LED +B)

CNT1,CNT2,CNT3,CNT4,CNT5

LAMP +B

Key Matrix

AUTH+3.3V

ACC+3.3V

VDD +3.3V

VDD +5V

ACC+5V

ACC +3.3V

Rotary

Encoder

P-IC
LV47006 (50W)

A-Mute

CD+1.5V

RT9198

2845

ACC +5V

RDS_VCC

NOSE+5V

TUNER+8V

CD Audio3.3V

E-VOL

MUTE

MUTE

B-DET

A-DET

VDD

SW

SW

SW

DIMMER

AUDIO +B

MIC

SYSTEM REG

DECK

USB5V

REG1

REG2

Pre-OUT Front

Pre-OUT Sub-Woofer/Rear

AUX

BT CK5000

Front

Rear

DIMMER

Batt

Acc

IN-INT

SERVO +7V

BA00ASFP

Tuner+10V

IN-INT

P.ANT

O.REM

BT3.3V

CD+3.3V

Power

CONN

IC600

ASSY,CK5000 PF240016

D

E

B

ANT001

5

ASSY,ANID-00

BLK

WHT(ANT)

MAIN-P.W.Board

SHLD

To Tuner Chassis

ASSY,CK5000 PF240016

IC600

14 1

8 7

To CB7000

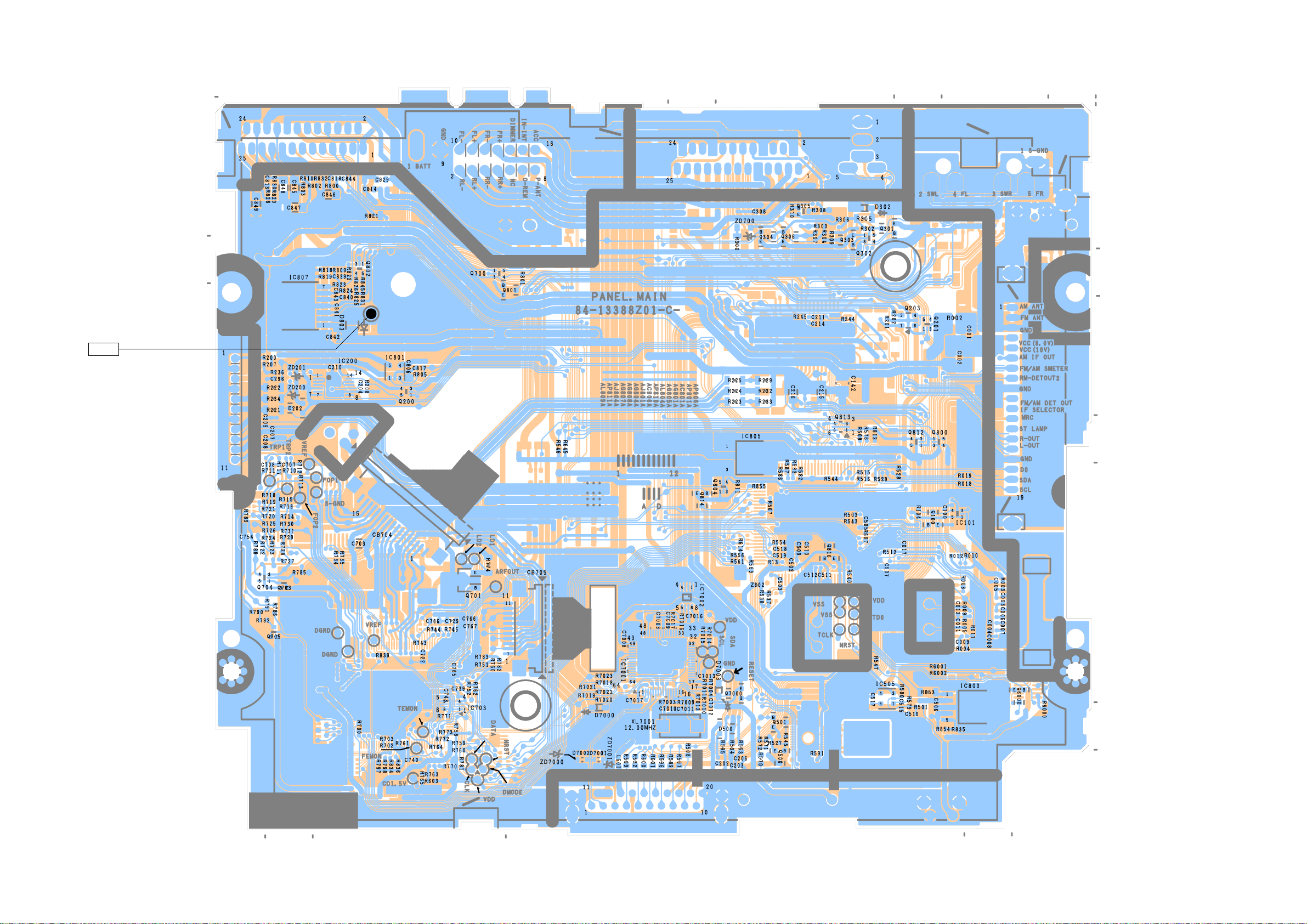

Orange Color Pattern:Component Side Pattern

TP800

MAIN-P.W.Board

TP800

Orange Color Pattern:Component Side Pattern

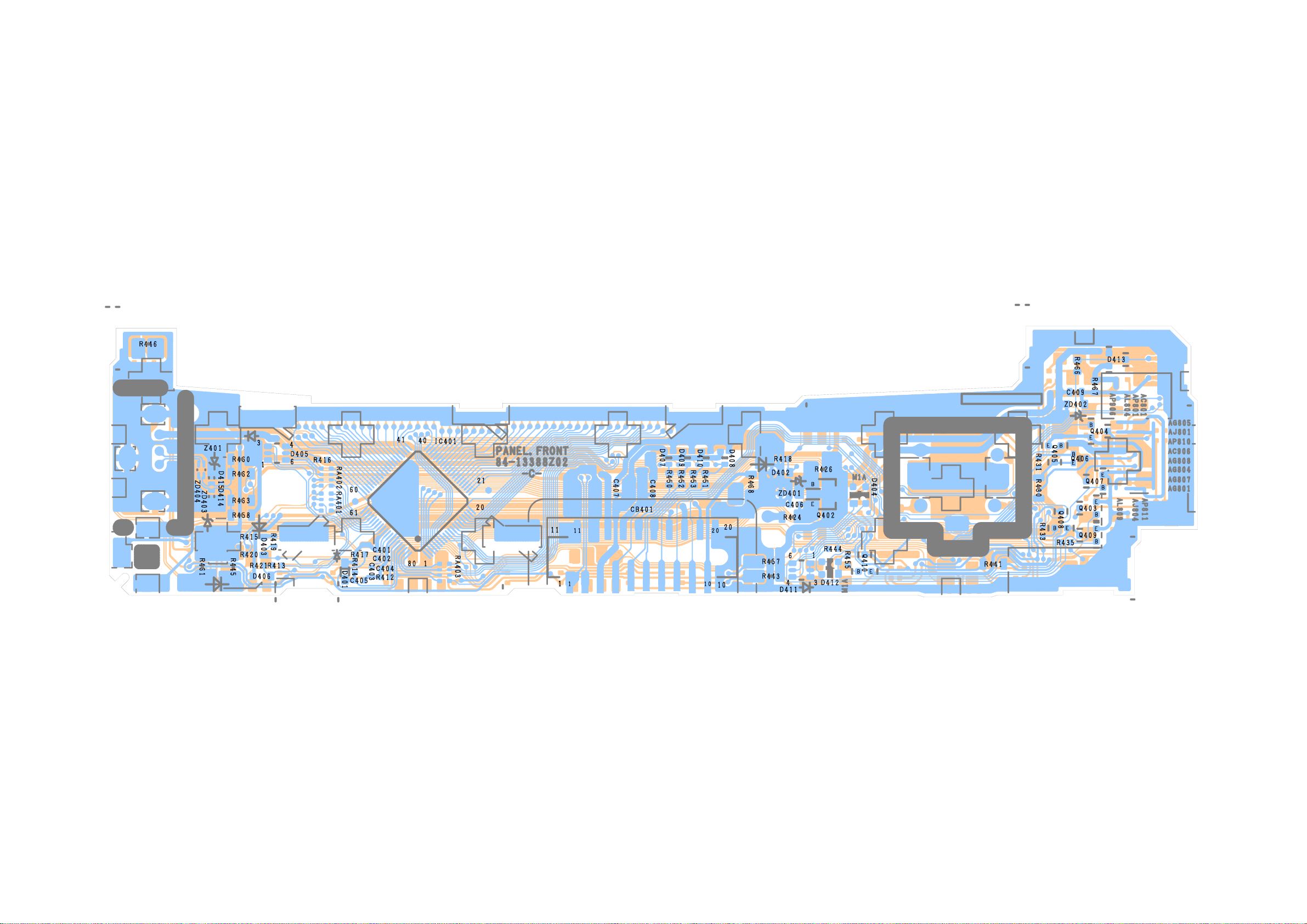

FRONT-P.W.Board

Orange Color Pattern:Component Side Pattern
Blue Color Pattern:Foil Side Pattern

FRONT-P.W.Board

Orange Color Pattern:Component Side Pattern
Blue Color Pattern:Foil Side Pattern

SW(DP33U8BV)-P.W.Board

To Contents P.W.Board List

(FPC.PHOTO.VE-P.W.Board( C ))

1 2

D

To B

B

1

E

2

Orange Color Pattern:Component Side Pattern

SW(DP33U8BV)-P.W.Board

Orange Color Pattern:Component Side Pattern

I

11

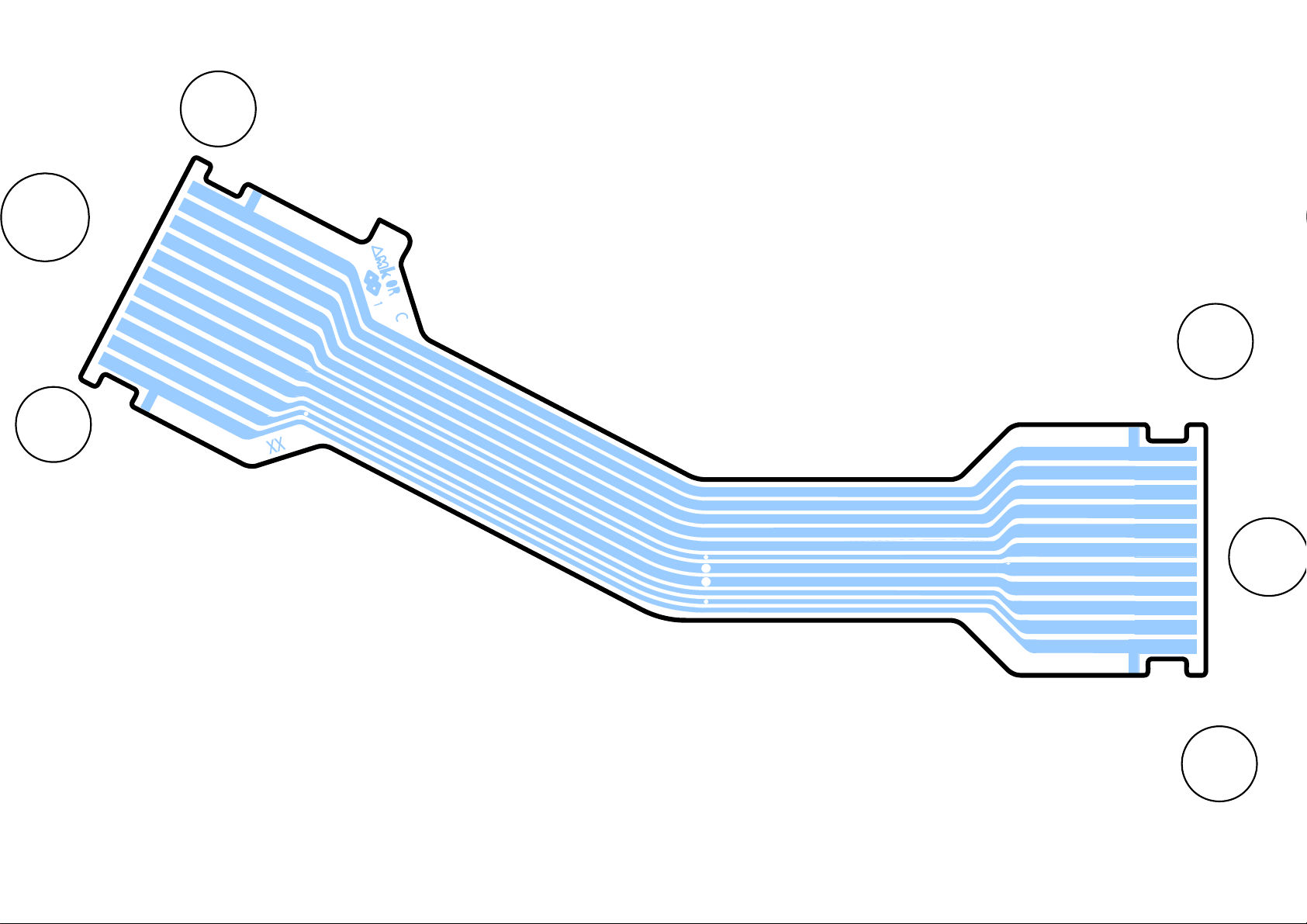

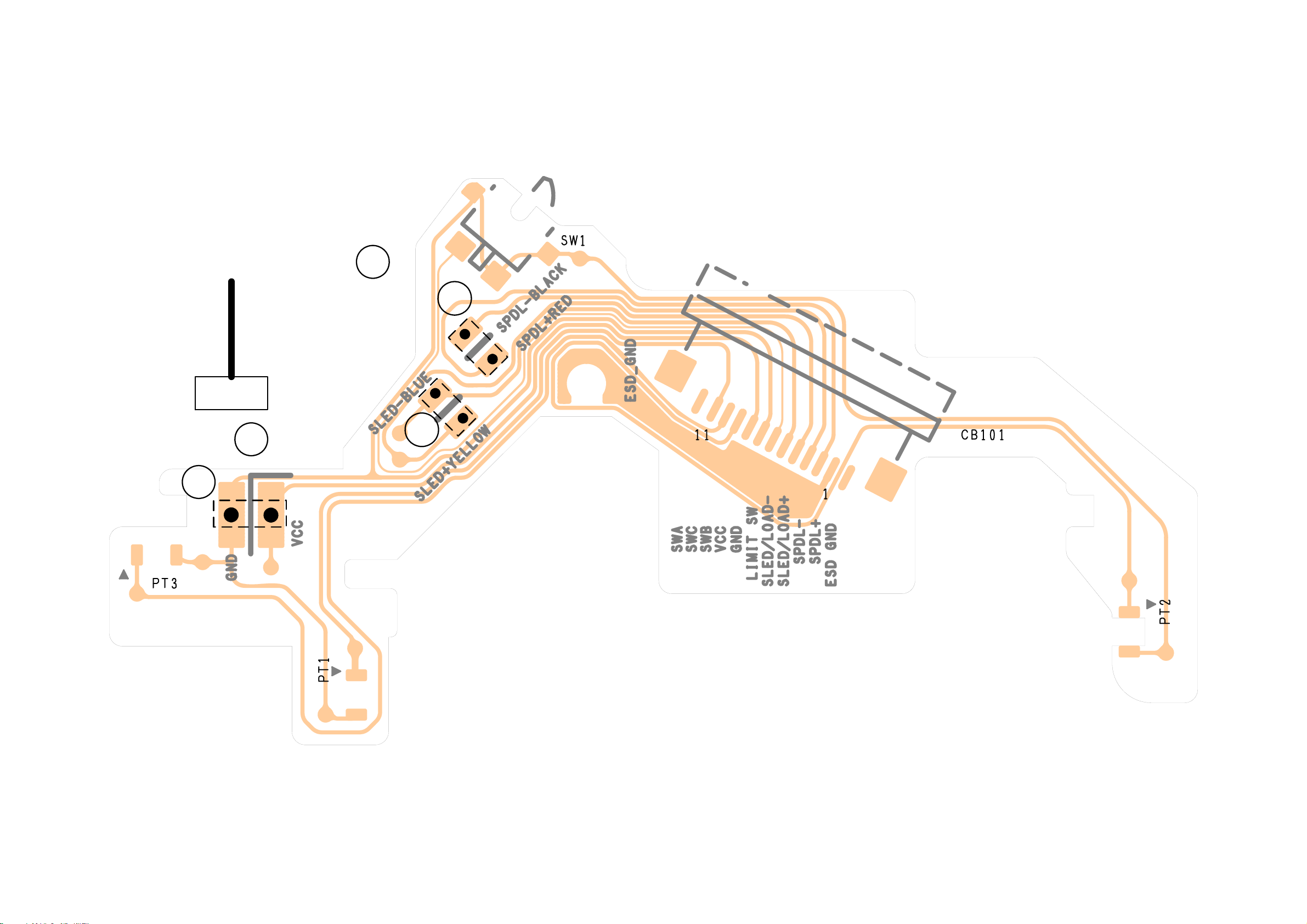

FPC.11PIN.MECH-P.W.Board

(Foil Side View)

11

1

J

Blue Color Pattern:Foil Side Pattern

1

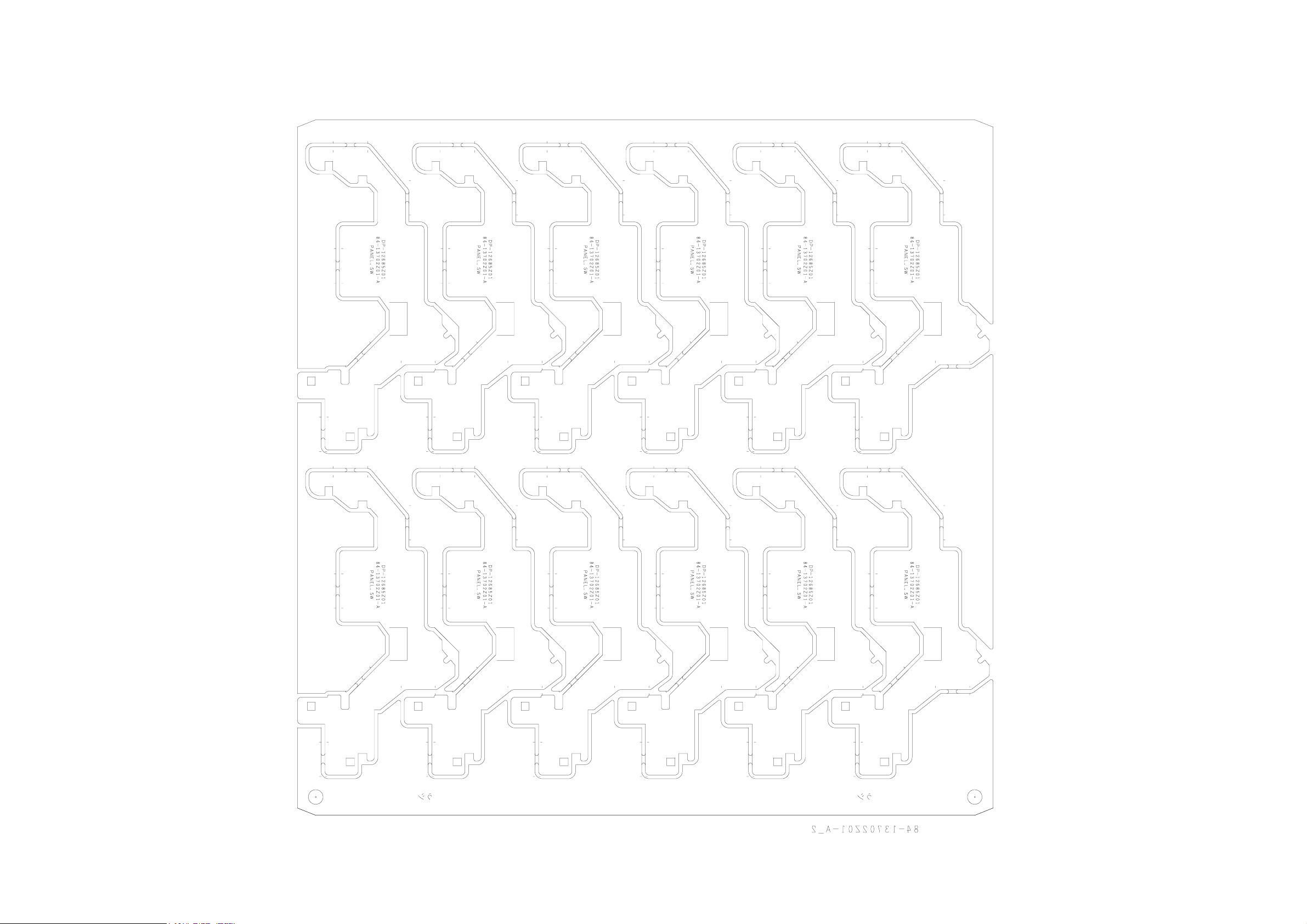

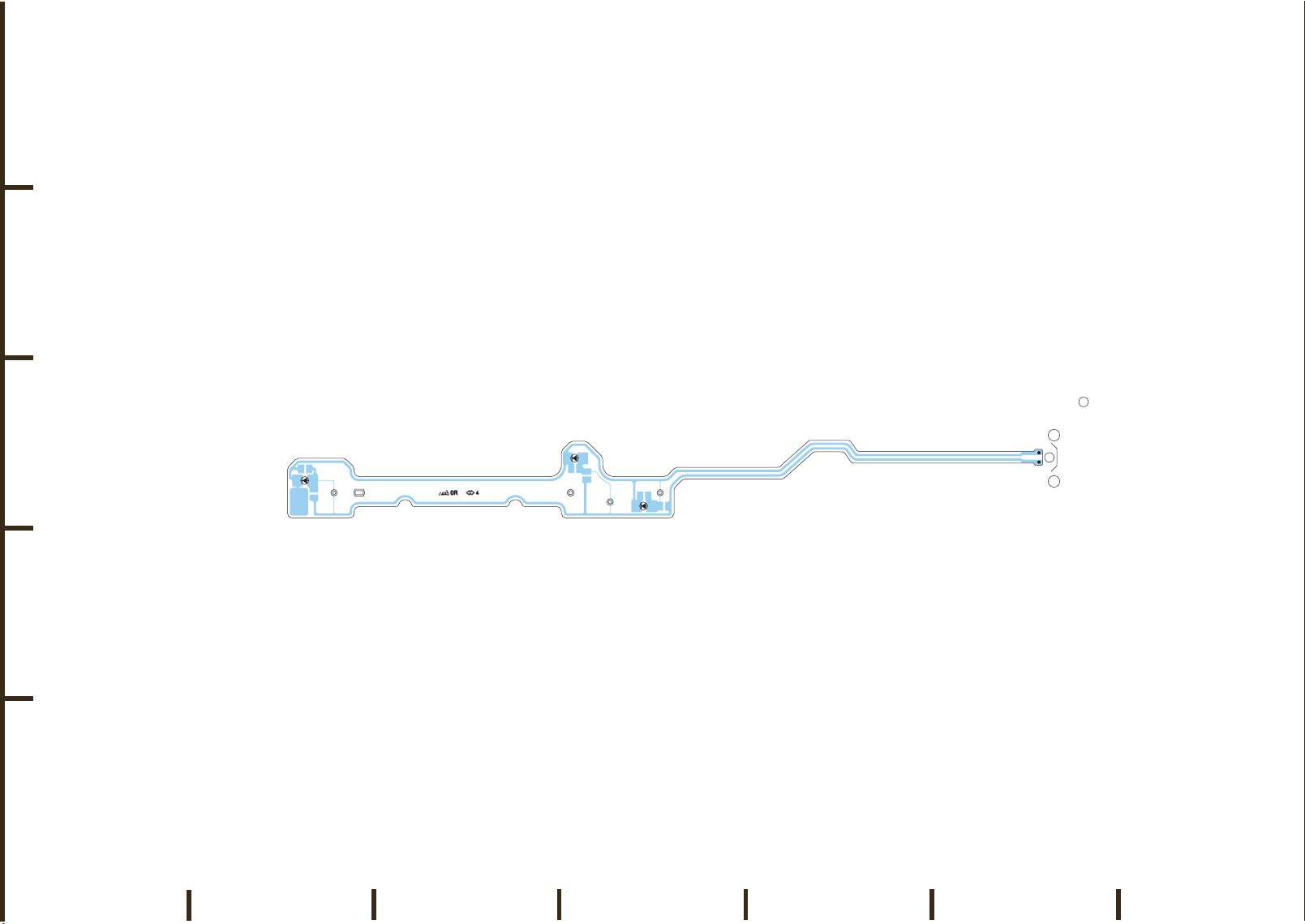

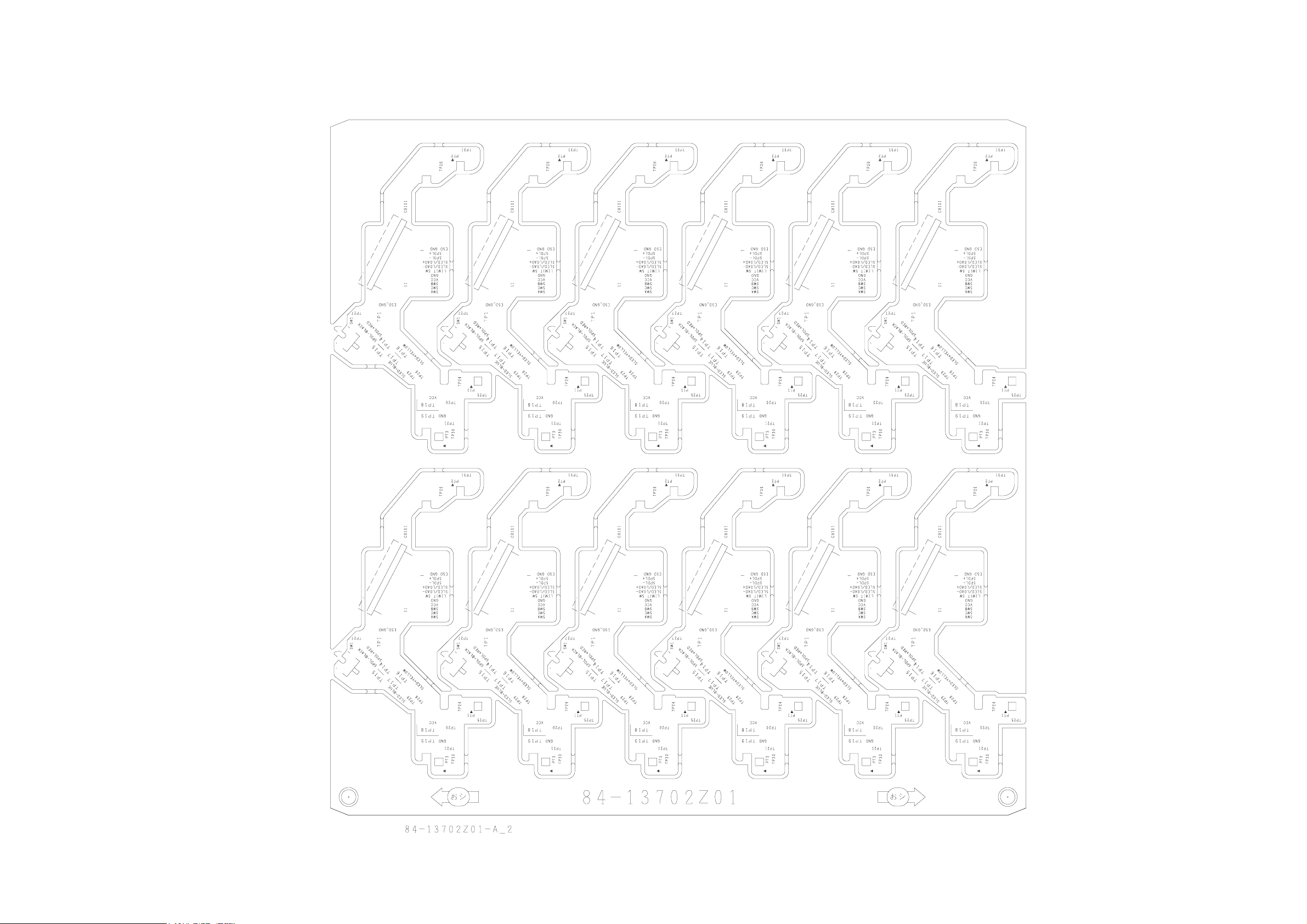

Parts Layout on P.W.Boards and Wiring Diagram

C

XX

1

2

FPC.PHOTO.VE-P.W.Board

(Foil Side View)

3

C101

LD101

R101

LD102

C102

R102

LD103

C103

R103

1

C

2

To Contents P.W.Board List

(SW(DP33U8BV)-P.W.Board( B )))

4

5

A

Blue Color Pattern : Foil Side Pattern

FGEDCB

A

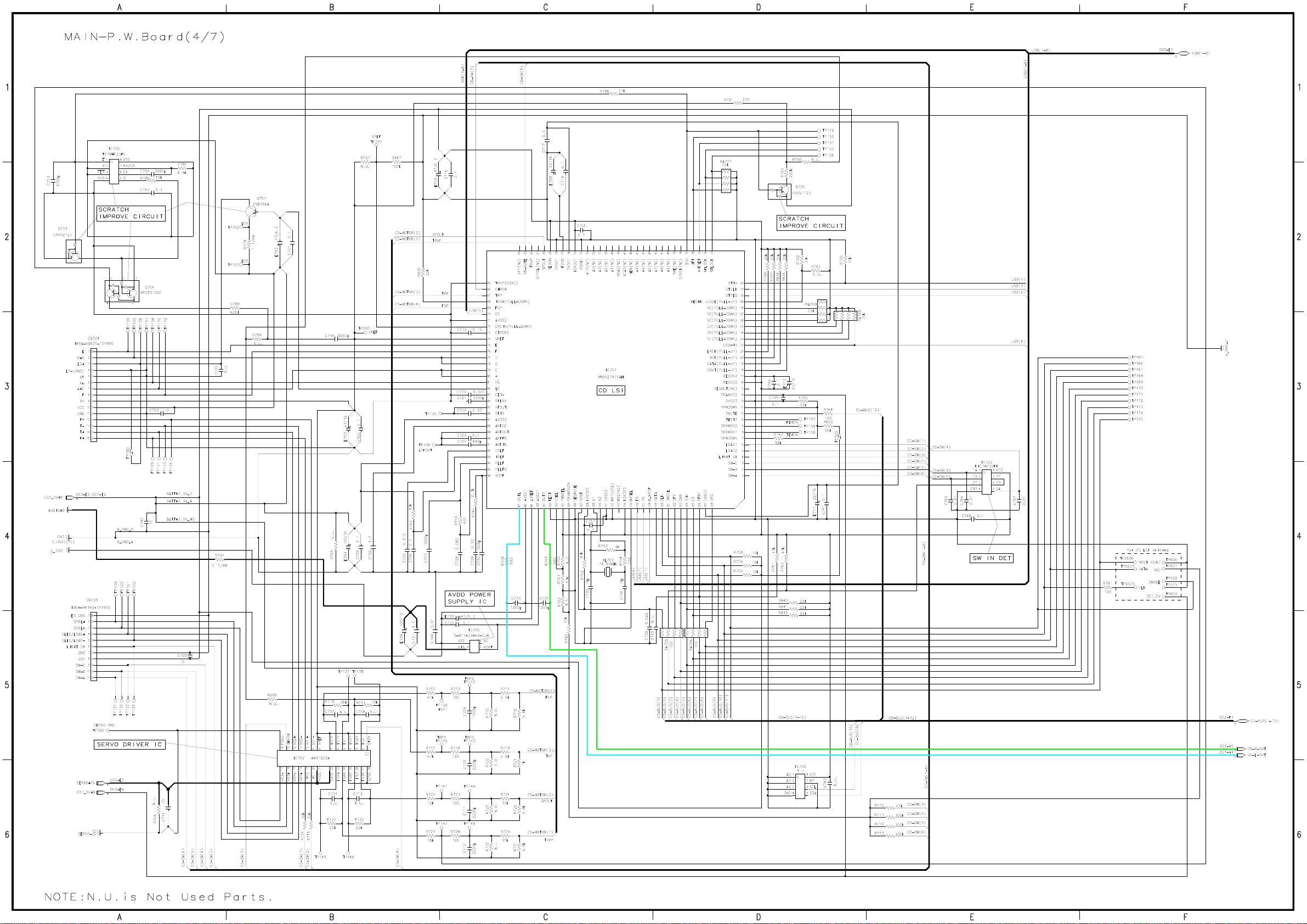

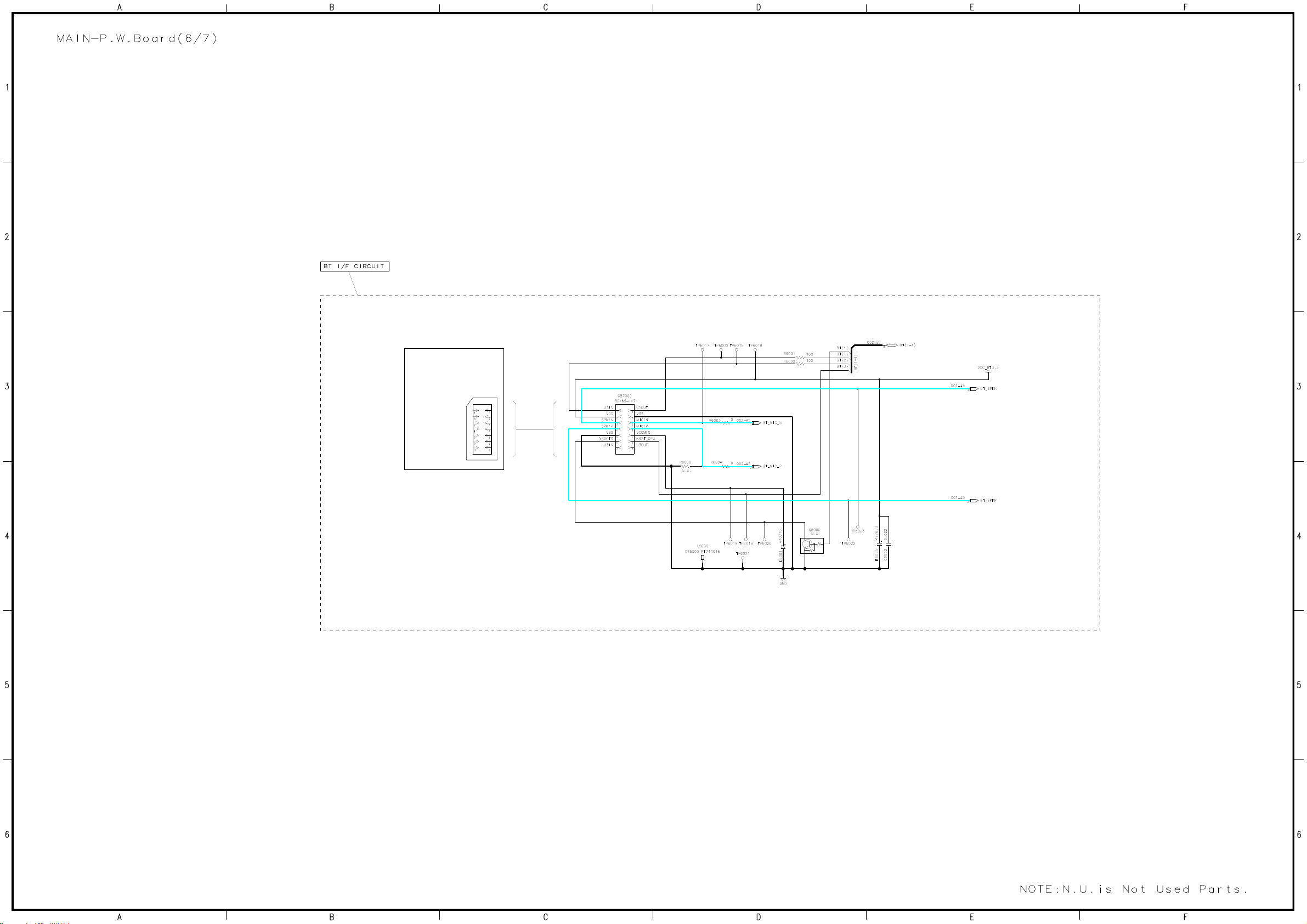

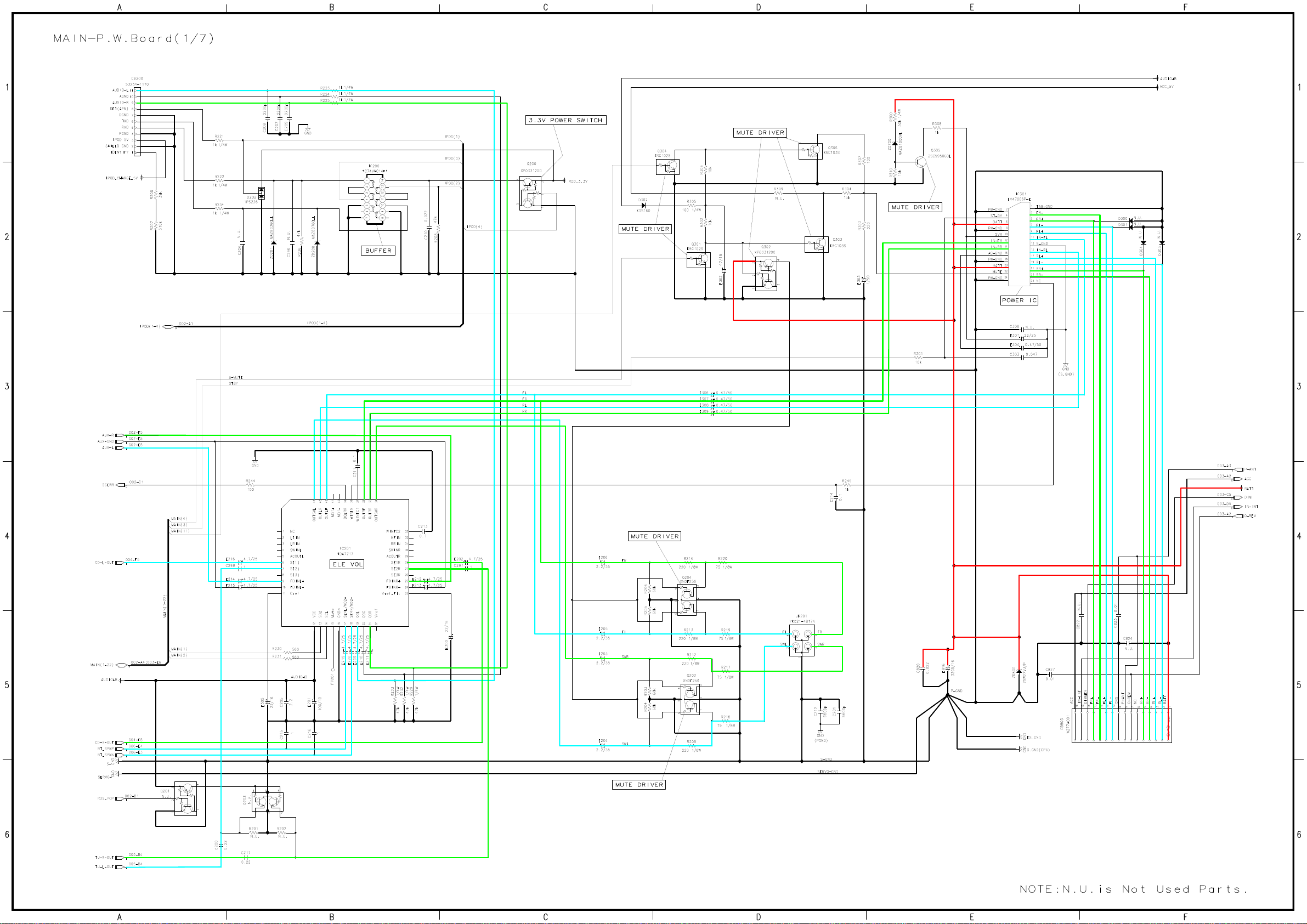

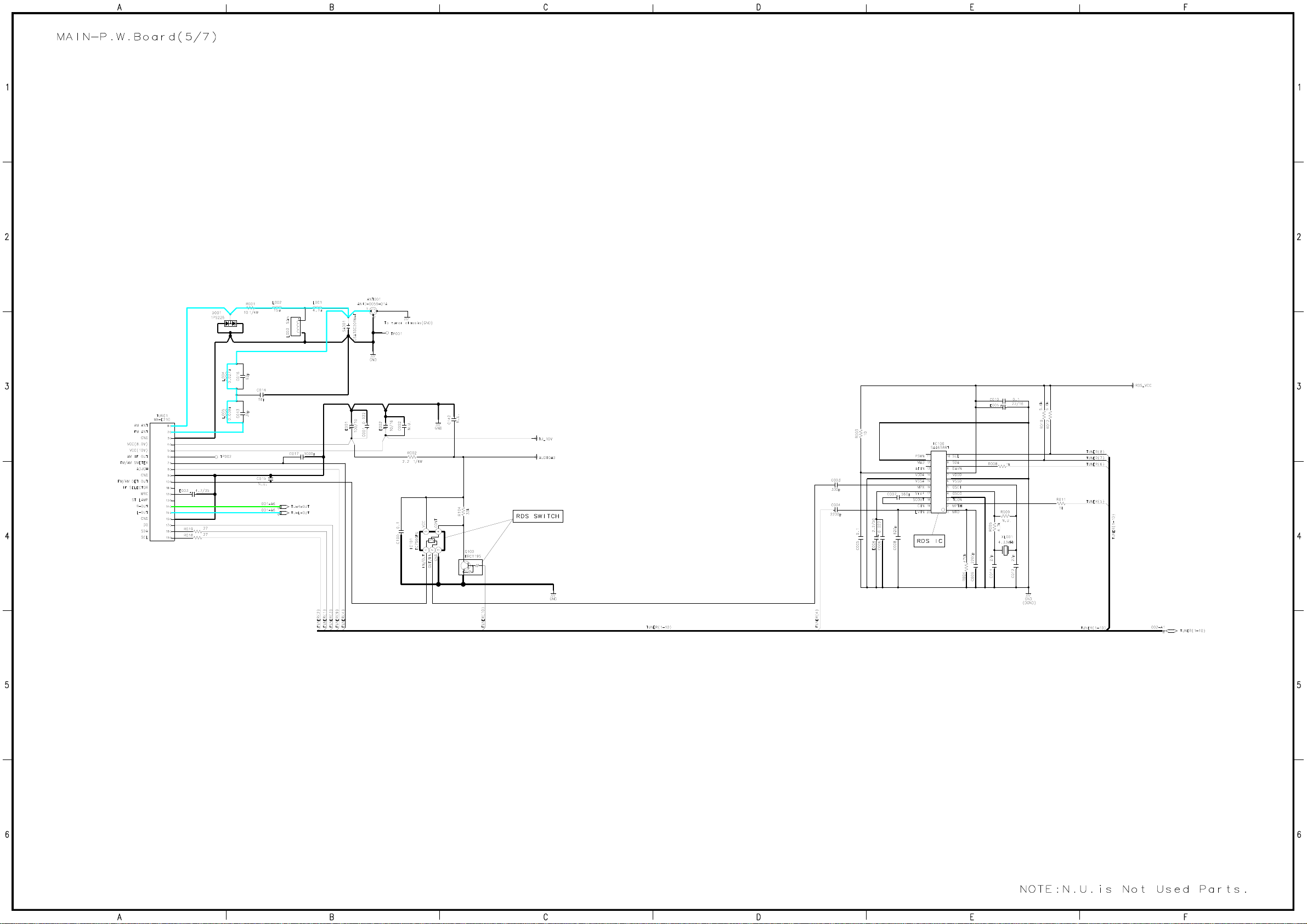

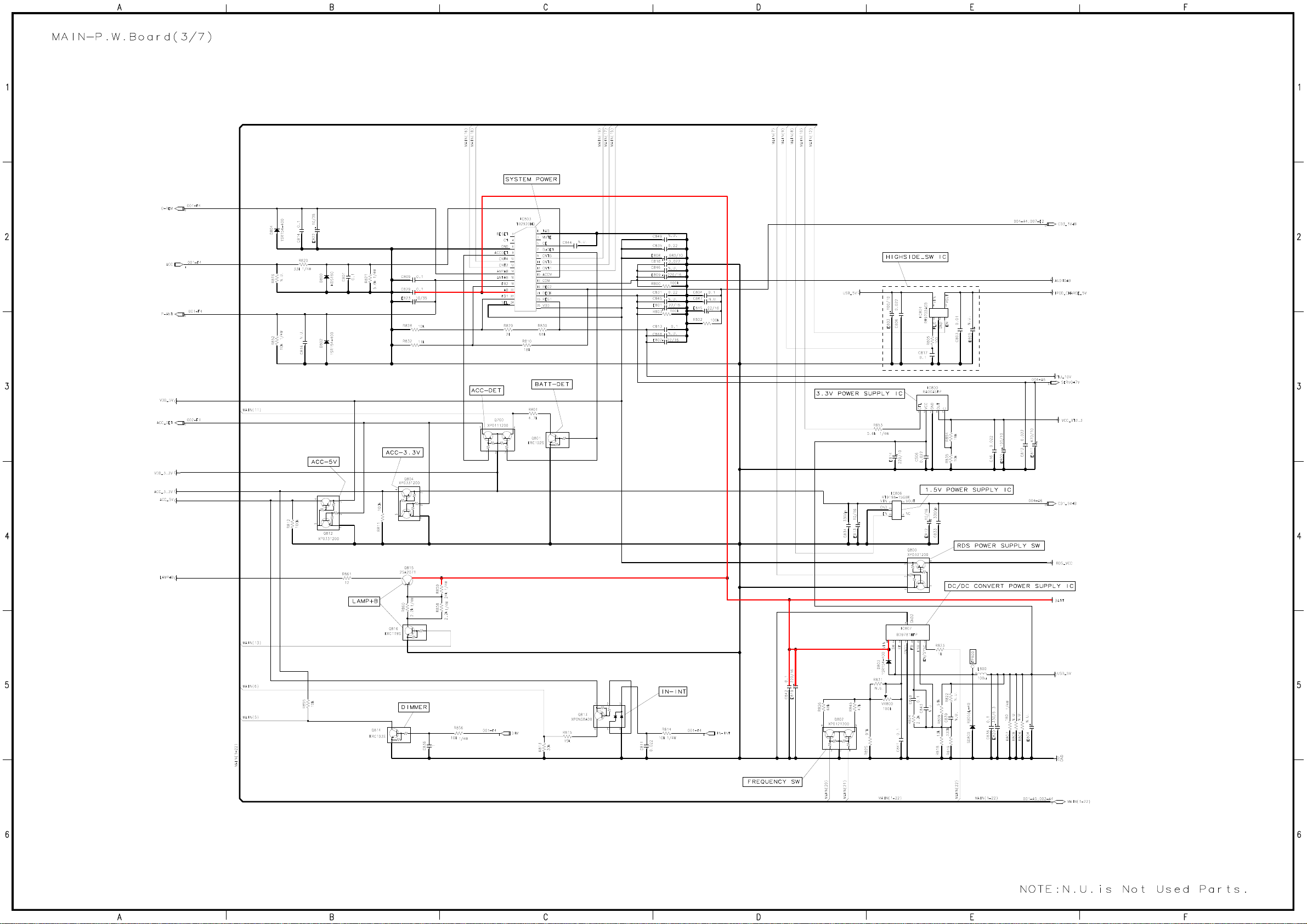

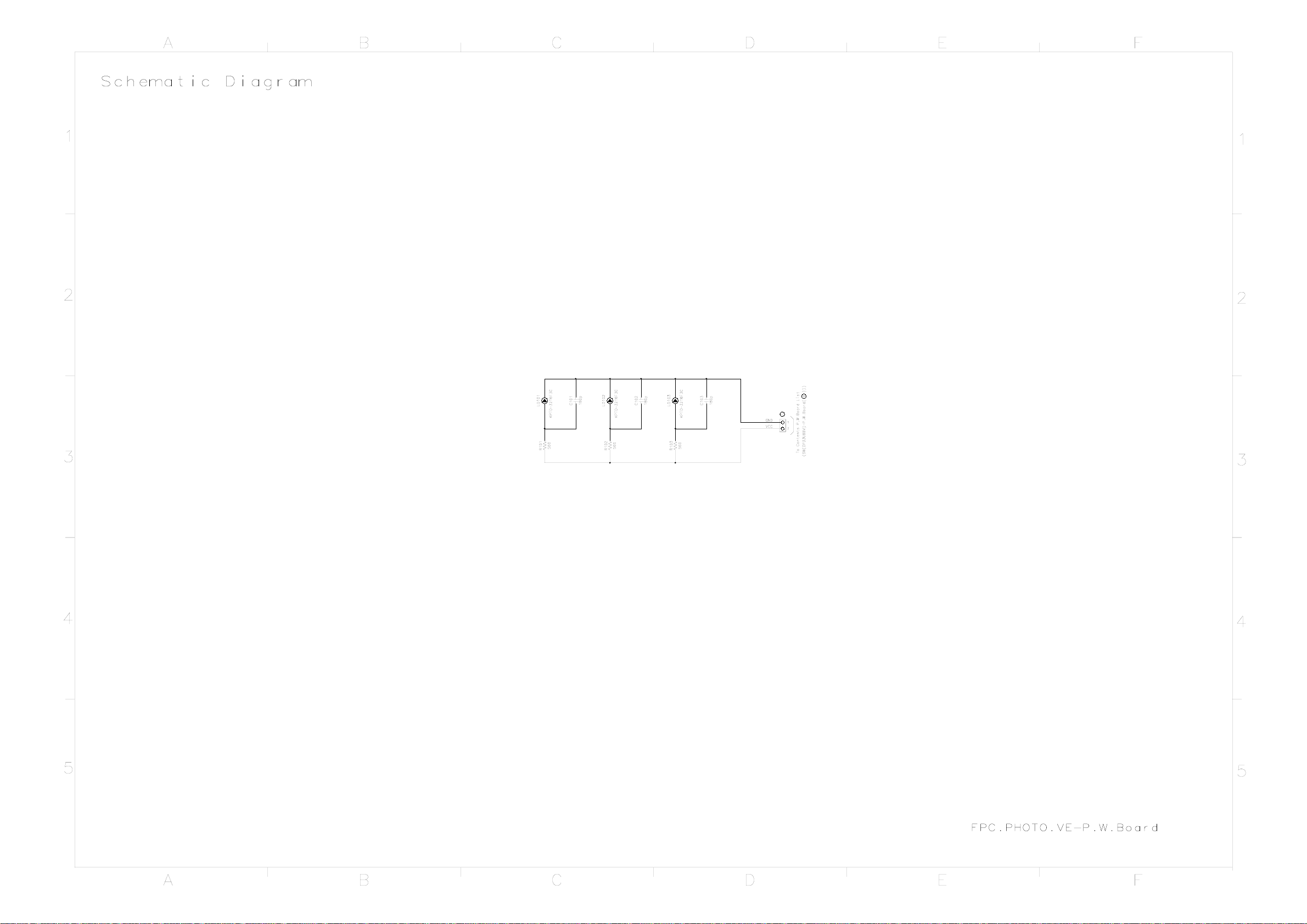

Schematic Diagram

B F

C

D

E

1

2

3

LD101

R101

KPTD-3216F3C

560

C101

1

2

180p

LD102

R102

KPTD-3216F3C

560

C102

180p

LD103

R103

KPTD-3216F3C

560

C103

180p

GND
VCC

B

C

1
2

To Contents P.W.Board List

(SW(DP33U8BV)-P.W.Board( )))

3

4

5

4

5

FPC.PHOTO.VE-P.W.Board

BA

C

D

E

F

Electrical Parts List

* Each parts on P.W.Board are described in order of the reference number.
======= FPC.PHOTO.VE-P.W.Board

C101 08S45677W42 CAP,CER.181J-CH1H-CP
C102 08S45677W42 CAP,CER.181J-CH1H-CP
C103 08S45677W42 CAP,CER.181J-CH1H-CP
LD101 48-13076Z01 LED,KPTD-3216F3C -CP
LD102 48-13076Z01 LED,KPTD-3216F3C -CP
LD103 48-13076Z01 LED,KPTD-3216F3C -CP
R101 06S45674W51 RES,RK 561J 1/10 -CP
R102 06S45674W51 RES,RK 561J 1/10 -CP
R103 06S45674W51 RES,RK 561J 1/10 –CP

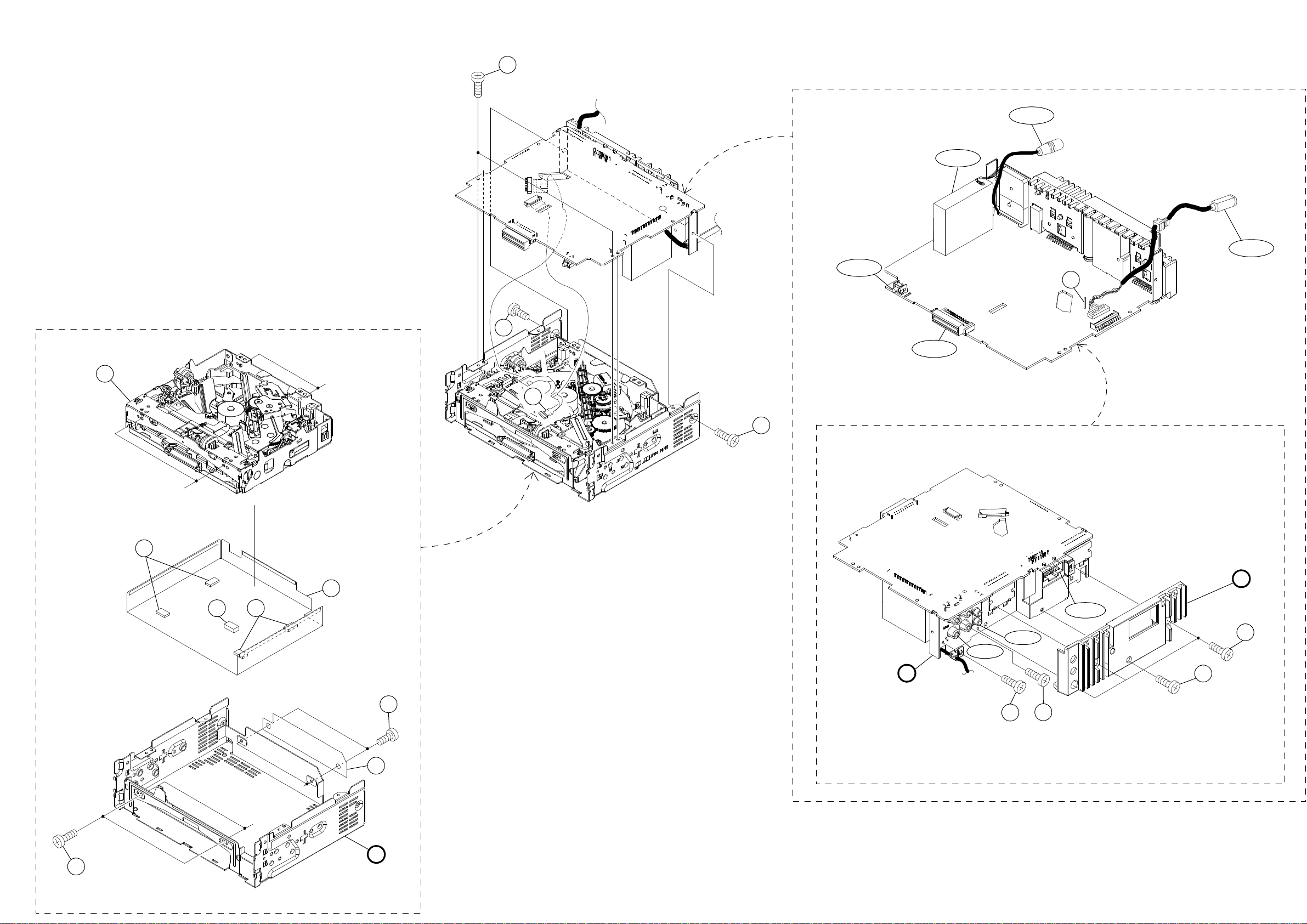

Exploded View (Cabinet) (1/2)

100

12

LED,ARY
QB.L.021 -DB

3

LCD401

6

SW418

10

13

24

20

26

13

25

A

11

X2

27

9

A

B

CB401

B

13

SK400

JK400

16

X2

Exploded View (Cabinet) (2/2)

13

13

X2

ANT001

TU601

ET200

SW501

2

23

21

CH500

C

22

13

D

17

13

X3

29

21

28

CB803

JK500

JK201

13

X2

7

13

X2

19

C

D

15

13

8

8

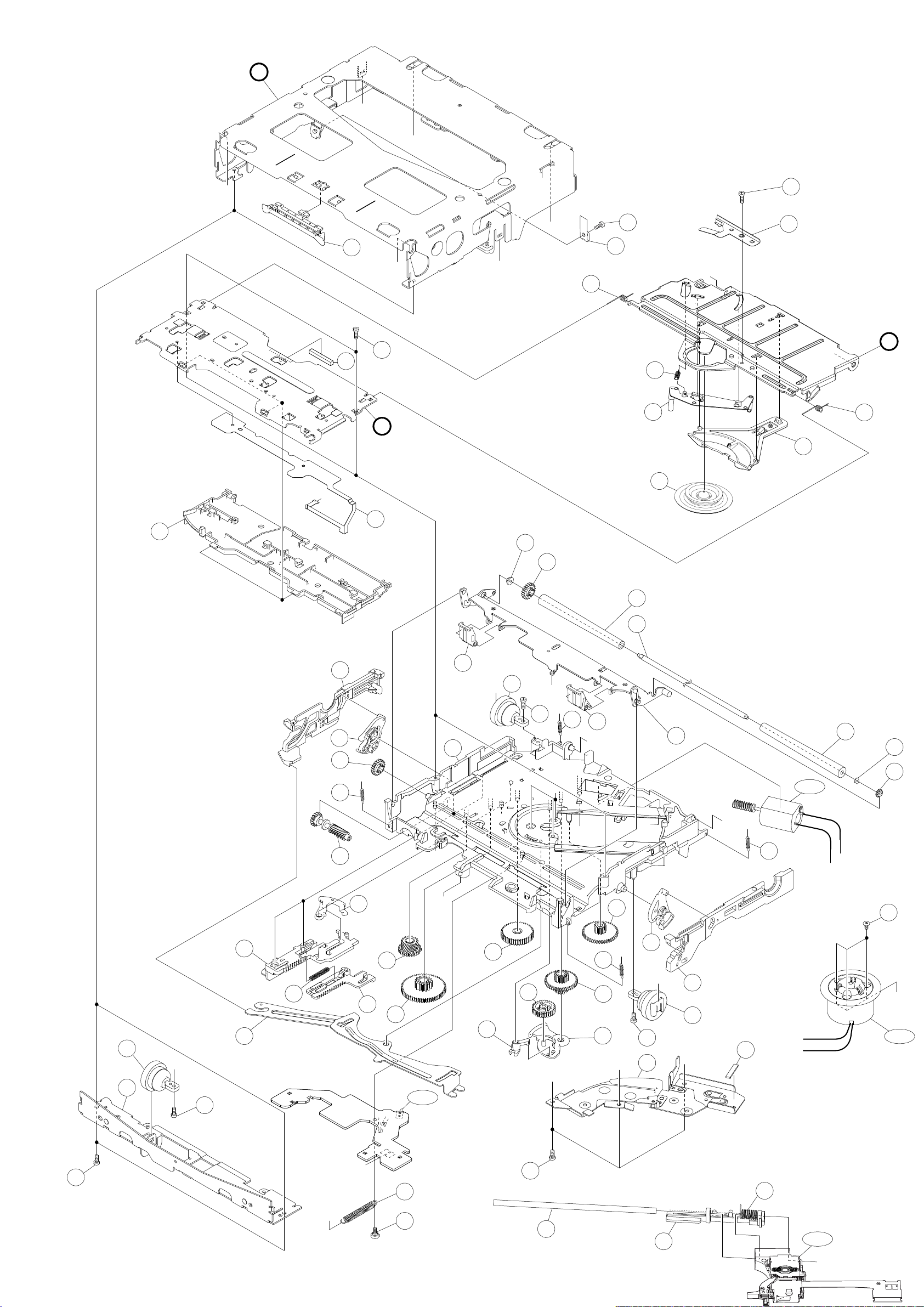

Exploded View (CD Deck Mechanism

)

(DP33U8BV)

1

a

e

c

f

2

d

b

19

44

x

19

16

72

40

7

X2

y

9

29

13

72

3

24

15

o

8

4

23

22

21

20

61

27

38

a

40

k

e

67

28

x

26

21

25

70

69

55

23

65

c

m

u

v

j

y

f

M2

19

X2

38

37

54

56

t

g

48

66

r

p

45

X3

62

64

53

51

50

65

47

68

d

b

71

m

63

52

36

g

40

r

p

o

SW1

s

q

57

t

40

49

40

60

u

X3

32

39

q

v

76

s

M1

43

k

33

42

41

HD1

j

MAIN-P.W.Board ANT001 09-14226Z01 ASSY,ANID-0059-01A
MAIN-P.W.Board C001
MAIN-P.W.Board C003
MAIN-P.W.Board C004
MAIN-P.W.Board C005
MAIN-P.W.Board C006
MAIN-P.W.Board C007
MAIN-P.W.Board C008
MAIN-P.W.Board C009
MAIN-P.W.Board C010
MAIN-P.W.Board C011
MAIN-P.W.Board C012
MAIN-P.W.Board C013
MAIN-P.W.Board C014
MAIN-P.W.Board C016
MAIN-P.W.Board C017
MAIN-P.W.Board C100
MAIN-P.W.Board C16
MAIN-P.W.Board C200
MAIN-P.W.Board C201
MAIN-P.W.Board C202
MAIN-P.W.Board C203
MAIN-P.W.Board C205
MAIN-P.W.Board C206
MAIN-P.W.Board C207
MAIN-P.W.Board C208
MAIN-P.W.Board C209
MAIN-P.W.Board C210
MAIN-P.W.Board C211
MAIN-P.W.Board C212
MAIN-P.W.Board C213
MAIN-P.W.Board C214
MAIN-P.W.Board C215
MAIN-P.W.Board C216
MAIN-P.W.Board C217
MAIN-P.W.Board C297
MAIN-P.W.Board C298
MAIN-P.W.Board C303
MAIN-P.W.Board C500
MAIN-P.W.Board C502
MAIN-P.W.Board C503
MAIN-P.W.Board C505
MAIN-P.W.Board C506
MAIN-P.W.Board C507
MAIN-P.W.Board C509
MAIN-P.W.Board C510
MAIN-P.W.Board C511
MAIN-P.W.Board C512
MAIN-P.W.Board C515
MAIN-P.W.Board C516
MAIN-P.W.Board C517
MAIN-P.W.Board C518
MAIN-P.W.Board C519
MAIN-P.W.Board C520
MAIN-P.W.Board C523
MAIN-P.W.Board C524
MAIN-P.W.Board C525
MAIN-P.W.Board C526
MAIN-P.W.Board C527
MAIN-P.W.Board C6002
MAIN-P.W.Board C700
MAIN-P.W.Board C7000
MAIN-P.W.Board C7001
MAIN-P.W.Board C7002
MAIN-P.W.Board C7003
MAIN-P.W.Board C7004
MAIN-P.W.Board C7005
MAIN-P.W.Board C7006
MAIN-P.W.Board C7007
MAIN-P.W.Board C7008
MAIN-P.W.Board C7009
MAIN-P.W.Board C701
MAIN-P.W.Board C7010

08S45676W80 CAP,CER 223K-B1E -CP
08S45677W48 CAP,CER.331J-CH1H-CP
08S45676W65 CAP,CE R.2 22K -B1 H -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45676W80 CAP,CER 223K-B1E -CP
08S45677W54 CAP,CER 561J-CH1H-CP
08S45677W58 CAP,CER 821J-CH1H-CP
08S45676W65 CAP,CE R.2 22K -B1 H -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45677W22 CAP,CER.27RJ-CH1H-CP
08S45677W22 CAP,CER.27RJ-CH1H-CP
08S82122F27 CAP,CER.39RJ-CH1H-CP
08S82122F19 CAP,CER.18RJ-CH1H-CP
08S82122F32 CAP,CER.62RJ-CH1H-CP
08S45677W60 CAP,CER 102J-CH1H-CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45676W80 CAP,CER 223K-B1E -CP
08S60102F40 CAP,CER 224K-B1E -CP
08S45676W70 CAP,CER 562K-B1H -CP
08S45676W65 CAP,CE R.2 22K -B1 H -CP
08S45676W65 CAP,CE R.2 22K -B1 H -CP
08S65676Y03 CAP,CER 225KX7R1C-CP
08S45676W65 CAP,CE R.2 22K -B1 H -CP
08S45676W65 CAP,CE R.2 22K -B1 H -CP
08S45676W65 CAP,CE R.2 22K -B1 H -CP
08S45676W65 CAP,CE R.2 22K -B1 H -CP
08S45676W80 CAP,CER 223K-B1E -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45676W70 CAP,CER 562K-B1H -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S65676Y05 CAP,CER 105KX7R1E-CP
08S65676Y05 CAP,CER 105KX7R1E-CP
08S60102F40 CAP,CER 224K-B1E -CP
08S65676Y05 CAP,CER 105KX7R1E-CP
08S65676Y05 CAP,CER 105KX7R1E-CP
08S45676W83 CAP,CER 473K-B1C -CP
08S45676W93 CAP,CER 224K-B1A -CP
08S45676W80 CAP,CER 223K-B1E -CP
08S45676W73 CAP,CE R.1 03K -B1 H -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45676W80 CAP,CER 223K-B1E -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S35350Y04 CAP,CER 105K-B1C -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45677W20 CAP,CER.22RJ-CH1H-CP
08S45677W20 CAP,CER.22RJ-CH1H-CP
08S45676W73 CAP,CE R.1 03K -B1 H -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45676W89 CAP,CER 473K-B1E -CP
08S45676W80 CAP,CER 223K-B1E -CP
08S45676W80 CAP,CER 223K-B1E -CP
08S35374W01 CAP,CER 104K-B1E-CP
08S45676W65 CAP,CE R.2 22K -B1 H -CP
08S45677W36 CAP,CER.101J-CH1H-CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45677W07 CAP,CER.5R0C-CH1H-CP
08S45677W07 CAP,CER.5R0C-CH1H-CP
08S45676W80 CAP,CER 223K-B1E -CP
08S65670Y01 CAP,CER 106KX5R1C-CP
08S65676Y05 CAP,CER 105KX7R1E-CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45232Y17 CAP,CER 104K-B0J -CP
08S45677W16 CAP,CER.15RJ-CH1H-CP

MAIN-P.W.Board C7011 08S45677W16 CAP,CER.15RJ-CH1H-CP
MAIN-P.W.Board C7012
MAIN-P.W.Board C7013
MAIN-P.W.Board C7015
MAIN-P.W.Board C7017
MAIN-P.W.Board C703
MAIN-P.W.Board C704
MAIN-P.W.Board C705
MAIN-P.W.Board C706
MAIN-P.W.Board C709
MAIN-P.W.Board C710
MAIN-P.W.Board C711
MAIN-P.W.Board C712
MAIN-P.W.Board C715
MAIN-P.W.Board C716
MAIN-P.W.Board C717
MAIN-P.W.Board C718
MAIN-P.W.Board C719
MAIN-P.W.Board C720
MAIN-P.W.Board C721
MAIN-P.W.Board C722
MAIN-P.W.Board C723
MAIN-P.W.Board C724
MAIN-P.W.Board C725
MAIN-P.W.Board C726
MAIN-P.W.Board C727
MAIN-P.W.Board C728
MAIN-P.W.Board C729
MAIN-P.W.Board C730
MAIN-P.W.Board C731
MAIN-P.W.Board C732
MAIN-P.W.Board C733
MAIN-P.W.Board C734
MAIN-P.W.Board C735
MAIN-P.W.Board C736
MAIN-P.W.Board C739
MAIN-P.W.Board C741
MAIN-P.W.Board C742
MAIN-P.W.Board C746
MAIN-P.W.Board C748
MAIN-P.W.Board C749
MAIN-P.W.Board C751
MAIN-P.W.Board C752
MAIN-P.W.Board C753
MAIN-P.W.Board C754
MAIN-P.W.Board C755
MAIN-P.W.Board C756
MAIN-P.W.Board C757
MAIN-P.W.Board C765
MAIN-P.W.Board C766
MAIN-P.W.Board C767
MAIN-P.W.Board C801
MAIN-P.W.Board C803
MAIN-P.W.Board C804
MAIN-P.W.Board C806
MAIN-P.W.Board C809
MAIN-P.W.Board C811
MAIN-P.W.Board C812
MAIN-P.W.Board C813
MAIN-P.W.Board C814
MAIN-P.W.Board C817
MAIN-P.W.Board C818
MAIN-P.W.Board C820
MAIN-P.W.Board C823
MAIN-P.W.Board C825
MAIN-P.W.Board C826
MAIN-P.W.Board C827
MAIN-P.W.Board C829
MAIN-P.W.Board C831
MAIN-P.W.Board C833
MAIN-P.W.Board C834
MAIN-P.W.Board C835
MAIN-P.W.Board C836

08S65668Y05 CAP,CER 224KX5R1A-CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45676W80 CAP,CER 223K-B1E -CP
08S45676W93 CAP,CER 224K-B1A -CP
08S65670Y01 CAP,CER 106KX5R1C-CP
08S45232Y17 CAP,CER 104K-B0J -CP
08S45232Y17 CAP,CER 104K-B0J -CP
08S35374W11 CAP,CER 475K-B0J -CP
08S45232Y05 CAP,CER 102K-B1H -CP
08S45232Y07 CAP,CER 222K-B1H -CP
08S45232Y07 CAP,CER 222K-B1H -CP
08S45232Y07 CAP,CER 222K-B1H -CP
08S65670Y01 CAP,CER 106KX5R1C-CP
08S45232Y17 CAP,CER 104K-B0J -CP
08S45232Y17 CAP,CER 104K-B0J -CP
08S45232Y17 CAP,CER 104K-B0J -CP
08S45676W91 CAP,CER 154K-B1A -CP
08S45232Y13 CAP,CER 223K-B1C -CP
08S45232Y08 CAP,CER 332K-B1H -CP
08S35374W07 CAP,CER 334K-B1C -CP
08S45232Y17 CAP,CER 104K-B0J -CP
08S45232Y04 CAP,CER 681K-B1H -CP
08S45232Y12 CAP,CER 153K-B1C -CP
08S45232Y17 CAP,CER 104K-B0J -CP
08S45232Y05 CAP,CER 102K-B1H -CP
08S65668Y03 CAP,CER 823KX5R1A-CP
08S35374W07 CAP,CER 334K-B1C -CP
08S45232Y05 CAP,CER 102K-B1H -CP
08S65668Y04 CAP,CER 104KX5R1A-CP
08S45232Y17 CAP,CER 104K-B0J -CP
08S35349Y09 CAP,CER 122K-B1H -CP
08S35349Y09 CAP,CER 122K-B1H -CP
08S45231Y16 CAP,CER 18RJ-CH1H-CP
08S45231Y16 CAP,CER 18RJ-CH1H-CP
08S45676W80 CAP,CER 223K-B1E -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S65670Y01 CAP,CER 106KX5R1C-CP
08S45676W73 CAP,CE R.1 03K -B1 H -CP
08S45232Y17 CAP,CER 104K-B0J -CP
08S45232Y17 CAP,CER 104K-B0J -CP
08S45232Y17 CAP,CER 104K-B0J -CP
08S45676W68 CAP,CE R.3 92K -B1 H -CP
08S45232Y09 CAP,CER 472K-B1E -CP
08S45676W72 CAP,CER 822K-B1H -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45232Y17 CAP,CER 104K-B0J -CP
08S45232Y17 CAP,CER 104K-B0J -CP
08S45676W73 CAP,CE R.1 03K -B1 H -CP
08S45676W73 CAP,CE R.1 03K -B1 H -CP
08S45676W73 CAP,CE R.1 03K -B1 H -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45676W73 CAP,CE R.1 03K -B1 H -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S45676W80 CAP,CER 223K-B1E -CP
08S65128F88 CAP,CER 104K-B1H -CP
08S45676W80 CAP,CER 223K-B1E -CP
08S45676W80 CAP,CER 223K-B1E -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S65128F88 CAP,CER 104K-B1H -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S35349Y11 CAP,CER 223K-B1H -CP
08S65128F78 CAP ,CE R.223 K -B1H -CP
08S45539Y04 CAP,CER 103KX7R2J-CP
08S45676W73 CAP,CE R.1 03K -B1 H -CP
08S45676W80 CAP,CER 223K-B1E -CP
08S45539Y04 CAP,CER 103KX7R2J-CP
08S65128F88 CAP,CER 104K-B1H -CP
08S65667Y01 CAP,CER 224KX5R1C-CP
08S45676W67 CAP,CE R.3 32K -B1 H -CP
08S45676W67 CAP,CE R.3 32K -B1 H -CP
08S65667Y01 CAP,CER 224KX5R1C-CP
08S35350Y04 CAP,CER 105K-B1C -CP

MAIN-P.W.Board C838 08S45676W85 CAP,CER 104K-B1C -CP
MAIN-P.W.Board C840
MAIN-P.W.Board C841
MAIN-P.W.Board C842
MAIN-P.W.Board CB200
MAIN-P.W.Board CB7000
MAIN-P.W.Board CB704
MAIN-P.W.Board CB705
MAIN-P.W.Board
MAIN-P.W.Board
MAIN-P.W.Board D001
MAIN-P.W.Board D202
MAIN-P.W.Board D302
MAIN-P.W.Board D500
MAIN-P.W.Board D7000
MAIN-P.W.Board D7003
MAIN-P.W.Board D800
MAIN-P.W.Board D802
MAIN-P.W.Board D803
MAIN-P.W.Board D804
MAIN-P.W.Board E001
MAIN-P.W.Board E002
MAIN-P.W.Board E003
MAIN-P.W.Board E004
MAIN-P.W.Board E005
MAIN-P.W.Board E201
MAIN-P.W.Board E202
MAIN-P.W.Board E203
MAIN-P.W.Board E204
MAIN-P.W.Board E205
MAIN-P.W.Board E206
MAIN-P.W.Board E209
MAIN-P.W.Board E210
MAIN-P.W.Board E211
MAIN-P.W.Board E212
MAIN-P.W.Board E213
MAIN-P.W.Board E214
MAIN-P.W.Board E215
MAIN-P.W.Board E216
MAIN-P.W.Board E219
MAIN-P.W.Board E220
MAIN-P.W.Board E300
MAIN-P.W.Board E301
MAIN-P.W.Board E302
MAIN-P.W.Board E303
MAIN-P.W.Board E304
MAIN-P.W.Board E305
MAIN-P.W.Board E306
MAIN-P.W.Board E307
MAIN-P.W.Board E308
MAIN-P.W.Board E309
MAIN-P.W.Board E4
MAIN-P.W.Board E6
MAIN-P.W.Board E6001
MAIN-P.W.Board E6005
MAIN-P.W.Board E7000
MAIN-P.W.Board E7001
MAIN-P.W.Board E7002
MAIN-P.W.Board E7003
MAIN-P.W.Board E702
MAIN-P.W.Board E703
MAIN-P.W.Board E704
MAIN-P.W.Board E706
MAIN-P.W.Board E708
MAIN-P.W.Board E709
MAIN-P.W.Board E710
MAIN-P.W.Board E711
MAIN-P.W.Board E713
MAIN-P.W.Board E800
MAIN-P.W.Board E801
MAIN-P.W.Board E802
MAIN-P.W.Board E803
MAIN-P.W.Board E808

CB803 24-02502Z02 ASSY,W277A001 -DB
CH500 09-14071Z01 BTB,144201120K4 -DB

08S45676W85 CAP,CER 104K-B1C -CP
08S45676W85 CAP,CER 104K-B1C -CP
08S65128F88 CAP,CER 104K-B1H -CP
09T25738Y11 WTB,53254-1170 -DB
09T15372Y14 BTB,52465-1471 -E6
09-09312Z02 FFC,IMSA9663S-15Y-EQ
09T55174Y11 FFC,IMSA9616S-11Y-ED

48T85357W01 DIO,1PS226 -CP
48T85357W01 DIO,1PS226 -CP
48-07015Z01 DIO,KDS160-RTK -CP
48T85357W01 DIO,1PS226 -CP
48-07015Z01 DIO,KDS160-RTK -CP
48-07015Z01 DIO,KDS160-RTK -CP
48-07015Z01 DIO,KDS160-RTK -CP
48T75527Y01 DIO,1SR154-400 -E1
48T75527Y01 DIO,1SR154-400 -E1
48T75527Y01 DIO,1SR154-400 -E1
23S65134W23 CAP,ELY 101-1A(6)-E6
23S65134W31 CAP,ELY 10R-1C(4)-E2
23S65134W53 CAP,ELY 4R7-1V(4)-E2
23S65134W71 CAP,ELY 2R2-1H(4)-E2
23S65134W32 CAP,ELY 22R-1C(5)-E3
23S65134W23 CAP,ELY 101-1A(6)-E6
23S65134W41 CAP,ELY 4R7-1E(3)-E2
23S65134W51 CAP,ELY 2R2-1V(3)-E2
23S65134W51 CAP,ELY 2R2-1V(3)-E2
23S65134W51 CAP,ELY 2R2-1V(3)-E2
23S65134W51 CAP,ELY 2R2-1V(3)-E2
23S65134W41 CAP,ELY 4R7-1E(3)-E2
23S65134W41 CAP,ELY 4R7-1E(3)-E2
23S65134W41 CAP,ELY 4R7-1E(3)-E2
23S65134W41 CAP,ELY 4R7-1E(3)-E2
23S65134W41 CAP,ELY 4R7-1E(3)-E2
23S65134W41 CAP,ELY 4R7-1E(3)-E2
23S65134W41 CAP,ELY 4R7-1E(3)-E2
23S65134W41 CAP,ELY 4R7-1E(3)-E2
23S65134W41 CAP,ELY 4R7-1E(3)-E2
23S65134W41 CAP,ELY 4R7-1E(3)-E2
23S65134W32 CAP,ELY 22R-1C(5)-E3
23S65134W44 CAP,ELY 22R-1E(6)-E6
23S65134W34 CAP,ELY 47R-1C(6)-E6
23S65134W65 CAP,ELY 1R0-1H(3)-E2
23S65134W64 CAP,ELY R47-1H(3)-E2
23S65134W32 CAP,ELY 22R-1C(5)-E3
23S65134W64 CAP,ELY R47-1H(3)-E2
23S65134W64 CAP,ELY R47-1H(3)-E2
23S65134W64 CAP,ELY R47-1H(3)-E2
23S65134W64 CAP,ELY R47-1H(3)-E2
23S65134W31 CAP,ELY 10R-1C(4)-E2
23S65134W12 CAP,ELY 47R-0J(5)-E3
23S65134W26 CAP,ELY 471-1A(8)-EA
23T65114Y04 CAP,FK 47R-0J-C -E3
23S65134W23 CAP,ELY 101-1A(6)-E6
23S65134W24 CAP,ELY 221-1A(8)-E6
23S65134W31 CAP,ELY 10R-1C(4)-E2
23S65134W23 CAP,ELY 101-1A(6)-E6
23T65679Y11 CAP,CD 47R-0J -E2
23S65134W34 CAP,ELY 47R-1C(6)-E6
23S65134W23 CAP,ELY 101-1A(6)-E6
23S65134W12 CAP,ELY 47R-0J(5)-E3
23S65134W32 CAP,ELY 22R-1C(5)-E3
23S65134W23 CAP,ELY 101-1A(6)-E6
23S65134W12 CAP,ELY 47R-0J(5)-E3
23S65134W32 CAP,ELY 22R-1C(5)-E3
23S65134W34 CAP,ELY 47R-1C(6)-E6
23S65134W23 CAP,ELY 101-1A(6)-E6
23S65134W32 CAP,ELY 22R-1C(5)-E3
23S65134W32 CAP,ELY 22R-1C(5)-E3
23S65134W23 CAP,ELY 101-1A(6)-E6
23T65114Y15 CAP,FK 681-1A-F -EA

MAIN-P.W.Board E809 23T65114Y21 CAP,FK 221-1C-D8-E6
MAIN-P.W.Board E811
MAIN-P.W.Board E812
MAIN-P.W.Board E813
MAIN-P.W.Board E814
MAIN-P.W.Board E815
MAIN-P.W.Board E816
MAIN-P.W.Board E817
MAIN-P.W.Board E818
MAIN-P.W.Board E819
MAIN-P.W.Board E820
MAIN-P.W.Board E821
MAIN-P.W.Board E822
MAIN-P.W.Board E823
MAIN-P.W.Board IC100
MAIN-P.W.Board IC101
MAIN-P.W.Board IC200
MAIN-P.W.Board IC201
MAIN-P.W.Board IC301
MAIN-P.W.Board IC501
MAIN-P.W.Board IC502
MAIN-P.W.Board IC505
MAIN-P.W.Board IC600
MAIN-P.W.Board IC7000
MAIN-P.W.Board IC7001
MAIN-P.W.Board IC701
MAIN-P.W.Board IC702
MAIN-P.W.Board IC703
MAIN-P.W.Board IC705
MAIN-P.W.Board IC706
MAIN-P.W.Board IC800
MAIN-P.W.Board IC801
MAIN-P.W.Board IC803
MAIN-P.W.Board IC805
MAIN-P.W.Board IC806
MAIN-P.W.Board IC807
MAIN-P.W.Board
MAIN-P.W.Board
MAIN-P.W.Board L001
MAIN-P.W.Board L002
MAIN-P.W.Board L003
MAIN-P.W.Board L004
MAIN-P.W.Board L005
MAIN-P.W.Board L501
MAIN-P.W.Board L7000
MAIN-P.W.Board L800
MAIN-P.W.Board Q100
MAIN-P.W.Board Q200
MAIN-P.W.Board Q202
MAIN-P.W.Board Q204
MAIN-P.W.Board Q301
MAIN-P.W.Board Q302
MAIN-P.W.Board Q303
MAIN-P.W.Board Q304
MAIN-P.W.Board Q305
MAIN-P.W.Board Q306
MAIN-P.W.Board Q500
MAIN-P.W.Board Q501
MAIN-P.W.Board Q503
MAIN-P.W.Board Q700
MAIN-P.W.Board Q7000
MAIN-P.W.Board Q701
MAIN-P.W.Board Q703
MAIN-P.W.Board Q704
MAIN-P.W.Board Q705
MAIN-P.W.Board Q800
MAIN-P.W.Board Q801
MAIN-P.W.Board Q802
MAIN-P.W.Board Q804
MAIN-P.W.Board Q812
MAIN-P.W.Board Q813
MAIN-P.W.Board Q814
MAIN-P.W.Board Q815

JK201 09-11353Z01 RCA,YKC21-4817N -DB
JK500 09-14149Z01 JAC,CK3-3.5-14D -DB

23T55378W03 CAP,KMG 471-1A -R2
23S65134W31 CAP,ELY 10R-1C(4)-E2
23S65134W31 CAP,ELY 10R-1C(4)-E2
23S65134W24 CAP,ELY 221-1A(8)-E6
23S65134W32 CAP,ELY 22R-1C(5)-E3
23T75325Y01 CAP,VB 332-1C +
23S65134W31 CAP,ELY 10R-1C(4)-E2
23S65134W23 CAP,ELY 101-1A(6)-E6
23T65114Y21 CAP,FK 221-1C-D8-E6
23T65114Y07 CAP,FK 331-0J-D8-E6
23T65114Y06 CAP,FK 221-0J-D -E6
23S65134W54 CAP,ELY 10R-1V(5)-E3
23S65134W54 CAP,ELY 10R-1V(5)-E3
51T15132Y02 SAA6588T -SE9
51T45307Y01 TC7S66FU-TE85L -CP
51T15192Y01 TC74VHC14FT-EL -SE5
51-13600Z01 TDA7717 -QT
51-14188Z01 LV47006P-E -ZS
51-14680Z03 IC,MN101E16YBTUB -QT
51-09817Z03 341S2307 -LE6
51T75063Y06 BD5228G-TR -CP
51-14346Z01 ASSY,CK5000 PF240016
51-13857Z01 RT9711DGB -CP
51-14572Z01 IC,MN103SH7JUB -QT
51-09762Z07 MN6627971AH -QT
51-06020Z01 AN41023A-E1 -SEA
51-11810Z01 KIC7WZ32FK-RTK -CP
51T35410Y01 S-817A33ANB-T2 -CP
51T25330Y01 TC7WH123FU-TE12L-SE1
51T25259Y03 BA00ASFP-E2 -NE5
51-11433Z01 RT9702AGB -CP
51-13711Z01 TB2920HQ -ZS
51-05862Z01 NJM2845DL1-33-TE1NE5
51-11631Z01 RT9198-15GBR -CP
51-02248Z01 BD9781HFP-TR -NEA

24T25164Y21 IND,FSLM2520 4R7J-CP
24T16403W29 COI,IND.15R-M -CP
24T35286Y01 IND,MG56 523J -DB
24T55488Y20 IND,LLQ1608 R027J-CP
24T55488Y24 IND,LLQ1608 R039J-CP
24T95456W27 FBI,BLM18PG181SH1-CP
24T93615F03 IND,NL 10RJ -CP
24-04484Z06 IND,7B12HJ 101M -EA
48-04929Z18 TR,KRC119S-RTK -CP
48-02302Z02 TR,XP0331200L -CP
48T25317Y01 TR,XN0F256-TX -CP
48T25317Y01 TR,XN0F256-TX -CP
48-04929Z02 TR,KRC102S-RTK -CP
48-02302Z02 TR,XP0331200L -CP
48-04929Z03 TR,KRC103S-RTK -CP
48-04929Z02 TR,KRC102S-RTK -CP
48-11160Z01 TR,2SC5950G0L-TX -CP
48-04929Z03 TR,KRC103S-RTK -CP
48-09583Z04 TR,KTA1504S-GRRTK-CP
48-04929Z02 TR,KRC102S-RTK -CP
48-04929Z02 TR,KRC102S-RTK -CP
48-12535Z02 TR,XP0111200-L -CP
48-04929Z03 TR,KRC103S-RTK -CP
48T73022F01 TR ,2SB766A -E2
48-07989Z02 TR,UNR5212J-TX -CP
48-02302Z02 TR,XP0331200L -CP
48-07987Z02 TR,UNR5112J-TX -CP
48-02302Z02 TR,XP0331200L -CP
48-04929Z02 TR,KRC102S-RTK -CP
48-12536Z02 TR,XP0121200-L -CP
48-02302Z02 TR,XP0331200L -CP
48-02302Z02 TR,XP0331200L -CP
48-05471Z01 TR,XP0NG8A00-L -CP
48-04929Z03 TR,KRC103S-RTK -CP
48-08602Z01 TR,2SA2071-Q-T100-E2

MAIN-P.W.Board Q816 48-04929Z18 TR,KRC119S-RTK -CP
MAIN-P.W.Board R001
MAIN-P.W.Board R002
MAIN-P.W.Board R003
MAIN-P.W.Board R004
MAIN-P.W.Board R005
MAIN-P.W.Board R008
MAIN-P.W.Board R010
MAIN-P.W.Board R011
MAIN-P.W.Board R012
MAIN-P.W.Board R018
MAIN-P.W.Board R019
MAIN-P.W.Board R104
MAIN-P.W.Board R13
MAIN-P.W.Board R200
MAIN-P.W.Board R203
MAIN-P.W.Board R204
MAIN-P.W.Board R205
MAIN-P.W.Board R206
MAIN-P.W.Board R207
MAIN-P.W.Board R208
MAIN-P.W.Board R209
MAIN-P.W.Board R212
MAIN-P.W.Board R213
MAIN-P.W.Board R214
MAIN-P.W.Board R216
MAIN-P.W.Board R217
MAIN-P.W.Board R219
MAIN-P.W.Board R220
MAIN-P.W.Board R221
MAIN-P.W.Board R222
MAIN-P.W.Board R223
MAIN-P.W.Board R224
MAIN-P.W.Board R225
MAIN-P.W.Board R229
MAIN-P.W.Board R230
MAIN-P.W.Board R231
MAIN-P.W.Board R232
MAIN-P.W.Board R233
MAIN-P.W.Board R234
MAIN-P.W.Board R236
MAIN-P.W.Board R244
MAIN-P.W.Board R245
MAIN-P.W.Board R300
MAIN-P.W.Board R301
MAIN-P.W.Board R302
MAIN-P.W.Board R303
MAIN-P.W.Board R304
MAIN-P.W.Board R305
MAIN-P.W.Board R306
MAIN-P.W.Board R307
MAIN-P.W.Board R308
MAIN-P.W.Board R310
MAIN-P.W.Board R501
MAIN-P.W.Board R503
MAIN-P.W.Board R508
MAIN-P.W.Board R510
MAIN-P.W.Board R511
MAIN-P.W.Board R512
MAIN-P.W.Board R514
MAIN-P.W.Board R515
MAIN-P.W.Board R516
MAIN-P.W.Board R521
MAIN-P.W.Board R522
MAIN-P.W.Board R523
MAIN-P.W.Board R524
MAIN-P.W.Board R527
MAIN-P.W.Board R528
MAIN-P.W.Board R529
MAIN-P.W.Board R530
MAIN-P.W.Board R532
MAIN-P.W.Board R533
MAIN-P.W.Board R534

06S55361Y17 RES,RK 10RJ 1/4 -CP
06S70072F78 RES,CP .2R2-J-1/4-CP
06S45674W09 RES,RK 10RJ 1/10 -CP
06S45675W22 RES,RK 474J 1/10 -CP
06S45674W73 RES,RK 472J 1/10 -CP
06S45674W57 RES,RK 102J 1/10 -CP
06S45674W75 RES,RK 562J 1/10 -CP
06S45674W57 RES,RK 102J 1/10 -CP
06S45674W75 RES,RK 562J 1/10 -CP
06S45674W19 RES,RK 27RJ 1/10 -CP
06S45674W19 RES,RK 27RJ 1/10 -CP
06S15593Y85 RES,RK 333F 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S15593Y87 RES,RK 393F 1/10 -CP
06S45675W02 RES,RK 683J 1/10 -CP
06S45675W02 RES,RK 683J 1/10 -CP
06S45675W02 RES,RK 683J 1/10 -CP
06S45675W02 RES,RK 683J 1/10 -CP
06S15594Y15 RES,RK 514F 1/10 -CP
06S45674W97 RES,RK 473J 1/10 -CP
06S64995F37 RES,RK 221J 1/8 -CP
06S64995F37 RES,RK 221J 1/8 -CP
06S64995F37 RES,RK 221J 1/8 -CP
06S64995F37 RES,RK 221J 1/8 -CP
06S64995F26 RES,RK 75RJ 1/8 -CP
06S64995F26 RES,RK 75RJ 1/8 -CP
06S64995F26 RES,RK 75RJ 1/8 -CP
06S64995F26 RES,RK 75RJ 1/8 -CP
06S70072F53 RES,CP .102-J-1/4-CP
06S70072F53 RES,CP .102-J-1/4-CP
06S55361Y65 RES,RK 102J 1/4 -CP
06S55361Y65 RES,RK 102J 1/4 -CP
06S55361Y65 RES,RK 102J 1/4 -CP
06S35083Y45 RES,RK 473F 1/4 -CP
06S55365Y59 RES,RK 561J 1/10 -CP
06S55365Y59 RES,RK 561J 1/10 -CP
06S35083Y45 RES,RK 473F 1/4 -CP
06S35083Y45 RES,RK 473F 1/4 -CP
06S70072F53 RES,CP .102-J-1/4-CP
06S45674W97 RES,RK 473J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W57 RES,RK 102J 1/10 -CP
06S55362Y01 RES,RK 303J 1/4 -CP
06S45674W81 RES,RK 103J 1/10 -CP
06S45674W81 RES,RK 103J 1/10 -CP
06S45674W41 RES,RK 221J 1/10 -CP
06S45674W85 RES,RK 153J 1/10 -CP
06S70072F29 RES,CP .101-J-1/4-CP
06S45674W81 RES,RK 103J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W57 RES,RK 102J 1/10 -CP
06S45674W85 RES,RK 153J 1/10 -CP
06S45674W61 RES,RK 152J 1/10 -CP
06S45675W34 RES,RK 225J 1/10 -CP
06S45674W75 RES,RK 562J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W57 RES,RK 102J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W57 RES,RK 102J 1/10 -CP
06S45674W57 RES,RK 102J 1/10 -CP
06S45674W90 RES,RK 243J 1/10 -CP
06S45674W75 RES,RK 562J 1/10 -CP
06S45674W75 RES,RK 562J 1/10 -CP
06S45674W93 RES,RK 333J 1/10 -CP
06S64995F53 RES,RK 102J 1/8 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP

MAIN-P.W.Board R535 06S45674W81 RES,RK 103J 1/10 -CP
MAIN-P.W.Board R536
MAIN-P.W.Board R537
MAIN-P.W.Board R538
MAIN-P.W.Board R539
MAIN-P.W.Board R540
MAIN-P.W.Board R541
MAIN-P.W.Board R542
MAIN-P.W.Board R543
MAIN-P.W.Board R544
MAIN-P.W.Board R545
MAIN-P.W.Board R546
MAIN-P.W.Board R547
MAIN-P.W.Board R548
MAIN-P.W.Board R553
MAIN-P.W.Board R554
MAIN-P.W.Board R555
MAIN-P.W.Board R556
MAIN-P.W.Board R557
MAIN-P.W.Board R561
MAIN-P.W.Board R562
MAIN-P.W.Board R566
MAIN-P.W.Board R567
MAIN-P.W.Board R569
MAIN-P.W.Board R570
MAIN-P.W.Board R571
MAIN-P.W.Board R572
MAIN-P.W.Board R573
MAIN-P.W.Board R574
MAIN-P.W.Board R575
MAIN-P.W.Board R576
MAIN-P.W.Board R577
MAIN-P.W.Board R578
MAIN-P.W.Board R579
MAIN-P.W.Board R580
MAIN-P.W.Board R581
MAIN-P.W.Board R584
MAIN-P.W.Board R585
MAIN-P.W.Board R586
MAIN-P.W.Board R588
MAIN-P.W.Board R589
MAIN-P.W.Board R591
MAIN-P.W.Board R593
MAIN-P.W.Board R594
MAIN-P.W.Board R595
MAIN-P.W.Board R597
MAIN-P.W.Board R598
MAIN-P.W.Board R599
MAIN-P.W.Board R600
MAIN-P.W.Board R6001
MAIN-P.W.Board R6002
MAIN-P.W.Board R6003
MAIN-P.W.Board R6004
MAIN-P.W.Board R601
MAIN-P.W.Board R603
MAIN-P.W.Board R607
MAIN-P.W.Board R614
MAIN-P.W.Board R627
MAIN-P.W.Board R645
MAIN-P.W.Board R700
MAIN-P.W.Board R7000
MAIN-P.W.Board R7004
MAIN-P.W.Board R7005
MAIN-P.W.Board R7006
MAIN-P.W.Board R7009
MAIN-P.W.Board R7010
MAIN-P.W.Board R7012
MAIN-P.W.Board R7014
MAIN-P.W.Board R7015
MAIN-P.W.Board R7016
MAIN-P.W.Board R7017
MAIN-P.W.Board R7018
MAIN-P.W.Board R7019

06S45674W81 RES,RK 103J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W65 RES,RK 222J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W81 RES,RK 103J 1/10 -CP
06S64995F53 RES,RK 102J 1/8 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S15593Y97 RES,RK 104F 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W57 RES,RK 102J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S64995F77 RES,RK 103J 1/8 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W81 RES,RK 103J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W75 RES,RK 562J 1/10 -CP
06S45674W57 RES,RK 102J 1/10 -CP
06S45674W57 RES,RK 102J 1/10 -CP
06S45675W02 RES,RK 683J 1/10 -CP
06S45674W65 RES,RK 222J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S64995F53 RES,RK 102J 1/8 -CP
06S45674W69 RES,RK 332J 1/10 -CP
06S45674W69 RES,RK 332J 1/10 -CP
06S64995F53 RES,RK 102J 1/8 -CP
06S64995F53 RES,RK 102J 1/8 -CP
06S64995F53 RES,RK 102J 1/8 -CP
06S64995F53 RES,RK 102J 1/8 -CP
06S64995F53 RES,RK 102J 1/8 -CP
06S64995F53 RES,RK 102J 1/8 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S55366Y39 RES,RK JUMPER1/10-CP
06S55366Y39 RES,RK JUMPER1/10-CP
06S64995F53 RES,RK 102J 1/8 -CP
06S45674W99 RES,RK 563J 1/10 -CP
06S45675W43 RES,RK JUMPER1/10-CP
06S45674W89 RES,RK 223J 1/10 -CP
06S64996F02 RES,RK 104J 1/8 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S55361Y65 RES,RK 102J 1/4 -CP
06S45674W97 RES,RK 473J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S55366Y39 RES,RK JUMPER1/10-CP
06S45674W81 RES,RK 103J 1/10 -CP
06S45674W81 RES,RK 103J 1/10 -CP
06S45674W57 RES,RK 102J 1/10 -CP
06S45674W57 RES,RK 102J 1/10 -CP
06S45674W73 RES,RK 472J 1/10 -CP
06S45674W73 RES,RK 472J 1/10 -CP
06S55366Y39 RES,RK JUMPER1/10-CP
06S45674W33 RES,RK 101J 1/10 -CP

MAIN-P.W.Board R702 06S45674W89 RES,RK 223J 1/10 -CP
MAIN-P.W.Board R7020
MAIN-P.W.Board R7021
MAIN-P.W.Board R7022
MAIN-P.W.Board R7023
MAIN-P.W.Board R704
MAIN-P.W.Board R710
MAIN-P.W.Board R711
MAIN-P.W.Board R712
MAIN-P.W.Board R713
MAIN-P.W.Board R714
MAIN-P.W.Board R716
MAIN-P.W.Board R717
MAIN-P.W.Board R718
MAIN-P.W.Board R719
MAIN-P.W.Board R721
MAIN-P.W.Board R722
MAIN-P.W.Board R723
MAIN-P.W.Board R724
MAIN-P.W.Board R726
MAIN-P.W.Board R727
MAIN-P.W.Board R728
MAIN-P.W.Board R729
MAIN-P.W.Board R731
MAIN-P.W.Board R732
MAIN-P.W.Board R733
MAIN-P.W.Board R734
MAIN-P.W.Board R735
MAIN-P.W.Board R743
MAIN-P.W.Board R744
MAIN-P.W.Board R745
MAIN-P.W.Board R748
MAIN-P.W.Board R749
MAIN-P.W.Board R751
MAIN-P.W.Board R752
MAIN-P.W.Board R753
MAIN-P.W.Board R754
MAIN-P.W.Board R758
MAIN-P.W.Board R759
MAIN-P.W.Board R760
MAIN-P.W.Board R761
MAIN-P.W.Board R762
MAIN-P.W.Board R763
MAIN-P.W.Board R764
MAIN-P.W.Board R765
MAIN-P.W.Board R770
MAIN-P.W.Board R771
MAIN-P.W.Board R772
MAIN-P.W.Board R773
MAIN-P.W.Board R774
MAIN-P.W.Board R781
MAIN-P.W.Board R782
MAIN-P.W.Board R784
MAIN-P.W.Board R785
MAIN-P.W.Board R786
MAIN-P.W.Board R788
MAIN-P.W.Board R791
MAIN-P.W.Board R792
MAIN-P.W.Board R797
MAIN-P.W.Board R798
MAIN-P.W.Board R800
MAIN-P.W.Board R801
MAIN-P.W.Board R802
MAIN-P.W.Board R803
MAIN-P.W.Board R805
MAIN-P.W.Board R807
MAIN-P.W.Board R809
MAIN-P.W.Board R810
MAIN-P.W.Board R811
MAIN-P.W.Board R812
MAIN-P.W.Board R813
MAIN-P.W.Board R814
MAIN-P.W.Board R815

06S55366Y39 RES,RK JUMPER1/10-CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W99 RES,RK 563J 1/10 -CP
06S55362Y39 RES,RK JUMPER 1/4-CP
06S45674W94 RES,RK 363J 1/10 -CP
06S45674W87 RES,RK 183J 1/10 -CP
06S45674W97 RES,RK 473J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W75 RES,RK 562J 1/10 -CP
06S45674W75 RES,RK 562J 1/10 -CP
06S45674W97 RES,RK 473J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W75 RES,RK 562J 1/10 -CP
06S45674W57 RES,RK 102J 1/10 -CP
06S45674W83 RES,RK 123J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W85 RES,RK 153J 1/10 -CP
06S45674W75 RES,RK 562J 1/10 -CP
06S45674W87 RES,RK 183J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W85 RES,RK 153J 1/10 -CP
06S45674W75 RES,RK 562J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W81 RES,RK 103J 1/10 -CP
06S45674W81 RES,RK 103J 1/10 -CP
06S45675W04 RES,RK 823J 1/10 -CP
06S45674W55 RES,RK 821J 1/10 -CP
06S45674W67 RES,RK 272J 1/10 -CP
06S45674W53 RES,RK 681J 1/10 -CP
06S45674W53 RES,RK 681J 1/10 -CP
06S45674W97 RES,RK 473J 1/10 -CP
06S45674W97 RES,RK 473J 1/10 -CP
06S45675W30 RES,RK 105J 1/10 -CP
06S45674W37 RES,RK 151J 1/10 -CP
06S45674W81 RES,RK 103J 1/10 -CP
06S45674W81 RES,RK 103J 1/10 -CP
06S45674W81 RES,RK 103J 1/10 -CP
06S45674W97 RES,RK 473J 1/10 -CP
06S45674W97 RES,RK 473J 1/10 -CP
06S45674W99 RES,RK 563J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W93 RES,RK 333J 1/10 -CP
06S45674W97 RES,RK 473J 1/10 -CP
06S45675W06 RES,RK 104J 1/10 -CP
06S45675W06 RES,RK 104J 1/10 -CP
06S45675W06 RES,RK 104J 1/10 -CP
06S70072F90 RES,CP .1R0-J-1/4-CP
06S45674W33 RES,RK 101J 1/10 -CP
06S45674W81 RES,RK 103J 1/10 -CP
06S45674W77 RES,RK 682J 1/10 -CP
06S45674W81 RES,RK 103J 1/10 -CP
06S45674W91 RES,RK 273J 1/10 -CP
06S45675W28 RES,RK 824J 1/10 -CP
06S45674W43 RES,RK 271J 1/10 -CP
06S45675W14 RES,RK 224J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45675W06 RES,RK 104J 1/10 -CP
06S45674W73 RES,RK 472J 1/10 -CP
06S45675W06 RES,RK 104J 1/10 -CP
06S45675W06 RES,RK 104J 1/10 -CP
06S45674W33 RES,RK 101J 1/10 -CP
06S55361Y47 RES,RK 181J 1/4 -CP
06S15593Y90 RES,RK 513F 1/10 -CP
06S15593Y79 RES,RK 183F 1/10 -CP
06S45675W06 RES,RK 104J 1/10 -CP
06S45675W06 RES,RK 104J 1/10 -CP
06S45674W92 RES,RK 303J 1/10 -CP
06S70072F77 RES,CP .103-J-1/4-CP
06S45674W85 RES,RK 153J 1/10 -CP

MAIN-P.W.Board R818 06S15593Y76 RES,RK 133F 1/10 -CP
MAIN-P.W.Board R819
MAIN-P.W.Board R820
MAIN-P.W.Board R821
MAIN-P.W.Board R823
MAIN-P.W.Board R824
MAIN-P.W.Board R825
MAIN-P.W.Board R826
MAIN-P.W.Board R828
MAIN-P.W.Board R829
MAIN-P.W.Board R830
MAIN-P.W.Board R832
MAIN-P.W.Board R834
MAIN-P.W.Board R835
MAIN-P.W.Board R836
MAIN-P.W.Board R839
MAIN-P.W.Board R840
MAIN-P.W.Board R841
MAIN-P.W.Board R842
MAIN-P.W.Board R845
MAIN-P.W.Board R847
MAIN-P.W.Board R852
MAIN-P.W.Board R853
MAIN-P.W.Board R854
MAIN-P.W.Board R855
MAIN-P.W.Board R856
MAIN-P.W.Board R858
MAIN-P.W.Board R859
MAIN-P.W.Board R860
MAIN-P.W.Board R861
MAIN-P.W.Board RA500
MAIN-P.W.Board RA501
MAIN-P.W.Board RA502
MAIN-P.W.Board RA503
MAIN-P.W.Board RA504
MAIN-P.W.Board RA705
MAIN-P.W.Board RA706
MAIN-P.W.Board RA708
MAIN-P.W.Board RA709
MAIN-P.W.Board RA711
MAIN-P.W.Board SA001
MAIN-P.W.Board SD800
MAIN-P.W.Board
MAIN-P.W.Board
MAIN-P.W.Board VR800
MAIN-P.W.Board XL001
MAIN-P.W.Board XL501
MAIN-P.W.Board XL503
MAIN-P.W.Board XL7001
MAIN-P.W.Board XL701
MAIN-P.W.Board Z802
MAIN-P.W.Board ZD200
MAIN-P.W.Board ZD201
MAIN-P.W.Board ZD700
MAIN-P.W.Board ZD7000
MAIN-P.W.Board ZD7001
MAIN-P.W.Board ZD800
FRONT-P.W.Board C401
FRONT-P.W.Board C402
FRONT-P.W.Board C403
FRONT-P.W.Board C404
FRONT-P.W.Board C405
FRONT-P.W.Board C406
FRONT-P.W.Board C408
FRONT-P.W.Board
FRONT-P.W.Board D401
FRONT-P.W.Board D404
FRONT-P.W.Board D405
FRONT-P.W.Board D407
FRONT-P.W.Board D408
FRONT-P.W.Board D409
FRONT-P.W.Board D410
FRONT-P.W.Board D411

SW501 40T16096W03 SW ,TACT SKHHLW
TU601 TU-01373Z03 TUNER,MX-E210

CB401 09-14087Z01 BTB,244202120K2 -S

06S15594Y10 RES,RK 334F 1/10 -CP
06S35083Y43 RES,RK 333F 1/4 -CP
06S35083Y34 RES,RK 562F 1/4 -CP
06S15593Y49 RES,RK 102F 1/10 -CP
06S15593Y57 RES,RK 222F 1/10 -CP
06S15593Y96 RES,RK 913F 1/10 -CP
06S15593Y93 RES,RK 683F 1/10 -CP
06S15593Y73 RES,RK 103F 1/10 -CP
06S15593Y56 RES,RK 202F 1/10 -CP
06S15593Y93 RES,RK 683F 1/10 -CP
06S15593Y74 RES,RK 113F 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S15593Y73 RES,RK 103F 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S45674W89 RES,RK 223J 1/10 -CP
06S15593Y89 RES,RK 473F 1/10 -CP
06S15593Y97 RES,RK 104F 1/10 -CP
06S70072F77 RES,CP .103-J-1/4-CP
06S55361Y83 RES,RK 562J 1/4 -CP
06S15593Y79 RES,RK 183F 1/10 -CP
06S45674W81 RES,RK 103J 1/10 -CP
06S70072F77 RES,CP .103-J-1/4-CP
06S70072F61 RES,CP .222-J-1/4-CP
06S55361Y98 RES,RK 243J 1/4 -CP
06S70072F61 RES,CP .222-J-1/4-CP
06T45541Y01 RES,RS 12RJ 2W +
06S45591W07 RES,ARY MNR101J 4-CP
06S45591W07 RES,ARY MNR101J 4-CP
06S45591W07 RES,ARY MNR101J 4-CP
06S45591W07 RES,ARY MNR101J 4-CP
06S45591W07 RES,ARY MNR101J 4-CP
06S45591W07 RES,ARY MNR101J 4-CP
06S45591W07 RES,ARY MNR101J 4-CP
06S45591W16 RES,ARY MNR223J 4-CP
06S45591W16 RES,ARY MNR223J 4-CP
06S45591W16 RES,ARY MNR223J 4-CP
48-00954Z01 VST,CSA30C201M-T -CP
48-13903Z01 DIO,SHT RB055L-40-E1

18T25282Y28 VAR,EVM3VSX50 104-CP
91-11385Z02 XTL,XI 4.332M -R5
91-11385Z05 XTL,XI 8.000M -R5
91-16082Z01 XTL,CM200C 32.768-E5
91-14119Z01 XTL,XQ 12.000M -E5
91-14119Z02 XTL,XQ 16.9344M -E5
91T65112W06 EMI,BK2125HM102 -CP
48-11191Z09 DIO,ZEN MAZ8036GL-CP
48-11191Z09 DIO,ZEN MAZ8036GL-CP
48-11191Z60 DIO,ZEN MAZ8180GM-CP
48T15541Y49 DIO,ZEN MAZS0510M-CP
48T15541Y49 DIO,ZEN MAZS0510M-CP
48-02592Z01 DIO,ZEN Z5W27VJ -EA
08S65667Y03 CAP,CER 474KX5R1A-CP
08S45676W89 CAP,CER 473K-B1E -CP
08S45676W89 CAP,CER 473K-B1E -CP
08S45677W58 CAP,CER 821J-CH1H-CP
08S65667Y03 CAP,CER 474KX5R1A-CP
08S45676W80 CAP,CER 223K-B1E -CP
08S45676W80 CAP,CER 223K-B1E -CP

48-07015Z01 DIO,KDS160-RTK -CP
48T81063F01 DIO,CP.MA159 / TX-CP
48T94471F04 DIO,IMN10-T108 -CP
48-06707Z01 DIO,MA3J147-TX -CP
48-06707Z01 DIO,MA3J147-TX -CP
48-06707Z01 DIO,MA3J147-TX -CP
48-06707Z01 DIO,MA3J147-TX -CP
48T94471F04 DIO,IMN10-T108 -CP

FRONT-P.W.Board IC401 51T02347K01 PT6583LQ(L) -QT
FRONT-P.W.Board
FRONT-P.W.Board
FRONT-P.W.Board LD400
FRONT-P.W.Board LD401
FRONT-P.W.Board LD408
FRONT-P.W.Board LD410
FRONT-P.W.Board LD414
FRONT-P.W.Board LD415
FRONT-P.W.Board LD416
FRONT-P.W.Board LD417
FRONT-P.W.Board LD418
FRONT-P.W.Board LD419
FRONT-P.W.Board LD420
FRONT-P.W.Board LD421
FRONT-P.W.Board LD422
FRONT-P.W.Board LD423
FRONT-P.W.Board LD424
FRONT-P.W.Board LD443
FRONT-P.W.Board Q402
FRONT-P.W.Board Q405
FRONT-P.W.Board Q406
FRONT-P.W.Board Q408
FRONT-P.W.Board Q409
FRONT-P.W.Board R412
FRONT-P.W.Board R413
FRONT-P.W.Board R414
FRONT-P.W.Board R415
FRONT-P.W.Board R416
FRONT-P.W.Board R417
FRONT-P.W.Board R418
FRONT-P.W.Board R419
FRONT-P.W.Board R420
FRONT-P.W.Board R421
FRONT-P.W.Board R424
FRONT-P.W.Board R426
FRONT-P.W.Board R429
FRONT-P.W.Board R430
FRONT-P.W.Board R431
FRONT-P.W.Board R433
FRONT-P.W.Board R434
FRONT-P.W.Board R435
FRONT-P.W.Board R436
FRONT-P.W.Board R437
FRONT-P.W.Board R438
FRONT-P.W.Board R439
FRONT-P.W.Board R440
FRONT-P.W.Board R441
FRONT-P.W.Board R442
FRONT-P.W.Board R443
FRONT-P.W.Board R445
FRONT-P.W.Board R446
FRONT-P.W.Board R450
FRONT-P.W.Board R451
FRONT-P.W.Board R452
FRONT-P.W.Board R453
FRONT-P.W.Board R458
FRONT-P.W.Board R460
FRONT-P.W.Board R462
FRONT-P.W.Board R463
FRONT-P.W.Board R465
FRONT-P.W.Board R468
FRONT-P.W.Board RA401
FRONT-P.W.Board RA402
FRONT-P.W.Board RA403
FRONT-P.W.Board
FRONT-P.W.Board SW401
FRONT-P.W.Board SW402
FRONT-P.W.Board SW403
FRONT-P.W.Board SW404
FRONT-P.W.Board SW405
FRONT-P.W.Board SW406
FRONT-P.W.Board SW407

JK400 09-14258Z01 JAC,LGT8502-0300F-DB
LCD401 65-13828Z01 LCD, TD0568M0TTN-F

48-13928Z01 LED,ARY QB.L.021 -DB
48-14200Z02 LED,BLU LNJ926W8C-CP
48-14200Z02 LED,BLU LNJ926W8C-CP
48-14200Z02 LED,BLU LNJ926W8C-CP
48-14200Z02 LED,BLU LNJ926W8C-CP
48-14200Z02 LED,BLU LNJ926W8C-CP
48-14200Z02 LED,BLU LNJ926W8C-CP
48-14200Z02 LED,BLU LNJ926W8C-CP
48-14200Z02 LED,BLU LNJ926W8C-CP
48-14200Z02 LED,BLU LNJ926W8C-CP
48-14200Z02 LED,BLU LNJ926W8C-CP
48-14200Z02 LED,BLU LNJ926W8C-CP
48-14200Z02 LED,BLU LNJ926W8C-CP
48-14200Z02 LED,BLU LNJ926W8C-CP
48-14200Z02 LED,BLU LNJ926W8C-CP
48-11414Z01 LED,RED KPT-1608S-CP
48T73023F01 TR ,2SD874A -E2
48-04929Z07 TR,KRC107S-RTK -CP
48-11160Z01 TR,2SC5950G0L-TX -CP
48T63788F04 TR,2SD13280TB-TX -CP
48T63788F04 TR,2SD13280TB-TX -CP
06S15593Y93 RES,RK 683F 1/10 -CP
06S15593Y49 RES,RK 102F 1/10 -CP
06S15593Y87 RES,RK 393F 1/10 -CP
06S45674W97 RES,RK 473J 1/10 -CP
06S15593Y49 RES,RK 102F 1/10 -CP
06S45674W73 RES,RK 472J 1/10 -CP
06S45674W97 RES,RK 473J 1/10 -CP
06S45674W97 RES,RK 473J 1/10 -CP
06S45674W97 RES,RK 473J 1/10 -CP
06S45674W97 RES,RK 473J 1/10 -CP
06S55361Y49 RES,RK 221J 1/4 -CP
06S55361Y57 RES,RK 471J 1/4 -CP
06S55361Y63 RES,RK 821J 1/4 -CP
06S55361Y73 RES,RK 222J 1/4 -CP
06S45674W73 RES,RK 472J 1/10 -CP
06S45674W73 RES,RK 472J 1/10 -CP
06S55361Y70 RES,RK 162J 1/4 -CP
06S45674W61 RES,RK 152J 1/10 -CP
06S55361Y81 RES,RK 472J 1/4 -CP
06S55363Y65 RES,RK 102J 1/8 -CP
06S55363Y65 RES,RK 102J 1/8 -CP
06S55361Y70 RES,RK 162J 1/4 -CP
06S55361Y81 RES,RK 472J 1/4 -CP
06S55361Y49 RES,RK 221J 1/4 -CP
06S55361Y70 RES,RK 162J 1/4 -CP
06S55361Y57 RES,RK 471J 1/4 -CP
06S55361Y79 RES,RK 392J 1/4 -CP
06S55361Y81 RES,RK 472J 1/4 -CP
06S55363Y65 RES,RK 102J 1/8 -CP
06S55363Y65 RES,RK 102J 1/8 -CP
06S55363Y65 RES,RK 102J 1/8 -CP
06S55363Y65 RES,RK 102J 1/8 -CP
06S55361Y93 RES,RK 153J 1/4 -CP
06S55361Y93 RES,RK 153J 1/4 -CP
06S55361Y24 RES,RK 20RJ 1/4 -CP
06S55361Y24 RES,RK 20RJ 1/4 -CP
06S55361Y85 RES,RK 682J 1/4 -CP
06S55361Y91 RES,RK 123J 1/4 -CP
06S45591W06 RES,ARY MNR102J 4-CP
06S45591W06 RES,ARY MNR102J 4-CP
06S45591W06 RES,ARY MNR102J 4-CP

SK400 09-14148Z01 SKT,YKF45-0042N -DB

40T65353Y01 SW,TACT SKRPACE010E2
40T65353Y01 SW,TACT SKRPACE010E2
40T65353Y01 SW,TACT SKRPACE010E2
40T65353Y01 SW,TACT SKRPACE010E2
40T65353Y01 SW,TACT SKRPACE010E2
40T65353Y01 SW,TACT SKRPACE010E2
40T65353Y01 SW,TACT SKRPACE010E2

FRONT-P.W.Board SW408 40T65353Y01 SW,TACT SKRPACE010E2
FRONT-P.W.Board SW409
FRONT-P.W.Board SW410
FRONT-P.W.Board SW411
FRONT-P.W.Board SW412
FRONT-P.W.Board SW413
FRONT-P.W.Board SW414
FRONT-P.W.Board SW415
FRONT-P.W.Board SW416
FRONT-P.W.Board SW417
FRONT-P.W.Board
FRONT-P.W.Board Z401
FRONT-P.W.Board ZD401
FRONT-P.W.Board ZD403
FRONT-P.W.Board ZD404
Miscellaneous
SW(DP33U8BV)-

P.W.Board
SW(DP33U8BV)-

P.W.Board
SW(DP33U8BV)-

P.W.Board
SW(DP33U8BV)-

P.W.Board
SW(DP33U8BV)-

P.W.Board
FPC.PHOTO.VE-

P.W.Board
FPC.PHOTO.VE-

P.W.Board
FPC.PHOTO.VE-

P.W.Board
FPC.PHOTO.VE-

P.W.Board
FPC.PHOTO.VE-

P.W.Board
FPC.PHOTO.VE-

P.W.Board
FPC.PHOTO.VE-

P.W.Board
FPC.PHOTO.VE-

P.W.Board
FPC.PHOTO.VE-

P.W.Board
Miscellaneous
Miscellaneous
Miscellaneous

SW418 40-10735Z02 ENC,EC12D1524405 -DB

ET200 09-14128Z01 ASSY,ANID-0093-01A
CB101

PT1

PT2

PT3

SW1 40T15494Y16 SW,DETCT SPVG1103-E6

C101 08S45677W42 CAP,CER.181J-CH1H-CP

C102 08S45677W42 CAP,CER.181J-CH1H-CP

C103 08S45677W42 CAP,CER.181J-CH1H-CP

LD101 48-13076Z01 LED,KPTD-3216F3C -CP

LD102 48-13076Z01 LED,KPTD-3216F3C -CP

LD103 48-13076Z01 LED,KPTD-3216F3C -CP

R101 06S45674W51 RES,RK 561J 1/10 -CP

R102 06S45674W51 RES,RK 561J 1/10 -CP

R103 06S45674W51 RES,RK 561J 1/10 -CP

HD1 EP-12502Z02 EP21A96N
M1 66-09123Z07 ASSY,SPDL MTR AOTA
M2 66-13908Z44 ASSY,LD-SLED MTR AOTA 8BV

40T65353Y01 SW,TACT SKRPACE010E2
40T65353Y01 SW,TACT SKRPACE010E2
40T65353Y01 SW,TACT SKRPACE010E2
40T65353Y01 SW,TACT SKRPACE010E2
40T65353Y01 SW,TACT SKRPACE010E2
40T65353Y01 SW,TACT SKRPACE010E2
40T65353Y01 SW,TACT SKRPACE010E2
40T65353Y01 SW,TACT SKRPACE010E2
40T65353Y01 SW,TACT SKRPACE010E2

91T65123Y02 EMI,DLW21SN900SQ2-CP
48-11191Z36 DIO,ZEN MAZ8082GH-CP
48T15541Y49 DIO,ZEN MAZS0510M-CP
48T15541Y49 DIO,ZEN MAZS0510M-CP

09-09314Z01 FFC,IMSA9664S-11Y-EQ

48-13077Z01 PHT,TR KP3216P3BT-CP

48-13077Z01 PHT,TR KP3216P3BT-CP

48-13077Z01 PHT,TR KP3216P3BT-CP

2 09T84840F01 LUG,STYLE 18MM
3
6
7
8

9
10
11
12
13
15
16
17
19
20
21
22
23
24
25
26
27
28
29

100

ANT001

CB401
CB803
CH500
ET200

JK201
JK400
JK500

LCD401

SK400
SW418
SW501

TU601

15-13735Z01 COVER,LCD
75-13740Z01 RUBBER,ELECTRONIC

- - - - - - - - - BKT,CHAS REAR
03S60825Y04 SCR,B-T 3X8 ZN A
EN-16822Z05 NOSE,PIECE ASSY
13-13733Z02 NOSE,BOTTOM
03-02876Z28 SCR,WEV 1.7X7 ZB A
EN-13741Z01 NOSE,BASE ASSY
03S60822Y13 SCR,S-T 2.6X6 ZN A

- - - - - - - - - CHAS BASE TOP

- - - - - - - - - COVER,BOTTOM

- - - - - - - - - HEAT,SINK(BT)
14-08597Z01 INS,REAR
33C04102K03 FACE,PLATE
75-06068Z34 CUS,RUB 10X5XT1.65
84-09445Z01 FPC,11PIN MECH
DP-12685Z01 DP33U8BV
07-03994Z01 BKT,SIDE L
07-03994Z02 BKT,SIDE R
64A51492W01 PLATE,SERIAL NO.
36-10933Z02 KNOB,ROTARY ASSY
14-14558Z01 INS,COVER MECH
75-06068Z64 CUS,RUB 14X4XT1.2
SU-16978Z01 SERVICE_NOSE_114BTI
09-14226Z01 ASSY,ANID-0059-01A
09-14087Z01 BTB,244202120K2 -S
24-02502Z02 ASSY,W277A001 -DB
09-14071Z01 BTB,144201120K4 -DB
09-14128Z01 ASSY,ANID-0093-01A
09-11353Z01 RCA,YKC21-4817N -DB
09-14258Z01 JAC,LGT8502-0300F-DB
09-14149Z01 JAC,CK3-3.5-14D -DB
65-13828Z01 LCD, TD0568M0TTN-F
09-14148Z01 SKT,YKF45-0042N -DB
40-10735Z02 ENC,EC12D1524405 -DB
40T16096W03 SW ,TACT SKHHLW
TU-01373Z03 TUNER,MX-E210

Model Code
CDE-114BTi

NOTE:The part that has not PART NUMBER will not be supplied.

#####

1 - - - - - - - - - CHAS,BASE DP-U
2
3
4
7
8

9
13
15
16
19
20
21
22
23
24
25
26
27
28
29
32
33
36
37
38
39
40
41
42
43
44
45
47
48
49
50
51
52
53
54
55
56
57
60
61
62
63
64
65
66
67
68
69
70
71
72

15-08614Z01 GUIDE,TOP 2 DP-U

- - - - - - - - - CHAS,TOP 8LS
15-10062Z05 GUIDE,TOP 8LS
14-06145Z26 INS,CVR 12X2.7XT2
84-14334Z01 FPC,PHOTO VE

- - - - - - - - - ARM,CLAPM 8LS
45-10065Z04 LEVER,ACTUATOR 8LS
43-08616Z04 TABLE,CLAMPER DP-U
41-14419Z01 SPG,CLAMPER VE-2
03S60822Y43 SCR,S-T 2X3 ZN A
47-04894Z02 SHAFT,ROLLER DP-U
49-07008Z02 ROLLER,DP-U
44-08626Z01 GEAR,ROLLER
43-08617Z01 BUSH,ROLLER DP-U
15-10063Z04 GUARD,DISC
04S40075G88 WAS,LOC 1.7X4.5X0.25
45-10061Z04 ARM,DISC GUIDE 8LS
45-08642Z01 ARM,FENCE L
45-08643Z01 ARM,FENCE R
41-05867Z14 SPRING,ACTUATOR-2
41-05867Z11 SPRING,ROLLER AOTA 2
03-10564Z01 SCR,SPG.ROLLER AOTA2
45-12698Z01 LEVER,LINK DRIVE 2
07-04867Z02 BKT,DAMPER
75-13914Z01 DAMPER,DP-U VE Z01
75-13914Z02 DAMPER,DP-U VE Z02
03S70693Y06 SCR,P-T 2X6 ZB A
44-08628Z01 RACK,SLED
47-04895Z01 SHAFT,PICK DP-U
41-05866Z02 SPRING,SLED
41-09325Z01 SPRING,RATTLE L
03S60820Y72 SCR,MCH 1.7X3 ZN A
44-08618Z04 GEAR,A
44-08619Z01 GEAR,B
45-08631Z01 LEVER,TIMING GEAR
44-08620Z01 GEAR,C
44-08621Z01 GEAR,D
44-08622Z04 GEAR,E
44-08623Z04 GEAR,F
44-08624Z01 GEAR,G
44-09654Z01 GEAR,H-2
45-08632Z01 LEVER,LOCK DP-U
45-08630Z01 LEVER,TIMING PICK
07-05523Z02 ASSY,RIV COVER MTR
27-14801Z01 CHAS,PICK 8LS 2
45-15742Z01 SLIDER,LOAD 2
45-15743Z01 SLIDER,TIMING LOAD 2
41-05874Z02 SPRING,TIMING
41-05867Z02 SPRING,DRIVE F
41-05867Z13 SPRING,DRIVE RR-2
41-05867Z04 SPRING,DRIVE RL
45-08639Z04 ARM,LOCK R DP-U
45-15741Z01 ARM,LOCK L 2
45-10066Z04 SLIDER,LOCK L 8LS
45-10067Z04 SLIDER,LOCK R 8LS
41-05871Z02 SPRING,ARM CLAMP

76 14-06145Z92 INS,CVR 12X3XT1

HD1

M1
M2

SW1

EP-12502Z02 EP21A96N
66-09123Z07 ASSY,SPDL MTR AOTA
66-13908Z44 ASSY,LD-SLED MTR AOTA 8BV
40T15494Y16 SW,DETCT SPVG1103-E6

Model Code
CDE-114BTi

NOTE:The part that has not PART NUMBER will not be supplied.

#####
