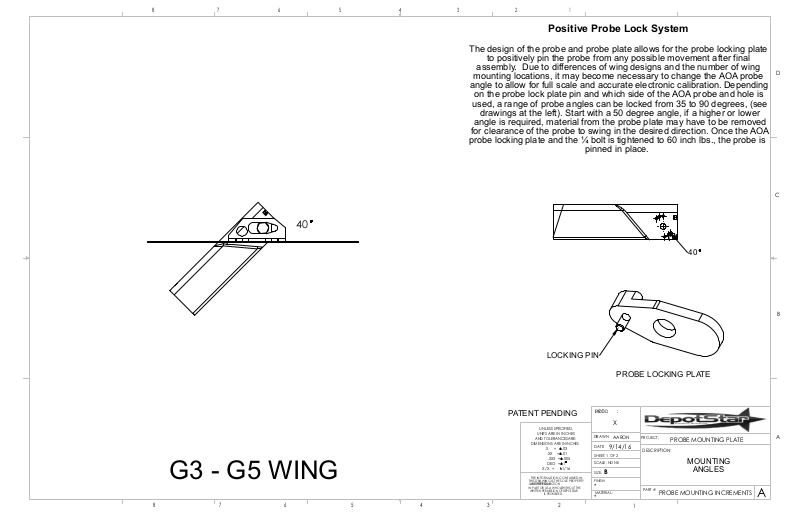

Positive Probe Lock System
The design of the probe and probe plate allows for the probe locking plate
to positively pin the probe from any possible movement after final
assembly. Due to differences of wing designs and the number of wing
mounting locations, it may become necessary to change the AOA probe
angle to allow for full scale and accurate electronic calibration. Depending
on the probe lock plate pin and which side of the AOA probe and hole is

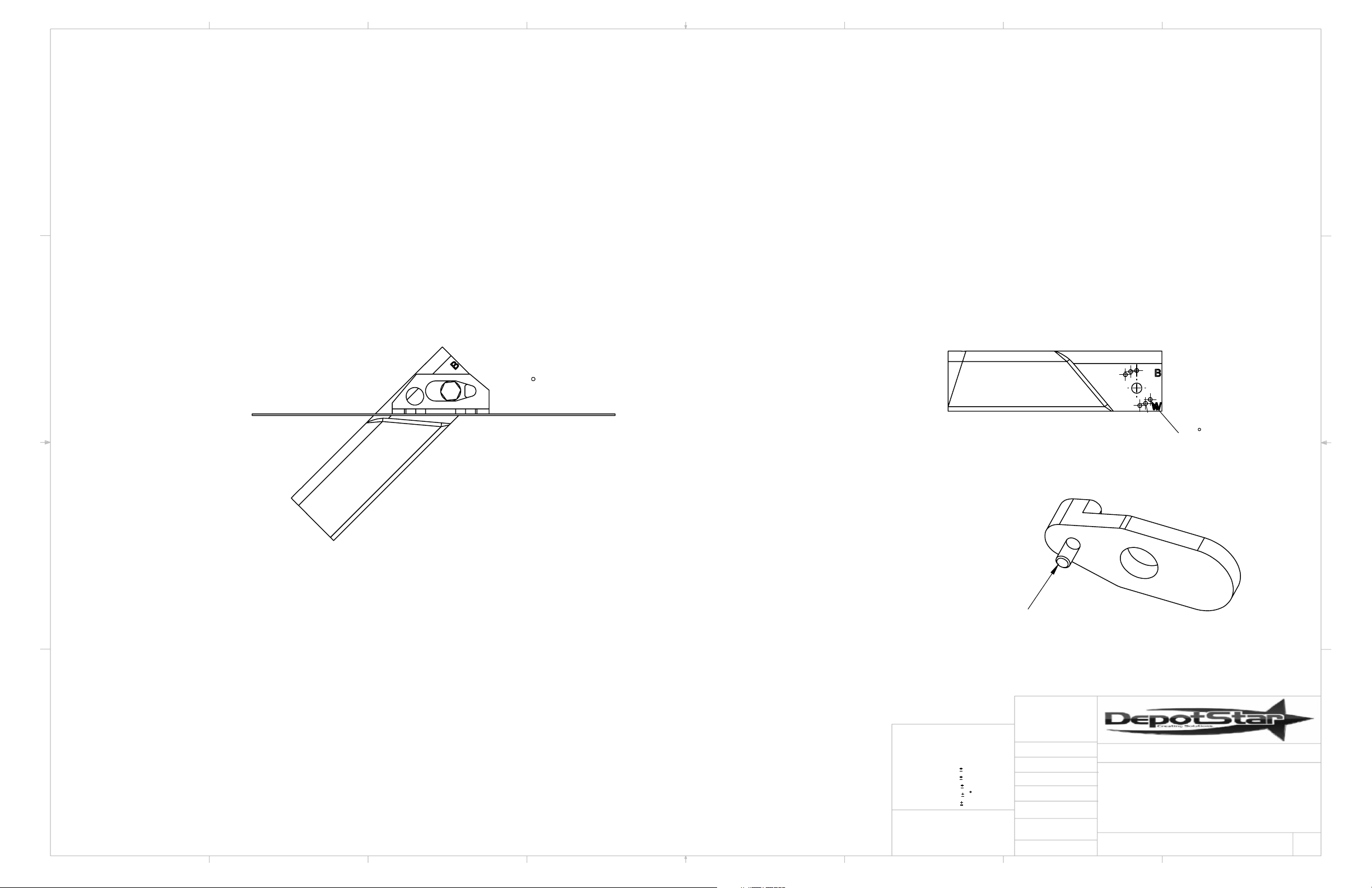

used, a range of probe angles can be locked from 35 to 90 degrees, (see
drawings at the left). Start with a 50 degree angle, if a higher or lower
angle is required, material from the probe plate may have to be removed
for clearance of the probe to swing in the desired direction. Once the AOA
probe locking plate and the ΒΌ bolt is tightened to 60 inch lbs., the probe is
pinned in place.
D
C
40
G3 - G5 WING
8
7
6
40
B
LOCKING PIN
PROBE LOCKING PLATE
PROD
PATENT PENDING
UNLESS SPECIFIED,
UNITS ARE IN INCHES
AND TOLERANCESARE:
DIMENSIONS ARE IN INCHES
.X =
.03
.XX =
.01
.XXX =
.005
DEG =
IS PROHIBITED.
2
1
1/16
X/X =
THE INFORMATION CONTAINED IN
THIS DRAWING IS THE SOLE PROPERTY
OF DEPOTSTAR
. ANY REPRODUCTION
IN PART OR AS A WHOLEWITHOUT THE
WRITTEN PERMISSION OFDEPOTSTAR
5
4
3
UCT
DRAWN
DATE
SHEET: 1 OF 2
SCALE: NONE
SIZE:
FINISH:
*
MATERIAL:
*
X
AARON
9/14/16
B
:
PROJECT:
DESCRIPTION:
PROBE MOUNTING PLATE
A
MOUNTING
ANGLES
PART #:
PROBE MOUNTING INCREMENTS
1
A
