Alphasonik PEQ70E User Manual

R

ALPHASONIK

Owner's Manual

EQUALIZER

PEQ70E

ALPHASONIK WAS FOUNDED IN 1976 WITH ONE MISSION, TO
BRING STATE OF THE ART PERFORMANCE TO THE CAR AUDIO
ENTHUSIAST.

In those early years we pioneered such ground-breaking technologies
as amplier fan cooling and high voltage signal transfer which remain a
benchmark in high-end audio.

Today, the new Alphasonik is committed to pushing the envelope with
regard to technology, quality and value. Our electronics feature audio­phile parts and circuit topology designed to let the full musical experience
come through, loud and clear. Our loudspeakers employ the latest high
technology materials and processes such as carbon reinforced woven
glass and titanium vapor deposition to deliver your music with tremen­dous impact, dynamics and resolution.

We stand behind our quality with one of the best warranties in consumer
electronics. Compare Alphasonik car audio products against anything
competition has to offer. We’re condent you will come to one conclu­sion...

Introduction.................................................................................3

T
A
B

L
E

Features and Specications..................................................4 - 7

Disclaimer...................................................................................8

Warranty...............................................................................9 - 10

O

F
C

O
N

T
E
N

T

3

N

T
R
O
D
U
C

T

O
N

I

Thank you for purchasing this Alphasonik product. Alpha­sonik products are specically engineered and designed for the mobile
audio environment. This manual contains important information about
installation, set-up procedures and integrating your new Alphasonik
product into your vehicle. With proper care and installation, your new
product will provide you with many years of high performance listening
enjoyment. We recommend having an Authorized Alphasonik Dealer
install your new product for optimal performance and to take advantage

I

of our warranty program. Before installing your new product, please
read through the manual to fully understand the application.

Before making any electrical connections, make sure that
you disconnect the battery’s ground cable to prevent the possibility of
short circuits or damage to your electronic equipment. If your vehicle’s
stereo (head unit) comes with an Anti-theft code, DO NOT disconnect
the battery. If you have the access code for the stereo (head unit),
please refer to the vehicle’s owner’s manual.

There are basically three types of equalizers: graphic, para­metric, and a hybrid of these two, often referred to as paragraphic. Ad­ditionally, there are passive equalizers, which have no gain, active gain
pre-amps, which have a again stage usually with a volume control, and
booster equalizers which we won’t consider here since they are inferior
passive equalizers with inexpensive IC amplier built-in.

As in state-of-the-art home audio systems the optimum system
requires a dedicated pre-amp with enormous gain to drive the various
power ampliers. Since home audio ampliers do not have adjust­able sensitivity, they require a high output pre amplier to drive them to
maximum levels.

The unit is the rst production pre amplier to incorporate a
specic bandwidth parametric equalizer with shelving control with 18dB
boost or cut on its four bands, it can compensate for the four acoustic
anomalies unique to the automotive environment. This unit easily be­comes the “Mission control Center” of any high end automotive sound
system.

3

7 BAND PARAMETRIC 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 12kHz

SPECIFICATIONS

BOOST/CUT 18dB
BANDWIDTH Specific to each band-Hi Shelving
S/N RATIO 110dB Ref 1-Volt Input
FREQUENCY RESPONSE 10Hz -50kHz, +/-1dB
MAX OUTPUT VOLTAGE 9.75V RMS
T.H.D. 0.05%
INPUT SENSITIVITY Adjustable 200mV - 3.5V RMS
HEADROOM 20dB
INPUT IMPEDANCE 20k Ohms
STEREO SEPARATION 80dB/1kHz
OPERATING VOLATAGE 11 - 15 Negative Ground
OUTPUT IMPEDANCE 1k Ohms
SUBWOOFER FRQUENCY 30Hz - 120Hz

FEATURES

1. Active gain pre ampliers with adjustable input sensitivity.

2. Volume Control with up to 9.75 Volts RMS of output.

3. Individual left and right sensitivity control for Main/Aux.

4. Seven band parametric equalizer with 18dB boost.

5. Low noise BI-FET op-amp design yields minimum distortion.

6. On-board 30V bi-polar switching power supply.

7. Universal Half-DIN chassis for ease of installation.

8. High grade golden Tiffany RCA jack input/output.

9. Subwoofer level control

10. Subwoofer frequency adjustable

11. 20dB headroom eliminates signal overload.

12. Main/Aux (Radio/CD) input selector.

13. 2 color illumination design.

F
E

A

T
U
R
E
S

A
N
D

S
P
E
C

I

F

I
C
A

T

O
N
S

I

4

F
E

A

T
U
R
E
S

A
N
D

S
P
E
C

F

C
A

T

O
N
S

CROSSOVER CONTROL

It is recommended that the MID BASS / MID / HI frequencies be set at
center position and that the SUB frequency set at around 60Hz. One
of the best features of this unit is that it allows the listener to adjust
each band exactly to his/her own satisfaction. PLEASE NOTE: That
the correct settings depend very much on the overall system itself and
the individual musical taste of the listener. Please check the settings
for each band carefully before completing the installation.

SET-UP ADJUSTMENT

Before Turning On: Turn the unit volume to minimum, adjust the input
gains to minimum, Turn the source unit volume to minimum, Set EQ
controls to at (12 o’clock).

I

System Turn On: After completing all wiring and signal connections

I

I

you can now turn the system on.

Adjust: Raise volume of the unit to maximum. Adjust left and right
input gains of the unit until half way between minimum and maximum.
Gradually increase source volume until clipping occurs. Begin gradual­ly increasing input gains until distortion is audible, then reduce slightly,
system should be extremely loud at this point. Turn the volume control
down to minimum and back up to comfortable level.

5

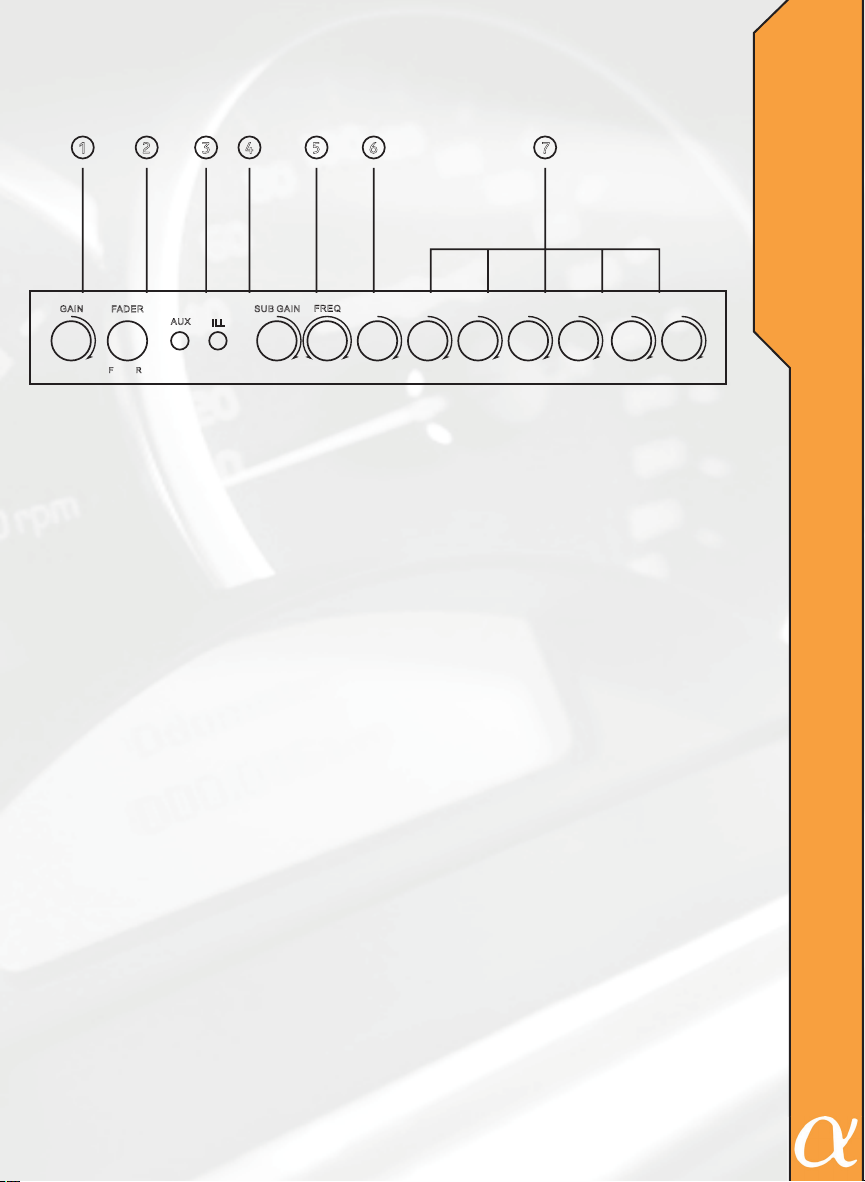

1 2 3 4 5 6 7

GAIN

FADE R

AUX

ILL

SUBG AI N

FREQ

F
E

A

T
U
R

E

S
A

N
D

FR

1. GAIN CONTROL:
This control adusts the output level.

2. FADER CONTROL:
This control adjusts the volume between the front and rear
speakers in a 4-speaker system.

3. INPUT SELECTOR SWITCH:
This switch selects the Main/Aux (Radio/CD) input.

4. BACK LIGHT ILLUMINATION SWITCH:
Orange or Red.

5. SUBWOOFER LEVEL:
Controls the Subwoofer level.

6. SUB FREQUENCY:
This controls adjusts subwoofer frequency from 30Hz to 120Hz.

7. PARAMETRIC EQUALIZER CONTROLS:
Control the frequency response of the boost or cut, with the 7
band controls: 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz,
6kHz, 12kHz.

30Hz 150Hz

50Hz 125Hz3 15Hz 750Hz 9KHz2.2KHz

12KHz

S

P

E
C

I

F

I
C
A

T

I
O
N

S

6

F
E
A

T
U
R
E
S

A
N
D

S
P
E
C

F

C
A

T

O

N
S

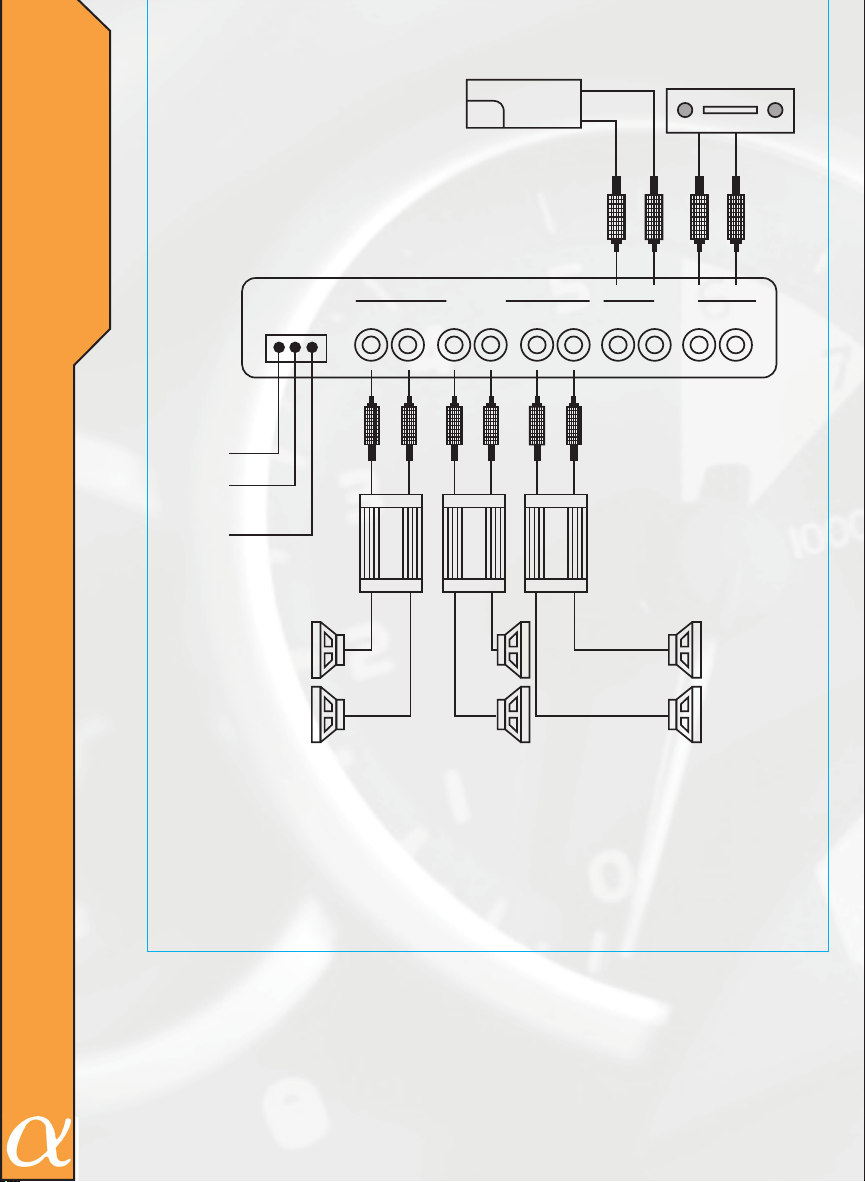

Radio/Cass ette

INPU TOUTPUT

RL RL RL RL

GND

I

I

REM

BATT
(+12V)

RLSUBR EARF RONT AUX

RADI O

I

SUBWOOFER

SPEAKER

REAR

SPEAKE R

FRON T

SPEAKER

NOTES: Set your source volume at one-half to three quarter up and
leave it in it’s position.

Always use your volume as a master (main) volume control. It has bet­ter electronics, higher S/N ratio and is more linear than any source unit
volume available. If engine noise is audible, try raising the volume on
the source unit, and/or check the ground connection on the unit.

7

Investigate the layout of your vehicle thoroughly before
drilling or cutting. Take care when you work near the gas tank,
gas lines, hydraulic lines, electrical components and electrical
wiring. Do not use the equipment unmounted. Attach this sys­tem securely to prevent damage, particularly in the event of an
accident or aggressive driving. Do not mount the system so that
wire connections are unprotected or are subjected to pinching
or damage from nearby objects. Before connecting or discon­necting power connections at the system power terminals, dis­connect the +12V DC wire at the battery end. Conrm that your
source unit and other equipment are turned off while connecting
the input terminals. If you need to replace the power fuse, re­place it only with a fuse identical to the provided fuse. Using a
fuse of different type or rating may result in damage to the sys­tem, which is not covered by the manufacturer’s warranty. Do
not install any product where it may be subjected to excessive
heat, moisture and dust or where it may be repeatedly kicked,
brushed or bumped. Make absolutely sure that the terminals
for the products are connected to the proper inputs and outputs
from the music source. Never run the wiring on the outside of
the vehicle or under it where it can be damaged by road hazards
or any moving parts of the vehicle. Use existing wire channels,
sills, panels and molding strips inside the vehicle to hide the wir­ing for safety and a neat appearance.

W

A
R
N

I
N
G

A
N
D

D

I
S
C

L

A

I

M

E
R

DISCLAIMER

IMPORTANT: Never cut any metal that is an integral part
of the vehicle’s safety or structural support system. If you are
unsure, it is best to have the product professionally installed by
an Authorized Alphasonik Dealer. Never sacrice your safety for
sound.

8

W

A
R
R
A
N

T

Y

Alphasonik, Inc. warrants this product against all defects in material and
workmanship for a period of one (1) year from the date of original purchase
provided it was purchased from an Authorized Alphasonik, Inc. Dealer.

The conditions of this warranty and the extent of the responsibility of Alpha­sonik, Inc. under this warranty are as follows:

1. DATED PROOF OF PURCHASE IS REQUIRED FOR WAR­RANTY SERVICE OF THIS PRODUCT. Information about Alphasonik, Inc.
authorized warranty service may also be obtained at www.alphasonikinc.com
or by contacting or writing Alphasonik, Inc. at the address listed on the back
of this booklet.

2. This warranty will become void if service is performed by any
one other than an approved Alphasonik, Inc. Warranty Service Center.

3. This warranty does not apply to any product which has been
subjected to misuse, neglect or accident, or which has had the warranty
seal broken, serial number altered, defaced or removed, or which has been
connected, installed adjusted or repaired other than in accordance with the
instructions furnished by Alphasonik, Inc.

4. This warranty does not cover car static, electrical interference,
adjustments or labor costs for the removal or reinstallation of the unit for
repair.

5. The sole responsibility of Alphasonik, Inc. under this warranty
shall be limited to the repair or replacement thereof, at the sole discretion of
Alphasonik, Inc.

6. If it becomes necessary to send the product or any defective
part to Alphasonik, Inc. or an authorized service station, the product must
be shipped in its original or equivalent carton, fully insured, with shipping
charges prepaid. Alphasonik, Inc. will not assume any responsibility for any
loss or damage incurred in shipping.

9

7. This warranty is not transferable and protects the original pur­chaser provided they reside and made their purchase in the United States.
International consumers may contact their local retailer or distributor for war­ranty information.

8. ALL IMPLIED WARRANTIES, EXCEPT TO THE EXTENT PRO­HIBITED BY APPLICABLE LAW, SHALL HAVE NO GREATER DURATION
THAN THE WARRANTY PERIOD SET FORTH ABOVE. UNDER NO
CIRCUMSTANCES SHALL ALPHASONIK INC. BE LIABLE FOR ANY LOSS
OR DAMAGE, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE
USE OR INABILITY TO USE THE PRODUCT. BECAUSE SOME STATES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS OR EXCLUSIONS OR LIMITATIONS OF INCIDENTAL OR CONSE­QUENTIAL DAMAGES, THE ABOVE LIMITATIONS OR EXCLUSIONS MAY
NOT APPLY TO YOU.

9. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND
YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO
STATE.

10. Should you have any difculties with the performance of this
product during warranty or with any Alphasonik, Inc. authorized service
center, you may contact the Alphasonik, Inc. National Service Manager at
the address listed on the back of the booklet card or call 714.670.8950 for a
listing of Authorized Warranty Service Centers in your area.

INSTALLED WARRANTY
(When purchased from and installed by an Authorized Alphasonik, Inc.
Dealer)

W

A
R
R
A
N

T
Y

C
O
N

T

I
N
U

E

D

Speaker and Accessories: 1-year over-the-counter defective exchange plus
1-year repair or replacement at the sole discretion of Alphasonik, Inc.

Electronics: 1-year over-the-counter defective exchange, plus 1-year repair
or replacements at the sole discretion of Alphasonik, Inc.

An Alphasonik Extended Warranty Registration Card must be submitted to
Alphasonik, Inc. within 30 days of purchase. To process any warranty claim,
Alphasonik, Inc. will require the dated proof of purchase, which must speci­cally show the model and serial number and that installation was provided
for the product in question. All other terms per Alphasonik, Inc.’s standard
one-year warranty apply.

10

ALPHASONIK INC.

7050 VILLAGE DRIVE BLDG. G

BUENA PARK, CALIFORNIA. 90621

TEL: [phone] · FAX: [phone]

www.alphasonikinc.com
