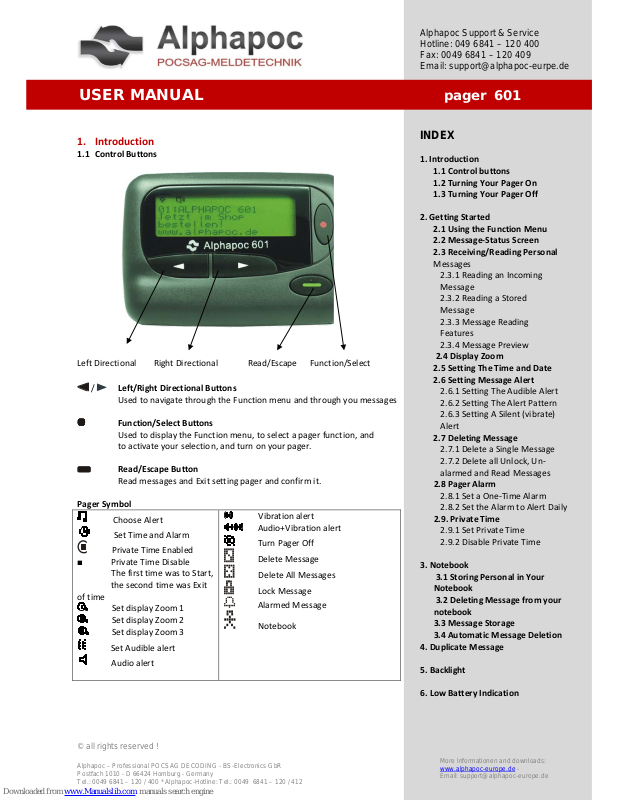

Alphapoc 601 User Manual
© all rights reserved !
Alphapoc – Professional POCSAG DECODING - BS-Electronics GbR
Postfach 1010 - D 66424 Homburg - Germany
Tel.: 0049 6841 – 120 / 400 * Alphapoc-Hotline: Tel.: 0049 6841 – 120 / 412
More Informationen and downloads :
www.alphapoc-europe.de
-
Email: support@alphapoc-europe.de
USER MANUAL
pager 601
1. Introduction
1.1 Control Buttons
Left Directional Right Directional Read/Escape Function/Select
/ Left/Right Directional Buttons
Used to navigate through the Function menu and through you messages
Function/Select Buttons
Used to display the Function menu, to select a pager function, and
to activate your selection, and turn on your pager.
Read/Escape Button
Read messages and Exit setting pager and confirm it.
Pager Symbol
Choose Alert
Set Time and Alarm
Private Time Enabled
■ Private Time Disable
The first time was to Start,
the second time was Exit
of time
Set display Zoom 1
Set display Zoom 2
Set display Zoom 3
Set Audible alert
Audio alert
Vibration alert
Audio+Vibration alert
Turn Pager Off
Delete Message
Delete All Messages
Lock Message
Alarmed Message
Notebook
Alphapoc Support & Service
Hotline: 049 6841 – 120 40 0
Fax: 0049 6841 – 120 409
Email: support@alphapoc-eurpe.de
INDEX
1. Introduction
1.1 Control buttons
1.2 Turning Your Pager On
1.3 Turning Your Pager Off
2. Getting Started
2.1 Using the Function Menu
2.2 Message-Status Screen
2.3 Receiving/Reading Personal
Messages
2.3.1 Reading an Incoming
Message
2.3.2 Reading a Stored
Message
2.3.3 Message Reading
Features
2.3.4 Message Preview
2.4 Display Zoom
2.5 Setting The Time and Date
2.6 Setting Message Alert
2.6.1 Setting The Audible Alert
2.6.2 Setting The Alert Pattern
2.6.3 Setting A Silent (vibrate)
Alert
2.7 Deleting Message
2.7.1 Delete a Single Message
2.7.2 Delete all Unlock, Un alarmed and Read Messages
2.8 Pager Alarm
2.8.1 Set a One-Time Alarm
2.8.2 Set the Alarm to Alert Daily
2.9. Private Time
2.9.1 Set Private Time
2.9.2 Disable Private Time
3. Notebook
3.1 Storing Personal in Your
Notebook
3.2 Deleting Message from your
notebook
3.3 Message Storage
3.4 Automatic Message Deletion
4. Duplicate Message
5. Backlight
6. Low Battery Indication
USER MANUAL 601 en Seite 2 von 6 Vers. 08/2018
Other Symbols
1.2 Turning Your Pager On
Press over 3 second, A start-up screen is momentarily displayed and your pager activates the currently selected
alert.
Note: Press any button to stop the alert.
When the pager is on and no activity is talking place, the Standby screen is displayed. The Standby screen displays the
power-indicator
and may display other pager status indicators.
1.3 Turning Your Pager Off
(1) Press
to display the Function menu.
(2) Press
to move the cursor to ( ).
(3) Press
TURN PAGER OFF? is displayed.
(4) Press
again to turn the pager off.
Your pager is now off and the screen is blank.
2. Getting Started
2.1 Using the Function Menu
The Function menu provides access to the many features of your pager through the use of
symbols and prompts.
(1) Press
to display the Function menu. When the Function menu is initially displayed
flashes to indicate the location of the cursor.
Example of Fully Displayed Function Menu
(2) Press
, to move the cursor within the Function menu. As you move through the Function menu, the pager
function symbols flash to indicate the present location of the cursor. To exit from the Function menu without
making any changes press
.
Note: Some symbols may not display on your pager, depending upon your pager’s features and whether it has
messages.
2.2 Message-Status Screen
The Message-status screen shows the current status of your messages. For example, unread messages are indicated by
a flashing symbol, locked messages are indicated by
.
The Messages-status screen also displays the time and date and any activated pager
settings. The message-status screen can be accessed by pressing
or from the standby
screen.
Example of the Message-Status Screen
Power On
Inputted
function, received CALL no warning
Out of range
Audio or melody alert
Vibration alert
Alarm enabled
has Message
Set Message Alarm
Add to Notebook
Message Continuation
24hr 24 Hour Time
AM AM Time
PM PM Time
Enable Alarm
Disable Alarm
Low battery Indicator
¼ Battery Indicator
½ Battery Indicator
¾ Battery Indicator
Full Battery Indicator
