Alpha Networks EA-7HW03AP1 user manual
Wireless LAN Access Point（wave1）
EA-7HW02AP1
Wireless LAN Access Point（wave2）
EA-7HW03AP1
User’s Guide
Wireless LAN Access Point
Model No. EA-7HW02AP1
EA-7HW03AP1
Before operating this product, please read the instructions carefully and save this manual for future use.
Introduction
Thank you for purchasing the Panasonic Enterprise Wireless LAN Access Point.
This User’s Guide described the instructions for the Enterprise Wireless LAN Access Point.
Before connecting, operating or adjusting this product, please read these instructions completely, and save this
manual for future use.
■ Trademarks and registered trademarks
• Wi-Fi is a trademark of the Wi-Fi Alliance.
• Ethernet is a trademark of Fuji Xerox Co.,Ltd.
• All other company names and product names in this document are trademarks or registered trademarks of their
respective companies.
■ Notice
• The content of this document is subject to change without notice to improve.
• All of "Access point", "AP", "Wireless unit", "EA-7HW02AP1" and "EA-7HW03AP1" indicate Wi-Fi base station
for business use.
• "PoE injector" indicates the option item "EA-7HW00PWR1".
• "PoE power feeding device" indicates the option item "EA-7HW00PWR1" or a PoE injector/power feeding hub
on the market.
■ Disclaimers
• Panasonic shall have no liability for any economic damage resulting from communication loss or recording
failure caused by a fault, malfunction, failure of this product or by external factors upon power outage.
• Panasonic shall have no liability for any damage caused by disaster such as earthquakes, lightnings, storm and
floods, fire, actions by a third party, other incidents, accidents arising from customers' intentional or negligent
misuse and use under abnormal conditions, and for any incidental loss arising from availability or unavailability
of this product.
• This product is not intended to be used with any medical equipments, life-support systems, air traffic control
devices and any other device, equipments and systems involving human lives. Panasonic shall have no liability
for any damage and loss caused by using this product with these devices, equipments and systems.
2
Safety Precautions
To prevent severe injury and loss of life/property, read this section carefully before using the unit to ensure proper
and safe operation of your unit.
WARNING:
• Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate this equipment.
• To prevent injury, this apparatus must be securely attached to the wall/ceiling in accordance with the installation
instructions.
• All work related to the installation of this product should be made by qualified service personnel or system
installers.
• The installation shall be carried out in accordance with all applicable installation rules.
• The connections should comply with local electrical code.
CAUTION:
Compliance with FCC requirement 15.407(c)
Data transmission in always initiated by software, which is the passed down through the MAC, through the digital
and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the
only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet.
Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In other
words, this device automatically discontinue transmission in case of either absence of information to transmit or
operational failure.
• AC adaptor with ferrite core must be used for RF interference suppression.
Frequency Tolerance: ±20 ppm
This device is restricted for indoor use.
This device and it's antennas(s) must not be co-located or operating in conjunction with any other antenna or
transmitter except in accordance with FCC multi-transmitter product procedures.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 36 cm between the radiator & your body.
equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.
3
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is
not possible.
4
Contents
1. Specifications ···························································································································· 13
1.1. Equipment specifications ····································································································· 14
1.2. Appearance/Dimensions (Specifications of this product are subject to change without notice) ············ 17

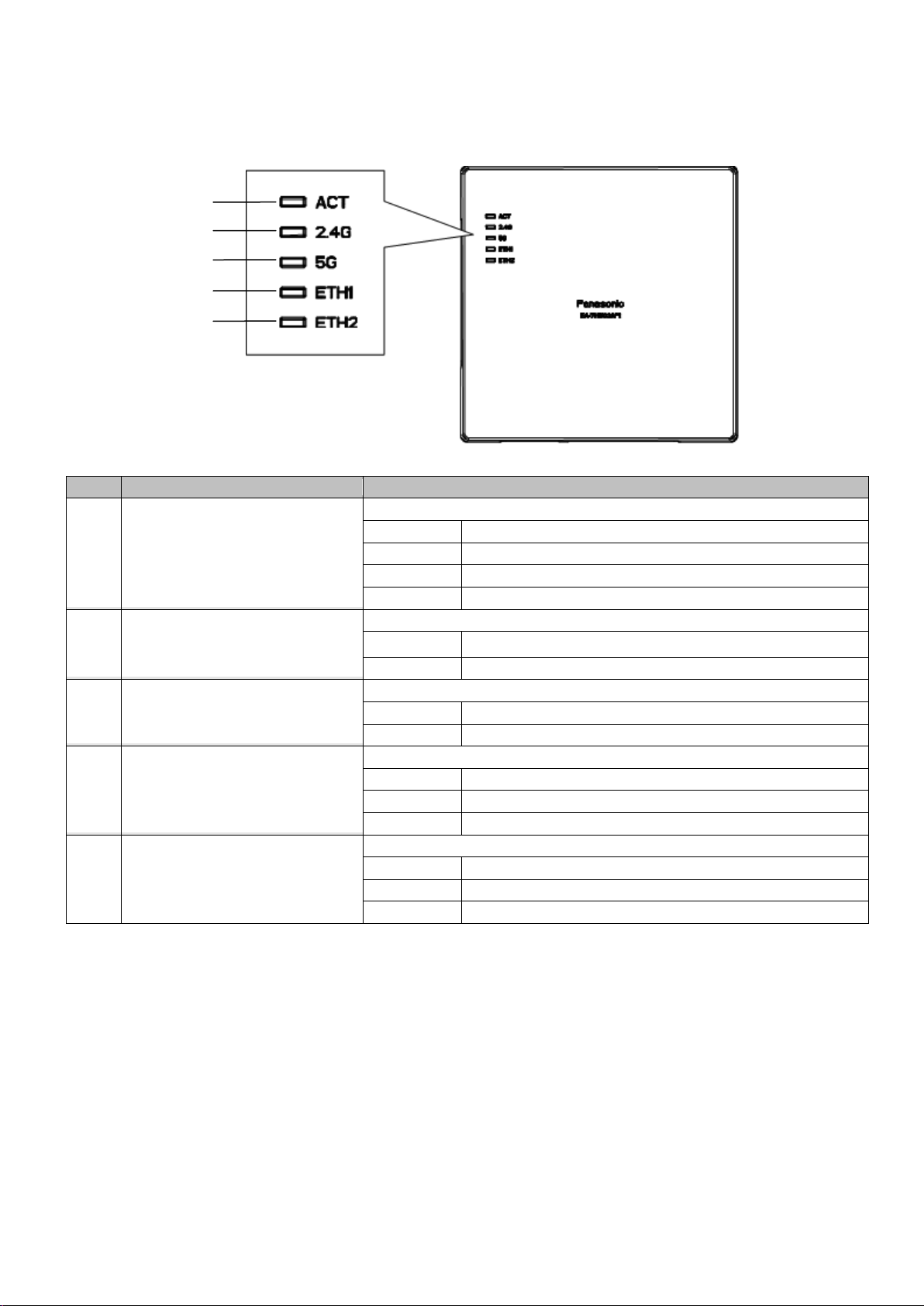

1.3. Major Operating Controls and Their Functions ········································································· 24
1.4. Power feeding method ········································································································ 32
1.5. Interface specifications ······································································································· 33
2. EA-7HW02AP1 installation work ··································································································· 36
2.1. Installations and Connections ······························································································· 37
2.2. Determine the installation place of wireless unit ······································································· 38
2.3. Installation work of wireless unit ···························································································· 39
2.4. Connections ····················································································································· 41
2.4.1. Connection to network ······················································································· 41
2.4.2. Connection with power supply ············································································ 41
2.5. Initialization ······················································································································ 43
2.6. Alarm display by self-test ···································································································· 44
3. EA-7HW03AP1 installation work ··································································································· 45
3.1. Installations and Connections ······························································································· 46
3.2. Determine the installation place of wireless unit ······································································· 47
3.3. Installation work of wireless unit ···························································································· 48
3.4. Connections ····················································································································· 51
3.4.1. Connection to network ······················································································· 51
3.4.2. Power feeding from AC adapter ··········································································· 51
3.5. Initialization ······················································································································ 53
3.6. Alarm display by self-test ···································································································· 54
4. Setting method ·························································································································· 55
4.1. Setting of PC for Web console use ························································································ 56
5. Response to error occurrence ······································································································· 61
5.1. Troubleshooting ················································································································ 62
5
Product name
Illustration
Total number
Remarks
Main unit
1
AC adapter
1
AC cable
1
Stand
1
Mounter
1
Safety guide
1
Main unit and accessories
The main unit and the following accessories are contained in the package box.
Make sure that all of them are contained when opened the package.
▌EA-7HW02AP1
6
Product name
Illustration
Total number
Remarks
Main unit
1
AC adapter
1
AC cable
1
Mounter
1
M6 screw
4
M3 screw
1 Rubber foot
4
Shipped after attaching to the main
unit
Safety guide
1
▌EA-7HW03AP1
Important
1. In addition to the above, the following are required to perform the installation work. The following are not
provided with this product. Please procure separately.
• Ethernet cable (Category 5e or better, with RJ-45 modular plugs on both ends)
2. This product (EA-7HW02AP1/ EA-7HW03AP1) is water-resistant (JIS C 0920 Protection grade 2, drip-proof
type II). Avoid direct water jet and do not submerge this product in water when performing the installation work.
When installing in a place where water can splash onto this product, to protect the product from water, make
sure to install the product upright with the LED on the left side. (Do not lay the product on its side when installing
and do not install the product in any way other than the above when installing it upright.)
7
To run a radio station of the second generation low-power data communication system as an outdoor fixed station, it
is required to display both the name the owner of the corresponding radio station (or the name of the service
provider) and the contact address. The following are the content to be displayed.
• Display of radio station: Radio station of 2.4 GHz band low-power data communication system
• Name of owner or of service provider
• Contact address: Phone number or E-mail address (or home page address, etc.)
• Other useful information such as information to avoid radio wave interference, etc.
As for method of display, use a sticker or a plate, print or handwrite on a place where no special operation is required
to see such as on the radio station or on the housing case.
8
Product name
<Model no.>
Illustration
Total number
PoE injector
<EA-7HW00PWR1>
1
Option (Sold separately)
▌PoE injector
The following options are available to use EA-7HW02AP1 more conveniently.
Contact your dealer from whom you purchased this product for purchasing.
9
Precautions for use
The installation work must be carried out by a professional installer.
Incorrect installation may cause tip-over resulting in accidents.
Turn the power off when cleaning this product. Use a soft cloth to clean this product.
When dust is hard to remove, use a soft cloth soaked in diluted detergent and squeezed hard to wipe it, and
then wipe with a dry soft cloth.
Do not use any of alcohol, petroleum, thinner, benzene, boiling water, polishing powder and soap
powder for cleaning and maintenance.
When using a chemical cloth for cleaning, read the caution provided with the chemical cloth product.
Do not place this product in a place where temperature is high such as a place near a heating
equipment or a boiler.
Failure to observe this may result in deformation/deterioration of the surface/parts of the product or cause a
failure.
Do not bring fire close to the product.
Failure to observe this may result in deformation/deterioration of the surface/parts of the product or cause a
failure.
Do not place this product in a place where hydrogen sulfide, phosphorus, ammonia, sulfur, carbon,
acid, dust or noxious gas can exist.
Failure to do so may result in failure or shorten the life of the product.
Do not place this product near a source of electromagnetic wave or a magnetized object.
(High-frequency sewing machine, electric welder, magnet, etc.)
Failure to observe this may result in generation of noise or cause a failure.
Do not apply a strong impact or vibration to this product.
If a strong impact caused by a fall or a strike is applied, it may result in a failure or a damage.
When disposing of this product, handle it as an industrial waste and follow laws and regulations
appropriately.
10
Notes on radio waves
• This product is certified to radio equipment technical standards based on Radio Act (2.4 GHz ISM band
low-power data communication system and 5 GHz band low-power data communication system). Therefore, no
license of a radio station is necessary for use of this product.
• Since this product is certified to the technical standards, the following actions are punishable by law.
• Taking apart or modifying this product. (Alteration of frequency and antenna is prohibited.)
• Removing the certification label from the bottom of this product.
• In the use frequency band of 2.4 GHz band (IEEE802.11 b/g/n), in addition to industrial/scientific/medical
equipments including microwave ovens, private branch radio stations (license required) for mobile object
identification that are used in manufacturing lines at factories, specified low-power radio stations (no license
required) and amateur radio stations (license required) are being operated.
• Before using this product, make sure that any of private branch radio station for mobile object identification,
specified low-power radio station and amateur radio station is not being operated.
• If harmful radio wave interference against a private branch radio station for mobile object identification
caused by this product occur, immediately change the use frequency of this product and eliminate the radio
wave interference.
• When operating this product in 2.4 GHz band, it is recommended to select CH1, CH6 or CH11 for the
channel setting to reduce interference and to improve frequency utilization efficiency.
• If you need any assistance to deal with a trouble such as harmful radio wave interference against a private
branch radio station for mobile object identification or a specified low-power radio station caused by this
product, contact your dealer from whom you purchased this product.
Use frequency band: 2.4 GHz
Modulation system: DS-SS/OFDM
Estimated interference distance: Less than 40 m
Frequency change availability: It is possible to avoid band for private branch radio station for mobile
object identification and specified low-power radio station while using the entire band.
The following marks indicating these are labeled on the product.
11
Security-related notice on use of wireless LAN products
• In a wireless LAN, information is transmitted/received between a PC and this product using radio wave instead
of a LAN cable. Therefore, it has an advantage that the LAN connection is always available in a range which
radio waves reach.
On the other hand, since radio waves get over obstacles (wall, etc.) and reach any place within a certain range,
the following problems can occur if settings relating to security are not configured.
■ Content of communication can be peeped
• There is a possibility that a third person with malicious intention may intentionally pick up radio waves and
monitor content of communication including personal information such as ID, password, credit card number
and content of E-mails.
■ Illegal intrusion
• There is a possibility that the following may be brought by illegal intrusion.
A third person with malicious intention may invade and access a personal or a corporate network to steal
personal information or classified information (information leakage).
• Communicate by impersonating a specific person and spread illegal information (Spoofing)
• Edit monitored content of communication and transmit (Alteration)
• Spread computer virus and destroy data or a system (Attack)
Since a wireless LAN card and this product originally have security countermeasures against these problems, the
possibility of occurrence of these problems may be reduced if wireless LAN products are used after configuring the
security-related settings of the products.
Fully understand problems that may occur if using the product without configuring the security-related settings. It is
recommended to use this product after configuring the security-related settings on your own judgement and
responsibility while taking other countermeasures (use of physical security countermeasure against theft or use of
VPN function to prevent data eavesdropping) according to your use environment.
12
Chapter
1. Specifications
The following are descriptions about specifications of Wi-Fi base station for business use.
13
Item
EA-7HW02AP1
External
interface
Wireless
IEEE802.11b/g/n, IEEE802.11a/n/ac (wave1) (Simultaneous use is
possible.)
Wired
10/100/1000BASE-T 1 port
Frequency
2.4 GHz
2412-2462MHz
5 GHz
5180-5240, 5260-5320, 5500-5700, 5745-5825 MHz.
Transmission power
Maximum 2.4GHz: 28.23 dBm / Maximum 5GHz: 27.82 dBm.
Antenna
Planar inverted F antenna
Antenna gain
2.4 GHz: 3.88 dBi/ 5 GHz: Less than 5 dBi
Wireless LAN function
Multi-SSID (16), WEP/WPA2 (Personal/Enterprise), MAC authentication,
WMM
Network Interface
L2 bridge, L2/L3/L4 filtering, VLAN, PPPoE, IPsec
Maintenance function
Telnet, SSH, Web, FTP/SFTP, SNMP/TRAP, NTP, syslog
Power source
12 V DC
PoE(IEEE802.3af)
Power consumption
12.95 W or less
Required operating environment
Temperature: 0 °C- 40 °C
Humidity: 5 % - 95 % (non condensing)
Water-/dust-resistance
IP42 (except the rear panel)
Outer dimensions (excluding tolerance and
projections)/Weight
W159 mm x H159 mm x D29 mm /
Approx. 360 g
1.1. Equipment specifications
▌Wi-Fi base station for business use EA-7HW02AP1
14
Item
EA-7HW03AP1
External
interface
Wireless
IEEE802.11b/g/n, IEEE802.11a/n/ac (wave2) (Simultaneous use is possible.)
Wired
10/100/1000BASE-T 2 ports
USB
USB 3.0 2 ports
Maintenance
Console interface 1 port
Frequency
2.4 GHz
2412-2462MHz
5 GHz
5180MHz~5240MHz, 5745MHz ~ 5825MHz
Transmission power
Maximum 2G : 29.88dBm /
Maximum 5G : 25.93dBm (5180~5240MHz), 29.1dBm ( 5745 ~ 5825MHz )
Antenna
Planar inverted F antenna
Antenna gain
2.4 GHz: 3 dBi/ 5 GHz: 4 dBi
Wireless LAN function
Multi-SSID (16), WEP/WPA2 (Personal/Enterprise), MAC/ authentication, WMM
Network Interface
L2 bridge, L2/L3/L4 filtering, VLAN, PPPoE, L2TPv3, IPsec
Maintenance function
Telnet, SSH, Web, FTP/STFTP, SNMP/TRAP, NTP, syslog
Power source
24 V DC
PoE (IEEE802.3af, IEEE802.3at)
• When using IEEE802.3af
Use of USB and 2.4 GHz band becomes unavailable.
• When using IEEE802.3at
Use of USB becomes unavailable.
Power consumption
25.5 W or less
Required operating environment
Temperature: 0 °C - 40 °C
(0 °C - 50 °C Only when installing on a wall)
Humidity: 5 % RH - 95 % RH (non condensing)
Water-/dust-resistance
IP42 (except the rear panel)
Outer dimensions
W201.7 mm×H201.7 mm×D38.5 mm (excluding tolerance and projections)
Weight
Approx. 990 g
▌Wi-Fi base station for business use EA-7HW03AP1
15
Item
Specifications
Input voltage
100 V - 240 V AC
However, the provided power cord is only for 100 V AC.
Prepare a power cord separately when using 200 V AC power supply.
Output voltage/power
24 V DC/36 W
Required operating
environment
Temperature: 0 °C - 40 °C
(0 °C - 50°C Only when 1 USB port of this product is not being used)
Humidity: 5 % RH - 90 % RH (non condensing)
Dimensions
W 48 mm×H 109 mm×D 34 mm
(Excluding tolerance and projections)
Weight
Approx. 300 g
AC adapter
16
29±1.0
159±2.5
159±2.5
1.2. Appearance/Dimensions
(Specifications of this product are subject to change without notice)
▌EA-7HW02AP1
Main unit Outline view
(Unit: mm)
17
(Unit: mm)
24±1.0
84±1.5
4.3±0.5
131±2.5
8±1.0
131±2.5
Mounter Outline view
18
56.2±1.5
122±2.5
66.9±1.5
Stand Outline view
19
Loading...
