AP200 Wireless Access Point

Quick I nst allat ion Guide

AP200 Wireless Access Point Quick Installation Guide

I nt roduction

This guide is to assist the reader with the most basic
form of installation and connection to this access
point.

Pa ck a ge Con t e n ts

After purchasing the access point, the following
items will be included in the package:

• One AP200 Wireless Access Point.

• One Quick Installation Guide.

• One power supply adapter.

• One rack/wall-mount back plate.

• Two Phillips-head screws with anchor plugs.

3. Position the access point over the mounting back plate
and align the slider pegs into the slider peg holes.
Carefully slide the access point downwards until the
access point stops into position.

Note: If any of the above mention items was not
found inside the package contents of this access
point or are damaged in any way, contact your
reseller immediately.

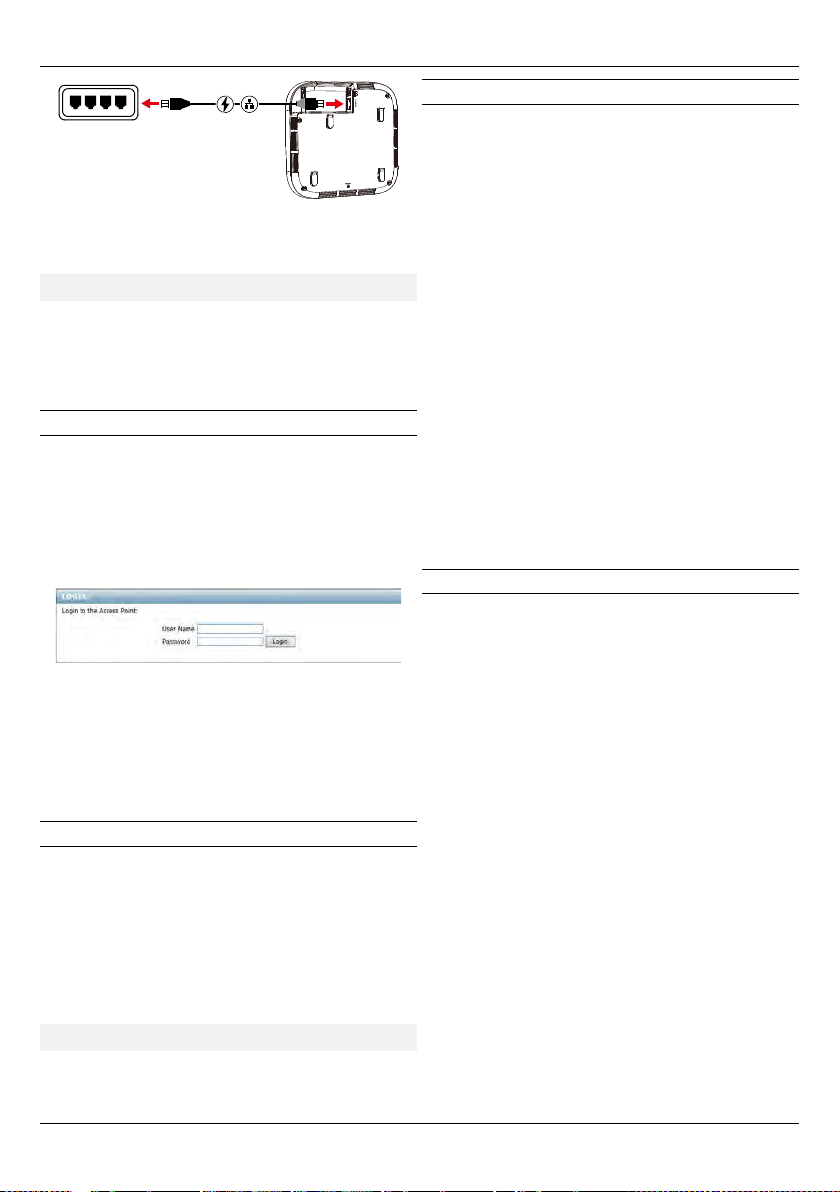

Hardw ar e I nst allat ion

I nst a l la t ion Guidelin e s

This section will discuss the hardware installation
guidelines that administrators must follow in order
to properly and safely install this access point into
the appropriate environment.

I nst a llat ion on t o t he Ce iling

The following steps explain how to successfully
install this access point onto the ceiling.

1. Drill two holes into the ceiling and insert the screw
anchor plugs provided into the holes.

2. Position the mounting back plate over the holes and
then fasten the back plate to the ceiling using the two
Philips-head screws provided.

Additionally a security lock can be used to secure
the access point onto the mounting site.

I nst a llat ion on t o t he W all

The following steps explain how to successfully
install this access point onto a wall.

1. Drill two holes into the wall and insert the screw anchor
plugs provided into the holes.

2. Position the mounting back plate over the holes and
then fasten the back plate to the wall using the two
Philips-head screws provided.
