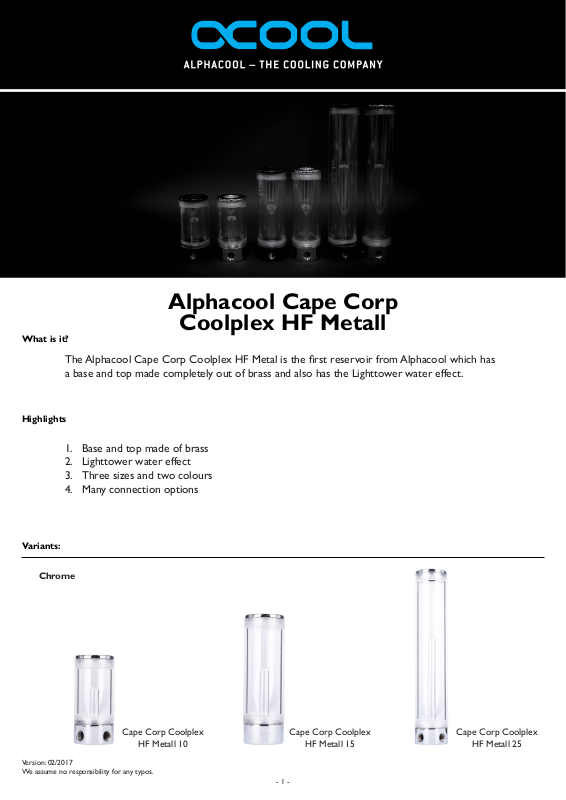

What is it?
Highlights
Variants:
Chrome
Alphacool Cape Corp
Coolplex HF Metall
The Alphacool Cape Corp Coolplex HF Metal is the rst reservoir from Alphacool which has
a base and top made completely out of brass and also has the Lighttower water effect.
1. Base and top made of brass
2. Lighttower water effect
3. Three sizes and two colours
4. Many connection options
Cape Corp Coolplex
HF Metall 10
Version: 02/2017
We assume no responsibility for any typos.
Cape Corp Coolplex
HF Metall 15
- 1 -
Cape Corp Coolplex
HF Metall 25
Deep Black
Cape Corp Coolplex
HF Metall 10
Technical Specication
Technical Data Cape Corp Coolplex
Dimension (LxWxH): 49 x 49 x 117 mm 49 x 49 x 154 mm 49 x 49 x 259 mm
Material brass, acryl glass
Threads 5x G1/4“
Mounting 2x universal mountClip-On
Color available in deep black and chrome
Other Information
Product Article No.
Alphacool
Cape Corp Coolplex HF
Metall 10 - Chrome
Cape Corp Coolplex HF
Metall 10 - Deep Black
HF Metall 10
Article No.
Aquatuning
Cape Corp Coolplex
HF Metall 15
Cape Corp Coolplex
HF Metall 15
Cape Corp Coolplex
HF Metall 25
EAN Code PU Dimension PU
Cape Corp Coolplex
HF Metall 25
in mm
Weight in
kg
15266 1012669 4250197152662 25 175 x 85 x 85 0,68
15267 1012670 4250197152679 25 175 x 85 x 85 0,68
Cape Corp Coolplex HF
Metall 15 - Chrome
Cape Corp Coolplex HF
Metall 15 - Deep Black
Cape Corp Coolplex HF
Metall 25 - Chrome
Cape Corp Coolplex HF
Metall 25 - Deep Black
15268 1012671 4250197152686 25 218 x 85 x 85 0,72
15296 1012672 4250197152693 25 218 x 85 x 85 0,72
15269 1012673 4250197152709 25 325 x 85 x 85 0,84
15270 1012674 4250197152716 25 325 x 85 x 85 0,84
Mounting Material/Scope of Delivery
Scope of delivery Cape Corp Coolplex
Mounting screws 2x M4x20
Nuts 2x M4
Brackets 2x
Sealing plugs 3x
Version: 02/2017
We assume no responsibility for any typos.
HF Metall
- 2 -
Downloads
Produkt Bilder
Cape Corp Coolplex HF
Metall 10 - Chrome
Cape Corp Coolplex HF
Metall 10 - Deep Black
Cape Corp Coolplex HF
Metall 15 - Chrome
Cape Corp Coolplex HF
Metall 15 - Deep Black
Cape Corp Coolplex HF
Metall 25 - Chrome
Cape Corp Coolplex HF
Metall 25 - Deep Black
Article Texts
The Alphacool Cape Corp Coolplex HF Metal is available in sizes 10, 15, and 25, and the colors chrome or deep
black. The base and top are brass. An inlet and outlet are both located at the side of the base and underneath, as
well as one inlet in the top. Clip-on brackets are included for installation.
https://www.alphacool.com/download/1012669.zip
https://www.alphacool.com/download/1012670.zip
https://www.alphacool.com/download/1012671.zip
https://www.alphacool.com/download/1012672.zip
https://www.alphacool.com/download/1012673.zip
https://www.alphacool.com/download/1012674.zip
Up to 50 words
Up to 125 words
Base and top of the Alphacool Cape Corp Coolplex HF Metal are made of pure brass, giving it a unique look. The
Lighttower water effect, well-known from the Eisbecher series, is also used here. An inlet and outlet are located
on the side as well as under the base. There is also an inlet in the top, though using this means the Lighttower
effect will not work. Installing the reservoir in the case is done with two clip-on brackets, which are fastened to
the case with just one screw each. This makes positioning the reservoir much easier. The Cape Corp Coolplex
HF Metal just needs to be clipped on and fastened. The Alphacool Cape Corp Coolplex is available in three sizes:
Metal 10, 15, and 25, and in chrome or deep black.
Up to 250 words
With the Alphacool Cape Corp Coolplex HF Metal, you get a reservoir in elegant brass. The base and top are
both made of solid nickel-plated brass, creating a uniquely elegant look.
Another optical highlight is the Lighttower water effect, well-known from the Alphacool Eisbecher. Small openings
in the riser pipe let streams of water spray sideways against the reservoir’s acrylic glass and run down. Changing
the ow rate can create different effects. If you’d rather not use the water effect, you can simply ll the reservoir
past the rising pipe.
The base has two options for connecting both the inlet and outlet – on the side of the base or directly underneath it. This gives you different options for setting up your system the way you want it. You can also pass the
water into the reservoir through its top, though this setup does have some disadvantages.
The included clip-on brackets make installation a cinch. The brackets are simply screwed in at the desired place
with an M4 screw. The reservoir just needs to be clipped on. When the Cape Corp Coolplex HF Metal is at the
desired height, the clips can be fastened to hold the reservoir in place. It doesn’t get any easier than that.
The Alphacool Cape Corp Coolplex HF Metal is available in Chrome and Deep Black versions, as well as in three
sizes: Metal 10, Metal 15 and the large Metal 25. There’s a version to t any system.
Version: 02/2017
We assume no responsibility for any typos.
- 3 -
Up to 500 words
With the Alphacool Cape Corp Coolplex HF Metal, you get a reservoir in elegant brass. The base and top are
both made of solid nickel-plated brass, creating a uniquely elegant look in your computer. The Cape Corp Coolplex HF Metal doesn’t get its good looks from various gimmicks, but rather from its simplicity and the materials
used.
And yet, the Cape Corp Coolplex HF Metal still features an optical highlight that has become virtually essential
to the Alphacool Series. The Lighttower water effect is included here too. The streams of water coming sideways
out of the riser pipe hit the transparent Plexiglas of the reservoir, creating a unique fountain effect that changes at
every ow rate. If you’d rather not use the water effect, you can simply ll the reservoir past the riser pipe.
The base has two options for connecting both the inlet and outlet – on the side of the base or directly underneath it. This gives you different options for setting up your system the way you want it. You can also pass the
water into the reservoir through its top, though this setup does have some disadvantages. This setup means going
without the Lighttower water effect, and of course that air will enter the cooling loop when it is switched off.
The included clip-on brackets make installation a cinch. The brackets are simply screwed in at the desired place
with an M4 screw. If your case doesn’t have holes in the right places, you can simply drill those in. The reservoir
just needs to be clipped on. When the Cape Corp Coolplex HF Metal is at the desired height, the clips can be
fastened to hold the reservoir in place. It doesn’t get any easier than that.
The Alphacool Cape Corp Coolplex HF Metal is available in Chrome and Deep Black versions. Alphacool also
carries three different sizes. From the extremely compact Metal 10 to the medium Metal 15 up to the expansive
Metal 25, you choose the right version to t your unique system.
Version: 02/2017
We assume no responsibility for any typos.
- 4 -
