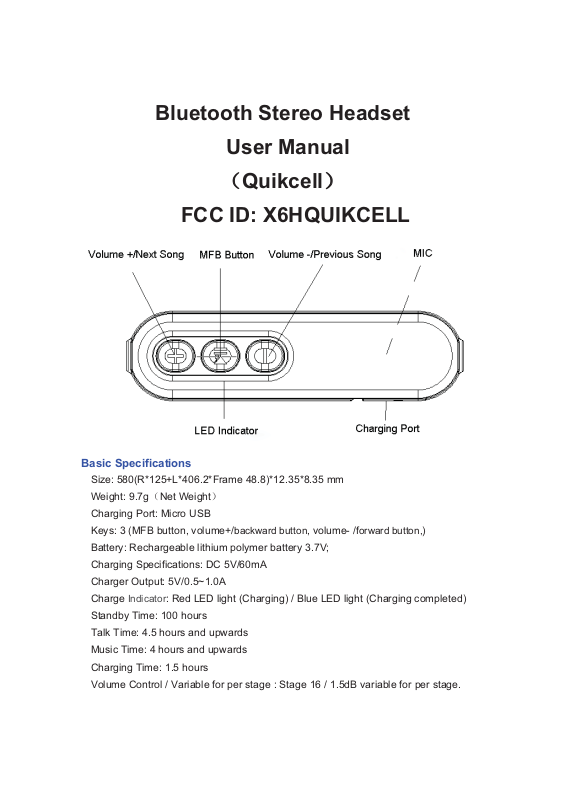

Alpha Comm QUIKCELL User Manual

Bluetooth Stereo Headset

˄

˅

User Manual

Quikcell

FCC ID: X6HQ

Basic Specifications

Size: 580(R*125+L*406.2*Frame 48.8)*12.35*8.35 mm

UIKCELL

Weight: 9.7g˄Net Weight˅

Charging Port: Micro USB

Keys: 3 (MFB button, volume+/

Battery: Rechargeable lithium polymer battery 3.7V;

Charging Specifications: DC 5V/60mA

Charger Output: 5V/0.5~1.0A

Charge

Standby Time: 100 hours

Talk Time: 4.5 hours and upwards

Music Time: 4 hours and upwards

Charging Time: 1.5 hours

Volume Control / Variable for per stage : Stage 16 / 1.5dB variable for per stage.

Indicator: Red LED light (Charging) / Blue LED light (Charging completed)

backward button, volume- /forward button,)

Indicator for Charge in working stage: Battery voltage lower than 3.3V˄the stage of

battery lower than 15%˅, there will be a warning tone with LED indicator flashing in

red; battery voltage lower than 3.1V ( the stage of battery lower than 5%), the headset

will power off directly.

Operating Temperature: Charging 0 ~ 40ć, charging than -20 ~ 60ć.

ƵStorage Temperature: -40 ~ 80ć.

Speaker and MIC parameters

Speaker Specifications / mode:9.0mm, Dynamic

Distortion˖Below 1%

Impedance:32¡/typ

Frequency(Hz): 20Hz20KHz

MIC Sensitivity: -42f3dB

Bluetooth Parameters

Bluetooth Version: 4.0

Support Profile: HSP, HFP, A2DP, AVRCP

The Remote Control to Speaker: MFB (Power ON / Power Off / Play / Pause) ;

Vol+/Next song, Vol-/Previous song.

Device Name: Quikcell

Pass: 0000

RF Transmitter: class II (-6dBm ~ +4dBm)

Receive Sensitivity: -90dBm

Transmission Range (Hz): 2.40GHz ~ 2.48GHz

Transmission Distance: 10m

2.402GHz ~ 2.480GHz

Operating Instructions(The Switching between Spanish and English )

The Switching between Two Kinds of Language˖Double click the MFB button when

the headset is power on and make sure it disconnects with any device. At this time you

will hear the warning tone.

Power On

When the headset is off, press and hold the multi-function Button (MFB) for 3 seconds.

The LED indicator will flash twice in blue. At this time you will hear the words “Power

ON/” from the headset. The headset will be paired with the last connected Bluetooth

device or mobile phone automatically when turned on.

Power Off

When the headset is on, press and hold the MFB for 3 seconds. The LED indicator will

flash once slowly in red. At this time, you will hear the words “Power Off/” from the

headset. The headset will disconnect from your phone devices when turned off.

Pairing Mode

When the headset is off, press and hold MFB for 6 seconds until the LED indicator

flashes red and blue in alternating colors. At this time, you will hear the words “Pairing/”

from the headset.

Ć If you release the MFB before the headset goes into pairing mode, it will power on. If

you want to enter into pairing mode again, please power off the headset or press the

Vol+ and Vol- button concurrently.

Easy connection function

If the headset doesn’t connect with any phones when it is on, you can enter into speed

pairing mode by pressing the Vol+ and Vol- button concurrently and connect with your

phone.

Answering calls

If a call comes in when listening to music or headset is standing by, press the MFB

shortly to answer the incoming call. If the music is playing, it will pause automatically

during the call, the music will start playing automatically.

Reject Calls

If a call comes in, press and hold the MFB button for 2 seconds to reject the incoming

call.

End Calls

Press the MFB shortly to terminate when you finished your call.

Volume
