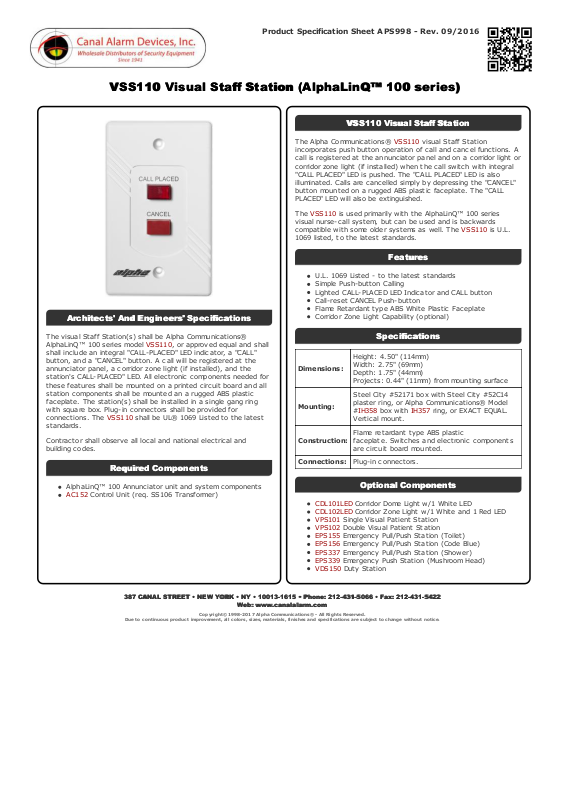

VSS110 Visual Staff Station (AlphaLinQ™ 100 series)VSS110 Visual Staff Station (AlphaLinQ™ 100 series)

387 CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone] CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone]

Web: www.canalalarm.comWeb: www.canalalarm.com

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Architects' And Engineers' SpecificationsArchitects' And Engineers' Specifications

The visual Staff Station(s) shall be Alpha Communications®
AlphaLinQ™ 100 series model VSS110, or approved equal and shall
shall include an integral "CALL-PLACED" LED indicator, a "CALL"
button, and a "CANCEL" button. A call will be registered at the
annunciator panel, a corridor zone light (if installed), and the
stat ion's CALL-PLACED" LED. All electronic components needed for
these feat ures shall be mounted on a printed circuit board and all
stat ion components shall be mounted an a rugged ABS plastic
fac eplate. The stat ion(s) shall be installed in a single gang ring
with square box. Plug-in connect ors shall be provided for
connections. The VSS110 shall be UL® 1069 Listed to the latest
standards.

Contractor shall observe all local and national electrical and
building codes.

Required ComponentsRequired Components

AlphaLinQ™ 100 Annunciator unit and syst em components

AC152 Control Unit (req. SS106 Transformer)

VSS110 Visual Staff StationVSS110 Visual Staff Station

The Alpha Communicat ions® VSS110 visual Staff Stat ion
incorporates push button operation of c all and canc el func tions. A
call is registered at the annunciator panel and on a corridor light or
corridor zone light (if installed) when the call switc h with integral
"CALL PLACED" LED is pushed. The "CALL PLACED" LED is also
illuminated. Calls are cancelled simply by depressing the "CANCEL"
button mounted on a rugged ABS plastic fac eplate. The "CALL
PLACED" LED will also be extinguished.

The VSS110 is used primarily with the AlphaLinQ™ 100 series
visual nurse-call system, but c an be used and is backwards
compatible with some older systems as well. The VSS110 is U.L.
1069 listed, to t he latest standards.

FeaturesFeatures

U.L. 1069 Listed - to the latest standards
Simple Push-button Calling
Lighted CALL-PLACED LED Indicat or and CALL butt on
Call-reset CANCEL Push-button
Flame Retardant t ype ABS White Plastic Fac eplate
Corridor Zone Light Capability (optional)

SpecificationsSpecifications

Dimensions:

Height: 4.50" (114mm)
Width: 2.75" (69mm)
Depth: 1.75" (44mm)
Projects: 0.44" (11mm) from mounting surface

Mounting:

Steel City #52171 box with Steel City #52C14
plaster ring, or Alpha Communications® Model
#IH358 box with IH357 ring, or EXACT EQUAL.
Vertical mount.

Construction:

Flame retardant type ABS plastic
fac eplate. Switc hes and electronic components
are circuit board mounted.

Connections: Plug-in connec tors.

Optional ComponentsOptional Components

CDL101LED Corridor Dome Light w/1 White LED
CDL102LED Corridor Zone Light w/1 White and 1 Red LED
VPS101 Single Visual Patient Stat ion
VPS102 Double Visual Patient St ation
EPS155 Emergency Pull/Push Station (T oilet)
EPS156 Emergency Pull/Push Station (Code Blue)
EPS337 Emergency Pull/Push Station (Shower)
EPS339 Emergency Push Station (Mushroom Head)
VDS150 Duty Station
