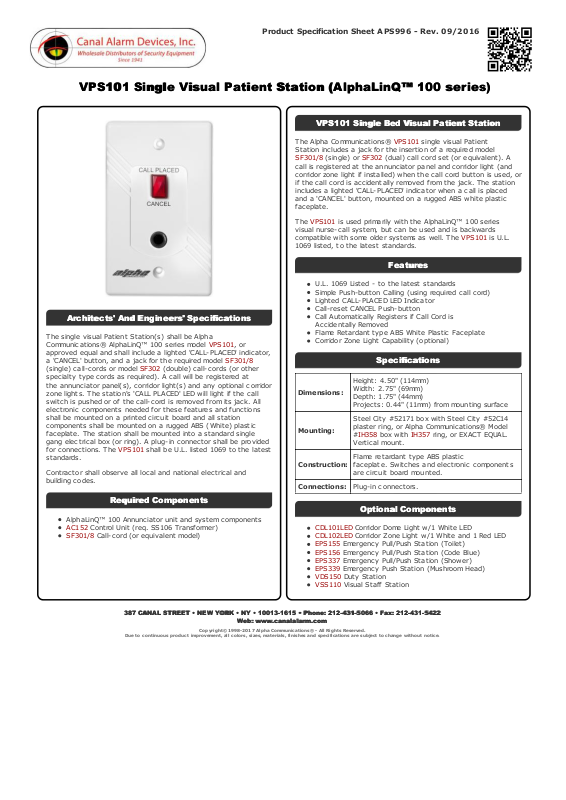

Alpha VPS101 Specsheet

Product Specification Sheet APS996 - Rev. 09/2016

VPS101 Single Visual Patient Station (AlphaLinQ™ 100 series)VPS101 Single Visual Patient Station (AlphaLinQ™ 100 series)

387 CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone] CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone]

Web: www.canalalarm.comWeb: www.canalalarm.com

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Architects' And Engineers' SpecificationsArchitects' And Engineers' Specifications

The single visual Patient Station(s) shall be Alpha
Communications® AlphaLinQ™ 100 series model VPS101, or
approved equal and shall include a lighted 'CALL-PLACED' indicat or,
a 'CANCEL' button, and a jac k for the required model SF301/8
(single) c all-c ords or model SF302 (double) call-c ords (or other
specialty type c ords as required). A call will be registered at
the annunciator panel(s), c orridor light(s) and any opt ional corridor
zone lights. The station's 'CALL PLACED' LED will light if the call
switc h is pushed or of the c all-c ord is removed from its jack. All
elect ronic c omponents needed for these features and functions
shall be mounted on a printed c ircuit board and all st ation
components shall be mounted on a rugged ABS (White) plastic
fac eplate. The stat ion shall be mounted into a standard single
gang elect rical box (or ring). A plug-in c onnector shall be provided
for connect ions. The VPS101 shall be U.L. listed 1069 to the latest
standards.

Contractor shall observe all local and national electrical and
building codes.

Required ComponentsRequired Components

AlphaLinQ™ 100 Annunciator unit and syst em components

AC152 Control Unit (req. SS106 Transformer)
SF301/8 Call-cord (or equivalent model)

VPS101 Single Bed Visual Patient StationVPS101 Single Bed Visual Patient Station

The Alpha Communicat ions® VPS101 single visual Patient
Stat ion includes a jac k for the insertion of a required model

SF301/8 (single) or SF302 (dual) call cord set (or equivalent). A

call is registered at the annunciator panel and c orridor light (and
corridor zone light if installed) when the call cord button is used, or
if the call c ord is accidentally removed from the jac k. The station
includes a lighted 'CALL-PLACED' indicator when a c all is placed
and a 'CANCEL' button, mounted on a rugged ABS white plastic
fac eplate.

The VPS101 is used primarily with the AlphaLinQ™ 100 series
visual nurse-call system, but c an be used and is backwards
compat ible with some older syst ems as well. The VPS101 is U.L.
1069 listed, to t he latest standards.

FeaturesFeatures

U.L. 1069 Listed - to the latest standards
Simple Push-button Calling (using required call cord)
Lighted CALL-PLACED LED Indicat or
Call-reset CANCEL Push-button
Call Automatically Registers if Call Cord is
Accidentally Removed
Flame Retardant t ype ABS White Plastic Fac eplate
Corridor Zone Light Capability (optional)

SpecificationsSpecifications

Dimensions:

Height: 4.50" (114mm)
Width: 2.75" (69mm)
Depth: 1.75" (44mm)
Projects: 0.44" (11mm) from mounting surface

Mounting:

Steel City #52171 box with Steel City #52C14
plaster ring, or Alpha Communications® Model
#IH358 box with IH357 ring, or EXACT EQUAL.
Vertical mount.

Construction:

Flame retardant type ABS plastic
fac eplate. Switc hes and electronic components
are circuit board mounted.

Connections: Plug-in connec tors.

Optional ComponentsOptional Components

CDL101LED Corridor Dome Light w/1 White LED
CDL102LED Corridor Zone Light w/1 White and 1 Red LED
EPS155 Emergency Pull/Push Station (T oilet)
EPS156 Emergency Pull/Push Station (Code Blue)
EPS337 Emergency Pull/Push Station (Shower)
EPS339 Emergency Push Station (Mushroom Head)
VDS150 Duty Station
VSS110 Visual Staff Stat ion
