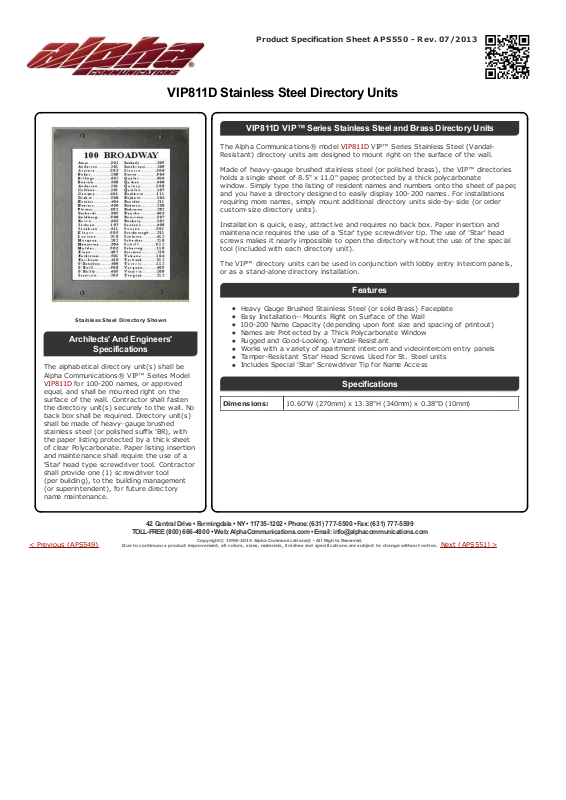

Alpha VIP811D Specsheet

Product Specification Sheet A PS550 - Rev. 07/2013

VIP811D Stainless Steel Directory Units

42 Central Drive • Farmingdale • NY • 11735-1202 • Phone: [phone] • Fax: [phone]

TOLL-FREE: [phone] • Web: AlphaCommunications.com • Email: [e-mail]

Copyright© 1998-201 4 Alpha Communications® - All Rights Reserved.

Due to co ntinuous pro duct improvement, all colo rs, sizes, materials, finishes and specification s are subject to ch ange without n otice.

< Previous (APS549) Next (APS551) >

Stainless St eel Direc tory Shown

Architects' And Engineers'

Specifications

The alphabetical directory unit(s) shall be
Alpha Communications® VIP™ Series Model

VIP811D for 100-200 names, or approved

equal, and shall be mounted right on t he
surface of t he wall. Contrac tor shall fast en
the directory unit(s) securely to the wall. No
back box shall be required. Directory unit(s)
shall be made of heavy-gauge brushed
stainless st eel (or polished suffix 'BR), with
the paper listing protec ted by a thick sheet
of c lear Polycarbonate. Paper listing insertion
and maintenance shall require the use of a
'Star' head type screwdriver tool. Contractor
shall provide one (1) screwdriver tool
(per building), to t he building management
(or superintendent), for future directory
name maintenanc e.

VIP811D VIP™ Series Stainless Steel and Brass Directory Units

The Alpha Communications® model VIP811D VIP™ Series Stainless Steel (Vandal-
Resistant) direct ory units are designed t o mount right on the surface of the wall.

Made of heavy-gauge brushed stainless steel (or polished brass), the VIP™ directories
holds a single sheet of 8.5" x 11.0" paper, protected by a thick polycarbonate
window. Simply type the listing of resident names and numbers onto the sheet of paper,
and you have a directory designed to easily display 100-200 names. For installations
requiring more names, simply mount additional direct ory units side-by-side (or order
cust om-size directory units).

Installation is quick, easy, attractive and requires no back box. Paper insertion and
maintenance requires t he use of a 'Star' type sc rewdriver tip. The use of 'Star' head
screws makes it nearly impossible to open the direc tory without t he use of the special
tool (included with each direc tory unit).

The VIP™ direc tory units can be used in conjunction with lobby entry intercom panels,
or as a stand-alone direc tory installation.

Features

Heavy Gauge Brushed Stainless St eel (or solid Brass) Faceplate
Easy Installation-- Mounts Right on Surfac e of the Wall
100-200 Name Capacity (depending upon font size and spacing of printout)
Names are Protec ted by a Thick Polyc arbonate Window
Rugged and Good-Looking. Vandal-Resistant
Works with a variety of apartment intercom and videointercom entry panels
Tamper-Resistant 'Star' Head Screws Used for St. Steel units
Includes Special 'Star' Screwdriver Tip for Name Ac cess

Specifications

Dimensions: 10.60"W (270mm) x 13.38"H (340mm) x 0.38"D (10mm)
