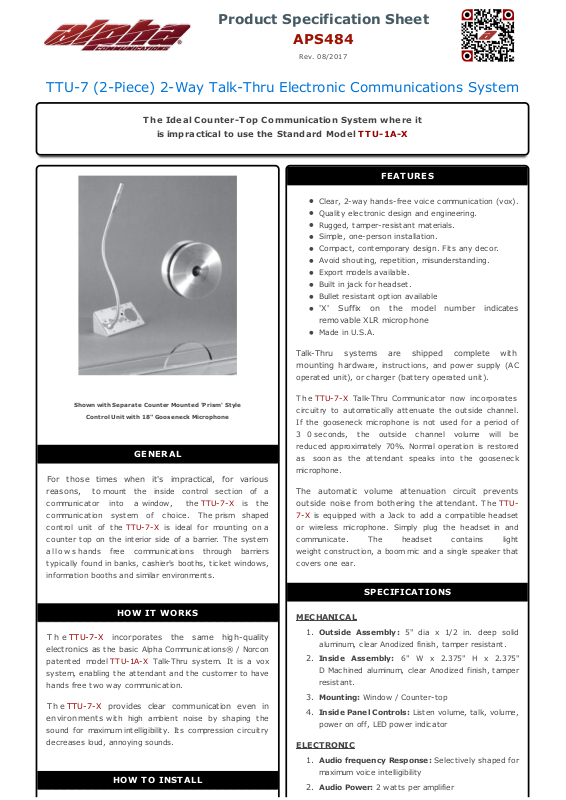

Alpha TTU-7-X-NC Specsheet

TTU-7 (2-Piece) 2-Way Talk-Thru Electronic Communications System

Product Specification Sheet

APS484

Rev. 08/201 7

T he Ideal Counter-T op C ommunication System w here it

is impractical to use the Standard Model TT U-1A-X

Shown with Separate Counter Mounte d 'Prism' Sty le

Control Unit with 18" Gooseneck Microphone

GE NE R AL

For those times when it's impractical, for various
reasons , to mount the inside c ontrol sec tion of a

communicator into a window, the TTU-7-X is t he
communication system of choice. The prism shaped
control unit of the TTU-7-X is ideal for mounting on a
counter top on the interior side of a barrier. The system
a l l o w s hands free communications through barriers
typically found in banks, cashier's booths, ticket windows,
information booths and similar environments.

HO W IT W O R KS

T h e TTU-7-X incorporates the same high-quality
electronics as the basic Alpha Communications® / Norcon

patent ed model T TU-1A-X Talk-Thru system. It is a vox
system, enabling the att endant and the c ustomer to have
hands free two way c ommunicat ion.

T h e TTU-7-X provides clear communication even in
environments with high ambient noise by shaping the

sound for maximum intelligibility. Its compression circuitry
decreases loud, annoying sounds.

HO W T O INST ALL

FEAT U R ES

Clear, 2-way hands-free voice communication (vox).
Qualit y electronic design and engineering.
Rugged, tamper-resistant materials.
Simple, one-person installation.
Compac t, contemporary design. Fits any decor.
Avoid shouting, repetition, misunderstanding.
Export models available.
Built in jack for headset.
Bullet resistant option available

'X' Suffix on the model number indicates
removable XLR microphone

Made in U.S.A.

Talk-Thru systems are shipped complete with
mounting hardware, instructions, and power supply (AC

operated unit), or charger (batt ery operated unit).

T h e T TU-7-X Talk-Thru Communicator now inc orporates
circ uitry to automatically attenuate the outside c hannel.
If the gooseneck microphone is not used for a period of
3 0 seconds, the outside channel volume will be
reduced approximately 70%. Normal operation is restored
as soon as the attendant speaks into t he gooseneck
microphone.

The automatic volume attenuation circuit prevents
outside noise from bothering the attendant. The TTU-

7-X is equipped with a Jack to add a compatible headset

or wireless microphone. Simply plug the headset in and
communicate. The headset contains light
weight c onstruction, a boom mic and a single speaker that
covers one ear.

SPECIFICAT IO NS

MECHANICAL

1. Outside Assembly: 5" dia x 1/2 in. deep solid

aluminum, clear Anodized finish, tamper resistant.

2. Inside Assembly: 6" W x 2.375" H x 2.375"

D Machined aluminum, c lear Anodized finish, tamper
resistant.

3. Mounting: Window / Counter-top

4. Inside Panel Controls: Listen volume, talk, volume,

power on off, LED power indicator

ELECTRONIC

1. Audio frequency Response: Selectively shaped for

maximum voice intelligibility

2. Audio Power: 2 watts per amplifier

Installation of the TTU-7-X is a very simple, one­person operation. All that's needed is a 3 to 4 inch
cutout in the barrier. All hardware and cable are
supplied. Please specify barrier thickness when
ordering. The prism unit is quickly and easily mounted
on the counter-top on the inside of the barrier, at a
convenient location for the user. A power adapter and
all cables are supplied.

The TTU-7-X is s upplied with a continuous-duty, 117­Volt power supply which is stepped down to 15 Volts.
An optional model# 220V-OPTION-N power pack is
available for 220VAC primary power applications.

'Talk-Thru' is a trade mark of Norcon Com munications Inc

3. Distortion: Less than 2%

4. Listen Mode: 20 dB compression

5. Talk Mode: VOX

6. Microphone: Elect ret

7. Power Supply: Input 120 VAC, 60 Hz, Output 15

VDC, 175mA

OT HER MODE LS AVAILABLE

Model TTU-7B-X

Same as TTU-7-X model except it has a Level-3 bullet­resistant barrier installed inside the window unit

Model TTU-7NC-X

Same as TTU-7-X model except it incorporates noise­cancelling circuitry to automatically attenuate the
outside ambient noise by 26db to 30db.

Model TTU-7D

Same as TT U-7-X model except it has a rec hargeable
batt ery pac k so the wiring will not be seen when in use
