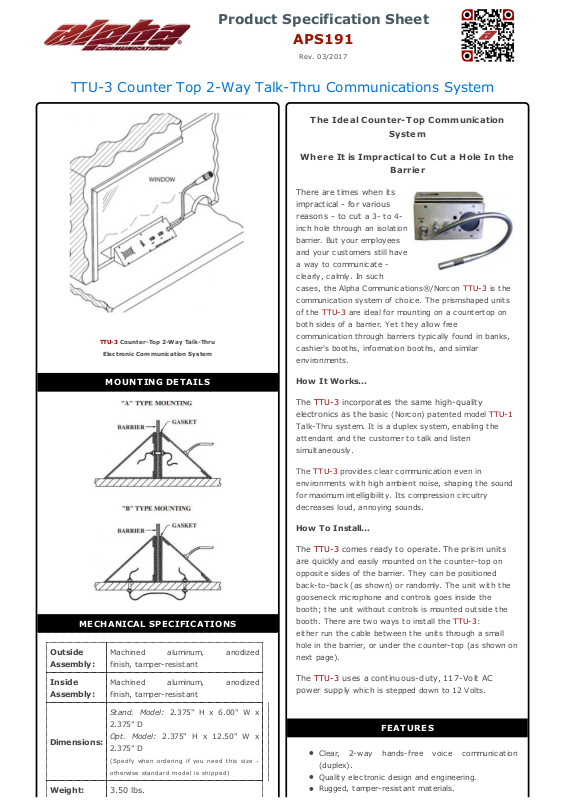

Alpha TTU-3-X-NC Specsheet

TTU-3 Counter Top 2-Way Talk-Thru Communications System

Product Specification Sheet

APS191

Rev. 03/201 7

TTU-3 Counte r-Top 2-Wa y Talk-Thru

Electronic Communication Syst em

MO U NTING DE T AILS

ME C HANIC AL SP ECIFICAT IONS

Outside
Assembly:

Machined aluminum, anodized
finish, tamper-resistant

Inside
Assembly:

Machined aluminum, anodized
finish, tamper-resistant

Dimensions:

Stand. Model: 2.375" H x 6.00" W x

2.375" D
Opt. Model: 2.375" H x 12.50" W x

2.375" D

(Sp e cify whe n orde rin g if yo u ne ed th is si ze -

othe rwise s tan dard m o de l is ship pe d )

Weight: 3.50 lbs.

T he Ideal Counter-T op C ommunication

System

Where It is Impractical to Cut a Hole In the

Ba rrier

There are times when its
impractical - for various
reasons - to cut a 3- to 4-

inch hole through an isolation
barrier. But your employees
and your customers still have
a way to communicat e ­clearly, c almly. In such
cases, the Alpha Communications®/Norcon TTU-3 is the
communication system of c hoice. The prismshaped units
of t he TTU-3 are ideal for mounting on a countertop on
both sides of a barrier. Yet they allow free
communication through barriers typically found in banks,
cashier's booths, information booths, and similar
environments.

How It Works...

The TTU-3 incorporates the same high-quality
electronics as the basic (Norcon) patented model T TU-1

Talk- Thru system. It is a duplex system, enabling the
att endant and the cust omer to talk and listen
simultaneously.

The TT U-3 provides c lear communication even in
environments with high ambient noise, shaping the sound
for maximum intelligibility. Its c ompression circuitry
decreases loud, annoying sounds.

How To Install...

The TTU-3 comes ready to operate. The prism units
are quickly and easily mounted on the counter-top on

opposite sides of the barrier. They can be positioned
back-to- bac k (as shown) or randomly. The unit with t he
gooseneck microphone and c ontrols goes inside the
booth; t he unit without c ontrols is mounted outside the
booth. There are t wo ways t o install the TT U-3:
either run the c able between t he units t hrough a small
hole in the barrier, or under the counter-top (as shown on
next page).

The TTU-3 uses a continuous-duty, 117-Volt AC
power supply which is st epped down t o 12 Volts.

FEAT U R ES

Clear, 2-way hands-free voice c ommunication
(duplex).
Quality elect ronic design and engineering.
Rugged, tamper-resistant materials.

Mounting: Counter-top

Panel
Controls:

Listen volume, talk volume, power
on-off, LED power indicator

Simple, one- person installation. No need to c ut
a hole in the barrier.
Compac t, c ontemporary design. Fits any dec or.
Avoid shouting, repetition, misunderstanding.
220VAC Export models available (ask for details).
Made in U.S.A.

Talk-Thru systems are shipped complete with
mounting hardware, instruct ions, and 120VAC (primary)
po w e r supply (for AC operated units) or charger (for
batt ery operated units).

ELEC T RICAL SPEC IFICAT IO NS

Audio Frequency
Response:

Select ively shaped for maximum
voice intelligibility

Audio Power: 2 watts per amplifier

Distortion: Less than 2%

Listen Mode: 20 dB compression

Talk Mode: Duplex (VOX)

Microphones: Low-Z dynamic and electret

Power Supply:

Input: 120 VAC, 60 Hz, Output:
15 VDC, 175mA

Alpha Communications

42 Central Drive • Farmingdale • NY • 11735-1202 • Phone: [phone] • Fax: [phone]

TOLL-FREE: [phone] • Web: www.alphacommunications.c om • Email: info@alphacommunicat ions.com

C opy right© 1998-2019 Alph a C o mmunica tions - A ll Rig hts R ese rv ed.

Talk-Thru™ is a registered trademark of Norc on C o mm unications Inc .

Due to continuous pro duct improve me nt, all colors, sizes, mate rials, finishes and sp ecificatio ns a re subject to change witho ut notice.

®
