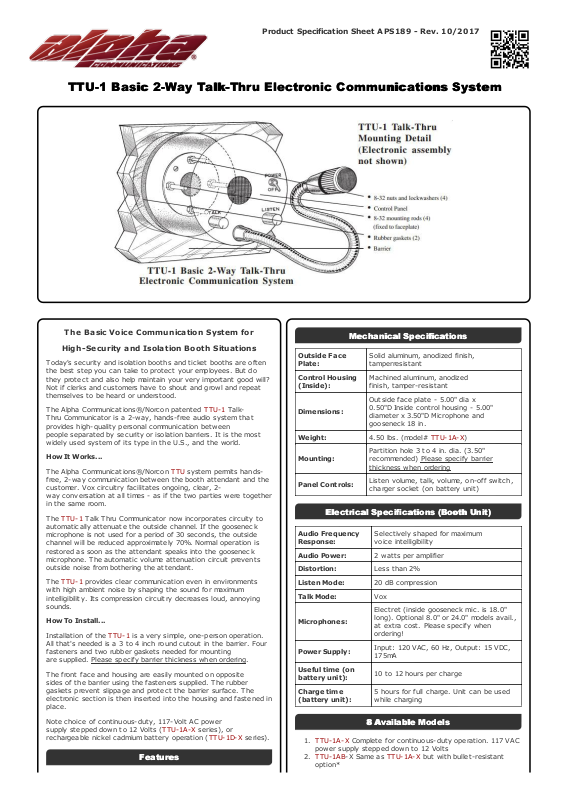

Alpha TTU-1A-X-MRA Specsheet

Product Specification Sheet APS189 - Rev. 10/2017

TTU-1 Basic 2-Way Talk-Thru Electronic Communications SystemTTU-1 Basic 2-Way Talk-Thru Electronic Communications System

T he Basic Voice Communication Syste m for

High- Se curity and Isolation Booth Situations

Today's security and isolation booths and ticket booths are oft en
the best step you can take to protect your employees. But do
they protect and also help maintain your very important good will?
Not if c lerks and customers have t o shout and growl and repeat
themselves to be heard or understood.

The Alpha Communicat ions®/Norcon patented TTU-1 Talk­Thru Communicator is a 2-way, hands-free audio syst em that
provides high-quality personal communication between
people separated by sec urity or isolation barriers. It is the most
widely used syst em of its t ype in the U.S., and the world.

How It Works...

The Alpha Communications®/Norc on T TU system permits hands­free, 2- way communicat ion between the booth at tendant and t he
cust omer. Vox c ircuitry fac ilitates ongoing, clear, 2­way c onversat ion at all times - as if t he two parties were together
in the same room.

The TT U-1 T alk Thru Communic at or now incorporates circuity to
automatically attenuate the outside c hannel. If the goosenec k
mic rophone is not used for a period of 30 sec onds, the out side
channel will be reduced approximately 70%. Normal operation is
restored as soon as t he at tendant speaks into the gooseneck
mic rophone. The automatic volume at tenuation circuit prevents
outside noise from bothering the attendant.

The TT U-1 provides c lear communicat ion even in environments
with high ambient noise by shaping the sound for maximum
intelligibility. Its compression c ircuitry dec reases loud, annoying
sounds.

How To Install...

Installation of the TTU-1 is a very simple, one- person operation.
All that's needed is a 3 to 4 inch round cutout in the barrier. Four
fasteners and two rubber gaskets needed for mounting
are supplied. Please spec ify barrier thickness when ordering.

The front face and housing are easily mounted on opposite
sides of t he barrier using the fasteners supplied. T he rubber
gaskets prevent slippage and protec t the barrier surface. The
elect ronic sec tion is then inserted into the housing and fastened in
place.

Note c hoice of c ontinuous-duty, 117-Volt AC power
supply stepped down to 12 Volts (T TU- 1A-X series), or
rechargeable nickel cadmium batt ery operation (TTU-1D-X series).

FeaturesFeatures

Mechanical SpecificationsMechanical Specifications

Outside Face
Plate:

Solid aluminum, anodized finish,
tamperresistant

Control Housing
(Inside):

Machined aluminum, anodized
finish, tamper-resistant

Dimensions:

Outside fac e plate - 5.00" dia x

0.50"D Inside control housing - 5.00"
diamet er x 3.50"D Microphone and
gooseneck 18 in.

Weight: 4.50 lbs. (model# TTU-1A-X)

Mounting:

Partition hole 3 to 4 in. dia. (3.50"
recommended) Please specify barrier
thickness when ordering

Panel Controls:

Listen volume, talk, volume, on-off switc h,
charger soc ket (on battery unit)

Electrical Specifications (Booth Unit)Electrical Specifications (Booth Unit)

Audio Frequency
Response:

Select ively shaped for maximum
voice intelligibility

Audio Power: 2 watts per amplifier

Distortion: Less than 2%

Listen Mode: 20 dB c ompression

Talk Mode: Vox

Microphones:

Electret (inside goosenec k mic . is 18.0"
long). Optional 8.0" or 24.0" models avail.,
at extra cost. Please specify when
ordering!

Power Supply:

Input: 120 VAC, 60 Hz, Output: 15 VDC,
175mA

Useful time (on
battery unit):

10 to 12 hours per charge

Charge time
(battery unit):

5 hours for full charge. Unit c an be used
while charging

8 Available Models8 Available Models

1. TTU-1A-X Complete for continuous-duty operation. 117 VAC
power supply stepped down to 12 Volts

2. TTU-1AB-X Same as T TU-1A-X but with bullet- resistant
option*

42 Central Drive • Farmingdale • NY • 11735-1202 • Phone: [phone] • Fax: [phone] Central Drive • Farmingdale • NY • 11735-1202 • Phone: [phone] • Fax: [phone]

TOLL-FREE: [phone] • Web: AlphaCommunications.com • Email: [e-mail]-FREE: [phone] • Web: AlphaCommunications.com • Email: [e-mail]

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Talk-Thru™ is a registered trademark of Norcon Communication s Inc.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Clear, 2-way hands-free voice communication.
Avoids shouting, repetition, misunderstanding.
Rugged, tamper-resistant materials.
Quality elect ronic design and engineering
Simple, one- person installation.
Self-powered with rechargeable battery option.
Fast plug-in recharge.
Bullet-resistant option.*
Export models available.
Units available for ADA applicat ions.
Made in U.S.A.

3. TTU-1AC Same as TTU-1A-X but without goosenec k
mic rophone. Headset sold separately

4. TTU-1AC-X Same as TT U-1A- X but without goosenec k
mic rophone. Headset and C99-X goosenec k mic rophone sold
separately

5. TTU-1D-X Complete for 12VDC operation. Batt ery pac k and
built- in charger included.

6. TTU-1DB-X Same as TT U-1D-X but with bullet-resistant
option*

Talk-T hru systems are shipped complete with mounting hardware,
instructions, and power supply (AC operated unit), or c harger
(batt ery operated unit).

* Bullet-resistant shield rated up to Level 2. Higher level
bullet resistant shields available (call for pricing /
availability).
