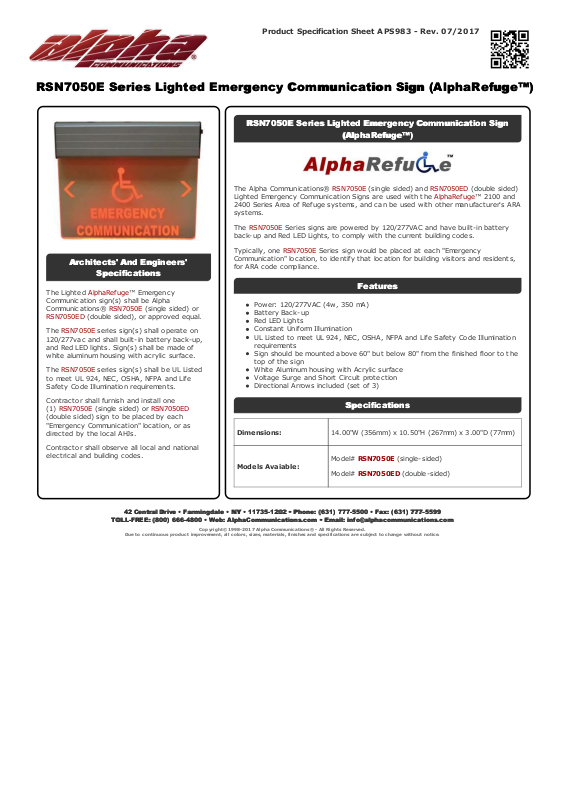

Product Specification Sheet APS983 - Rev. 07/2017

RSN7050E Series Lighted Emergency Communication Sign (AlphaRefuge™)RSN7050E Series Lighted Emergency Communication Sign (AlphaRefuge™)

42 Central Drive • Farmingdale • NY • 11735-1202 • Phone: [phone] • Fax: [phone] Central Drive • Farmingdale • NY • 11735-1202 • Phone: [phone] • Fax: [phone]

TOLL-FREE: [phone] • Web: AlphaCommunications.com • Email: [e-mail]-FREE: [phone] • Web: AlphaCommunications.com • Email: [e-mail]

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Architects' And Engineers'Architects' And Engineers'

SpecificationsSpecifications

The Lighted AlphaRefuge™ Emergency
Communication sign(s) shall be Alpha
Communications® RSN7050E (single sided) or

RSN7050ED (double sided), or approved equal.

The RSN7050E series sign(s) shall operate on
120/277vac and shall built- in battery back-up,
and Red LED lights. Sign(s) shall be made of
white aluminum housing with ac rylic surfac e.

The RSN7050E series sign(s) shall be UL Listed
to meet UL 924, NEC, OSHA, NFPA and Life
Safet y Code Illumination requirements.

Contractor shall furnish and install one
(1) RSN7050E (single sided) or RSN7050ED
(double sided) sign to be plac ed by each
"Emergency Communic at ion" location, or as
directed by the local AHJs.

Contractor shall observe all local and national
elect rical and building codes.

RSN7050E Series Lighted Emergency Communication SignRSN7050E Series Lighted Emergency Communication Sign

(AlphaRefuge™)(AlphaRefuge™)

The Alpha Communications® RSN7050E (single sided) and RSN7050ED (double sided)
Lighted Emergency Communication Signs are used with the AlphaRefuge™ 2100 and
2400 Series Area of Refuge systems, and c an be used with other manufac turer's ARA
systems.

The RSN7050E Series signs are powered by 120/277VAC and have built-in battery
back-up and Red LED Lights, to comply with the current building codes.

Typic ally, one RSN7050E Series sign would be placed at eac h "Emergency
Communication" location, t o identify that locat ion for building visitors and residents,
for ARA code compliance.

FeaturesFeatures

Power: 120/277VAC (4w, 350 mA)
Battery Back-up
Red LED Lights
Constant Uniform Illumination
UL Listed to meet UL 924, NEC, OSHA, NFPA and Life Safety Code Illumination
requirements
Sign should be mounted above 60" but below 80" from the finished floor to the
top of the sign
White Aluminum housing with Acrylic surface
Voltage Surge and Short Circuit protec tion
Directional Arrows included (set of 3)

SpecificationsSpecifications

Dimensions: 14.00"W (356mm) x 10.50"H (267mm) x 3.00"D (77mm)

Models Avaiable:

Model# RSN7050E (single-sided)

Model# RSN7050ED (double-sided)
