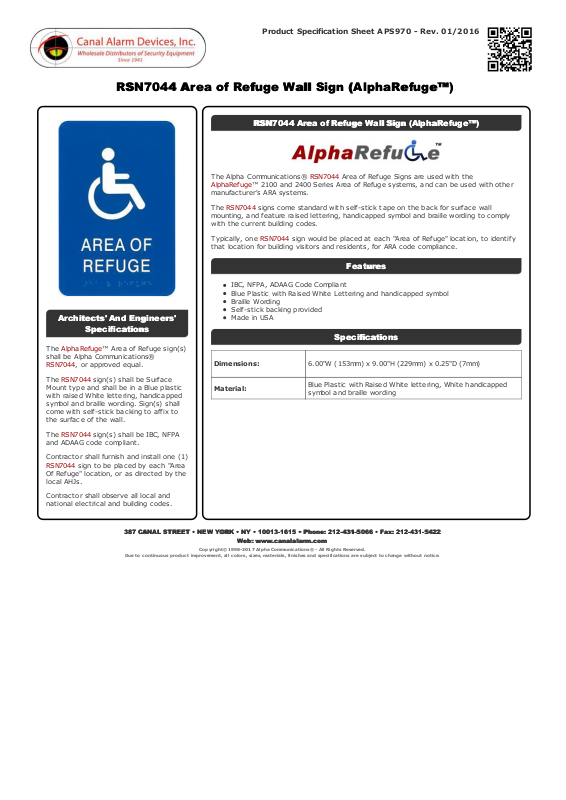

Alpha RSN7044 Specsheet

Product Specification Sheet APS970 - Rev. 01/2016

RSN7044 Area of Refuge Wall Sign (AlphaRefuge™)RSN7044 Area of Refuge Wall Sign (AlphaRefuge™)

387 CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone] CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone]

Web: www.canalalarm.comWeb: www.canalalarm.com

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Architects' And Engineers'Architects' And Engineers'

SpecificationsSpecifications

The AlphaRefuge™ Area of Refuge sign(s)
shall be Alpha Communicat ions®

RSN7044, or approved equal.

The RSN7044 sign(s) shall be Surface
Mount type and shall be in a Blue plastic
with raised White lettering, handicapped
symbol and braille wording. Sign(s) shall
come with self-st ick bac king to affix to
the surface of t he wall.

The RSN7044 sign(s) shall be IBC, NFPA
and ADAAG code compliant.

Contractor shall furnish and install one (1)

RSN7044 sign to be placed by eac h "Area

Of Refuge" location, or as directed by the
local AHJs.

Contractor shall observe all local and
national elect rical and building codes.

RSN7044 Area of Refuge Wall Sign (AlphaRefuge™)RSN7044 Area of Refuge Wall Sign (AlphaRefuge™)

The Alpha Communicat ions® RSN7044 Area of Refuge Signs are used with t he

AlphaRefuge™ 2100 and 2400 Series Area of Refuge syst ems, and can be used with other

manufact urer's ARA syst ems.

The RSN7044 signs come standard with self-stic k tape on the back for surfac e wall
mounting, and feat ure raised lettering, handicapped symbol and braille wording to comply
with the current building codes.

Typic ally, one RSN7044 sign would be placed at eac h "Area of Refuge" location, to identify
that location for building visitors and residents, for ARA code c ompliance.

FeaturesFeatures

IBC, NFPA, ADAAG Code Compliant
Blue Plastic with Raised White Lettering and handicapped symbol
Braille Wording
Self-stick backing provided
Made in USA

SpecificationsSpecifications

Dimensions: 6.00"W (153mm) x 9.00"H (229mm) x 0.25"D (7mm)

Material:

Blue Plastic with Raised White lettering, White handicapped
symbol and braille wording
