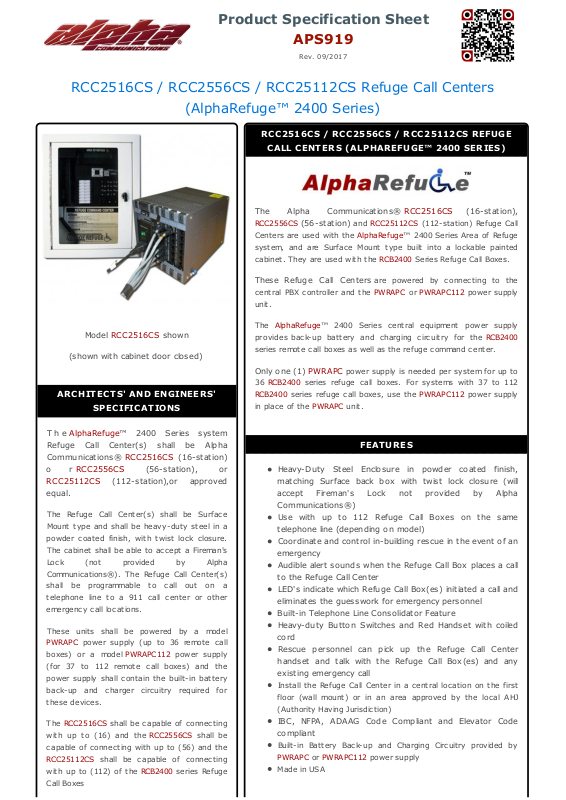

Alpha RCC2596CS Specsheet

RCC2516CS / RCC2556CS / RCC25112CS Refuge Call Centers

(AlphaRefuge™ 2400 Series)

Product Specification Sheet

APS919

Rev. 09/2017

Model RCC2516CS shown

(shown with cabinet door closed)

AR C HITECTS' AND ENG INE ERS'

SPECIFICAT IONS

T h e AlphaRefuge™ 2400 Series system
Refuge Call Center(s) shall be Alpha
Communications ® RCC2516CS (16-station)
o r RCC2556CS (56-s tation), or

RCC25112CS (112-station),or approved

equal.

The Refuge Call Center(s) shall be Surface
Mount type and shall be heavy- duty steel in a
powder coated finish, with twist lock c losure.
The cabinet shall be able t o acc ept a Fireman's
Lock (not provided by Alpha
Communications®). The Refuge Call Center(s)
shall be programmable to call out on a
telephone line to a 911 call c enter or other
emergency c all locat ions.

These units shall be powered by a model

PWRAPC power supply (up to 36 remote call

boxes) or a model PWRAPC112 power supply
(for 37 to 112 remote call boxes) and the
power supply shall contain the built- in batt ery
back-up and charger c ircuitry required for
these devices.

The RCC2516CS shall be capable of connec ting
with up to (16) and the RCC2556CS shall be
capable of connec ting with up to (56) and the

RCC25112CS shall be capable of c onnecting

with up to (112) of the RCB2400 series Refuge
Call Boxes

RCC2516C S / R C C2556CS / R C C 25112C S REFU GE

CALL CENT ERS (ALPHAREFUGE™ 2400 SERIES)

The Alpha Communications® RCC2516CS (16-station),

RCC2556CS (56-station) and RCC25112CS (112-stat ion) Refuge Call

Centers are used with the AlphaRefuge™ 2400 Series Area of Refuge
system, and are Surface Mount type built into a lockable painted
cabinet. They are used with the RCB2400 Series Refuge Call Boxes.

These Refuge Call Centers are powered by c onnecting to t he

central PBX c ontroller and the PWRAPC or PWRAPC112 power supply
unit.

The AlphaRefuge™ 2400 Series central equipment power supply
prov ides bac k-up battery and charging circuitry for the RCB2400
series remote c all boxes as well as t he refuge c ommand center.

Only one (1) PWRAPC power supply is needed per system for up t o

3 6 RCB2400 series refuge call boxes. For systems with 37 to 112

RCB2400 series refuge call boxes, use t he PWRAPC112 power supply

in place of the PWRAPC unit.

FEAT U R ES

Heavy-Duty Steel Enclosure in powder coated finish,
matching Surface back box with twist lock closure (will
accept Fireman's Lock not provided by Alpha
Communications®)
Use with up to 112 Refuge Call Boxes on the same
telephone line (depending on model)
Coordinate and control in-building rescue in the event of an
emergency
Audible alert sounds when the Refuge Call Box places a call
to the Refuge Call Center
LED's indicate which Refuge Call Box(es) initiated a call and
eliminates the guesswork for emergency personnel
Built-in Telephone Line Consolidator Feature
Heavy-duty Button Switches and Red Handset with coiled
cord
Rescue personnel can pick up the Refuge Call Center
handset and talk with the Refuge Call Box (es) and any
existing emergency call

Install the Refuge Call Center in a c entral locat ion on t he first
floor (wall mount) or in an area approved by the loc al AHJ
(Authority Having Jurisdiction)

IBC, NFPA, ADAAG Code Compliant and Elevator Code
compliant

Built -in Bat tery Back- up and Charging Circuitry provided by

PWRAPC or PWRAPC112 power supply

Made in USA

The Refuge Call Center(s), shall be IBC, NFPA
and ADAAG code c ompliant, and shall also be
Elevator Code c ompliant.

Contract or shall observe all local and national
elect rical and building c odes.

SPECIFICAT IONS

RCC2516CS

Dimensions:

O.D. 14.73"W (375mm) x 11.87"H

(302mm) x 6.125"D (156mm) tot al depth
with handset inside

RCC2556CS

RCC25112CS

Dimensions:

O.D. 25.00"W (635mm) x 21.11"H

(537mm) x 5.125"D (131mm) tot al depth
with handset inside

Surface Enclosure: Matching Painted Steel
